FAAC LA412 User Manual

12 VOLT DC SINGLE

■

SOLAR RESIDENTIAL GATE OPERATOR

Models LA412 and LA412-S

For Residential Use Only

The Chamberlain Group, Inc. 845 Larch Avenue Elmhurst, Illinois 60126-1196

www.liftmaster.com

Owner’s Manual

2 YEAR WARRANTY

Please read this manual and the enclosed safety materials carefully! Periodic checks of the operator by a qualified technician are required to ensure

safe operation.

The model number label is located inside the control box of your operator.

■ Serial #

■ Installation Date

INTRODUCTION

BACK TEMPLATE FOR POST BRACKET MOUNTING

Safety Symbol and Signal Word Review

This gate operator has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual.

When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of serious injury or death if you do not comply with the

Mechanical

Electrical

warnings that accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your gate and/or the gate operator if you do not comply with the cautionary statements that accompany it. Read them carefully.

IMPORTANT NOTE

• BEFORE attempting to install, operate or maintain the operator, you must read and fully understand this manual and follow all safety instructions.

• DO NOT attempt repair or service of your commercial

Introduction 2

door and gate operator unless you are an Authorized Service Technician.

Operator Dimensions and Specifications

Main Supply 12Vdc Battery run. Operational between 11.5Vdc and 14.5Vdc. Accessory Power 12V nominal Class II battery voltage source is limited to:

• Solar or AC Cable up to 50' - 500 mA

• AC Cable 50' up to 250' - 250mA

• AC Cable 250' up to 1000' - 100mA NOTE: Increased accessory power drawn from the operator will shorten the

battery life.

Battery Charger Supply (Optional) 14.5Vac nominal, 30 VA max. Maximum Gate Length and Weight 16 ft. at 550 lbs. Temperature -20°C to +50°C (-4°F to 122°F) Protection Fuse Battery 1 ATC 20A Protection Fuse Battery 2 ATC 20A Solar 12V at 30 watts max.

4.50"

(11.2 cm)

4.00"

(10.2 cm)

Weight: 47 lbs. (21 kg)

.250"

(0.635 cm)

14" (35.6 cm)

(95.0 cm)

10" (25.4 cm)

36.3"

(92.1 cm)

.475" DIA.

(1.2 cm DIA.)

37.4"

6" (15.2 cm)

53.5"

(136.0 cm)

3 Introduction

SAFETY INSTALLATION INFORMATION

1. READ and FOLLOW all instructions.

2. The gate operator is intended for use with Class I vehicular swing gates.

Class I denotes a vehicular gate operator (or system)

intended for use in a home of one to four single family dwellings, or a garage or parking area associated therewith.

Install the gate operator only when the operator is

appropriate for the construction and the usage class of the gate.

3. Gate operating system designers, installers and users must take into account the possible hazards associated with each individual application. Improperly designed, installed or maintained systems can create risks for the user as well as the bystander. Gate system design and installation must reduce public exposure to potential hazards. Install the gate operator only when the operator is appropriate for the construction of the gate and the usage class of the gate. All exposed pinch points must be eliminated or guarded.

4. A gate operator can create high levels of force during normal operation. Therefore, safety features must be incorporated into every installation. Speciﬁ c safety features include safety sensors.

5. The gate must be properly installed and work freely in both directions prior to the installation of the gate operator.

6. The gate must be installed in a location so that enough clearance is provided between the gate and adjacent structures when opening and closing to reduce the risk of entrapment. Swinging gates shall not open into public access areas.

7. The operator is intended for use only on gates used for vehicles. Pedestrians must be supplied with a separate access opening. The pedestrian access opening shall be designed to promote pedestrian usage. The pedestrian access shall be located such that persons will not come in contact with the moving vehicular gate.

8. Pedestrians should never cross the pathway of a moving gate. The gate operator is not acceptable for use on any pedestrian gate. Pedestrians must be supplied with a separate pedestrian access.

9. For an installation utilizing non-contact sensors (safety sensors), see product manual on the placement of non-contact sensors (safety sensors) for each type of application.

a. Care shall be exercised to reduce the risk of

nuisance tripping, such as when a vehicle trips the safety sensor while the gate is still moving.

b. One or more non-contact sensors (safety sensors)

shall be located where the risk of entrapment or obstruction exists, such as the perimeter reachable by a moving gate or barrier.

10. For a gate operator utilizing a contact sensor such as

an edge sensor:

a. A hard wired contact sensor shall be located and

its wiring arranged so the communication between the sensor and the gate operator is not subject to mechanical damage.

b. One or more contact sensors shall be located on

the inside and outside leading edge of a swing gate. Additionally, if the bottom edge of a swing gate is greater than 6" (152 mm) above the ground at any point in its arc of travel, one or more contact sensors shall be located on the bottom edge.

11. Never mount any device that operates the gate

operator where the user can reach over, under, around or through the gate to operate the controls. Controls are to be placed at least 6' (1.8 m) from any part of the moving gate:

• A hard wired control device shall be located and its

wiring arranged so that communication between the control device and the gate operator is not subject to mechanical damage.

Introduction 4

12. Controls intended to be used to reset an operator after

2 sequential activations of the entrapment protection device or devices must be located in the line of sight of the gate, or easily accessible controls shall have a security feature to prevent unauthorized use. Never allow anyone to hang on or ride the gate during the entire travel of the gate.

13. Each gate operator is provided with two safety warning placards. The placards are to be installed on the front and back of the gate where they are plainly visible. The placards may be mounted using cable ties through the four holes provided on each placard.

All warning signs and placards must be installed

where visible in the area of the gate.

14. To AVOID damaging gas, power, or other underground utility lines, contact underground utility locating companies BEFORE digging.

15. SAVE THE INSTRUCTIONS.

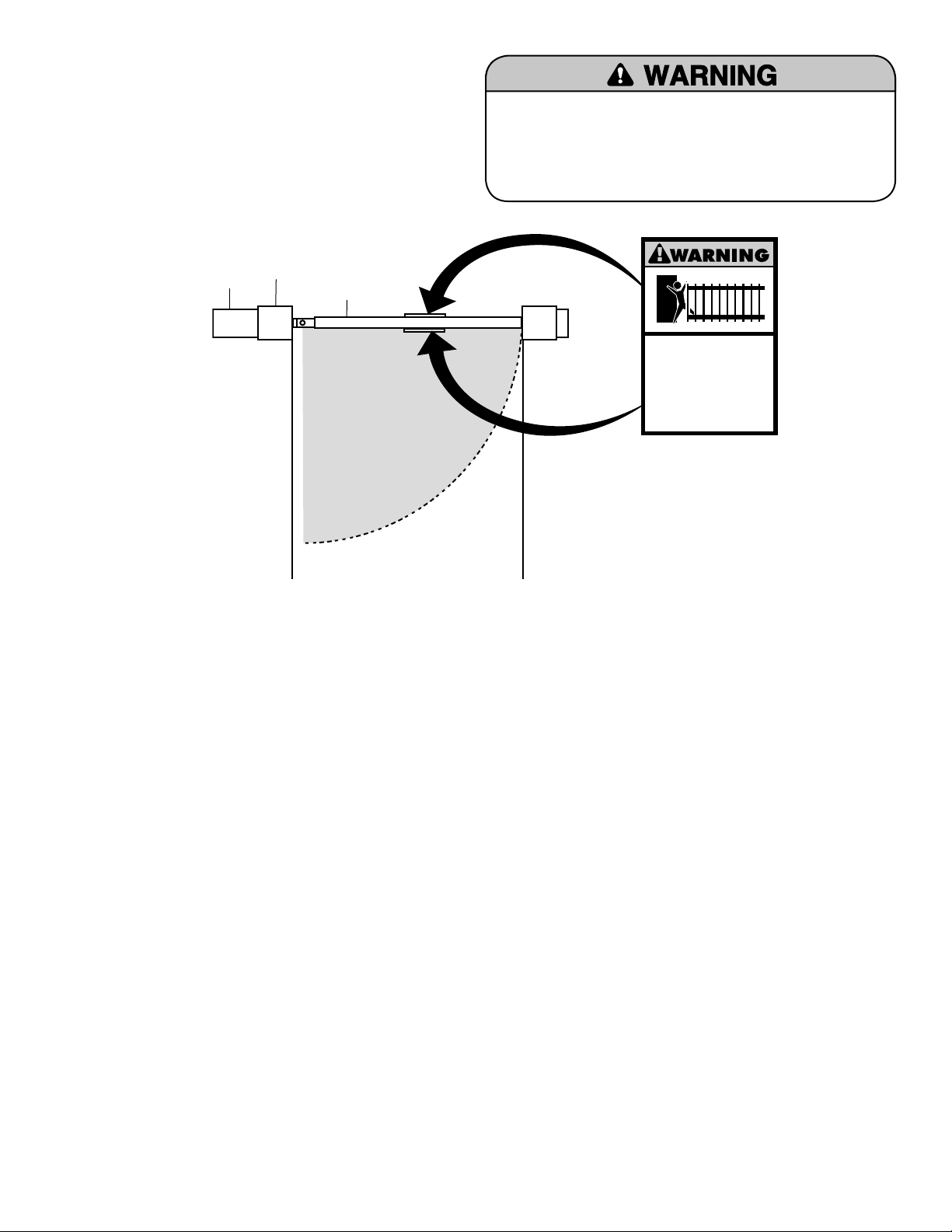

To prevent SERIOUS INJURY or DEATH from a moving gate:

• Install warning signs on the front and back of the gate in PLAIN VIEW.

• Permanently secure each warning sign in a suitable manner

using fastening holes.

Moving Gate Can Cause

Injury or Death

KEEP CLEAR! Gate may move at any time without prior warning.

Do not let children operate the gate or play in the gate area.

This entrance is for vehicles only. Pedestrians must use separate entrance

5 Introduction

Carton Inventory

This operator comes with the hardware to install on a gate that pulls-to-open. If your application requires the gate to be pushed open, accessory kit 50-19503 is required.

Extension Bracket Model LA412 (1) Model LA412-S (2)

Cable Ties (4)

Gate Operator Model LA412 (1) Model LA412-S (2)

Gate Bracket Model LA412 (1) Model LA412-S (2)

Control Box (1) with 2 Batteries

Post Bracket Model LA412 (1) Model LA412-S (2)

Moving Gate Can Cause

Injury or Death

KEEP CLEAR! Gate may move at any time without prior warning.

Do not let children operate the gate or play in the gate area.

This entrance is for vehicles only Pedestrians must use separate entrance

Warning Signs (2)

Wire Nuts (6) Model LA412 ONLY

Extension Cable Model LA412-S ONLY

Hardware Inventory

NOTE: Hardware quantities shown below are for LA412. Quantities are doubled for LA412-S.

12V 10W Solar Panel Model SOLPNL10W12V (1)

Watertight Connector Model LA412-S ONLY (2)

Junction Box Model LA412-S ONLY

Key (2)

Hex Nut 5/16"-18 (1)

Hex Nut 3/8"-16 (3)

Hex Bolt 5/16"-18 x 1-1/2 (1)

Flat Washer 5/16" (1)

Lock Washer 5/16" (1)

Lock Washer 3/8" (3)

Hex Bolt 3/8"-16 x 1-1/2" (1)

Cap

Flat Washer 3/8" (3)

Pin (2)

Hairpin Clip (2)

Carriage Bolt 3/8" x 5-15/16" (2)

Introduction 6

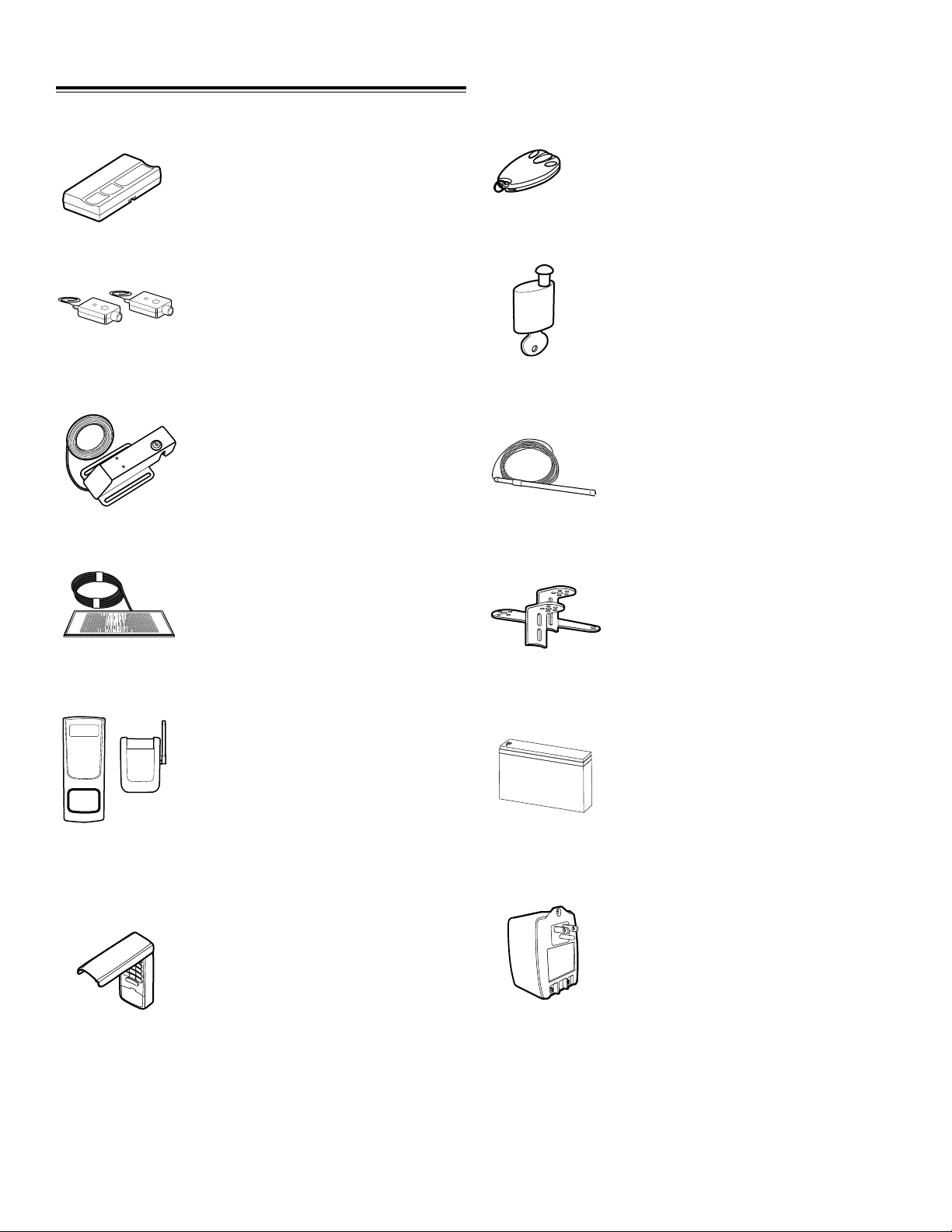

Additional Items For Purchase

The following items are REQUIRED to complete the installation:

ALL MODELS: LA412-S ONLY:

SAFETY SENSORS

The Model 50-220 safety sensors are intended for installation with the operators covered in this manual. To order call 1-800-528-2806 or visit www.liftmaster.com.

HARDWARE

• 5/16" mounting hardware for gate bracket.

• The following hardware is needed to mount the control box depending on the mounting surface:

Wood: Four #8 1-1/4" zinc plated wood screws. Metal: Four #10-32x6" zinc plated machine screws with

nut and lock washers.

Concrete, Brick, etc.: Four 1/4" x 1-3/4" masonry

screws.

CONDUIT

UL Listed outdoor electrical conduit with 3/4" diameter to hold the extension cable between the junction box and the control box.

Tools Needed

During assembly, installation and adjustment of the operator, instructions will call for tools as illustrated below.

Deep Well Sockets and Wrench 1/2", 5/8", 7/16", 9/16" and 1/4"

Carpenter's Level

Screwdriver

Drill

Adjustable End Wrench

Hammer

Drill Bits 1/2", 3/16", 5/16" and 5/32"

Phillips Head Screwdriver

2

1

Tape Measure

Clamps

Soldadura (Opcional)

Pencil

Wire Cutters (Optional)Wire Strippers (Optional)

7 Introduction

Mov

ing Gate Can Cause Injury or De

ath

KEEP CL

EAR!

Gate may move at an

y

time

wi

tho

ut

prior

war

n

in

g.

Do not let ch

i

ldr

en op

er

ate t

h

e ga

te or

play in

th

e gate

area.

This

ent

r

ance is for

vehicl

es

o

nly

Pedestrians

mu

st use sep

arate en

trance

12 gauge wire

8 ft. (2.4 m)

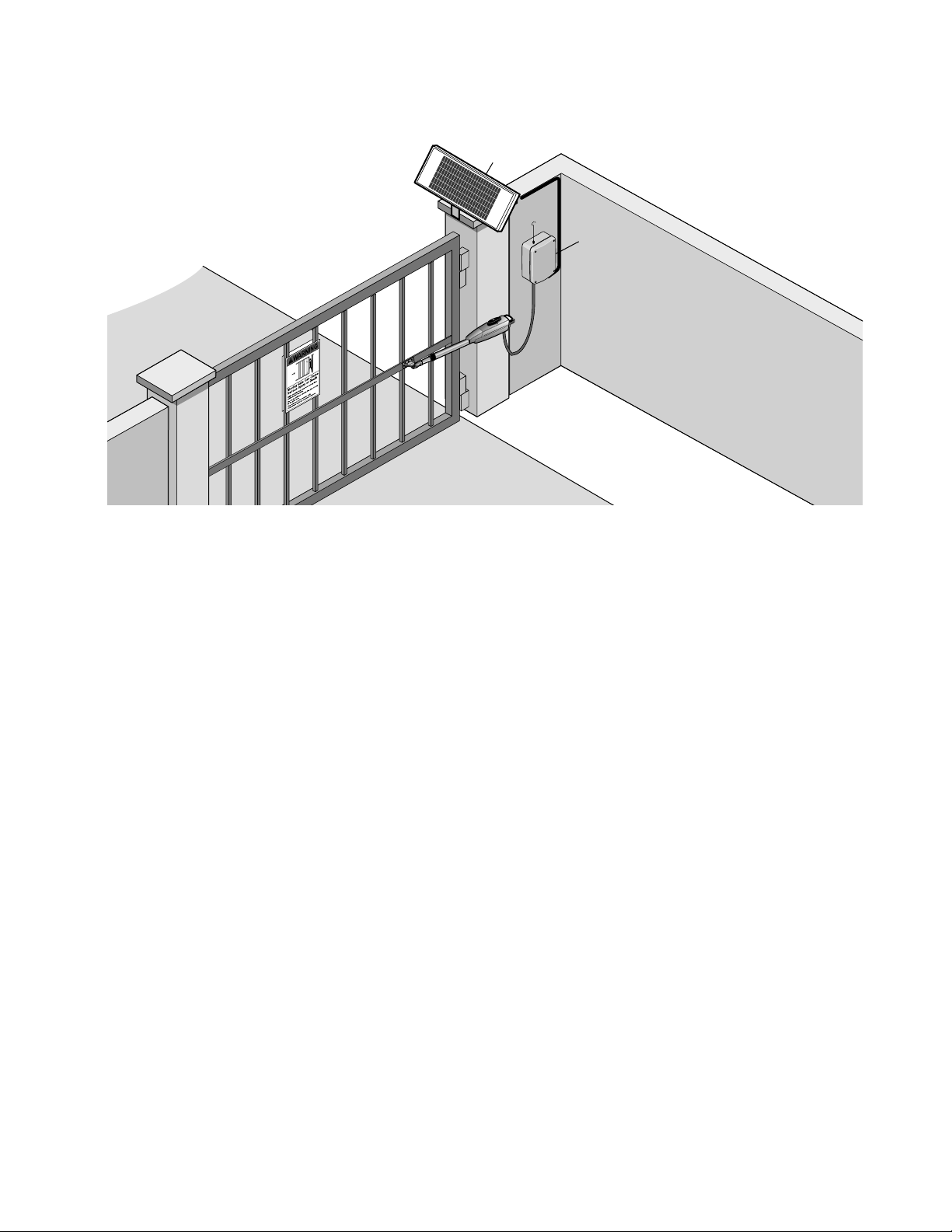

OVERVIEW OF TYPICAL INSTALLATION

Outside Property

Inside Property

Direction of

Gate ravel

T

12 gauge wire

8 ft. (2.4 m)

LEFT-HAND GATE

Warning Sign

To prevent SERIOUS INJURY or DEATH; one or more non-contact sensors shall be located where the risk of entrapment or obstruction exists.

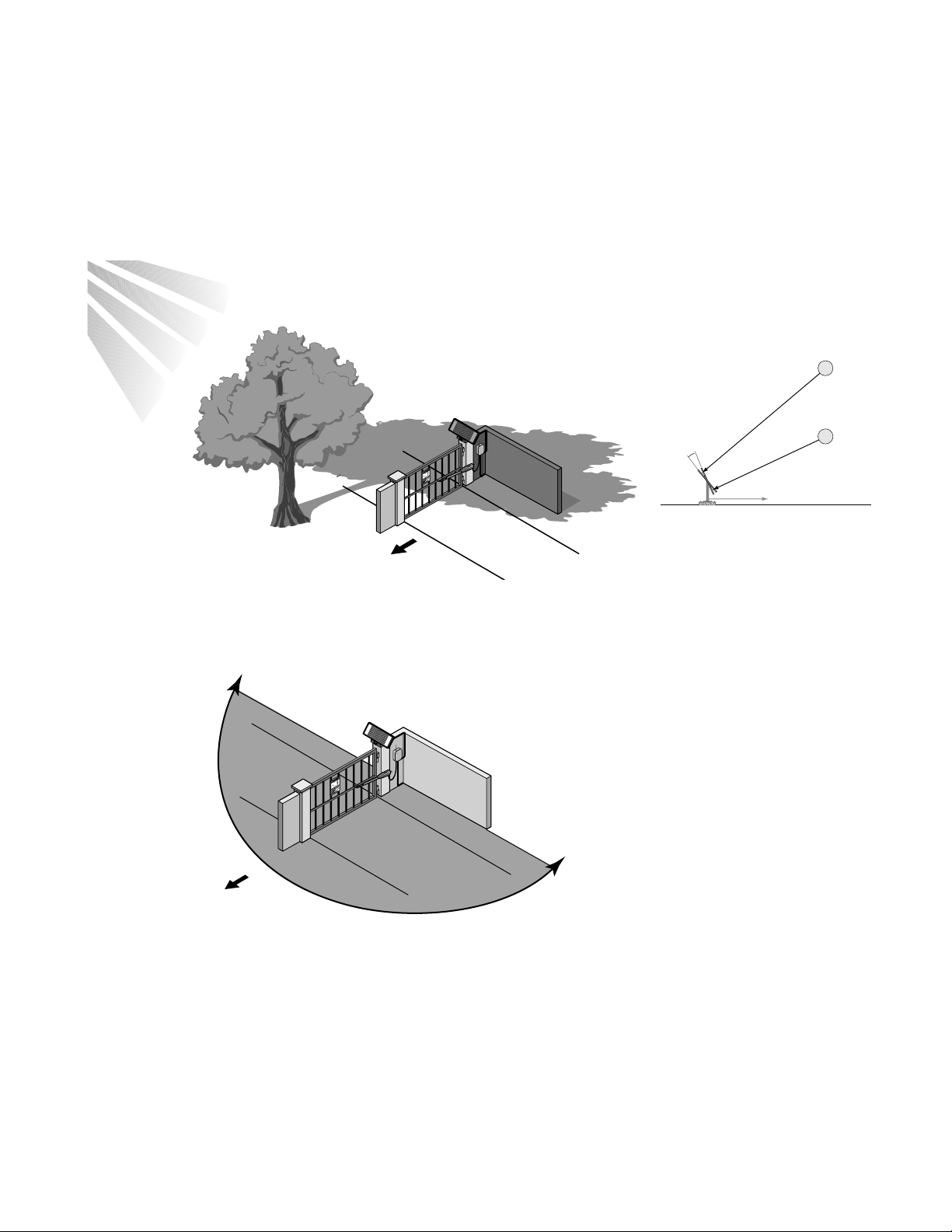

Solar Panel

(Facing South)

PVC Conduit (not provided) to protect the power cable for solar and low voltage wire from lawn mowers and string trimmers.

Earth Ground Installation (Optional)

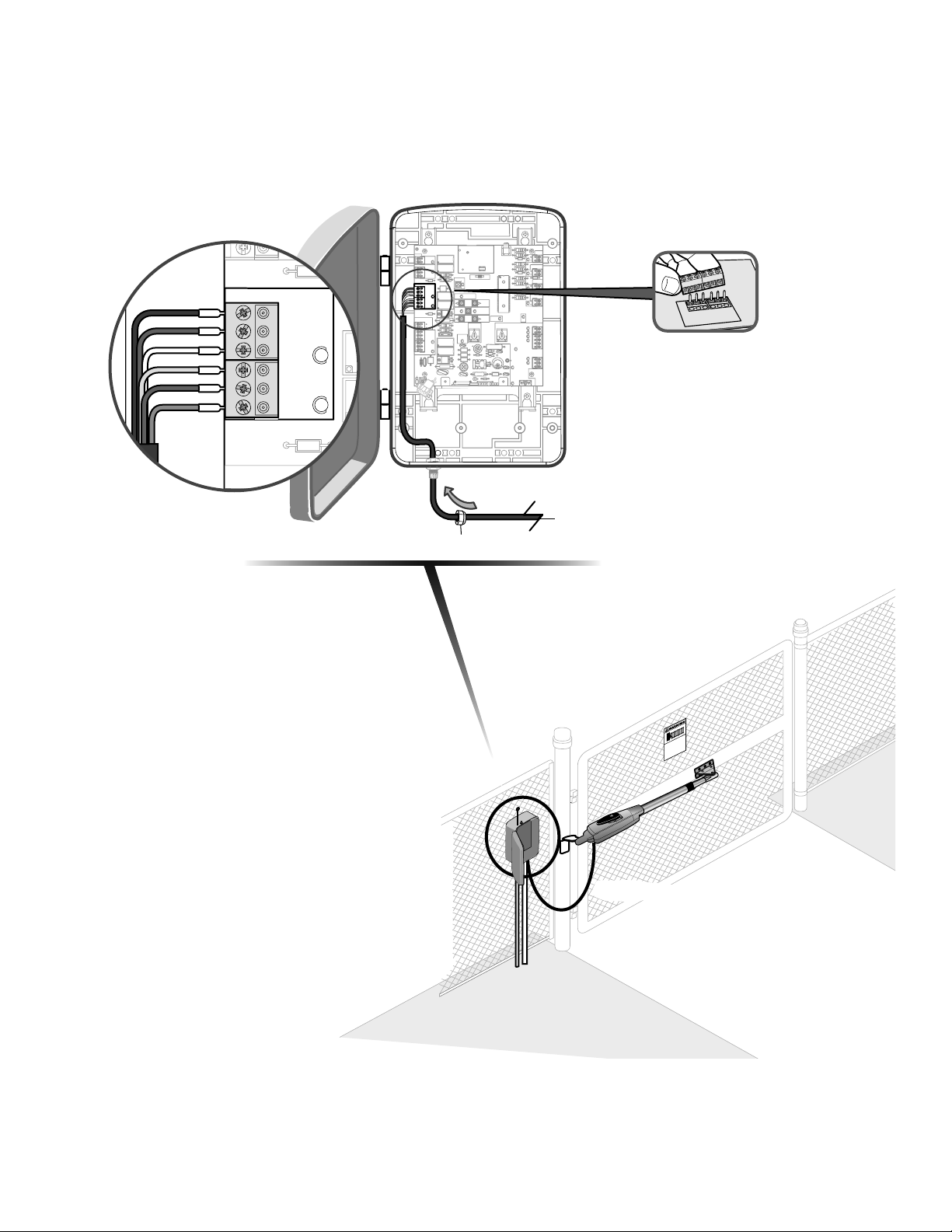

Control Box with Batteries

Antenna

Hinge

Post Bracket

Operator Cable

Operator

Safety

Sensors

Gate Bracket

NOTE: One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists at either the opening or closing direction. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate is still moving.

Preparation and Overview 8

Gate Bracket

Safety Sensors

Warning Sign

Post Bracket

Operator

Operator Cable

Hinge

Antenna

Solar Panel

(Facing South)

Control Box with Batteries

PVC Conduit (not provided) to protect the power cable for solar and low voltage wire from lawn mowers and string trimmers.

Earth Ground Installation (Optional)

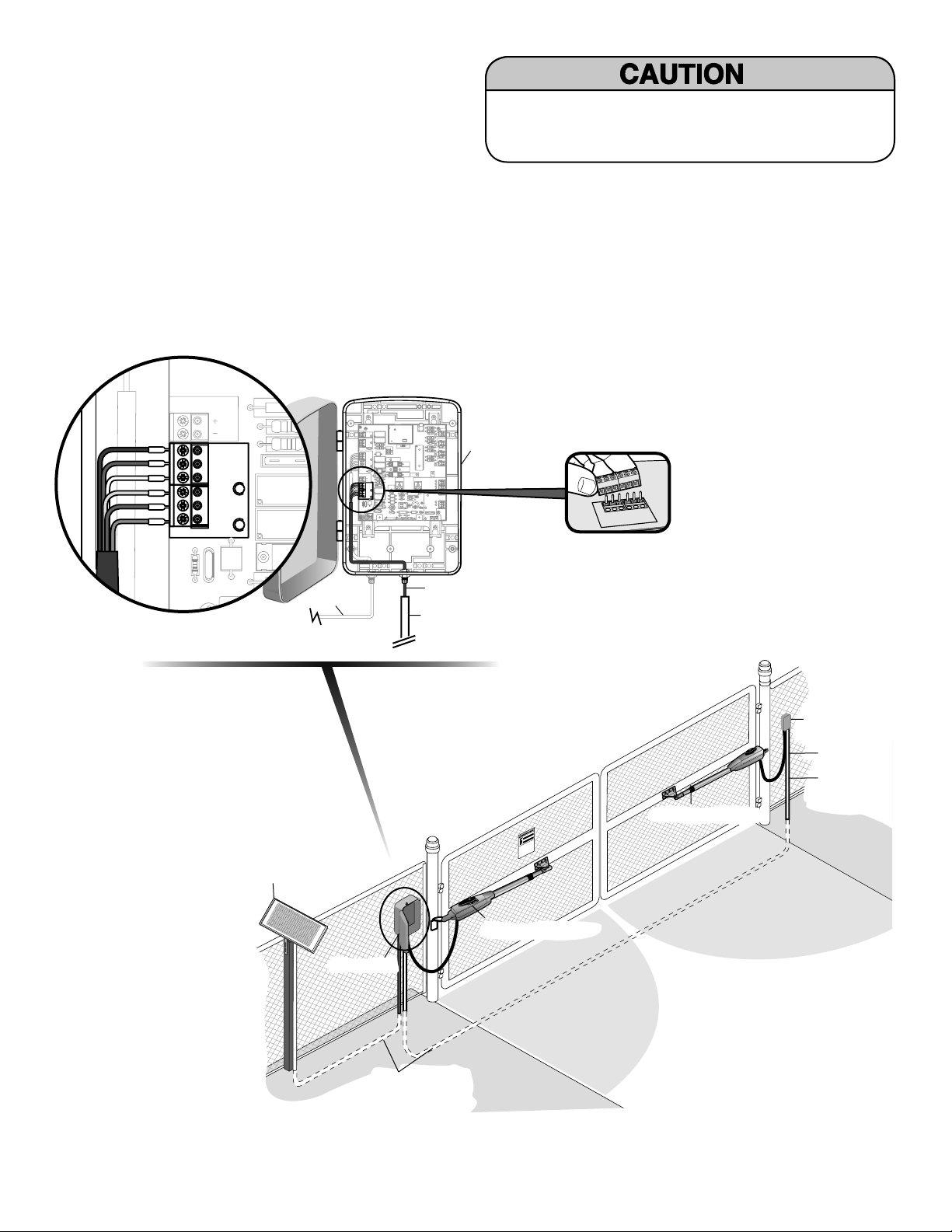

Dual Gate Typical Installation

Outside Property

Warning Sign

Hinge

Solar Panel

(Facing South)

Antenna

Post Bracket

Gate 2

Junction Box

Extension Cable

Safety Sensors

Control Box with Batteries

Operator Cable

PVC Conduit (not provided) to protect the power cable for solar and low voltage wire from lawn mowers and string trimmers.

12 gauge wire

8 ft. (2.4 m)

Gate 1

Earth Ground Installation (Optional)

Gate Bracket

Direction of

Gate ravel

Safety Sensors

Direction of

T

Gate ravel

T

Inside Property

NOTE: One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists at either the opening or closing direction. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate is still moving.

9 Preparation and Overview

Check Your Gate

Gate MUST be level.

be plumb.

Gate and gate post MUST

Remove ANY/ALL wheels from the bottom of gate.

Gate MUST NOT hit or drag across ground.

Gate MUST swing freely and be supported entirely by its hinges.

Preparation and Overview 10

Mounting Options

Mounting locations vary depending on the type and style of your gate.

NOTES:

• The top of the operator must be mounted at least 10 inches above the ground. Environmental conditions should be considered at

this time.

• The operator is not recommended for plastic or vinyl gates. Contact the gate’s manufacturer for recommendations and options.

Recommended:

= Gate post bracket mounting locations

= Gate bracket mount locations

LEFT-HAND HINGE MOUNTED

Typical Chain-Link Gate

Typical Farm/Ranch Gate

RIGHT-HAND HINGE MOUNTED

Typical Chain-Link Gate

Typical Farm/Ranch Gate

Typical Wood Gate Typical Wood Gate

Typical Tubular Metal Gate Typical Tubular Metal Gate

11 Preparation and Overview

INSTALLATION

MANUAL RELEASE

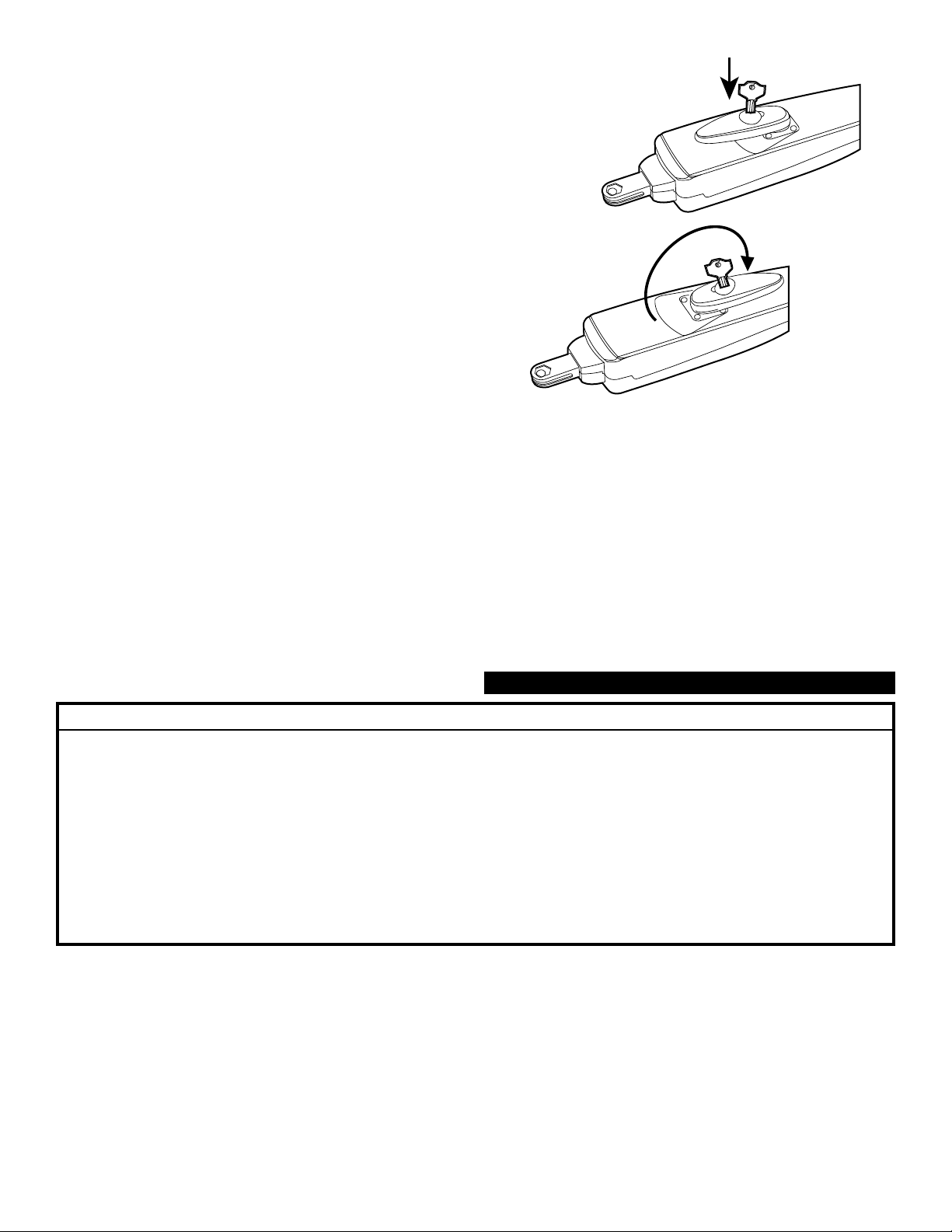

Insert the key into the lock and turn it 180°

1

counterclockwise. Turn the release lever 180° counterclockwise. The operator is now in manual mode.

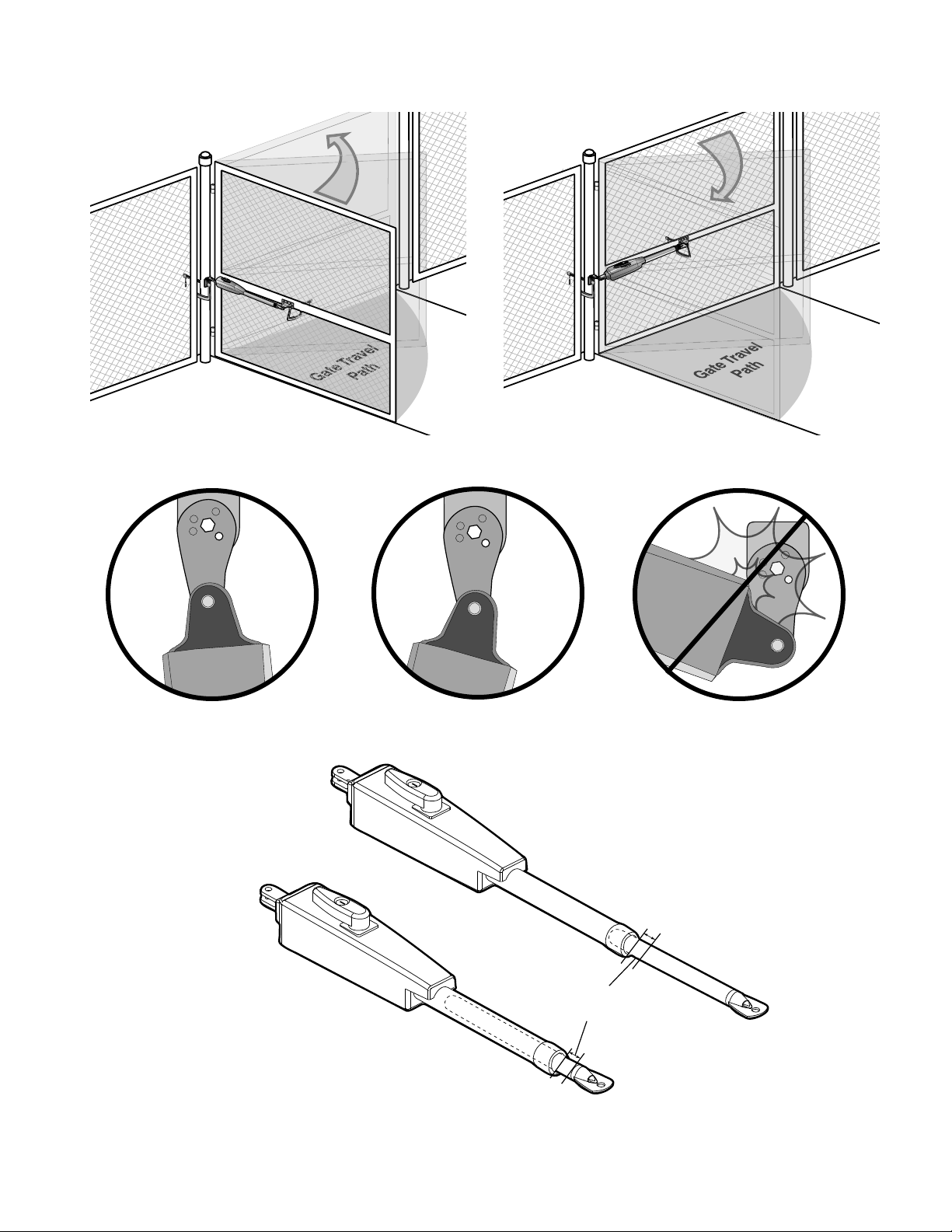

DETERMINE THE POSITION OF THE EXTENSION BRACKET

The extension bracket can be assembled to work on a Left-Hand or a Right-Hand gate. Review the gate types

2

below and select the type of installation required.

NOTE: If the extension bracket is not assembled correctly damage to the operator may result.

Left-Hand Gate Right-Hand Gate

Key

Release Lever

Left-Hand Gate

IMPORTANT NOTE: For Push to Open installation purchase kit 50-19503, see accessories.

Installation 12

Right-Hand Gate

MEASURING AND MARKING FOR THE GATE BRACKET

Before proceeding, begin with the gate in the fully closed position. There are two methods for determining the

3

proper location of the post brackets:

• Paper template (Located on the back page of this manual. Must be cut out.)

• Tape measure. Either method will work depending on preference.

NOTE: Be sure gate is in the closed position before proceeding.

Template Method

Place the template (provided on the back page) under the gate hinge point. Use a screwdriver or dowel rod to temporarily mark the location in front of the gate post.

LEFT SIDE BRACKET MOUNTING

Gate Post

Gate Hinge Point

TOP VIEW

Gate Post

Use a screwdriver or dowel rod to temporarily mark measurement.

RIGHT SIDE BRACKET MOUNTING

Gate Hinge Point

TOP VIEW

Gate Post

Use a screwdriver or dowel rod to temporarily mark measurement.

Tape Measure Method

Place the measuring tape under the gate hinge point and measure 7". Use a screwdriver or dowel rod to temporarily mark the location of the ﬁ rst measurement.

LEFT SIDE BRACKET MOUNTING

Gate Post

Gate Hinge Point

RIGHT SIDE BRACKET MOUNTING

Gate Post

Gate Hinge Point

Gate Post

7"

X

Gate Post

7"

X

Gate Post

Measure 7" from the previous mark.

Gate Post

X

Gate Hinge Point

7"

Gate Hinge Point

Gate Post

7"

X

Use the screwdriver or dowel rod to mark the location of the second measurement.

Gate Post

Gate Hinge Point

First Marking

X

Gate Hinge Point

First Marking

Gate Post

X

13 Installation

POSITION THE EXTENSION BRACKET TO POST BRACKET

Assemble the post bracket by placing the extension bracket on top of post bracket. Insert the bolt through

4

the brackets and fasten them using the washer, lock washer and nut. DO NOT TIGHTEN AT THIS TIME.

LEFT-HAND GATE

Hex Bolt 3/8"

Extension Bracket

Post Bracket

Washer

Lock Washer

Nut

RIGHT-HAND GATE

Extension Bracket

Post Bracket

Lock Washer

NOTE: All the illustrations on the following pages display a typical Left-Hand Gate installation.

ATTACH BRACKETS TO GATE OPERATOR

Attach post bracket and gate bracket to operator using pins and hairpin clips.

5

Hex Bolt 3/8"

Washer

Nut

Post Bracket

Gate Bracket

Hairpin Clip

Installation 14

POSITION GATE OPERATOR ON GATE

The post bracket assembly can be mounted several places on the gate post. Refer to page 11 for mounting options.

6

Place the operator arm against gate post at the desired vertical position and temporarily secure post bracket with a clamp. The gate operator (arm) must be level.

Open the gate to desired open position (no greater than 100°) and hold operator against gate. Mark mounting holes on gate for reference. Temporarily secure the gate bracket using a clamp.

For push to open installations refer to instructions with push to open kit 50-19503.

Hold the post bracket in the desired position. Align the

7

extension bracket to a position as CLOSE AS POSSIBLE above the marker. Insert hex bolt through extension bracket and post bracket and secure with washer, lock washer and nut.

15 Installation

Hex Bolt 3/8"

Washer

Lock Washer

Nut

TEST GATE TRAVEL

Manually open and close the gate.

8

Ensure that the operator does not bind against the pull-to-open bracket.

Ensure that the piston does not bottom out.

1/2" (1.3 cm)

Do not allow piston to fully extend

NOTE: If gate does not open and close completely adjust the position of the gate bracket and mark new mounting holes.

or fully retract.

1/2" (1.3 cm)

Installation 16

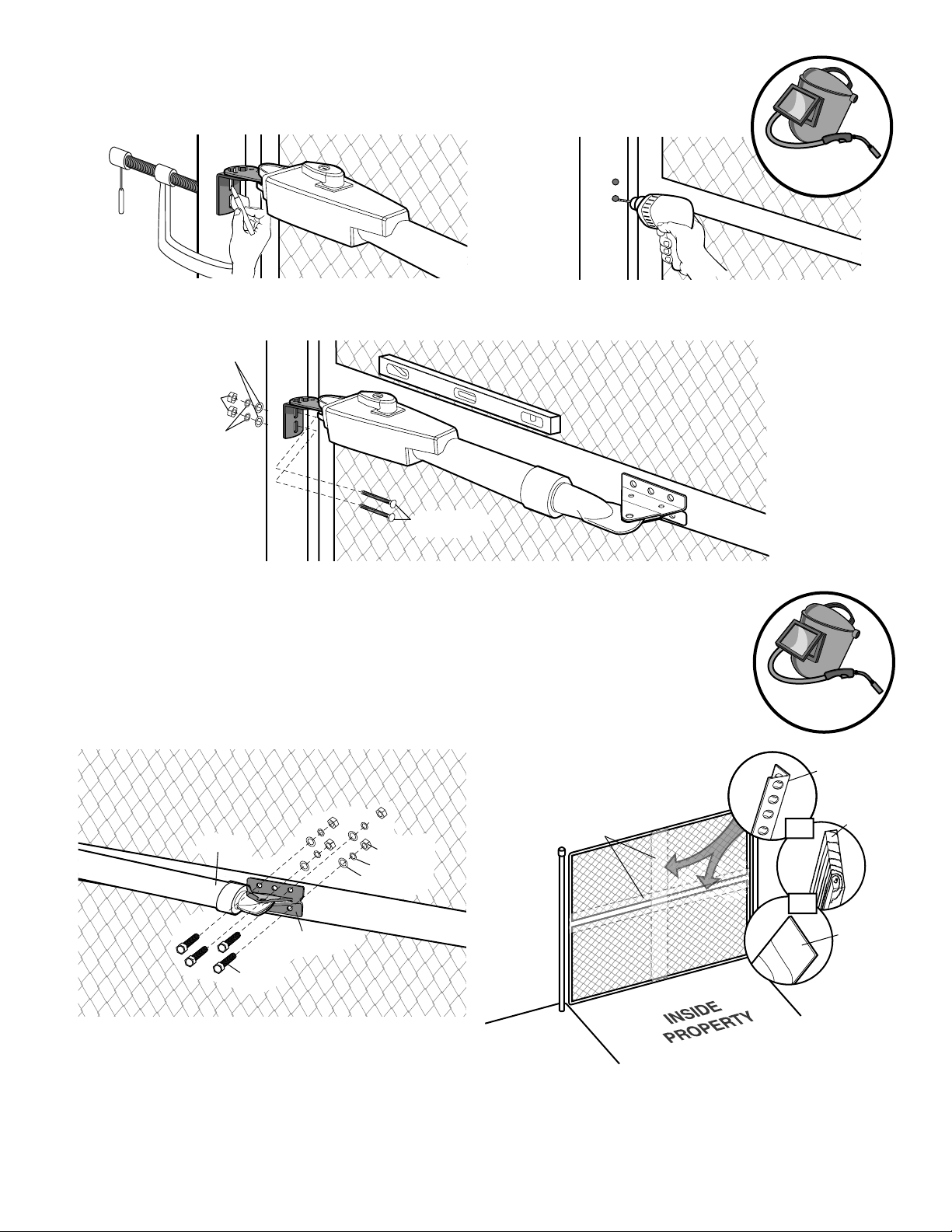

SECURE POST BRACKET TO GATE POST

Mark holes for the post bracket. Remove the clamp and the operator, and set both aside.

9

Next, drill adequate holes in the gate post.

Secure the post bracket to the gate post using hardware. The gate operator (arm) must be level.

Flat Washers

Hex Nuts

Lock Washers

Welder (Optional)

10

Carriage Bolts

SECURE GATE BRACKET TO GATE

Drill holes in gate (or reinforcement, if necessary) that are large enough for the gate bracket mounting hardware. Make sure the gate operator (arm) is level, and then secure the gate operator to the gate using hardware (not provided).

NOTE: Some installations may require additional reinforcement be installed on the gate.

Reinforcement

Arm

Hex Nut

Lock Washer

Flat Washer

Gate Bracket

Area

Welder

(optional)

OR

Angle Iron

Wood

Flat Bar

Hex Bolt

Manually move the gate to verify that it opens and closes fully.

17 Installation

11

WARNING SIGN PLACEMENT

Warning placards sides of the gate and in plain view. Fasten them to the gate with cable ties.

MUST be installed on both

To prevent SERIOUS INJURY or DEATH from a moving gate:

• Install warning signs on the front and back of the gate in PLAIN VIEW.

• Permanently secure each warning sign in a suitable manner using fastening holes.

Fence

Gate Post

Gate

Gate Travel Path

Inside Property

Moving Gate Can Cause

Injury or Death

KEEP CLEAR! Gate may move at any time without prior warning.

Do not let children operate the gate or play in the gate area.

This entrance is for vehicles only Pedestrians must use separate entrance

If installing a 2nd operator, repeat installation steps 1-11 for the second

gate before proceeding to the next page.

Installation 18

13

18

L1

K2

Z22

F2

MOV1

D1

CHGR OVLD

D129

Z4

D2

C11

C13

D16

F9

K1

F3

K3

K4

F1

Z12

GATE 2

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

F7

24V

CTRL OVLD

TIMER

RUNNING

GATE 2

SET OPEN LIMIT

SET

CLOSE

LIMIT

LEARN LIMITS

GATE 1

LEARN XMITTER

LOCK /

OFF

C69

PWR

AC PWR /SOLAR

R329

R27

MOV2

R4

C2

BIPART DELAY

Q9

R9

Ø

F8

C73

C72

C71

C7

Ø

R42

Ø

R423

J24 J23 3

Ø

A 32V

3

Ø

A 32V

J21

30

C64

R22

U2

K6

JU1

JU2

DB1

R184

18

K2

Z22

F2

MOV1

D1

D129

Z4

D2

C11

C13

D16

F9

K1

F3

K3

K4

F1

Z12

GATE 2

GR

WH

YL

BL

RD

BR

F7

24V

GATE 2

SET OPEN LIMIT

SET

CLOSE

LIMIT

LEARN LIMITS

GATE 1

C69

R329

R27

MOV2

R4

C2

Q9

R9

Ø

F8

C73

C72

C71

C7

Ø

R42

Ø

R423

J24 J23 3

Ø

A 32V

3

Ø

A 32V

J21

30

C64

R22

U2

K6

JU1

JU2

DB1

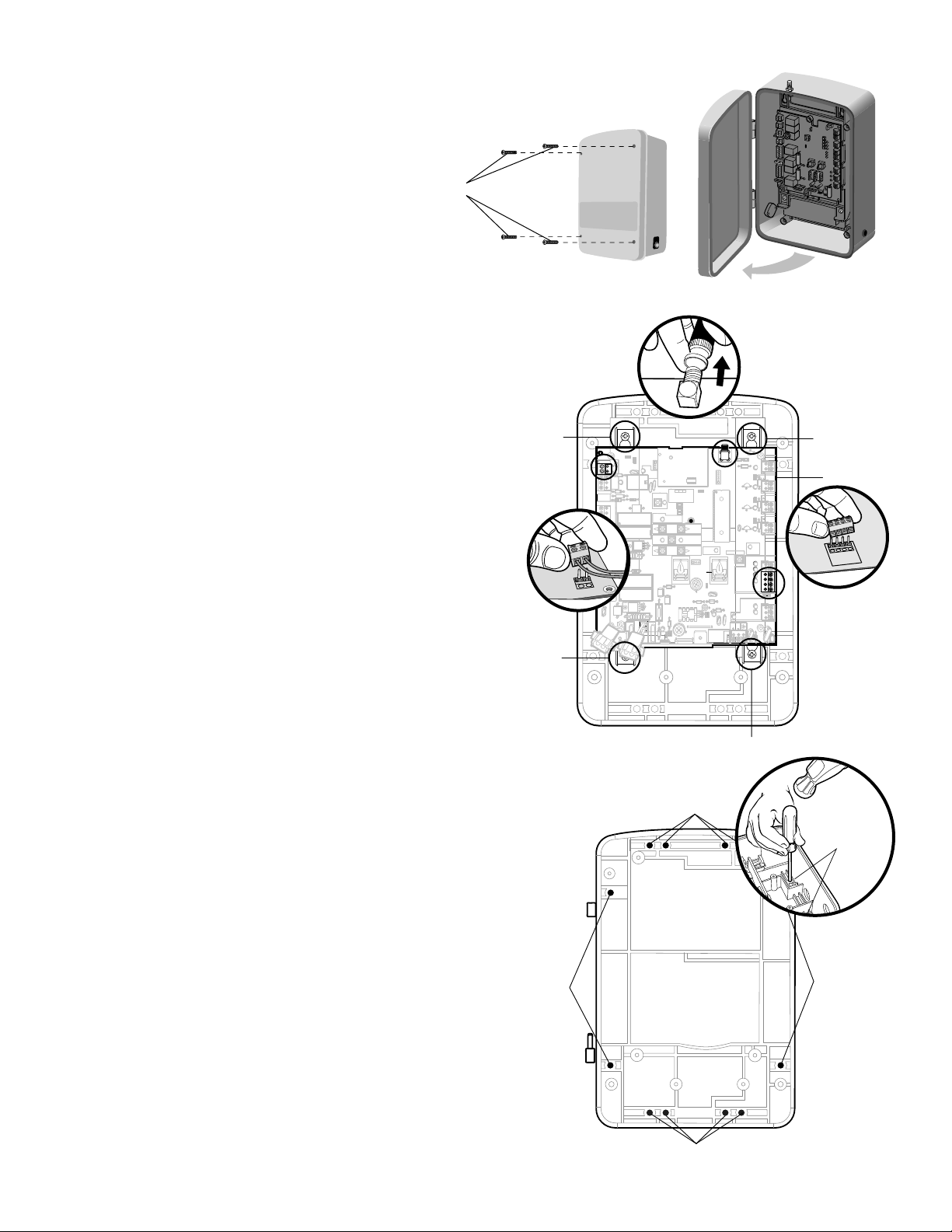

MOUNT THE CONTROL BOX

The control box MUST be mounted within 5' of the gate operator. Mount the control box as high as possible for best radio reception.

Screws (4)

Open the Control Box

Remove screws and open the control box.

Remove the Control Board

Disconnect the reset button, alarm, and coaxial connector. Loosen screws to remove the control board and mounting bracket. Remove batteries and set aside.

Alarm

Screws

RESET

Coaxial Connector

Screws

ALARM

Z22

L1

LOCK

GATE 1

BR

GR

WH

YL

BL

RD

F8

Z12

24V

BR

GR

WH

YL

BL

RD

GATE 2

D16

F9

ONONOFF

LEARN

LOCK /

XMITTER

BIPART DELAY

C7

C71

K2

C72

K2

C72

C73

18

GATE 1

SET

LEARN

K1

LEARN

K1

OPEN

CLOSE

OPEN

CLOSE

LIMITS

LIMIT

Q9

R9

K4

K3

J24 J23 3

F3

F1

F3

F1

J21

30

3

30

3

A 32V

30

A 32V

TIMER

GATE 2

RUNNING

Z4

D1

R42

D1

R42

R423

R329

R423

R329

JU1

C11

JU1

C11

R27

K6

C64

JU2

R22

U2

JU2

R22

DB1

U2

DB1

JU1

Z22

CTRL

PWR

OVLD

OPEN

SINGLE BUTTON

RESET

STOP

COM

F7

C13

D2

C13

D2

D129

C69

MOV1

R184

F2

CHGR OVLD

AC PWR

C2

/SOLAR

C2

MOV2

R4

Control Board

Reset Button Connections

Screws

Select Mounting Holes

Select holes to be used for mounting and knock out using a

Knock Outs

screwdriver and hammer.

Knock Outs

19 Installation

MOUNT THE CONTROL BOX (CONTINUED)

18

L1

K2

Z22

F2

MOV1

D1

CHGR OVLD

D129

Z4

D2

C11

C13

D16

F9

K1

F3

K3

K4

F1

Z12

GATE 2

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

F7

24V

CTRL OVLD

TIMER

RUNNING

GATE 2

SET OPEN LIMIT

SET

CLOSE

LIMIT

LEARN LIMITS

GATE 1

LEARN XMITTER

LOCK /

OFF

C69

PWR

AC PWR /SOLAR

R329

R27

MOV2

R4

C2

BIPART DELAY

Q9

R9

Ø

F8

C73

C72

C71

C7

Ø

R42

Ø

R423

J24 J23 3

Ø

A 32V

3

Ø

A 32V

J21

30

C64

R22

U2

K6

JU1

JU2

DB1

R184

18

K2

Z22

F2

MOV1

D1

D129

Z4

D2

C11

C13

D16

F9

K1

F3

K3

K4

F1

Z12

GATE 2

GR

WH

YL

BL

RD

BR

F7

24V

GATE 2

SET OPEN LIMIT

SET

CLOSE

LIMIT

LEARN LIMITS

GATE 1

C69

R329

R27

MOV2

R4

C2

Q9

R9

Ø

F8

C73

C72

C71

C7

Ø

R42

Ø

R423

J24 J23 3

Ø

A 32V

3

Ø

A 32V

J21

30

C64

R22

U2

K6

JU1

JU2

DB1

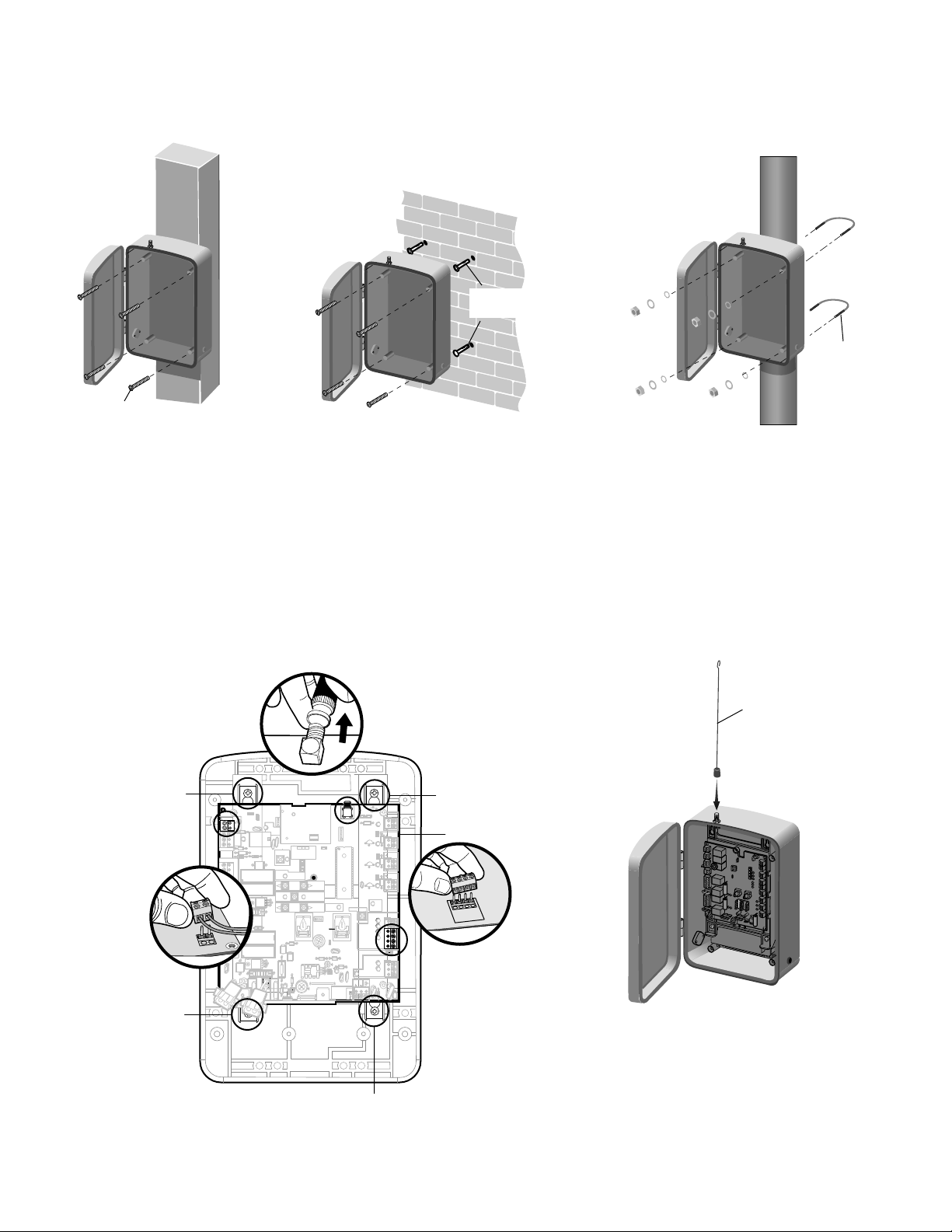

Secure the control box to mounting surface (post, wall, column, etc.) using the appropriate hardware (not provided).

14

Square

Gate Post

Wall

Screw (Not Provided)

INSTALL THE CONTROL BOARD

Attach the antenna. Reinstall the batteries, control board, alarm, and reset button.

NOTE: Make sure the battery leads are on the left side of the control box and not pinched.

Concrete Anchor (Not Provided)

U-Bolt (Not Provided)

Coaxial

Antenna

Connector

Screws

ALARM

Z22

F7

D2

C69

C13

D129

F2

MOV1

CTRL

PWR

OVLD

OPEN

SINGLE BUTTON

RESET

STOP

CHGR OVLD

AC PWR

C2

/SOLAR

C2

Screws

Z22

COM

MOV2

R4

L1

LOCK

GATE 1

BR

GR

WH

YL

BL

RD

F8

Z12

Alarm

Screws

Z12

24V

BR

GR

WH

YL

BL

RD

GATE 2

D16

F9

ONONOFF

LEARN

LOCK /

XMITTER

BIPART DELAY

C7

C71

K2

C72

K2

C72

C73

18

GATE 1

SET

LEARN

K1

LEARN

K1

OPEN

CLOSE

OPEN

CLOSE

LIMITS

LIMIT

Q9

R9

K4

K3

J24 J23 3

F3

F1

F3

F1

J21

30

3

30

3

A 32V

30

A 32V

TIMER

GATE 2

RUNNING

Z4

D1

R42

D1

R42

R423

R329

R423

R329

JU1

C11

JU1

C11

R27

K6

C64

JU2

R22

U2

JU2

R22

DB1

U2

DB1

JU1

Screws

Control Board

R184

Reset Button Connections

Installation 20

18

R93

K2

Z22

P1

F2

D1

U3

D2

C11

D16

F9

K1

F3

F1

Z12

GATE 2

GR

WH

YL

BL

RD

BR

24V

SET

OPEN

LIMIT

SET CLOSE LIMIT

C69

R9

R329

R27

MOV2

R4

C2

K5

F12

Q9

F8

C75

C66

C65

C68

C33

R42

Ø

R423

3

Ø

A 32V

J21

30

C64

R22

U2

K6

JU1

D36

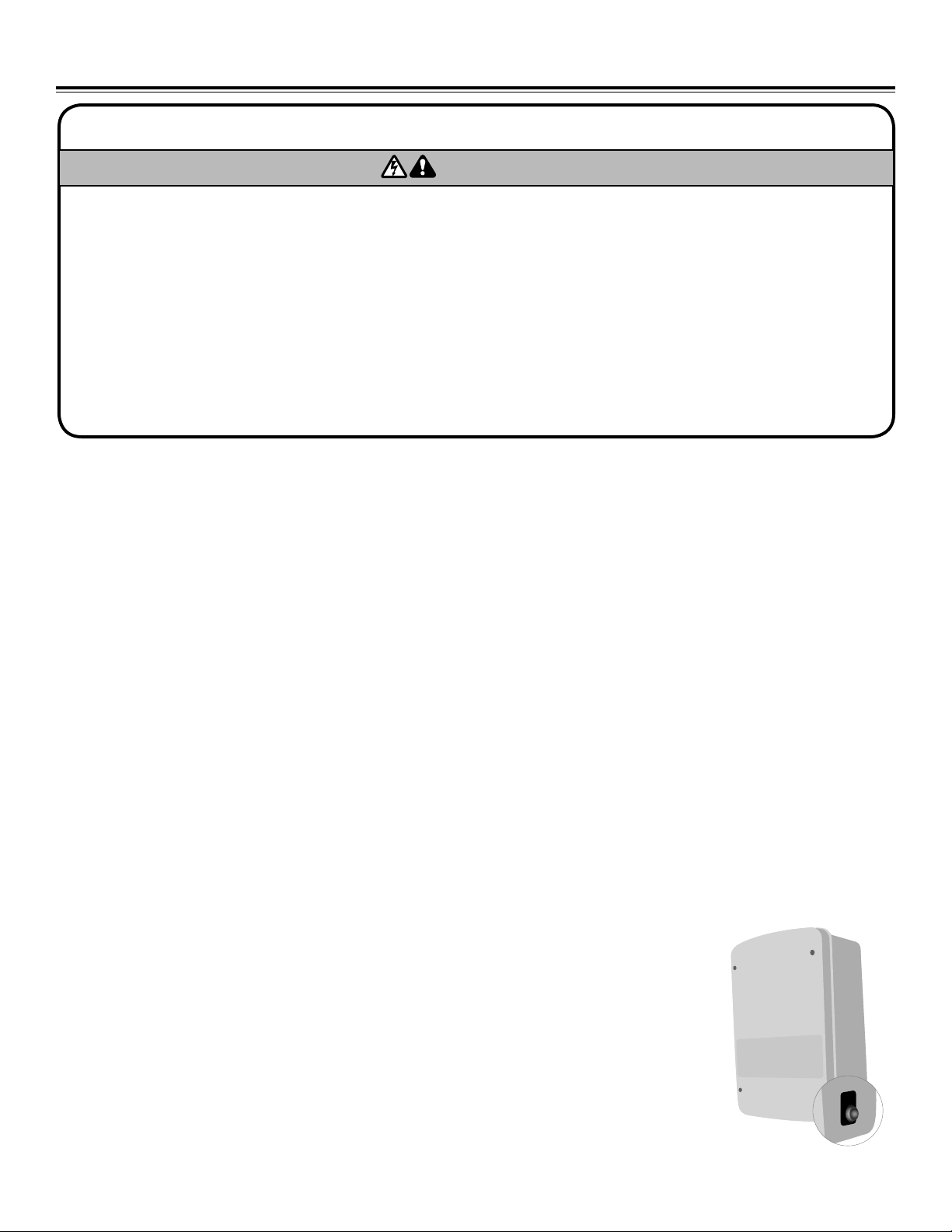

WARNING

WARNINGWARNING

WIRING

To reduce the risk of SEVERE INJURY or DEATH:

• BEFORE installing power wiring or control stations be sure to follow ALL speciﬁ cations and warnings described below.

• ANY maintenance to the operator or in the area near the operator MUST not be performed until the batteries are disconnected. Upon completion of maintenance the area MUST

• ALL electrical connections MUST be made by a qualiﬁ ed individual.

• DO NOT install ANY wiring or attempt to run the operator without consulting the wiring diagram. We recommend that you install an optional reversing edge BEFORE proceeding with the control station installation.

be cleared and secured, at that time the unit may be returned to service.

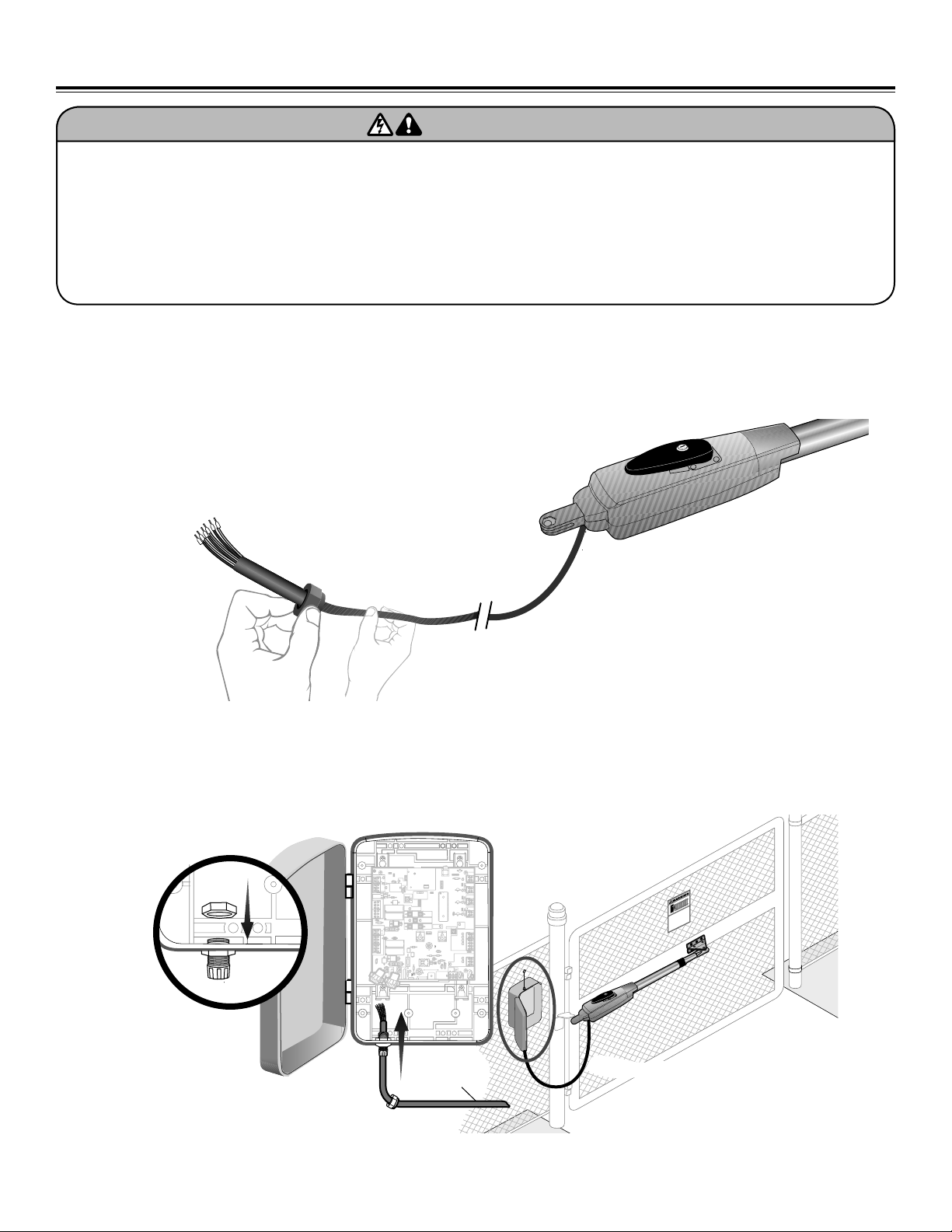

Connect the Gate Operator (Gate 1) to the Control Box

WATERTIGHT CONNECTOR NUT

Insert the operator cable through the watertight

1

connector nut.

Watertight Connector Nut

Operator Cable

INSERT THE OPERATOR CABLE

Insert the watertight connector into the bottom of the control box

2

and tighten with nut. Insert the operator cable through the watertight connector mounted in the bottom of the control box.

P1

C66

C65

Nut

Watertight Connector

D36

K5

F12

D42

Z1

K2

SET

K1

F8

OPEN LIMIT

Z12

Q9

24V

R9Ø

BR

GR

K4

WH

YL

D44

BL

D8

K3

RD

D4

GATE 2

D16

Q22

R9

F9

R196

D1

J24 J23 3ØA 32V

F3

F1

C4

FUSE

Watertight

FUSE OPEN

OPEN

J21

30

3

30

A 32V

R27

C64

Control Box

R22

U2

C75

18

GATE 1

SET

LEARN

CLOSE

LIMITS

LIMIT

GATE 2

J2Ø

F7

Z4

U3

D2

R42 R423

R329

JU1

C11

K6

JU2

DB1

Operator Cable

C68

Z22

Q6

C33

Q12

F11

R93

Q1

C13

D129

F2

C69

MOV1

C2

MOV2

R4

Moving Gate C

Injury or Death

ut pri

KEEP CLEAR! Gate may move at any

ld

time witho

ot let chi

gate area. e

Do n

ce is for

play in th This entran Pedestrians must use separate en

an Cause

or warning.

erate the gate or

ly

ren op

trance

vehicles on

Operator Cable

Connector

Watertight Connector Nut

21 Wiring

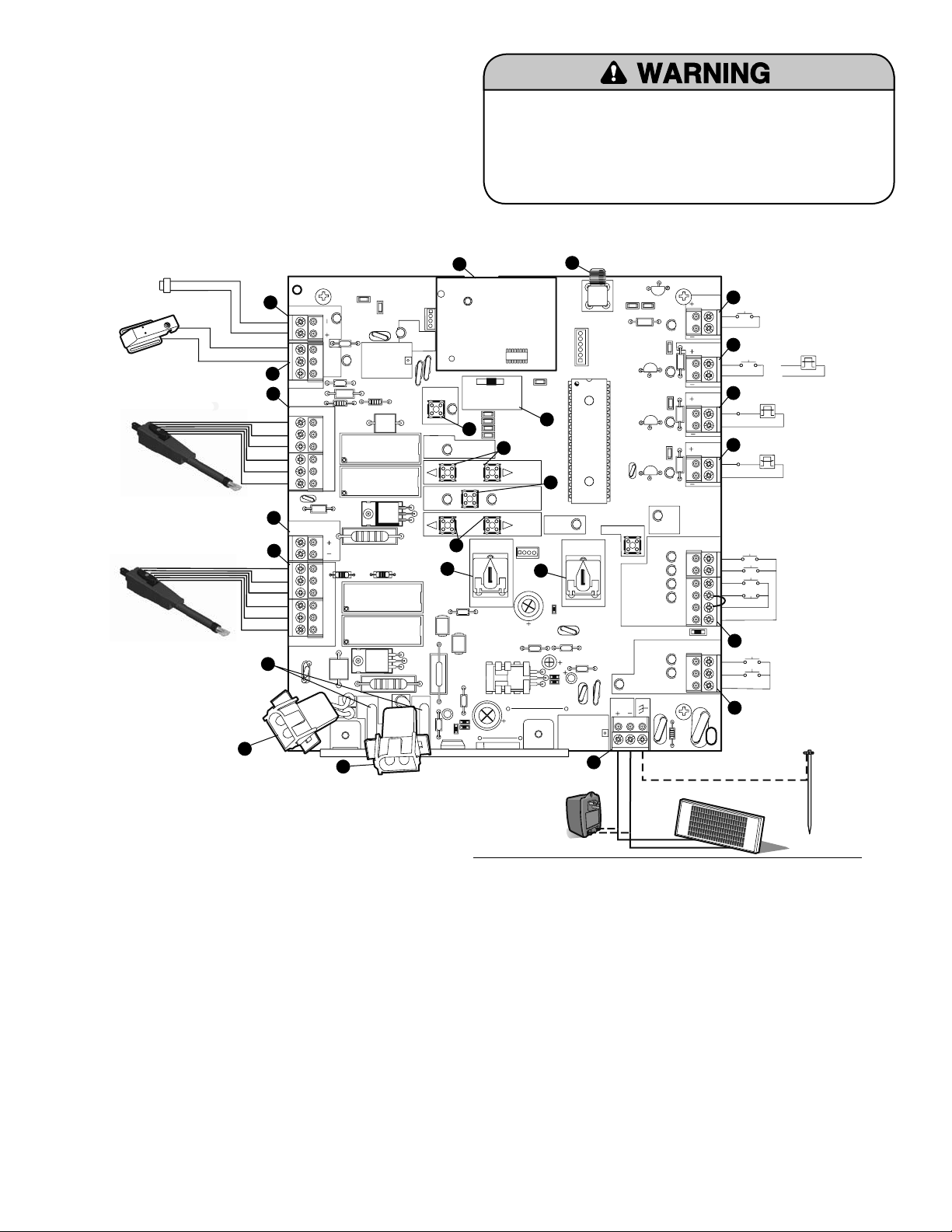

CONNECT THE OPERATOR TO THE CONTROL BOARD

Z1

10A 32V

D1Ø

R9

Ø

Z12

ACCESSORY

POWER

GATE 1

NC

GRN

WHT

YEL

BLU

RED

BRN

Extend the operator cable and wires to the Gate 1 connector and connect as shown. Tighten watertight

3

connector nut.

R223

P1

CLOSE

K6

ALARM

NO

C

K5

MAGLOCK

NO

L1

C

NC

R2

ON OFF

MAGLOCK

LEARN

Z1

XMITTER

R1

10A 32V

GATE 1

F3

BRN

D1

Ø

K2

GRN

WHT

U4

ACCESSORY

POWER

GATE 2

MAX

C13

C4

F6 F2

FUSE OPEN

DIAGNOSTIC

YEL

BLU

RED

Z12

R9

Ø

24V

BRN

GRN

WHT

YEL

BLU

RED

D15

R196

C2 R4

24 VAC/ SOLAR

INPUT

J4

GATE 1

SET

K1

LEARN

Q9

OPEN

CLOSE

LIMITS

LIMIT

GATE 2

FORCE

Ø

1

R1

ØØ

R1

F4

ACCESSORY

10A 32V

OVLD

K4

F5

D21

R35 D9

K3

D8

C12

D27

Z3

Z4

D22

Q22

U3

C11

MOV2

R9

MOV1

C64

JMPR1

JMPR2

U2

D6

DB1

EDGE

Ø

7

R2

Z2

Ø R227

OPEN EDGE/

PHO T O

R224

Z22

U4

R92

Z9

OPEN PHO T O

R91

R94

Z8

CLOSE PHO T O

R93

TIMER

COM

RUNNING

OVLD

CONTROL

TIMER TO

INPUTS

CLOSE

OPEN

SINGLE BUTTON

RESET

STOP

OFF MAX

COM

POWER

F7

LOOP INPUTS

C13

C4

SHADOW

INTERRUPT

CHGR

COM

OVLD

F6 F2

F1 20A 32V

D4

D1

FUSE

BATT 1 BATT 2

OPEN

D2

Terminal blocks can be removed to simplify wiring.

Watertight Connector Nut

Operator Cable

Moving Gate C

Injury or Death

ut pri

KEEP CLEAR! Gate may move at any

ld

time witho

ot let chi

gate area.

e Do n play in th This entrance is for Pedestrians must use separate en

an Cause

or warning.

erate the gate or

ly

ren op

trance

vehicles on

If installing one operator, proceed to page 27. If installing two operators, continue to the next page.

Wiring 22

Connect the Gate Operator (Gate 2) to the Control Box (Model LA412-S Only)

18

R93

D42

K2

D1

Ø

Z22

P1

F2

MOV1

D1

Q12

U4

D129

Z4

U3

D2

D44

C11

C13

D16

F9

R1Ø1

ØØ

K1

Q22

F3

K3

K4

R196

F1

Z12

GATE 2

GR

WH

YL

BL

RD

BR

F7

24V

GATE 2

SET OPEN LIMIT

SET

CLOSE

LIMIT

LEARN LIMITS

GATE 1

C69

J2

Ø

D8

D4

R9

R329

R27

MOV2

R4

C2

Z1

R2

K5

F12

Q9

R9

Ø

F8

Q6

Q1

C75

C73

C72

C71

C7

Ø

C66

C65

C68

C33

F11

R42

Ø

R423

J24 J23 3

Ø

A 32V

3

Ø

A 32V

J21

30

C64

R22

U2

J18

K6

JU1

JU2

DB1

D36

18

R93

D42

K2

D1

Ø

Z22

P1

F2

MOV1

D1

Q12

U4

D129

Z4

U3

D2

D44

C11

C13

D16

F9

R1Ø1

R1

ØØ

K1

Q22

F3

K3

K4

R196

F1

Z12

GATE 2

GR

WH

YL

BL

RD

BR

F7

24V

GATE 2

SET OPEN LIMIT

SET

CLOSE

LIMIT

LEARN LIMITS

GATE 1

C69

J2 Ø

D8

D4

R9

R329

R27

MOV2

R4

C2

Z1

R2

K5

F12

Q9

R9

Ø

F8

Q6

Q1

C75

C73

C72

C71

C7

Ø

C66 C65

C68

C33

F11

R42

Ø

R423

J24 J23 3

Ø A 32V

3 Ø A 32V

J21

30

C64

R22

U2

J18

K6

JU1

JU2

DB1

D36

18

R93

D42

K2

D1

Ø

Z22

P1

F2

MOV1

D1

Q12

U4

D129

Z4

U3

D2

D44

C11

C13

D16

F9

R1Ø1

R1

ØØ

K1

Q22

F3

K3

K4

R196

F1

Z12

GATE 2

GR

WH

YL

BL

RD

BR

F7

24V

GATE 2

SET

OPEN

LIMIT

SET CLOSE LIMIT

LEARN LIMITS

GATE 1

C69

J2 Ø

D8

D4

R9

R329

R27

MOV2

R4

C2

Z1

R2

K5

F12

Q9

R9

Ø

F8

Q6

Q1

C75

C73

C72

C71

C7

Ø

C66 C65

C68

C33

F11

R42

Ø

R423

J24 J23 3

Ø A 32V

3 Ø A 32V

J21

30

C64

R22

U2

J18

K6

JU1

JU2

DB1

D36

Occasionally in dual gate installations, one gate will need to open ﬁ rst and close second. This would happen if there was an ornamental overhang on one gate or if using a solenoid lock, for example. This gate is called the Primary gate and needs to be connected to Gate 1 connections on the control board. Thus, it is preferred that the control box be installed on the same side as this gate. If there is no appropriate location on that side for the control box, then mount the control box on the opposite side, but connect the operator closest to the control box to the Gate 2 connector and the operator on the opposite side to the Gate 1 connector.

NOTE: The gate with the longer travel span (opening) must be set as the primary gate (GATE 1).

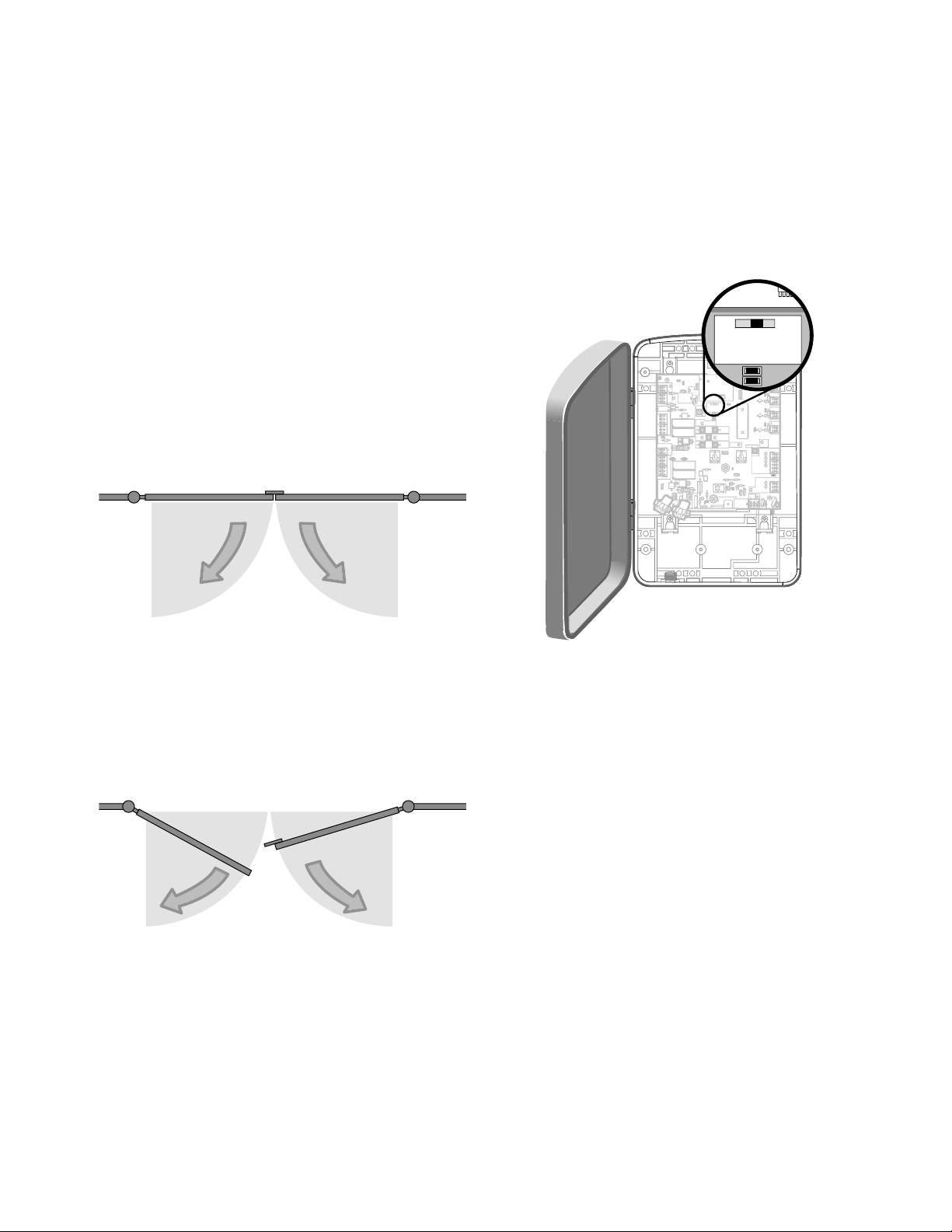

SET THE LOCK/BIPART DELAY

The LOCK/BIPART DELAY switch on the control

4

board needs to be set to the ON position. The following illustration shows a dual gate

conﬁ guration with a decorative overlapping piece on the outside of the gate.

Outside Property

F8

Z12

24V

R1R1ØØ

BR

GR

WH

YL

BL

RD

GATE 2

D16

F9

D36

K5

F12

D42

Z1

R2

D1

K2

K1

Q9

R9

R1

Q22

R196

J24 J23 3

F3

F1

J21

30

3

A 32V

ON

LOCK/ BIPART DELAY

P1

C75

C7 C71 C72 C73

18

GATE 1

SET

LEARN

OPEN

CLOSE

LIMITS

LIMIT

GATE 2

J2

K4

D44

D8

K3

F7

D4

Z4

U3

C13

D2

R9

C69

D1

R42 R423

R329

JU1

C11

R27

K6

C64

30

Control Box

JU2

R22

U2

DB1

OFF

C7Ø

C66

C65

C71

J18

C68

Z22

Q6

U4

C33

Q12

F11

R93

Q1

D129

F2

MOV1

C2

MOV2

R4

Primary Gate - Connect to Gate 1 Connector on Control Board.

Primary Gate

Outside Property

If a solenoid lock is being used on a gate, the gate with the lock attached to it is the primary gate.

23 Wiring

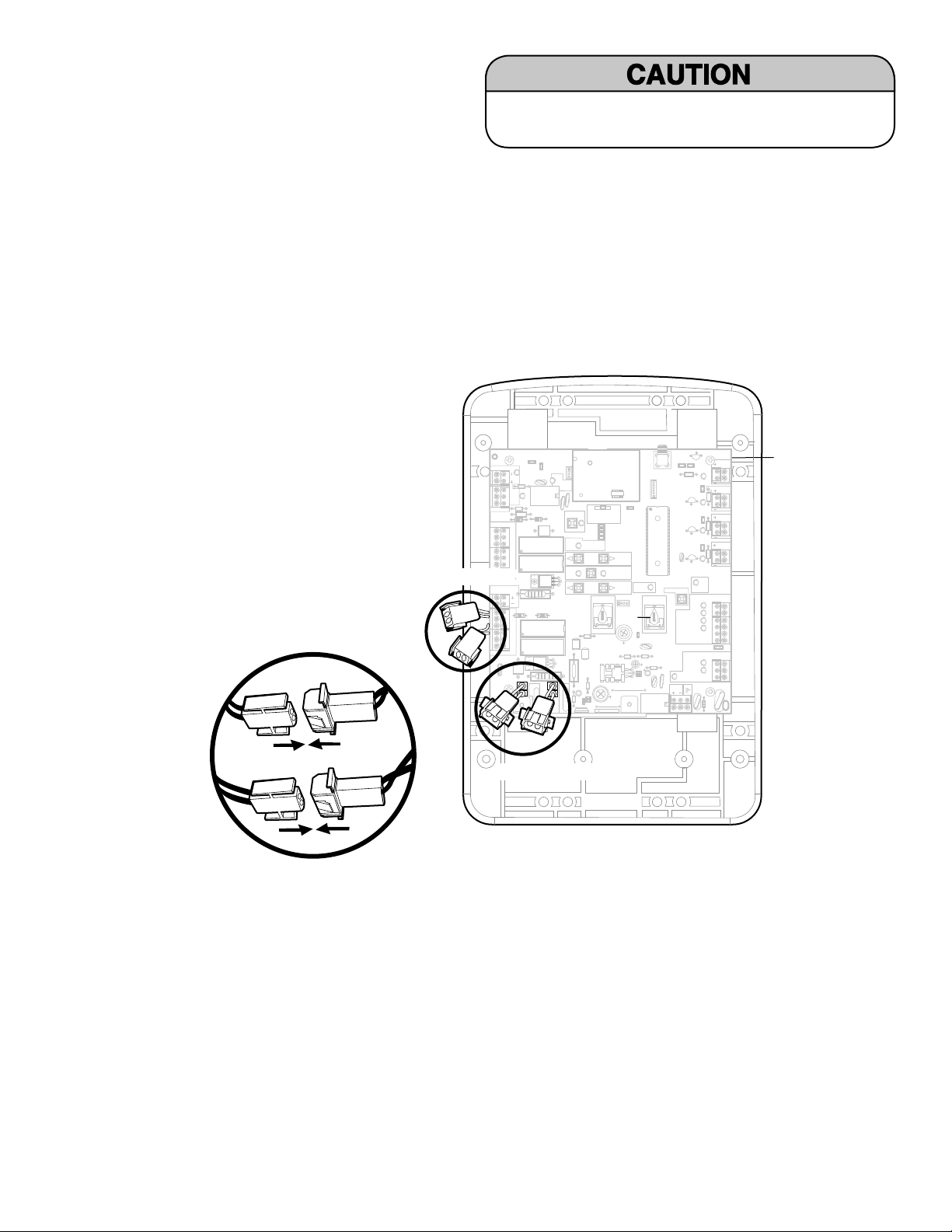

CONNECT SECOND OPERATOR TO CONTROL BOARD

D15

C2R4

R9

Ø

R196

24 VAC/ SOLAR

GATE 2

ACCESSORY

POWER

GRN

WHT

YEL

BLU

RED

BRN

10A 32V

24V

(MODEL LA412-S ONLY)

5

• Before digging, contact local underground utility locating companies.

• Trench across driveway to bury the extension cable.

• Use PVC conduit to prevent damage to cables.

• Select hole in bottom of the control box to be used for the extension cable.

• Insert extension cable through watertight connector nut and through an available watertight connector mounted in the control box.

• Extend cable and wires to Gate 2 connector and connect as shown.

• Secure extension cable to control box using watertight connector nut.

ALARM

NO

C

MAGLOCK

P1

NO

Brown Green White Yellow Blue Red

C

NC

Z1

10A 32V

GATE 1

BRN

Ø

D1

GRN

U4

WHT

YEL

BLU

RED

Z12

R9

Ø

ACCESSORY

POWER

24V

BRN

GRN

WHT

YEL

BLU

RED

GATE 2

MAX

D15

R196

C2 R4

24 VAC/ SOLAR INPUT

MOV2

J4

C13

C4

F6 F2

To AVOID damaging gas, power or other underground utility lines, contact underground utility locating companies BEFORE digging.

R223

P1

CLOSE

ON OFF

MAGLOCK

SET CLOSE LIMIT

FORCE

C12

C11

R9

C64

U2

EDGE

Ø

7

R2

Z2

Ø

R227

OPEN EDGE/ PHO T O

R224

U4

GATE 1

LEARN

LIMITS

TIMER

GATE 2

RUNNING

TIMER TO

CLOSE

SINGLE BUTTON

OFF MAX

R35 D9

D27

Z3

F7

Z4

C13

C4

U3

CHGR OVLD

F6 F2

F1 20A 32V

D4

D1

FUSE OPEN

JMPR1

D2

D6

Control Box

Z22 R92

Z9

OPEN PHO T O

R91

R94

Z8

CLOSE PHO T O

R93

COM OVLD

CONTROL INPUTS

OPEN

RESET

STOP

COM

POWER

LOOP

INPUTS

SHADOW

INTERRUPT

COM

BATT 1 BATT 2

Terminal blocks can be removed to simplify wiring.

K6

K5

L1

R2

LEARN

XMITTER

R1

F3

K2

DIAGNOSTIC

SET

K1

Q9

OPEN LIMIT

R1

Ø

1

ØØ

R1

F4

ACCESSORY

10A 32V

OVLD

K4

F5

D21

K3

D8

D22

Q22

MOV1

JMPR2

DB1

Operator Cable

Extension Cable

PVC Conduit

Junction Box

Extension Cable

PVC conduit at least 18" below ground level (grade)

Solar Panel

Moving Gate Can Cause

KEEP CLEAR!

time without pr o no D play in the gate area. is entr Th Pedest

Gate Operator (Gate 2)

r

e o

ate may move at any

Injury or Death

G or warning.

e the gat

i

ce

nly

children operat

t let

or vehicles o ance is f rians must use separate entran

(Facing South)

Gate Operator (Gate 1)

Control Box

PVC conduit (not provided) to protect the power cable for solar panel and low voltage wire from lawn mowers and string trimmers.

Wiring 24

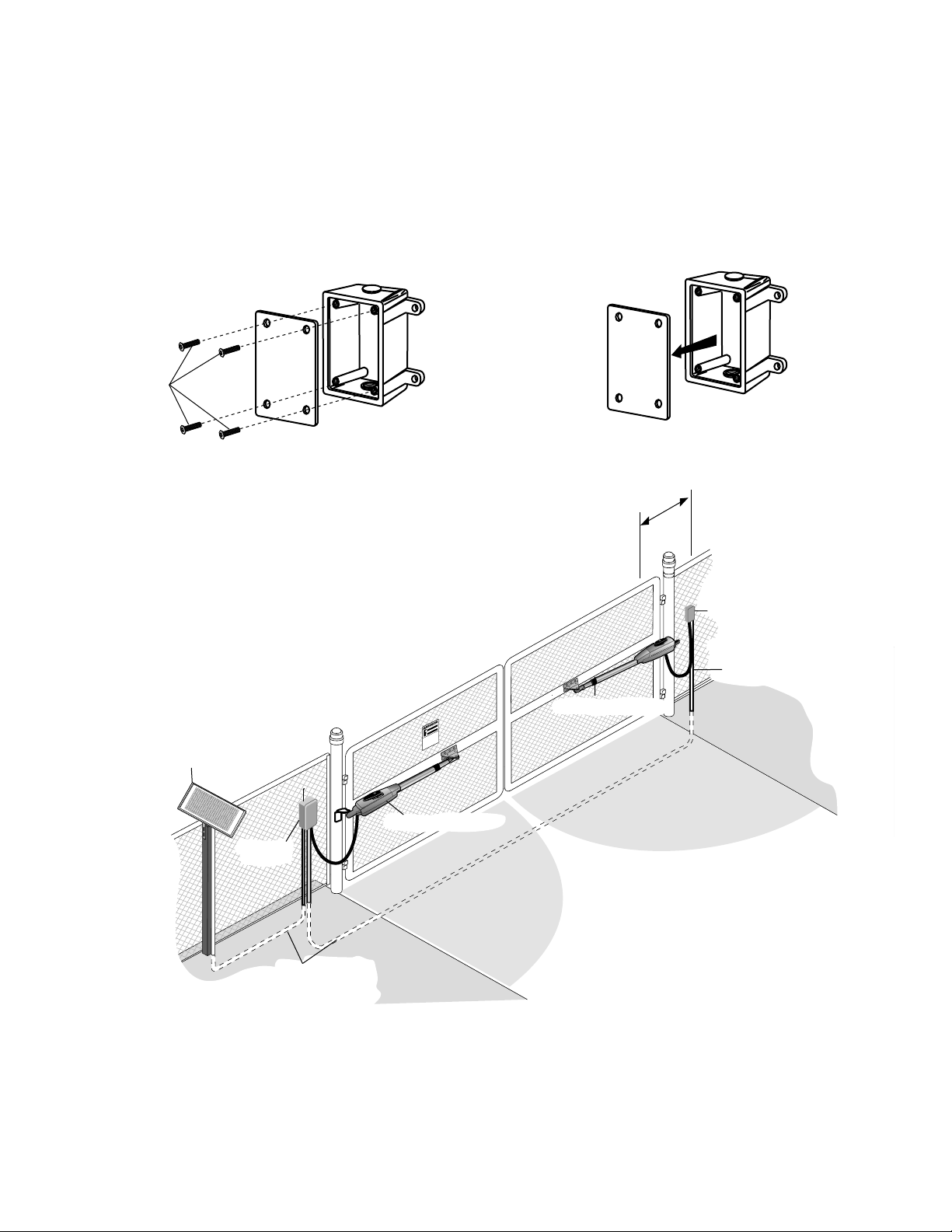

JUNCTION BOX

The following items are required to complete the junction box installation:

6

• 4 x 4 Junction Box with 3/4" NPT threaded port holes

• Screws

• PVC Conduit

Open the junction box by removing screws (4) and set aside. Mount the junction box within 5' of second operator.

Screws (4)

Solar Panel

(Facing South)

Moving Gate Can Cause

KEEP CLEAR!

time without pr

o no D play in the gat his entr T Pedest

Junction Box

Cover

Within 5’

Junction Box

Extension Cable

Gate Operator (Gate 2)

e or

ate may move at any

Injury or Death

G

r warning. o i

perate the gat

nly

children o

e area.

t let

or vehicles o

ce is f an ns must use separate entrance

ria

Gate Operator (Gate 1)

Control Box

Within 5' PVC conduit (not provided) to protect the power cable for solar panel and low voltage wire from lawn mowers and string trimmers.

25 Wiring

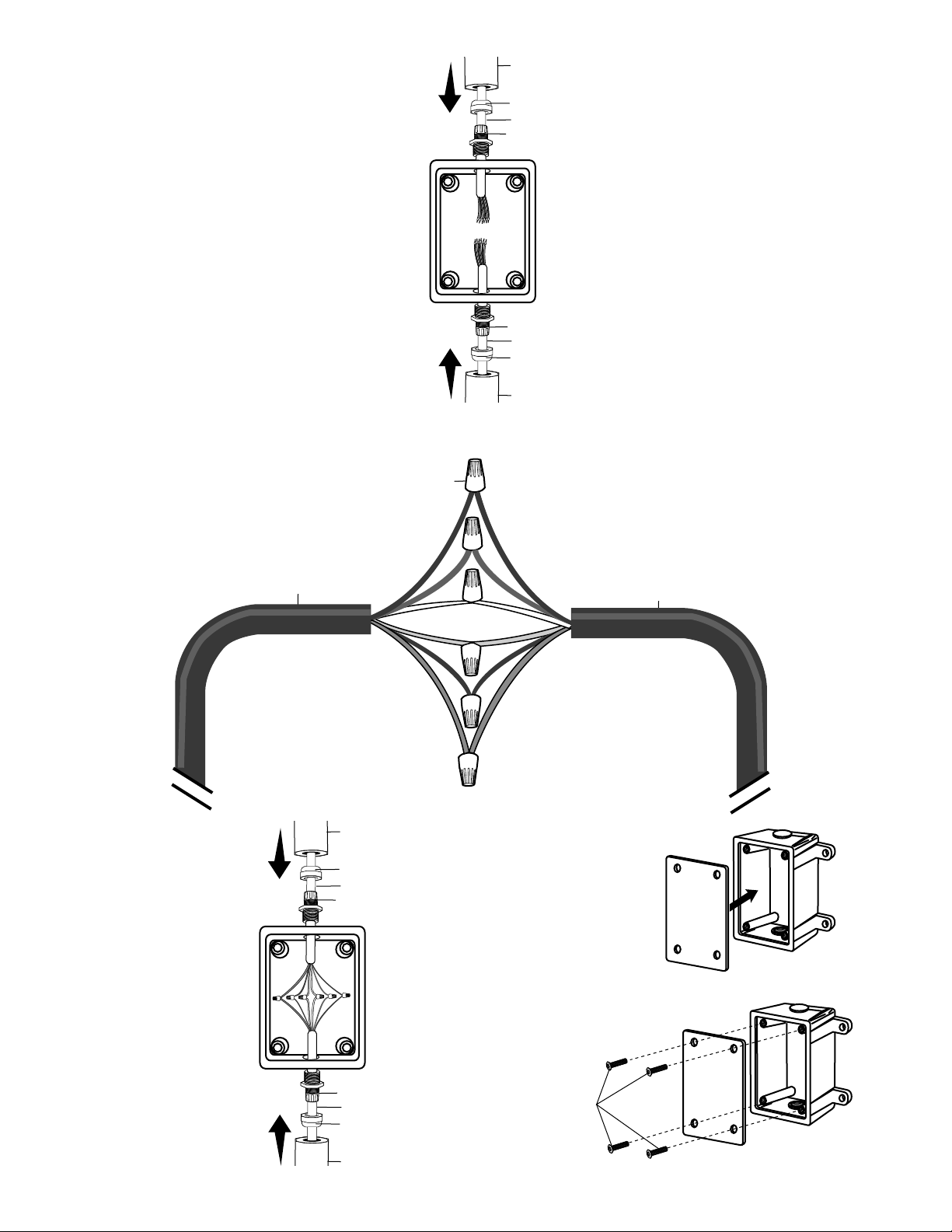

CONNECT WATERTIGHT CONNECTORS

Route operator cable and extension cable

7

through watertight connector nut and watertight connector. Insert cables and watertight connectors into the holes in the bottom of the junction box (not provided). Feed extension cable through PVC conduit and secure with connector nut.

PVC Conduit

Watertight Connector Nut

Operator Cable

Watertight Connector

Junction Box (not provided)

Watertight Connector

Extension Cable

Watertight Connector Nut

CONNECT WIRES IN JUNCTION BOX

PVC Conduit

Remove terminals from operator cable. Strip wires and twist like colored wires together with wire nuts.

8

Wire Nut

Brown

Green

White

Yellow

Blue

Green

Red

White

Yellow

Blue

Red

Extension Cable

SECURE JUNCTION BOX

Put wires inside of

9

junction box. Secure operator and extension cables

Operator Cable

PVC Conduit

Watertight Connector Nut

Operator Cable

Watertight Connector

with watertight nut. Reinstall cover.

Junction Box (not provided)

Junction Box

Watertight Connector

Extension Cable

Watertight Connector Nut

PVC Conduit

Screws (4)

Wiring 26

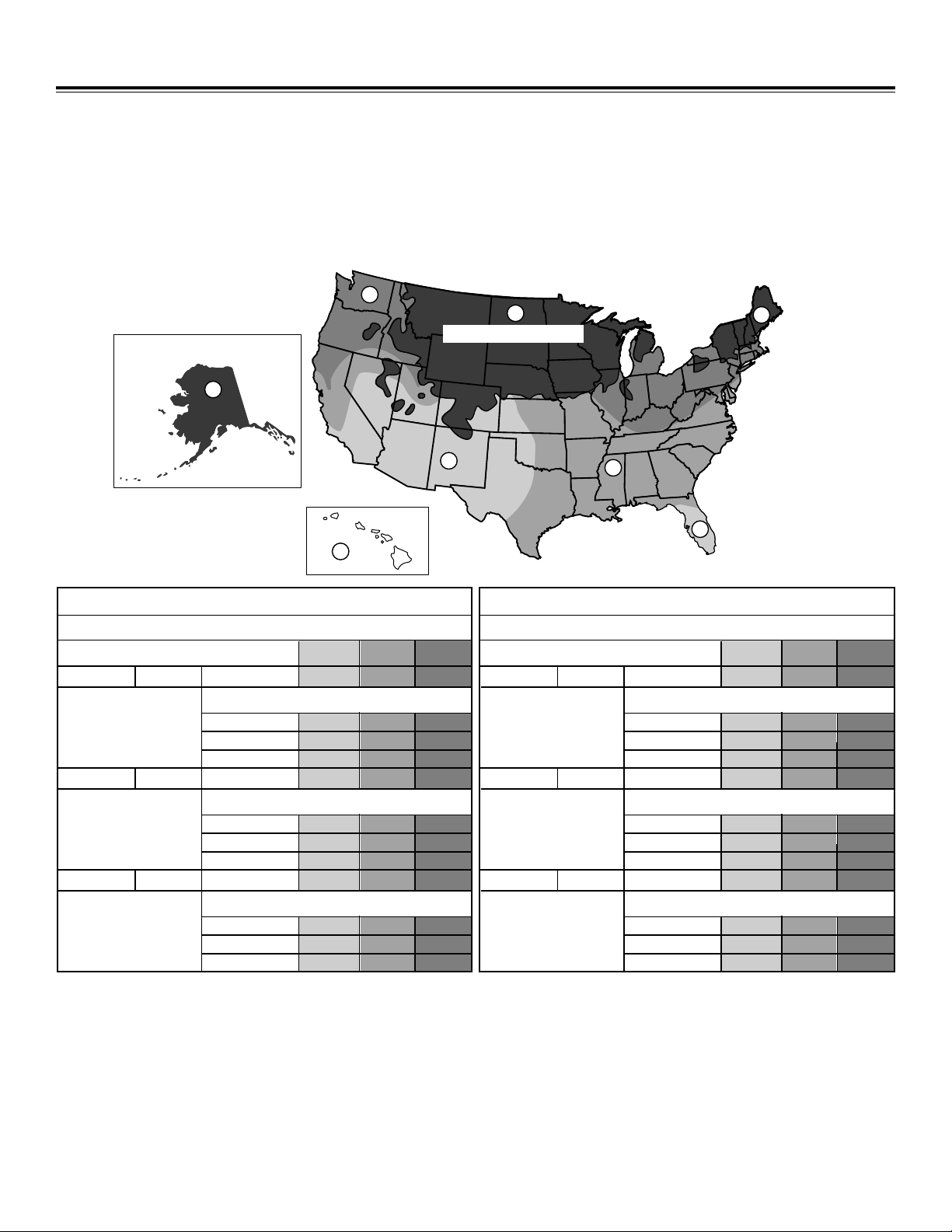

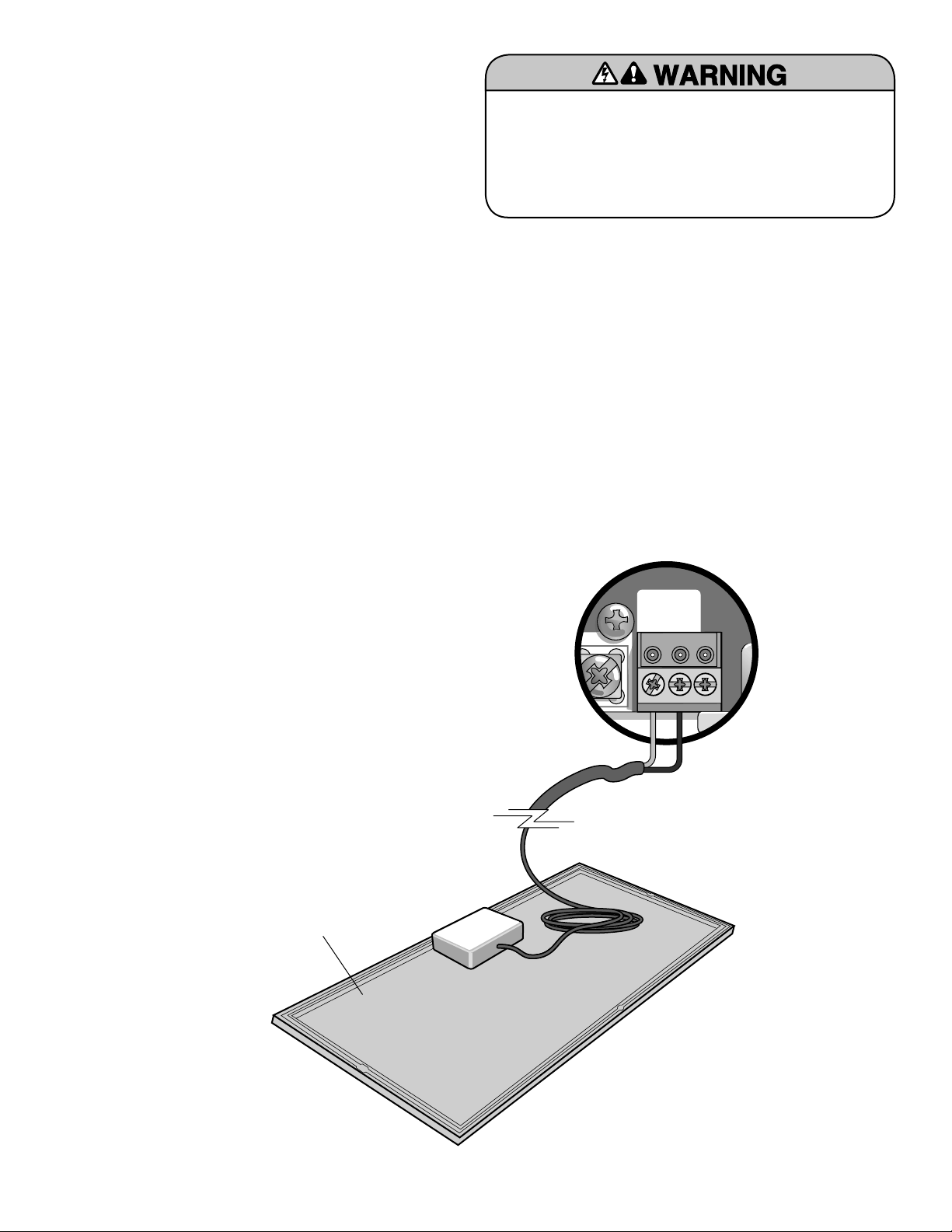

SOLAR PANEL INSTALLATION

Select Site for Solar Panel(s)

The solar panel(s) must be located in an open area clear of obstructions and shading for the entire day. The solar panel(s) comes with a 10' cable. If a location near the control box cannot be found, an additional cable will be required. The LA412 Solar Gate Operator is not supported in northern climates where temperatures reach below -4F. This is due to cold weather and a reduced number of hours of sunlight during the winter months. Cycle rate may vary from solar chart for areas that reach below 32F. Solar panels should be cleaned on a regular basis for best performance to ensure proper operation.

3

NOT AVAILABLE

4

NOT AVAILABLE

3

4

10W SOLAR

20W SOLAR

30W SOLAR

NUMBER OF CYCLES PER DAY

Single Arm Installations

1 PANEL

Arm Only

Solenoid Lock

Loop

LM202

Arm Only

Solenoid Lock

Loop

LM202

Arm Only

Solenoid Lock

Loop

LM202

1

Zone 150Zone 240Zone 3

Accessories

50 35 10 50 31 10 50 31 10

50 50 282 PANEL

Accessories

50 50 25 50 50 26 50 50 26

50 50 463 PANEL

Accessories

50 50 40 50 50 44 50 50 44

1

12

10W SOLAR

20W SOLAR

30W SOLAR

2

1

NUMBER OF CYCLES PER DAY

Dual Arm Installations

1 PANEL

Arms Only

Solenoid Lock

Loop

LM202

Arms Only

Solenoid Lock

Loop

LM202

Arms Only

Solenoid Lock

Loop

LM202

Zone 150Zone 225Zone 3

8

Accessories

50 23 7 50 23 6 50 23 6

50 50 202 PANEL

Accessories

50 50 18 50 50 18 50 50 18

50 50 303 PANEL

Accessories

50 50 27 50 50 28 50 50 28

The map (above) and cycles/day ratings are approximations and do not account for installed accessories that draw additional battery power. Ratings vary based on gate construction and installation. They are also shown for using a single 10W solar panel in conjunction with two 12 Volt 7.0 AH batteries. Ratings will improve by adding additional 10W solar panels. If required, up to three 10W panels (30W total) can be wired in parallel to increase the number of cycles per day.

NOTE: The solar panel(s) recommendation is based upon the average solar radiation and the temperature effects on batteries in the given regions. Local geography and weather conditions may require additional solar panels. Solar panels cannot be installed in areas that experience heavy fog or lake effect rain and snow.

27 Solar Panel Installation

OVERVIEW OF SOLAR PANEL INSTALLATION

Make sure the control box has two 12V 7AH batteries installed. Do not connect

1

batteries until instructed.

Solar Panel

(Facing South)

Control Box

Solar Panel Installation 28

POSITION SOLAR PANEL(S)

NOTE: If the panel(s) is not casting a shadow, the battery is not being charged.

2

The location of the panel(s) is critical to the success of the installation. In general, the panel(s) should be mounted using the provided angle bracket facing due south. The solar panel(s) should be mounted in an area clear of all obstructions and shading from buildings and trees. The area should be clear for a 180° arc from due east of the panel(s) location to due west of the panel(s) location.

NOTE: Tall trees or buildings that do not shade the solar panel(s) in the summer could shade the solar panel(s) during the winter months when the sun sits lower in the sky.

Sun’s Position

Solar Panel

NOTE: DO NOT install solar panel near potential shading or obstructions that will block the panel during any part of the day.

South

TIP: To optimize the system for winter operation the angle can be increased an additional 15° (solar panel(s) sits more vertical).

TIP: The area around the solar panel(s) should be clear of shadows or obstructions to the sun for a 180° arc east to west.

180°

TIP: Wire runs should be kept as short as possible. The solar panel(s) can be located up to 100' from the operator using #16 AWG wire in any direction, including elevating it.

29 Solar Panel Installation

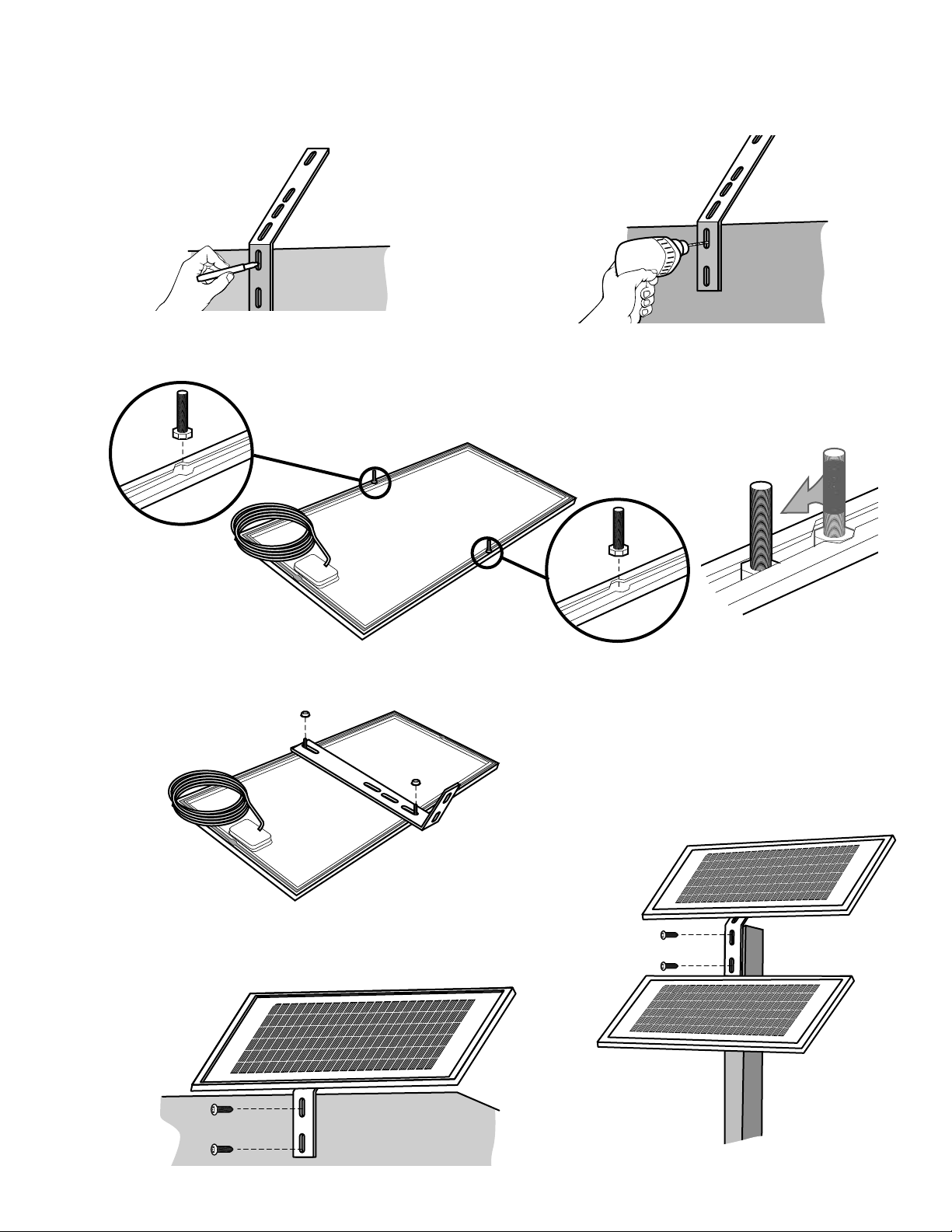

POSITION SOLAR BRACKET

Position solar bracket on mounting surface. Mark and drill holes.

3

NOTE: Solar panel(s) MUST be installed facing south. Use a compass to determine direction.

INSERT MOUNTING BOLTS

Insert two bolts into the track located on the back of the solar panel(s).

4

Slide bolts in track away from bolt hole and align both bolts.

SECURE SOLAR PANEL(S) TO SOLAR BRACKET

Secure solar panel(s) to solar bracket using two washered nuts.

5

MOUNT SOLAR PANEL(S) ASSEMBLY

Secure solar panel(s) assembly to mounting surface using appropriate

6

hardware.

Mounted Panel Must Face SOUTH

Mounting Surface

Solar Panel Installation 30

CONNECT SOLAR PANEL(S) TO OPERATOR CONTROL BOX

AC PWR/

SOLAR

J4

Open the control box cover. Disconnect all power and

7

batteries from the control board. Run the solar panel cable to the bottom of the control box. Thread the cable through the watertight connector and pull the cable through until it reaches the AC PWR/SOLAR connector on the control board. Tighten the watertight connector on the cable. Attach the solar panel wires to AC PWR/SOLAR input terminal (polarity is not important). Leave the AC PWR/SOLAR earth ground connection open.

NOTE: The system is designed to be charged by either an AC plug-in transformer or a separate solar panel, but not both.

Connect the AC PWR/SOLAR connector to the control board. With the batteries still disconnected, the control board should power up if the solar panel is correctly installed and the sun is shining (the diagnostic LED will blink).

Use the cable ties to secure the solar panel cable away from places where it could be damaged.

NOTE: If the sky is too overcast to allow the solar panel to power up the system, the panel will need to be veriﬁ ed at another time when the sun is shining. There is no other way to verify the panel installation.

To avoid SERIOUS INJURY or DEATH:

• Disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.

• DO NOT connect solar panel(s) when power supply is connected.

• DO NOT connect more than 30W (3 solar panels).

Solar Panel

Control Board

Red

Black

31 Solar Panel Installation

CONNECT BATTERIES

18

R93

L1

D42

K2

D1

Ø

Z22

P1

F2

MOV1

D1

Q12

U4

OFF

MAX

OPEN

SINGLE BUTTON

RESET

STOP

CHGR OVLD

COM

D129

Z4

U3

D2

D44

C11

C13

C12

D16

F9

R1Ø1

ØØ

K1

Q22

F3

K3

K4

R196

F1

Z12

GATE 2

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

F7

24V

CTRL OVLD

TIMER

RUNNING

GATE 2

SET OPEN LIMIT

SET

CLOSE

LIMIT

LEARN LIMITS

GATE 1

LEARN XMITTER

LOCK /

OFF

C69

OFF

MAX

J2

Ø

PWR

AC PWR /SOLAR

D8

D4

R9

R329

R27

MOV2

R4

C2

BIPART DELAY

LOCK

GND

Z1

R1

R2

K5

F12

Q9

R9

Ø

F8

Q6

Q1

J19

R182

Ø1

C75

C73

C72

C71

C7

Ø

C66

C65

C68

C33

F11

R186

R42

Ø

R423

J24 J23 3

Ø

A 32V

3

Ø

A 32V

J21

30

C64

R22

U2

J18

K6

JU1

JU2

DB1

D36

R184

The batteries are charged in circuit by using the solar

8

panel (provided). Locate the two white battery plugs on the left-hand

side of the control box. Connect the plug from the battery to connector on the control board.

NOTES: Batteries will degrade over time depending on temperature and usage. For best performance, the batteries should be changed every 3 years. Batteries do not perform well in extremely cold temperatures.

To reduce the risk of FIRE or INJURY to persons use ONLY LiftMaster part 27-NP712 for replacement batteries.

Battery Connection

LOCK

GATE 1

Battery Connectors

GATE 2

F9

R182

C1C1Ø1

D36

SOL

GND

MAGR

R1

BR

GR

WH

YL

BL

RD

F8

Z12

24V

R1R1ØØ

BR

GR

WH

YL

BL

RD

D16

J19

L1

K5

F12

D42

Z1

R1

F1

J21

30

3 A 32V

ONONOFF

LEARN

LOCK /

R2

XMITTER

BIPART DELAY

D1

K2

SET

K1

OPEN

LIMIT

Q9

R9

K4

OFF

D44

D8

K3

D4

Q22

R196

J24 J23 3

A 32V

U3

R9

D1

R329

F3

R27

C64

30

R22

U2

DB1

P1

C66

C65

J18

C68

Z22

Q6

U4

C75

C7 C71 C72 C73

18

GATE 1

SET

LEARN

CLOSE

LIMITS

LIMIT

TIMER

GATE 2

RUNNING

J2

R186

MAX

OFF

C12

F7

Z4

C13

D2

D129

C69 R42 R423

JU1

C11

K6

JU2

JU1

C33

Q12

F11

R93

Q1

CTRL

PWR

OVLD

OPEN

SINGLE BUTTON

RESET

STOP

MAX

COM

R184

F2

CHGR

MOV1

OVLD

AC PWR

C2

/SOLAR

MOV2

R4

Control Board

Board Connectors

Solar Panel Installation 32

PROGRAMMING

OPEN EDGE/

SET OPEN LIMIT

OPEN EDGE/

SET OPEN LIMIT

GATE 1

Program Limits

The limits are internal settings that indicate when the gates are in the fully open position and the fully closed position. For proper functionality, the limits must be programmed during the installation process. The programming uses a combination of buttons on the control board.

The speciﬁ c buttons used for programming depends on which side of the gate the control box is mounted and how many operators the installation includes. Refer to pages 11 and 13 to determine if the gate is Left- or Right-handed.

If a mistake is made during programming press the RESET button on the outside of the control box to start over.

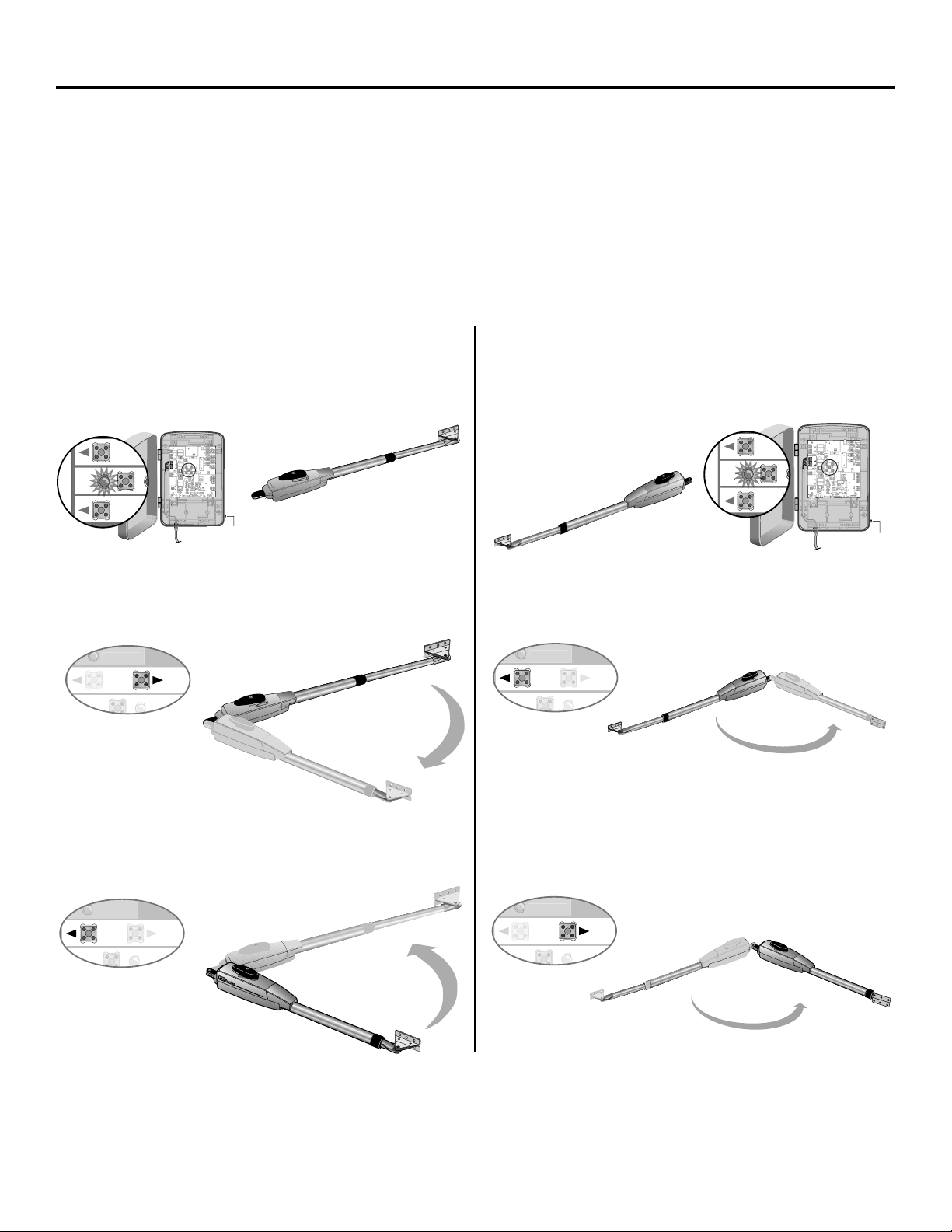

SINGLE ARM LEFT-HAND SIDE SINGLE ARM RIGHT-HAND SIDE

NOTE: The programming can be exited at any time by pressing the RESET button. The programming times-out automatically after 60 seconds of inactivity.

PROGRAM OPEN

With the gate in the CLOSED position, press the LEARN LIMITS button (SET OPEN LIMIT LED will blink).

LEARN LIMITS button

OPEN EDGE/

R223

P1

CLOSE EDGE

K6

ALARM

Ø

7

R2

NO

Z2

Ø R227

C

K5

MAGLOCK


GATE 1

NO

L1

R224

BRN

C

Z22

U4

R92

GRN

NC

R2

ON OFF

Z9

MAGLOCK

LEARN

WHT

Z1

OPEN

XMITTER

R1


10A 32V

YEL

R91

F3

BLU

R94

RED

Ø

D1

K2

U4

D4

D2

Press the Gate 1 right button to move gate to the desired OPEN position. When gate is in the desired position, press the LEARN LIMITS button again. Control board will beep.

Z8

CLOSE

DIAGNOSTIC


R93

GATE 1

COM OVLD

SET

CONTROL

K1

LEARN

Q9

Z12

OPEN

CLOSE

INPUTS

LIMITS

LIMIT

OPEN

TIMER

R9

Ø

GATE 2

ACCESSORY

RUNNING

SINGLE BUTTON

POWER

ACCESSORY

RESET

TIMER TO

OVLD

24V

CLOSE

FORCE

Ø

1

R1

STOP

R1

ØØ

COM

BRN

F4

COM

GRN

10A 32V

POWER

WHT

K4

OFF MAX

YEL

F5

BLU

D21

R35

RED

D9

K3

D8

C12

GATE 2

Z3

F7

LOOP INPUTS

Z4

C13

C4

D22

Q22

SHADOW

U3

INTERRUPT

C11

CHGR

COM

D15

OVLD

R196

C2R4

F6

24 VAC/

F2

F1 20A 32V SOLAR INPUT

MOV2

J4

D4D2R9

MOV1

D1

FUSE

C64

BATT 1BATT 2

OPEN

JMPR1

JMPR2

U2

D6

DB1

RESET

BUTTON

PROGRAM OPEN

With the gate in the CLOSED position, press the LEARN LIMITS button (SET OPEN LIMIT LED will blink).

LEARN LIMITS button

OPEN EDGE/

R223

P1

CLOSE EDGE

K6

ALARM

Ø

7

R2

NO

Ø

Z2 R227

C

K5

MAGLOCK

PHO T O

NO

L1

R224

C

Z22

U4

R92

NC

R2

ON OFF

Z9

MAGLOCK

LEARN

Z1

OPEN

XMITTER

R1

PHO T O

10A 32V

GATE 1

R91

F3

BRN

R94 D1

Ø

K2

GRN

U4

OFF

D9

Z3

Z4

U3

D4

D1

D2

D6

Press the Gate 1 left button to move gate to the desired OPEN position. When gate is in the desired position, press the LEARN LIMITS button again. Control board will beep.

Z8

WHT

CLOSE

DIAGNOSTIC

PHO T O

YEL

R93

BLU

GATE 1

RED

SET

K1

LEARN

Q9

Z12

OPEN

CLOSE

LIMITS

LIMIT

TIMER

R9

Ø

GATE 2

ACCESSORY

COM

RUNNING

POWER

OVLD

ACCESSORY

CONTROL

TIMER TO

OVLD

INPUTS

24V

CLOSE

FORCE

Ø

1

R1

OPEN

R1

ØØ

BRN

SINGLE BUTTON

F4

GRN

RESET

10A 32V

WHT

STOP

K4

OFF MAX

YEL

COM

F5

BLU

COM

D21

R35

POWER

RED

D9

K3

D8

C12

GATE 2

Z3

F7

LOOP INPUTS

Z4

C13

C4

D22

Q22

SHADOW

U3

INTERRUPT

C11

CHGR

COM

D15

OVLD

R196

C2 R4

F6

24 VAC/

F2

F1 20A 32V SOLAR INPUT

MOV2

J4

D4

R9

MOV1

D1

FUSE

C64

BATT 1 BATT 2

OPEN

JMPR1

JMPR2

D2

U2

D6

DB1

RESET

BUTTON

PROGRAM CLOSE

Press the Gate 1 left button to move gate to the desired CLOSED position. When gate is in the desired closed position, press the LEARN LIMITS button again.

PROGRAM CLOSE

When the SET CLOSE LIMIT LED blinks, press the Gate 1 right button. When gate is in the desired closed

position, press the LEARN LIMITS button.

The control board beeps and the SET OPEN LIMIT and SET CLOSE LIMIT LEDs stop blinking, programming is now complete. (If the SET OPEN LIMIT LED continues to blink, repeat programming. If the problem continues, see Troubleshooting section.)

Test the limits by pressing the SBC to open and close the gate.

33 Programming

NOTES:

CLOSE

GATE 1

FORCE

GATE 2

CLOSE

GATE 1

FORCE

GATE 2

CLOSE

FORCE

GATE 2

CLOSE

GATE 1

CLOSE

GATE 1

FORCE

GATE 2

CLOSE

SET

OPEN

LIMIT

• The gate with the longer travel span (opening) must be set as the primary gate (GATE 1).

• If one gate is overlapping the other, the gate that is overlapping must be connected to GATE 1 so it will start moving before the other gate; gate 2 may need to be closed ﬁ rst if there is overlap or a gate lock is being used.

• The programming can be exited at any time by pressing the RESET button. Programming times-out automatically after 60 seconds of inactivity.

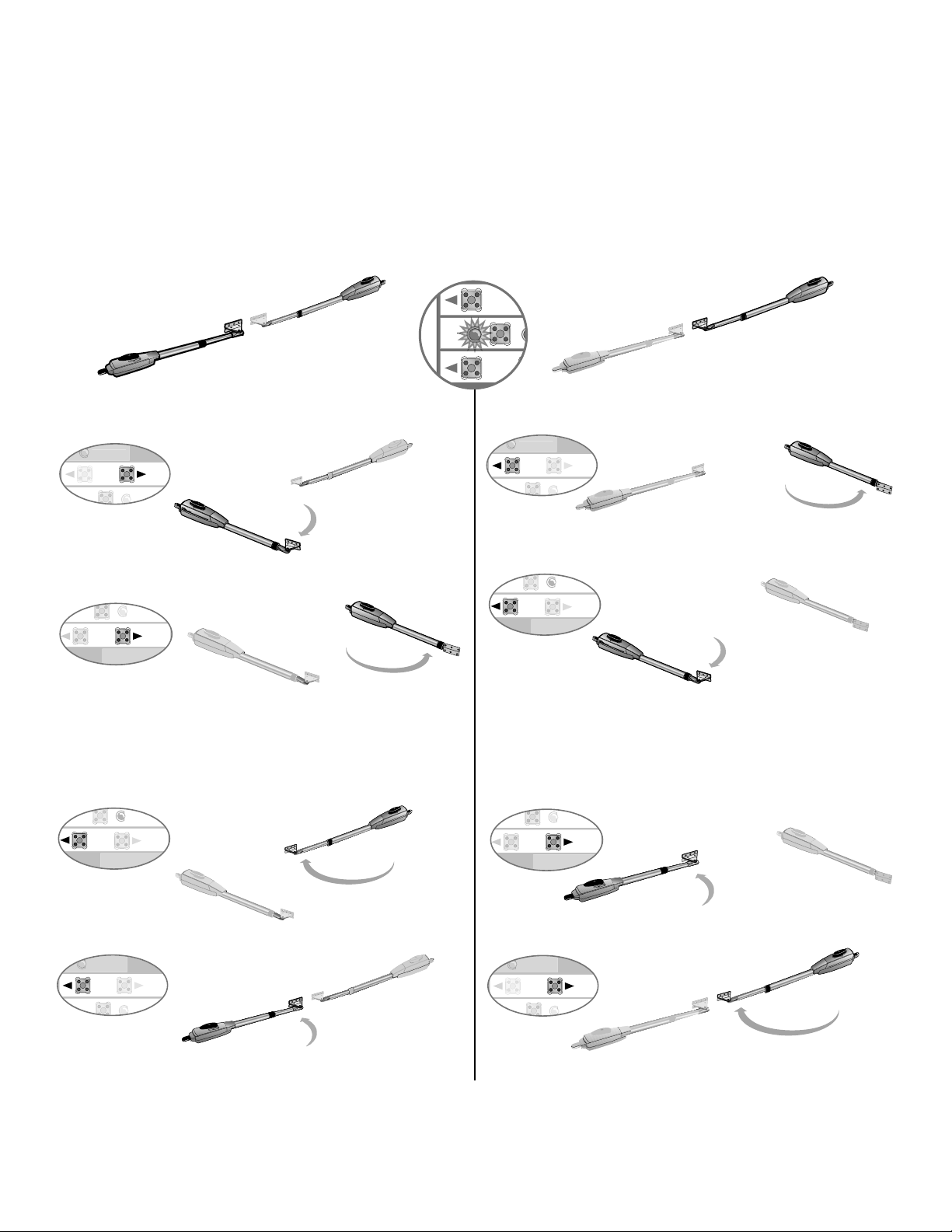

DUAL GATE (LEFT-SIDE PRIMARY OPERATOR) DUAL GATE (RIGHT-SIDE PRIMARY OPERATOR)

PROGRAM OPEN

With the gate in the CLOSED position, press the LEARN LIMITS button (SET OPEN LIMIT LED will blink).

Press the GATE 1 right button to open the left operator.

Press the GATE 2 right button to move the right operator

into the OPEN position.

PROGRAM OPEN

With the gate in the CLOSED position, press the LEARN LIMITS button (SET OPEN LIMIT LED will blink).

Press the GATE 1 left button to open the right operator.

Press the GATE 2 left button to move the left operator into the OPEN position.

Press the LEARN LIMITS button. Control board will beep.

PROGRAM CLOSE

When the SET CLOSE LIMITS LED blinks, press the GATE 2 left button to close the right operator.

Press the GATE 1 left button to close the left operator.

Press the LEARN LIMITS button.

Press the LEARN LIMITS button. Control board will beep.

PROGRAM CLOSE

When the SET CLOSE LIMITS LED blinks, press the GATE 2 right button to close the left operator.

Press the GATE 1 right button to close the right operator.

Press the LEARN LIMITS button.

The control board beeps and the SET OPEN LIMIT and SET CLOSE LIMIT LEDs stop blinking, programming is now complete. (If the SET OPEN LIMIT LED continues to blink, repeat programming. If the problem continues, see Troubleshooting section.)

Test the limits by pressing the SBC to open and close the gate.

Programming 34

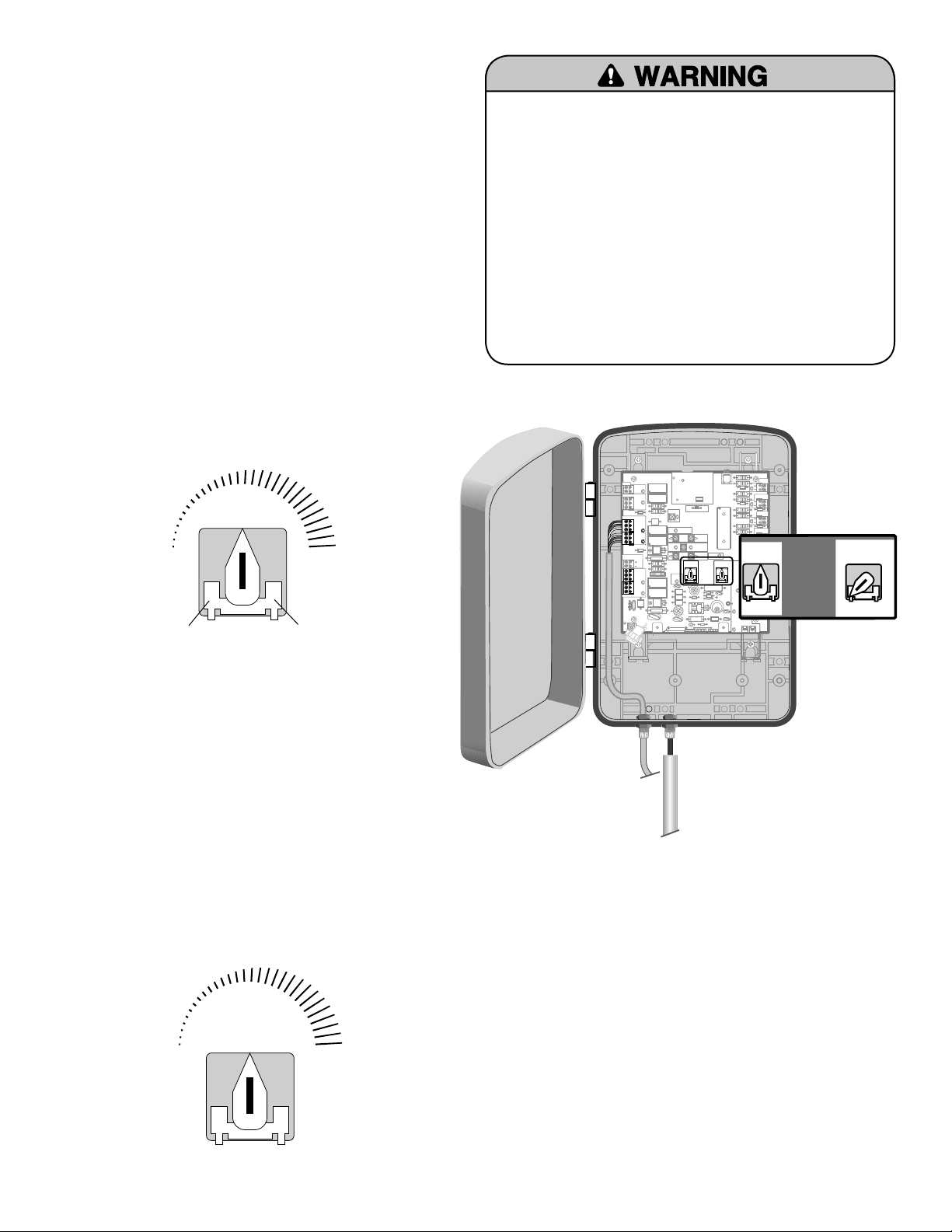

Force and Timer to Close

Z22

R91

CLOSE EDGE

R94

R92

R93

L1

R1

R2

Z1

K5

K6

K2

F3

10A 32V

D1

Ø

OPEN EDGE/


OPEN PHOTO

CLOSE PHOTO

R227

R2

Ø

7

Z2

Ø

R223

P1

Z9

Z8

F2

F6

D4R9

R224

U4

CONTROL INPUTS

FORCE

TIMER TO CLOSE

OFF MAX

OPEN

SINGLE BUTTON

RESET

STOP

SHADOW

INTERRUPT

CHGR OVLD

COM

LOOP

INPUTS

POWER

BATT 1BATT 2

F1 20A 32V

R35

D9

Z3

Z4

U3

D1

C11

C13

C12

D15

C2R4

R1

Ø

1

R1

ØØ

R9

Ø

Q9

K1

R196

Q22

D8

K3

D22

C4

ACCESSORY

OVLD

MOV1

MOV2

Z12

24 VAC/ SOLAR INPUT

GATE 2

ACCESSORY

POWER

MAGLOCK

ALARM

GATE 1

C

NC

NO

GRN

WHT

YEL

BLU

RED

BRN

GRN

WHT

YEL

RED

BRN

GRN

WHT

YEL

BLU

RED

BRN

F4

10A 32V

F7

24V

COM OVLD

GATE 2

DIAGNOSTIC

GATE 1

GATE 2

J4

LEARN

XMITTER

ON

D4

D2

Z9

Z8

FORCE ADJUSTMENT

The operator is equipped a with an obstruction sensing feature. If the gate encounters an obstruction the operator will automatically reverse direction and stop. Based on the length and weight of the gate it may be necessary to make force adjustments. The force adjustment should be high enough that small objects such as branches or wind will not cause nuisance interruptions but low enough to prevent serious injury to a person or a vehicle.

To adjust the force:

Using the 3-button remote or the Single Button Control (SBC) button on the control board, open and then close the gate. If the gate stops or reverses before reaching the fully open or closed position increase the force by turning the force control slightly. Run operator through a complete cycle.

NOTE: Weather conditions can affect the gate movement, so seasonal adjustment may be required. The force control is factory set to the mid position.

FORCE

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing gate.

• Too much force on gate will interfere with proper operation of safety reversal system.

• NEVER increase force beyond minimum amount required to close gate.

• NEVER use force adjustments to compensate for a binding or sticking gate.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Gate MUST reverse on contact with a rigid object.

Minimum Force

Maximum Force

TIMER-TO-CLOSE (TTC)

The TIMER TO CLOSE feature can be set to automatically close the gate after a speciﬁ ed time period. The TTC is factory set to OFF.

If the TTC is set to the OFF position, then the gate will remain open until the operator receives another command from a remote control or SBC.

To set the TIMER TO CLOSE:

Rotate the TIMER TO CLOSE dial to the desired setting. The range is 0 to 180 seconds, 0 seconds is OFF.

NOTE: Any radio command, SBC, or CLOSE command on the control board prior to the TTC expiring will close the gate. The TTC is reset by any signals from the loops, close edges, and close safety sensors (IR’s).

TIMER TO

CLOSE

FORCE

TIMER TO

CLOSE

OFF MAX

OFF

MAX

35 Programming

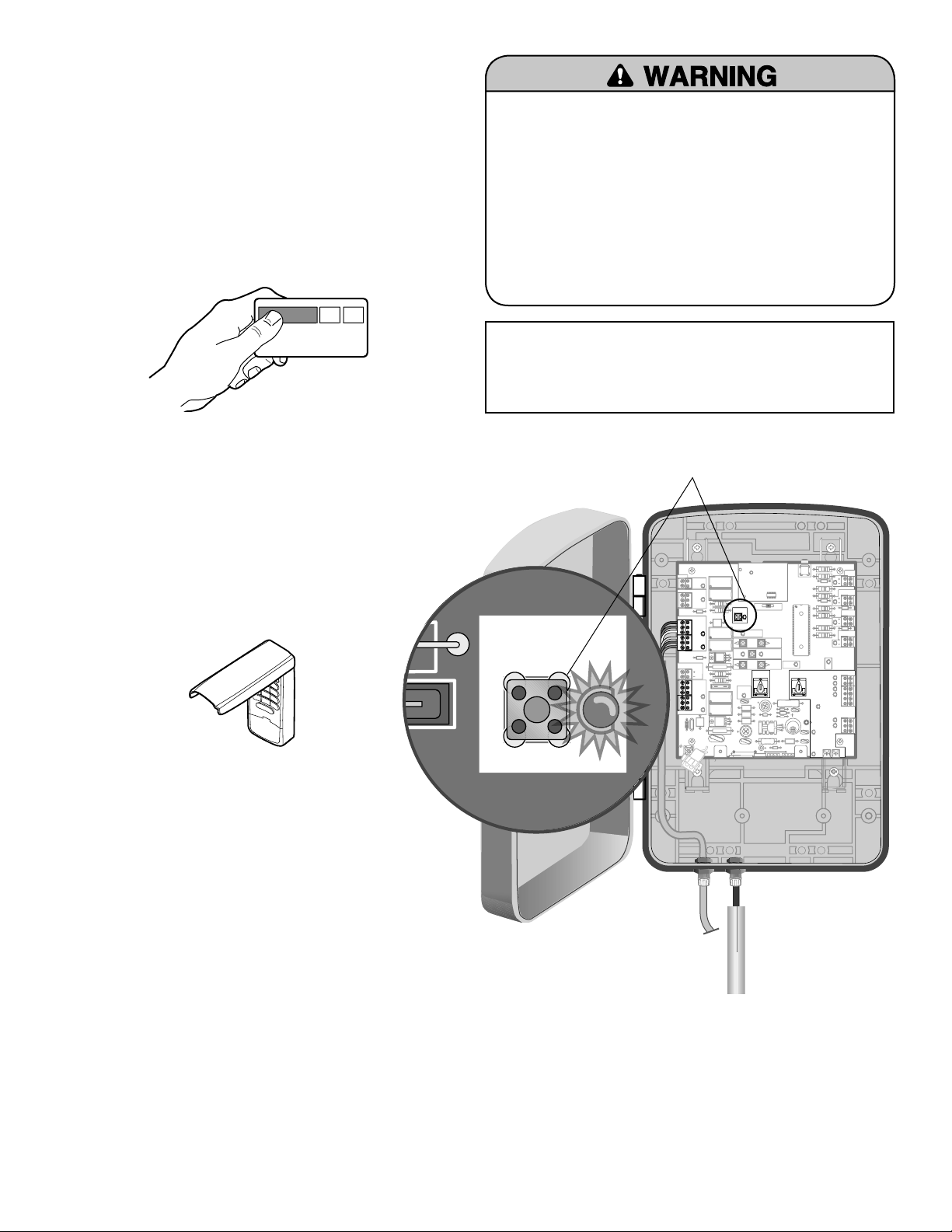

To Add or Reprogram a Remote Control (not provided)

1. Pr ess LEARN XMITTER button and release (LED will

light up).

2. Press remote button, the LED will ﬂ ash, alarm output will activate twice.

3. Repeat steps 1 and 2 until all remote controls are programmed (50 remote controls maximum).

NOTE: For highest level of security, we recommend the Security line of products. Refer to Accessories.

To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters.

• Activate gate or door ONLY when it can be seen clearly, is

®

✚

properly adjusted, and there are no obstructions to door travel.

• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

To Add a Wireless Keyless Entry (not provided)

1. Pr ess LEARN XMITTER button and release (LED will

light up).

2. Enter a four digit personal identiﬁ cation number (PIN) of your choice on the keypad.

3. Then press ENTER, the LED will ﬂ ash, alarm output will activate twice.

R1

To Erase All Codes

To deactivate any unwanted remote controls or keyless entries, ﬁ rst erase all codes:

Press and hold the LEARN XMITTER button on control board until the learn indicator light goes out (approximately 6 seconds). All previous codes are now erased. Reprogram each remote control or keyless entry you wish to use.

LEARN

XMITTER

Remote Control LEARN XMITTER Button

K6

ALARM

NO

LEARN

C

XMITTER

MAGLOCK

GATE 1

BRN

GRN

WHT

YEL

BLU

RED

ACCESSORY

POWER

BRN

GRN

WHT

YEL

BLU

RED

GATE 2

K5

NO

L1

C

NC

R2

Z1

Z12

24V

BRN

GRN

WHT

YEL

BLU

RED

D15

C2 R4

24 VAC/ SOLAR

INPUT

J4

ON

R1

10A 32V

F3

D1

Ø

R9

Ø

R196

MOV2

GATE 1

K2

DIAGNOSTIC

GATE 2

K1

Q9

FORCE

ACCESSORY

OVLD

Ø

1

R1

ØØ

F4

10A 32V

R35 D9

K3

D8

C12

Z3

Z4

D22

Q22

C11

MOV1

OPEN EDGE/

R223

P1

CLOSE EDGE

R2

Ø

7

Ø

Z2

R227

PHO T O

R224

Z22

U4

R92

Z9

OPEN PHO T O

R91

R94

Z8

CLOSE PHO T O

R93

TIMER TO

CLOSE

COM OVLD

CONTROL

INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

OFF MAX

COM

POWER

F7

LOOP INPUTS

C13

C4

SHADOW

U3

INTERRUPT

CHGR

COM

OVLD

F6 F2

F1 20A 32V

D4 R9

Make sure the rubber seal around the cover is intact and close the cover. Secure the control box cover with screws (4). Installation is complete.

Programming 36

OPERATION AND MAINTENANCE

WARNING

WARNINGWARNING

RESET

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. NEVER let children operate or play with gate controls. Keep the remote control away from children.

3. ALWAYS keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.

4. Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or stop when an object activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the risk of

INJURY or DEATH.

USING YOUR GATE OPERATOR

Your operator will operate with up to forty-nine Security✚® remote controls and one Security✚® Keyless Entry System. If you purchase a new remote, or if you wish to deactivate any remote, follow the instructions in the Programming section.

Activate your operator with any of the following:

• The hand-held Remote Control (See Accessories):

Hold the large push button down until the gate starts to move.

• The Keyless Entry (See Accessories): If provided with your gate operator, it must be programmed before use. See Programming.

When the operator is activated (with the safety sensors correctly installed and aligned)

1. If open, the gate will close. If closed, it will open.

2. If the gate has been stopped in a partially open position,

it will close.

3. If obstructed while closing, the gate will stop and reverse

direction for approximately 2 seconds and then stop. The next command will open the gate.

4. If obstructed while opening, the gate will stop and

reverse direction for approximately 2 seconds and then stop. The next command will close the gate.

The operator alarm will sound under the following condition: If gate encounters two consecutive obstructions, before reaching the open or close limit, the operator will stop, the alarm will sound (up to 5 minutes) and the control board will require resetting. Reset the control board by pressing the “Reset Button” located on the outside of the control box. No commands at this time will operate gate. After the operator is reset, normal functions will be available.

37 Operation and Maintenance

5. Use the emergency release ONLY when the gate is not moving.

6. KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual. Have a qualiﬁ ed service person make repairs to gate hardware.

7. The entrance is for vehicles ONLY. Pedestrians MUST use separate entrance.

8. Disconnect ALL power BEFORE performing ANY maintenance.

9.

SAVE THESE INSTRUCTIONS.

The Timer-To-Close (TTC) Feature comes from the factory in the OFF setting.

The “TIMER RUNNING LED” will ﬂ ash once for every second of adjusted time. The gate(s) must fully open for the timer feature to be active and close the gate(s). Any radio command or pressing the single button on the control board prior to the TCC time expiring will close the gate. The TTC is reset by any signals from the loops, close edges, and close safety sensors (IR’s).

Party Mode: If the Timer-to-Close feature is enabled and you would like the gate to remain open, simply push the reset button (located on the outside of the control box). To set party mode: open the gate fully, then press the reset button. The next command given by remote control or SBC on the control board will close the gate and return the operator to normal operation.

Sleep Mode (Battery Conservation): The operator enters sleep mode 10 seconds after the last command is given. The diagnostic LED will blink in this mode. The safety sensors (photo eyes) indicator LEDs will not be on. The next command given will return the operator to normal operation.

Reset Button: The reset button can be used to set the operator into party mode and to reset the alarm after an obstruction. The diagnostic LED can be reset by holding the reset button for 1 to 2 seconds.

Reset Button

SET

RE

MANUAL RELEASE

In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function.

RELEASE

1. Insert the key into the lock.

2. Turn the key counter-clockwise 180°.

3. Turn the release lever counter-clockwise 180°.

4. Operator is in manual mode and the gate can be opened and closed manually.

ENGAGE

1. Turn the release lever clockwise 180°. This engages the motor.

2. Turn the key clockwise 180°. This locks the release lever.

3. Remove the key and store in a safe place.

4. The operator is now engaged.

MAINTENANCE

Description Task 1 Month 6 Months 3 Years

Entrapment Protection Systems

Manual Release Gate Accessories Electrical Mounting Hardware Batteries Tota l Un i t

NOTES:

1. Disconnect power before servicing.

2. Severe or high cycle usage will require more frequent

maintenance checks.

3. Inspection and service should always be performed anytime a

malfunction is observed or suspected.

4. When servicing, please do some “house cleaning” of the

operator and the area around the operator. Pick up any debris in the area. Clean the operator as needed.

Check for proper operation ●

Check and operate ● Inspect for wear or damage ● Check all for proper operation ● Inspect all wire connections ● Check for tightness ● Replace ● Inspect for wear or damage ●

5. It is suggested that while at the site voltage readings be taken

6. See page 35 for instructions on how to check gate force and

CHECK AT LEAST ONCE EVERY

at the operator. Using a Digital Voltmeter, verify that the incoming voltage to the operator it is within ten percent of the operator’s rating.

adjust.

Operation and Maintenance 38

EDGE

50-220 SAFETY SENSORS

OR

OPEN (EXIT LOOP )

SINGLE BUTTON (SBC)

RESET

STOP

SHADOW LOOP

INTERRUPT LOOP

50-220 SAFETY SENSORS

CLOSE EDGE

R93

D42

K2

D1

Ø

OPEN EDGE/


OPEN PHOTO

CLOSE PHOTO

Z22

P1

F2

MOV1

D1

Q12

U4

CONTROL

INPUTS

FORCE

TIMER TO

CLOSE

OFF MAX

OPEN

SINGLE BUTTON

RESET

STOP

SHADOW

INTERRUPT

CHGR OVLD

CTRL PWR

CTRL

LOOP

INPUTS

D129

Z4

U3

D2

D44

C11

C13

C12

D16

F9

R1Ø1

R1

ØØ

K1

Q22

F3

K3

K4

R196

F1

Z12

GATE 2

ACCESSORY

POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

F7

12 V

CTRL

OVLD

TIMER

RUNNING

GATE 2

SET OPEN LIMIT

SET

CLOSE

LIMIT

LEARN LIMITS

DIAGNOSTIC

GATE 1

LEARN XMITTER

LOCK /

ON OFF

PWR

C69

OFF MAX

J2 Ø

PWR

SINGLE BUTTON

AC PWR /SOLAR

D8

D4

R9

R329

R27

MOV2

R4

C2

BIPART DELAY

LOCK

GND

Z1

R1

R2

K5

F12

Q9

R9

Ø

F8

Q6

Q1

J19

ACCESSORY

0VLD

R182

C1

Ø1

C75

C73

C72

C71

C7

Ø

C66 C65

C68

C33

F11

R186

R42

Ø

R423

J24 J23 3

Ø A 32V

3 Ø A 32V

J21

C64

R22

U2

J18

K6

JU1

JU2

DB1

D36

R184

(optional)

Fault Alarm

Automatic Gate Lock

WHT

GRN

BRN

YEL

BLU

RED

WHT

GRN

BRN

YEL

BLU

RED

CTRL PWR

SOLAR PANEL

RED

BLK

Gate 1 (Primary)

Gate 2 (Secondary)

RED

BLK

OPTIONAL GROUND ROD

OPTIONAL TRANSFORMER

Wiring Diagram

To protect against ﬁ re and electrocution:

• DISCONNECT power and battery BEFORE installing or servicing operator.

For continued protection against ﬁ re:

• Replace ONLY with fuse of same type and rating.

*

13

*

12

11

*

10

9

To protect against fire and electrocution:

• DISCONNECT power and battery BEFORE installing or servicing operator. For continued protection against fire:

•

24

15

14

NOTE: Batteries MUST be connected to operate.

21

23

20

17

18

NOTE: 14.5 V output on transformer.

1. Antenna Input

2. Close Edge*

3. Open Edge/Photo*

4. Open Photo*

5. Close Photo*

6. Control Inputs*

7. Loop Inputs*

8. AC PWR/SOLAR

16

22

1

19

*Class 2 circuit 15 V maximum output

8

9. Gate 2

10. Accessory Power*

11. Gate 1

12. Lock (Solenoid/Maglock) Output*

13. Alarm Output*

14. Battery 1 Connector

15. Battery 2 Connector

16. Lock/BiPart Delay

*

2

*

3

*

4

*

5

*

6

*

7

17. Learn Xmitter

18. Primary Gate Jog

19. Learn Limits

20. Secondary Gate Jog

21. Force

22. Timer To Close

23. Receiver Module

24. Fuses (20 Amp)

39 Operation and Maintenance

Diagnostic Chart

Your gate operator is programmed with self-diagnostic capabilities. The diagnostic LED will ﬂ ash a number of times then pause signifying it has found a potential issue. Consult Diagnostic Chart below.

CONTINUOUS FLASHES (Heartbeat)

Power ON

2 FLASHES

STOP not connected

3 FLASHES

Low Battery Voltage

4 FLASHES

Low Battery Capacity

Operator is in sleep mode. Normal Operation

Stop is not connected.

• Check to make sure the jumper wire is connected between the COM and STOP input on

the control board. Stop is an NC (normally closed) input.

Battery voltage is below the recommended operating level.

• Battery may not be properly charged. Disconnect all batteries and make sure AC power or solar power is connected. Verify AC power outlet.

• Verify that the battery fuses are intact and not blown. Replace blown fuses with same type and rating.

• Batteries are no longer capable of holding a charge due to age or excessive depleting of

the battery. Replace the batteries (see accessories page). Dispose of old batteries properly.

Battery does not have the capacity to operate the gate operator.

• Battery may not be properly charged. Disconnect all batteries and make sure AC power or solar power is connected. Verify AC power outlet.

• Verify that the battery fuses are intact and not blown. Replace blown fuses with same type and rating.

• Batteries are no longer capable of holding a charge due to age or excessive depleting of

the battery. Replace the batteries (see accessories page). Dispose of old batteries properly.

5 FLASHES

RPM Reversal Gate 1 or in manual release mode. Wiring to the arm is disconnected or damaged

6 FLASHES

Force Reversal Gate 1

7 FLASHES

RPM Reversal Gate 2 or wiring to the arm is disconnected or damaged

8 FLASHES

Force Reversal Gate 2

Gate 1 has encountered an obstruction or the wiring to the arm is disconnected, damaged or miswired.

• Make sure the path of the gate is clear and the gate moves freely.

• Incorrect or bad connection to Gate 1 arm. Check the green and white wires on the

motor arm to make sure connections are correct and secure.

• Bad arm or control board.

Gate 1 has encountered an obstruction.

• Make sure the path of the gate is clear and the gate moves freely.

• If there is no obstruction the force adjustment is set too low. Increase the force setting

and verify that the gate moves without reversing and will reverse if an obstruction is encountered.

Gate 2 has encountered an obstruction or the wiring to the arm is disconnected, damaged or miswired.

• Make sure the path of the gate is clear and the gate moves freely.

• Incorrect or bad connection to Gate 2 arm. Check the green and white wires on the

motor arm to make sure connections are correct and secure.

• Bad arm or control board. Press the LEARN LIMITS button and press the GATE 2

buttons to move the arm. If the arm does not move continuously, disconnect arm from Gate 2 and connect the arm to the Gate 1 connector and repeat the attempt to move the arm. If the arm does not move continuously on either Gate 1 or 2, replace the arm.

Gate 2 has encountered an obstruction.

• Make sure the path of the gate is clear and the gate moves freely.

• If there is no obstruction the force adjustment is set too low. Increase the force setting

and verify that the gate moves without reversing and will reverse if an obstruction is encountered.

9-11 FLASHES

Potential chip failure

Operation and Maintenance 40

Potential RAM, Flash, or EEPROM failure.

• Turn power off and on.

• If problem is not resolved by turning the power off and on, replace the control board.

Troubleshooting

SYMPTOM POSSIBLE SOLUTION

Operator does not run. • Power not connected. Make sure the AC/Solar input is connected and that at least Diagnostic LED not on. one battery is connected with the corresponding fuse intact.

• Low or defective battery. Check the battery to make sure that the red wire goes to the positive terminal of the battery and the black wire goes to the negative terminal of the battery. Replace the battery if the open circuit voltage is below 11.5Vdc.

• Bad control board. Replace control board.

Operator powers up but • Low or defective battery. At least one charged battery must be connected for the does not run. unit to operate. Verify the battery fuse is intact. Check battery connections and battery voltage to be above 11.5V. Replace batteries if necessary.

• STOP button connection loose or disconnected. Press the RESET button and verify that the STOP LED lights up and then turns off after 10 seconds. Verify the wire connects between the STOP and CTRL PWR terminals.

• Obstruction blocking safety sensors. Press the RESET button and verify that all the safety LEDs (OPEN EDGE/PHOTO, OPEN PHOTO, CLOSE PHOTO) are OFF. If any are ON, clear any obstructions and verify the LED turns off

NOTE: The RESET button may need to be hit multiple times since the LEDs turn off after 10 seconds when the unit goes to sleep.

• (Optional Accessory) Safety edge is damaged or on an obstruction. Press the RESET button and verify that the Safety LEDs (OPEN EDGE and CLOSE EDGE/ PHOTO) are OFF. If either is ON, clear any obstructions and verify the LED turns off.

NOTE: The RESET button may need to be hit multiple times since the LEDs turn off after 10 seconds when the unit goes to sleep.

• (Optional Accessory) Interrupt loop or Shadow loop is obstructed. Press the RESET button and verify that the INTERRUPT and SHADOW LEDs are OFF. If either is on, check the loop detector and its wiring to insure that it is not incorrectly being triggered.

• Bad control board. Replace control board.

Relays “click” when remote • Battery not connected. At least one charged battery must be connected for the unit control or single button to operate. Verify battery fuse is intact. Check battery connections and battery control (SBC) command voltage to be above 11.5V. Replace batteries if necessary. is given, but the operator • Arm cable loose or disconnected. Verify that all of the wires, especially the red and does not move or arm blue wires, going to the arm are secure and that the connector is properly mated to disconnected. the header.

• Arm is jammed or incorrectly installed. Disconnect the motor housing from the arm and verify that the arm moves freely. With the motor housing still disconnected, enter the Learn Limits mode and verify that the motor spins. Reconnect the motor housing to the arm and make sure that all 4 screws are securely tightened and that the motor seats correctly against the worm drive. Relearn limits for the operator.

• Bad control board. Replace control board.

41 Operation and Maintenance

SYMPTOM POSSIBLE SOLUTION

The arm moves but cannot • Arm does not extend or contract enough during travel. The arm piston must extend exit Learn Limits mode. and contract close to its full length to Learn Limits. Adjust the arm mounting so that Cannot learn limits. this can be achieved.

• Motor cable wire not connected. Make sure that all the motor wires are connected properly.

• Motor housing is not properly seated. Make sure that the motor housing for the arm(s) is properly seated so there are no gaps between the motor housing and arm assembly. Make sure all 4 screws are tightened.

Gate does not fully open or • Over extending or contracting arm. Disconnect the motor housing from the arm and close when trying to learn make sure that the arm moves freely throughout the full length of travel. Adjust arm limits. mounting and positioning if necessary.

• Arm is interfering with the gate mount bracket. Examine the hinge point where the arm mounts to the gate post. Make sure that the arm housing does not hit or interfere with the gate post or mounting bracket throughout the full length of travel. Adjust the arm mounting and positioning if necessary.

• Gate is excessively heavy or hinges are bad. Verify that the gate is within the ratings for this product. Disconnect the arms and verify that both gates swing easily. Lubricate or replace hinges as necessary.

Unit does not respond to • Battery not connected. At least one charged battery must be connected for the unit single button control (SBC) to operate. Verify the battery fuse is intact. Check battery connections and battery command. voltage to be above 11.5V. Replace batteries if necessary.

• STOP button connection loose or disconnected. Press the RESET button and verify that the STOP LED lights up and then turns off after 10 seconds. Verify the wire connects between STOP and CTRL PWR terminals.

• Single Button Control (SBC) button connection loose. Check wiring for SBC button. Use the on-board single button to verify operator will respond.

• Bad control board. Replace control board.

Unit does not respond to • Battery not connected. At least one charged battery must be connected for the unit remote control command. to operate. Verify battery fuse is intact. Check battery connections and battery voltage to be above 11.5V. Replace batteries if necessary.

• STOP button connection loose or disconnected. Press the RESET button and verify that the STOP LED lights up and then turns off after 10 seconds. Verify the wire connects between the STOP and CTRL PWR terminals.

• Radio module not plugged in. Verify the green Radio module (located next to the coaxial connector) is properly mated with both 4-pin connectors.

• Antenna not connected. Verify the antenna and coaxial cable are properly connected to the control board.

• Remote control not learned. Refer to Programming Remote Control section for steps to program the remote control.

• Bad control board. Replace control board.

Gate stops and reverses • Obstruction sensed. Check safety devices and gate for obstructions. immediately after it starts • A fault has occurred. Check Diagnostic LED for possible error codes. moving. • Force set too low. Adjust FORCE setting until gate completes a full open/close

cycle without reversing. The force setting may need to be adjusted in cold weather, as the gate will not move freely.

• Loops are reversed. Make sure that the Safety loop and Shadow loop are connected properly. The gate may trigger the Shadow loop as it moves, so it must be connected to the correct input.

• Low or defective battery. At least one charged battery must be connected for the units to operate. Verify battery fuse is intact. Check battery connections and battery voltage to be above 11.5V. Replace batteries if necessary.

Operation and Maintenance 42

SYMPTOM POSSIBLE SOLUTION

Gate opens but does not • An open input is continuously activated. Check the open loop or vehicle probe to close. make sure they are clear of objects. Verify connections and operation for these devices.

• Low battery. Measure the voltage across the battery. Voltage should be above

11.5Vdc. Replace battery if required.

• (Optional Accessory) Entry system output is connected to the OPEN input, and is “stuck” opening. Verify entry system connections and operations.

• Obstruction blocking close photo eyes, shadow loop, or safety loop. Check eyes for alignment and verify all connections and operation for safety devices.

• (Optional Accessory) Close safety edge is damaged or on an obstruction. Verify operation and connection of close edge.

Gate does not close • Verify that the Timer to Close is ON and adjusted to desired delay. automatically with Timer to • Gate opened by a force obstruction reversal. Check the Diagnostic LED and clear

Close enabled. gate path of any obstructions.

• The Interrupt loop or Shadow loop is obstructed (optional accessories).

• Obstructed close safety sensor or safety edge (optional accessory). Check connections and operations of safety devices.

• Low battery. Measure the voltage across the battery. Voltage should be above

11.5Vdc. Replace battery is required.

• An open input is continuously activated. Check the open loop or vehicle probe to make sure they are clear of objects. Verify connections and operation for these devices.

• (Optional Accessory) Entry system output is connected to the OPEN input, and is “stuck” opening. Verify entry system connections and operation.

• Operator in “Party” mode after RESET button pressed while at the OPEN limit. Use a remote or the SBC to close the gate and reopen it. Verify that the TIMER RUNNING LED is flashing.

Alarm constantly sounds • Double entrapment occurred. Two successive obstructions were encountered while for 5 minutes. Sounds moving the gate. Press the RESET button and ensure that the gate path is clear of whenever a command is all obstructions. Check the FORCE setting to make sure it is properly set.

issued. Alarm is beeping 3 times on • Low battery. Measure the voltage across the battery. Voltage should be above

a command. 11.5Vdc. Replace battery if required. Gate runs too slow. • Open and Close Limits are set too close together. If the Open and Close Limits are

set within the ramp down distance of each other, the gate will run at slow speed all the time.

• The gate is starting within the ramp down distance from the Open or Close Limit. Gate will run slow to limits if motion is started within the ramp-down distance from the limit.

Gate 2 closes before Gate 1. • Lock/Bipart Delay not set. Slide the Lock/Bipart Delay switch to ON. Verify that

Gate 1 starts moving first on open and last on close.

• Gate is excessively heavy or hinges are bad. Verify that the gate is within the ratings for this product. Disconnect the arms and verify that both gates swing easily. Lubricate or replace hinges as necessary.

• Gate is unbalanced. Disconnect the arms and verify that both gates swing easily in both directions. If the gates are harder to move in one direction verses the other, the gate is not properly balanced and the hinges must be adjusted.

• Bad motor connection. Check the motor wires and connections for possible loose or corroded terminals.

Alarm beeps when running. • Low battery. Measure the voltage across the battery. Voltage should be above

11.5Vdc. Replace battery if required.

43 Operation and Maintenance

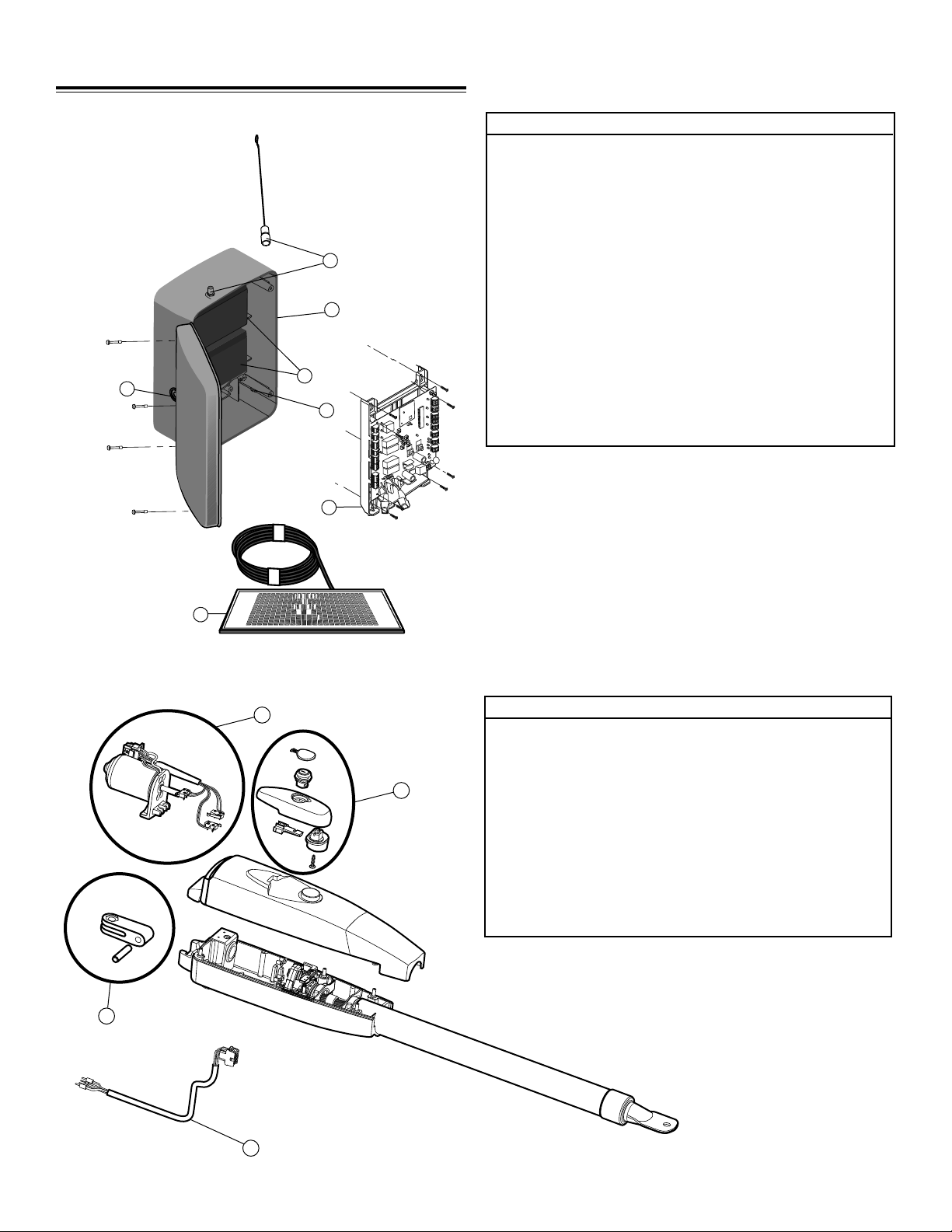

REPAIR PARTS

Control Box

5

ITEM PART # DESCRIPTION QTY

1 K1A6426-1 Control Board with

Mounting Bracket 1 2 K23-19380 Reset Switch 1 3 K74-34392 Antenna 1 4 29-NP712 Battery 1 5 K76-19446 Alarm 1

3

6 SOLPNL10W12V Solar Panel

Not Shown

7

LA412-CONT Complete 1 Control Box K1A6636 Receiver 1

4

2

Module 315MHz K1A6636-1 Receiver 1 Module - 390MHz (optional) 1

NOTE: The fuse is a standard 20 Amp fuse that is available from your local automotive store.

1

6

Gate Operator Arm

3

2

ITEM PART # DESCRIPTION QTY

1 41ASWG-442SA Release Lever 1 2 41ASWG-0594SA Motor with Limit 1 Switch Harness

1

3 41ASWG-0014SA Rear Connector 1 4 41ASWG-0597SA Cable 12V 1 with Connector Not Shown 41ASWG-0119 Release Key 1 LA412 Operator Arm 1 K77-19130 Hardware Bag 1

4

Repair Parts 44

ACCESSORIES

OPEN

TO

PRESS

RING

OPEN

CLOSE

TO

PRESS

RING

OPEN

CLOSE

OPEN

TO

PRESS

RING

OPEN

CLOSE

OPEN

TO

PRESS

RING

OPEN

CLOSE

373LM

50-220

SGLOCK12V

SOLPNL10W12V

3-Button SECURITY✚® Remote Control:

Includes visor clip.

Protector System

®

Safety Sensors:

370LM

GPINLCK Gate Arm Pin Lock:

The Safety Sensors are recommended for installation with the operators

7

covered in this manual.

3-Button Mini-Remote Control with SECURITY✚

®

:

With key ring and fastening strip.

The pin lock kit is designed to prevent disconnection of the gate operator and the gate while providing a means to open the gate in case of power failure.

Automatic Gate Lock:

Solenoid-driven lock that automatically unlocks when gate is open and locks when gate is closed. Can be mounted onto gate or post. Can be released in case of emergency.

10 Watt Solar Kit:

This kit is to replace or add a Solar P

anel to the op

erator system. Up to

LM202

50-19503 Push-To-Open Bracket:

Vehicle Exit Sensor:

One piece outdoor buried vehicle motion detector with sensing probe is housed in a small relay type housing so it is easy to integrate with gate, providing for free exit only.

Used to allow the gate operator to push the gate open.

three Solar Panels can be connected to the gate operator.

WGB315

Wireless Gate Doorbell:

Allows guest

s to ring a doorbell in the

house from the keypad. Homeowner can open gate from inside

the home using the included remote

27-NP712 Gate Access System Battery:

The Gate Access System Battery is designed to add a battery for solar applications or as a replacement battery.

control button. No wiring required. Keypad can be programmed to allow access to selected guests using a 4 digit code.

LA12VXFMR Transformer:

®

377LM

SECURITY✚

Keyless Entry:

Enables homeowner to operate gate

45 Accessories

operator from outside by entering a four digit code on a specially designed keyboard.

To order visit www.liftmaster.com

The transformer may be used to charge the gate operator battery in place of the solar panel(s).

WARRANTY POLICY

LIFTMASTER TWO YEAR LIMITED WARRANTY

The Chamberlain Group, Inc. warrants to the first purchaser of this product, for the structure in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of TWO years from the date of purchase. The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety.

If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-2806, toll free, before dismantling this product. Then send this product, pre-paid and insured, to our service center for warranty repair. You will be advised of shipping instructions when you call. Please include a brief description of the problem and a dated proof-of purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option.

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE TWO YEAR LIMITED WARRANTY PERIOD SET FORTH ABOVE, AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, OR REPLACEMENT OF BATTERIES.

THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GATE OR GATE HARDWARE, INCLUDING BUT NOT LIMITED TO THE GATE SPRINGS, GATE ROLLERS, GATE ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. ANY SERVICE CALL THAT DETERMINES THE PROBLEM HAS BEEN CAUSED BY ANY OF THESE ITEMS COULD RESULT IN A FEE TO YOU.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

HOW TO ORDER REPAIR PARTS

OUR LARGE SERVICE ORGANIZATION

SPANS AMERICA

FOR INSTALLATION AND SERVICE INFORMATION,

CALL OUR TOLL FREE NUMBER

1-800-528-2806

www.liftmaster.com

WHEN ORDERING REPAIR PARTS

PLEASE SUPPLY THE FOLLOWING INFORMATION:

PART NUMBER DESCRIPTION MODEL NUMBER

ADDRESS ORDER TO:

THE CHAMBERLAIN GROUP, INC.

Technical Support Group

6050 S. Country Club Road

Tucson, AZ 85706

Warranty 46

TEMPLATE FOR POST BRACKET MOUNTING

7 6 5 4 3 2 1

FAAC LA412 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

INTRODUCTION

Safety Symbol and Signal Word Review

Operator Dimensions and Specifications

SAFETY INSTALLATION INFORMATION

Carton Inventory

Hardware Inventory

Additional Items For Purchase

Tools Needed

OVERVIEW OF TYPICAL INSTALLATION

Dual Gate Typical Installation

Check Your Gate

Mounting Options

INSTALLATION

MANUAL RELEASE

DETERMINE THE POSITION OF THE EXTENSION BRACKET

MEASURING AND MARKING FOR THE GATE BRACKET

POSITION THE EXTENSION BRACKET TO POST BRACKET

ATTACH BRACKETS TO GATE OPERATOR

POSITION GATE OPERATOR ON GATE

TEST GATE TRAVEL

SECURE POST BRACKET TO GATE POST

SECURE GATE BRACKET TO GATE

WARNING SIGN PLACEMENT

MOUNT THE CONTROL BOX

INSTALL THE CONTROL BOARD

WIRING

Connect the Gate Operator (Gate 1) to the Control Box

WATERTIGHT CONNECTOR NUT

INSERT THE OPERATOR CABLE

CONNECT THE OPERATOR TO THE CONTROL BOARD

Connect the Gate Operator (Gate 2) to the Control Box (Model LA412-S Only)

SET THE LOCK/BIPART DELAY

CONNECT SECOND OPERATOR TO CONTROL BOARD

JUNCTION BOX

CONNECT WATERTIGHT CONNECTORS

CONNECT WIRES IN JUNCTION BOX

SECURE JUNCTION BOX

SOLAR PANEL INSTALLATION

Select Site for Solar Panel(s)

OVERVIEW OF SOLAR PANEL INSTALLATION

POSITION SOLAR PANEL(S)

POSITION SOLAR BRACKET

INSERT MOUNTING BOLTS

SECURE SOLAR PANEL(S) TO SOLAR BRACKET

CONNECT SOLAR PANEL(S) TO OPERATOR CONTROL BOX

CONNECT BATTERIES

PROGRAMMING

Program Limits

SINGLE ARM LEFT-HAND SIDE SINGLE ARM RIGHT-HAND SIDE

DUAL GATE (LEFT-SIDE PRIMARY OPERATOR) DUAL GATE (RIGHT-SIDE PRIMARY OPERATOR)

Force and Timer to Close

To Add or Reprogram a Remote Control (not provided)

To Add a Wireless Keyless Entry (not provided)

To Erase All Codes

OPERATION AND MAINTENANCE

USING YOUR GATE OPERATOR

MANUAL RELEASE

MAINTENANCE

Wiring Diagram

Diagnostic Chart

Troubleshooting

REPAIR PARTS

Control Box

Gate Operator Arm

ACCESSORIES

WARRANTY POLICY

HOW TO ORDER REPAIR PARTS

TEMPLATE FOR POST BRACKET MOUNTING
