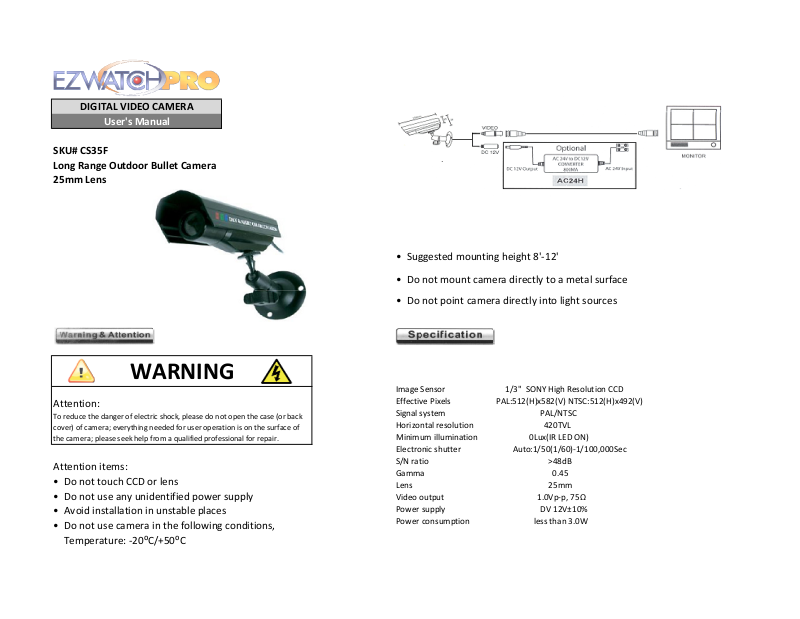

EZWatch CS35F User Manual

DIGITAL VIDEO CAMERA

User's Manual

SKU# CS35F

Long Range Outdoor Bullet Camera

25mm Lens

WARNING

Image Sensor 1/3" SONY High Resolution CCD

Effective Pixels PAL:512(H)x582(V) NTSC:512(H)x492(V)

Electronic shutter Auto:1/50(1/60)-1/100,000Sec

Ω

Power supply DV 12V±10%

Power consumption less than 3.0W

• Suggested mounting height 8'-12'

• Do not mount camera directly to a metal surface

• Do not point camera directly into light sources

Attention:

To reduce the danger of electric shock, please do not open the case (or back
cover) of camera; everything needed for user operation is on the surface of
the camera; please seek help from a qualified professional for repair.

Attention items:

• Do not touch CCD or lens

• Do not use any unidentified power supply

Signal system PAL/NTSC
Horizontal resolution 420TVL
Minimum illumination 0Lux(IR LED ON)

S/N ratio >48dB
Gamma 0.45
Lens 25mm
Video output 1.0Vp-p, 75

• Avoid installation in unstable places

• Do not use camera in the following conditions,
Temperature: -20⁰C/+50⁰C

Making a BNC Connection

Connecting a Pre-made Cable

Step 1: Strip away all of the cable and shielding so

Step 2: Then strip away the black outer jacket so

Installing a power wire pigtail

Contact

cable and strip away the outer sheathing to expose

copper wire. Do the same to the power wire pigtail

EZWATCHPRO

www.ezwatch-security-cameras.com

Phone/Fax

Technical Support/Sales

Toll Free 1-866-241-3400

International 001-801-4783980

Fax [phone]

Mail

Main Office/Mailing Address

Automated Video Systems

1600 S. State Street

you have 1/2" of the center conductor exposed as
shown in the picture.

Connect this end to
the camera.

you have 1/4" of the shielding exposed. Do not
allow any of the copper shielding to touch the
center conductor.

Step 3: Insert the cable into the fitting and gently
find the hole for the center conductor before you
press the fitting onto the wire. Now just twist the
fitting onto the wire while firmly pressing down
until the fitting is firmly on the cable.

Step 1: At the camera location, take the power

the inner two wires (black & red). Then strip away
about 1/4" of the wires jacket to expose the

which connects to the camera power connection
as shown. Note: Do not strip or cut the power lead
coming directly from the camera. You should strip
the "pigtail" power cable which came with your
kit. You should have one "pigtail" for each camera.

The cables are labeled with a yellow wrap detailing the camera end
and the DVR end. It is very important that you identify these ends

before installing the cable so that you have the correct ends at the
correct location.

Step 2: Now take the red power cable lead and
twist it together with the black & white lead from
the power pigtail. Now take the black lead from
the power cable and twist it together with the all
black lead from the pigtail. Use the gray wire nuts
provided with your system and twist them onto
the wires until they are firmly secured.

Salt Lake City, UT 84115
