User’s Manual

RGB 460xi , 460xi Dual,

464xi , 468xi , and 468 Mxi

Wall and Floor box Mountable Interfaces with Euro Channel and AKM UK versions

68-542-01 Rev. E

Printed in the USA

11 03

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afin de

pouvoir les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et

consignes marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni

d’outils non recommandés par le fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de

operación y seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad

para futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones

marcadas en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especificamente recomendados por el fabricante, ya que podrian implicar riesgos.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all

power cords from the rear of the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to

be stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualified service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced.

Replace it only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualifié. Aucun des éléments internes ne peut être réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices,

ceux-ci servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d'explosion s'll y a remplacment incorrect de la

batterie. Remplacer uniquement avec une batterie du meme type ou d'un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen,

sollten Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im

Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem

Servicepersonal durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse

aufweist, dienen diese zur Vermeidung einer Überhitzung der empfindlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird.

Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la

acometida de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se

deben instalar en lugares donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

calificado. En el interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/ mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición

incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

Chapter 1 • Introduction .......................................................... 1-1

About this Manual ................................................................ 1-2

About the RGB 460

Features ......................................................................................1-3

Chapter 2 • Installation and Operation ........................2-1

Installation Overview .......................................................... 2-2

UL requirements .................................................................... 2-2

Front Panel Features and Cabling ................................. 2-3

Rear Panel Features and Cabling ................................... 2-6

Euro Channel and Floor Box Versions ....................... 2-10

Adapter Plate (AAP/MAAP) Mounting ...................... 2-10

Pre-installation Testing ..................................................... 2-11

Troubleshooting .................................................................. 2-11

Interface Mounting ............................................................ 2-12

Application Examples ........................................................ 2-13

Appendix A • Specifications, Part Numbers,

and Accessories ............................................................................. A-1

Specifications ......................................................................... A-2

Ordering Information ......................................................... A-6

Accessories ............................................................................ A-6

Cables .................................................................................... A-7

AAP/MAAP Availability ...................................................... A-8

xixi

xi Series .............................................. 1-2

xixi

All trademarks mentioned in this manual are the properties of their respective owners.

68-542-01 Rev. E

Printed in the USA

11 03

iiiRGB 460xi Series • Table of Contents

ivRGB 460xi Series • Table of Contents

RGB 460

xixi

xi Series

xixi

Chapter One

Introduction

About this Manual

About the RGB 460xi Series

Features

About this Manual

This manual describes the Extron RGB 460xi series of universal wall, furniture, and floor box mountable interfaces and explains how to configure and operate them. Unless otherwise noted, the term “RGB 460xi” or “interface” is used throughout this manual to refer collectively to all models in the RGB 460xi Series.

Detailed mounting instructions are available in other Extron documentation:

• For wall box installations, refer to one of the available wall box installation guides.

• For wall or furniture mount installations with Euro Channel versions, refer to #68-636-03.

• For Steel City

• For MK box installations, refer to #68-636-02.

• For FSR floor box installations, refer to #68-636-05.

• For AKM UK floor box installations, refer to #68-904-01.

floor box installations, refer to #68-636-04.

About the RGB 460xi Series

The Extron RGB 460xi (all), RGB 460xi Dual, RGB 464xi, RGB 468xi, RGB 468 Mxi, and RGB 468xi AKM UK are compact computer video interfaces. Each interface comes in either a twogang (RGB 460xi), three-gang (RGB 464xi and RGB 468 Mxi), or four-gang (RGB 460xi Dual and RGB 468xi) wall box size, except Steel City, MK, FSR, and AKM UK floor box models. Optionally, the two-gang and four-gang interfaces (except for the RGB 460xi Dual, MK, FSR, and AKM UK models) come in an EC version which mounts in a Euro Channel. The interfaces (except for the RGB 460xi Dual, MK, FSR, and AKM UK models) are also wall/furniture mountable and come with a matching mud ring kit (part #70-086-xx). The interfaces have a 300 MHz (-3dB) video bandwidth.

Each interface accepts one computer video input (15-pin HD) and one stereo audio input, and all models include a 15-pin HD buffered local monitor output.

1-2

RGB 460xi Series • Introduction

Features

Horizontal shifting control — The displayed image may be

shifted to the left or right by turning a front panel knob.

Advanced Digital Sync Processing™ (ADSP™) — ADSP

allows sync processing operations, such as horizontal centering, to occur without affecting the signal’s sync timing. This allows horizontal centering to be applied to signals that are output to digital display devices such as LCD projectors, DLP projectors and plasma displays. An internal DIP switch provides another option, Digital Display Sync Processing™ (DDSP™), to ensure proper displays without altering sync pulse timing or width.

Stereo audio — Unbalanced stereo audio inputs can be output

as balanced or unbalanced unamplified stereo audio.

RGB 460xi Series • Introduction

1-3

RGB 460xi Series • Introduction1-4

RGB 460

xixi

xi Series

xixi

Chapter Two

Installation and Operation

Installation Overview

Front Panel Features and Cabling

Rear Panel Features and Cabling

Euro Channel and Floor Box Versions

Adapter Plate (AAP/MAAP) Mounting

Pre-installation Testing

Interface Mounting

Application Examples

Installation Overview

CAUTION

To install and set up an RGB 460xi Series interface, follow these steps:

Turn off all equipment. Disconnect the computer, the

interface, and the output devices (e.g., projector/monitor, speakers, etc.) from the power source.

If applicable, prepare the site as explained in the

appropriate installation guide.

Attach any optional architectural adapter plates (AAPs) to

the interface (RGB 468xi, RGB 468 Mxi, or RGB 468xi AKM UK only) and then attach all the cables. See “Front Panel Features and Cabling,” “Rear Panel Features and Cabling,” and “Mounting Adapter Plates (AAPs/ MAAPs)” in this chapter.

Set rear panel DIP switches as explained in the “Rear

Panel Features and Cabling” section of this chapter.

Connect all output device, interface, and computer power

cords and then turn on all devices. All devices should have power, and the audio and video should be working properly. If not, check all cabling and switch settings, and make adjustments as necessary.

Installation and service should be performed by authorized personnel only. UL Listed electrical boxes are recommended. See “UL requirements” in this chapter.

6 7

UL requirements

To comply with Underwriters Laboratories (UL) safety requirements, the following minimum guidelines must be followed:

2-2

Disconnect power from all the devices.

Mount the interface as explained in the appropriate installation guide.

Restore power to the devices.

• The interface must not be used beyond its rated voltage

range.

• The interface must be installed in UL Listed junction box.

• The interface must be installed with conduit in

accordance with the National Electrical Code.

RGB 460xi Series • Installation and Operation

Front Panel Features and Cabling

RGB 460

NO MONITOR

MONITOR

NO MONITOR

MONITOR

H. SHIFT

MONITOR

INPUT

MIN/MAX

AUDIO

RGB 460

H. SHIFT

MONITOR

INPUT

MIN/MAX

AUDIO

1 2

RGB 464

The RGB 460xi Dual (not pictured) consists of two RGBxi interfaces placed side-by-side on a 4-gang faceplate.

INPUT

NO MONITOR

MONITOR

AUDIO

RGB 468

VIDEO S-VIDEO

AUDIO

L/MONO R

H. SHIFT

MIN/MAX

NETWORK

RGB 424xi

The RGB 468 Mxi (not pictured) is functionally identical to the RGB 468xi (at left) except that it fits in a 3-gang box and accepts four miniAAPs (MAAPs).

MONITOR

PC INPUT

PC AUDIO

RGB 468xi AKM UK

H. SHIFT

MIN/MAX

RGB 468xi AKM UK

RGB 460xi Series • Installation and Operation 2-3

Faceplate screws — These screws secure the faceplate to the rest

Tip (L) Sleeve (GND)

Tip (L)

Ring (R)

Sleeve (GND)

of the interface.

CAUTION

Do not remove these faceplate screws while the interface is attached to the wall or the detached interface may fall down inside the wall.

Power/signal LED — This LED lights

• Yellow to indicate that the interface is receiving power.

• Green to indicate that an active sync signal is present at the

input and the interface is receiving power.

If the input signal has sync on green, the LED will not change from yellow to green

No Monitor/Monitor switch (video input termination) — Select one of the following video input impedance selections to provide the best picture:

• No Monitor (75 ohms) if no local monitor is connected or if

the picture is too bright or blooming (unterminated).

• Monitor (high impedance) if a local monitor is connected, a

laptop breakout cable is used, or if the picture is too dark.

Audio input connector — Plug a 3.5 mm stereo plug into this jack for unbalanced audio input. Wire the male plug as shown on the right.

Computer input connector — Attach a cable from the computer to the interface via this female 15-pin HD connector.

Buffered local monitor output connector — Attach a cable from a local monitor to this female 15-pin HD connector.

Horizontal shift control knob (H. Shift) — While viewing the displayed image, rotate this control to move the image to the right or left on the screen. The Min/Max LED (8) will flash red whenever the minimum or maximum limit of this control is reached.

DDSP disables the horizontal shifting control.

Min/Max LED — This LED blinks red momentarily whenever the minimum or maximum limits of the horizontal shift control

) have been reached. Continually turning the horizontal

(

shift control knob in the same direction after the limit has been reached will cause the LED to continually blink.

RGB 460xi Series • Installation and Operation2-4

Composite video connector (RGB 464

xixi

xi) — This female RCA-

xixi

to-BNC type connector provides pass-through capability for composite video input.

S-video pass-through connector (RGB 464

xixi

xi) — Connect an S-

xixi

video source to this 4-pin mini DIN pass-through connector.

RCA audio connectors (RGB 464

xixi

xi) —

xixi

Connect the left audio signal cable to the white RCA connector (L/Mono), and the right audio signal cable to the red RCA

Tip (Signal) Sleeve (Gnd)

connector (R) for unbalanced stereo audio pass-through input. Wire the RCA plugs as shown on the right.

When a mono audio signal is applied to the L/Mono input, the same signal will be output to both left and right audio outputs.

Network connector (RGB 464

xixi

xi) — Connect a computer to this

xixi

RJ-45 female connector for pass-through to a network.

Opening for architectural adapter plates — The RGB 468xi can

accept up to four optional standard architectural adapter plates (AAPs) attached here (up to three on the RGB 468xi AKM UK). The RGB 468 Mxi (not pictured) can accept up to four optional mini architectural adapter plates (MAAPs) attached here. The adapter plates come in a variety of audio/video connector configurations.

#4-40 Nut w/ Captive

Washer

Note: The RGB 468 Mxi (not shown) uses hex screws that mount the MAAPs from the front, instead of nuts, which mount the AAPs from the rear (as shown).

4-gang Wall Box

F I H

S . H

MONITOR

INPUT

O T I

N O

AUDIO

T I N

M O N

M T

P S D

H T I

A M /

N I

RGB 468

RGB 468xi

RGB 460xi Series • Installation and Operation 2-5

Blank plates (two single space and one double space) are included with the interfaces to cover unused spaces. Adapter plates must be ordered separately (see “Adapter Plates” in appendix A). They must also be attached to the faceplate and cabled before the interface is installed in the wall or furniture. The screws needed for installing the adapter plates are supplied (MAAPs), or built into the plates (AAPs), so no additional screws are needed.

1. Remove the blank plates from the interface by unscrewing

the hex screws (MAAPs) or nuts (AAPs) that fasten the plates to the faceplate.

2. Attach the adapter plates to the faceplate with the

provided hex screws (MAAPs) or captive washers and #440 nuts (AAPs).

3. Attach the output cables to the rear connectors of the

adapter plates. Soldering will be required for some connectors. Attach foil and braided shields to ground connections.

Rear Panel Features and Cabling

Rear panel of the RGB 464

RGB 460xi Series • Installation and Operation2-6

xixi

interface

xixi

DIP switches — This bank of DIP switches, as illustrated below,

controls sync on green output, composite sync output, DDSP (Digital Display Sync Processing), serration pulse output, vertical sync pulse width, and composite sync routing. Moving a switch up will set it to “On” and moving it down will set it to “Off”.

Closed / On

Open / Off

The default for all DIP switches, except for switch 7, is Off (down).

1 — Sync on green

Off — The interface outputs separate horizontal and

vertical sync (on the H and V connectors) for RGBHV.

On — The interface outputs sync on green (RGsB).

2 — Composite sync — This switch controls composite sync

output. Off — The interface outputs RGBHV or RGsB video. On — The interface outputs combined horizontal and

vertical sync for RGBS.

3 — DDSP (Digital Display Sync Processing) — This feature

may be necessary for digital display devices such as LCD, DLP (digital light processing), and plasma displays. Use this option if the image is not displayed properly after other options, such as serration pulse and vertical sync pulse width, have been explored.

Off — The interface performs sync processing operations,

such as centering, with ADSP.

On — The interface uses DDSP instead of ADSP.

DDSP does not process the sync signal.

DDSP disables the horizontal shifting control.

4 — Serration pulse — Many LCD and DLP projectors and

plasma displays must have serration pulses removed from the sync signal in order to display the image properly. Flagging or bending at the top of the video image is a sign that the serration pulses should be removed.

Off — The interface does not output serration pulses. On — The interface outputs serration pulses in the vertical

sync interval.

RGB 460xi Series • Installation and Operation 2-7

5 — Vertical sync pulse width — Try adjusting the output

vertical sync pulse width if no picture appears, the picture cuts in and out, or the picture is scrambled.

Off — The vertical sync pulse is wide. On — The vertical sync pulse is narrow.

You can also try switching from ADSP to DDSP, as explained in the description for DIP switch 3 on the previous page.

6 — Negative sync — This switch controls sync polarity.

Off — Output sync polarity follows (is the same as) input

polarity.

On — Both the horizontal and the vertical sync signals

are forced to negative polarity on output.

7 & 8 — Composite sync routing — These switches work

together to route local monitor signals for Macintosh 13” monitors and all other Macintosh and VGA-type monitors.

To be valid, these switches must be set so that one is Off and the other is On. If both are set to On or Off, composite sync routing will not function.

7 (On), 8 (Off) — Sync routing to 15-pin HD local monitor

for all Macintosh (non-13”) and VGA monitors (default).

7 (Off), 8 (On) — Sync routing to 15-pin HD local monitor

for a Macintosh 13” monitor.

RGB video output connectors — Attach coaxial cables from the

interface to the display device via these female BNC connectors. These BNCs are on red, green, blue, black, and yellow pigtail wires secured to the interface by the tie wraps.

For RGBHV output: R is red, G is green, B is blue, H is black, and V is yellow.

For RGBS output: R is red, G is green, B is blue, and S is black.

For RGsB output: R is red, G is green, and B is blue.

Gain switch — To compensate for cable resistance and

capacitance, slide this switch to select the level of video gain that yields the sharpest picture:

Normal (bottom position) — unity gain (no signal boost).

Medium (middle position) — mid-level peaking and gain.

Maximum (top position) — maximum amount of peaking and

gain. (Select this for use with longer cables.)

RGB 460xi Series • Installation and Operation2-8

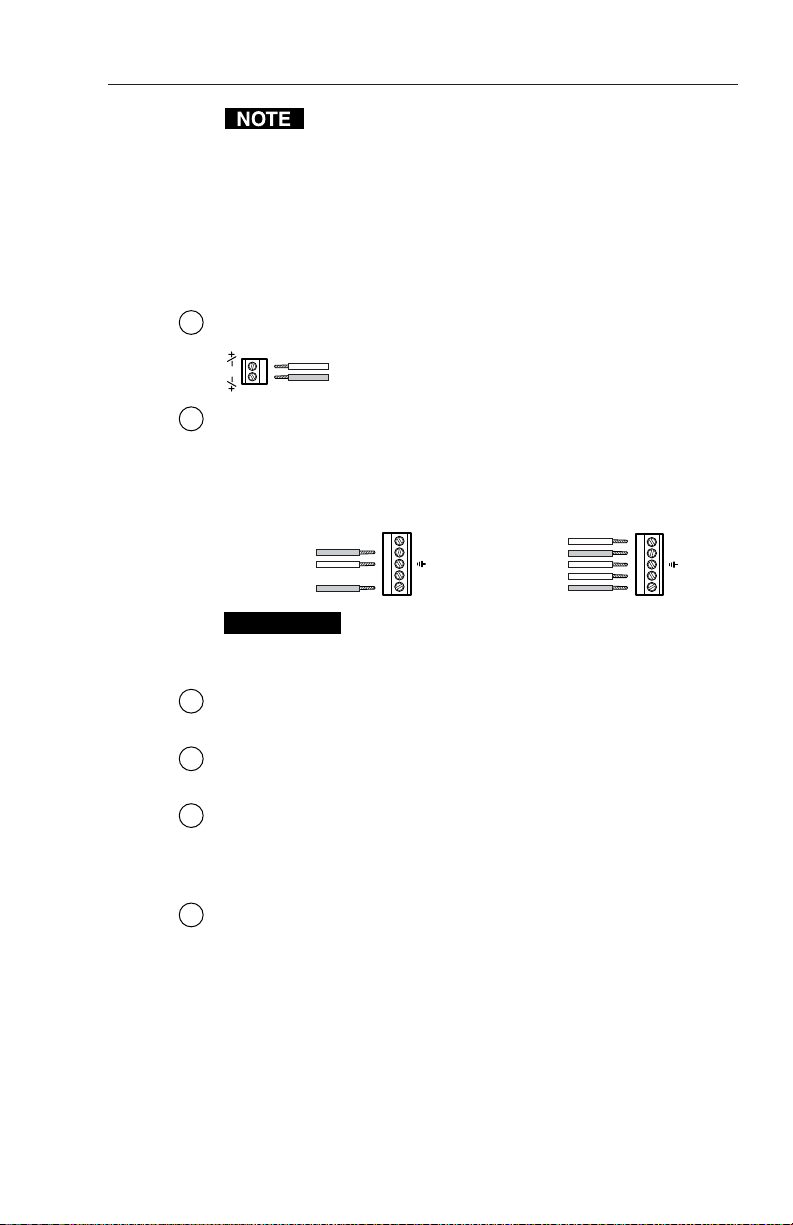

If the signal cable between the interface and the output

Balanced Output

Ring

Tip

Sleeve (s)

Ring

Tip

R +

Audio

device is shorter than approximately 125 feet, and the gain switch is set to Medium or Maximum, the image may be overcompensated. If the edges of the image seem to exceed their boundaries, or if thin lines and sharp edges look thick and fuzzy, try changing the gain/ peaking setting. The gain switch will be inaccessible after installation, so adjust the gain before installing the interface into a wall or furniture.

Power connector — Connect a 9VDC to 24VDC power supply

Power

9-24VDC

to this 3.5 mm, 2-pole, direct insertion captive

+ or –

screw connector. Wire the connector as

– or +

shown here. Polarity is not important.

Audio output connector — Insert wires into and tighten the screws on this 3.5 mm, 5-pole, direct insertion captive screw connector for unbalanced or balanced audio output. Wire the connector as shown here.

Unbalanced Output

See Caution

Tip

Sleeve (s)

See Caution

Tip

Audio

+ L

CAUTION

Connect the sleeve to ground (Gnd). Connecting the sleeve to a negative (-) terminal will damage the audio output circuits.

Composite video pass-through BNC connector — A male BNC connector attaches here.

S-video pass-through 4-pin mini DIN connector — A male 4-pin mini DIN connector attaches here.

Balanced active audio connector — Insert wires into and tighten the screws on this 3.5 mm, 5-pole, direct insertion captive screw connector for balanced active audio output. Wire the connector as shown above.

Network pass-through RJ-45 connector — If this connector is not required, a blank cover is supplied to fill this faceplate opening.

RGB 460xi Series • Installation and Operation 2-9

Euro Channel and Floor Box Versions

The RGB 460xi and RGB 468xi are available in a Euro Channel (EC) version, the RGB 460xi is available in two floor box models (MK and FSR), and the RGB 468xi AKM UK is designed for Ackermann floor boxes. (See appendix A for part numbers.)

The front and rear panel features, cabling requirements, and testing/troubleshooting procedures are identical to the descriptions shown in this chapter for the wall box models. For installation instructions, see the RGB 400xi Series installation guide that addresses your specific requirements.

Mounting Adapter Plates (AAPs/MAAPs)

All AAPs/MAAPs should be mounted before the interface is tested or installed in a wall or furniture. Each AAP/MAAP has standoffs (screws built into the rear panel) and nuts/hex screws, which can be used to secure the AAP/MAAP to the interface.

1. Insert the AAP/MAAP standoffs into screw holes in the

interface.

2. Using the #4-40 nuts (standard AAPs) or the 3/32" hex

screws (MAAPs) provided, secure the AAP/MAAP to the interface.

#4-40 Nut w/ Captive

Washer

Note: The RGB 468 Mxi (not shown) uses hex screws that mount the MAAPs from the front, instead of nuts, which mount the AAPs from the rear (as shown).

4-gang Wall Box

T F I H

S . H

MONITOR

INPUT

O T I

N O

AUDIO

T I N

M O N

M T

S D A

H T I

M / N

I M

RGB 468

RGB 468xi

Mounting an adapter plate (AAP shown)

3. Repeat steps 1 and 2 to mount other AAPs/MAAPs. Cover

any openings in the interface with blank AAP/MAAP plates.

RGB 460xi Series • Installation and Operation2-10

4. Be sure to include the AAP/MAAP connectors as part of the installation pretest before final installation of the interface.

For more information about interface installation, refer to the appropriate installation guide.

Pre-installation Testing

Before installing the interface into the wall, furniture, or floor box, test the system as follows to verify that the connections and settings are correct.

1. Apply power to the interface. The power/signal LED on the interface should light to indicate that the interface is receiving power.

2. Check all connectors and controls to make sure they are functioning properly.

Troubleshooting

If the power/signal LED does not light or an installation component does not function properly, first check the wiring at both the interface and the power supply, and then ensure that the power supply is connected to a power source.

If the image does not appear or there is no sound

1. Make sure that all the devices are powered on.

2. Ensure that the connectors are wired correctly at both ends

of the cables. Audio cables must be wired for an unbalanced stereo input signal and for a balanced or an unbalanced stereo output signal.

3. If input is from a laptop computer and no picture appears,

use a laptop breakout cable for the input connection. Check the computer’s user’s guide or contact Extron to determine if special commands are required to output video to the external video port. Also, many laptops’ screens shut off after the external video port is activated.

4. Call the Extron S the image still does not appear or there is no sound.

Sales and Technical Support Hotline if

If the image is not displayed correctly

1. If the picture is too bright or dark, or if the edges of the image seem to exceed their boundaries, or if thin lines and sharp edges look thick and fuzzy, change the gain setting.

2. If the picture appears and is stable, but it has ghosting or blooming, verify that the video input is properly

RGB 460xi Series • Installation and Operation 2-11

terminated. If the problem is not resolved by changing the termination, try using a different input cable. Poor quality or damaged cable can cause ghosting or blooming.

3. If the picture still is not displayed correctly, call the Extron S3 Sales and Technical Support Hotline.

If the interface does not respond to horizontal shifting

If the picture does not move on screen when the horizontal shift control knob is rotated, DDSP is in use. Set the DDSP DIP switch to Off.

Interface Mounting

Once the system has been cabled and tested, the interface can be installed in the wall, furniture, or floor box. To mount the interface, refer to the installation guide that addresses your specific requirements.

2-12

RGB 460xi Series • Installation and Operation

Application Examples

Projector

Installation Cable

AAPs

T F I

S . H

R O IT

A M /

N I M

T U

MONITOR

I D U

NO MONITOR

A H T

Extron RGB 468xi

SVGA Compatible Computer w/ Audio

Projector

T IF H

S . H

R O IT

N O

A /M IN

U P IN

O IT N

O M

N O

WITH ADSP

M O N

4 B

Extron RGB 460

SVGA Compatible Computer w/ Audio

RGB 460xi Series • Installation and Operation

2-13

RGB 460xi Series • Installation and Operation2-14

RGB 460

xixi

xi Series

xixi

Appendix A

Specifications, Part Numbers,

and Accessories

Specifications

Ordering Information

AAP/MAAP Availability

Specifications

Video

Gain ............................................... Unity (0.7V), 15% with 3dB peaking (0.8V), 30%

Bandwidth ............................................ 300 MHz (-3dB)

Video input and loop through

Number/signal type

RGB 460xi Dual ...................... 2 analog RGBHV, RGBS, RGsB

All other models .................... 1 analog RGBHV, RGBS, RGsB

Connectors

RGB 460xi /460xi EC/460xi FSR/464xi/468xi/468 Mxi/468xi EC/

468xi AKM UK ....................... (1) 15-pin HD female buffered input connector

RGB 460xi Dual ...................... (2) 15-pin HD female buffered input connectors

Nominal level ...................................... 0.7V p-p for RGB

Minimum/maximum levels .............. Analog: 0.3V to 1.45V p-p with no offset at

Impedance ............................................ 75 ohms or Hi Z, switchable (set to 75 ohms if

Horizontal frequency ......................... 15 kHz to 150 kHz (optimum 15 kHz to 62

Vertical frequency ............................... 30 Hz to 170 Hz

Return loss ........................................... <-30dB @ 5 MHz

with 6dB peaking (0.9V)

and (1) 15-pin HD female local monitor loop through connector

and (2) 15-pin HD female local monitor loop through connectors

unity gain

no local monitor is connected)

kHz)

Video output

Number/signal type

RGB 460xi Dual ...................... 2 separate analog RGBHV, RGBS, RGsB

All other models .................... 1 analog RGBHV, RGBS, RGsB

Connectors

RGB 460xi Dual ...................... 2 x 5 BNC female on 2” to 2.5” cables

All other models .................... 5 BNC female on 2” to 2.5” cables

Nominal level ...................................... 0.7V p-p for RGB

Minimum/maximum levels .............. Analog: 0.7V to 0.9V p-p (switch selectable) w/

Impedance ............................................ 75 ohms

Return loss ........................................... <-30dB @ 5 MHz

RGB 460xi Series • Specifications, Parts, and AccessoriesA-2

peaking and 0.7V p-p input

Sync

Input type ............................................. Autodetect RGBHV, RGBS, RGsB (accepts

Output type .......................................... RGBHV (at all times)

Input level ............................................ 2.0V to 5.5V p-p with +0.2VDC offset max.

Output level ......................................... 4.0V to 5.0V p-p

Input impedance ................................. 510 ohms

Output impedance .............................. 75 ohms

Max propagation delay ...................... 52 ns

Max rise/fall time ............................... 2.5 ns

Polarity ................................................. Positive or negative

RGsB but does not strip from video)

RGBS ............. switch selectable

RGsB ............. switch selectable or pass-through

Audio — all models

Gain ....................................................... Unbalanced output: 0dB, balanced output:

Response ............................................... 20 Hz to 20 kHz, ±0.5dB

THD + Noise ........................................ 0.03% @1 kHz, 0.3% @ 20 kHz at nominal level

S/N ........................................................ >90dB at rated maximum output (14dBu),

Stereo channel separation .................. >90dB @ 1 kHz to 20 kHz

+6dB

balanced

Audio input — RGB 464xi

Number/signal type........................... 2 stereo, unbalanced, 20 Hz to 20 kHz

Connectors ........................................... Ch. 1 .............. 3.5 mm stereo female jack (2

Ch. 2 .............. 2 RCA female jacks

Impedance ............................................ >5 kohms unbalanced, DC coupled

Nominal level ...................................... -10dBV (316mV)

Maximum level ................................... +8.5dBu (unbalanced) at 1%THD+N

channel), unbalanced; tip (L), ring (R), sleeve (ground)

Audio input — all other models

Number/signal type

RGB 460xi Dual ...................... 2 separate, stereo, unbalanced, 20 Hz to 20

All other models .................... 1 stereo, unbalanced, 20 Hz to 20 kHz

Connectors

RGB 460xi Dual ...................... (2) 3.5 mm stereo female jacks (2 channel),

All other models .................... 3.5 mm stereo female jack (2 channel),

Impedance ............................................ >5 kohms unbalanced, DC coupled

Nominal level ...................................... -10dBV (316mV)

Maximum level ................................... +8.5dBu (unbalanced) at 1%THD+N

RGB 460xi Series • Specifications, Parts, and Accessories A-3

kHz

unbalanced; tip (L), ring (R), sleeve (ground)

Audio output — RGB 464xi

Number/signal type........................... 2 buffered, stereo (2 channel), balanced/

Connectors ........................................... 3.5 mm captive screw connector, 5 pole

Impedance ............................................ 50 ohms unbalanced, 100 ohms balanced

Gain error ............................................. ±0.1dB channel to channel

Maximum level (600 ohm) ................ +14dBm, balanced at stated %THD+N

unbalanced

Audio output — all other models

Number/signal type

RGB 460xi Dual ...................... 2 separate, buffered, stereo (2 channel),

All other models .................... 1 buffered, stereo (2 channel), balanced/

Connectors ........................................... 3.5 mm captive screw connector, 5 pole

Impedance ............................................ 50 ohms, unbalanced, 100 ohms balanced

Gain error ............................................. ±0.1dB channel to channel

Maximum level (600 ohm) ................ +14dBm, balanced at stated %THD+N

0dBu = 0.775 volts (RMS).

balanced/unbalanced

unbalanced

General

Power .................................................... 100VAC to 240VAC, 50/60 Hz, 5 watts,

Temperature/humidity ..................... Storage -40° to +158°F (-40° to +70°C)/10% to

Rack mount .......................................... No

RGB 460/464/468xi SC ........ Steel City AFM floor box mountable

RGB 460xi MK ........................ MK box mountable

RGB 460xi FSR ....................... FSR box mountable

RGB 468xi AKM UK ............. Ackermann floor box mountable

All other models .................... Wall or furniture mountable

Enclosure type ..................................... Metal

Enclosure dimensions

RGB 460xi faceplate .............. 4.5" H x 4.6" W x 0.1" D (2 gang)

RGB 460xi MK faceplate ....... 3.4" H x 5.7" W x 0.1" D

RGB 460xi FSR faceplate ...... 4.5" H x 3.6" W x 0.1" D

RGB 464xi/468 Mxi faceplate 4.5" H x 6.4" W x 0.1" D (3 gang)

external, auto-switchable; to a 9 to 24VDC, 0.20 A power supply. The product requires 0.2 A (minimum). A 12VDC, 1 A power supply is included.

90%, noncondensing Operating +32° to +122°F (0° to +50°C)/10% to 90%, noncondensing

(11.4 cm H x 11.7 cm W x 0.3 cm D)

(8.6 cm H x 14.5 cm W x 0.3 cm D)

(11.4 cm H x 9.1 cm W x 0.3 cm D)

(11.4 cm H x 16.3 cm W x 0.3 cm D)

RGB 460xi Series • Specifications, Accessories, Part NumbersA-4

RGB 468xi /RGB 460xi Dual faceplate

RGB 460 EC faceplates .......... 3.2" H x 4.4" W x 0.1" D

RGB 468 EC faceplates .......... 3.2" H x 7.7" W x 0.1" D

RGB 460xi SC-AFM2 faceplate

RGB 460xi SC-AFM4 faceplate

RGB 468xi AKM UK faceplate

RGB 464xi SC-AFM6, RGB 468xi SC-AFM6 faceplate

Interface enclosure for all models (RGB 460xi Dual includes two enclosures)

4.5” H x 8.3” W x 0.1" D (4 gang) (11.4 cm H x 21.2 cm W x 0.3 cm D)

(8.0 cm H x 11.2 cm W x 0.3 cm D)

(8.0 cm H x 19.5 cm W x 0.3 cm D)

2.9" H x 3.5" W x 0.1” D (7.4 cm H x 8.9 cm W x 0.3 cm D)

2.9" H x 5.8" W x 0.1” D (7.4 cm H x 14.7 cm W x 0.3 cm D)

3.0" H x 8.1" W x 0.59" D (7.6 cm H x 20.6 cm W x 1.5 cm D)

2.9" H x 8.9" W x 0.1" D (7.4 cm H x 22.6 cm W x 0.3 cm D)

2.7" H x 3.3" W x 1.0" D (6.9 cm H x 8.4 cm W x 2.8 cm D) (Depth excludes front panel connectors and controls.)

Enclosure dimensions — SC-AFM8 adapter plate

Product weight

RGB 460xi SC-AFM2 ............. 0.5 lbs (0.3 kg)

RGB 460xi SC-AFM4,

RGB 464xi SC-AFM6,

RGB 468xi SC-AFM6,

RGB 468xi AKM UK ............. 0.8 lbs (0.4 kg)

SC-AFM8................................. 0.6 lbs (0.3 kg)

RGB 460xi, MK and FSR ....... 0.5 lbs (0.2 kg)

RGB 464xi, RGB 468xi,

RGB 468 Mxi ........................... 0.7 lbs (0.3 kg)

EC models ............................... 0.7 lbs (0.3 kg)

RGB 460xi Dual ...................... 1.0 lbs (0.5 kg)

Shipping weight .................................. AKM UK: 1.8 lbs (0.8 kg); others: 3 lbs (1.4 kg)

Vibration ............................................... ISTA/NSTA 1A in carton (International Safe

Listings ................................................. UL, CUL

Compliances ........................................ CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF ..................................................... 30,000 hours

Warranty .............................................. 3 years parts and labor

4.4" H x 9.4" W x 0.1" D (11.2 cm H x 23.9 cm W x 0.3 cm D)

Transit Association)

Specifications are subject to change without notice.

RGB 460xi Series • Specifications, Accessories, Part Numbers A-5

Ordering Information

RGB 460xi

Interface 60-373-01 (gray), -02 (black), -03 (white) 2-gang mud ring kit 70-086-01 (gray), -11 (black), -21 (white) Power supply kit 70-159-01 (12VDC, 0.42A external)

RGB 460xi Dual

Interface 60-373-11 (gray), -12 (black), -13 (white) 4-gang mud ring kit 70-086-03 (gray), -13 (black), -23 (white) Power supply kit 70-159-01 (12VDC, 0.42A external)

RGB 460xi EC

Interface 60-373-10 (white) Power supply kit 70-159-01 (12VDC, 0.42A external)

RGB 464xi

Interface 60-449-01 (gray), -02 (black), -03 (white) 3-gang mud ring kit 70-086-02 (gray), -12 (black), -22 (white) Power supply kit 70-159-01 (12VDC, 0.42A external)

RGB 468xi

Interface 60-375-01 (gray), -02 (black), -03 (white) 4-gang mud ring kit 70-086-03 (gray), -13 (black), -23 (white) Power supply kit 70-159-01 (12VDC, 0.42A external)

RGB 468 Mxi

Interface 60-591-02 (black), -03 (white) 3-gang mud ring kit 70-086 -13 (black), -23 (white) Power supply kit 70-159-01 (12VDC, 0.42A external)

RGB 468xi EC

Interface 60-375-10 (white) Power supply kit 70-159-01 (12VDC, 0.42A external)

RGB 468xi AKM UK

Interface 60-626-01 Power supply 70-055-01 (12VDC, 1A, external) Blank AAP, single 70-090-01 Blank AAP, double 70-090-02 Installation guide 68-904-01

________________________________________

This manual (#68-542-01) ships with all RGB 460xi Series interface models.

Depending on mounting location, one of the following installation guides ships with the interface: RGB 460 MK Installation Guide (#68-636-02), RGB 400xi Series Wall Box Installation Guide (#68-636-03), RGB 460/470 Steel City Box Installation Guide (#68-636-04), or RGB 460xi/472xi FSR Installation Guide (#68-636-05).

1, 2

Part numbers

RGB 460xi Series • Specifications, Accessories, Part NumbersA-6

Accessories

Wall/Junction boxes Part number

2-gang J-box, 2.5” deep 980083 3-gang J-box, 2.5” deep 980084 4-gang J-box, 2.5” deep 980097

Audio connector Part number

3.5 mm stereo plug 10-306-01

Cables

Male-to-male VGA cables Part number

VGA M6’ MHR 26-238-01 VGA M3’ MHRA (with audio) 26-490-01 VGA M6’ MHRA (with audio) 26-490-02 VGA M12’ MHRA (with audio) 26-490-03

Male-to-male 90° VGA cables Part number

VGAM 90 MHRA 6’ (with audio) 26-510-02

Laptop breakout cables Part number

Mac 15-pin HD F adapter cable kit w/audio 70-156-01 13W3 15-pin HD F adapter cable kit w/audio 70-157-01

High-resolution cables Part number

BNC-5-3’HR 26-260-15 BNC-5-6’HR 26-260-01 BNC-5-12’HR 26-260-02 BNC-5-25’HR 26-260-03 BNC-5-50’HR 26-260-04 BNC-5-75’HR 26-260-16 BNC-5-100’HR 26-260-05 BNC-5-3’HRP (plenum) 26-378-01 BNC-5-6’HRP (plenum) 26-378-02 BNC-5-12’HRP (plenum) 26-378-03 BNC-5-25’HRP (plenum) 26-378-04 BNC-5-50’HRP (plenum) 26-378-05 BNC-5-75’HRP (plenum) 26-378-06 BNC-5-100’HRP (plenum) 26-378-07 Bulk installation cable (14-conductor, non-plenum), 500’ HR 22-120-02

RGB 460xi Series • Specifications, Accessories, Part Numbers A-7

AAP/MAAP Availability

A variety of AAPs/MAAPs for pass-through connections may be ordered for the RGB 468xi and RGB 468 Mxi interfaces.

The RGB 468xi can accommodate up to 4 single-space AAPs (up to 3 with the RGB 468xi AKM UK), and the RGB 468 Mxi can accommodate up to 4 single-space MAAPs.

Both single- and double-space AAPs/MAAPs and AAP/MAAP blanks are available. Refer to the current Extron catalog for a complete listing.

Blank Plate (no connector)

Single Space

2 - BNC

3 - BNC

Blank Plate (no connector)

Double Space

5 - BNC (Double)

2 - RCA to Solder Cups

3 - RCA to Solder Cups

2 - S-video

2 - RJ-11

1 - D-9 Pass Through Connector

Sample architectural adapter plates

RGB 460xi Series • Specifications, Accessories, Part NumbersA-8

FCC Class A Notice

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Note: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle and Central America: East:

Extron Electronics Beeldschermweg 6C 1230 South Lewis Street 3821 AH Amersfoort Anaheim, CA 92805, USA The Netherlands

Extron Electronics, Europe

Asia: Japan:

Extron Electronics, Asia Daisan DMJ Bldg. 6F, 135 Joo Seng Road, #04-01 3-9-1 Kudan Minami PM Industrial Bldg. Chiyoda-ku, Tokyo 102-0074 Singapore 368363 Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modification to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe),

65.6383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Electronics, Japan

www.extron.com

Extron Electronics, USA

1230 South Lewis Street Anaheim, CA 92805 USA

714.491.1500 Fax 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C 3821 AH Amersfoort The Netherlands +31.33.453.4040 Fax +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Road, #04-01 PM Industrial Building Singapore 368363 +65.6383.4400 Fax +65.6383.4664

Extron Electronics, Japan

Daisan DMJ Building 6F 3-9-1 Kudan Minami Chiyoda-ku, Tokyo 102-0074 Japan +81.3.3511.7655 Fax +81.3.3511.7656

Extron Electronics RGB 400xi User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Precautions

Table of Contents

About this Manual

About the RGB 460xi Series

Features

Installation Overview

UL requirements

Front Panel Features and Cabling

Rear Panel Features and Cabling

Euro Channel and Floor Box Versions

Mounting Adapter Plates (AAPs/MAAPs)

Pre-installation Testing

Troubleshooting

Interface Mounting

Application Examples

Specifications

Video

Video input and loop through

Video output

Sync

General

Ordering Information

Accessories

Cables

AAP/MAAP Availability
