Quick Start — MLS 304MA, MLS 406, MLS 406MA

NOTE Both the toggle switch

position and the wiring must match the

down = 4 ohm or 8 ohm

direct connection

up = 70 V or 100 V

transformer

Installation

Step 1

Remove power from the switcher and the input, output, and control devices.

Step 2

Install the rubber feet on the bottom corners or rack mount the switcher.

Step 3

Connect input devices to the switcher. See chapter 2 for details and wiring diagrams.

MLS 304MA

Inputs 1 and 2: composite video and audio Inputs 3 and 4: RGB computer video or

composite video and audio

MLS 406, MLS 406MA

Inputs 1, 2, 3: S-video or composite video

and audio

Inputs 4, 5, 6:

or composite video and audio

Aux/Mix audio input

Connect a mono audio source to mix a linelevel audio signal with the selected input’s audio. This channel is always active.

See chapters 3 and 4 for details on setting up the audio and conﬁguring video.

Step 4

Connect cables from the MLS’s RGB, S-video, and video output connectors to the inputs on the display device.

Connect a cable between the Monitor Output port and the local monitor.

There are three modes (selectable only via

RGB computer video, S-video,

RS‑232 control) for determining which input signal, if any, is sent to the Monitor Output port. For an explanation of modes and video routing, see Video Signal Routing on page 3‑7. For selecting the mode, see chapter 4, Serial Communication.

Step 6

Adjust the audio (sensitivity) level for each input. See Making adjustments on page 3-6.

Step 7

Connect audio devices to the Lineout and Preamp audio outputs

• Lineout outputs a ﬁxed, line level audio

signal not affected by Volume knob adjustments.

• Preamp outputs a variable, line level audio

signal for use with powered speakers or an ampliﬁer. The volume can be attenuated via the Volume knob or RS-232.

Lineout and Preamp outputs can be set up as

• -10 dBV (-8 dBu, 0.316 Vrms, default),

unbalanced, for consumer level devices such as VCRs or stereo receiver-ampliﬁers

• +4 dBu (+6 dBV, 1.23 Vrms), balanced, for

professional level devices such as mixers

and power ampliﬁers depending on how the connector is wired and how the MLS is set up via RS-232 control. Selecting mono or stereo (via RS-232) affects both of these ports. See Audio outputs on pages 2-9 through 2-10.

Step 8

Connect a host computer, control system, MediaLink Controller (MLC) and/or an Extron IR Link to the RS-232/MLC/IR control port. See Control Connection on pages 2-7 through 2-8.

Step 7 — MLS 304MA, MLS 406MA

Connect speakers to the ampliﬁed output (MLS 304MA, MLS 406MA) for mono audio out-

put. See pages 2-11 through 2-13 for diagrams. Set the rear panel toggle switch to the desired

ampliﬁer output type: transformer (Xfmr) (for a 70 V or 100 V system) or Direct (4 or 8 ohms).

Step 5

Connect a host computer to the RS-232/MLC/IR control port (see Control Connection on page 2-6), load and start the control software, set up the video, select a Monitor Output mode, and select a Lineout/Preamp output level.

This output provides a mono signal even if the input is a stereo signal. For stereo output, use the non-ampliﬁed Lineout and Preamp outputs instead. See chapter 2, Installation.

Quick Start — MLS 304MA, MLS 406, MLS 406MA, cont’d

-2

/IR

RxIR 12V

-6

INPUT 4

AUDIO INPUTS

LIN

E LEVEL MONO

AUD

AUDIO

LINEOUT

AUX/MIX

ADJUST

-42dB TO

+24dB

PUTS

OUTPUTS

VIDEO

INPUTS

MON

ITOR O

IRECT

4/8 ohm

100V

70V

AMPLIFIED OUTPUT

20 WATTS MONO

System Control

Mono Amplified Output

Projector Control

Extron MLS 406MA

MediaLink Switcher

VCRDVD

Projector

Speakers

Laptop

w/ Audio

Document Camera

Extron

MediaLink Controller

MAX

MID

MIN

MAX

MID

MIN

Signal: when lit, this indicates that a signal of at

least -20 dBV (-18 dBu) is detected at the input.

Clip: a blinking/lit LED indicates that the

level is set too high.

Normal: a blinking LED indicates that the level

is set properly for maximum power output.

NOTE Increasing the audio level beyond the point at

which the Mid/normal LED blinks may result in a distorted output signal.

NOTE In setup mode a blinking or lit Mid/normal LED

indicates that the power amplifier is capable of delivering maximum power output.

NOTE You may not need to adjust the per-input gain,

because the default input gain adjustment is set for consumer audio sources such as VCRs, DVD players, and laptop computers.

MLS 304MA, MLS 406MA, MLS 304SA, and MLS 406SA

(amplified models)

Signal: when lit, this indicates that a signal of at

least -20 dBV (-18 dBu) is detected at the input.

Peak: if blinking/lit, the level is set too high.

Normal: if blinking/lit, the output level at the

Lineout and Preamp connectors is near the specified output level of -10 dBV or +4 dBu.

MLS 406 (nonamplified model)

-10 dBV sensitivity

Step 8

Connect all the devices’ power cords, and power on the system.

Video Conﬁguration

Step 1

Via RS-232, conﬁgure the MLS: select the video type for 15-pin HD inputs; See chapters 2,

Installation and 4,

Serial Communication.

Step 2

Select a Monitor Output mode via the control software. See Monitor Output Modes on page 3-7 and chapter 4,

Serial Communication.

Audio Conﬁguration

Step 1

For the Lineout and Preamp outputs, select mono or stereo audio, and select -10 dBV (unbalanced) or +4 dBu (balanced) via RS-232 control. Default: -10 dBV.

4a. Enter setup mode: press and hold an in-

put button for 3 seconds. The input’s LED blinks.

Adjust audio levels: while still holding the

4b.

input button, rotate the Volume knob until the Mid/normal LED lights or blinks.

Step 2

Via RS-232, set Aux/Mix to on or off. If the Aux/Mix input will be used, use a small screwdriver to adjust the Aux/Mix input level.

Step 3

Disconnect audio output devices.

Step 4

Select an input and set audio input sensitivities.

Audio input sensitivity levels must be

adjusted with an active audio signal.

4c. Release the input button to save the setting

for that input.

Repeat steps 4a through 4c for each input.

4d.

Step 5

Reconnect the output devices, and via RS-232 set the global treble and bass levels and turn on loudness control, if desired.

Table of Contents

Chapter 1 • Introduction ............................................................................................................ 1-1

About this Manual .................................................................................................................... 1-2

About the MLS 304 Series and the MLS 406 Series .............................................. 1-2

Features ........................................................................................................................................... 1-2

All models .................................................................................................................................. 1-2

MA models ................................................................................................................................ 1-2

SA models ...........................................................................................................................1-2

Chapter 2 • Installation ................................................................................................................ 2-1

UL/Safety Requirements ..................................................................................................2-2

Important safety instructions

Mounting the Switcher ....................................................................................................2-2

Tabletop use Rack mounting

.......................................................................................................................2-2

...................................................................................................................2-2

Rear Panels and Cabling .......................................................................................................2-3

Power, input, and control connections ................................................................................. 2-3

Power connection A/V input connections Control connection

Video output, local monitor, and audio output connections .........................................2-7

Video outputs ..................................................................................................................... 2-9

Audio outputs

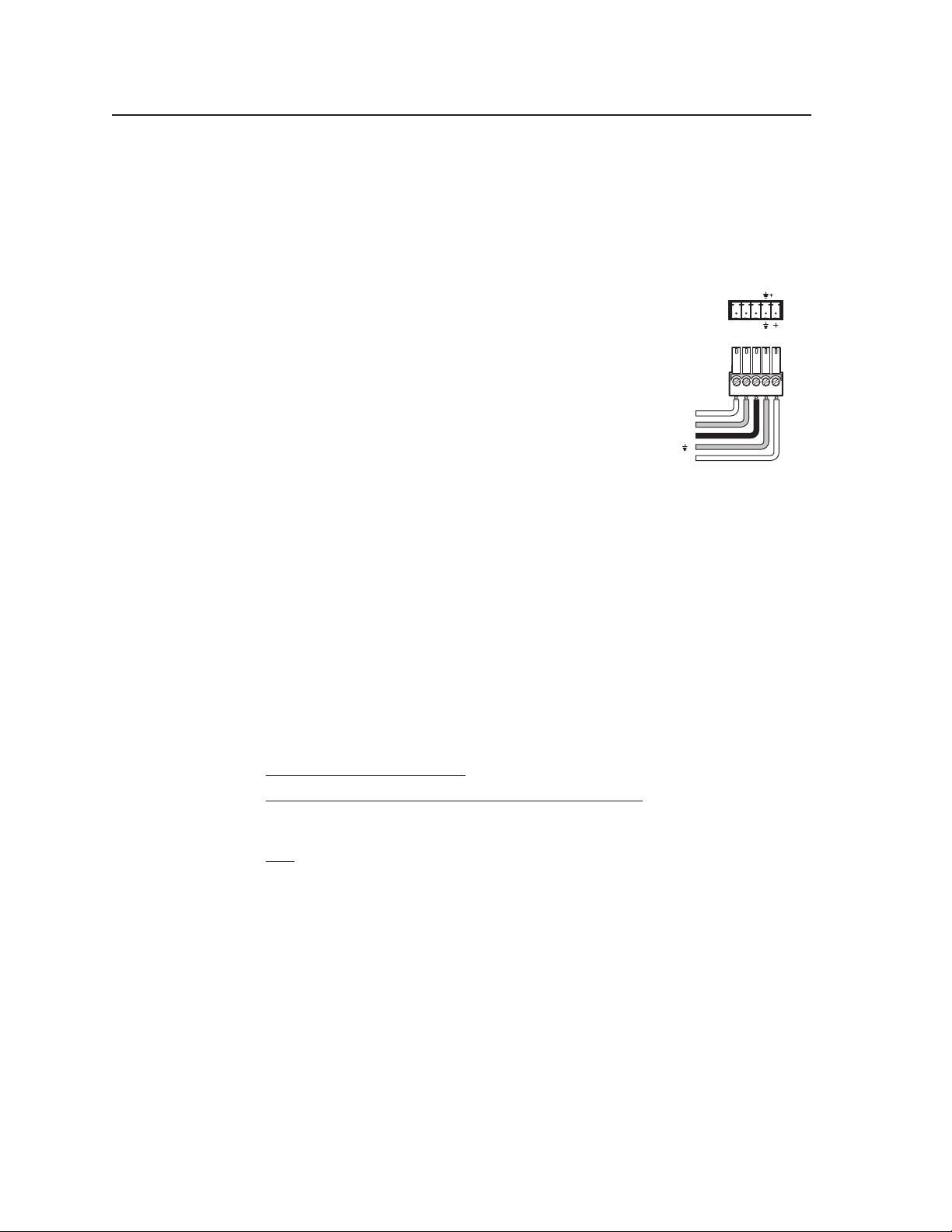

Wiring for 4 ohm or 8 ohm speakers (MA models) Wiring for a 70 volt or 100 volt distributed speaker system (MA models) Wiring for 4 ohm or 8 ohm speakers (SA models) Speaker arrangement examples

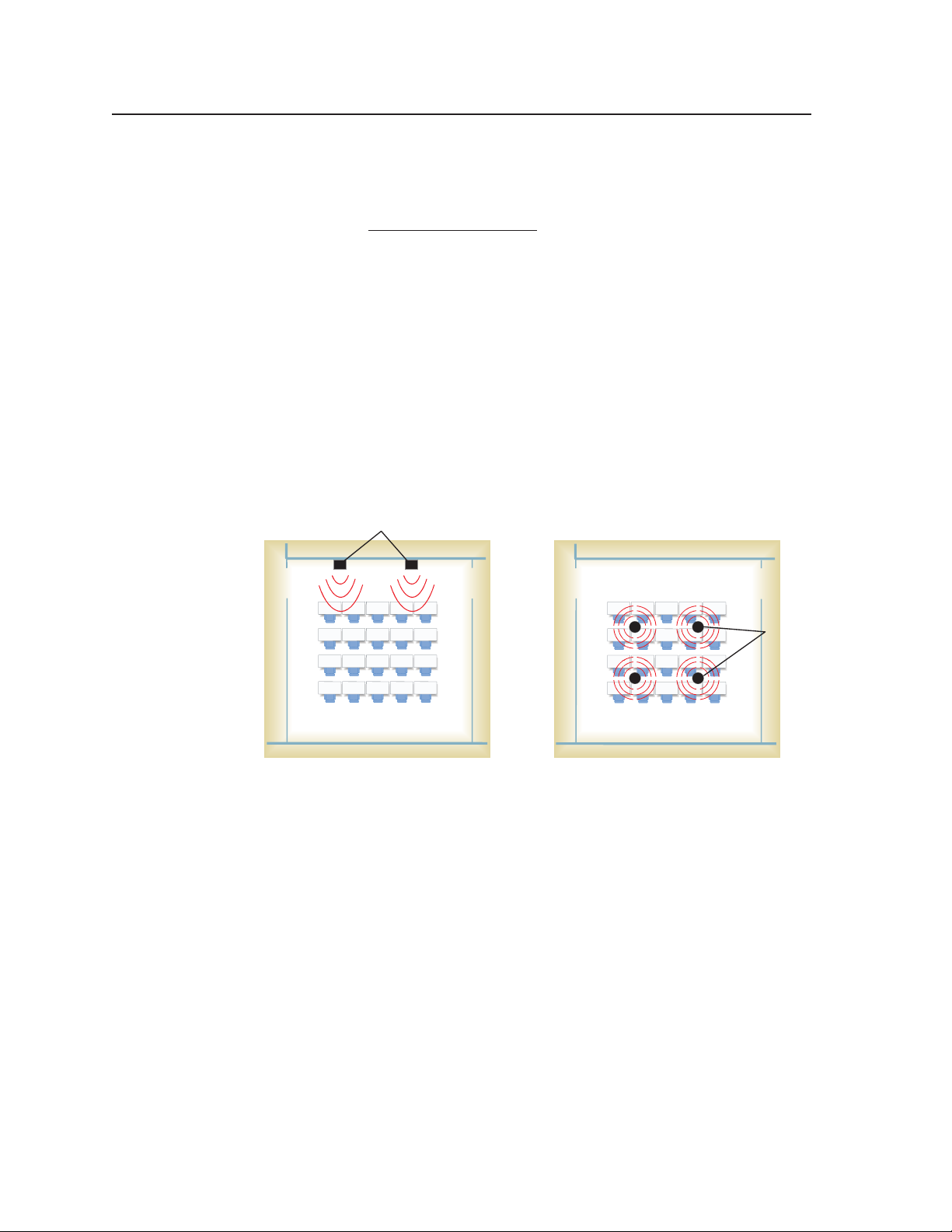

Examples of speaker layouts

............................................................................................................... 2-3

..................................................................................................................... 2-9

.............................................................................................2-2

........................................................................................................ 2-3

.............................................................................................................. 2-6

.................................................. 2-11

............. 2-12

.................................................... 2-13

................................................................................ 2-14

PRELIMINARY

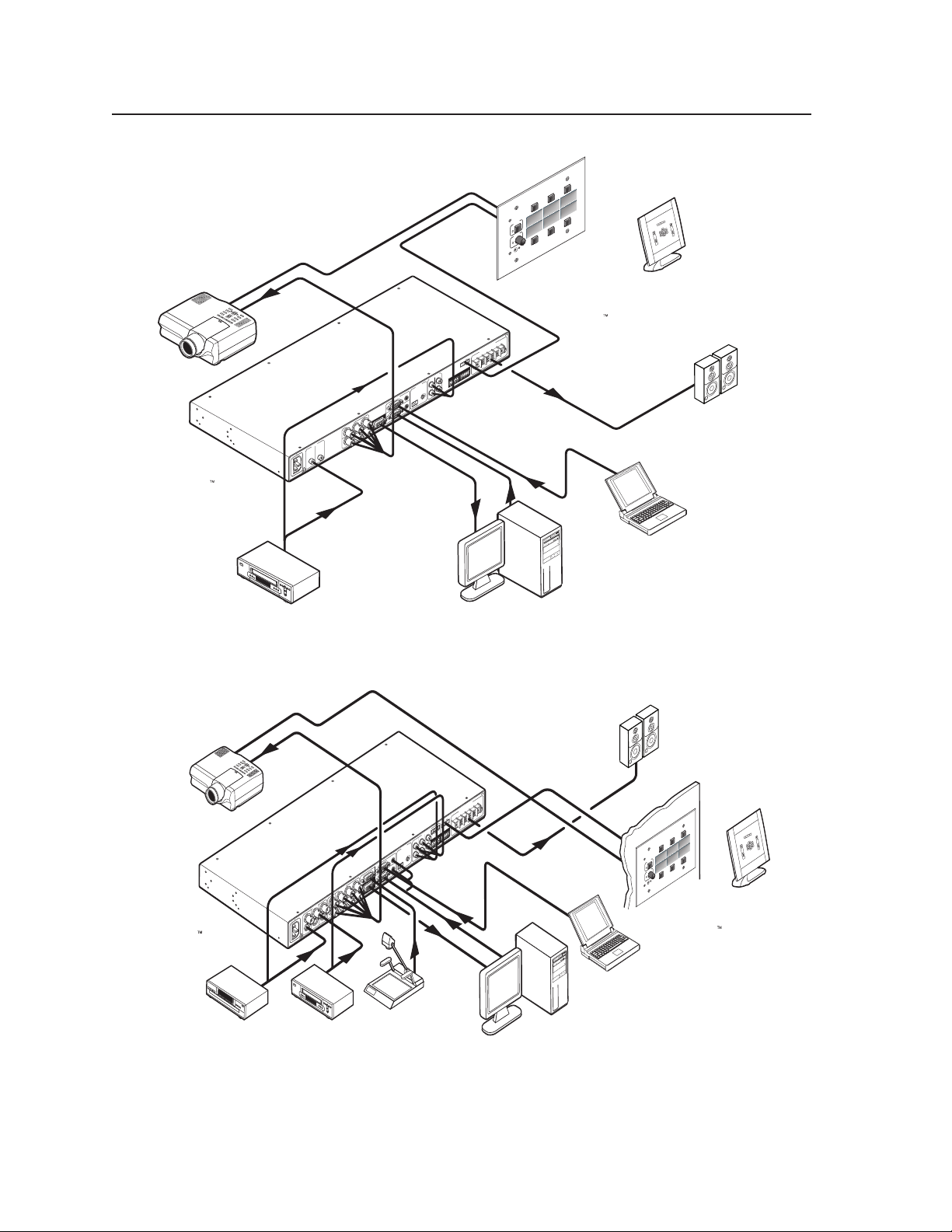

Application Diagrams ........................................................................................................... 2-15

Chapter 3 • Operation and Setup ........................................................................................ 3-1

Front Panel Features and Operation ............................................................................. 3-2

Front panel security lockout (executive modes) .................................................................. 3-3

Enabling/disabling executive mode 1; disabling executive mode 2

Resetting the switcher ............................................................................................................. 3-4

Setting Up and Optimizing the Audio .......................................................................... 3-4

Conﬁguring Lineout and Preamp output levels .................................................................. 3-5

Adjusting audio input levels .................................................................................................. 3-5

Making adjustments

........................................................................................................... 3-6

Video Signal Routing .............................................................................................................. 3-7

Monitor Output Modes ........................................................................................................... 3-7

Standard mode (mode 3) DA (distribution ampliﬁer) mode (mode 2)

RGB follow mode (mode 1)................................................................................................. 3-7

.................................................................................................... 3-7

....................................................................... 3-7

MLS 304 Series, MLS 406 Series • Table of Contents

................................ 3-4

PRELIMINARY

Table of Contents, cont’d

Remote Control .......................................................................................................................... 3-8

Troubleshooting ......................................................................................................................... 3-9

If the image does not appear or there is no sound ............................................................ 3-9

If the switcher does not respond to controls ....................................................................... 3-9

If you are unable to conﬁgure the MLS via the Windows®-based software ................... 3-9

Chapter 4 • Serial Communication ..................................................................................... 4-1

RS-232 Programmer’s Guide ...............................................................................................4-2

Host-to-MLS communications ................................................................................................ 4-2

MLS-initiated messages Error responses

Using the command/response tables ................................................................................. 4-3

Symbol deﬁnitions

Command/response table for SIS commands ....................................................................... 4-4

Command/response table for special function SIS commands .......................................... 4-7

...................................................................................................................4-2

Control Software for Windows

Installing the software ............................................................................................................ 4-8

Using the control program ..................................................................................................... 4-8

User Mode screen

Special features

Switcher (MLS) Conﬁg screen

File menu options .................................................................................................................. 4-12

Saving and restoring conﬁgurations Updating ﬁrmware

Using the help program ........................................................................................................ 4-14

Key to ﬁle names ................................................................................................................... 4-14

...................................................................................................... 4-2

.............................................................................................................. 4-3

...................................................................................... 4-8

................................................................................................................ 4-9

............................................................................................................. 4-9

........................................................................................... 4-10

............................................................................... 4-12

........................................................................................................... 4-12

Appendix A • Reference Material ........................................................................................A-1

Speciﬁcations ..............................................................................................................................A-2

Part Numbers and Accessories ..........................................................................................A-6

Included parts ...........................................................................................................................A-6

Optional accessories ................................................................................................................A-6

Frequency Response Graph for the Loudness Feature ......................................A-7

Audio Reference Levels .........................................................................................................A-7

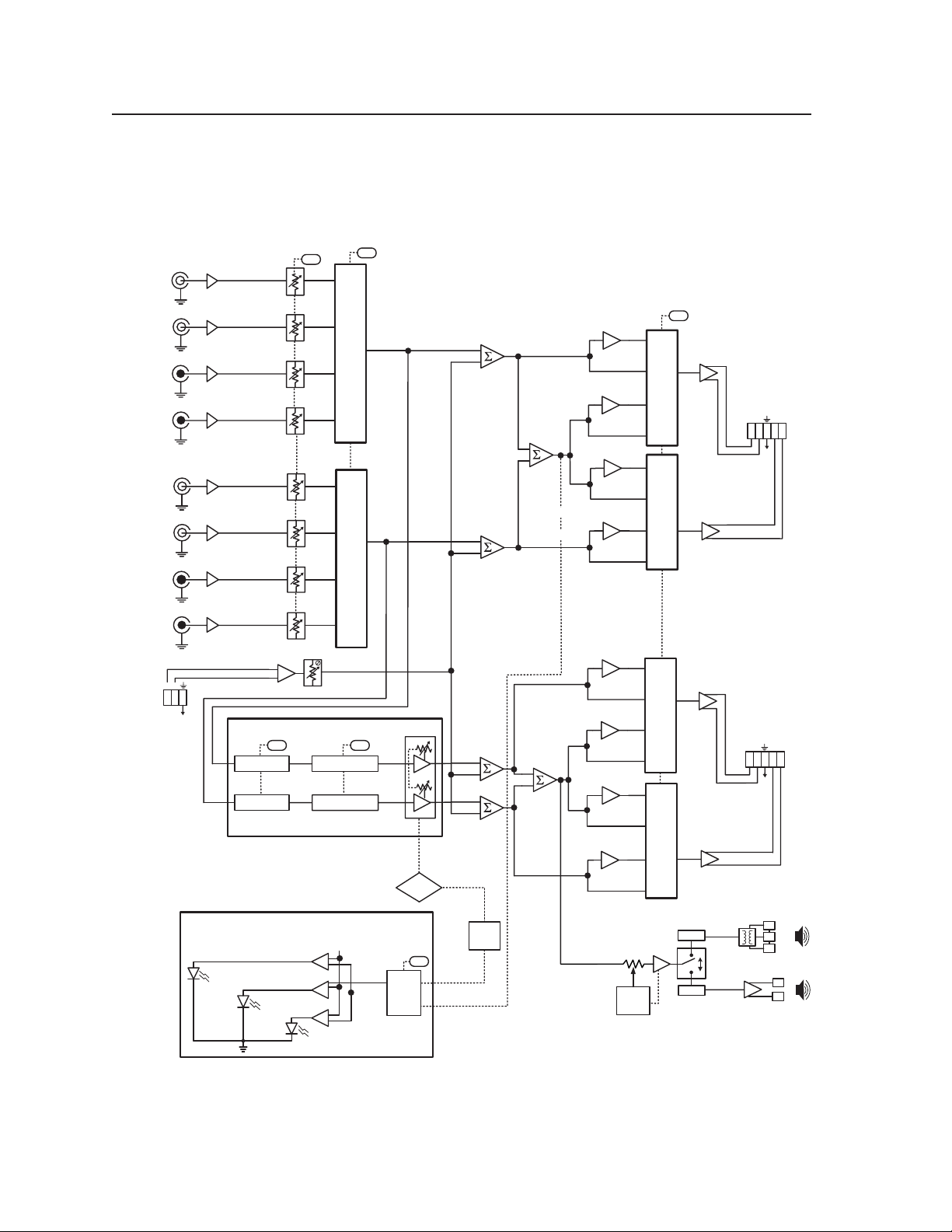

Audio Block Diagrams ..................................................................................................... A-8

MLS 304MA audio block diagram MLS 304SA audio block diagram MLS 406, MLS 406MA audio block diagram MLS 406SA audio block diagram

All trademarks mentioned in this manual are the properties of their respective owners.

.................................................................................... A-8

..................................................................................... A-9

.................................................................. A-10

................................................................................... A-11

68-775-01 Rev. C

06 06

MLS 304 Series, MLS 406 Series • Table of Contents

MLS 304 Series and MLS 406 Series

Chapter One

Introduction

About this Manual

About the MLS 304 Series and MLS 406 Series

Features

Introduction

About this Manual

This manual covers the installation, setup, programming, and use of the Extron MLS 304MA, MLS 304SA, MLS 406, MLS 406MA, and MLS 406SA MediaLink™ switchers. The three models share many features, and instructions apply to all three unless otherwise stated. Throughout the manual these switchers are interchangeably referred to as MLS, MediaLink switcher, and switcher. Procedures or explanations that are model-speciﬁc mention the model name (e.g. MLS 406MA).

About the MLS 304 Series and the MLS 406 Series

The Extron MLS 304MA, MLS 304SA, MLS 406, MLS 406MA, and MLS 406SA are four- and six-input, active switchers. They accept RGB computer video (all models), S-video (MLS 406 Series), composite video inputs (all models), stereo audio inputs, and a line level mono audio auxilliary/mixer input.

Each switcher has a local monitor loop-through/output in addition to the RGB and video projector/plasma display output and balanced or unbalanced lineout and preamp audio outputs. If desired, the monitor output can be used as a second RGB display output instead of for a local monitor. Additionally, the MA models offer ampliﬁed mono audio output for 4 ohm, 8 ohm, or distributed 70 V or 100 V speaker systems. The SA models offer ampliﬁed stereo audio output for 4 ohm or 8 ohm speaker systems.

These switchers can all be set up and controlled via the front panel buttons or via an RS-232 connection from a computer, a control system, or an Extron MediaLink Controller. Some setup options are available only via the included Windows-based MediaLink Control Program. With the addition of an optional Extron IR Link infrared signal repeater, an Extron MediaLink IR remote control can be used for input selection and volume adjustment.

Features

All models

MA models

SA models

• High RGB video bandwidth (280 MHz at -3 dB)

• Triple-Action Switching™ (RGB delay switching)

• Video format versatility: the switchers accept RGB computer video, S-video (MLS 406, MLS 406MA, MLS 406SA), and composite video

• Monitor Output for local monitor loop-through or for an additional RGB output

• Aux/Mix audio input for mixing mono line level audio with the switchable audio input

• Adjustable audio bass, treble, and volume

• Individually adjustable audio input levels

• Balanced or unbalanced preamp audio output

• Loudness control

• Ability to lock the front panel to prevent unauthorized access (executive mode)

• Control and conﬁguration via RS-232

• Ventilated 1U, rack mountable, metal enclosure

• Integrated 20 watt mono audio ampliﬁer for 4 ohm or 8 ohm, or 16 watts for 70 V or 100 V distributed output

• Integrated 24 watt audio ampliﬁer for stereo or dual mono 4 ohm output or 16 watts for stereo or dual mono 8 ohm output

1-2

MLS 304 Series, MLS 406Series • Introduction

MLS 304 Series and MLS 406 Series

Chapter Two

Installation

UL/Safety Requirements

Mounting the Switcher

Rear Panels and Cabling

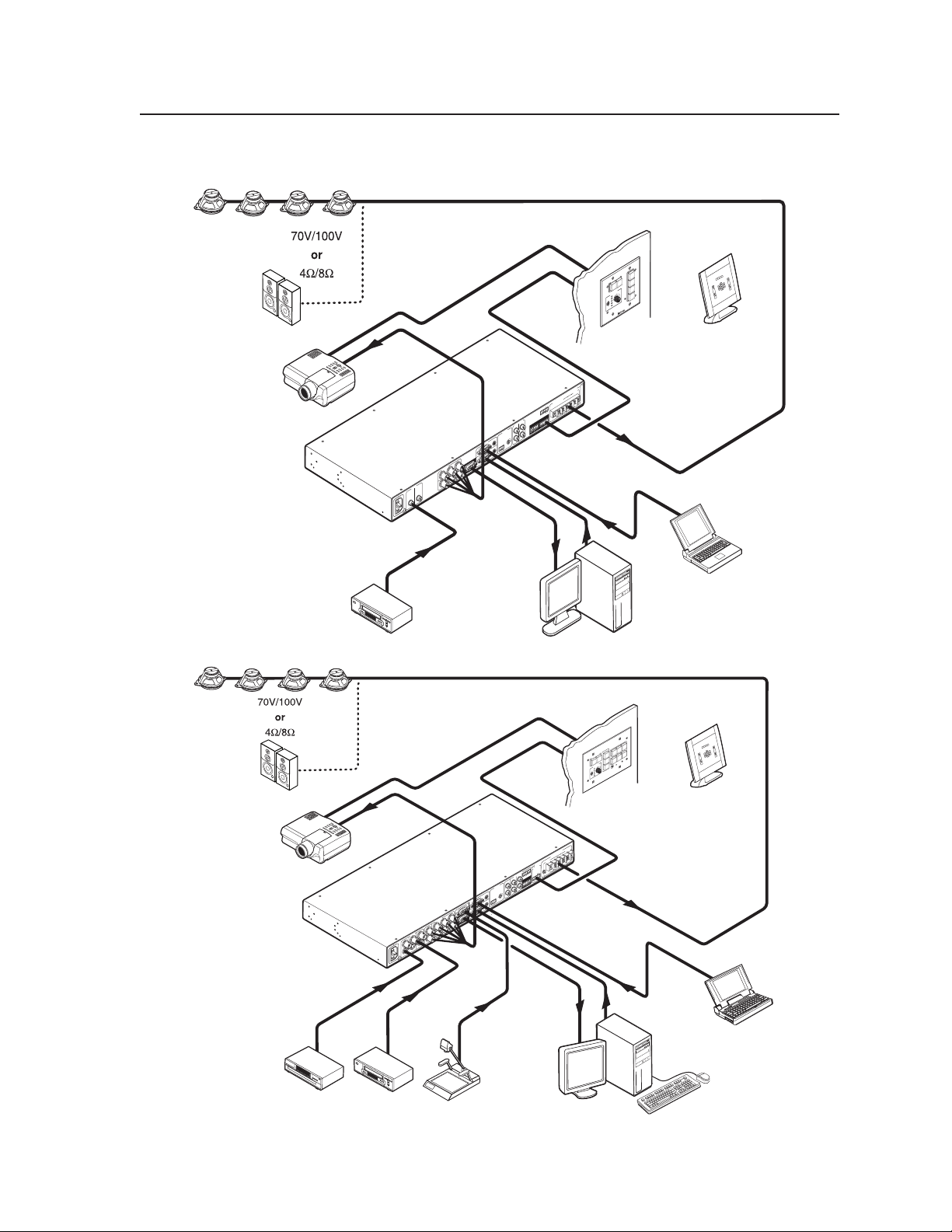

Application Diagrams

PRELIMINARY

Installation

UL/Safety Requirements

The Underwriters Laboratories (UL) requirements listed below pertain to the safe installation and operation of a MediaLink Switcher.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

12. Use only with the cart, stand, tripod, bracket, or table speciﬁed by the

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when

manufacturer’s instructions.

. Do not install near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including ampliﬁers) that produce heat.

. Do not defeat the safety purpose of the polarized or grounding type plug. A

polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the apparatus.

. Only use attachments/accessories speciﬁed by the manufacturer.

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

. Unplug this apparatus during lightning storms or when unused for long

periods of time.

the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

2-2

MLS 304 Series, MLS 406 Series • Installation

Rack Mount MLS 304MA.eps

MLS 304MA

MediaLink Switcher

CON

TROL

PEAK

LIP

SIGNAL

PUT SELEC

Mounting the Switcher

Tabletop use

Each MLS switcher comes with rack mounting brackets and rubber feet. For tabletop use, attach a self-adhesive rubber foot to each corner of the bottom of the unit.

Rack mounting

For rack mounting, do not install the rubber feet. Attach the provided rack mounting brackets to the switcher with machine screws, then fasten the switcher to the rack using the supplied machine screws.

Although it is not required, for the models with audio ampliﬁcation (MLS 304MA, MLS 304SA, MLS 406MA, MLS 406SA) Extron recommends allowing one rack unit of space (1.75"/4.5 cm) above and below the switcher for air circulation to prevent overheating.

The MA and SA models contain a class AB ampliﬁer, which gets hot.

There is no cooling fan in the MLS switcher.

PRELIMINARY

Rack mounting the MediaLink Switcher

MLS 304 Series, MLS 406 Series • Installation

2-3

Installation

AUDIO INPUTS

LINE LEVEL

MONO

AUDIO

AUX/MIX

ADJUST

-42dB TO

+24dB

INPUTSOUTPUTS

VIDEO

INPUTS

MONITOR OUT

100-240V

1.0A MAX.

50-60Hz

AUDIO INPUTS

LINE LEVEL

MONO

AUDIO

AUX/MIX

ADJUST

-42dB

+24dB

INPUTS

OUTPUTS

VIDEO

INPUTS

MONITOR OUT

100-240V

1.0A MAX.

50-60Hz

RS-232/MLC/IR

Rx IR 12V

A B C

PREAMPLINEOUT

RL RL

RS-232/MLC/IR

Rx IR 12V

A B C

PREAMPLINEOUT

RL RL

2 4 5

MLS 304MA and MLS 304 SA Rear Panel

MLS 406, MLS 406MA, and MLS 406SA Rear Panel

Sleeve (Gnd )

Tip (+)

Sleeve ( )

Audio RCA connector color_2.eps

Right Channel (Red Jacket)

Left Channel (White Jacket)

Tip (Signal)

Rear Panels and Cabling

Power, input, and control connections

N The MA and SA models differ only by ampliﬁer output type and connection.

Power connection

All other A/V, power, and control connections are the same.

AC power connector — Plug a standard IEC power cord into this connector to

connect the switcher to a 100 to 240 VAC, 50 Hz or The front panel power LED (

) lights while the MLS is receiving power.

60 Hz power source.

A/V input connections

PRELIMINARY

2-4

MLS 304 Series, MLS 406 Series • Installation

B Video inputs —

MLS 304MA MLS 304SA: connect a composite video source device to each of

these female RCA (tip-ring) connectors for video inputs 1 and 2.

MLS 406, MLS 406MA, MLS 406SA: connect either an S-video source (using

the 4-pin mini DIN connector) or a composite video source (using the BNC connector) for input 1, 2, or 3.

RCA audio inputs — These audio inputs correspond to the like-numbered

video inputs. These inputs accept line level audio signals from consumer and professional audio sources. Consumer devices such as PCs, VCRs, and DVD players typically output an unbalanced -20 dBV to -10 dBVsignal. Professional products such as mixers and signal processing gear typically output a balanced 0 dBu to +4 dBu (+6 dBV) level signal. To adjust input levels, see pages 3-5 and 4-10 through 4-11.

Connect an unbalanced stereo audio source to each pair of RCA jacks. Use the red sheathed cable/connector for the right channel, and use the white sheathed cable/connector for the left channel as shown below.

Wiring RCA connectors for unbalanced stereo audio input

After the audio inputs and outputs are connected, see chapter 3 for

instructions on how to adjust the per-input audio input levels and optimize audio input and output.

L R

Unbalanced Stereo Input

Tip

Sleeve

Tip

Sleeve

Balanced Stereo Input

Tip

Ring

Sleeve (s)

Tip

Ring

(high impedance)

Unbalanced Mono Input

Tip

Sleeve

Tip

Sleeve

Balanced Mono Input

Tip

Ring

Sleeve (s)

Tip

Ring

(high impedance)

0.2” (5 mm) max.

The length of exposed wires is critical. The ideal length is 0.2" (5 mm).

• If the stripped section of wire is longer than 0.2", the exposed wires may touch, causing a short circuit between them.

• If the stripped section of wire is shorter than 0.2", wires can be easily pulled out even if tightly fastened by the captive screws.

Do not tin the wires!

Input Type

Signal (BNC Color)

15-pin HD Pin

S-video Y (green), C (blue) 2, 3

Composite video video (red) 1

V = vertical sync

R = red or video

G = green or S-video (Y)

B = blue or S-video (C)

H/HV = horiz. sync

MLS 406, MLS 406MA, MLS 406SA audio input 4 (captive screw) — This

input accepts line level audio signals from consumer and professional audio sources. Consumer devices such as laptops, VCRs, and DVD players typically output an unbalanced -20 dBV to -10 dBV signal. Professional products such as mixers and signal processing gear typically output a balanced +4 dBu level signal. To adjust input levels, see pages 3-5 and 4-10 through 4-11.

Wire the 3.5 mm captive screw connector as shown in the following illustrations, depending on input signal type.

N After the audio inputs and outputs are connected, see chapter 3 for

instructions on how to adjust the per-input audio sensitivity levels and optimize audio input and output.

Computer video (and audio) inputs — MLS 304MA and MLS 304SA inputs 3 and 4; and MLS 406, MLS 406MA, and MLS 406SA inputs 4, 5, and 6, all on 15-pin HD connectors; are individually buffered and provide ID bit termination. They accept

• RGB computer video signals (default) or

• S-video (MLS 406 Series only) or composite video (all models)

For S-video or composite video, the switcher must be conﬁgured via RS-232 serial control (SIS commands or control software); see pages 4-4 and 4-10 through 4-11.

For RGB input, connect a standard VGA-style cable from the source computer to the desired MLS input. For S-video or composite video input, you may need to use an adapter cable such as an Extron SY 15HDM-RGBHV cable (shown below). Connect the video or S-video source to the MLS as follows:

N Selecting S-video or composite video for these inputs limits the Monitor

Output mode options to Standard Mode.

MLS 304 Series, MLS 406 Series • Installation

PRELIMINARY

2-5

Installation, cont’d

Sleeve ( )

Ring (R)

Tip (L)

3.5 mm Stereo Plug (unbalanced)

-10 dBV sensitivity

LINE LEVEL

MONO

AUX/MIX

ADJUST

-42dB TO

+24dB

+ Positive

– Negative

Ground

For these inputs (excluding input 4 on the MLS 406/MLS 406MA/MLS 406SA), connect the corresponding unbalanced stereo audio signal to the 3.5 mm mini stereo (tip-ring-sleeve) jack. Wire the stereo connectors as shown at right.

After the audio inputs and outputs are

Aux/Mix audio input and adjustment — To mix an auxiliary, mono,

line-level audio signal (from a wireless microphone receiver, for example) with the selected input’s audio, connect the cable from the mono source to this 3-pole captive screw connector. The signal can be balanced or unbalanced. See the diagram at right.

The Aux/Mix level can be changed ONLY via this rear

The Aux/Mix input accepts line level audio signals from consumer and professional audio sources. Consumer devices such as PCs, VCRs, DVD players, and some wireless microphones typically output an unbalanced -20 dBV to -10 dBV signal. Professional products such as mixers and signal processing gear typically output a balanced 0 dBu to +4 dBu level signal.

connected, adjust the per-input audio sensitivity levels and optimize audio input and output. See pages 3-5 and 3-6 for instructions.

panel control. It can not be controlled or adjusted by RS-232 control, or by a MediaLink Controller.

The maximum auxiliary input signal level is +4 dBu. Do not exceed this

input level.

PRELIMINARY

This input’s audio channel is always active, and it is independent of the selectable audio inputs (1-4 or 1-6). The Aux/Mix audio can be heard throughout a presentation, whether or not another input is selected.

N If you mute audio input by selecting input zero (SIS commands 0! or 0$), only

N Aux/Mix input can be turned off (muted) via a separate RS-232 command

N The Aux/Mix level can be changed ONLY via this rear panel control. It can

N The optional MediaLink Audio Control Module (ACM-Level, part

If audio output is muted via the 1Z SIS command, all audio outputs are

muted. You are not able to hear audio from any source.

audio from the numbered inputs (1-4 or 1-6) is muted. The Aux/Mix audio input stays active and is not affected by selection of audio input 0.

(0M). See chapter 4, Serial Communication for details.

To adjust the Aux/Mix input level, use a small screwdriver to turn the control adjacent to the Aux/Mix connector. The adjustment range is -42 dB to +24 dB. Setting the potentiometer to the marked location sets the input level sensitivity for an approximately -10 dBV consumer signal.

not be controlled or adjusted by RS-232 control, or by a MediaLink Controller.

#70-182-01, -02, -03) is not compatible with these switchers. The mix level control is not supported.

2-6

MLS 304 Series, MLS 406 Series • Installation

RS-232/MLC/IR

Rx IR

12V

Transmit (Tx) Receive (Rx)

Sleeve(s)

+12 V, 0.4 A power output

Ground ( )

RS-232 MLC/IR

MediaLink Switcher to an MLC

MediaLink

Switcher rear panel RS-232/MLC/IR port

NOTE

The switcher provides up to 12 VDC, 0.40 A power to an MLC 206. Other MLC models may draw more current than the MLS can provide. Extron recommends using a separate power supply for the MLC.

NOTE If you use cable that has a

drain wire, tie the drain wire to ground at both ends.

RS-232_MLC-IR port wiring_MLS304_062404.eps

RS-232 MLC/IR

Tx RxIR+12V

Tx RxIR

12 V

MediaLink Switcher to an IR Link

MediaLink Switcher rear panel RS-232/MLC/IR port

IR Link port

A B C

MediaLink Switcher Rear Panel

RS-232 MLC/IR

TxRxIR+12V

AB C

MediaLink Switcher Rear Panel

RS-232 MLC/IR

TxRxIR +12V

AB C

Ground ( )

+12 VDC

Transmit (Tx)

Receive (Rx)

250 feet (76.2 m) maximum

150 feet (45.7 m) maximum

Ground ( )

+12 VDC

IR (IR Link)

IR Link

MLA-Remote

SIGNAL

A B C D E

DVD

MLC MLS/Power port

A B

MLS / Power

Transmit (Tx) Receive (Rx)

+12 VDC

Ground ( )

B A

MediaLink Controller

(MLC)

Control connection

RS-232/MLC/IR control port —You can control the MLS switcher via an

RS-232 connection directly from a host computer, a control system, or a MediaLink Controller (MLC). Alternatively, you can use IR remote control via an Extron IR Link connected to this port.

Connect a cable between this port and an optional

Extron MLC MediaLink Controller or an optional IR Link IR signal repeater.

• The MLC provides remote control of input switching and volume.

• The IR Link accepts modulated IR signals from a remote control so the remote control can be used for selecting the switcher’s inputs.

Extron Comm-Link cable is recommended for this connection. If you use Comm-Link cable, the switcher and controller (MLC) can be up to 250 feet (76.2 m) apart. Wire the captive screw connector for connection to an IR Link, an MLC, or a computer or control system as shown in the following four diagrams.

MLS 304 Series, MLS 406 Series • Installation

PRELIMINARY

2-7

RS-232 MLC/IR

MediaLink Switcher to an MLC

MediaLink

Switcher rear panel RS-232/MLC/IR port

NOTE

The switcher provides up to 12 VDC, 0.40 A power to an MLC 206. Other MLC models may draw more current than the MLS can provide. Extron recommends using a separate power supply for the MLC.

Ground ( )

+12 VDC input

NOTE If you use cable that has a

drain wire, tie the drain wire to ground at both ends.

RS-232 MLC/IR

MediaLink Switcher to an MLC that has an external power supply

MediaLink Switcher rear panel RS-232/MLC/IR port

NOTE

If using an external power supply (instead of the MLS) to power the MLC, you must connect a ground wire between the MLC and MLS.

NOTE If you use cable that has a

drain wire, tie the drain wire to ground at both ends.

RS-232_MLC-IR port wiring_MLS304_062404.eps

RS-232 MLC/IR

Tx RxIR +12V

Tx RxIR

+12 V

Tx RxIR

+12V

MediaLink Switcher to an IR Link

MediaLink Switcher rear panel RS-232/MLC/IR port

IR Link port

A B C

MediaLink Switcher Rear Panel

RS-232 MLC/IR

TxRxIR+12V

AB C

MediaLink Switcher Rear Panel

RS-232 MLC/IR

TxRxIR+12V

AB C

MediaLink Switcher Rear Panel

RS-232 MLC/IR

TxRxIR+12V

AB C

RS-232 MLC/IR

RS-232 port

of a

computer or

control system

MediaLink Switcher to a computer or control system

MediaLink Switcher rear panel RS-232/MLC/IR port

NOTE

Connect a ground wire between the MLC and the computer or control system.

NOTE If you use cable that has a

drain wire, tie the drain wire to ground at both ends.

Tx RxIR +12V

A B C

MediaLink Switcher Rear Panel

RS-232 MLC/IR

TxRxIR+12V

AB C

Host Computer Control System

Ground ( )

+12 VDC

Transmit (Tx)

Receive (Rx)

Ground ( )

Transmit (Tx)

Receive (Rx)

Ground ( )

Transmit (Tx)

Receive (Rx)

250 feet (76.2 m) maximum

150 feet (45.7 m) maximum

Ground ( )

+12 VDC

IR (IR Link)

IR Link

MLA-Remote

SIGNAL

A B C D E

DVD

MLC MLS/Power port

A B

MLS / Power

Transmit (Tx) Receive (Rx)

+12 VDC

Ground ( )

B A

A B

MLS / Power

Transmit (Tx) Receive (Rx)

B A

Transmit (Tx) Receive (Rx)

3 2

Ground all devices

External

Power Supply

(12 VDC, 1A max.)

External

Power Supply

MediaLink Controller

(MLC)

MediaLink Controller

(MLC)

7 6 5 4 3 2 1

Purple

Blue

Green

Yellow

Orange

Red

Brown

Grey

Black

Connector Shell

Pin #Color

UC Cable

Shield

UC 50', 100', 200' Cable Color Codes

To the

computer

or control system

To the

MLS

switcher

Installation, cont’d

PRELIMINARY

You may use a male 9-pin D-to-bare-wire RS-232 cable or a universal control cable (UC 50', UC 100', or UC 200') for the connection to a computer or control system. One end of the UC cable is terminated with a female 9-pin D connector, and the other end is unterminated. The UC cable’s pin assignments are as shown in the following illustration. Refer to the computer/control system’s pin assignment guide to determine which of the cable’s wires to connect to which of the MLS’s RS-232/MLC/IR port pins.

2-8

MLS 304 Series, MLS 406 Series • Installation

AUDIO INPUTS

LINE LEVEL

MONO

AUDIO

AUX/MIX

ADJUST

-42dB TO

+24dB

INPUTSOUTPUTS

VIDEO

MONITOR OUT

OUTPUTS

VIDEO

MONITOR OUT

AUDIO INPUTS

LINE LEVEL

MONO

AUDIO

AUX/MIX

ADJUST

-42dB TO

+24dB

INPUTS

OUTPUTS

VIDEO

MONITOR OUT

RS-232/MLC/IR

Rx IR 12V

A B C

PREAMPLINEOUT

AUDIO INPUTS

LINE LEVEL

MONO

AUDIO

AUX/MIX

ADJUST

-42dB TO

+24dB

OUTPUTS

VIDEO

MONITOR OUT

AUDIO INPUTS

AUDIO

INPUTS

LINE LEVEL

MONO

AUX/MIX

ADJUST

-42dB TO

+24dB

INPUTS

AMPLIFIED OUTPUT

20 WATTS MONO

DIRECT

XFMR

COM

4/8 ohm

100V

70V

AMPLIFIED OUTPUT

20 WATTS MONO

DIRECT

XFMR

COM

4/8 ohm

100V

70V

RL RL

RS-232/MLC/IR

Rx IR 12V

A B C

PREAMPLINEOUT

RL RL

AMPLIFIED OUTPUT

4/8 ohm

RIG HT LEF T

STEREO OR DUAL MONO

CLASS 2 WIRI NG

RS-232/MLC/IR

Rx IR 12V

A B C

PREAMPLINEOUT

RL RL

RS-232/MLC/IR

Rx IR 12V

A B C

PREAMPLINEOUT

RL RL

7 8 9 10 11

MLS 304MA Rear Panel

MLS 406MA Rear Panel

MLS 406SA Rear Panel (amplifier output)

VIDEO

RGBHV RGBS RGsB, RsGsBs

S-video

(MLS 406 Series)

Composite

video

Video output, local monitor, and audio output connections

Video outputs

Display outputs — Connect cables from the

appropriate port(s) on the projector or display panel to these BNC connectors according to the output signal type, as shown below.

The output signal is in the same format (RGBHV, RGBS, RGsB, RsGsBs, S-video, or composite video) as the input signal. The signal is switched, but not processed. Cables can be connected between the projector and one, some, or all of the switcher’s video outputs.

Monitor Output — This 15-pin HD connector serves as either a local

monitor loop-through port or an additional RGB output. Connect a cable between this port and the local or additional display device.

There are three different options (modes) for determining which input

signal, if any, is sent to the monitor output. These modes are selectable only via RS-232 control. For an explanation of modes and video routing, see pages 3-7 and 3-8. See chapter 4, Serial Communication for details on selecting the mode.

Audio outputs

Lineout audio output and Preamp audio output — These outputs are simultaneously active and can be wired and conﬁgured for balanced or unbalanced mono or stereo audio signal output. The switcher must also be conﬁgured for the corresponding signal type (mono or stereo).

Selecting either mono or stereo (via RS-232 by way of the control software or SIS commands) selects the output signal format for both the Lineout and Preamp outputs. The switcher conﬁguration (mono or stereo) and the output wiring must match.

• The Lineout connector outputs a ﬁxed, line level audio signal that is

not affected by front panel Volume knob adjustments. A recording or assistive listening device would typically be connected here.

MLS 304 Series, MLS 406 Series • Installation

PRELIMINARY

2-9

Installation, cont’d

Unbalanced Stereo Output

Tip

NO GROUND HERE.

Sleeve(s)

Tip

NO GROUND HERE.

Balanced Stereo Output

Tip

Ring

Sleeve(s)

Tip

Ring

L R

Unbalanced Mono Output Balanced Mono Output

Tip

NO GROUND HERE.

Sleeve

Tip

Ring

Sleeve

Left

Right

Left

Right

Left

Right

Left

Right

CAUTION

For unbalanced audio, connect the sleeve(s) to the center contact ground. DO NOT connect the sleeve(s) to the negative (-) contacts.

• The Preamp connector outputs a variable, line level audio signal for

Lineout and Preamp outputs can be set up as

• unbalanced, -10 dBV (-7.8 dBu, 0.316 Vrms, default) for consumer level

• balanced, +4 dBu (+1.8 dBV, 1.228 Vrms) for professional devices such

depending on how the connector is wired and how the MLS is set up (via the control software). See the following wiring diagrams and chapter 4, Communication.

use with a powered ampliﬁer or self-powered speakers. The volume can be controlled (attenuated) via the front panel knob or RS-232 communication. The volume range is 0 (mute) through 100.

devices such as VCRs, DVD players, and stereo receivers

as mixers, signal processors, and power amps

Serial

C Connect the sleeve to ground (Gnd). Connecting the sleeve to a negative

(-) terminal will damage the audio output circuits.

N For mono output, wire either the left or the right side, not both.

PRELIMINARY

2-10

MLS 304 Series, MLS 406 Series • Installation

C Do not bridge mono outputs. The left and right input signals are

summed, and each mono output channel carries the same combination signal.

If the output is wired for balanced output, the level is +6 dB higher than the

level for unbalanced output wiring. The balanced/unbalanced level difference occurs no matter which line level output setting is chosen via RS-232. See page 4-10.

N After the audio inputs and outputs are connected, see chapter 3, Operation

and Setup for instructions on how to adjust the per-input audio sensitivity

levels and optimize Lineout and Preamp output.

N If the Loudness feature is turned on, the gains for bass and treble frequencies

are affected for all outputs whenever volume is adjusted.

Ampliﬁed output (MLS 304MA, MLS 406MA only) — Cable speakers to this 5-position screw terminal for a mono ampliﬁed audio output. This provides a mono output signal even if the input is a stereo signal. For stereo output, use the non-ampliﬁed Lineout and Preamp outputs instead.

The 4 ohm/8 ohm direct connection circuit and the 70 V/100 V transformer connection are mutually exclusive: only one circuit (direct or transformer) can be active at a time.

Do not short the terminals to ground or the ampliﬁer will be damaged.

C Do not bridge mono outputs. Bridging could damage the ampliﬁer.

Two 8 ohm speakers wired in parallel equal a 4 ohm load.

4 Ohm Load or

8 Ohm Load

4 Ohm Total Load 4 Ohm Total Load

8 Ohm Total Load

Two 4 ohm speakers wired in series equal an 8 ohm load.

8 Ohm Total Load

AMPLIFIED OUTPUT

20 WATTS MONO

DIRECT

XFMR

COM

4/8 ohm

100V

70V

AMPLIFIED OUTPUT

20 WATTS MONO

DIRECT

XFMR

COM

4/8 ohm

100V

70V

AMPLIFIED OUTPUT

20 WATTS MONO

DIRECT

XFMR

COM

4/8 ohm

100V

70V

4/8 ohm

Mono –

Mono +

Mono –

8 ohms

4 ohms

Mono +

Mono –

4 ohms

Mono +

Mono –

Mono +

4 ohms

Mono –

8 ohms

Mono +

8 ohms

The MA models’ ampliﬁer power-up delays are approximately

• 10 seconds for 70 V or 100 V output, 8 seconds to hear the relay click

• 8 seconds for 4 ohm or 8 ohm output

Wiring for 4 ohm or 8 ohm speakers (MA models)

The maximum power output when an MLS 304MA or MLS 406MA is wired

for 4 ohm or 8 ohm speakers is 20 watts per channel.

1. Flip the toggle switch down (Direct) to select 4 ohm or 8 ohm connection.

2. Use the appropriate wiring for the load as shown in the following

illustrations.

PRELIMINARY

MLS 304 Series, MLS 406 Series • Installation

2-11

Installation, cont’d

AMPLIFIED OUTPUT

20 WATTS MONO

DIRECT

XFMR

COM

4/8 ohm

100V

70V

AMPLIFIED OUTPUT

20 WATTS MONO

DIRECT

XFMR

COM

4/8 ohm

100V

70V

AMPLIFIED OUTPUT

20 WATTS MONO

DIRECT

XFMR

COM

4/8 ohm

100V

70V

Common

70V

3.7 WCom.

7.5 WCom.

70V Speakers

Common

100V

100V Speakers

4 Speakers Tapped at 3.7 Watts Each Equals 14.8 Watts Total

Common

70V

70V Speakers

2 Speakers Tapped at 7.5 Watts Each Equals 15 Watts Total

4 Speakers Tapped at 3.7 Watts Each Equals 14.8 Watts Total

Wiring for a 70 volt or 100 volt distributed speaker system (MA models)

The maximum power output when the MLS is wired for 70 volt or 100 volt

1. Flip the toggle switch up to select a distributed 70 V or 100 V system

. Use the appropriate wiring for the load as shown in the following

The speaker taps should not exceed the ampliﬁer’s maximum power

output.

systems is 16 watts.

connection.

illustrations.

PRELIMINARY

C Do not short the terminals to ground or the ampliﬁer will be damaged. C Do not bridge mono outputs. Bridging could damage the ampliﬁer.

2-12

MLS 304 Series, MLS 406 Series • Installation

Dual Mono OutputStereo Output

Stereo or Dual Mono Output

4 Ohm Load or 8 Ohm Load

4 Ohm Total Load4 Ohm Total Load

8 Ohm Total Load8 Ohm Total Load

Two 8 ohm speakers wired in parallel equal a 4 ohm load.

Two 4 ohm speakers wired in series equal an 8 ohm load.

AMPLIFIED OUTPUT

4/ 8 ohm

RI GHT LE FT

STEREO OR DUAL MONO

CLASS 2 WIRIN G

AMPLIFIED OUTPUT

4/ 8 ohm

RI GHT LE FT

STEREO OR DUAL MONO

CLASS 2 WIRIN G

AMPLIFIED OUTPUT

4/ 8 ohm

RI GHT LE FT

STEREO OR DUAL MONO

CLASS 2 WIRIN G

AMPLIFIED OUTPUT

4/ 8 ohm

RI GHT LE FT

STEREO OR DUAL MONO

CLASS 2 WIRIN G

Mono –

Stereo L-

8 ohms

4 ohms

Mono +

Stereo L+

Mono –

Stereo R-

Mono +

Stereo R+

Stereo L–

Stereo L+

Stereo R–

Stereo R+

Mono –

Mono +

Mono –

Mono +

8 ohms

Mono –

Stereo L-

Mono +

Stereo L+

4 ohms

Mono –

Stereo R-

Mono +

Stereo R+

Ampliﬁed output (MLS 304SA, MLS 406SA only) — Cable speakers to this

5-position screw terminal for either stereo or dual mono ampliﬁed audio output. The switcher’s default setting is stereo output. Dual mono (the same signal output on both channels) can be selected via software.

C Do not bridge mono outputs. Bridging could damage the ampliﬁer.

Wiring for 4 ohm or 8 ohm speakers (SA models)

Do not short the terminals to ground or the ampliﬁer will be damaged.

Do not connect anything to the middle position of the 5-position screw terminal; it is not connected to ground.

The SA models’ ampliﬁer power-up delay is 8 seconds for either 4 ohm or 8 ohm output

The maximum power output when an MLS 304SA or MLS 406SA is wired for

4 ohm speakers is 24 watts (12 watts per channel). Maximum power output for 8 ohm speakers is 16 watts (8 watts per channel).

PRELIMINARY

MLS 304 Series, MLS 406 Series • Installation

2-13

Installation, cont’d

2 Front Program Speakers

Program Speakers

Classroom Top View

4 Ceiling Speakers

Classroom Top View

Ceiling Speakers

C Do not short the terminals to ground or the ampliﬁer will be damaged.

C Do not bridge mono outputs. Bridging could damage the ampliﬁer.

Speaker arrangement examples

Ceiling and program speakers can be arranged several different ways.

The following factors affect the choice of speaker placement:

• Dimensions of the room

• Room acoustics

• Desired evenness of sound coverage

• Audience mobility (whether the audience will be seated or not)

• Ambient noise level

• Type of music or other audio source

Some general ideas for speaker placement are included below.

Examples of speaker layouts

Do not connect anything to the middle position of the 5-position screw terminal; it is not connected to ground.

PRELIMINARY

2-14

MLS 304 Series, MLS 406 Series • Installation

Extron MLS 304MA

MediaLink Switcher

100-240

1.0A M

50-60

AUD

IO INPUTS

LINE LEVEL

MONO

AUD

AUX

/MIX

ADJUST

-42dB TO

+24dB

INPUTS

OUTPUTS

VIDEO

INPUTS

MONITOR OUT

LINEOUT

RS-232/MLC/IR

IR 12V

PREAMP

PLIFIED

20 WATTS

MONO

DIRECT

XFMR

COM

4/8 ohm

100V

70V

Projector

VCR

Speakers

Laptop

w/ Audio

PROJECTOR

VOLUME

OFF

Extron MLC 104

MediaLink Controller

System Control

Mono Amplified Output

Projector Control

RS-232 Control

Mono Amplified Output

Projector Control

100-240V

1.0A MAX.

50-60Hz

-232

C/IR

CONTROL

INPUT 4

AUDIO INPUTS

LINE LEVEL

MONO

AUDIO

AUD

12V

PREAMP

AUX

/MIX

ADJUST

-42dB TO +24dB

INPUTS

OUTPUTS

VIDEO

INPUTS

MONITOR OUT

AMPLIFIED OUTPUT 20 W

TTS

DIREC

100V

70V

Extron MLS 406MA

Switcher

Laptop

w/ Audio

RGB

Document

Camera

VCR

DVD

Projector

Speakers

Extron

FIG

LAPTOP

OFF

Extron MLC 226

MediaLink Controller

Application Diagrams

PRELIMINARY

MLS 304 Series, MLS 406 Series • Installation

2-15

Installation, cont’d

RS-232/M

LC/IR

12V

PREAMP

100-240V

1.0A M

50-60H

AUD

IO INPUTS

LINE LEVEL

MONO

AUDIO

AUD

LINEOUT

AUX/MIX

ADJUST

-42dB TO

+24dB

INPUTS

OUTPUTS

VIDEO

INPUTS

MONITOR OUT

AMPLIFIED OUT

PUT

Projector Control

Extron MLS 304SA

MediaLink Switcher

Laptop

w/ Audio

VCR

Extron

DISPLAY POWER

VOLUME

VCR

DVD

Laptop

System Control

4/8 ohm Stereo

or Dual Mono Output

Extron MLC 206

MediaLink Controller

Projector

-2

/IR

12V

-6

INPUT 4

AUD

IO INPUTS

LINE LEVEL

MONO

AUD

LINEO

AUX

JUST

-42dB TO

+24dB

INPU

OUTPUTS

VIDEO

INPUTS

MONITOR OUT

RIGHT

LEFT

PLIFIED O

UTPUT

System Control

Projector Control

4/8 ohm Stereo or Dual Mono Output

Extron MLS 406SA

MediaLink Switcher

Laptop

w/ Audio

Document CameraVCRDVD

Projector

Extron

MLC 206

MediaLink Controller

Extron

DISPLAY

POWER

VOLUM

MAX/

MIN

VCR

DVD

Laptop

PRELIMINARY

2-16

MLS 304 Series, MLS 406 Series • Installation

MLS 304 Series and MLS 406 Series

Chapter Three

Operation and Setup

Front Panel Features and Operation

Setting Up and Optimizing the Audio

Video Signal Routing

Remote Control

Troubleshooting

Operation and Setup

VOLUME

MAX

MID

MIN

INPUT SELECT

VOLUME

MAX

MID

MIN

INPUT SELECT

MLS 304 Series Front Panel

MLS 406 Series Front Panel

VOLUME

MAX

MID

MIN

User (regular) mode

Maximum volume limit (100%)

51% of the maximum volume

Minimum threshold (at least 21%)

Front Panel Features and Operation

N The MLS 304MA and MLS 304SA have identical front panel features.

The MLS 406, MLS 406MA, and the MLS 406SA have identical front panel features.

Power indicator LED — When lit this LED indicates that the switcher is

powered on.

PRELIMINARY

Input selection buttons and indicator LEDs — Press one of these buttons to

select the desired audio and video input. The corresponding LED lights and remains lit while an audio-video input is selected. During audio breakaway (selectable only via RS-232 control, and described in Special Features on page 4-9), audio is switched separately from video. The selected video input’s LED lights steadily, and the audio input’s LED blinks.

Which input’s signal, if any, is routed to the Monitor Output depends on which mode (standard, DA, or RGB follow) is active. See Video Signal Routing on page 3-7 for details on modes and video routing.

Volume adjustment knob and Min/Mid/Max LEDs — Use this knob to make

input level and volume adjustments. The LEDs indicate different things, depending on the mode (user or setup) the MLS is in. See Making adjustments, on page 3-6 for instructions on setup mode and per-input adjustments. See appendix A, Reference Material, for audio block diagrams.

• In the user (regular) mode, the LEDs function as volume level

indicators. Rotate the Volume knob to adjust the output level of the Preamp and Ampliﬁed outputs.

3-2

N The volume of the Lineout output is not affected by this volume adjustment.

N If the Loudness feature is turned on, the gains for bass and treble frequencies

are affected for all outputs whenever volume is adjusted.

MLS 304 Series, MLS 406 Series • Operation and Setup

MAX

MID

MIN

Signal

: when lit this LED indicates that a signal of

at least -20 dBV (-18 dBu) is detected at the input.

Peak:

if blinking/lit, the level is set too high.

Normal:

if blinking/lit, the output level at the Lineout and Preamp connectors is near the specified output level of -10 dBV or +4 dBu.

MAX

MID

MIN

Signal

: when lit this LED indicates that a signal of

at least -20 dBV (-18 dBu) is detected at the input.

Clip:

if blinking/lit, the level is set too high.

Normal:

a blinking LED indicates that the level is set properly for max. power output.

NOTE If the Max/Clip LED lights, the audio may be clipped.

MLS 304MA, MLS 304SA, MLS 406MA, MLS 406SA

MLS 406

• In setup mode these LEDs function as input level indicators. Rotate the

Volume knob and observe the LEDs to set up the proper audio input levels.

N During setup audio/video breakaway is disabled. N Per-input audio level (sensitivity) settings can be adjusted via this front panel

Front panel security lockout (executive modes)

To prevent accidental changes to settings, the MLS switchers feature two types of front panel security lockout (executive) modes for limiting users’ access to front panel controls. When either executive mode is active, functions and adjustments can still be made through RS-232 control or via hardwired IR control. For details on RS-232 control, see chapter four.

• Executive mode 1 prevents user access to all front panel selections and setup;

only volume adjustments are possible. Executive mode 1 can be enabled and disabled via the front panel buttons or via RS-232 control.

• Executive mode 2 prevents user access to all selections and adjustments from

the front panel. This mode can be enabled via RS-232 control only. When executive mode 2 is enabled, input selections and volume adjustments can be performed only via RS-232 control, IR remote control, or an optional Extron MediaLink Controller (MLC). Executive mode 2 can be disabled via the front panel buttons or via RS-232 control. See chapter four for details on RS-232 control and executive mode 2.

The executive mode setting (enabled/disabled) is retained even when the switcher is powered off.

N Resetting the switcher to factory defaults also disables executive mode.

knob or via RS-232 control.

PRELIMINARY

MLS 304 Series, MLS 406 Series • Operation and Setup

3-3

Operation and Setup, cont’d

INPUT SELECT

Press and hold buttons 1 and 4

simultaneously for 3 seconds.

All input selection buttons light for 1 second to indicate

that executive mode 1 has been enabled or disabled,

or that executive mode 2 has been disabled.

Release the buttons.

Enabling/disabling executive mode 1; disabling executive mode 2

Press and hold input selection buttons 1 and 4 simultaneously for 3 seconds as shown below. When all of the input selection LEDs light, the switcher has enabled or disabled executive mode, and you can release the buttons.

Resetting the switcher

The switcher can be reset to the factory defaults via the front panel or via RS-232 control.

To reset the switcher via the front panel, follow these steps.

1. Unplug the switcher from the AC power source.

2. Press and hold input selection buttons 1 and 4 while reapplying power to the

switcher (reconnecting it to the AC power source). All the input selection LEDs blink for one second while the switcher is being reset.

PRELIMINARY

These settings are reset (defaults are in parenthesis):

• Audio level (sensitivity = -10 dBV)

• Audio gain/attenuation (+6 dB for SA, MA, and non-amp models)

• Bass (0)

• Treble (0)

• Loudness (off)

• Line level audio output (stereo)

• Video type (conﬁgurable inputs = RGB)

• RGB delay (0 sec.)

• Monitor Output mode (RGB follow)

• Executive mode (off)

• Aux/Mix (on)

• Volume (41)

• switcher mode (single)

Setting Up and Optimizing the Audio

For optimal audio quality, the audio input levels and the bass, treble, and loudness control must all be set up properly. Input and output (Preamp and Lineout) audio levels may need to be adjusted depending on the variation of output levels from different source devices. By default these switcher input levels are set for the consumer product line level of -10 dBV.

Bass, treble, and loudness should be adjusted once the input and output levels have been adjusted. By default the bass and treble have been set to 0, and loudness has been set to off.

Input level sensitivity can be adjusted via the front panel. Other adjustments must be performed via the supplied MediaLink Control Software (also available at www.extron.com) through the RS-232 port.

3-4

C To avoid damage to your hearing and disturbing occupants of adjacent

rooms, do not connect speakers to the MLS’s ampliﬁer output until setup

MLS 304 Series, MLS 406 Series • Operation and Setup

has been completed and volume has been set to the minimum level.

Conﬁguring Lineout and Preamp output levels

Before adjusting any input levels, you must select an output level from the following options. You do not need to change the output level if the Lineout and Preamp outputs will not be used.

• -10 dBV, unbalanced (consumer) (default): typically used when the switcher’s

output is connected to consumer products such as VCRs, stereo receiverampliﬁers, or self-powered speakers with unbalanced inputs

• +4 dBu, balanced (professional): typically used when the switcher’s output is

connected to professional products such as mixers, power ampliﬁers, and some assistive listening devices with balanced inputs.

N Check the manufacturers’ speciﬁcations for details on input/output devices you

will connect to the Preamp and Lineout outputs.

Adjusting audio input levels

Adjusting the input level (sensitivity) for each input via the front panel or the supplied control software will ensure that the switcher can deliver maximum power out of the ampliﬁer, output the proper signal on the Lineout and Preamp outputs, and prevent noticeable jumps in audio levels during input switching.

The input level (sensitivity) can be adjusted (-42 dB to +24 dB) for all of the inputs, including the Aux/Mix input. The default input level (sensitivity) for each input is set for -10 dBV, unbalanced, consumer-type signals.

N The Auxiliary/Mix input level can be adjusted via the rear panel only.

It cannot be adjusted via the control software.

Common output levels for audio source devices range from -20 dBV, unbalanced, to +4 dBu, balanced. If the input level sensitivity settings are not closely matched to the source devices’ levels, the signal may be overdriven and distorted.

• Consumer portable devices such as personal CD players and laptops typically

have ﬁxed and/or variable unbalanced outputs. If connecting a variable level output to the switcher, you must make adjustments with the source’s volume set to maximum.

• Consumer non-portable devices such as VCRs, DVD players, and computer sound cards typically output an unbalanced -10 dBV signal.

• Professional products such as preamps, mixers, and signal processors typically output a balanced +4 dBu signal.

N There can be large variations in sources’ output levels. Check the

manufacturers’ speciﬁcations for details on devices connected to switcher’s inputs.

Input level adjustments can be made in 1 dB increments/decrements via the front panel or the control software. See chapter 4, Serial Communication for details on software settings.

N Because there are many different output levels for source devices, Extron

recommends that you adjust the input level (sensitivity) for each input. When making these adjustments, use source material with a wide dynamic range. The material should have loud passages that are representative of what will be used in the system.

PRELIMINARY

MLS 304 Series, MLS 406 Series • Operation and Setup

3-5

Operation and Setup, cont’d

MAX

MID

MIN

Signal detection threshold

• Min LED lights: a signal of at least -20 dBV (-18 dBu) (a low level consumer product level) is detected at the input.

Clipping level

• Max LED blinks or lights: the audio input level is too high; audio will be distorted. Lower the input gain so that this LED does not turn on.

Normal range

• Mid LED blinks or lights: input level has been properly adjusted. Adjust the input gain/attenuation until this LED blinks.

MAX

MID

MIN

NOTE If the Max/Clip LED lights, the audio may be clipped.

MLS 304MA, MLS 304SA, MLS 406MA, MLS 406SA

Signal: when lit this indicates that a signal of at

least -20 dBV (-18 dBu) is detected at the input.

Peak: a blinking LED indicates the level is set too high.

Normal: the specified output level (-10 dBV or +4 dBu)

has been reached. A blinking LED indicates the level is set properly for max. power output.

MLS 406

Making adjustments

Leave the bass and treble set to 0 and the loudness control set to off (default) before adjusting the input level (sensitivity). Audio input levels must be adjusted with an active audio signal.

1. Connect an active audio source to an input on the switcher.

2. Select the MLS input with the active input signal.

3. Adjust the switcher’s input level via the front panel or the control software

until the desired output level is reached and/or the Mid/normal LED turns on or blinks.

N Increasing the audio level beyond the point at which the Mid/normal LED

blinks may result in a distorted output signal.

Front panel setup mode: press and hold the input button for 3 seconds; the

input’s LED blinks. While still pressing the input button, rotate the Volume knob to adjust the input level.

N For the MA and SA models, in setup mode a blinking or lit Mid/normal LED

indicates that the power ampliﬁer can deliver maximum power output.

PRELIMINARY

3-6

MLS 304 Series, MLS 406 Series • Operation and Setup

4. Once the desired level is reached, release the input button, to save the audio

settings.

Repeat steps 1 through 4 for each input.

6. Fine tune levels including bass, treble, and loudness once all output devices

(speaker, amp, etc.) have been connected.

Loudness control automatically provides the correct amount of bass and treble required to compensate for the change in response of the human ear at low levels. As volume decreases, the MLS automatically boosts the signal at 100 Hz and 10 kHz. As volume is increased, the boost at those frequencies is decreased. By default loudness control is set to off. Use the control software to turn it on. See appendix A, Reference Material for a frequency response graph when loudness is turned on.

Video Signal Routing

The input’s signal format (RGB, S-video, or composite video) determines where the signal is output.

Composite video signals are always output on the Video BNC connector. S-video signals (MLS 406 Series only) are always output on the Y and C (luma and

chroma) BNC output connectors.

RGB/computer-video input signals are sent to the RGB output BNC connectors,

but only if the input is conﬁgured as an RGB input.

See pages 2-4 through 2-6 for information on cabling. See pages 4-4 through 4-11 for information on video conﬁguration.

Monitor Output modes

Which signal, if any, is output via the Monitor Output connector depends on the selected input’s signal type and on the Monitor Output mode. Monitor Output modes are selectable only via RS-232 control (see chapter 4, Serial Communication).

• Mode changes affect only how the Monitor Output is determined.

• Changing the mode does not affect the other outputs in any way.

Standard mode (mode 3)

• If the selected input is S-video or composite video, there is no Monitor Output.

• If the selected input is RGB, that input’s signal routed to the Monitor Output.

DA (distribution ampliﬁer) mode (mode 2)

• If any conﬁgurable input (3 or 4 on the MLS 304MA and MLS 304SA; 4, 5, or 6 on the MLS 406, MLS 406MA, and MLS 406SA) is S-video or composite video, there is no Monitor Output.

• If all the conﬁgurable inputs are set for RGB, the input 4 signal on the MLS 304MA/MLS 304SA or the input 6 signal on the MLS 406/MLS 406MA/ MLS 406SA becomes the Monitor Output, no matter which input is selected.

RGB follow mode (mode 1)

• If all the conﬁgurable inputs (3 and 4 on the MLS 304MA and MLS 304SA; 4, 5, and 6 on the MLS 406, MLS 406MA, and MLS 406SA) are RGB, and

• the selected input is MLS 304MA/MLS 304SA input 1 or 2; or MLS 406/ MLS 406MA/MLS 406SA input 1, 2, or 3; the highest numbered (4 or 6, depending on the model) RGB input’s signal is sent to the Monitor Output.

• the selected input is RGB, that signal will be sent to the Monitor Output.

• If the selected input is conﬁgurable and any conﬁgurable input is set for S-video/ composite video, there is no Monitor Output.

The table on the next page summarizes the modes.

PRELIMINARY

MLS 304 Series, MLS 406 Series • Operation and Setup

3-7

Operation and Setup, cont’d

MediaLink Switcher Rear Panel

RS-232 MLC/IR

TxRxIR+12V

AB C

IR Link

MLA-Remote

SIGNAL

DVD

MLS 304MA, MLS 304SA

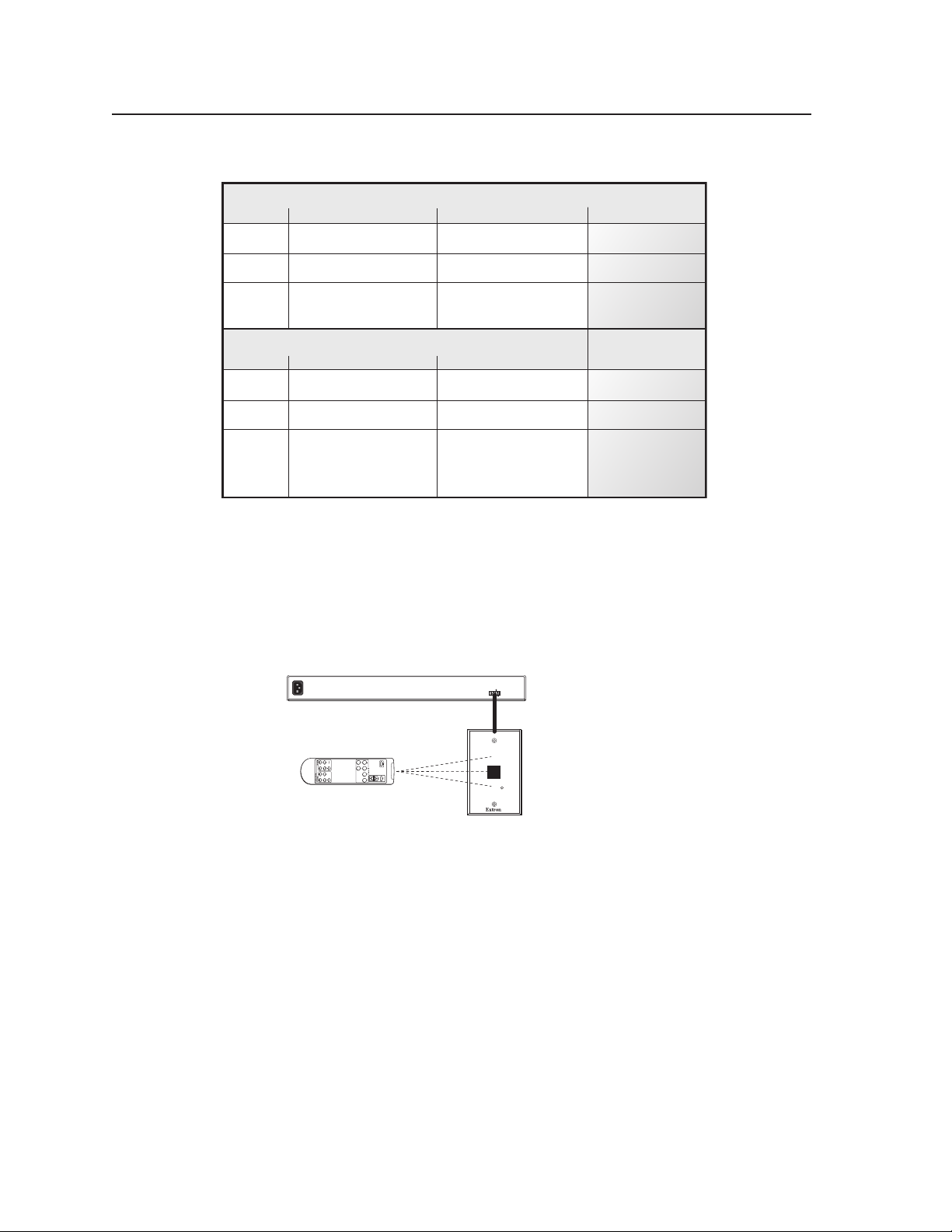

Mode Selected input Input special conditions Monitor Output

Standard Any composite video input n.a. None

Any RGB input n.a. Selected input

DA Any input 3 and 4 = RGB Input 4 Any input 3 or 4 = composite video None

RGB follow 1 or 2 3 and 4 = RGB Input 4 3 or 4 = RGB 3 and 4 = RGB Selected input 3 or 4 = composite video 3 or 4 = composite video None

MLS 406, MLS 406MA, MLS 406SA

Mode Selected input Input special conditions Monitor Output

Standard Any S-video or composite video n.a. None

4, 5, or 6 = RGB 4, 5, and 6 = RGB Selected input

DA Any 4, 5, and 6 = RGB Input 6 Any 4, 5, or 6 = S-video or composite video None

RGB follow 1, 2, or 3 4, 5, and 6 = RGB Input 6 4, 5, or 6 = RGB 4, 5, and 6 = RGB Selected input 4, 5, or 6 = S-video 4, 5, or 6 = S-video or composite video or composite video None

n.a. = not applicable

Monitor Output Modes

Remote Control

The MediaLink Switcher can be controlled by using its front panel controls; an optional Extron infrared remote control (the MLA-Remote, for example) and an Extron IR Link signal repeater; a MediaLink Controller; or another RS-232 control device or computer. See Control Connection on page 2-7 for wiring diagrams and system examples.

PRELIMINARY

3-8

MLS 304 Series, MLS 406 Series • Operation and Setup

N Any Extron IR remote control that offers input selection buttons 1 through 6

can be used with the MLS switcher for input switching. Unlike most other models, the MLA-Remote also allows volume control and audio mute.

Troubleshooting

Power on the input and output devices and the switcher. The image should appear on the screen, and sound should be audible.

If the image does not appear or there is no sound

1. Ensure that all devices are plugged in and receiving power. The switcher’s

power LED ( ) lights if the it is receiving power and an active sync signal.

2. Check the cabling, connector wiring, and grounding, and make adjustments

as needed.

3. To test the system setup and output, substitute a video or audio/video test

generator for one of the input devices.

4. Use the control software or a control system to verify that the audio and/or

video is not muted or set to input 0.

5. If no signal is being output from the Monitor Out port, check which Monitor

Out mode has been selected. You may need to change the setting to another mode to obtain the desired output. See pages 3-7, 3-8, and 4-10.

6. Call the Extron S3 Sales and Technical Support Hotline if needed.

If the switcher does not respond to controls

1. Executive mode 1 or 2 may be active. To disable either executive mode, press

and hold input buttons 1 and 4 for 3 seconds, then release them when the input LEDs blink. Executive modes can also be disabled via RS-232 control.

2. Via RS-232 verify that the conﬁgurable inputs (inputs 3 and 4 on the

MLS 304MA or MLS 304SA; inputs 4, 5, and 6 for the MLS 406/MLS 406MA/ MLS 406SA) have been set up for the correct input type (RGB or composite video).

If audio input 0 (audio mute) is selected (via RS-232), rotating the Volume

knob does not affect the volume, since an active audio input is not selected. Select an active audio input.

4. If you have just updated the switcher’s ﬁrmware (see chapter 4, Serial

Communication), and the power LED lights but the switcher does not respond

to front panel input selections or volume adjustments, you may need to reset the unit to factory defaults (see page 3-4, Resetting the switcher, or page 4-6, Zap command).

Call the Extron S3 Sales and Technical Support Hotline if the switcher still

does not respond after you have performed steps 1 through 4.

PRELIMINARY

MLS 304 Series, MLS 406 Series • Operation and Setup

3-9

Operation and Setup, cont’d

If you are unable to conﬁgure the MLS via the Windows®-based software

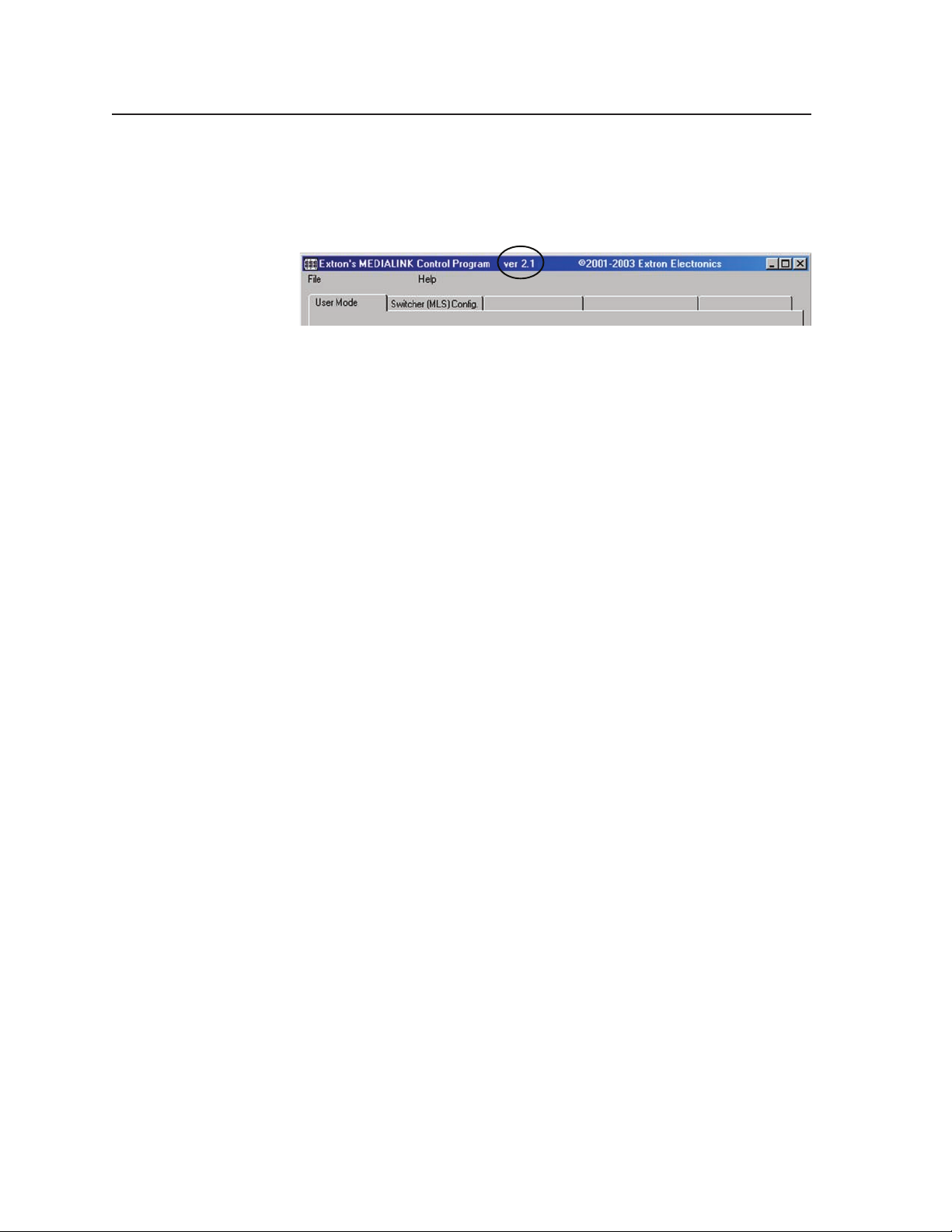

1. Check the MediaLink Control Software to determine its version number. The

software version number appears in the top bar of the program’s window:

These MLS 304 Series and MLS 406 Series switchers can be set up using

software version 2.1 or higher. Earlier versions are not designed to work with these models.

2. Verify that the connector at the RS-232/MLC/IR port is correctly wired and

that the PC’s correct COM port is selected when you start the software.

PRELIMINARY

3-10

MLS 304 Series, MLS 406 Series • Operation and Setup

MLS 304 Series and MLS 406 Series

Chapter Four

Serial Communication

RS-232 Programmer’s Guide

Control Software for Windows

Serial Communication

RS-232/MLC/IR

Rx IR

12V

Transmit (Tx) Receive (Rx)

Sleeve(s)

+12 V, 0.4 A power output

Ground ( )

The MediaLink switcher can be remotely set up and controlled via a host computer or other device (such as a control system) attached to the rear panel RS-232/MLC/IR port. Alternatively, the switcher can be controlled by an optional MediaLink Controller (MLC) (connected to the same port) or by an RS-232 device acting through the MLC. The control device (host) can use either Extron’s Simple Instruction Set (SIS) commands or the graphical control program for Windows. For details on use and setup of a system that includes a MediaLink Controller, see the MediaLink Controllers User’s Manual.

Switcher protocol:

• 9600 baud

• 1 stop bit

• no parity

• no ﬂow control

RS-232/MLC/IR connector pin assignments:

RS-232 Programmer’s Guide

Host-to-MLS communications

SIS commands consist of one or more characters per ﬁeld. No special characters are required to begin or end a command sequence. When the MLS determines that a command is valid, it executes the command and sends a response to the host device. All responses from the switcher to the host end with a carriage return and a line feed (CR/LF = ]), which signals the end of the response character string. A string is one or more characters.

PRELIMINARY

MLS-initiated messages

When a local event such as a front panel selection or adjustment takes place, the MLS responds by sending a message to the host. No response is required from the host. The MLS-initiated messages are listed here (underlined).

The MLS sends the boot and copyright messages when it ﬁrst powers on. Vx.xx is the ﬁrmware version number. The MLS 406MA is used in this example.

Chn X! ] (where X! is the input number) The MLS sends this response when an input is switched.

Error responses

When the MLS receives a valid SIS command, it executes the command and sends a response to the host device. If the MLS is unable to execute the command because the command is invalid or it contains invalid parameters, it returns an error response to the host.

The error response codes and their descriptions are as follows: E01 – Invalid input channel number (the number is too large)

E10 – Invalid command E13 – Invalid value (the number is out of range/too large) E14 – Invalid for this conﬁguration E23 – Checksum error (for ﬁle uploads)

4-2

MLS 304 Series, MLS 406Series • Serial Communication

ASCII to HEX Conversion Table

•

Symbol deﬁnitions

Using the command/response tables

The command/response tables on the next page list valid command ASCII codes, the MLS’s responses to the host, and a description of the command’s function or the results of executing the command. Upper- and lower-case characters may be used interchangeably in the command ﬁeld unless otherwise speciﬁed (setting gain/ attenuation, for example).

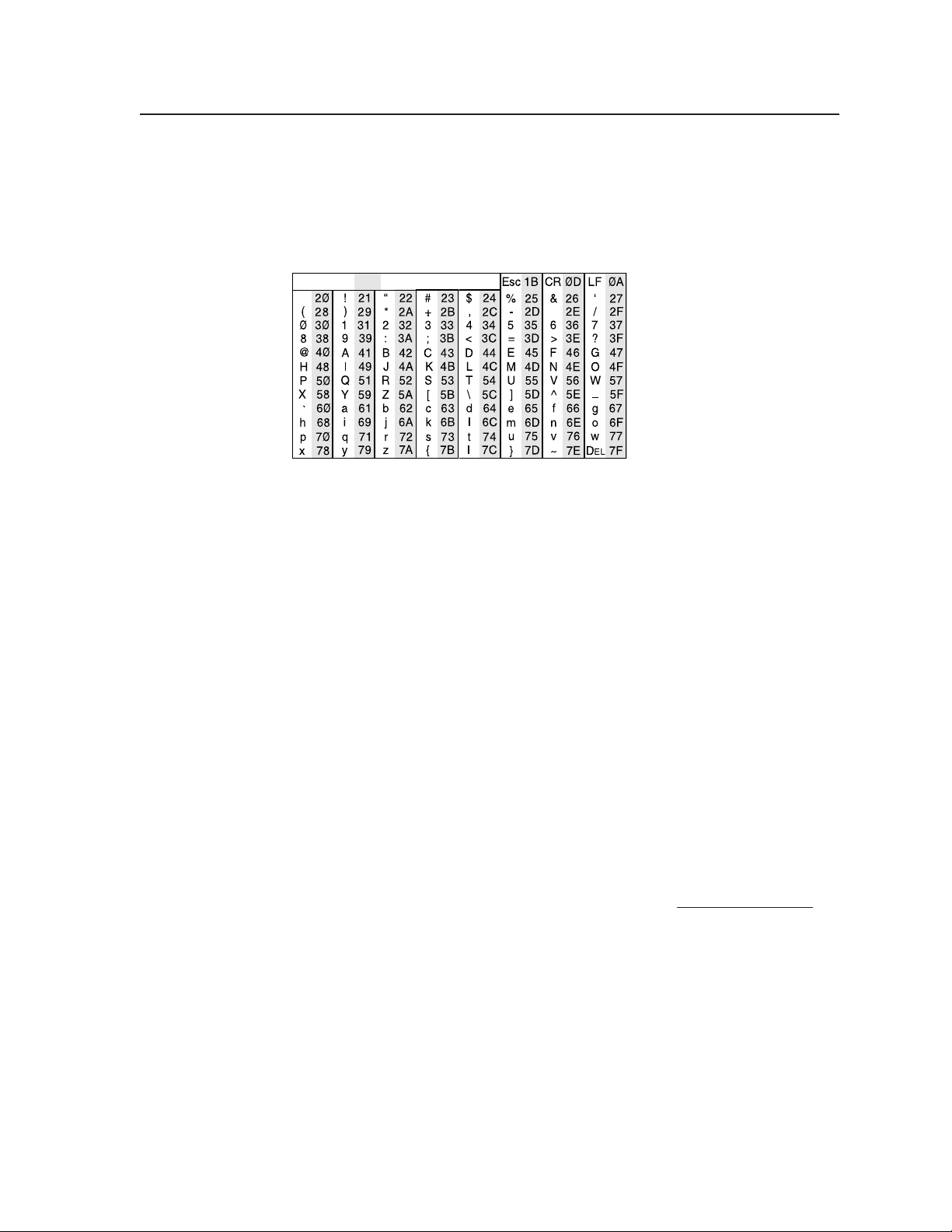

ASCII to Hex conversion table

] = CR/LF (carriage return/line feed) (hex 0D 0A)

• = Space

E = Escape key X! = Speciﬁc input number (0 – 6 maximum)

0 = no connection 1 = input 1 2 = input 2 3 = input 3 ... 6 = input 6

X@ = Maximum number of input channels

(1 – 4 [max.] for the MLS 304 Series or 1 – 6 [max.] for the MLS 406 Series)

X# = Video type (can be set for inputs 3 – 4 of the MLS 304

Series or inputs 4 – 6 of the MLS 406 Series only) 1 = Vid (composite video [MLS 304 Series only] and/or S-video [MLS 406 Series only]) 2 = RGB (default)

X$ = Audio gain

(0 dB through +24 dB in 1 dB steps) (default = 0 dB for MLS 304MA, MLS 406, MLS 406MA; default = +6 dB for MLS 304SA, MLS 406SA)

X% = Audio attenuation (1 to 42; 0 dB through -42 dB in

1 dB steps)

X^ = On/off status

0 = off/disable 1 = on/enable

X& = Input to be adjusted (1 – 4 for MLS 304 Series, 1 – 6 for

MLS 406 Series switchers) 1 = input 1 2 = input 2 3 = input 3 ... 6 = input 6

The ASCII to hexadecimal (HEX) conversion table at left is for use with the command/response tables.

X( = Adjustment range (0 – 14) (-10.5 dB – +10.5 dB in

1.5 dB steps) 0 = -10.5 dB 1 = -9.0 dB 2 = -7.5 dB 3 = -6.0 dB 4 = -4.5 dB 5 = -3.0 dB 6 = -1.5 dB 7 = +0 dB (default) 8 = +1.5 dB 9 = +3.0 dB 10 = +4.5 dB 11 = +6.0 dB 12 = +7.5 dB 13 = +9.0 dB 14 = +10.5 dB

X1) = Volume adjustment range (0 – 100 steps) X1! = Switcher ﬁrmware version (listed to

two decimal places e.g.: x.xx)

X1@ = Executive mode (front panel lockout) status

0 = unlocked (default) 1 = front panel except volume adjustment is locked

PRELIMINARY

MLS 304 Series, MLS 406Series• Serial Communication

4-3

PRELIMINARY

Serial Communication, cont’d

Command/response table for SIS commands

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

Input selection

Select an input (audio and video). X! ! Chn X! ] Select input X! (audio and video).

: 6! Chn6 ] Example: select input 6.

Example

Select an audio input. X! $ Aud X! ] Select input X! audio only. Select a video input. X! & Vid X! ] Select input X! video only.

Video conﬁguration (MLS 304MA inputs 3 and 4; or MLS 406/406MA inputs 4, 5, and 6)

Set the video signal type. X@*X#\ Typ X# = ____] Set the input signal type for input

X!. (Type = Vid or RGB)

: 4*1\ Typ1=Vid] Example: set input 4 to S-video or

Example

composite video.

View the video signal type. X@\ Typ X# = ____ ] Show the video signal type Example: 4\ Typ1=Vid ] Example: show input 4 video type.

Audio gain/attenuation (per input)

Set a speciﬁc input’s audio gain. X**X$ G InX*Aud=X$ ] Set a single input’s gain (in dB). Example: 5*9G InX*Aud=+09 ] Example: set input 5’s gain to +9 dB.

Set a speciﬁc input’s audio attenuation. X** X% g In X* Aud= X% ] Set an input’s attenuation (in dB).

Example: 4*12g In4 Aud=-12 ] Example: set attenuation to -12 dB. Increment a speciﬁc input’s gain. X**+G In X* Aud= X$ ] Increase an input’s gain by 1 dB. Decrement a speciﬁc input’s gain. X**-G In X* Aud= X$ ] Decrease an input’s gain by 1 dB.

View a speciﬁc input’s audio gain level. X**G In X* Aud= X$ ] Show an input’s audio level.

Set current input’s audio gain. X$ G In X* Aud= X$ ] Set the current input’s gain (in dB). Set current input’s audio attenuation. X% g In X* Aud= X% ] Set attenuation (in dB). Increment current input’s gain. +G In X* Aud= X$ ] Increase the gain by 1 dB. Decrement current input’s gain. -G In X* Aud= X$ ] Decrease the gain by 1 dB. View current input’s audio gain level.G In X* Aud= X$ ] Show the audio level.

N The commands in this section are case sensitive.

Audio treble adjustment (global: applies to all inputs)

Set the treble level. X( > Trb=X( ] Set the global treble level.

Example: 2> Trb=-7.5 ] Example: set treble to -7.5 dB. Increment the treble level. + > Trb=X( ] Increase the treble by 1.5 dB. Decrement the treble level. – > Trb=X( ] Decrease the treble by 1.5 dB. View the treble level. > Trb=X( ] Show the current treble level.

Audio bass adjustment (global: applies to all inputs)

Set the bass level. X( < Bas=X( ] Set the global bass level.

Example: 10< Bas=+4.5 ] Example: set the bass to +4.5 dB. Increment the bass level. + < Bas=X( ] Increase the bass by 1.5 dB. Decrement the bass level. – < Bas=X( ] Decrease the bass by 1.5 dB. View the bass level. < Bas=X( ] Show the current bass level.

Audio mute (overall: amp and preamps)

Mute on 1Z Amt1 ] Mute all (ﬁxed, variable, and ampliﬁed)

audio outputs.

Mute off 0Z Amt0 ] Unmute all audio outputs. View the audio mute status. Z Amt X& ] Show the status of audio mute.

Volume adjustment (overall: amp and preamps)

Set the overall output volume. X1) V Vol X1) ] Specify the volume for the audio

output.

: 27V Vol027 ] Example: set volume to 27.

Example

4-4

MLS 304 Series, MLS 406Series • Serial Communication

Command/response table for SIS commands (continued)

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

Increment the volume. +V Vol X1) ] Increase audio output. Decrement the volume. -V Vol X1) ] Decrease audio output. View the volume level. V Vol X1) ] Show the output volume.

Audio status for the active input

These commands allow you to view (or program a control system to monitor) the on/off status of the Clip, Normal, and Signal indicators (the equivalent of viewing the front panel Volume LEDs) between adjustments to the audio input levels. For details on making these adjustments via the front panel controls, see pages 3-2 and 3-3.

View Signal, Normal, & Clip status S or 0S Sig X& Norm X& Clp X& ] View Signal (Min) status 1S X& ] Signal detection threshold:

(Signal level is too low to

0 = off

detect.)

1 = on

(A signal of at least

-20 dBV [-18 dBu] is present.)

View Normal (Mid) status 2S X& ] Normal range:

0 = off

(Input level is too low.)

1 = on

(Input is in the right

range.)

View Clip (Max) status 3S X& ] Clipping level:

0 = off

(Audio input has been set

up properly.)

1 = on

(The level or gain is too high, audio clips/distorts. Output equipment could be damaged. Adjust the MLS’s input level so only the Normal LED is blinking. The Clip LED should not turn on.)

Aux/Mix input

Turn Aux/Mix input on or off. X& M Mix X& ] Turn the Aux/Mix input on/off. View the Aux/Mix status. M Mix X& ] Show whether Aux/Mix input

is turned on or off.

The default Aux/Mix setting is On.

Front panel security lockout modes (executive modes)

Disable executive mode. 0X Exe0 ] Adjustments and selections can

be made from the front panel.

Enable executive mode 1. 1X Exe1 ] Lock front panel input selection

buttons; select inputs via RS-232 or IR remote control only. Only volume adjustment is available via the front panel. This command is equivalent to pressing and holding front panel buttons 1 and 4.

Enable executive mode 2. 2X Exe2 ] Lock all front panel selections

and adjustments; select inputs, change volume, etc., via RS-232 only. The whole front panel is locked. Executive mode 2 can be enabled via RS-232 command, 2X only. RS-232 or the front panel can be used to disable this mode.

PRELIMINARY

MLS 304 Series, MLS 406Series • Serial Communication

4-5

Serial Communication, cont’d

Vid • Aud • Vol

X1 X1

X10

Video input # X1

is selected/active.

Audio input

# X1 is

selected/active.

Audio volume status.

Command/response table for SIS commands (continued)

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

View the executive mode status. X Exe X1@ ] Show executive mode status.

Example: X Exe0 ] Executive mode is off.

Firmware version, part number & information requests

Query ﬁrmware version number. Q Ver X1! ] Show the switcher’s ﬁrmware

version.

Request the part number. N N60-5X0-0X ] Show the MLS’s part # –

MLS 304MA: 60-550-01 MLS 304SA: 60-550-02 MLS 406: 60-560-01 MLS 406MA: 60-560-02 MLS 406SA: 60-560-03.

Request general info. I (see below) Show the MLS’s status.

PRELIMINARY

Upload ﬁrmware

N The MLS must already have ﬁrmware version 2.1 or greater in order for these commands to be used. For a switcher

with ﬁrmware version 2.0 or earlier, use the ﬁrmware uploader utility software instead. See Updating ﬁrmware page 4‑12.

Upload E Upload ] Go ] The MLS will start uploading

ﬁrmware code into its memory.

Upl ] The ﬁrmware was successfully

loaded into the MLS.

View the upload status Q Ver X1! ] Show the switcher’s ﬁrmware

version. This is the same as the “query ﬁrmware version” command.

?.?? ] This is the response to the

ﬁrmware version query if ﬁrmware uploading failed.

Reset to default settings (Zap)

Reset all MLS settings/memories . E zXXX ZapXXX ] Reset all settings and

adjustments to the factory default.

4-6

MLS 304 Series, MLS 406Series • Serial Communication

Command/response table for special function SIS commands

The syntax for setting a special function is __ * X? #, where __ is the function number and X? is the value. To view a function’s setting, use __#, where __ is the function number. In the following table the values of

X? variable are different for each command/function. These values are given in the right column.

the

Command ASCII Command Response X? values

(host to switcher) (switcher to host) and additional descriptions

Delay times

Set the RGB delay (Triple-Action Switching). 3 * X? # RGBDly*X? ] 0 = 0.0 seconds (default), 1 = 0.5

seconds, 2 = 1.0 seconds, ... in ½ second steps up to 10 = 5.0 seconds

Example

: 3*7# RGBDly*07] Example: 3.5 second RGB delay.

Audio settings

Set the preamp output mode. 18 * X? # PreAmpMod* X? ] Set the line level audio

(Lineout’s and Preamp’s) outputs to be either mono or stereo signals. 1 = mono 2 = stereo (default)

If mono is selected, the audio signal is the same on both the left and right channels.

If stereo is selected, the switcher sends out different (stereo) signals on the left and right channels.

Set the loudness control. 29 * X? # Loudness*X? ] When output volume is low,

Set line level audio outputs’ levels 40 * X? # LineLevel*X? ] 1 = -10 dBV (-8 dBu, 0.32 Vrms),

If the connector is wired for balanced output, the level is +6 dB higher than if it is wired for unbalanced output.

provide a +6 dB boost at 100Hz and at 10 kHz. When output volume is high, decrease the boost at those frequencies. This improves sound richness by restoring the high and low frequencies to which the ear is insensitive to at low volume levels. The effect diminishes as volume is increased. 0 = off (default for ﬁrmware ver.

2.1 and higher) (remove boost) 1 = on (default for ﬁrmware ver.

2.0 and lower) (turn boost on)

unbalanced output (default) 2 = +4 dBu (+6 dBV, 1.23 Vrms), balanced output

PRELIMINARY

Mode selection

Select the Monitor Out output mode 28 * X? # MonitorOutOpt*X? ] See pages 3-7 and 3-8 for an

explanation of these modes. 1 = mode 1 (RGB follow mode) 2 = mode 2 (DA mode) 3 = mode 3 (standard mode)

MLS 304 Series, MLS 406Series • Serial Communication

4-7

Serial Communication, cont’d

Control Software for Windows

The included Extron MediaLink Control Program for Windows offers another way to control the switcher via RS-232 connection in addition to the Simple Instruction Set commands. The control program’s graphical interface includes the same functions as those on the switcher’s front panel and some additional features that are available only through the Windows-based software.

The control software is compatible with Windows 95/98, Windows ME, Windows NT, Windows 2000, and Windows XP. The MediaLink Control Program is included with the MLS, and updates can be downloaded from the Extron Web site (http://www.extron.com).

Installing the software

The control program is contained on a CD-ROM, and it requires approximately 2 MB (megabytes) of hard disk space.

To install the software on the hard drive:

1. Run SETUP.EXE from the CD-ROM.

2. Follow the instructions that appear on the screen.

By default the installation creates a C:\Extron\MediaLnk directory, in which it places three icons (MediaLink Control Program, MediaLnk Help, and Firmware Loader).

PRELIMINARY

Using the control program

Many items found in the MediaLink Control Program are also accessible via front panel controls. Refer to chapter three for details on features and settings. The MediaLink Help Program provides information on settings and on how to use the control program itself. Some features are only available via this control program. These features are described in the sections of this chapter that correspond to the parts of the control program where the features are found.

1. To run the control program, select the MediaLnk Control Program icon in the

Extron Electronics group or folder on your start menu. The Comm menu appears on the screen.

2. Select the comm port that is connected to the MLS’s RS-232/MLC/IR port.

The Extron MediaLink Control Program windows appear. The port and ﬁrmware information are displayed at the bottom of the screen. There are two views available: the User Mode screen, and the Switcher (MLS) Conﬁguration screen.

4-8

MLS 304 Series, MLS 406Series • Serial Communication

User Mode Screen

The User Mode screen, shown below, includes the most frequently used controls: it emulates the front panel for basic functions (input selection, volume control). See Front Panel Features and Operations on page 3-2 for details on basic functions.

Special features

Audio/video breakaway switching — To switch the audio signal separately from

the video signal, select the Audio checkbox (at the right side of the I/O Switching area) and clear the Video checkbox, then select an input. The MLS switches to that input’s audio source while leaving the previously selected video source active. The picture above shows audio breakaway: video is from input 6 and audio from input 2.

To switch the video signal without changing the audio source, select the

Video check box and clear the Audio checkbox. Selecting Mute selects input 0 (no input).

Mixer on/off toggling — Click this button to toggle the Aux/Mix input on or off. Volume Mute — Select this box (in the lower-left corner) to activate the audio mute

(Amt) command.

Disable Switcher Front Panel

above) toggles executive mode 2 on or off to prevent or enable making any changes or selections via the MLS’s front panel. This feature can be enabled/ disabled via this software or SIS command 2X. You can also disable this feature by pressing and holding front panel buttons 1 and 4 simultaneously.

Disable Selecting Inputs at Switcher — Toggle this feature on to lock the front

panel buttons; only volume control will be adjustable/selectable from the front panel. All other selections and adjustments can be made by IR remote control or via RS-232 (SIS command 1X or via this software). This button toggles executive mode 1 and is equivalent to pressing and holding front panel buttons 1 and 4.

— This feature (shown activated in the picture

PRELIMINARY

MLS 304 Series, MLS 406Series • Serial Communication

4-9

Serial Communication, cont’d

Switcher (MLS) Conﬁg Screen

The Switcher (MLS) Conﬁg screen, shown below, allows you to make adjustments without having to use the front panel controls. The picture below shows how this screen looks for an MLS 406MA. The quantity of available inputs and the Input Conﬁguration section choices vary depending on the MLS model.

PRELIMINARY

Sample Switcher (MLS) Conﬁg screen for an MLS 406 Series switcher

Sample of the top half of the Switcher (MLS) Conﬁg screen for an MLS 304MA or MLS 304SA

4-10

MLS 304 Series, MLS 406Series • Serial Communication

On the switcher (MLS) Conﬁg Screen you can:

• Set the per-input audio level by adjusting the Audio Input Level slider bar until the output sounds right or measures correctly for maximum power output.

• View and update the view of the selected input’s audio signal level status (Clip, Normal, Signal).

• Turn the Aux/Mix (mixer) input on or off.

• Set loudness boost on or off. If you turn the loudness boost on, when output volume is low the MLS provides a +6 dB boost at 100 Hz and at 10 kHz. When output volume is high, boost is decreased at those frequencies. This improves sound richness by restoring the high and low frequencies to which the ear is insensitive at low volume levels. The effect diminishes as volume is increased.

• Make overall bass and/or treble adjustments.

• Set overall volume.

• Choose between stereo and mono output for the Lineout and Preamp outputs.

• Select either -10 dBV unbalanced output or +4 dBu balanced output for the Lineout and Preamp outputs.

• Set the video format:

• Composite video or RGB for inputs 3 and 4 on an MLS 304MA or MLS 304SA

• Composite video/S-video or RGB for inputs 4 through 6 on an MLS 406, MLS 406MA, or MLS 406SA

• Select the Monitor Output mode. See Video Signal Routing on pages 3-7 and 3-8 for details.

™

• Set the RGB delay period (for Triple-Action

• Reset the switcher to factory default settings.

Switching).

PRELIMINARY

MLS 304 Series, MLS 406Series • Serial Communication

4-11

Serial Communication, cont’d

File menu options

Saving and restoring conﬁgurations

The MLS can be conﬁgured by various means (front panel adjustments, downloading settings, or combinations of those methods); and the conﬁguration settings can be saved to a ﬁle for later use.

1. In the MediaLink Control Program, select File, then select Save Conﬁguration

as... .

2. Save the ﬁle as (ﬁlename).MLK. An unlimited number of conﬁguration ﬁles

can be saved as long as each ﬁle has a unique ﬁle name ending in .MLK.

3. To retrieve the conﬁguration from within the MediaLink Control Program,

select File, then select Restore Conﬁguration from... .

PRELIMINARY

Follow the on-screen directions. A set of all the switcher and audio

adjustment settings is downloaded into the MLS.

Updating ﬁrmware

If the need arises, you can replace the MLS’s ﬁrmware without opening the unit or changing ﬁrmware chips. Follow the directions below.

This procedure must be performed using a PC on which the MediaLink Control Software (version 2.1 or higher for MLS 304MA, MLS 406, or MLS 406MA; version

2.4 or higher for MLS 304SA and MLS 406SA) has been installed. The PC’s RS-232 port must be directly cabled to the MLS’s RS-232/MLC/IR port.

C Do not attempt to upload ﬁrmware if a MediaLink Controller (MLC) or

other control system is connected to the MLS switcher. The RS‑232 cable from the PC must be connected directly to the MLS.

1. Visit the Extron Web site (www.extron.com) to ﬁnd the appropriate

2. Connect a cable between the RS-232/MLC/IR port of the MLS and the serial

3. Start the MediaLink Control program (see Using the control program on

Each time you replace existing ﬁrmware, the switcher will be reset to the

factory default settings.

ﬁrmware ﬁle for the model of switcher (MLS 304MA, MLS 304SA, MLS 406, MLS 406MA, or MLS 406SA) you want to update. Save the new ﬁrmware ﬁle, and write down the ﬁlename and location for later use.

(RS-232) port of the PC (see Control connection on pages 2-7 and 2-8), and power on the MLS.

page 4-8).

4-12

MLS 304 Series, MLS 406Series • Serial Communication

4. From the File pulldown menu in the upper-left corner, select Update

Firmware.

The MediaLink Control Software closes, and a separate utility program opens

and displays a window indicating the current ﬁrmware version.

5. Click Upload Firmware ﬁle. You are prompted to select the ﬁrmware ﬁle that

you downloaded in step 1. Click OK.

6. When the browser window opens, locate and select the ﬁrmware ﬁle, then

click Open to upload the ﬁrmware into the MLS.

7. Follow the on-screen instructions.

The ﬁrmware update ﬁle must have a ﬁlename extension of .s19. If the ﬁle does

not have that extension, it will not work properly.

PRELIMINARY

MLS 304 Series, MLS 406Series • Serial Communication

4-13

Serial Communication, cont’d

8. When the ﬁrmware uploading is complete, a dialog box appears and asks you

• to exit the ﬁrmware update utility program if the new ﬁrmware loaded

correctly (if the correct ﬁrmware version is displayed in the program window, as shown in the example below)

• to run the utility again (perform step 5 of this procedure) if the

ﬁrmware did not load correctly.

Follow the on-screen directions to complete the process.

When you recycle power, power off the switcher for at least 4 seconds, then

restore power.

PRELIMINARY

Using the help program

For information on program features, press the F1 computer key, click on the Help

menu from within the MediaLink control program, or select the MediaLnk Help icon in the Extron Electronics group or folder on your start menu.

For explanations of buttons or functions, click on the tabs in the help screen to reach the desired screen. Use a mouse or the Tab and Enter keys to select a button or function. A description and tips on using the program appears on screen.

Key to ﬁle names

File name Description

________.MLK User-saved MLC/MLC-MLS/MLS conﬁguration ﬁle. This

includes adjustments/settings. If the MLS is connected to an MLC (MediaLink Controller), the ﬁle also contains whatever driver (if any) was installed in the MLC 206 at the time the ﬁle was saved.

details.

________.s19 Extron-supplied ﬁrmware update ﬁle. When the ﬁrmware

is replaced, the switcher is also automatically reset to factory default settings.

See the MediaLink Controllers User’s Manual for

4-14

MLS 304 Series, MLS 406Series • Serial Communication

MLS 304 Series and MLS 406 Series

Appendix A

Reference Material

Speciﬁcations

Part Numbers and Accessories

Frequency Response Graph for the Loudness Feature

Audio Reference Levels

Audio Block Diagrams

PRELIMINARY

Reference Material

Speciﬁcations

Video

Gain ................................................ Unity

Bandwidth ..................................... 280 MHz (-3 dB)

Differential phase error ............... 1.0º at 3.58 MHz and 4.43 MHz

Differential gain error .................. 1.0% at 3.58 MHz and 4.43 MHz

Crosstalk ........................................ -68 dB @ 10 MHz, -39 dB @ 100MHz

Switching speed ............................ 5 ms (max.)

Video input and loop-through

Number/signal type

MLS 304 Series ................... 2 RGBHV, RGBS, RGsB, RsGsBs

1 RGBHV, RGBS, RGsB, RsGsBs local monitor loop-through 2 composite video

MLS 406 Series ................... 3 RGBHV, RGBS, RGsB, RsGsBs

1 RGBHV, RGBS, RGsB, RsGsBs local monitor loop-through 3 S-video 3 composite video

Connectors

MLS 304 Series ................... 2 female 15-pin HD (RGB), 1 female 15-pin HD (RGB loop-through)

2 female RCA (composite video)

MLS 406 Series ................... 3 female 15-pin HD (RGB), 1 female 15-pin HD (RGB loop-through)

3 female 4-pin mini DIN (S-video) 3 female BNC (composite video)

Nominal level ................................ 1 V p-p for Y of S-video, and for composite video

0.7 V p-p for RGB

0.3 V p-p for C of S-video (MLS 406 Series)

Minimum/maximum levels

RGB ..................................... Analog: 0.3 V to 1.5 Vp-p with no offset

S-video, composite video ... Analog: 0.4 V to 2.0 Vp-p with no offset

Impedance ..................................... 75 ohms

Horizontal frequency .................... 15 kHz to 145 kHz

Vertical frequency .......................... 30 Hz to 170 Hz

Return loss

RGB ..................................... <-40 dB @ 5 MHz

S-video ................................ <-25 dB, 0 to 10 MHz

Composite video ............... <-40 dB, 0 to 10 MHz

DC offset (max. allowable)........... 1.5 V

A-2

Video output

Number/signal type

MLS 304 Series ................... 1 RGBHV, RGBS, RGsB, RsGsBs (follows input)

1 composite video

MLS 406 Series ................... 1 RGBHV, RGBS, RGsB, RsGsBs (follows input)

1 S-video 1 composite video

Connectors

MLS 304 Series ................... 5 female BNC (RGB)

1 female BNC (composite)

MLS 406 Series ................... 5 female BNC (RGB)

2 female BNCs (S-video) 1 female BNC (composite)

MLS 304 Series, MLS 406 Series • Reference Material

Nominal level ................................ 1 Vp-p for Y of S-video, and for composite video

0.7 Vp-p for RGB

0.3 Vp-p for C of S-video (MLS 406 Series)

Minimum/maximum levels

RGB ..................................... Analog: 0.3 V to 1.5 Vp-p (follows input)

Composite video ............... Analog: 0.4 V to 2.0 Vp-p (follows input)

Impedance ..................................... 75 ohms

Return loss ..................................... <-40 dB @ 5 MHz

DC offset ........................................ ±5 mV with input at 0 offset

Switching type .............................. Triple-Action (RGB delay)

Sync

Input type ...................................... RGBHV, RGBS, RGsB, RsGsBs

Output type .................................... RGBHV, RGBS, RGsB, RsGsBs (follows input)

Standards ........................................ NTSC 3.58, NTSC 4.43, PAL, SECAM

Input level ..................................... 2.0 V to 5.0 Vp-p

Output level .................................. TTL: 5.0 Vp-p, unterminated

Input impedance .......................... 10k ohms

Output impedance ....................... 75 ohms

Max input voltage ........................ 5.0 Vp-p

Max. propagation delay ............... 30 ns

Max. rise/fall time ........................ 4.0 ns

Polarity............................................ Positive or negative (follows input)

Audio

Gain ................................................ Unbalanced output: 0dB; balanced output: +6dB

Frequency response at 1 watt output

Preamp/Lineout ................ 20 Hz to 20 kHz, ±0.5 dB

Direct (4/8 ohm) ................ 20 Hz to 20 kHz, ±1.0 dB

Transformer (70V mono ampliﬁer)

50 Hz to 20 kHz, +0 dB/-3 dB

Transformer (100V mono ampliﬁer)

50 Hz to 20 kHz, +0 dB/-3 dB

THD + Noise

Power amp (mono or stereo)

0.037% @ 1 kHz at nominal level (1 watt, 8 ohm load)

Preamp ................................ 0.11% @ 1 kHz at nominal level

Lineout ................................ 0.018% @ 1 kHz at nominal level

S/N at maximum power output (unweighted)

Power amp ......................... >75 dB @ 10 Hz to 22 kHz

Preamp ................................ >80 dB @ 10 Hz to 22 kHz

Lineout ................................ >80 dB @ 10 Hz to 22 kHz

Crosstalk

Power amp ......................... <-75 dB @ 1 kHz, fully loaded

Preamp ................................ <-75 dB @ 1 kHz, fully loaded

Lineout ............................... <-80 dB @ 1 kHz, fully loaded

Stereo channel separation ........... >80 dB @ 1 kHz

CMRR ............................................. >85 dB @ 20 Hz to 200 Hz, >75 dB @ 20 Hz to 20 kHz

Bass .................................................. ±10 dB @ 100 Hz

Treble ............................................... ±10 dB @ 10 kHz

Loudness (contour) ....................... +6 dB @ 100 Hz to 10 kHz

PRELIMINARY

MLS 304 Series, MLS 406 Series • Reference Material

A-3

Reference Material, cont’d

Audio input

Number/signal type

MLS 304 Series ................... 4 stereo, unbalanced

1 Aux/Mix balanced/unbalanced mono (nonswitchable)

MLS 406, Series .................. 5 stereo, unbalanced (inputs 1-3, 5, 6)

1 stereo, balanced/unbalanced (input 4) 1 Aux/Mix balanced/unbalanced mono (nonswitchable)

Connectors

MLS 304 Series ................... 2 pairs of female RCA connectors (inputs 1-2)

2 female 3.5 mm mini stereo jacks (unbalanced only) (inputs 3-4); tip (L), ring (R), sleeve (GND) (1) 3.5 mm captive screw connector, 3 pole (Aux/Mix input)

MLS 406 Series ................... 3 pairs of female RCA connectors (inputs 1-3)

1 female 3.5 mm captive screw connector, 5 pole (input 4) 2 female 3.5 mm mini stereo jacks (unbalanced only) (inputs 5, 6); tip (L), ring (R), sleeve (GND)

(1) 3.5 mm captive screw connector, 3-pole (Aux/Mix input) Impedance

Nominal level ................................ -10 dBV (316 mVrms)

Maximum level ............................. +8 dBV (10.2 dBu, 2.51 Vrms), unbalanced at <0.1%THD+N

Input gain adjustment ................. -42 dB to +24 dB, adjustable per input

..................................... >10k ohms unbalanced, DC coupled

+10 dBu (7.28 dBV, 2.45 Vrms), balanced at <0.1% THD+N

PRELIMINARY

0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output — Lineout and Preamp

Number/signal type .................... 2 (1 Lineout/ﬁxed and 1 Preamp/variable) stereo/mono, balanced/

unbalanced

Connectors .................................... (2) 3.5 mm captive screw connectors, 5 pole

Impedance ..................................... 50 ohms unbalanced, 100 ohms balanced

Gain error ...................................... ±0.8 dB channel to channel

Nominal level ................................ Conﬁgurable: -10 dBV (316 mVrms, default), +4 dBu (1.23 Vrms)

Maximum level (600 ohm)

Power amp (mono or stereo)

>+17 dBu, balanced < 0.5% THD+N

Preamp ................................ >+19 dBu, balanced < 0.1% THD+N

Lineout ................................ >+16 dBu, balanced < 0.1% THD+N

Unbalanced wired outputs produce 6 dB of attenuation. Balanced outputs have unity

gain/attenuation.

Audio output — mono power amp (MLS 304MA, MLS 406MA only)

Number/signal type .................... (1) mono

Connector ...................................... (1) 5-position screw terminal

Sensitivity ....................................... -20 dBV (-17.8 dBu; 100 mVrms) (adjustable) for maximum power

output Power bandwidth

Direct (4 ohm) .................... 20 Hz to 20 kHz, ≤ 0.5% THD

Direct (8 ohm) .................... 20 Hz to 20 kHz, ≤ 0.15% THD

Transformer (70 V) ............ 50 Hz to 20 kHz, ≤ 1% THD

Transformer (100 V) .......... 50 Hz to 20 kHz, ≤ 0.5% THD

Included parts

A-4

MLS 304 Series, MLS 406 Series • Reference Material

Maximum power output

Direct (4/8 ohm) ................ 20 watts max. (continuous)

Transformer (70/100 V) .... 16 watts max. (continuous), transformer coupled

Protection ....................................... Input limiting, thermal, short circuit

Audio output — stereo power amp (MLS 304SA, MLS 406SA only)

Number/signal type .................... (1) stereo (default) or dual mono (conﬁgured via software)

Connector ...................................... (1) 5-position screw terminal

Sensitivity ....................................... -20 dBV (-17.8 dBu; 100 mVrms) (adjustable) for maximum power output

Power bandwidth

Direct (4 ohm) .................... 10 Hz to 20 kHz, ≤ 0.5% THD

Direct (8 ohm) .................... 20 Hz to 20 kHz, ≤ 0.8% THD

Maximum power output

Direct (4 ohm) .................... 24 watts max. (continuous), 12 watts (rms) per channel

Direct (8 ohm) .................... 16 watts max. (continuous), 8 watts (rms) per channel

Protection ....................................... Input limiting, thermal, short circuit

Control/remote — switcher

Serial control port ......................... RS-232, 3.5 mm captive screw connector, 5 pole (uses 3 poles)

Baud rate and protocol ............... 9600, 8-bit, 1 stop bit, no parity

Serial control pin conﬁgurations . 1 = TX, 2 = RX, 4 = GND

Program control ............................. Extron’s conﬁguration program for Windows®

Extron’s Simple Instruction Set (SIS™)

General

Power ............................................. 100 VAC to 240 VAC, 50/60 Hz, 60 watts, internal, autoswitchable

Temperature/humidity ................ Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, noncondensing

Operating +32° to +113°F (0° to +45°C) / 10% to 90%, noncondensing

Rack mount .................................... Yes, with included brackets (#70-077-03)

Enclosure type .............................. Metal

Enclosure dimensions .................. 1.75" H x 17.5" W x 8.5" D (1U high, full rack wide)

4.4 cm H x 44.4 cm W x 21.6 cm D

(Depth excludes connectors and knob) Product weight

MLS 406 .............................. 5.0 lbs (2.3 kg)

Ampliﬁed models ............. 6.0 lbs (2.7 kg)

Shipping weight

MLS 406 .............................. 10 lbs (5 kg)

Ampliﬁed models ............. 11 lbs (5 kg)

Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)

Listings............................................ UL, CUL

Compliances ................................... CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF ............................................... 30,000 hours

Warranty ........................................ 3 years parts and labor

All nominal levels are at ±10%.

Speciﬁcations are subject to change without notice.

PRELIMINARY

MLS 304 Series, MLS 406 Series • Reference Material

A-5

Reference Material, cont’d

Part Numbers and Accessories

These items are included in each order for an MLS switcher:

Replacement

Included parts

part number

MLS 304MA switcher 60-550-01 MLS 304SA switcher 60-550-02 MLS 406 switcher 60-560-01 MLS 406MA switcher 60-560-02 MLS 406SA switcher 60-560-03 Rubber feet (4) and IEC power cord 3-pole, 3.5 mm captive screw connector 10-319-13 5-pole, 3.5 mm captive screw connectors 10-319-10 Rack mounting bracket kit 70-077-03 MLS 304/406 Series User’s Manual 68-775-01 Windows-based MediaLink

™

control software

PRELIMINARY

Optional accessories

These items can be ordered separately:

Accessory Part number

Under-desk mounting brackets 70-222-01 MediaLink Controller (MLC) See catalog or

contact Extron MLA-Remote IR remote control 70-154-01 IR Link IR signal repeater (gray, black, white) 60-404-01, -02, -03 BNCM-RCAF adapters (package of 10) 100-229-01 S-video cable (6 feet) (for MLS 406, MLS 406MA) 26-522-01 VGA with audio cable (6 feet) 26-490-02 SY 15 HDM RGBHVM adapter 26-533-02 SY 15 HDM RGBHVF adapter 26-531-02, -03, -04, -05, -06 CSR 6 captive screw to 2 RCA female adapter 26-575-01

A-6

MLS 304 Series, MLS 406 Series • Reference Material

+10

-2

-4

-6

-8

20 50 100 200 500 1k 2k 5k 10k 20k

1 W

3 W

6 W

14 W

0.5 W

Frequency (Hz)

Loudness (dB)

dBV Voltage dBu

-20 dBV 0.100 V -17.8 dBu

-19 dBV 0.112 V -16.8 dBu

-18 dBV 0.126 V -15.8 dBu

-17 dBV 0.141 V -14.8 dBu

-16 dBV 0.158 V -13.8 dBu

-15 dBV 0.178 V -12.8 dBu

-14 dBV 0.200 V -11.8 dBu

-13 dBV 0.224 V -10.8 dBu

-12 dBV 0.251 V -9.8 dBu

-11 dBV 0.282 V -8.8 dBu

-10 dBV 0.316 V -7.8 dBu

-9 dBV 0.355 V -6.8 dBu

-8 dBV 0.397 V -5.8 dBu

-7 dBV 0.447 V -4.8 dBu

-6 dBV 0.501 V -3.8 dBu

-5 dBV 0.562 V -2.8 dBu

-4 dBV 0.631 V -1.8 dBu

-3 dBV 0.708 V -0.8 dBu

-2 dBV 0.794 V 0.2 dBu

-1 dBV 0.891 V 1.2 dBu 0 dBV 1.000 V 2.2 dBu 1 dBV 1.122 V 3.2 dBu 2 dBV 1.259 V 4.2 dBu 3 dBV 1.413 V 5.2 dBu 4 dBV 1.585 V 6.2 dBu 5 dBV 1.778 V 7.2 dBu 6 dBV 1.995 V 8.2 dBu 7 dBV 2.24 V 9.2 dBu 8 dBV 2.51 V 10.2 dBu 9 dBV 2.82 V 11.2 dBu 10 dBV 3.16 V 12.2 dBu

dBu Voltage dBV

-20 dBu 0.078 V -22.2 dBV

-19 dBu 0.087 V -21.2 dBV

-18 dBu 0.098 V -20.2 dBV

-17 dBu 0.109 V -19.2 dBV

-16 dBu 0.123 V -18.2 dBV

-15 dBu 0.138 V -17.2 dBV

-14 dBu 0.155 V -16.2 dBV

-13 dBu 0.174 V -15.2 dBV

-12 dBu 0.195 V -14.2 dBV

-11 dBu 0.218 V -13.2 dBV

-10 dBu 0.245 V -12.2 dBV

-9 dBu 0.275 V -11.2 dBV

-8 dBu 0.309 V -10.2 dBV

-7 dBu 0.346 V -9.2 dBV

-6 dBu 0.388 V -8.2 dBV

-5 dBu 0.436 V -7.2 dBV

-4 dBu 0.489 V -6.2 dBV

-3 dBu 0.549 V -5.2 dBV

-2 dBu 0.616 V -4.2 dBV

-1 dBu 0.691 V -3.2 dBV 0 dBu 0.775 V -2.2 dBV 1 dBu 0.870 V -1.2 dBV 2 dBu 0.976 V -0.2 dBV 3 dBu 1.095 V 0.8 dBV 4 dBu 1.228 V 1.8 dBV 5 dBu 1.378 V 2.8 dBV 6 dBu 1.546 V 3.8 dBV 7 dBu 1.735 V 4.8 dBV 8 dBu 1.974 V 5.8 dBV 9 dBu 2.184 V 6.8 dBV 10 dBu 2.451 V 7.8 dBV

Frequency Response Graph for the Loudness Feature

The following graph represents the frequency response of these MLS models when the loudness feature has been turned on.

Audio Reference Levels

The speciﬁcations for the audio source devices may be listed in one of several units. Or you may wish to use a sine wave generator such as the Extron VTG 300 as a source for setting up audio inputs before the input devices are available. The tables below are a convenient reference for equivalences between dBV, voltage, and dBu.

MLS 304 Series, MLS 406 Series • Reference Material

PRELIMINARY

A-7

Reference Material, cont’d

IN P UT S E LE C T

(L E FT CH AN N EL )

INP UT SE LE C T

(R IGH T C H AN N E L)

MUX

-10

MUX

-10

+ -+-

+ -

MUX

-10

MUX

-10

+ -+-

+10dB@

100Hz/10kHz

+/-10dB@

100Hz/10kHz

LEFT

CTRL

RIGHT

LOUDNESS

BASS & TREBLE

VOLUME

AUX/MIX

(Balance/Unbalance)

BASS & TREBLE

PREAMP

LINEOUT

VOLUME

CONTROL

100V

70V

COM

SETUP MODE

USER MODE

MAX/

CLIP

MID/

NORM

MIN/

SIGNAL

RED

GREEN

SWITCH

XFMR

POWER LIMITER

CIRCUIT

POWER AMP

20 WATTS

(continuous)

LED

MODE

SWITCH

VOLUME

POSITION

CTRL

Gain/Attenuation:

-42dB to +24dB

Configurable output levels

-10dBV unbalanced or

+4dBV balanced

LEFT CHN

AUX/MIX

LEFT

AUX

LEFT CHN

AUX/MIX

RIGHT CHN

AUX/MIX

CTRL

MONO

RIGHT CHN

AUX/MIX

MONO

LEFT

AUX

RIGHT

AUX

FILTER

User Mode: Volume Level Indicator Set Up Mode: Input Level Indicator

RIGHT

AUX

Audio Block Diagram for MLS 304MA.eps

SWITCHABLE INPUTS

Gain/Attenuation:

-42dB to +24dB

4 / 8 ohm

FILTER

Audio Block Diagrams

MLS 304MA audio block diagram

PRELIMINARY

A-8

MLS 304 Series, MLS 406 Series • Reference Material

IN P UT S E LE C T

(L E FT CH AN N EL )

INP UT SE LE C T

(R IGH T C H AN N E L)

MUX

-10

MUX

-10

+ -+-

+ -

+10dB@

100Hz/10kHz

+/-10dB@

100Hz/10kHz

LEFT

CTRL

RIGHT

LOUDNESS

BASS & TREBLE

VOLUME

AUX/MIX

(Balance/Unbalance)

BASS & TREBLE

LINEOUT

VOLUME

CONTROL

SETUP MODE

USER MODE

MAX/

CLIP

MID/

NORM

MIN/

SIGNAL

RED

GREEN

LED

MODE

SWITCH

VOLUME

POSITION

CTRL

Gain/Attenuation:

-42dB to +24dB

Configurable output levels

-10dBV unbalanced or

+4dBV balanced

LEFT CHN

AUX/MIX

LEFT

AUX

CTRL

MONO

RIGHT CHN

AUX/MIX

LEFT

AUX

RIGHT

AUX

User Mode: Volume Level Indicator Set Up Mode: Input Level Indicator

RIGHT

AUX

Audio Block Diagram for MLS 304SA.eps

SWITCHABLE INPUTS

Gain/Attenuation:

-42dB to +24dB

MUX

-10

MUX

-10

+ -+-

PREAMP

LEFT CHN

AUX/MIX

RIGHT CHN

AUX/MIX

4 / 8 ohm

POWER LIMITER CIRCUIT

STEREO (DEFAULT) OR DUAL MONO OUTPUT

FILTER

LEFT OR MONO

RIGHT OR MONO

Note: Output terminal should not be bridged or shorted.

POWER AMP

DIRECT (4 ohm) - 12 WATTS PER CHANNEL

(continuous)

DIRECT (8 ohm) - 8 WATTS PER CHANNEL

(continuous)

LEFT

RIGHT

MUX

MONO

CTRL

STEREO

MONO

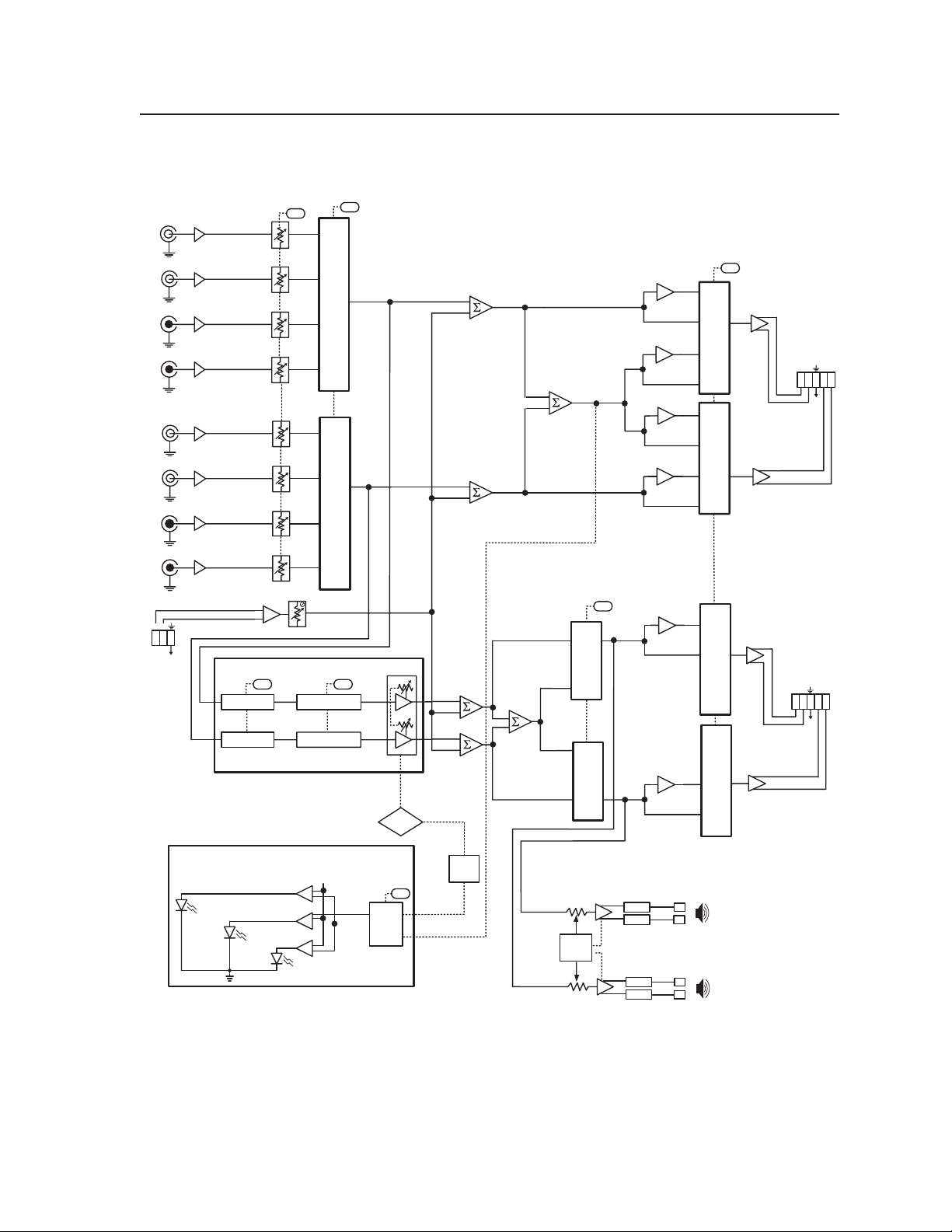

MLS 304SA audio block diagram

PRELIMINARY

MLS 304 Series, MLS 406 Series • Reference Material

A-9

Reference Material, cont’d

INPUT SELECT

(LEFT CHANNEL)

SWITCHABLE INPUTS

MUX

-10

MUX

-10

+ -+-

+ -

MUX

-10

MUX

-10

+ -+-

+10dB@

100Hz/10kHz

+/-10dB@

100Hz/10kHz

LEFT

CTRL

RIGHT

LOUDNESS

BASS & TREBLE

VOLUME

AUX/MIX

(Balance/Unbalance)

BASS & TREBLE

PREAMP

LINEOUT

VOLUME

CONTROL

4 / 8 ohm

100V

70V

COM

SETUP MODE

USER MODE

MAX/

CLIP

MID/

NORM

MIN/

SIGNAL

RED

GREEN

SWITCH

XFMR

POWER LIMITER

CIRCUIT

POWER AMP

20 WATTS

(continuous)

LED

MODE

SWITCH

VOLUME POSITION

CTRL

Gain/Attenuation:

-42dB to +24dB

Gain/Attenuation:

-42dB to +24dB

Configurable output levels

-10dBV unbalanced or

+4dBV balanced

LEFT CHN

AUX/MIX

LEFT

AUX

LEFT CHN

AUX/MIX

RIGHT CHN

AUX/MIX

CTRL

MONO

RIGHT CHN

AUX/MIX

MONO

LEFT

AUX

RIGHT

AUX

FILTER

User Mode: Volume Level Indicator Set Up Mode: Input Level Indicator

RIGHT

AUX

FILTER

Audio Block Diagram for MLS 406_406MA.eps

MLS 406MA only

LEFT

CTRL

INPUT SELECT

(RIGHTCHANNEL)

+ -+-

MLS 406, MLS 406MA audio block diagram

PRELIMINARY

A-10

MLS 304 Series, MLS 406 Series • Reference Material

INPUT SELECT

(LEFT CHANNEL)

SWITCHABLE INPUTS

MUX

-10

MUX

-10

+ -+-

+ -

MUX

-10

MUX

-10

+ -+-

+10dB@

100Hz/10kHz

+/-10dB@

100Hz/10kHz

LEFT

CTRL

RIGHT

LOUDNESS

BASS & TREBLE

VOLUME

AUX/MIX

(Balance/Unbalance)

BASS & TREBLE

PREAMP

LINEOUT

VOLUME

CONTROL

SETUP MODE

USER MODE

MAX/

CLIP

MID/

NORM

MIN/

SIGNAL

RED

GREEN

LED

MODE

SWITCH

VOLUME

POSITION

CTRL

Gain/Attenuation:

-42dB to +24dB

Gain/Attenuation:

-42dB to +24dB

Configurable output levels

-10dBV unbalanced or

+4dBV balanced

LEFT CHN

AUX/MIX

LEFT

AUX

LEFT CHN

AUX/MIX

RIGHT CHN

AUX/MIX

CTRL

MONO

RIGHT CHN

AUX/MIX

LEFT

AUX

RIGHT

AUX

User Mode: Volume Level Indicator Set Up Mode: Input Level Indicator

RIGHT

AUX

Audio Block Diagram for MLS 406 SA.eps

LEFT

CTRL

INPUT SELECT

(RIGHTCHANNEL)

+ -+-

4 / 8 ohm

POWER LIMITER

CIRCUIT

STEREO (DEFAULT) OR DUAL MONO OUTPUT

FILTER

LEFT OR MONO

RIGHT OR MONO

Note: Output terminal should not be bridged or shorted.

POWER AMP

DIRECT (4 ohm) - 12 WATTS PER CHANNEL

(continuous)

DIRECT (8 ohm) - 8 WATTS PER CHANNEL

(continuous)

LEFT

RIGHT

MUX

MONO

CTRL

STEREO

MONO

MLS 406SA audio block diagram

PRELIMINARY

MLS 304 Series, MLS 406 Series • Reference Material

A-11

Reference Material, cont’d

PRELIMINARY

This page was deliberately left blank

A-12

MLS 304 Series, MLS 406 Series • Reference Material

FCC Class A Notice

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Note: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East: and Central America:

Extron Electronics, Europe

Extron Electronics Beeldschermweg 6C 1001 East Ball Road 3821 AH Amersfoort Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Asia Extron Electronics, Japan 135 Joo Seng Road, #04-01 Kyodo Building., PM Industrial Bldg. 16 Ichibancho Singapore 368363 Chiyoda-ku, Tokyo 102-0082 Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modiﬁcation to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe), 65.383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Electronics, USA

1230 South Lewis Street Anaheim, CA 92805 USA

714.491.1500 Fax 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C 3821 AH Amersfoort The Netherlands +31.33.453.4040 Fax +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Road, #04-01 PM Industrial Building Singapore 368363 +65.6383.4400 Fax +65.6383.4664

Extron Electronics, Japan

Kyodo Building 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan +81.3.3511.7655 Fax +81.3.3511.7656

www.extron.com

Extron electronic MLS 406, MLS 406SA, MLS 406MA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
