User’s Manual

FOX 4G DA8

High Resolution Fiber Optic Distribution Amplifier

68-1461-01 Rev. A

02 09

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important
operating and maintenance (servicing) instructions in
the literature provided with the equipment.

This symbol is intended to alert the user of the
presence of uninsulated dangerous voltage within
the product’s enclosure that may present a risk of
electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be
hazardous.

Consignes de Sécurité • Français

Ce s ymbole s ert à a vertir l ’utilisa teur qu e la
documentation fournie avec le matériel contient des
instructions importantes concernant l’exploitation et
la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence
dans le boîtier de l’appareil de tensions dangereuses
non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afin de pouvoir

les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et consignes

marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de xation • Ne pas utiliser de pièces de fixation ni d’outils

non recommandés par le fabricant du matériel car cela risquerait de poser
certains dangers.

Sicherheitsanleitungen • Deutsch

Dies es Sym bol so ll dem Benut zer in der i m
Li efe rum fan g e nth alt ene n Do kum ent ati on
besonders wichtige Hinweise zur Bedienung und
Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam
machen , daß im I nneren des Gehäuses d ieses
Produktes gefährliche Spannungen, die nicht isoliert
sind und die einen elektrischen Schock verursachen
können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen

und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf

zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine
Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se util iza para advertir al usuario
sobre instruc ciones importantes de ope ración y
mantenimiento (o cambio de partes) que se desean
destac ar en el c ontenido de la docume ntación
suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre
la presencia de elementos con voltaje peligroso sin
protección aislante, que puedan encontrarse dentro
de la caja o alojamiento del producto, y que puedan
representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y

seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para

futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones marcadas

en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especificamente recomendados por el fabricante, ya que podrian
implicar riesgos.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main power
system with a grounded (neutral) conductor. The third (grounding) pin is a safety
feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power

cords from the rear of the equipment, or the desktop power module (if detachable),
or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be

stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualified service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service
this equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings
must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly

replaced. Replace it only with the same or equivalent type recommended by
the manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale
comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue
un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module
d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas
écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualifié. Aucun des éléments internes ne peut être
réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit
pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des
couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orices • Si le boîtier de l’appareil comporte des fentes ou des orifices, ceux-ci

servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures
ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie.

Remplacer uniquement avec une batterie du meme type ou d’un ype equivalent
recommande par le constructeur. Mettre au reut les batteries usagees conformement
aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer
Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte

Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese

sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten

Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung
(falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im

Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar

dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualiziertem Servicepersonal

durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei.
Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses
Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines
elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist,

dienen diese zur Vermeidung einer Überhitzung der empndlichen Teile im

Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt

wird. Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen
vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie
verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este
equipo debe provenir de un sistema de distribución general con conductor neutro
a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia
ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida

de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación
en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera
independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben

instalar en lugares donde no sean pisados ni apretados por objetos que se puedan
apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

calificado. En el interior no hay partes a las que el usuario deba acceder. Para evitar
riesgo de electrocución, no intentar personalmente la reparación/mantenimiento
de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes
peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas
aberturas nunca se deben obstruir con otros objetos.

Batería de litio •

Existe riesgo de explosión si esta batería se coloca en la posición
incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente)
recomendado por el fabricante. Desachar las baterías usadas siguiendo las
instrucciones del fabricante.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship
for a period of three years from the date of purchase. In the event of malfunction during
the warranty period attributable directly to faulty workmanship and/or materials,
Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating
condition, provided that it is returned within the warranty period, with proof of
purchase and description of malfunction to:

USA, Canada, South America,
and Central America:

Extron USA
1001 East Ball Road

Anaheim, CA 92805

U.S.A.

Europe, Africa, and the Middle East:
Extron Europe

Hanzeboulevard 10
3825 PH Amersfoort

The Netherlands
Asia:

Extron Asia
135 Joo Seng Road #04-01
PM Industrial Bldg.
Singapore 368363
Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper

handling care, electrical or mechanical abuse, abnormal operating conditions or non­Extron authorized modification to the product.

If it has been determined that the product is defective, please call Extron and ask for an
Applications Engineer at [phone] (USA), 31.33.453.4040 (Europe), 65.6383.4400
(Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This
will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you

assume the risk of loss or damage during shipment. Returned units must include the
serial number and a description of the problem, as well as the name of the person to
contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect
to the product and its quality, performance, merchantability, or fitness for any particular
use. In no event will Extron Electronics be liable for direct, indirect, or consequential
damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.

Please note that laws vary from state to state and country to country, and that some
provisions of this warranty may not apply to you.

Japan:
Extron Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan

China:
Extron China
686 Ronghua Road, Songjiang
District
Shanghai 201611
China

Middle East:
Extron Middle East

Dubai Airport Free Zone
F12, PO Box 293666
United Arab Emirates, Dubai

安全须知 • 中文

这个符号提示用户该设备用户手册中
有重要的操作和维护说明。

这个符号警告用户该设备机壳内有暴

露的危险电压，有触电危险。

注意

阅读说明书 • 用户使用该设备前必须阅读并理

解所有安全和使用说明。

保存说明书 • 用户应保存安全说明书以备将来使

用。

遵守警告 • 用户应遵守产品和用户指南上的所有安

全和操作说明。

避免追加 • 不要使用该产品厂商没有推荐的工具或

追加设备，以避免危险。

警告

电源 • 该设备只能使用产品上标明的电源。 设备

必须使用有地线的供电系统供电。 第三条线
（地线）是安全设施，不能不用或跳过。

拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后

或桌面电源的电源线，或任何接到市电系统的电源线。

电源线保护 • 妥善布线， 避免被踩踏，或重物挤压。
维护 • 所有维修必须由认证的维修人员进行。 设备内部没

有用户可以更换的零件。为避免出现触电危险不要自己
试图打开设备盖子维修该设备。

通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止

机内敏感元件过热。 不要用任何东西挡住通风孔。

锂电池 • 不正确的更换电池会有爆炸的危险。 必须使用与

厂家推荐的相同或相近型号的电池。 按照生产厂的建
议处理废弃电池。

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. The Class A limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct the interference at his
own expense.

Chapter One • Introduction .................................................... 1-1

About this Manual ....................................................................1-2

About the FOX 4G DA8 ............................................................ 1-2

Features ........................................................................................1-4

Chapter Two • Installation and Operation ................... 2-1

Mounting the Unit ....................................................................2-2

Tabletop placement ............................................................... 2-2

Rack mounting ....................................................................... 2-2

UL guidelines ..........................................................................2-2

Mounting instructions............................................................2-3

Furniture mounting ...............................................................2-4

Through

-desk mounting ........................................................ 2-5

Rear Panel Features................................................................... 2-6

Front Panel Features ................................................................. 2-9

System Operation .................................................................... 2-10

Chapter Three • Remote Control ........................................3-1

Serial Ports ................................................................................... 3-2

Rear panel RS-232 p
Front panel conguration p

Simple Instruction Set™ Control ............................................ 3-4

Host-to-interface communications ....................................... 3-4

Start-up

Error responses ......................................................................3-4

Timeout................................................................................... 3-4

Using the command/response table ..................................... 3-5

message ................................................................... 3-4

Symbol denitions .................................................................3-5

Windows®-Based Program Control ...................................... 3-7

Installing the software .......................................................... 3-7

Starting the program ............................................................. 3-7

Firmware upgrade .................................................................3-8

ort .......................................................... 3-2

ort ............................................. 3-3

Appendix A • Reference Information ..............................A-1

Specications ..............................................................................A-2

Part Numbers ..............................................................................A-4

FOX 4G DA8 part
Included p

Optional accessories ..............................................................A-4

Compatible equipment ..........................................................A-5

numbers ....................................................A-4

arts.........................................................................A-4

FOX 4G DA8 • Table of Contents

i

Table of Contents, cont'd

FOX 4G DA8

Chapter One

1

68-1461-01 Rev. A

All trademarks mentioned in this manual are the properties of their respective owners.

ii

FOX 4G DA8 • Table of Contents

Introduction

About this Manual

About the FOX 4G DA8

Features

02 09

Introduction

FOX 4G DA8

100-240V 0.3A

50/60 Hz

OPTICAL OUTPUTS

INPUT

OUT IN

1

OUTN/A

2

OUT

N/A

3

OUT

N/A

4

OUT

N/A

5

OUTN/A

6

OUTN/A

7

OUTN/A

8

INPUT

RS-232

TxRx

FOX 500 Tx

100-240V 0.3A
50/60 Hz

AUDIO INPUTS

INPUT LOOP THRU

RGB INPUT

RG

B

H

V

OR

L R

RS-232

PASS THRU

Tx Rx NA

RS-232
CONTROL

ALARM

*

OPTIONAL FOR
RETURN DATA

LINK

LINK

Tx Rx

1 2

RGB

OPTICAL

12*

FOX 500 Rx

AUDIO OUTPUT

RGB OUTPUTS

RGB

H

V

L

R

RS-232

PASS THRU

Tx Rx NA

RS-232
CONTROL

ALARM

1

2*

*

OPTIONAL FOR

RETURN DATA

LINK

LINK

Tx Rx 1 2

RGB

100-240V 0.3A
50/60 Hz

OPTICAL

FOX 500 Rx

AUDIO OUTPUT

RGB OUTPUTS

R

G

B

H

V

LR

RS-232

PASS THRU

Tx Rx NA

RS-232
CONTROL

ALARM

1

2*

*

OPTIONAL FOR
RETURN DATA

LINK

LINK

Tx Rx

1 2

RGB

100-240V 0.3A
50/60 Hz

OPTICAL

Extron
FOX 500 DVI Rx

Fiber Optic Receiver

Extron
FOX 500 DVI

Fiber Optic Receiver

Projector

Projector

Flat Panel
Display

Flat Panel
Display

DVI Output

DVI Output

RGB Output

RGB Output

RGB Input

Extron
FOX 500 Tx

Fiber Optic
Transmitter

Extron
FOX 4G DA8

Fiber Optic Distribution Amplifer

Audio Input

PC

Local
Monitor

Extron
FOX 500 Rx

Fiber Optic Receiver

Extron
FOX 500 Rx

Fiber Optic Receiver

POWER

OUTPUTS
4/8 Ohms

INPUTS

L

R

L

R

REMOTE

10V
VOL/MUTE

L

MPA 122

R

C

US

Extron
MPA 122

Mini Power
Amplier

Extron
SI 26X

Two-way Ceiling
Speakers

W

The FOX 4G DA8 outputs continuous invisible

light, which may be harmful and dangerous to the
eyes; use with caution.

Do not look into the rear panel fiber optic

•

cable connectors or into the fiber optic cables
themselves.

Plug the attached dust caps into the optical

•

transceivers when the fiber optic cable is
unplugged.

About this Manual

This manual contains information about the two models of
Extron FOX 4G DA8 ber optic distribution ampliers (DAs).
The DA is available in two transmission modes, which dene
the transmission range of the DA:

• FOX 4G DA8 MM — A 1-input, 8-output multimode DA,

with a range of up to 150 m (492') on the input and each
output

• FOX 4G DA8 SM — A 1-input, 8-output singlemode DA,

with a very long range of up to 30 km (18.75 miles) on the
input and each output

N

The multimode and singlemode DAs are physically

and functionally identical, with the exception of the
effective range of transmission. In this manual, the terms
"FOX 4G DA8" and "FOX DA" refer to a DA of either
transmission mode.

N

Many products are compatible with the Extron FOX DA.

They will be identified where appropriate, but not
specifically described in this manual.

About the FOX 4G DA8

The Extron FOX 4G DA8 (gure 1-1) product family consists of
two models of ultra-high performance ber optic distribution
ampliers.

The FOX DA accepts a proprietary input optical signal from
a compatible Extron ber optic transmitter (Tx). The optical
signal can include video, audio, and one-way (transmitter-to­receiver [Rx]) RS-232 communications.

FOX 4G DA8 • Introduction

Figure 1-1 — Typical FOX 4G DA8 application

N

Compatible optical signals are digital signals from

2.0 Mbps through 4.25 Gbps that are sent and received
via fiber optic SFP modules. The FOX DA supports all
compatible optical signals, whether transmitted or received
by an Extron fiber optic system component or not.

N

The video component of the signal from an Extron Tx can

be either VGA - UXGA RGB video, digital visual interface
(DVI) video, or SDI/HD-SDI video.

The serial component of the signal is for applications such
as projector control and transmitter control of the receiver.

The FOX DA actively splits the proprietary signal into eight
identical optical signals and outputs the signals on ber optic
cables to compatible receivers.

N
N

The eight optical outputs are identical.

The FOX 4G DA8 does not support transmission of a

return (Rx-to-Tx) serial data stream.

N

The switcher can receive and send the proprietary signal

from and to any compatible Extron fiber optic transmitter,
receiver, or switcher. See appendix A, "Reference
Information" for a list of compatible products.

FOX 4G DA8 • Introduction

1-31-2

Introduction, cont’d

Features

The connected receiver(s) convert the proprietary signal(s)
back to video (RGB, DVI, or SDI/HD-SDI, depending on the
source transmitter and the receiver), audio, and serial RS-232
communication, and output the signals locally. For video
resolutions up to 1600 x 1200, the receivers' video outputs are a
perfect, pixel-for-pixel or digital recreation of the video signal
input to the FOX DA via a transmitter.

Ultra high performance — Outputs up to eight perfect,

pixel-by-pixel RGBHV or digital video transmissions to
compatible receiver(s). The FOX DA can handle analog
video resolutions up to 1600 x 1200 at 60 Hz. Higher
resolutions can be transmitted, but with some loss of
video quality.

Optical input and outputs — The FOX DA inputs and outputs

the optical signal on LC video connectors.

Active and individually isolated outputs — The FOX 4G DA8

uses active signal splitting to maintain equal transmitter
power to all outputs, maximizing distance capabilities by
ensuring full availability of optical loss budget for each
output.

System video output — When the optical input is from a

FOX 500 or FOXBOX 4G Tx (rather than a FOX HD-SDI),
the video portion of the optical video output can be
decoded to either RGB video or DVI video, depending on
the receiver connected.

Rack mounting — The unit is rack mountable in any

conventional 19" wide rack, using Extron's full size rack
shelf.

Power — The 100 VAC to 240 VAC, internal power supply

provides worldwide power compatibility.

FOX 4G DA8

Chapter Two

2

Installation and Operation

Mounting the Unit

Rear Panel Features

1-4

Front Panel Features

System Operation

FOX 4G DA8 • Introduction

FOX 4G DA8 • Installation and Operation

Installation and Operation

FOX 4G DA8 • Installation and Operation

2-2

2-3

Use 2 mounting holes on
opposite corners.

(2) 4-40 x 3/16"
Screws

NOTE:

Using screws longer
than 3/16” will damage the
unit and void the warranty.

1U Universal Rack Shelf

Front false
faceplate
uses 2
screws.

1/2 Rack Width Front False
Faceplate

Mounting the Unit

C

The 1U high, half-rack width unit can be placed on a tabletop,
mounted on a rack shelf, or mounted under or through a desk or
other furniture.

Tabletop placement

Afx the four included rubber feet to the bottom of the unit and
place it in any convenient location.

Rack mounting

UL guidelines

The following Underwriters Laboratories (UL) guidelines
pertain to the installation of the FOX 4G DA8 into a rack
(gure 2-1).

1. Elevated operating ambient — If installed in a closed

2. Reduced air flow — Installation of the equipment in a rack

3. Mechanical loading — Mounting of the equipment in

4. Circuit overloading — Consideration should be given to

5. Reliable earthing (grounding) — Reliable earthing

Installation and service must be performed by

authorized personnel only.

or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater
than room ambient. Therefore, consider installing the
equipment in an environment compatible with the +122 °F
(+50 °C) maximum ambient temperature (Tma) specied
by Extron

should be such that the amount of air ow required for
safe operation of the equipment is not compromised.

the rack should be such that a hazardous condition is not
achieved due to uneven mechanical loading.

the connection of the equipment to the supply circuit and
the effect that overloading of the circuits might have on
overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be
used when addressing this concern.

of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections
other than direct connections to the branch circuit (such as
the use of power strips).

Mounting instructions

For optional rack mounting, mount the 1U high, half rack width
unit on either of the following rack shelves:

• RSU 129 9.5" 1U universal rack shelf kit (part #60-190-01)

(gure 2-1)

• RSB 129 9.5" 1U basic rack shelf (part #60-604-01)

Figure 2-1 — Mounting the unit on a standard rack shelf

1. If installed, remove the feet from the bottom of the unit.

2. Mount the unit on either the left or right side of the shelf,

using two 4-40 x 3/16" screws in opposite (diagonal)
corners to secure the unit to the shelf.

3. Install a false faceplate or another unit onto the rack shelf.

4. Insert the shelf into the rack, aligning the holes in the shelf

with those of the rack.

5

. Secure the shelf to the rack using the supplied machine

screws.

FOX 4G DA8 • Installation and Operation

Installation and Operation, cont’d

2-4

FOX 4G DA8 • Installation and Operation

2-5

Furniture mounting

Mount the 1U high, half-rack width unit under a desk or
podium using the optional Extron MBU 125 under desk
mounting kit (part #70-077-01) as follows:

1

. If rubber feet were previously installed on the bottom of

the unit, remove them.

2. Secure the mounting brackets to the unit with the machine

screws provided (gure 2-2).

Figure 2-2 — Under-desk mounting the unit

Through-desk mounting

Mount the 1U high, half-rack width unit through a desk or
podium using the optional Extron MBD 129 through desk
mounting kit (part #70-077-02) as follows:

1

. If rubber feet were previously installed on the bottom of

the unit, remove them.

2. Secure the brackets to the unit with the provided

machine screws (gure 2-3). Leave the screws slightly loose.

3. Hold the unit with the brackets attached against the

underside of the table or other furniture. Mark the location
of the screw holes of the bracket on the mounting surface.

4. Drill four pilot holes, each 3/32" (2 mm) in diameter by

1/4" deep (6.3 mm) deep in the mounting surface at the
marked screw locations.

5. Insert provided #8 wood screws into the four pilot holes.

Tighten each screw into the mounting surface until just less
than 1/4" (6.3 mm) of the screw head protrudes.

6. Align the mounting screws with the slots in the brackets

and place the unit against the surface, with the screws
through the bracket slots.

7. Slide the unit slightly in or out, then tighten all four screws

to secure the unit in place (gure 2-2).

Figure 2-3 — Through-desk mounting the unit

3. Hold the unit and brackets on the underside of the surface

to which you are mounting the device and mark the four
screw holes and the table material to be removed.

4. Remove the table material. Test the t by inserting the

front of the device through the hole. If necessary, use a
rasp or coarse le to enlarge the hole.

5. Drill four pilot holes, each 3/32" (2 mm) in diameter by

1/4" deep (6.3 mm) deep, in the locations that you marked
in step 3.

6. Using the provided #8 four wood screws, attach the

brackets to the mounting surface.

FOX 4G DA8 • Installation and Operation

Installation and Operation, cont’d

2-6

FOX 4G DA8 • Installation and Operation

2-7

FOX 4G DA8

OPTICAL OUTPUTS

INPUT

OUT IN

1

OUT N/A2OUT N/A3OUT N/A4OUT N/A5OUT N/A6OUTN/A7OUTN/A

8

100-240V 0.3A

50/60 Hz

RS-232

Tx Rx

41 2 33 3 3 3 3 3 3

OPTICAL

1 2*

*

OPTIONAL FOR

RETURN DATA

LINK

LINK

INPUT

OUT IN

1

Transmitter

Receiver

DA

OPTICAL

2* 1

LINK

LINK

2

3

Rear Panel Features

7. Slide the device in or out until it is in the desired position.
Tighten the screws installed in step 2.

If the screws are inaccessible to a screwdriver:

a. Mark the location of the brackets relative to the screws.
b. Remove the transmitter or receiver from inside the

furniture.

c. Tighten the screws.
d. Replace the unit inside the surface (step 6).

Input connector and LED —

b

N

The input (right-hand) LC connector for

transciever block 1 is the only functional
input connector. The right-hand
LC connectors are not functional for
transceiver blocks 2 through 8.

Optical transceiver block 1 Input connector —

For one-way video, audio, and serial
communications from the transmitter to the
FOX DA (for distribution to the receiver(s),
connect a fiber optic cable to the optical
transceiver block 1's Input (right-hand) LC
connector.

Connect the far end of this fiber optic cable to
the sending connector on the transmitter

or

other compatible Extron device.

Figure 2-4 — FOX DA’s connectors

W

This unit outputs continuous invisible light, which

may be harmful and dangerous to the eyes; use with
caution. For additional safety, plug the attached
dust caps into the optical transceivers when the
fiber optic cable is unplugged.

N

Singlemode and multimode devices are not

interchangeable. Ensure that you connect transmitting
and receiving devices that are compatible with the
FOX DA.

N

Ensure that you use the proper fiber cable for your

system. Typically, singlemode fiber has a yellow jacket and
multimode cable has an orange jacket.

N

In this manual, the term "sending connector" refers to an

LC connector on a transmitter or other device that outputs
a fiber optic signal. The term "receiving connector" refers
to an LC connector that receives an optical signal.

AC power connector — Plug a standard IEC power cord into

a

this connector to connect the FOX DA to a 100 VAC to 240 VAC,

Optical transceiver block 1 Input LED —

When lit, the link is active (light is received
from the transmitter).

N

The input (right-hand) LED indicates

the light link for transceiver block 1. The
right-hand LEDs for transceiver blocks 2
through 8 may light, but do not indicate
an input to that connector.

Output connectors and LEDs —

c

Output connectors — For one-way video,
audio, and serial communications from the
FOX DA to the receivers, connect up to eight
fiber optic cables to the Output (left-hand) LC
connectors on transceiver blocks 1 through 8.

Connect the far ends of these fiber optic
cables to the receiving connectors on the receivers

compatible Extron devices.

Output LEDs — These LEDs are always lit, whether the
output is active (unmuted) or not.

or other

50 or 60 Hz power source.

FOX 4G DA8 • Installation and Operation

Installation and Operation, cont’d

2-8

FOX 4G DA8 • Installation and Operation

2-9

Do not tin the wires!

Controlling

Device

Ground ( )
Receive (Rx)
Transmit (Tx)

Ground ( )
Receive (Rx)
Transmit (Tx)

Bidirectional

RS-232

Tx Rx

FunctionPin

TX

RX

Gnd

Transmit data
Receive data
Signal ground

FOX DA SERIES

CONFIG

FIBER OPTIC DISTRIBUTION AMPLIFER

1 2

6 feet

(1.8 m)

Part #70-335-01

5

1

9

6

Sleeve (Gnd)

Ring

Tip

9-pin D Connection TRS Plug

Pin 2 Computer's RX line Tip
Pin 3 Computer's TX line Ring
Pin 5 Computer's signal ground Sleeve

RS-232 port — For serial control of the DA, connect a host

d

device, such as a computer, touch panel control, or RS-232
capable PDA, via this 3-pole captive screw connector.

Figure 2-5 shows how to wire this connector.

Figure 2-5 — RS-232 connectors

N

The length of exposed wires is critical. The ideal length is

3/16" (5 mm).

If the stripped section of wire is longer than 3/16", the

•

exposed wires may touch, causing a short circuit.

If the stripped section of wire is shorter than 3/16",

•

wires can be easily pulled out even if tightly fastened
by the captive screws.

Front Panel Features

Figure 2-6 — FOX DA front panel features

Power LED — This LED lights when power is applied to the

a

unit.

Configuration port — This 2.5 mm mini stereo jack serves

b

the same serial communications function as the rear panel
RS-232 port, but is easier to access than the rear port after
the unit has been installed and cabled. The optional 9-pin D
to 2.5 mm mini jack TRS RS-232 cable, part #70-335-01
(gure 2-7), can be used for this connection.

This port is RS-232 only, with the following protocols:

• 9600 baud • no parity • 8 data bits

• 1 stop bit • no ow control

Figure 2-7 — Optional 9-pin TRS RS-232 cable

This port is RS-232 only, with the following protocols:

• 9600 baud • no parity • 8 data bits

• 1 stop bit • no ow control

Installation and Operation, cont’d

N

System Operation

After the transmitter, the FOX DA, the receiver(s), and
their connected devices are powered up, the system is fully
operational. If any problems are encountered, ensure all
traditional and ber cables are routed and connected properly:

• Ensure that the video source and the display(s) are

• Ensure that the rear panel Input monitoring LED (item b

N

The maximum distance from the FOX DA to the

controlling device can vary up to 200' (61 m). Factors
such as cable gauge, baud rates, environment, and output
levels (from the unit and the controlling device) all affect
transmission distance. Distances of about 50' (15 m) are
typically not a problem. In some cases, the unit may be
capable of serial communications via RS-232 up to 250'
(76 m) away.

properly connected to the transmitter, the FOX DA, and
the receiver(s), and that all equipment has power applied.

on page 2-7) is indicating correctly for your system
conguration.

If problems persist, call the Extron S3 Sales & Technical

Support Hotline. See the rear cover of this manual for the
phone number in your region of the world.

FOX 4G DA8

Chapter Three

3

2-10

Remote Control

Serial Ports

Simple Instruction Set Control

Windows®-Based Program Control

FOX 4G DA8 • Installation and Operation

Remote Control

Do not tin the wires!

Controlling

Device

Ground ( )
Receive (Rx)
Transmit (Tx)

Ground ( )
Receive (Rx)
Transmit (Tx)

Bidirectional

RS-232

Tx Rx

FunctionPin

TX

RX

Gnd

Transmit data
Receive data
Signal ground

6 feet

(1.8 m)

Part #70-335-01

5

1

9

6

Sleeve (Gnd)

Ring

Tip

9-pin D Connection TRS Plug

Pin 2 Computer's RX line Tip
Pin 3 Computer's TX line Ring
Pin 5 Computer's signal ground Sleeve

Serial Ports

The FOX DA has two serial ports that can be connected to a host
device such as a computer running the HyperTerminal utility,
an RS-232 capable PDA, or a control system. These ports make
serial control of the DA possible. The serial ports are:

• The rear panel RS-232 port on a 3-pin captive screw

connector

• The front panel Conguration (RS-232) port, a 2.5 mm

mini stereo jack

The protocol for both ports is as follows:

• 9600 baud • no parity • 8 data bits

• 1 stop bit • no ow control

Rear panel RS-232 port

Front panel configuration port

The optional Extron 9-pin D to 2.5 mm mini jack TRS RS-232
cable, part #70-335-01 (gure 3-2) can be used for connection to
the Conguration port.

Figure 3-2 — Optional 9-pin TRS RS-232 cable

Figure 3-1 — RS-232 connector pin assignments

FOX 4G DA8 • Remote Control

FOX 4G DA8 • Remote Control

3-33-2

FOX 4G DA8 • Remote Control

Remote Control, cont’d

3-4

FOX 4G DA8 • Remote Control

3-5

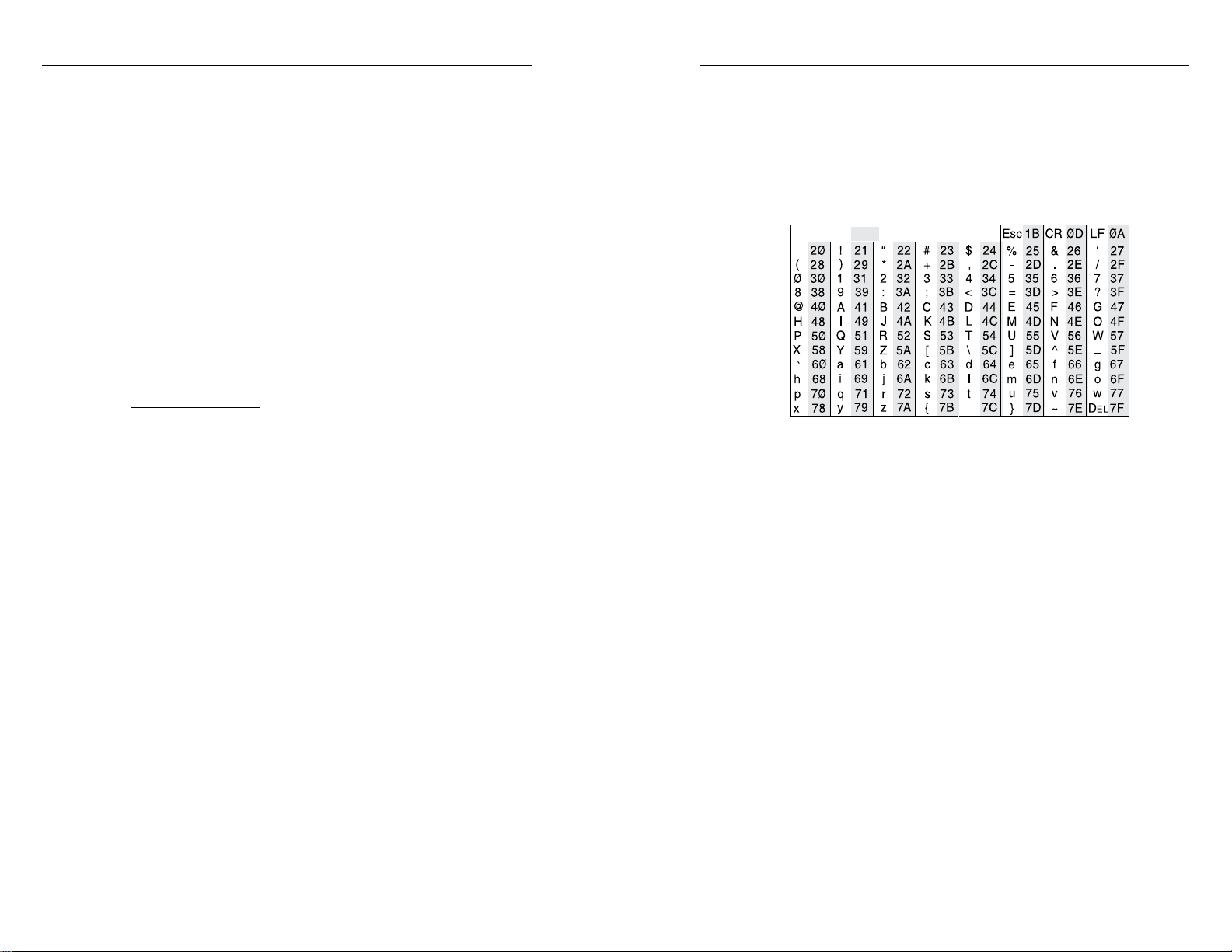

ASCII to HEX Conversion Table

Space

Simple Instruction Set™ Control

Host-to-interface communications

The Extron Simple Instruction Set (SIS) commands consist of
one or more characters per field. No special characters are
required to begin or end a command character sequence. When
a command is valid, the unit executes the command and sends
a response to the host device. All responses from the unit to the
host end with a carriage return and a line feed (CR/LF = ]),
which signals the end of the response character string. A string
is one or more characters.

Start-up message

When a local event, such as a front panel operation or error
condition, occurs, the unit responds by sending a message to the
host. The unit-initiated messages are listed below:

(c) COPYRIGHT 2009, EXTRON ELECTRONICS FOX 4G DA8,
Vx.xx, 60-927-xx]]
The FOX DA issues the copyright message when it first powers

on. Vx.xx is the firmware version number, 60-927-xx is the part
number.

Error responses

When the unit receives a valid SIS command, it executes the
command and sends a response to the host device. If the unit is
unable to execute the command because the command is invalid
or it contains invalid parameters, the unit returns an error
response to the host. The error response codes are:

E10 - Invalid command]
E12 - Invalid output number]
E13 - Invalid range]

Timeout

Pauses of 10 seconds or longer between command ASCII
characters result in a timeout. The command operation is
aborted with no other indication.

Using the command/response table

The command/response table begins on page 3-6. Lower case

letters are acceptable in the command field. Symbols are used

throughout the table to represent variables in the command/
response fields. Command and response examples are shown
throughout the table. The ASCII to HEX conversion table below
is for use with the command/response table.

Symbol definitions

Symbols (variables), defined below, are used in the
command/response table on page 3-6. The symbols represent
variables in the unit-initiated messages and the command/
response table fields.

]

= CR/LF (carriage return/line feed)

• = space

X!

= Output 1 through 8

X@

= Mute status 0 = off (unmuted)

X#

= Firmware version v.vv

X$

= Transceiver module status 00000000 = no light input

X%

= Temperature nnnF = whole degree Fahrenheit

X^

= Transceiver module status 0 = no module installed

1 = on (muted)

10000000 = light input

1 = multimode
2 = singlemode

3-6

Command/response table for SIS commands

Remote Control, cont’d

Command ASCII Command

FOX 4G DA8 • Remote Control

(host to unit)

Channel mute

The channel mute commands mute the data on the output only. The output continues to emit light.

N

Mute output
Unmute output
Show video mute status

Mute all outputs 1*B
Unmute all outputs 0*B
Show mute status of all

outputs

X!

*1B VmtX!*1

X!

*0B VmtX!*0

X!

B

EVM} X@1X@2X@3X@

Information requests

Information request I

Show firmware version Q

Example:

Request part number N

Show input connections
status

Show temperature 20S
Show transceiver module

status

Q

0LS

0*1I

Response

(unit to host)

]
]

X@]

]

Vmt1

]

Vmt0

V01X08•A00X00

4

...

X@8]

]

Additional description

Blank data on optical output X!.
Output data on optical output X!.
Output X!'s data output mute status is X@

(0 = unmuted, 1 = muted).
Blank data on all optical outputs.

Output data on all optical outputs.
Show output 1 through output 8 mute status.

V01X08 shows the number of available inputs (1) and
outputs (8) for this product.

A00X00 has no meaning for this product.

X#]

]

1.23

60-927-nn

X$]

]

The factory-installed FOX 4G DA8 controller rmware

version is 1.23 (sample value only).
nn indicates the transmission mode.

01 = multimode, 02 = singlemode.
0000000 = no light on the input,

10000000 = light received.

X%] X%
X^1X^2X^3X^

4

...

X^8]

Show all installed transceiver modules.
0 = none, 1 = multimode, 2 = singlemode.

= degrees Fahrenheit.

Windows®-Based Program Control

The Extron FOX Extender program, which communicates with
the FOX DA via the unit's rear panel RS-232 port or front panel
Configuration port, provides an easy way to operate the DA.

The program is compatible with Windows 2000, Windows XP,
or later. Updates to this program can be downloaded from the
Extron Web site (www.extron.com).

Installing the software

The program is contained on the Extron Software Products
CD-ROM, disk B. Install the software as follows:

1. Insert the CD-ROM into the drive. The installation

program should start automatically. If it does not self-start,
run Launch.exe from the CD.

The Extron software CD window appears (figure 3-3).

Figure 3-3 — Software CD window

2. Click the Software tab (figure 3-3).

3. Scroll to the desired program and click Install (figure 3-4).

Figure 3-4 — Software installation

FOX 4G DA8 • Remote Control

3-7

FOX 4G DA8 • Remote Control

Remote Control, cont’d

3-8

FOX 4G DA8 • Remote Control

3-9

4. Follow the on-screen instructions. By
default, the Windows installation creates a
C:\Program Files\Extron\FOX_Extenders directory, and it
places the following four icons into a group folder named
“Extron Electronics\FOX Extender WCP”:

  • CheckforFOXExtenderupdates
  • FOXExtenderWCP
  • FOXExtenderHelp
  • UninstallFOXExtenderWCP

Starting the program

Start the Extron FOX Extender program as follows:

1. Connect a Windows-based computer to either of the DA's
serial ports. See chapter 2, “Installation and Operation”,
for more details.

. ClickStart > Programs > Extron Electronics >

2

FOX Extender WCP > FOX Extender WCP.

The Communication Setup window appears (figure 3-5).

Figure 3-6 — FOX Extender program window

Firmware upgrade

Firmware can be upgraded via the unit's front panel
Configuration port only, using the Extron Firmware Loader
utility from the FOX Extender program.

Uploadreplacementrmwareasfollows:

1. Visit the Extron web site, www.extron.com,clickthe

Download Centertab,andthenclicktheFirmwarelink

(figure 3-7). Select the appropriate firmware file(s) to
download and copy it (them) to your computer. Note the
folder to which you save the firmware file(s).

Figure 3-5— Communication Setup window

3. SelecttheComporttowhichyourDAisconnected.Click

OK.

The FOX Extender program window appears (figure 3-6).
Mute or unmute individual outputs or all outputs by

clickingtheappropriatebuttons.

N

The channel mute command mutes the data on the output

only. The output continues to emit light.

Figure 3-7 — Location of firmware upgrade files

2. IntheWindowsExplorerorotherlebrowser,double-click

the downloaded executable (*.exe) file(s) to self-extract the
firmware file(s).

3. Connect a Windows-based computer to the front panel

Configuration port of the unit to be updated. See
chapter 2, "Installation and Operation", for more details.

4. Start the FOX Extender program. See "Starting the

program", on page 3-8.

FOX 4G DA8 • Remote Control

Remote Control, cont’d

3-10

FOX 4G DA8 • Remote Control

3-11

5. ClickTools > Update Firmware. The Extron Firmware
Loader appears (figure 3-8).

6. ClickBrowse. The open file window appears.

7. Navigate to the folder where you saved the firmware

upgradele.Selectandopen(double-click)thele.The

Firmware Loader returns to the top.

N

. ClickUpload. The File Loader reports, "This process could

8

9. When the Firmware Loader reports, "Transfer complete!",

10. Cycle the FOX DA's power.

Valid firmware files must have the file extension “.BIN”.

Any other file extension is not a firmware upgrade for your
FOX DA.

take several minutes. Please wait.." and then displays the

status of the upload.

clicktheExit button.

Figure 3-8 — Firmware upload

Remote Control, cont’d

FOX 4G DA8

Appendix A

A

3-12

Reference Information

Specifications

Part Numbers

FOX 4G DA8 • Remote Control

FOX 4G DA8 • Reference Information

Reference Information

FOX 4G DA8 • Reference Information

A-2

A-3

Specifications

Optical specifications

N

Number/type

Connectors ..................................... 8 LC connectors

Operating distance ........................ 30km(18.75miles)withsinglemode(SM)

N

Nominalpeakwavelength........... 850 nm for MM model,

Data rate
Transmission power

Maximum receiver sensitivity

Optical loss budget

Control/remote

Serial control ports ........................ 1 RS-232, 3.5 mm captive screw connector,

Baud rate and protocol

These amplifiers are class 1 laser products. They meet the

safety regulations of IEC-60825, FDA 21 CFR 1040.10, and
FDA 21 CFR 1040.11.

Input

.................................... 1 singlemode or multimode fiber optic

Output ................................. 8 singlemode or multimode fiber optic

cables

0.15km(492')withmultimode(MM)

cables

Operating distance is approximate. These are typical

distances. The maximum distance may be greater than these
typical numbers depending on factors such as fiber type, fiber
bandwidth, connector splicing, losses, modal or chromatic
dispersion, environmental factors, and kinks.

1310 nm for SM model

......................................... 4.25 Gbps

Singlemode

Multimode .......................... -5 dBm, typical

Singlemode

Multimode .......................... -12 dBm, typical

Singlemode

Multimode .......................... 7 dB, maximum

......................... -5 dBm, typical

......................... -18 dBm, typical

......................... 13 dB, maximum

3 pole (rear panel)
1RS-232,2.5mmministereojack
(front panel)

................. 9600baud,8databits,1stopbit,noparity

Serial control pin configurations . Captive screw connector: 1 = TX, 2 = RX,

3 = GND

Ministereojack:tip=TX,ring=RX,

sleeve = GND

Program control

............................. Extron's control/configuration program

for Windows®
Extron's Simple Instruction Set (SIS

General

Power .............................................. 100VACto240VAC,50-60Hz,20watts,

internal

Temperature/humidity

Cooling ........................................... Convection, vents on top and sides

Mounting

Rackmount ........................ Yes,withoptional1U,9.5"deeprackshelf)

Furniture mount ................ Yes,withoptionalunder-deskmounting

Enclosure type ............................... Metal

Enclosure dimensions ................... 1.7"Hx8.7"Wx9.5"D

Product weight

Shipping weight ............................ 4lbs(2kg)

Vibration ......................................... ISTA 1A in carton

Regulatory compliance

Safety

EMI/EMC .......................... CE,C-tick,FCCClassA,FDAClass1,

MTBF

............................................... 30,000 hours

Warranty ......................................... 3 years parts and labor

N

N

All nominal levels are at ±10%.

Specifications are subject to change without notice.

.............................. 2.3lbs(1kg)

................................... CE,CUL,UL

................ Storage: -40 to +158 °F (-40 to +70 °C) /

10%to90%,noncondensing
Operating: +32 to +122 °F (0 to +50 °C) /

10%to90%,noncondensing

kitandthrough-deskmountingkit

(1Uhigh,halfrackwide)
(4.3cmHx22.1cmWx24.1cmD)

(Depth excludes connectors.)

(International Safe Transit Association)

ICES, VCCI,

™

)

FOX 4G DA8 • Reference Information

Reference Information, cont’d

FOX 4G DA8 • Reference Information

A-4

A-5

Part Numbers

FOX 4G DA8 part numbers

The FOX 4G DA8 is available in a singlemode (SM) and a
multimode (MM) model:

FOX 4G Models Part number

FOX 4G DA8 SM 60-927-02
FOX 4G DA8 MM 60-927-01

Included parts

These items are included in each order for a FOX 4G DA8:

Included parts Part number

IEC power cord

3-pole captive screw audio connector

Installation guide
Extron Software Products CD

(FOX Extender program)

(1) 10' LC-LC duplex patch cables
(SM or MM, depending on the model)

Optional accessories

Accessories Part number

9-pinDto2.5mmminijackTRSRS-232

cable

RSU1299.5"1Uuniversalrackshelfkit 60-190-01
RSB1299.5"1Ubasicrackshelf 60-604-01

MBU125underdeskmountingkit 70-077-01

MBD129throughdeskmountingkit 70-077-02

70-335-01

Compatible equipment

The FOX 4G DA8 is compatible with a variety of Extron fiber
optic receivers and matrix switchers, as shown below:

Fiber optic RGB video models Part number

FOX 500 (RGB) Tx/Rx SM (set) 60-746-02

FOX 500 (RGB) Tx SM (individual unit) 60-746-12
FOX 500 (RGB) Rx SM (individual unit) 60-746-22

FOX 500 Tx/Rx (RGB) MM (set) 60-746-01

FOX 500 Tx (RGB) MM (individual unit) 60-746-11

FOX 500 Rx (RGB) MM (individual unit) 60-746-21
FOXBOX 4G Tx VGA SM 60-934-12
FOXBOX 4G Rx VGA SM 60-934-22
FOXBOX 4G Tx VGA MM 60-934-11
FOXBOX 4G Rx VGA MM 60-934-21

FOX 4G DVI models Part number

FOX 500 DVI Tx SM (individual unit) 60-859-12
FOX 500 DVI Rx SM (individual unit) 60-859-22
FOX 500 DVI Tx MM (individual unit) 60-859-11
FOX 500 DVI Rx MM (individual unit) 60-859-21
FOXBOX 4G Tx DVI SM 60-935-12
FOXBOX 4G Rx DVI SM 60-935-22
FOXBOX 4G Tx DVI MM 60-935-11
FOXBOX 4G Rx DVI MM 60-935-21

FOX 2G models Part number

FOX 2G Tx AV SM 60-941-12
FOX 2G Rx AV SM 60-941-22
FOX 2G Tx AV MM 60-941-11
FOX 2G Rx AV MM 60-941-21

FOX HD-SDI models Part number

FOXHD-SDISM 60-901-01
FOXHD-SDIMM 60-900-01

Reference Information, cont’d

FOX 4G Matrix 14400 switcher Part number

FOX 4G Matrix 14400 enclosure

Singlemode I/O card
Multimode I/O card

Other fiber optic models Part number

FOX 4G SW8 SM 60-984-02
FOX 4G SW8 MM 60-984-01
FOX 500 DA6 SM 60-863-02
FOX 500 DA6 MM 60-863-01

60-969-01
70-771-02
70-771-01

A-6

FOX 4G DA8 • Reference Information
