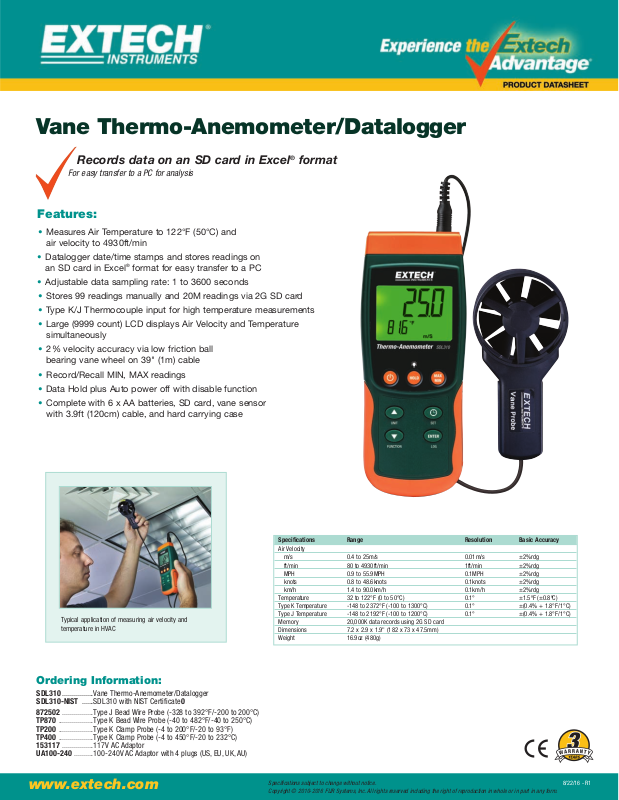

Extech SDL310 Specifications
Vane Thermo-Anemometer/Datalogger
Records data on an SD card in Excel®format
For easy transfer to a PC for analysis
Features:
• Measures Air Temperature to 122°F (50°C) and
air velocity to 4930ft/min
• Datalogger date/time stamps and stores readings on
an SD card in Excel®format for easy transfer to a PC
• Adjustable data sampling rate: 1 to 3600 seconds
• Stores 99 readings manually and 20M readings via 2G SD card
• Type K/J Thermocouple input for high temperature measurements
• Large (9999 count) LCD displays Air Velocity and Temperature
simultaneously
• 2% velocity accuracy via low friction ball
bearing vane wheel on 39" (1m) cable
• Record/Recall MIN, MAX readings
• Data Hold plus Auto power off with disable function
• Complete with 6 x AA batteries, SD card, vane sensor
with 3.9ft (120cm) cable, and hard carrying case
Typical application of measuring air velocity and
temperature in HVAC
Ordering Information:
SDL310 ................Vane Thermo-Anemometer/Datalogger
SDL310-NIST ......SDL310 with NIST Certificate0
872502 ................Type J Bead Wire Probe (-328 to 392°F/-200 to 200°C)
TP870 ..................Type K Bead Wire Probe (-40 to 482°F/-40 to 250°C)
TP200 ..................Type K Clamp Probe (-4 to 200°F/-20 to 93°F)
TP400 ..................Type K Clamp Probe (-4 to 450°F/-20 to 232°C)
153117 ................117V AC Adaptor
UA100-240 ..........100-240V AC Adaptor with 4 plugs (US, EU, UK, AU)
www.extech.com
Specifications Range Resolution Basic Accuracy
Air Velocity
m/s 0.4 to 25m/s 0.01m/s ±2%rdg
ft/min 80 to 4930ft/min 1ft/min ±2%rdg
MPH 0.9 to 55.9MPH 0.1MPH ±2%rdg
knots 0.8 to 48.6knots 0.1knots ±2%rdg
km/h 1.4 to 90.0km/h 0.1km/h ±2%rdg
Temperature 32 to 122°F (0 to 50°C) 0.1° ±1.5ºF (±0.8ºC)
Type K Temperature -148 to 2372°F (-100 to 1300°C) 0.1° ±(0.4% + 1.8°F/1°C)
Type J Temperature -148 to 2192°F (-100 to 1200°C) 0.1° ±(0.4% + 1.8°F/1°C)
Memory 20,000K data records using 2G SD card
Dimensions 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)
Weight 16.9oz (480g)
Specifications subject to change without notice.
Copyright © 2010-2016 FLIR Systems, Inc.All rights reserved including the right of reproduction in whole or in part in any form.
8/22/16 - R1
