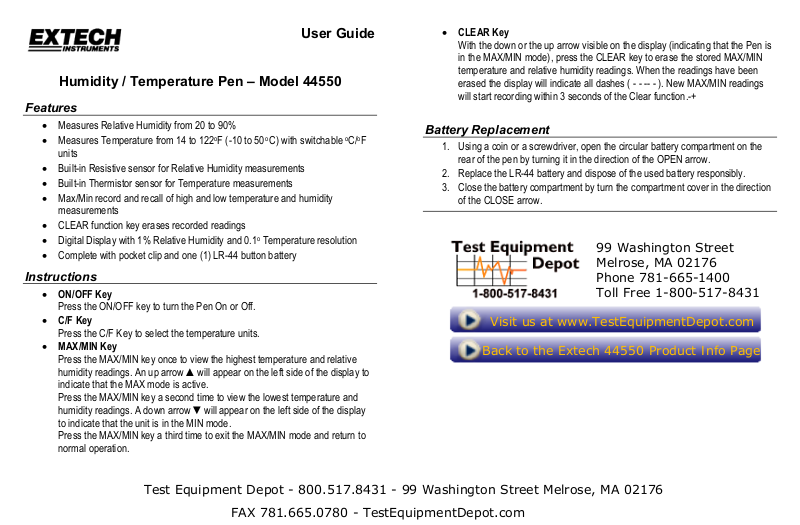

Extech Extech 44550 Manual

Humidity / Temperature Pen – Model 44550

Features

• Measures Relative Humidity from 20 to 90%

• Measures Temperature from 14 to 122

units

• Built-in Resistive sensor for Relative Humidity measurements

• Built-in Thermistor sensor for Temperature measurements

• Max/Min record and recall of high and low temperature and humidity

measurements

• CLEAR function key erases recorded readings

• Digital Display with 1% Relative Humidity and 0.1

• Complete with pocket clip and one (1) LR-44 button battery

Instructions

• ON/OFF Key

Press the ON/OFF key to turn the Pen On or Off.

• C/F Key

Press the C/F Key to select the temperature units.

• MAX/MIN Key

Press the MAX/MIN key once to view the highest temperature and relative
humidity readings. An up arrow ▲will appear on the left side of the display to
indicate that the MAX mode is active.
Press the MAX/MIN key a second time to view the lowest temperature and
humidity readings. A down arrow ▼will appear on the left side of the display
to indicate that the unit is in the MIN mode.
Press the MAX/MIN key a third time to exit the MAX/MIN mode and return to
normal operation.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

o

F (-10 to 50o C) with switchable oC/oF

o

Temperature resolution

FAX [phone] - TestEquipmentDepot.com

User Guide

• CLEAR Key

With the down or the up arrow visible on the display (indicating that the Pen is
in the MAX/MIN mode), press the CLEAR key to erase the stored MAX/MIN
temperature and relative humidity readings. When the readings have been
erased the display will indicate all dashes ( - - -- - ). New MAX/MIN readings
will start recording within 3 seconds of the Clear function.-+

Battery Replacement

1. Using a coin or a screwdriver, open the circular battery compartment on the

rear of the pen by turning it in the direction of the OPEN arrow.

2. Replace the LR-44 battery and dispose of the used battery responsibly.

3. Close the battery compartment by turn the compartment cover in the direction

of the CLOSE arrow.
