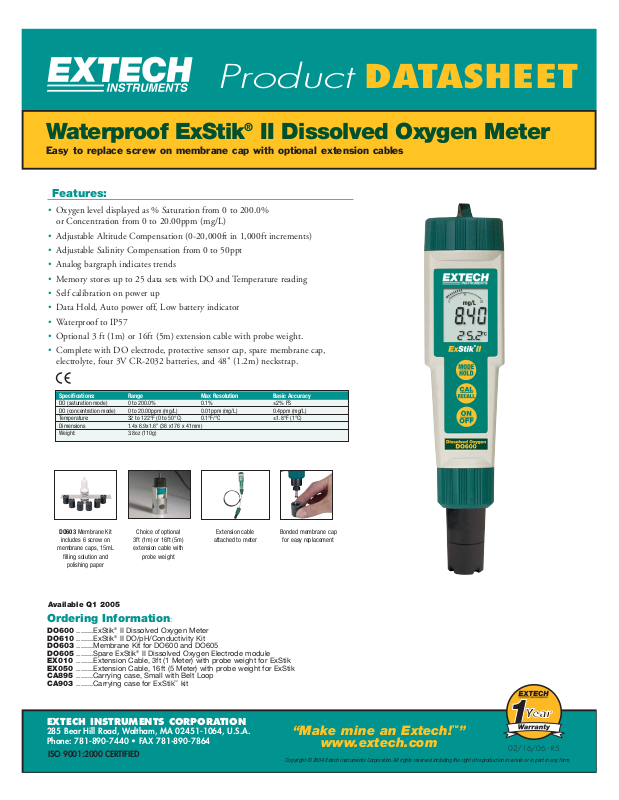

Extech DO600 Data Sheet
EXTECH INSTRUMENTS CORPORATION
285 Bear Hill Road, Waltham, MA 02451-1064, U.S.A.
Phone: 781-890-7440 • FAX 781-890-7864
ISO 9001:2000 CERTIFIED
02/16/06 - R5
Features:
• Oxygen level displayed as % Saturation from 0 to 200.0%
or Concentration from 0 to 20.00ppm (mg/L)
• Adjustable Altitude Compensation (0-20,000ft in 1,000ft increments)
• Adjustable Salinity Compensation from 0 to 50ppt
• Analog bargraph indicates trends
• Memory stores up to 25 data sets with DO and Temperature reading
• Self calibration on power up
• Data Hold, Auto power off, Low battery indicator
• Waterproof to IP57
• Optional 3 ft (1m) or 16ft (5m) extension cable with probe weight.
• Complete with DO electrode, protective sensor cap, spare membrane cap,
electrolyte, four 3V CR-2032 batteries, and 48" (1.2m) neckstrap.
Product
DATASHEET
Waterproof ExStik®II Dissolved Oxygen Meter
Easy to replace screw on membrane cap with optional extension cables
Specifications: Range Max Resolution Basic Accuracy
DO (saturation mode) 0 to 200.0% 0.1% ±2% FS
DO (concentration mode) 0 to 20.00ppm (mg/L) 0.01ppm (mg/L) 0.4ppm (mg/L)
Temperature: 32 to 122°F (0 to 50°C) 0.1°F/°C ±1.8°F (1°C)
Dimensions 1.4x 6.9x1.6” (36 x176 x 41mm)
Weight: 3.8oz (110g)
“Make mine an Extech!™”
www.extech.com
Copyright © 2004 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
DO603 Membrane Kit
includes 6 screw on
membrane caps, 15mL
filling solution and
polishing paper
Choice of optional
3ft (1m) or 16ft (5m)
extension cable with
probe weight
Extension cable
attached to meter
Bonded membrane cap
for easy replacement
Available Q1 2005
Ordering Information:
®
DO600 ........ExStik
DO610 ........ExStik®II DO/pH/Conductivity Kit
DO603 ........Membrane Kit for DO600 and DO605
DO605 ........Spare ExStik
EX010 ........Extension Cable, 3ft (1 Meter) with probe weight for ExStik
EX050 ........Extension Cable, 16ft (5 Meter) with probe weight for ExStik
CA895 ........Carrying case, Small with Belt Loop
CA903 ........Carrying case for ExStik
II Dissolved Oxygen Meter
®
II Dissolved Oxygen Electrode module
™
kit
