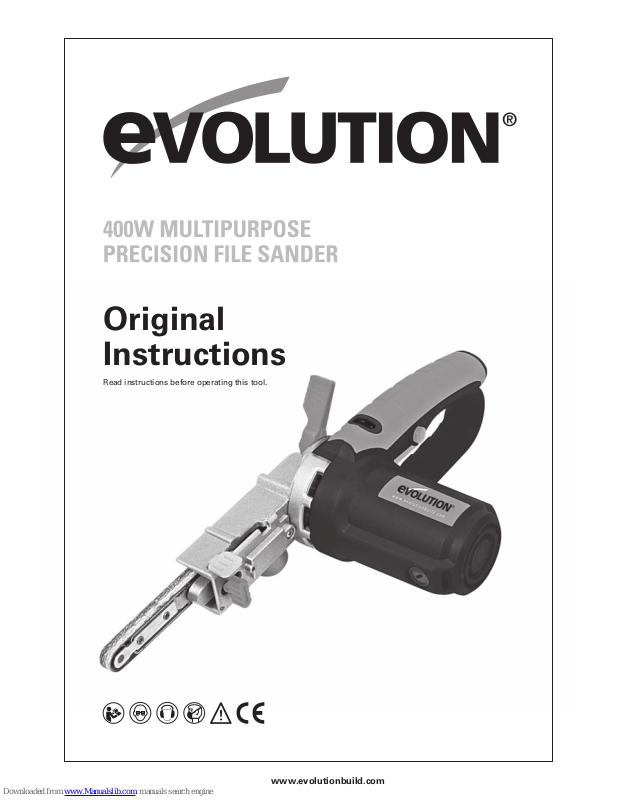

Evolution EVOPFS400 Original Instructions Manual

Original
Instructions

Read instructions before operating this tool.

www.evolutionbuild.com

®

2

www.evolutionbuild.com

TABLE OF CONTENTS

UK

EC - Declaration of Conformity 02

Important Information 04

12 Month Limited Warranty 04

General Safety Rules 05

Safety Rules for Belt Sanders 07

Labels & Symbols 07

Machine Overview 08

Specification 09

Operation 09

Maintenance 11

Environmental Protection 11

Service Parts Lists 15

EC - DECLARATION OF CONFORMITY

UK

We, manufacturer and importer

Evolution Power Tools Ltd.
Venture One
Sheffield
S20 3FR

Declare that the product

Part numbers: EVOPFS400
Evolution: Precision File Sander
Complies with the essential requirements of
the following European Directives:

2006/42/EC – Machine Directive
2006/95/EC – Low Voltage Directive
2004/108/EC – EMC Directive
2002/95/EC – Restriction of the use of

Certain Hazardous Substances in Electrical
and Electric equipment.

The following standards have been applied:

EN 61029-1:2000+A11 +A12
EN 60745-1:2006
EN 61029-2-9:2002
EN 60745-2-4:2003+A11:2007
EN 55014-1:2000 +A1 +A2
EN 55014-2:1997+A1
EN 61000-3-2:2006
EN 61000-3-3:1995+A1+A2

All documentation is held on file at the
above address and is available, on request
for review.

Authorized Signatory
Date: 26/4/2011

Name: Mr Matthew J Gavins
Position: Managing Director

®

3

www.evolutionbuild.com

FIGURES

FIG 4 FIG 5 FIG 6

FIG 1 FIG 2

FIG 3

FIG 10 FIG 11 FIG 12

FIG 7 FIG 8 FIG 9

4

www.evolutionbuild.com

®

IMPORTANT INFORMATION

UK

Please read these operating and safety
instructions carefully and completely.
For your own safety, before using this
equipment check that the voltage is
correct and that all handles and parts are
firmly secured. If you are uncertain about
any aspect of using this equipment, please
contact our Technical Help Resource.

UK: 0870 609 2297
USA: 1-866-EVO-TOOL
[e-mail]

EVOLUTION PRECISION FILE SANDER

Congratulations on your purchase of
an Evolution Power Tools Precision File
Sander. Please complete your product
registration online to validate your
machine’s warranty period and ensure
prompt service if needed. We sincerely
thank you for selecting a product from
Evolution Power Tools.

12 MONTH WARRANTY

UK

Evolution Power Tools reserves the right to
make improvements and modifications to
design without prior notice.

Evolution Power Tools will, within twelve (12)
months from the original date of purchase,
repair or replace any goods found to be
defective in materials or workmanship. This
warranty is void if the tool being returned
has been used to cut materials beyond
the recommendations in the Instruction
Manual or if the saw has been damaged by
accident, neglect, or improper service. This
warranty does not apply to machines and/
or components which have been altered,
changed, or modified in any way, or subjected
to use beyond recommended capacities
and specifications. Electrical components
are subject to respective manufacturers’
warranties. All goods returned defective
shall be returned prepaid freight to Evolution
Power Tools. Evolution Power Tools reserves
the right to optionally repair or replace it with
the same or equivalent item.

There is no warranty – written or verbal
– for consummables. In no event shall
Evolution Power Tools be liable for loss or
damage resulting directly or indirectly from
the use of our merchandise or from any
other cause. Evolution Power Tools is not
liable for any costs incurred on such goods
or consequential damages. No officer,
employee or agent of Evolution Power Tools
is authorised to make oral representations of
fitness or to waive any of the foregoing terms
of sale and none shall be binding on Evolution
Power Tools. Questions relating to this
limited warranty should be directed to the
company’s head office, or call the appropriate
Helpline number.
