Quick Start Guide
Congratulations!
You have become the proud owner of the EVOBOX karaoke system.
Thank you for choosing Studio Evolution solutions.
Follow the steps below to wire up your EVOBOX.
Let's start!
Quick connection
HDMI cable
AC/DC Adapter Network cable
Power outlet TV Internet USB drive Microphones Audio system
1. Connect one end of the HDMI cable to the HDMI port on your TV. Connect the other end of the HDMI cable to
the EVOBOX HDMI port .
2. Use the RCA cable to connect EVOBOX to the audio system .
3. Use TRS cables to connect wired microphones or a wireless microphone receiver to the appropriate Mic1 and
Mic2 inputs .
4. Connect EVOBOX to a power outlet .
5. Turn on the TV and select the HDMI input to which your karaoke system is connected.
6. Follow the on-screen instructions to connect the remote control, select a language, time zone, and configure
Internet connection.
WARNING! Failure to follow these instructions can result in a fire, electric shock, personal injury, or equipment damage.
TRS cables RCA cable
Karaoke system activation
Please activate your EVOBOX system so it could operate at its full potential. Without activation, EVOBOX will run in
demo mode only. In the demo mode, the song duration is limited to 45 seconds.
To activate your karaoke system, use the instructions on the screen of your TV.

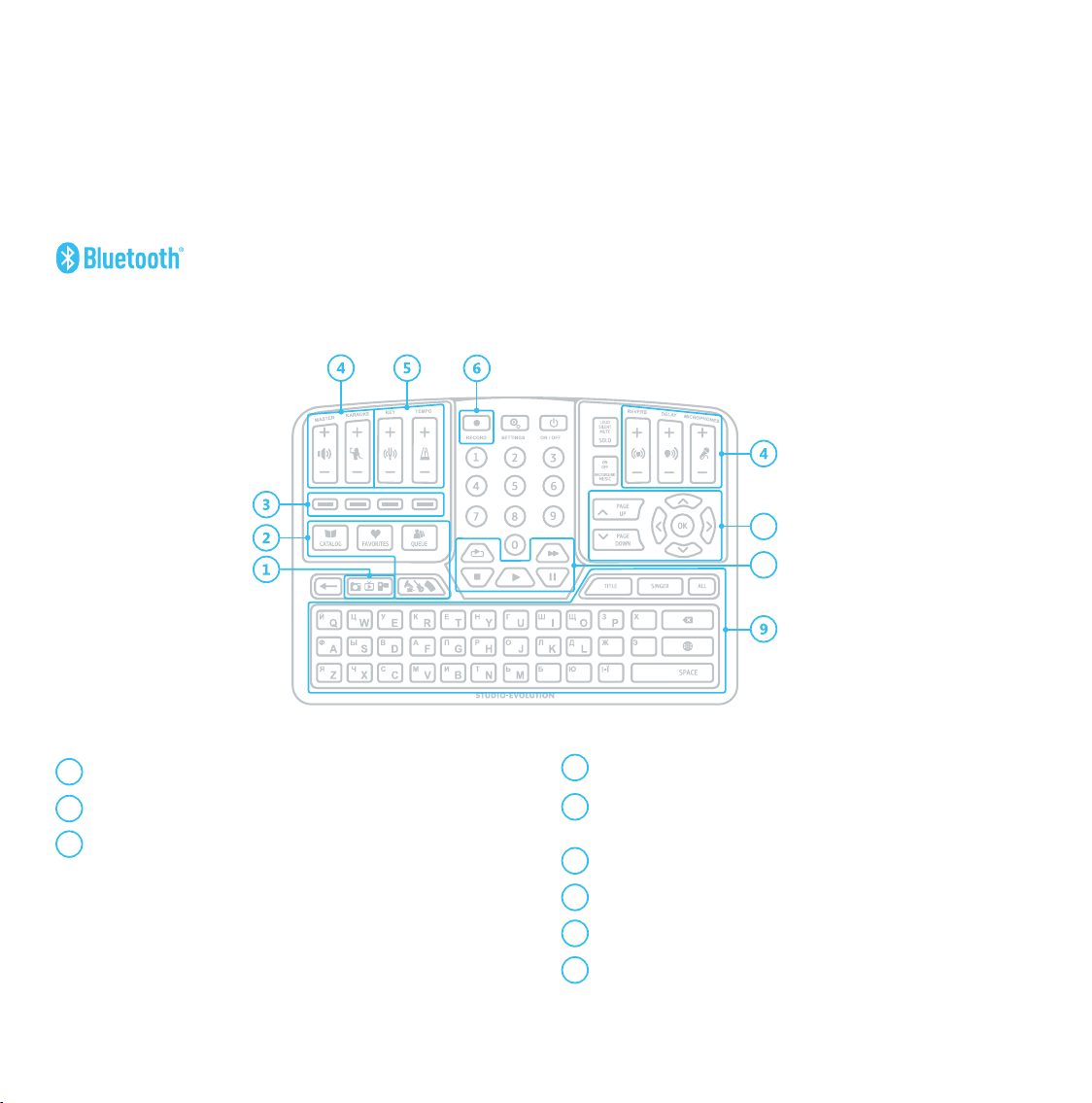

Remote control
7
8
1
Select a background image (photo/video).
2
Catalog, Favorites, Queue, and Genre selection.
3
Function keys.
Catalog, Favorites, Queue and Genre selection:
yellow - open/close the background music player;
blue - information about the song;
red - open/close the performance recording player;
green - enable/disable LiveFX.
4
Adjust the volume and effects.
5
Tone adjustment — from -6 to +6 units.
Tempo adjustment — from -12 to + 12%.
6
Turn on/cancel performance recording.
7
Navigation.
8
The block of playback control keys.
9
Keyboard and search filters.

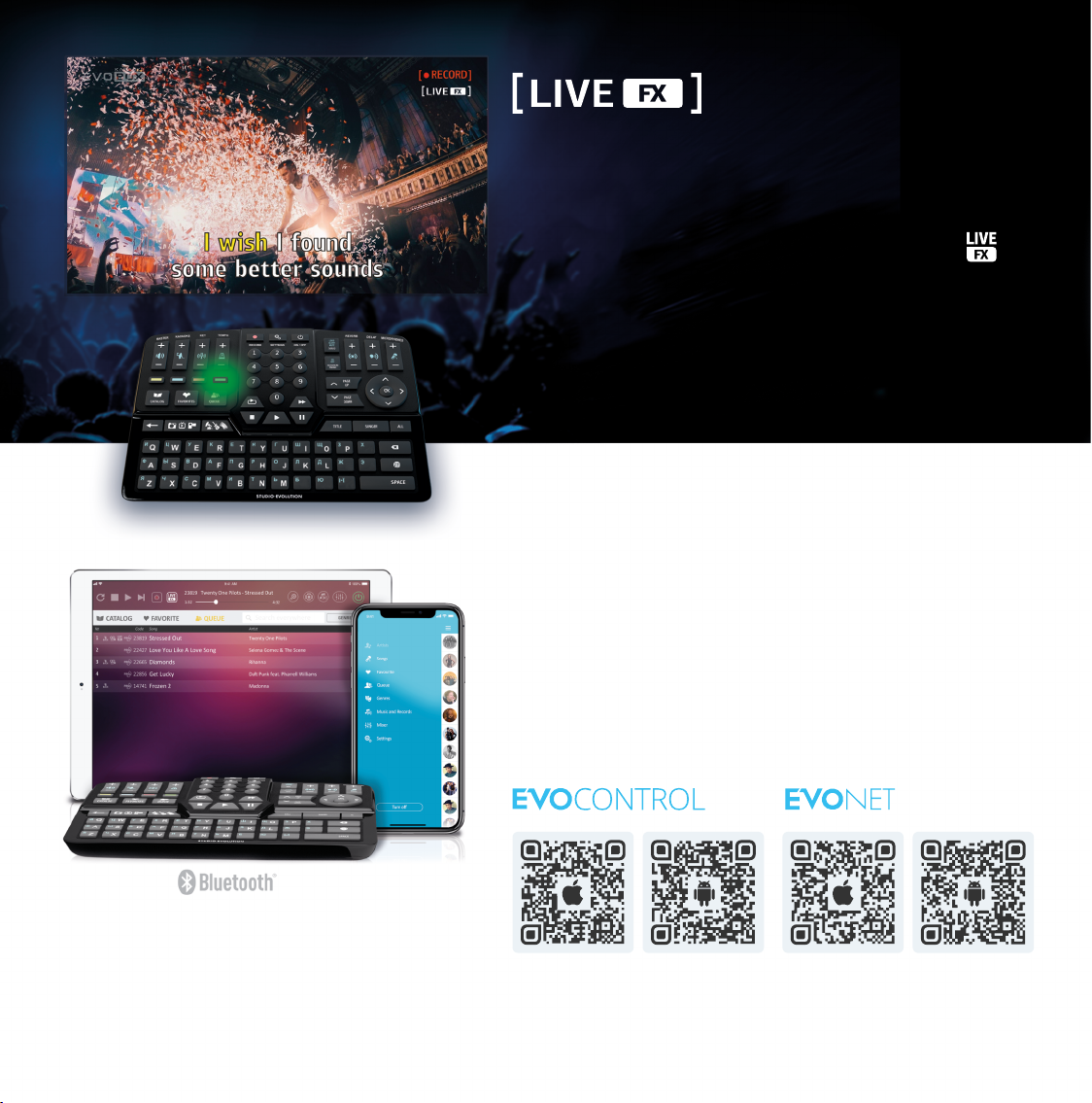

The live concert effect
LiveFX is created individually for each song, so you can feel the
special atmosphere of a live concert.
LiveFX is available for tracks marked with the special icon .
Use the green function key to enable/disable the effect.
Smart control
You can control the EVOBOX karaoke system using its Bluetooth
remote control with a full-size keyboard, as well as rely on our official
applications:
EVONET — to control EVOBOX from a smartphone.
EVOCONTROL — to control EVOBOX from a tablet.
Record your concerts
Record your performances with EVOBOX in studio quality. To
enable it, press the Record key on the remote control or tap a
similar button in the application interface.
You can easily copy the recordings to a USB drive or instantly share
them with your friends and family members via instant
messengers or social networks, with the application.
Microphone Settings
For a more voluminous and spectacular sound of your voice,
we recommend adjusting the microphones.
Go to EVOBOX's Settings, select the Audio section and
go to the Microphones subsection .
Adjust the EQ for your voice, select the gain level for
microphones and choose the following effect types: Deley,
Reverb. Use the remote control or app to adjust the effects.

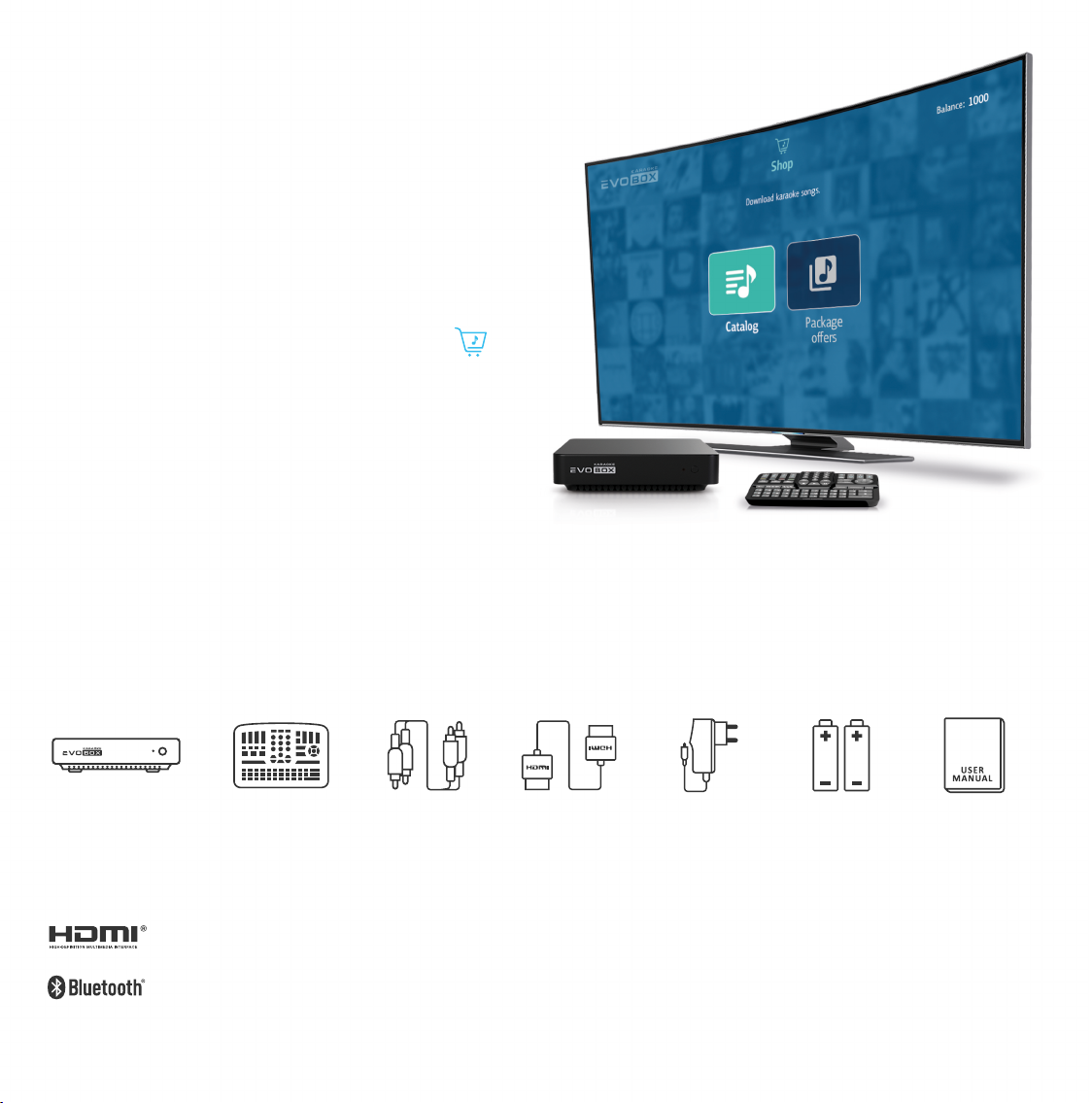

Buy more songs
At any time you can purchase songs and various karaoke
collections at a special price from the Studio Evolution karaoke
catalog.
The Studio Evolution catalog gets updated several times a week
so you could enjoy singing new hits.
To purchase a song, follow these steps:
1. Make sure the karaoke system is connected to the
Internet.
2. Open the Settings and select the Shop section .
3.
Add money to your balance by following the
instructions on the TV screen.
Choose between the Catalog and Package offers
4.
subsections.
5. Select a song or a package you are interested in and
press OK on the remote control.
6. Wait until the song is downloaded to your karaoke system. Enjoy singing!
What's inside
EVOBOX
Karaoke system
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI logo are registered trademarks of HDMI Licensing
Administrator, Inc.
The Bluetooth logo and the term itself are registered trademarks owned by Bluetooth SIG Inc. Any use of the trademark/term is
licensed.
Bluetooth
remote control
2×RCA-2×RCA
Audio cables
HDMI Cable AC/DC Adapter 2×АА Batteries Quick
Start Guide
Specifications
Casing colors available
Black, Graphite, Silver, Ocean, Gold, Ruby
Dimensions and weight
Height 49 mm, Width 198 mm, Length 198 mm, Weight 870 g
Control
Bluetooth remote control
Mobile applications for smartphones (EVONET) and tablets (EVOCONTROL).
Audio inputs
Microphone inputs: Balanced TRS 6.3 (Jack) (2 pc.)
Maximum microphone input gain: 32.5 dB
Maximum input amplitude: +0.14 dBu (0.788Vrms)
Input signal/noise ratio: -95.9 dB (A-weighted)
Dynamic range: 95.7 dB
Harmonic distortion + noise: 0.0011%
Bandwidth: (+/- 0.5 dB) 50 Hz - 20 kHz
Cross-channel penetration: -95.3 dB
Input resistance: 25 kOhm
Audio ADC: Asahi Kasei Microdevices AK5703
Audio outputs
Stereo outputs: RCA, (2pc.)
Input signal/noise ratio: 99.3 dB (A-weighted)
Dynamic range: 99.4 dB
Harmonic distortion + noise: 0.005%
Bandwidth: (+/- 0.5 dB) 20 Hz - 20 kHz
Cross-channel penetration: -98.3 dB
Maximum output amplitude: +4.7 dBu (1.34 Vrms)
Output resistance: 470 Ohm
Audio DAC: Cirrus Logic CS4345
Supported file formats
Video: MOV, AVI, MP4, MKV
Audio: WAV, OGG, MP3
Graphic: PNG, JPG, JPEG
Karaoke: EK2
Connectors and Interfaces
Wi-Fi 802.11ac.; Two
ranges: 2.4 GHz and 5 GHz
Bluetooth 4.1 Low Energy
HDMI 2.0
USB Type-A (2 pc.)
Gigabit LAN (RJ45)
Power connector
Drives
Type: SSD
Capacity: 120 GB
System
Processor: Quad-Core Cortex-A53
RAM: 2 GB DDR4
Graphics and multimedia processors:
Mali-T820 MP3 GPU
Other
Питание: 12 V / 2 А
Power consumption: 24 W
Temperature range: 0-50 ºC
Transport box size
(W × H × L), mm: 313 × 124 × 316
Video
The maximum screen resolution: — 4K UHD (3840 × 2160)
Visit support.studio-evolution.com to learn more about the way you can use the EVOBOX karaoke system.
Please note that the appearance and interface of the equipment may differ from those described in this manual.
