Evolution EVO42 Original Instruction Manual
www.evolutionsteel.com
Guard omitted for illustrative purposes only.
EVO42
42mm MAGNETIC DRILLING SYSTEM
Original
Instruction
Manual
Read instructions before operating this tool.
www.evolutionsteel.com
3
Original
Instruction
Manual
Read instructions before operating this tool.
GB
TABLE OF CONTENTS GB
EC - Declaration of Conformity p3
Important Information p4
12 Month Limited Warranty p4
General Safety Rules p4
Health Advice p5
Specific Safety Rules p6
Additional Safety Advice p6
Labels & Symbols p7
Specifications p7
Assembly p8
Getting Started p9
Operating Instructions p10
Operating Advice p10
Maintenance p11
Environmental Protection p11

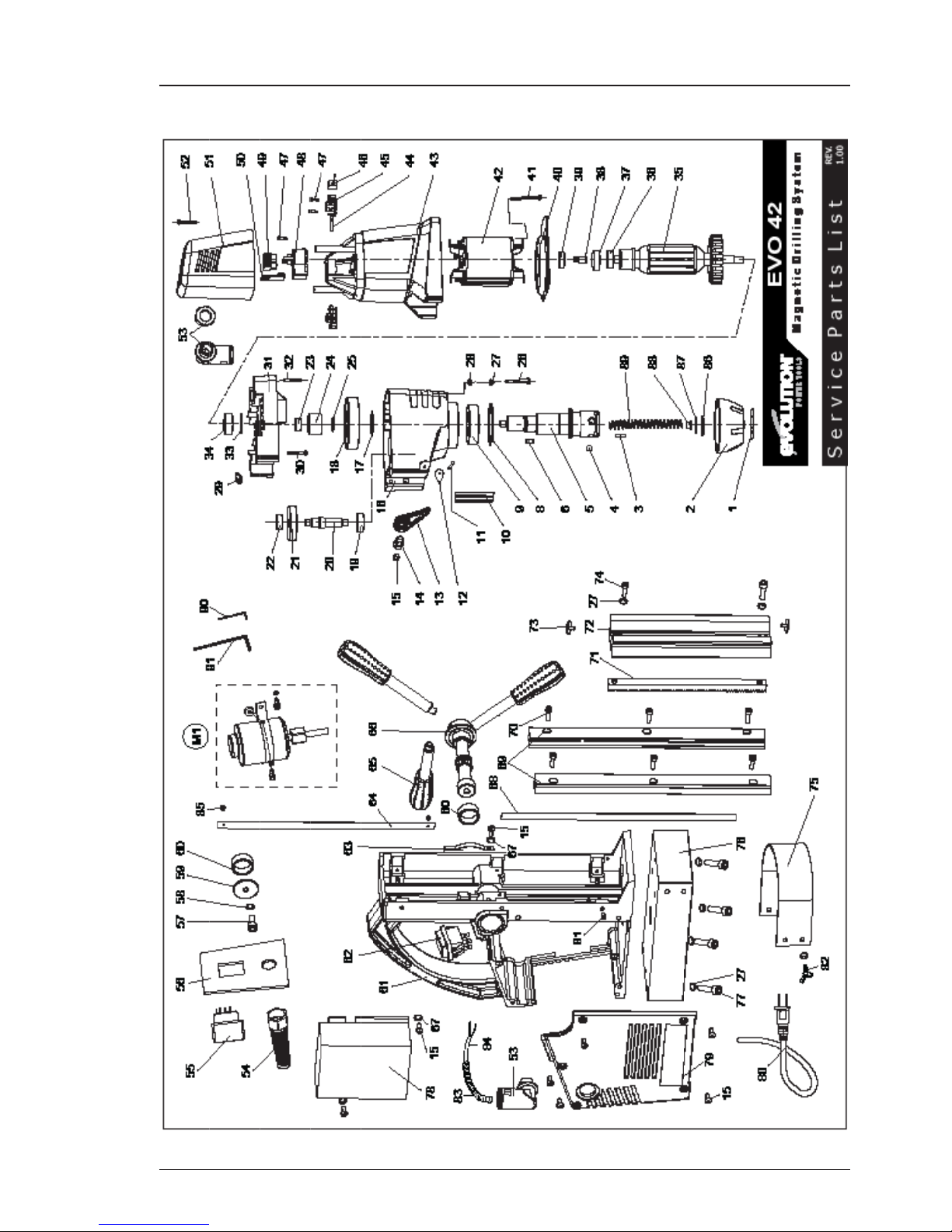

Service Parts Diagram p12
Original Instructions
This instruction manual was originally written
in English.
EC - DECLARATION OF CONFORMITY GB
We, manufacturer and importer
Evolution Power Tools Ltd.
Venture One
Sheffield
S20 3FR
Declare that the product
Part numbers: EVO42
Evolution: EVO42
42mm Magnetic Drilling System
Complies with the essential requirements of the
following European Directives:
2006/42/EC – Machine Directive
2006/95/EC – Low Voltage Directive
2004/108/EC – EMC Directive
2002/95/EC – Restriction of the use of Certain
Hazardous Substances in Electrical and Electric
Equipment
The following standards have been applied:
EN55014-1 : 2006
EN55014-2 : 1997+A1+A2
EN61000-3-2 : 2000
EN61000-3-3 : 1995+A1+A2
EN61029-2-9 : 2002
EN60825-1 : 1994+A1+A2
EN61029-1:2009
EN ISO 12100-2/A1:2009
ISO 12100-2:2003
All documentation is held on file at the above
address and is available, on request for review.
Authorised Signatory
Date: 21/10/2011
Mr Matthew J Gavins
Managing Director
EVO42
www.evolutionsteel.com
4
IMPORTANT INFORMATION
GB
Please read these operating and safety instructions
carefully and completely. For your own safety, before
using this equipment check that the voltage is correct
and that all handles and parts are firmly secured.
If you are uncertain about any aspect of using this
equipment, please contact our Technical Helpline.
Technical Helpline UK: 0870 609 2297
Congratulations on your purchase of an
Evolution Power Tools machine.
Please complete your product registration
online to validate your machine’s warranty
period and ensure prompt service if needed.
We sincerely thank you for selecting a product
from Evolution Power Tools.
12 MONTH LIMITED WARRANTY
GB
Evolution power tools reserves the right to
make improvements and modifications to
design without prior notice.
Evolution Power Tools will, within twelve (12)
months from the original date of purchase, repair
or replace any goods found to be defective in
materials or workmanship. This warranty is void
if the machine being returned has been used to
cut materials beyond the recommendations in the
Instruction Manual or if the machine has been
damaged by accident, neglect, or improper service.
This warranty does not apply to machines and / or
components which have been altered, changed, or
modified in any way, or subjected to use beyond
recommended capacities and specifications.
Electrical components are subject to respective
manufacturers’ warranties. All goods returned
defective shall be returned prepaid freight to
Evolution Power Tools. Evolution Power Tools
reserves the right to optionally repair or replace
it with the same or equivalent item. There is
no warranty – written or verbal – for drill bits or
cutters. In no event shall Evolution Power Tools
be liable for loss or damage resulting directly or
indirectly from the use of our merchandise or from
any other cause.
Evolution Power Tools is not liable for any costs
incurred on such goods or consequential damages.
No officer, employee or agent of Evolution Power
Tools is authorised to make oral representations of
fitness or to waive any of the foregoing terms of
sale and none shall be binding on Evolution Power
Tools. Questions relating to this limited warranty
should be directed to the company’s head office or
call the appropriate Helpline number.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of electric shock, this equipment
is fitted with an approved cord and plug for its
intended country of use. Do not change the cord or
plug in any way.
GENERAL SAFETY RULES
GB
WARNING: When using electric tools, basic safety
precautions should always be followed to reduce
the risk of fire, electric shock and personal injury.
Please read all of these instructions before
attempting to operate this machine. Save this
manual for future reference.
1. Keep work area clear. Cluttered work areas invite
accidents.
2. Consider work area environment. Do not expose
tools to rain. Do not use tools in damp or wet
locations. Keep work area well lit. Do not use tools
in the presence of flammable liquids or gases.
3. Guard against electric shock. Avoid body contact
with earthed or grounded surfaces (e.g. pipes,
radiators, ranges, refrigerators).
4. Keep other people away. Do not let others,
especially children, come close to the work, and
touch the tool or the extension lead. Keep them
away from the work area.
www.evolutionsteel.com
5
5. Store idle tools. When not in use, tools should
be stored in a dry locked-up place, out of reach of
children.
6. Do not force the tool. It will do the job better and
safer at the rate for which it was intended.
7. Use the right tool. Do not force small tools to
do the job of a heavy duty tool. Do not use tools
for purposes not intended; for example do not use
circular saws to cut tree limbs or logs.
8. Dress properly. Do not wear loose clothing or
jewellery, they can be caught in moving parts.
Non-skid footwear is recommended when working
outdoors. Wear protective hair covering to contain
long hair.
9. Use protective equipment. Use safety glasses. Use
face or dust mask if working operations create dust.
10. Connect dust extraction equipment. If the tool
is provided for the connection of dust extraction
and collection equipment, ensure these are
connected and properly used.
11. Do not abuse the cord. Never yank the cord to
disconnect it from the socket. Keep the cord away
from heat, oil and sharp edges.
12. Secure work. Where possible, use clamps or
a vice to hold the work. It’s much safer than using
your hand.
13. Don’t over reach. Keep proper footing and
balance at all times.
14. Maintain tools with care. Keep cutting tools
sharp and clean for better and safer performance.
Follow instructions for lubricating and changing
accessories. Inspect tool cords periodically and,
if damaged, have them repaired by an authorised
service facility. Inspect extension cord periodically
and replace immediately if damaged. Keep handles
dry, clean and free from oil and grease.
15. Disconnect tools. When not in use, before any
servicing and when changing accessories such
as blades, bits, cutters, disconnect tool from the
power source
16. Remove adjusting keys and spanners. Form
the habit of checking to see the keys and adjusting
spanners are removed from the tool before turning it on.
17. Avoid unintentional starting. Ensure switch is in
“off” position when plugging in.
18. Use outdoor extension leads. When the tool is
used outdoors, use only extension cords intended
for outdoor use and so marked.
19. Stay alert. Watch what you are doing, use
common sense and do not operate the tool when
you are tired.
20. Check damaged parts. Before further use of
tool, it should be carefully checked to determine
that it will operate properly and perform the
intended function. Check for alignment of moving
parts, mountings and any other components that
may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced
by an authorised service centre unless otherwise
indicated in this instruction manual. Have defective
switches replaced by an authorised service centre.
Do not use the tool if the switch does not turn it
on and off.
21. WARNING. The use of any accessory or
attachment other than one recommended in this
instruction manual may present a risk of personal injury.
22. Have your tool repaired by a qualified person.
This electric tool complies with relevant safety
rules. Repairs should only be carried out by
qualified persons using original spare parts.
Otherwise this may result in considerable danger
to the user.
HEALTH ADVICE
GB
WARNING: When drilling, sanding, sawing or
grinding, dust particles will be produced. In some
instances, depending on the materials you are
working with, this dust can be particularly harmful
to you (e.g. lead from old gloss paint).You are
advised to consider the risks associated with the
materials you are working with and to reduce the
risk of exposure.
You should:
• Work in a well-ventilated area.
• Work with approved safety equipment, such as
dust masks that are specially designed to filter
microscopic particles.
