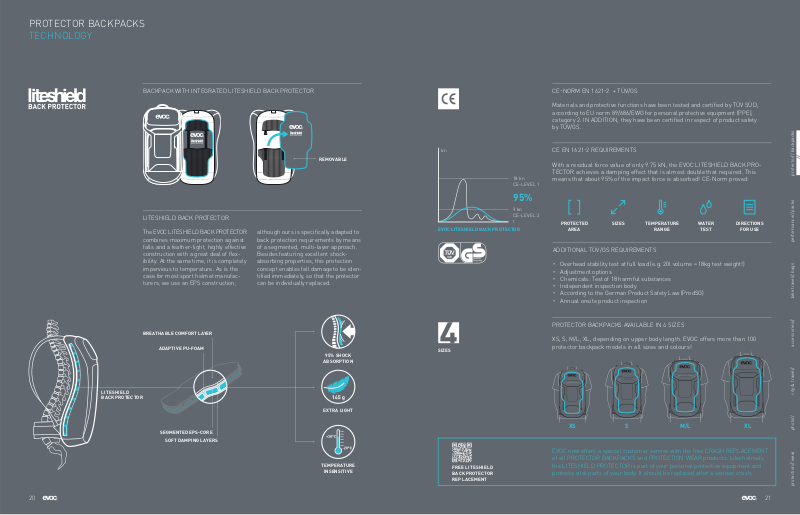

PROTECTOR BACKPACKS

TECHNOLOGY

BACKPACK WITH INTEGRATED LITESHIELD BACK PROTECTOR

LITESHIELD BACK PROTECTOR

The EVOC LITESHIELD BACK PROTECTOR
combines maximum protection against
falls and a feather-light, highly effective
construction with a great deal of flex­ibility. At the same time, it is completely
impervious to temperature. As is the
case for most sport helmet manufac­turers, we use an EPS construction,

although ours is specifically adapted to
back protection requirements by means
of a segmented, multi-layer approach.
Besides featuring excellent shock­absorbing properties, this protection
concept enables fall damage to be iden­tified immediately, so that the protector
can be individually replaced.

REMOVABLE

kn

18 kn
CE-LE VEL 1

95%

9 kn
CE-LE VEL 2
t

EVOC LITE SHIELD BACK PR OTEC TOR

CE-NORM EN 1621-2 + TÜV/GS

Materials and protective functions have been tested and certified by TÜV SÜD,
according to EU norm 89/686/EWG for personal protective equipment (PPE),
category 2. IN ADDITION, they have been certified in respect of product safety
by TÜV/GS.

CE EN 1621-2 REQUIREMENTS

With a residual force value of only 9.75 kN, the EVOC LITESHIELD BACK PRO­TECTOR achieves a damping effect that is almost double that required. This
means that about 95% of the impact force is absorbed! CE-Norm proved:

PROTECTED

AREA

SIZES WATER

TEMPERATURE

RANGE

TEST

DIRECTIONS

FOR USE

ADDITIONAL TÜV/GS REQUIREMENTS

 Overhead stability test at full load (e.g. 20l volume = 18kg test weight!)
 Adjustment options
 Chemicals: Test of 18 harmful substances
 Independent inspection body
 According to the German Product Safety Law (ProdSG)
 Annual onsite product inspection

protector// backpacksperformance// packsaccessories// bike travel// bagsphoto//protection// wear city & travel//

LITESHIELD
BACK PROTECTOR

BREATHABL E COMFORT L AYER

ADAPTIV E PU- FOAM

SEGMENTED EP S-C ORE

SOFT DAMPI NG LAYERS

95% SHO CK

ABSORPTION

EX TRA L IGHT

TEMPE RATURE

INSENSITIVE

SIZES

FREE LITESHIELD
BACK PROTECTOR
REPLACEMENT

PROTECTOR BACKPACKS AVAILABLE IN 4 SIZES

XS, S, M/L, XL, depending on upper body length. EVOC offers more than 100
protector backpack models in all sizes and colours!

XS S M/L XL

EVOC now offers a special customer service with the free CRASH REPLACEMENT
of all PROTECTOR BACKPACKS and PROTECTION WEAR products. Like helmets
the LITESHIELD PROTECTOR is part of your personal protective equipment and
protects vital parts of your body. It should be replaced after a serious crash.

2120

PROTECTOR BACKPACKS

TECHNOLOGY

LITESHIELD SYSTEM

01

02

02

01

The core component of the protector
backpack system is the extra-wide,
ergonomically shaped 01 neoprene
hip belt with Velcro fastening and a
large heavy-duty buckle. This system
transfers the main load onto the hips,
namely right to the body’s centre of
gravity. At the same time, the ergo­nomically cut shoulder straps keep the

LITESHIELD SYSTEM AIR

This system combines the essential
back proximity for a back protector with
maximum back ventilation. The back
area is close fitting and features a lar­ge, central ventilation channel as well
as two rows of “ventilation grids”: air
mesh-covered 02 EVA foam strips with
ventilation holes and a special gabled
groove reduce the contact surface on

backpack comfortably in the predefined
position to guarantee perfect back
protection. The necessary proximity
to the back of the 02 back protector is
ensured through mesh elements, EVA
foam with ventilation holes and a large,
central ventilation channel for maxi­mum air circulation.

the back, which improves air circula­tion. The extra-wide, ergonomically
shaped 01 hip belt is made from our
AIRO FLEX material. In this way, the
main load – even in the case of a fully
loaded backpack – is transferred to the
hips, where it is fixed, while optimum
breathability is ensured.

22

AIRO FLEX is an extremely sturdy mate­rial that is both permeable and flexible.
We use it for our top-quality hip belts

to ensure optimum load transfer to the
hips, with simultaneous maximum ven­tilation – for utmost carrying comfort.

PROTECTOR BACKPACKS

NEW: FR TRACK 10l

RED - RUBY

100113503-XS

LITESHIELD
SYSTEM

MATERIAL
N210 D Ripstop
PU coated, 3D Air
Mesh, Air Mesh,
Neoprene, P600 D
PU coated

32

Back protection for XS riders. Fully equipped protector
backpack for riders with shorter backs.

• LITESHIELD BACK PROTECTOR offers 95% shock absorption

• Attachment system for: helmet (XC, full face)

• Accommodates hydration systems up to 2 l

• FREE PROTECTOR CRASH REPLACEMENT

BLACK ­SLATE ­COPEN BLUE

100113227-XS

10 l, 820 g, 22 x 45 x 10 cm

FEATURES
