PROTECTOR BACKPACKS
TECHNOLOGY

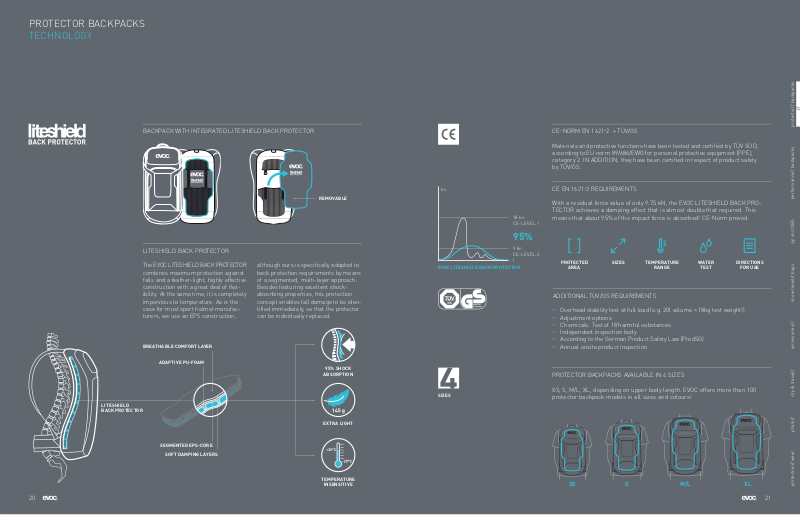

BACKPACK WITH INTEGRATED LITESHIELD BACK PROTECTOR
LITESHIELD BACK PROTECTOR
The EVOC LITESHIELD BACK PROTECTOR
combines maximum protection against
falls and a feather-light, highly effective
construction with a great deal of flexibility. At the same time, it is completely
impervious to temperature. As is the
case for most sport helmet manufacturers, we use an EPS construction,
BREATHABL E COMFO RT LAYER
although ours is specifically adapted to
back protection requirements by means
of a segmented, multi-layer approach.
Besides featuring excellent shockabsorbing properties, this protection
concept enables fall damage to be identified immediately, so that the protector
can be individually replaced.
REMOVABLE
kn
18 kn
CE-LEVEL 1
95%
9 kn
CE-LEVEL 2
t
EVOC LITESHIELD BACK PROTECTOR
CENORM EN 16212 + TÜV/GS
Materials and protective functions have been tested and certified by TÜV SÜD,
according to EU norm 89/686/EWG for personal protective equipment (PPE),
category 2. IN ADDITION, they have been certified in respect of product safety
by TÜV/GS.
CE EN 16212 REQUIREMENTS
With a residual force value of only 9.75 kN, the EVOC LITESHIELD BACK PROTECTOR achieves a damping effect that is almost double that required. This
means that about 95% of the impact force is absorbed! CE-Norm proved:
PROTECTED
AREA
SIZES WATER
TEMPERATURE
RANGE
TEST
DIRECTIONS
FOR USE
ADDITIONAL TÜV/GS REQUIREMENTS
x Overhead stability test at full load (e.g. 20l volume = 18kg test weight!)
x Adjustment options
x Chemicals: Test of 18 harmful substances
x Independent inspection body
x According to the German Product Safety Law (ProdSG)
x Annual onsite product inspection
ADAPTIVE PU-FOAM
LITESHIELD
BACK PROTECTOR
SEGMENTED EPS-CORE
SOFT DAMPING LAYERS
20 21
20 21
95% SHO CK
ABSORPTION
EX TRA L IGHT
TEMPERATURE
INSENSITIVE
SIZES
PROTECTOR BACKPACKS AVAILABLE IN 4 SIZES
XS, S, M/L, XL, depending on upper body length. EVOC offers more than 100
protector backpack models in all sizes and colours!
XS S M/L XL
protection// wear city & travel// protector// backpacksperformance// backpackszip on// ABSsnow travel// bagsaccessories//photo//
protection// wear city & travel// protector// backpacksperformance// backpackszip on// ABSsnow travel// bags accessories//photo//
PROTECTOR BACKPACKS
TECHNOLOGY
LITESHIELD SYSTEM
01
02
02
01
The core component of the protector
backpack system is the extra-wide,
ergonomically shaped 01 neoprene
hip belt with Velcro fastening and a
large heavy-duty buckle. This system
transfers the main load onto the hips,
namely right to the body’s centre of
gravity. At the same time, the ergonomically cut shoulder straps keep the
LITESHIELD SYSTEM AIR
This system combines the essential
back proximity for a back protector with
maximum back ventilation. The back
area is close fitting and features a large, central ventilation channel as well
as two rows of “ventilation grids”: air
mesh-covered 02 EVA foam strips with
ventilation holes and a special gabled
groove reduce the contact surface on
backpack comfortably in the predefined
position to guarantee perfect back
protection. The necessary proximity
to the back of the 02 back protector is
ensured through mesh elements, EVA
foam with ventilation holes and a large,
central ventilation channel for maximum air circulation.
the back, which improves air circulation. The extra-wide, ergonomically
shaped 01 hip belt is made from our
AIRO FLEX material. In this way, the
main load – even in the case of a fully
loaded backpack – is transferred to the
hips, where it is fixed, while optimum
breathability is ensured.
22
22
AIRO FLEX
AIRO FLEX is an extremely sturdy material that is both permeable and flexible.
We use it for our top-quality hip belts
to ensure optimum load transfer to the
hips, with simultaneous maximum ventilation – for utmost carrying comfort.
PROTECTOR BACKPACKS
PROTECTOR BACKPACKS
FR GUIDE // 30l
FR GUIDE TEAM // 30l
OLIVE - SULPHUR
S 6202 - 264
M/L 6202 - 464
XL 6202 - 664
FEATURES
24 25
Technical touring pack with integrated back protector. The
load distribution is neutral to movement and offers maximum carrying comfort and protection when touring.
x LITESHIELD BACK PROTECTOR offers 95% shock absorption
x Quick-access avalanche compartment with emergency plan
x Attachemt systems for ski and snowboard
x TEAM Edition including HELMET HOLDER
30 l, 1450 g, 27 x 56 x 22 cm
MATERIALS
N210/D Ripstop PU coated, N840/D PU
coated, Air Mesh, Neoprene
RED
S 7201 - 256
M/L 7201 - 456
XL 7201 - 656
ATTACHMENT
SYSTEMS FOR SKI,
2 ICE AXES AND
HELMET HOLDER
The Edition is designed together with
our athletes. The FR GUIDE TEAM is a special
colour variation of the FR GUIDE and comes
with a HELMET HOLDER.
SULPHUR
S 7202 265
M/L 7202 465
XL 7202 656
