Evo 100095NG Specifications
Evo, Inc.
20560 SW 115th Ave.
Tualatin, OR 97062
P 503-626-1802 • F 503-213-5869
www.evoamerica.com

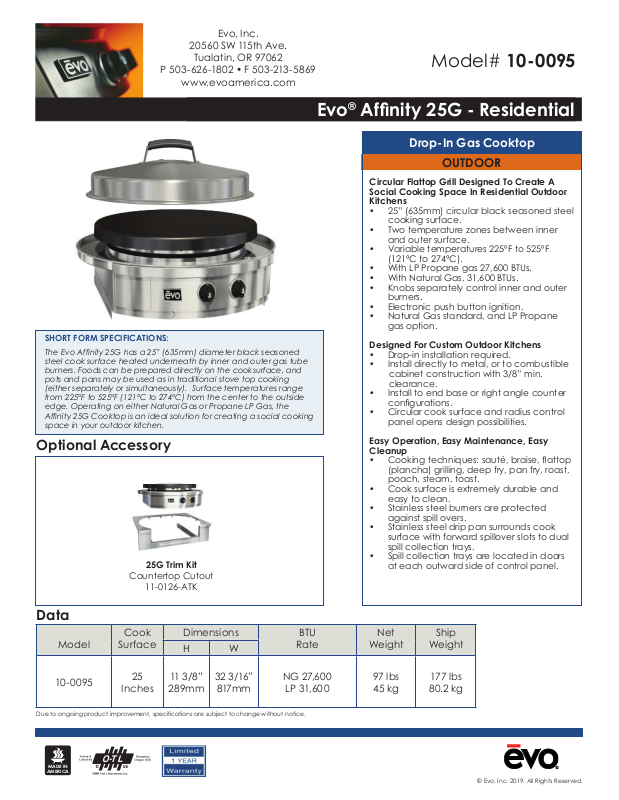

SHORT FORM SPECIFICATIONS:
The Evo Affi nity 25G has a 25” (635mm) diameter black seasoned
steel cook surface heated underneath by inner and outer gas tube
burners. Foods can be prepared directly on the cooksurface, and
pots and pans may be used as in traditional stove top cooking
(either separately or simultaneously). Surface temperatures range
from 225ºF to 525ºF (121ºC to 274ºC) from the center to the outside
edge. Operating on either Natural Gas or Propane LP Gas, the
Affi nity 25G Cooktop is an ideal solution for creating a social cooking
space in your outdoor kitchen.
Optional Accessory
25G Trim Kit
Countertop Cutout
11-0126-ATK
Model#R10-0095
Evo® Affi nity 25G - Residential
Drop-In Gas Cooktop
OUTDOOR
Circular Flattop Grill Designed To Create A
Social Cooking Space In Residential Outdoor
Kitchens
• 25” (635mm) circular black seasoned steel
cooking surface.
• Two temperature zones between inner
and outer surface.
• Variable temperatures 225ºF to 525ºF
(121ºC to 274ºC).
• With LP Propane gas 27,600 BTUs.
• With Natural Gas, 31,600 BTUs.
• Knobs separately control inner and outer
burners.
• Electronic push button ignition.
• Natural Gas standard, and LP Propane
gas option.
Designed For Custom Outdoor Kitchens
• Drop-in installation required.
• Install directly to metal, or to combustible
cabinet construction with 3/8” min.
clearance.
• Install to end base or right angle counter
confi gurations.
• Circular cook surface and radius control
panel opens design possibilities.
Easy Operation, Easy Maintenance, Easy
Cleanup
• Cooking techniques: sauté, braise, fl attop
(plancha) grilling, deep fry, pan fry, roast,
poach, steam, toast.
• Cook surface is extremely durable and
easy to clean.
• Stainless steel burners are protected
against spill overs.
• Stainless steel drip pan surrounds cook
surface with forward spillover slots to dual
spill collection trays.
• Spill collection trays are located in doors
at each outward side of control panel.
Data
Cook
Model
10-0095
Due to ongoing product improvement, specifi cations are subject to change without notice.
MADE IN
AMERICA
Surface
25
Inches
Dimensions BTU
HW
11 3 / 8”
289mm
32 3/16”
817mm
Rate
NG 27,600
LP 31,600
Net
Weight
97 lbs
45 kg
Ship
Weight
177 lbs
80.2 kg
© Evo, Inc. 2019. All Rights Reserved.
R
Model#
11 3/8”
289mm
6 1/2”
165mm
7 5/8”
193mm
10-0095 Evo® Affi nity 25G - Residential
3 1/2”
89mm
113/32”
36mm
6 3/8”
162mm
12”
305mm
6 15/16”
176mm
21 3/16”
538mm
25”
635mm
32 3/16”
817mm
23 7/8”
607mm
31 5/8”
803mm
Mounting Locations
23 7/8”
607mm
Side-Opening
Collection Doors (2)
1 1/2”
39mm
1 7/8”
48mm
21 3/16”
538mm
Inlet Gas
INSTALLATION REQUIREMENTS
Bulkhead
Cooking surface must be installed level.
Outdoor installation with minimum 36” (914mm) to adjacent
combustible construction extending above the top of the appliance
and 12”(605mm) from sides and back.
NATURAL GAS CONNECTION LP PROPANE CONNECTION
OPERATING PRESSURE
No regulator, connect to an outlet pressure of 7” water column.
INLET / SUPPLY CONNECTION
1/2” FNPT. 12’ Hose with 1/2” FNPT Quick Disconnect Supplied.
1/2” NPT to 3/8” Flare supplied.
BTUs: 27,600
CONNECTION LOCATION
Gas pipe right rear chassis.
OPERATING PRESSURE
Regulator is set for an outlet pressure of 11” water column.
INLET / SUPPLY CONNECTION
1/2” FNPT Inlet. 5’ Hose & Regulator with QCC1 Supplied.
1/2” NPT to 3/8” Flare supplied.
BTUs: 31,600
CONNECTION LOCATION
Gas pipe right rear chassis.
DIMENSIONS WEIGHT
MAXIMUM (H X W)
11 3/8” x 32-3/16” (289mm x 817mm)
NET: 97 lb EST. (45 kg)
SHIP: 177 lb EST (80.2 kg)
COOK SURFACE
25” diameter (605mm)
CRATE DIMENSIONS: 42” x 42” x 24” (1066mm x 1066mm x 610mm)
STANDARD FEATURES ACCESSORIES INCLUDED
• 25” circular black seasoned steel cook surface over dual
independent manually controlled gas burners.
• 2 removable spill over trays contained in front doors.
• Electronic push button ignition.
• Stainless steel lid.
• Professional grill surface cleaning kit (3M brand) - Includes handle,
cook surface cleaning pad and screen.
• 2 stainless steel spatulas, 1 stainless steel scraper.
• Owner’s Manual, Use and Care Instructions & Evo Color Illustrated
Cookbook.
• Mounting brackets included.
22 7/8”
581mm
17 3/4”
451mm
Ph 503-626-1802 • Fax 503-213-5869 • www.evoamerica.com • sales@evoamerica.com
Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062
®
Evo
is protected under U.S. Patents 6,189,530 and 6,488,022, and U.S. Patents Pending
