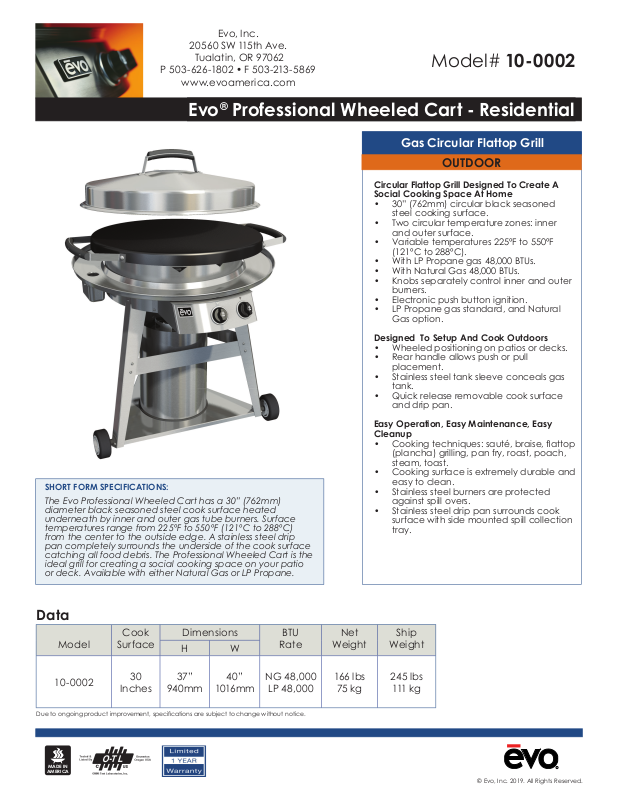

Page 1
Evo, Inc.
20560 SW 115th Ave.
Tualatin, OR 97062
P 503-626-1802 • F 503-213-5869
Model#R10-0002
www.evoamerica.com
Evo® Professional Wheeled Cart - Residential
Gas Circular Flattop Grill
OUTDOOR
Circular Flattop Grill Designed To Create A
Social Cooking Space At Home
• 30” (762mm) circular black seasoned
steel cooking surface.
• Two circular temperature zones: inner
and outer surface.
• Variable temperatures 225ºF to 550ºF
(121ºC to 288ºC).
• With LP Propane gas 48,000 BTUs.
• With Natural Gas 48,000 BTUs.
• Knobs separately control inner and outer
burners.
• Electronic push button ignition.
• LP Propane gas standard, and Natural
Gas option.
SHORT FORM SPECIFICATIONS:
The Evo Professional Wheeled Cart has a 30” (762mm)
diameter black seasoned steel cook surface heated
underneath by inner and outer gas tube burners. Surface
temperatures range from 225ºF to 550ºF (121ºC to 288ºC)
from the center to the outside edge. A stainless steel drip
pan completely surrounds the underside of the cook surface
catching all food debris. The Professional Wheeled Cart is the
ideal grill for creating a social cooking space on your patio
or deck. Available with either Natural Gas or LP Propane.
Data
Model
Cook
Surface
Dimensions BTU
HW
Rate
Net
Weight
Designed To Setup And Cook Outdoors
• Wheeled positioning on patios or decks.
• Rear handle allows push or pull
placement.
• Stainless steel tank sleeve conceals gas
tank.
• Quick release removable cook surface
and drip pan.
Easy Operation, Easy Maintenance, Easy
Cleanup
• Cooking techniques: sauté, braise, fl attop
(plancha) grilling, pan fry, roast, poach,
steam, toast.
• Cooking surface is extremely durable and
easy to clean.
• Stainless steel burners are protected
against spill overs.
• Stainless steel drip pan surrounds cook
surface with side mounted spill collection
tray.
Ship
Weight
10-0002
Due to ongoing product improvement, specifi cations are subject to change without notice.
MADE IN
AMERICA
30
Inches
37”
940mm
40”
1016mm
NG 48,000
LP 48,000
166 lbs
75 kg
245 lbs
111 k g
© Evo, Inc. 2019. All Rights Reserved.
Page 2
R
Model#
10-0002 Evo® Professional Wheeled Cart - Residential
30”
762mm
Optional Accessories
40”
1016mm
37”
940mm
46”
Vinyl Cover
1168mm
For Protection
12-0102-ACB
INSTALLATION REQUIREMENTS
Cooking surface must be installed level.
Outdoor installation with minimum 12” (305mm) to adjacent
combustible construction extended above the top of the appliance:
12” (305mm) from sides and 12”(305mm) from back.
NATURAL GAS CONNECTION LP PROPANE CONNECTION
OPERATING PRESSURE
No regulator, connect to an outlet pressure of 7” water column.
INLET / SUPPLY CONNECTION
1/2” FNPT. 12’ Hose with 1/2” FNPT Quick Disconnect Supplied.
1/2” NPT to 3/8” Flare supplied.
BTUs: 48,000
CONNECTION LOCATION
Under Front Control Panel.
DIMENSIONS WEIGHT
MAXIMUM (H X W)
46” x 40” with hood (1168mm x 1016mm)
37” x 40” without hood (940mm x 1016mm)
COOK SURFACE
30” diameter (762mm)
STANDARD FEATURES ACCESSORIES INCLUDED
• 30” circular black seasoned steel cook surface over dual
independent manually controlled gas burners.
• Quick release removable cook surface and drip pan.
• Electronic push button ignition.
• Stainless steel lid.
Ph 503-626-1802 • Fax 503-213-5869 • www.evoamerica.com • [email protected]
®
Evo
is protected under U.S. Patents 6,189,530 and 6,488,022, and U.S. Patents Pending
Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062
OPERATING PRESSURE
Regulator is set for an outlet pressure of 11” water column.
INLET / SUPPLY CONNECTION
1/2” FNPT Inlet. 5’ Hose & Regulator with QCC1 Supplied.
1/2” NPT to 3/8” Flare supplied.
BTUs: 48,000
CONNECTION LOCATION
Under Front Control Panel.
NET: 166 lb EST. (75 kg)
SHIP: 245 lb EST (111 kg)
CRATE DIMENSIONS: 48” x 48” x 52” (1219mm x 1219mm x 1321mm)
• Professional grill surface cleaning kit (3M brand) - Includes handle,
cook surface cleaning pad and screen.
• 2 stainless steel spatulas, 1 stainless steel scraper, stainless steel
cleaner and protectant.
• Owner’s Manual, Use and Care Instructions & Evo Color Illustrated
Cookbook.
