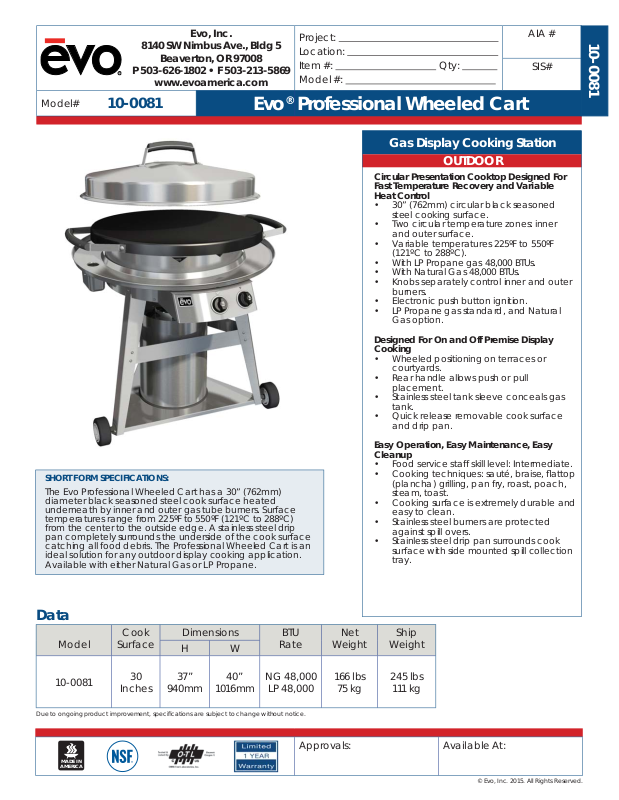

EVO 10-0081 User Manual
Evo, Inc.
8140 SW Nimbus Ave., Bldg 5
Beaverton, OR 97008
P 503-626-1802 • F 503-21 3-5869
R
www.evoamerica.com
Project:
Location:
Item #: Qty:
Model #:
AIA #
SIS#
10-0081
Model#
10-0081
Evo® Professional Wheeled Cart
Gas Display Cooking Station
OUTDOOR
Circular Presentation Cooktop Designed For
Fast Temperature Recovery and Variable
Heat Control
• 30” (762mm) circular black seasoned
steel cooking surface.
• Two circular temperature zones: inner
and outer surface.
• Variable temperatures 225ºF to 550ºF
(121ºC to 288ºC).
• With LP Propane gas 48,000 BTUs.
• With Natural Gas 48,000 BTUs.
• Knobs separately control inner and outer
burners.
• Electronic push button ignition.
• LP Propane gas standard, and Natural
Gas option.
Designed For On and Off Premise Display
Cooking
• Wheeled positioning on terraces or
courtyards.
• Rear handle allows push or pull
placement.
• Stainless steel tank sleeve conceals gas
tank.
• Quick release removable cook surface
and drip pan.
SHORT FORM SPECIFICATIONS:
The Evo Professional Wheeled Cart has a 30” (762mm)
diameter black seasoned steel cook surface heated
underneath by inner and outer gas tube burners. Surface
temperatures range from 225ºF to 550ºF (121ºC to 288ºC)
from the center to the outside edge. A stainless steel drip
pan completely surrounds the underside of the cook surface
catching all food debris. The Professional Wheeled Cart is an
ideal solution for any outdoor display cooking application.
Available with either Natural Gas or LP Propane.
Data
Cook
Model
10-0081
Due to ongoing product improvement, specifi cations are subject to change without notice.
Sur face
30
Inches
Dimensions BTU
HW
37”
940mm
40”
1016mm
Rate
NG 4 8 ,000
LP 48,000
Net
Weight
1 66 lbs
75 kg
Easy Operation, Easy Maintenance, Easy
Cleanup
• Food service staff skill level: Intermediate.
• Cooking techniques: sauté, braise, fl attop
(plancha) grilling, pan fry, roast, poach,
steam, toast.
• Cooking surface is extremely durable and
easy to clean.
• Stainless steel burners are protected
against spill overs.
• Stainless steel drip pan surrounds cook
surface with side mounted spill collection
tray.
Ship
Weight
245 lbs
111 kg
MADE IN
AMERICA
Approvals: Available At:
© Evo, Inc. 2015. All Rights Reserved.
R
Model#
10-0081 Evo® Professional Wheeled Cart
40”
1016mm
46”
1168mm
30”
762mm
37”
940mm
INSTALLATION REQUIREMENTS
Cooking surface must be installed level.
Outdoor installation with minimum 12” (305mm) to adjacent
combustible construction extended above the top of the appliance:
12” (305mm) from sides and 12”(305mm) from back.
NATURAL GAS CONNECTION LP PROPANE CONNECTION
OPERATING PRESSURE
No regulator, connect to an outlet pressure of 7” water column.
INLET / SUPPLY CONNECTION
1/2” FNPT. 12’ Hose with 1/2” FNPT Quick Disconnect Supplied.
1/2” NPT to 3/8” Flare supplied.
BTUs: 48,000
CONNECTION LOCATION
Under Front Control Panel.
OPERATING PRESSURE
Regulator is set for an outlet pressure of 11” water column.
INLET / SUPPLY CONNECTION
1/2” FNPT Inlet. 5’ Hose & Regulator with QCC1 Supplied.
1/2” NPT to 3/8” Flare supplied.
BTUs: 48,000
CONNECTION LOCATION
Under Front Control Panel.
DIMENSIONS WEIGHT
MAXIMUM (H X W)
46” x 40” with hood (1168mm x 1016mm)
NET: 166 lb EST. (75 kg)
SHIP: 245 lb EST (111 kg)
37” x 40” without hood (940mm x 1016mm)
COOK SURFACE
CRATE DIMENSIONS: 48” x 48” x 52” (1219mm x 1219mm x 1321mm)
30” diameter (762mm)
STANDARD FEATURES ACCESSORIES INCLUDED
• 30” circular black seasoned steel cook surface over dual
independent manually controlled gas burners.
• Quick release removable cook surface and drip pan.
• Electronic push button ignition.
• Stainless steel lid.
• Professional grill surface cleaning kit (3M brand) - Includes handle,
cook surface cleaning pad and screen.
• 2 stainless steel spatulas, 1 stainless steel scraper, stainless steel
cleaner and protectant.
• Owner’s Manual & Use and Care Instructions.
Evo, Inc. 8140 SW Nimbus Ave., Bldg. 5, Beaverton Oregon 97008
Ph 503-626-1802 • Fax 503-213-5869 • www.evoamerica.com • sales@evoamerica.com
®
Evo
is protected under U.S. Patents 6,189,530 and 6,488,022, and U.S. Patents Pending
