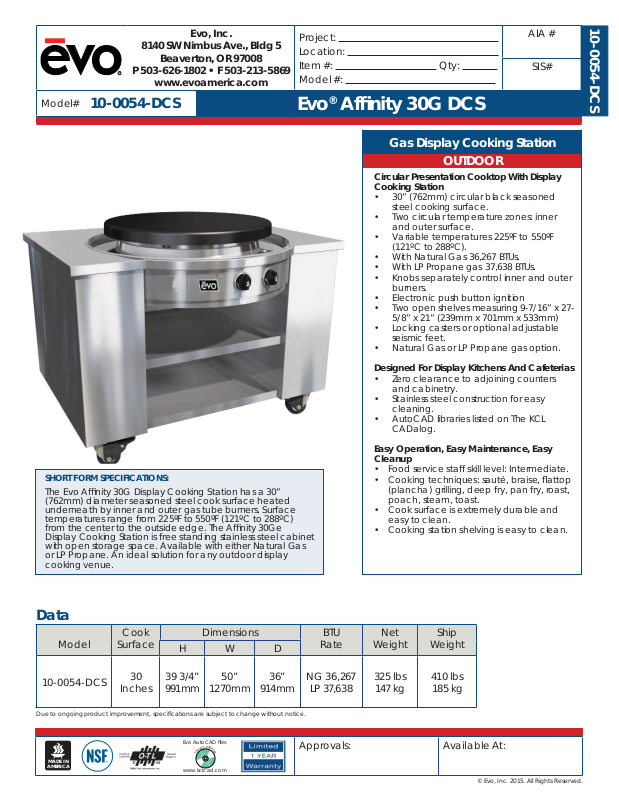

EVO 10-0054-DCS User Manual
Evo, Inc.
8140 SW Nimbus Ave., Bldg 5
Beaverton, OR 97008
P 503-626-1802 • F 503-21 3-5869
R
www.evoamerica.com
Project:
Location:
Item #: Qty:
Model #:
AIA #
10-0054-DCS
SIS#
Model#
10-0054-DCS
Evo® Affi nity 30G DCS
Gas Display Cooking Station
OUTDOOR
Circular Presentation Cooktop With Display
Cooking Station
• 30” (762mm) circular black seasoned
steel cooking surface.
• Two circular temperature zones: inner
and outer surface.
• Variable temperatures 225ºF to 550ºF
(121ºC to 288ºC).
• With Natural Gas 36,267 BTUs.
• With LP Propane gas 37,638 BTUs.
• Knobs separately control inner and outer
burners.
• Electronic push button ignition
• Two open shelves measuring 9-7/16” x 275/8” x 21” (239mm x 701mm x 533mm)
• Locking casters or optional adjustable
seismic feet.
• Natural Gas or LP Propane gas option.
Designed For Display Kitchens And Cafeterias
• Zero clearance to adjoining counters
and cabinetry.
• Stainless steel construction for easy
cleaning.
• AutoCAD libraries listed on The KCL
CADalog.
SHORT FORM SPECIFICATIONS:
The Evo Affi nity 30G Display Cooking Station has a 30”
(762mm) diameter seasoned steel cook surface heated
underneath by inner and outer gas tube burners. Surface
temperatures range from 225ºF to 550ºF (121ºC to 288ºC)
from the center to the outside edge. The Affi nity 30Ge
Display Cooking Station is free standing stainless steel cabinet
with open storage space. Available with either Natural Gas
or LP Propane. An ideal solution for any outdoor display
cooking venue.
Data
Cook
Model
10-0054-DCS
Due to ongoing product improvement, specifi cations are subject to change without notice.
MADE IN
AMERICA
Sur face
30
Inches
39 3/ 4 ”
991mm
Dimensions BTU
HWD
1270mm
Evo AutoCAD fi les
C
A
L
D
C
a
K
l
o
e
g
h
T
www.kclcad.com
50”
36”
914mm
Easy Operation, Easy Maintenance, Easy
Cleanup
• Food service staff skill level: Intermediate.
• Cooking techniques: sauté, braise, fl attop
(plancha) grilling, deep fry, pan fry, roast,
poach, steam, toast.
• Cook surface is extremely durable and
easy to clean.
• Cooking station shelving is easy to clean.
Rate
NG 36,26 7
LP 37,638
Net
Weight
325 lbs
147 kg
Ship
Weight
41 0 lbs
185 kg
Approvals: Available At:
© Evo, Inc. 2015. All Rights Reserved.
R
Model#
10-0054 Evo® Affi nity 30G DCS
Available with seismic feet or locking casters.
INSTALLATION REQUIREMENTS
Cooking surface must be installed level.
NATURAL GAS CONNECTION LP PROPANE CONNECTION
OPERATING PRESSURE
No regulator, connect to an outlet pressure of 7” water column.
INLET / SUPPLY CONNECTION
1/2” FNPT. 12’ Hose with 1/2” FNPT Quick Disconnect Supplied.
1/2” NPT to 3/8” Flare supplied.
BTUs: 36,267
CONNECTION LOCATION
Gas inlet right rear chassis.
OPERATING PRESSURE
Regulator is set for an outlet pressure of 11” water column.
INLET / SUPPLY CONNECTION
1/2” FNPT Inlet. 5’ Hose & Regulator with QCC1 Supplied.
1/2” NPT to 3/8” Flare supplied.
BTUs: 37,638
CONNECTION LOCATION
Gas inlet right rear chassis.
DIMENSIONS WEIGHT
MAXIMUM (H X W)
39-3/4” x 50” x 36” (991mm x 1270mm x 914mm)
NET: 325 lb EST. (147 kg)
SHIP: 410 lb EST (185 kg)
COOK SURFACE
30” diameter (762mm)
CRATE DIMENSIONS: 43.5” x 58” x 44” (1104mm x 1473mm x 1117mm)
STANDARD FEATURES ACCESSORIES INCLUDED
• 30” circular black seasoned steel cook surface built into stainless
steel cabinet with dual storage shelves.
• 2 removable spill over trays contained in front opening doors.
• Electronic push button ignition.
• Stainless steel lid.
• Professional grill surface cleaning kit (3M brand) - Includes handle,
cook surface cleaning pad and screen.
• 2 stainless steel spatulas, 1 stainless steel scraper, stainless steel
cleaner and protectant.
• Owner’s Manual & Use and Care Instructions.
Evo, Inc. 8140 SW Nimbus Ave., Bldg. 5, Beaverton Oregon 97008
Ph 503-626-1802 • Fax 503-213-5869 • www.evoamerica.com • sales@evoamerica.com
®
Evo
is protected under U.S. Patents 6,189,530 and 6,488,022, and U.S. Patents Pending
