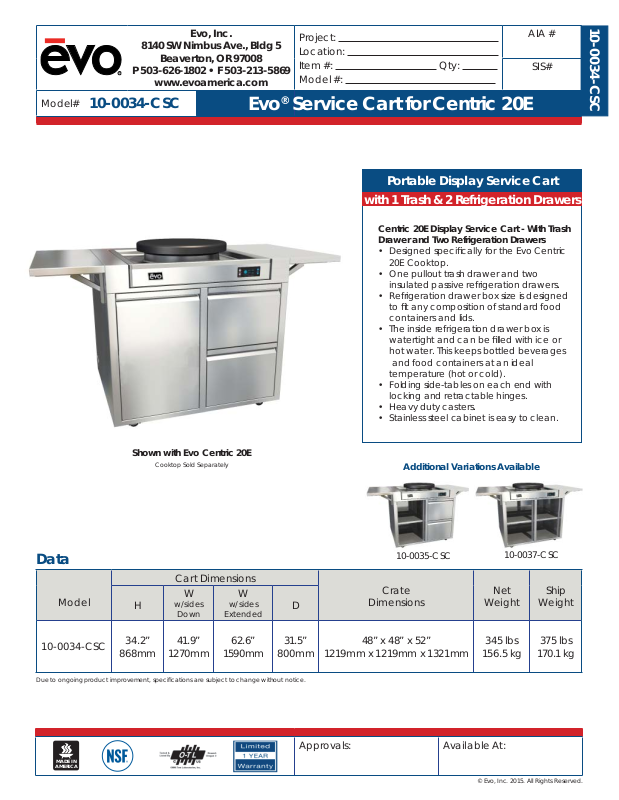

EVO 10-0034-CSC User Manual

Evo, Inc.

8140 SW Nimbus Ave., Bldg 5

Beaverton, OR 97008

P 503-626-1802 • F 503-21 3-5869

R

www.evoamerica.com

Project:
Location:
Item #: Qty:
Model #:

AIA #

10-0034-CSC

SIS#

Model#

10-0034-CSC

Evo® Service Cart for Centric 20E

Portable Display S ervice Cart

with 1 Trash & 2 Refrigeration Drawers

Centric 20E Display Service Cart - With Trash
Drawer and Two Refrigeration Drawers

• Designed specifi cally for the Evo Centric
20E Cooktop.

• One pullout trash drawer and two
insulated passive refrigeration drawers.

• Refrigeration drawer box size is designed
to fi t any composition of standard food
containers and lids.

• The inside refrigeration drawer box is
watertight and can be fi lled with ice or
hot water. This keeps bottled beverages
and food containers at an ideal
temperature (hot or cold).

• Folding side-tables on each end with
locking and retractable hinges.

• Heavy duty casters.

• Stainless steel cabinet is easy to clean.

Shown with Evo Centric 20E

Cooktop Sold Separately

Data

Cart Dimensions

Model

10-0034-CSC

Due to ongoing product improvement, specifi cations are subject to change without notice.

H

34.2”

868mm

w/sides

Down

41.9”

1270mm

W

W

w/sides

Extended

62.6”

1590mm

D

31.5”

800mm

Additional Variations Available

10-0035-CSC

Crate

Dimensions

48” x 48” x 52”

1219mm x 1219mm x 1321mm

10-0037-CSC

Net

Weight

345 lb s

156.5 kg

Ship

Weight

375 lbs

170.1 kg

MADE IN

AMERICA

Approvals: Available At:

© Evo, Inc. 2015. All Rights Reserved.
