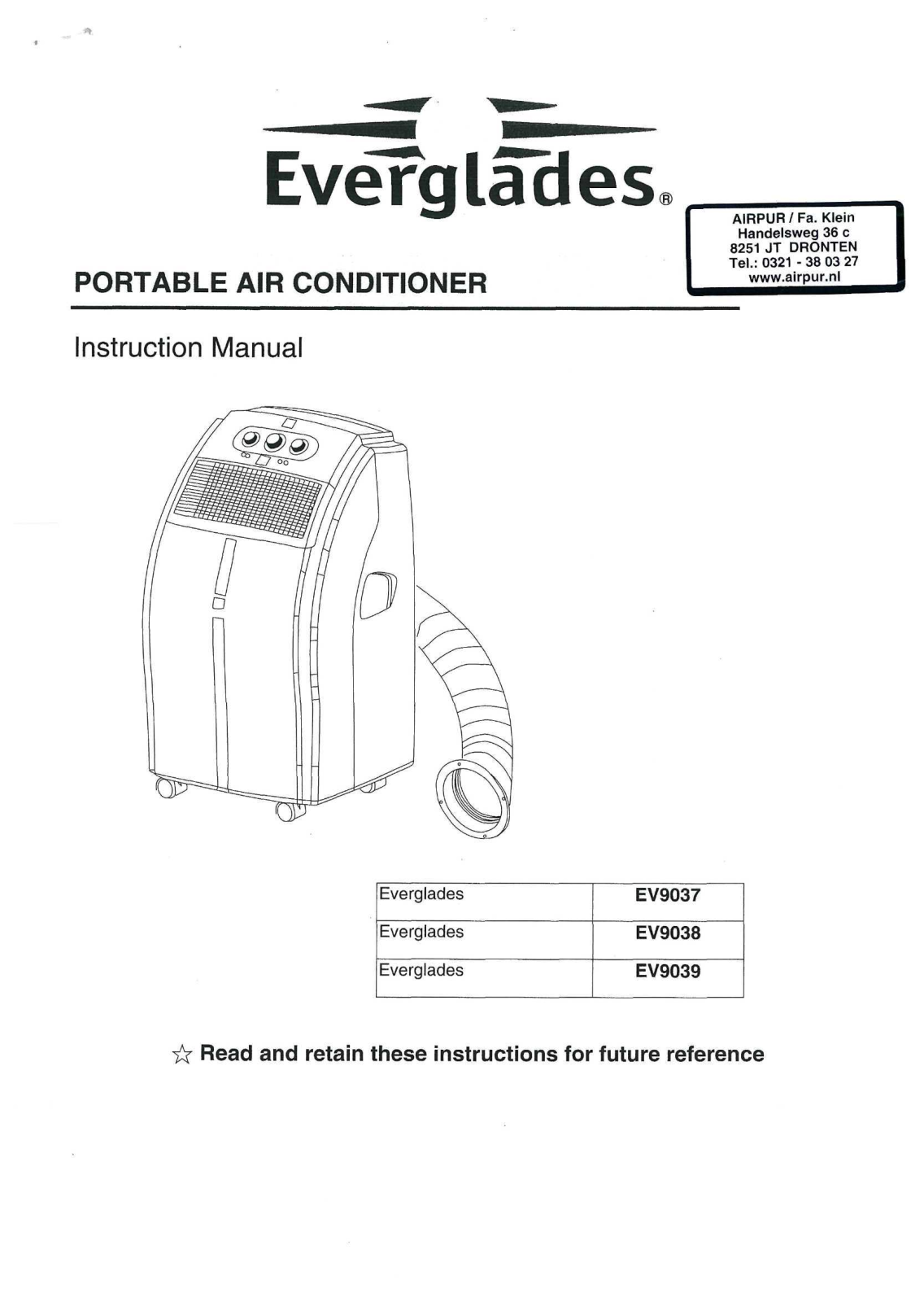

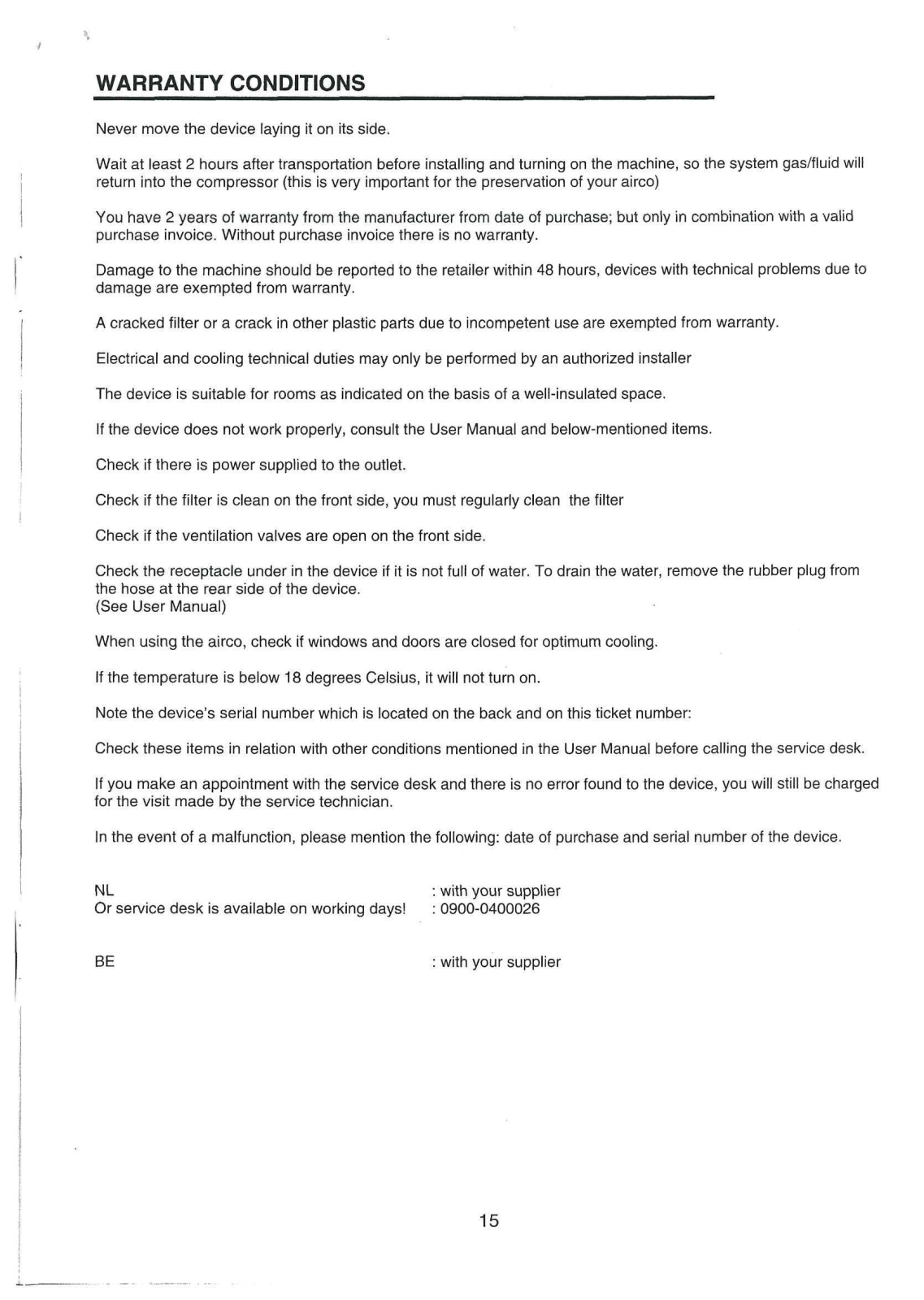

Everglades EV9039 User Manual [nl]
Everglades
PORTABLE AIR CONDITIONER
Instruction Manual
AIRPUR/Fa.
Handelsweg 36 c
8251 JT DRONTEN
Tel.:
0321 - 38 03 27
www.airpur.nl
Klein
Everglades
Everglades
Everglades
•&
Read and retain these instructions for future reference
EV9037
EV9038
EV9039

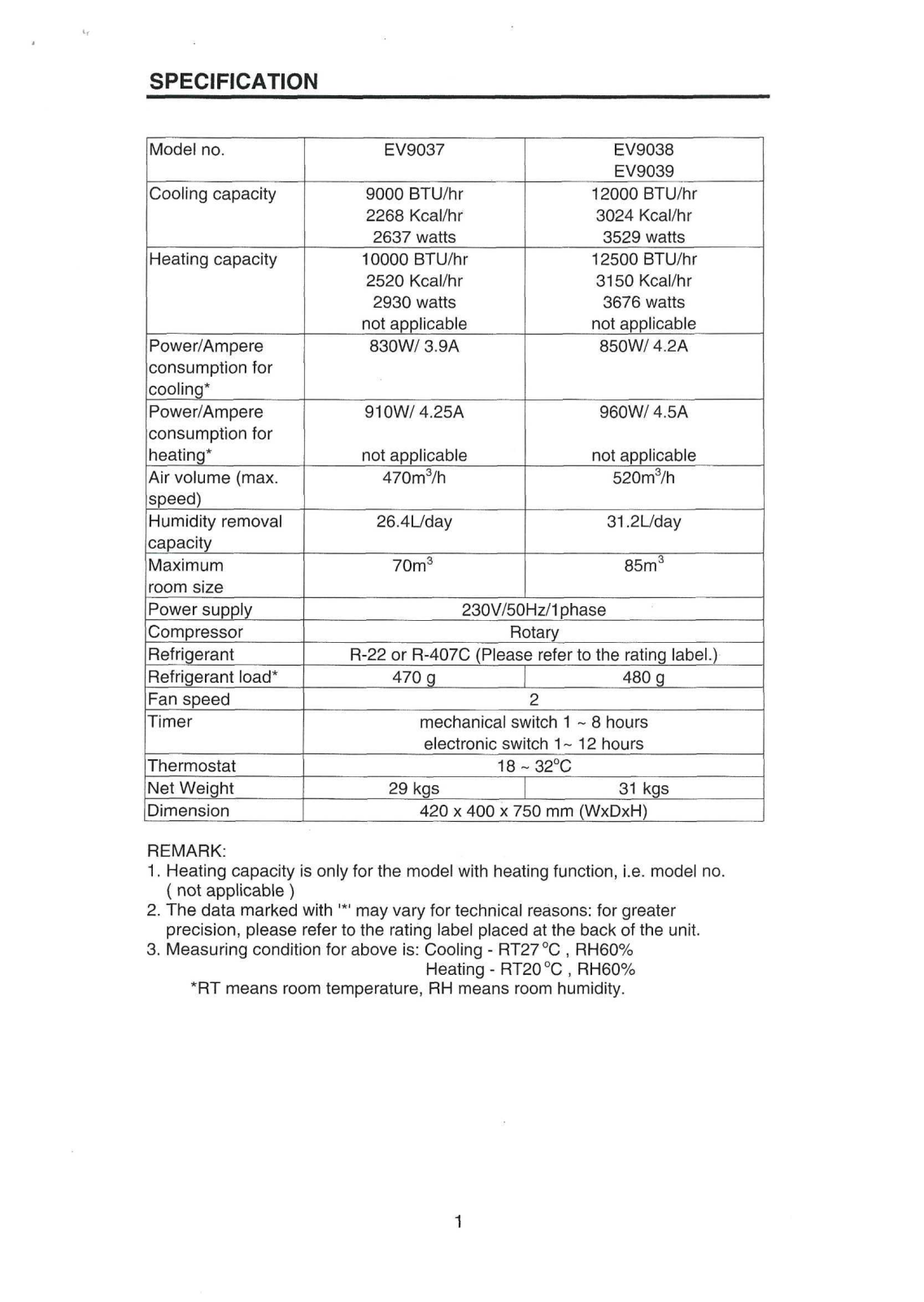

SPECIFICATION
Model no.
Cooling capacity
Heating capacity
Power/Ampere
consumption for
cooling*
Power/Ampere
consumption for
heating*
Air volume (max.
speed)
Humidity removal
capacity
Maximum
room size
Power supply
Compressor
Refrigerant
Refrigerant
load*

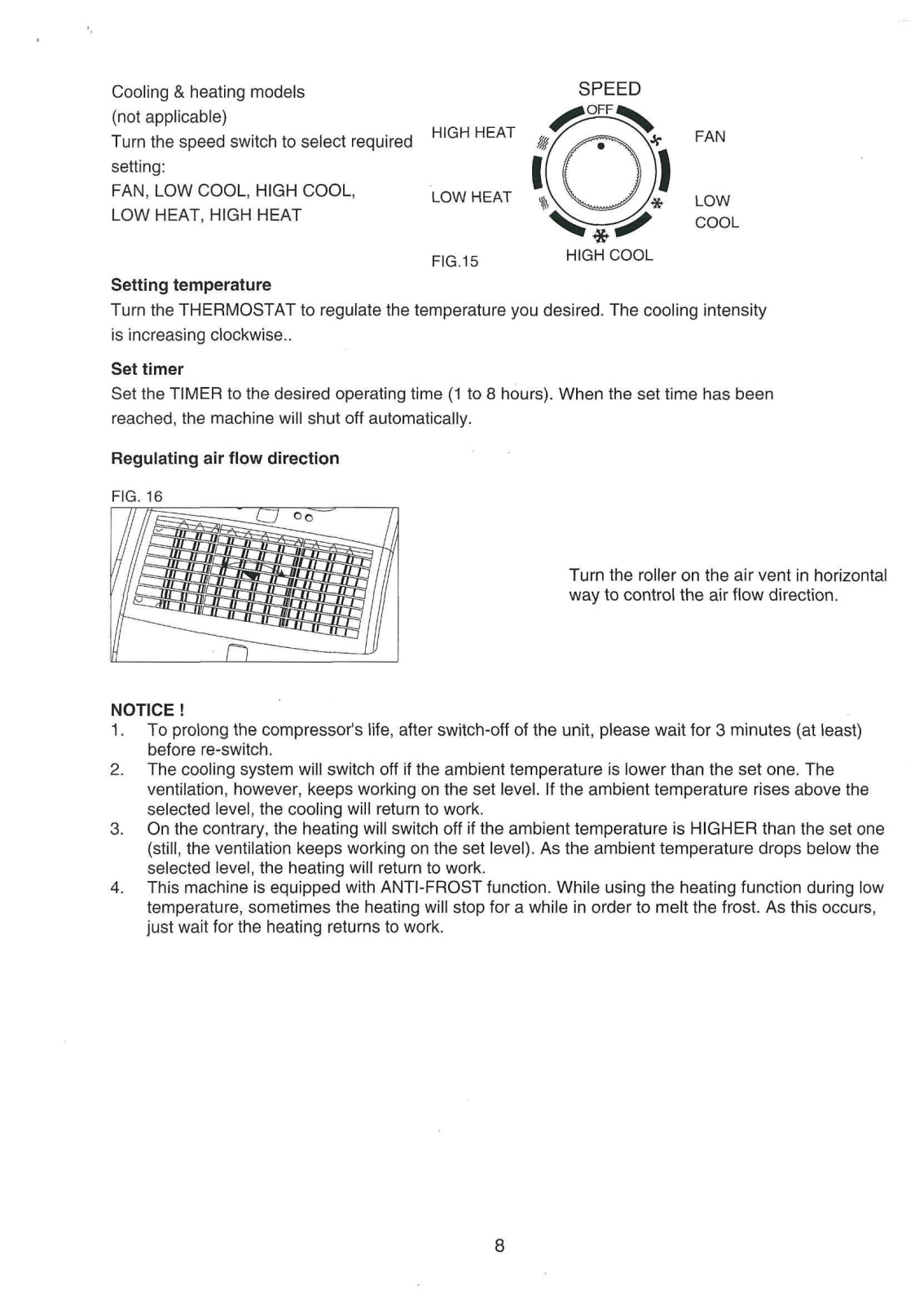

Fan speed
Timer
Thermostat
Net Weight
Dimension
EV9037
9000 BTU/hr
2268 Kcal/hr
2637 watts
10000 BTU/hr
2520 Kcal/hr
2930 watts
not applicable
830W/ 3.9A
910W/4.25A
not applicable
470m3/h
26.4L/day
3
70m
R-22 or
R-407C
470
g
mechanical switch 1 ~ 8 hours
electronic switch
29kgs
420 x 400 x 750 mm (WxDxH)
EV9038
EV9039
12000 BTU/hr
3024 Kcal/hr
3529 watts
12500 BTU/hr
3150
Kcal/hr
3676 watts
not applicable
850VW
960W/ 4.5A
not applicable
520m3/h
31.2L/day
85m
230V/50Hz/1
phase
Rotary
(Please refer to the rating
480
2
1-12
hours
18~32°C
31 kgs
4.2A
3
label.)
g
REMARK:
1.
Heating capacity is only for the model with heating function, i.e. model no.
(not applicable)
2.
The data marked with
precision,
please refer to the rating label placed at the back of the unit.
3. Measuring condition for above is: Cooling -
'*'
may vary for technical reasons: for greater
RT27°C
, RH60%
Heating - RT20°C , RH60%
*RT means room temperature, RH means room humidity.

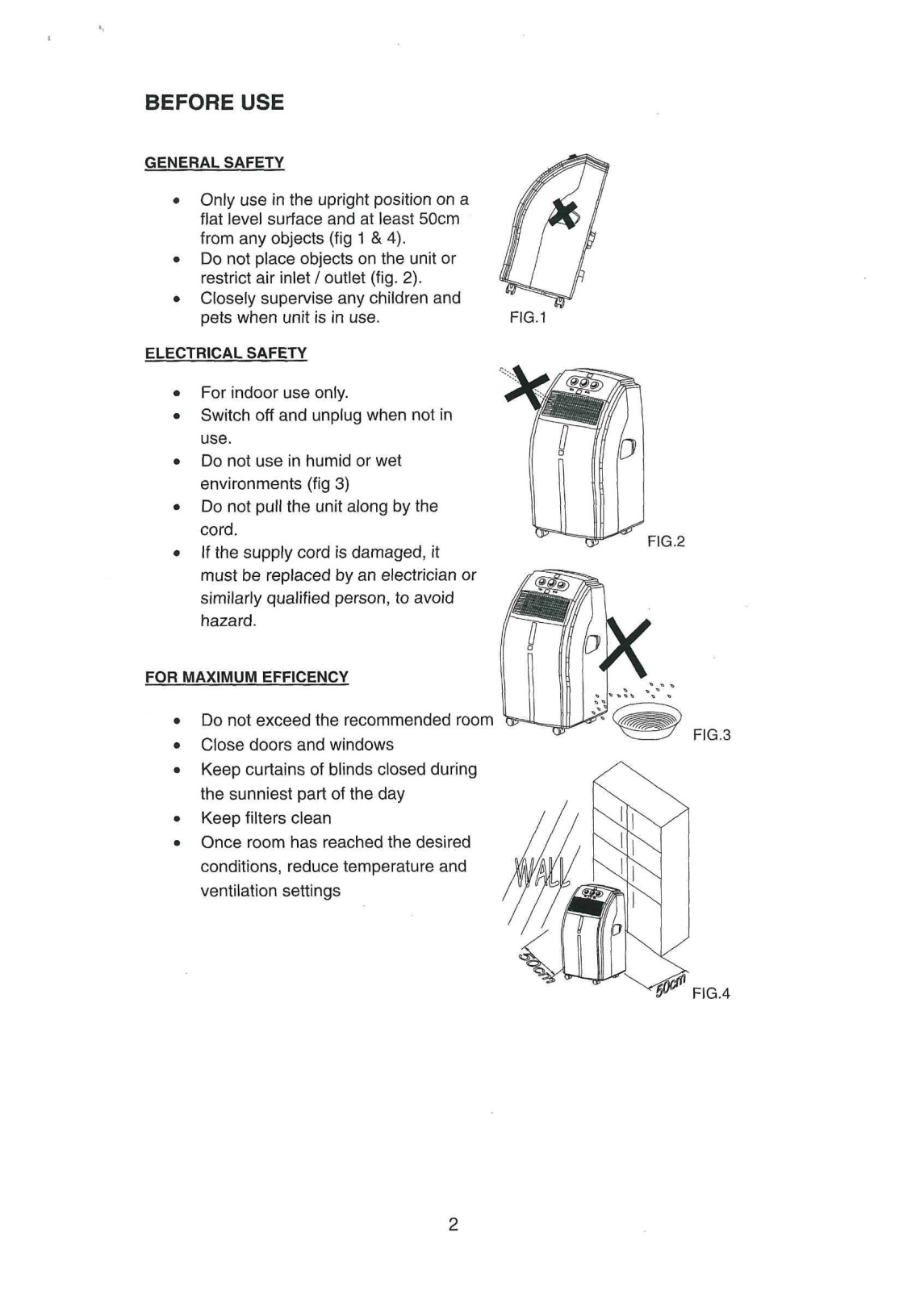

BEFORE USE
GENERAL SAFETY
• Only use in the upright position on a
flat level surface and at least 50cm
from any objects (fig 1 & 4).
• Do not place objects on the unit or
restrict air inlet / outlet (fig. 2).
• Closely supervise any children and
pets when unit is in use.
ELECTRICAL SAFETY
• For indoor use only.
• Switch off and unplug when not in
use.
• Do not use in humid or wet
environments (fig 3)
• Do not pull the unit along by the
cord.
• If the supply cord is damaged, it
must be replaced by an electrician or
similarly qualified person, to avoid
hazard.
FIG.1
FIG.2
FOR MAXIMUM EFFICENCY
• Do not exceed the recommended room
• Close doors and windows
• Keep curtains of blinds closed during
the sunniest part of the day
• Keep filters clean
• Once room has reached the desired
conditions, reduce temperature and
ventilation settings
FIG.3
FIG.4

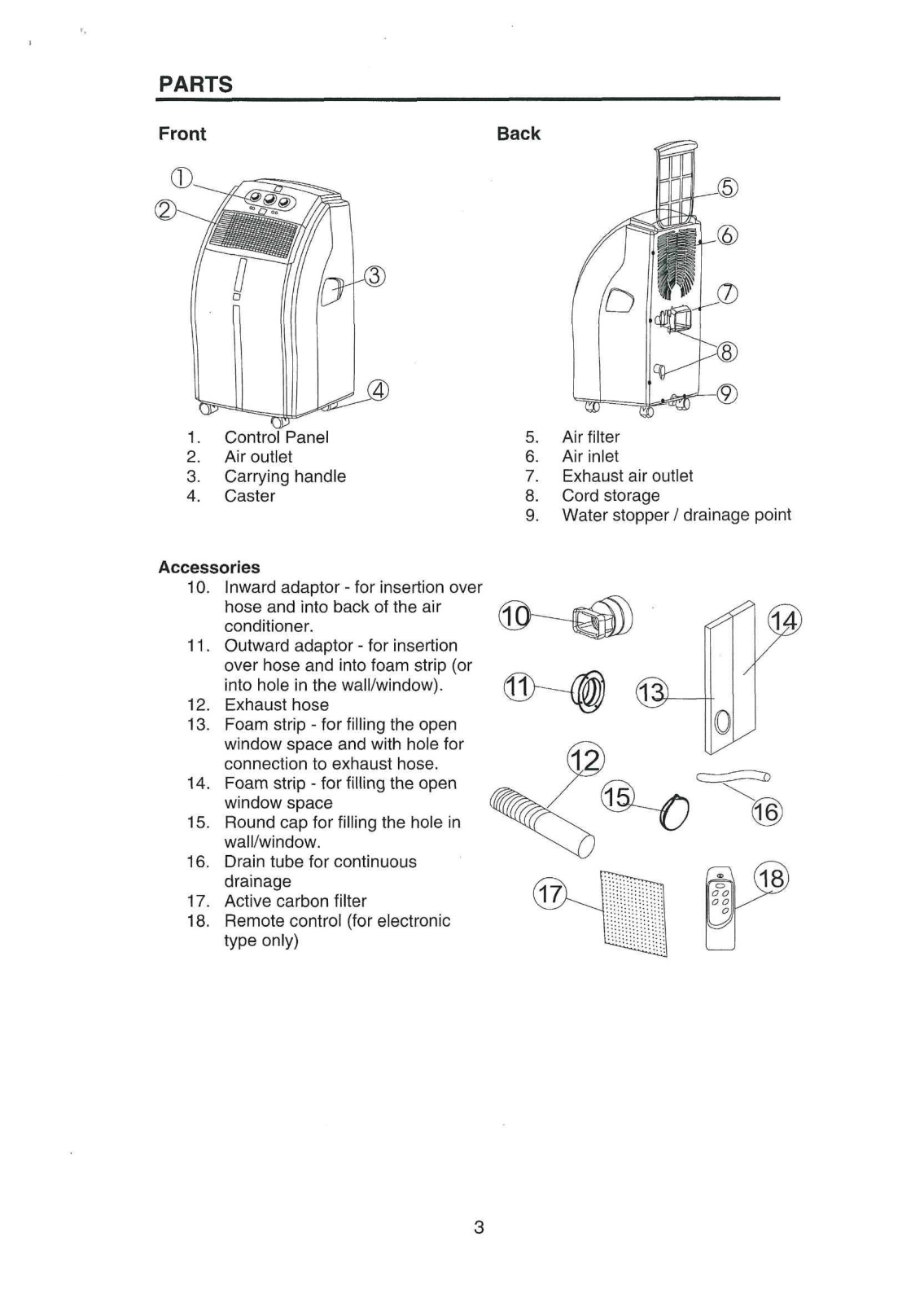

PARTS
1.

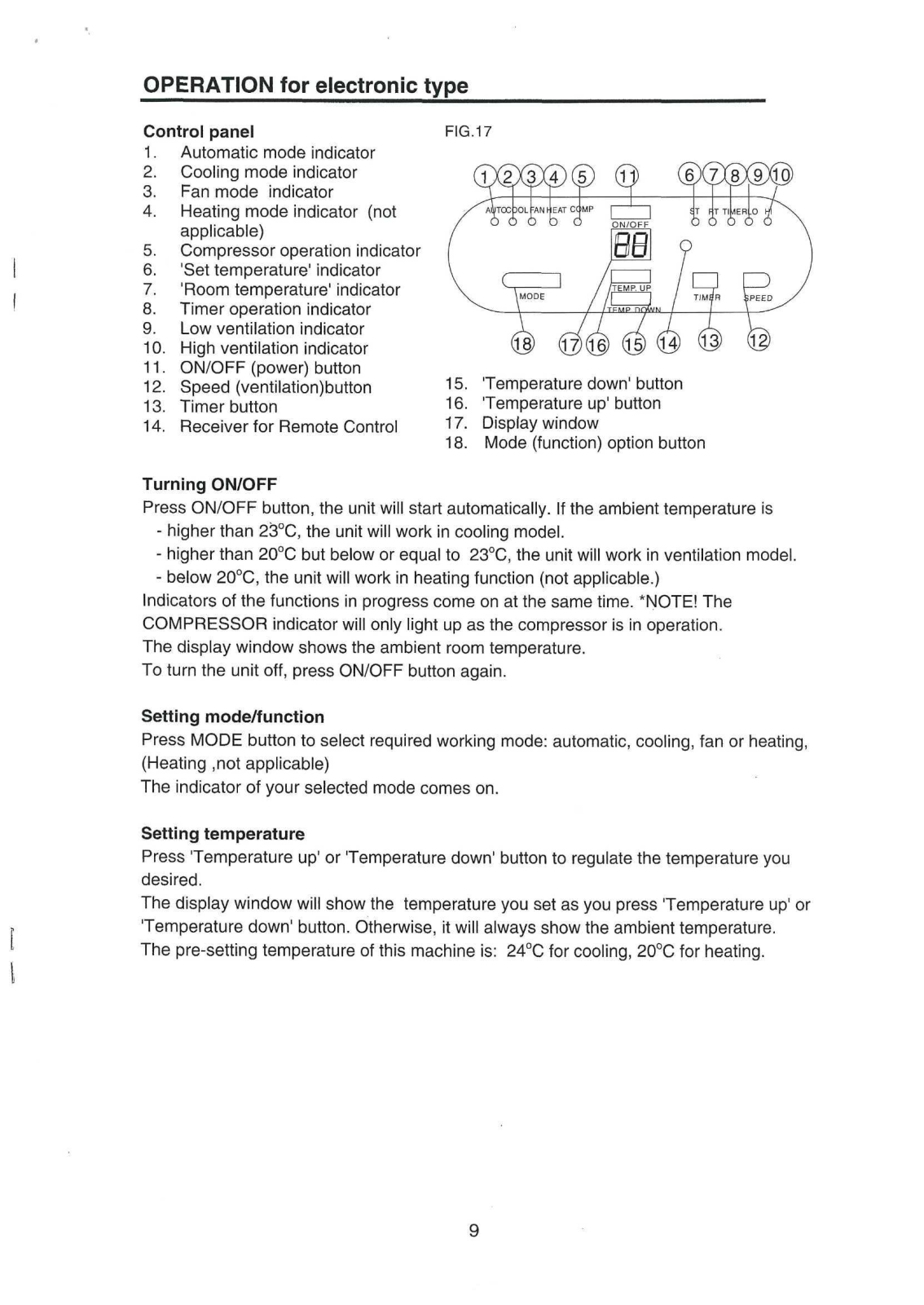

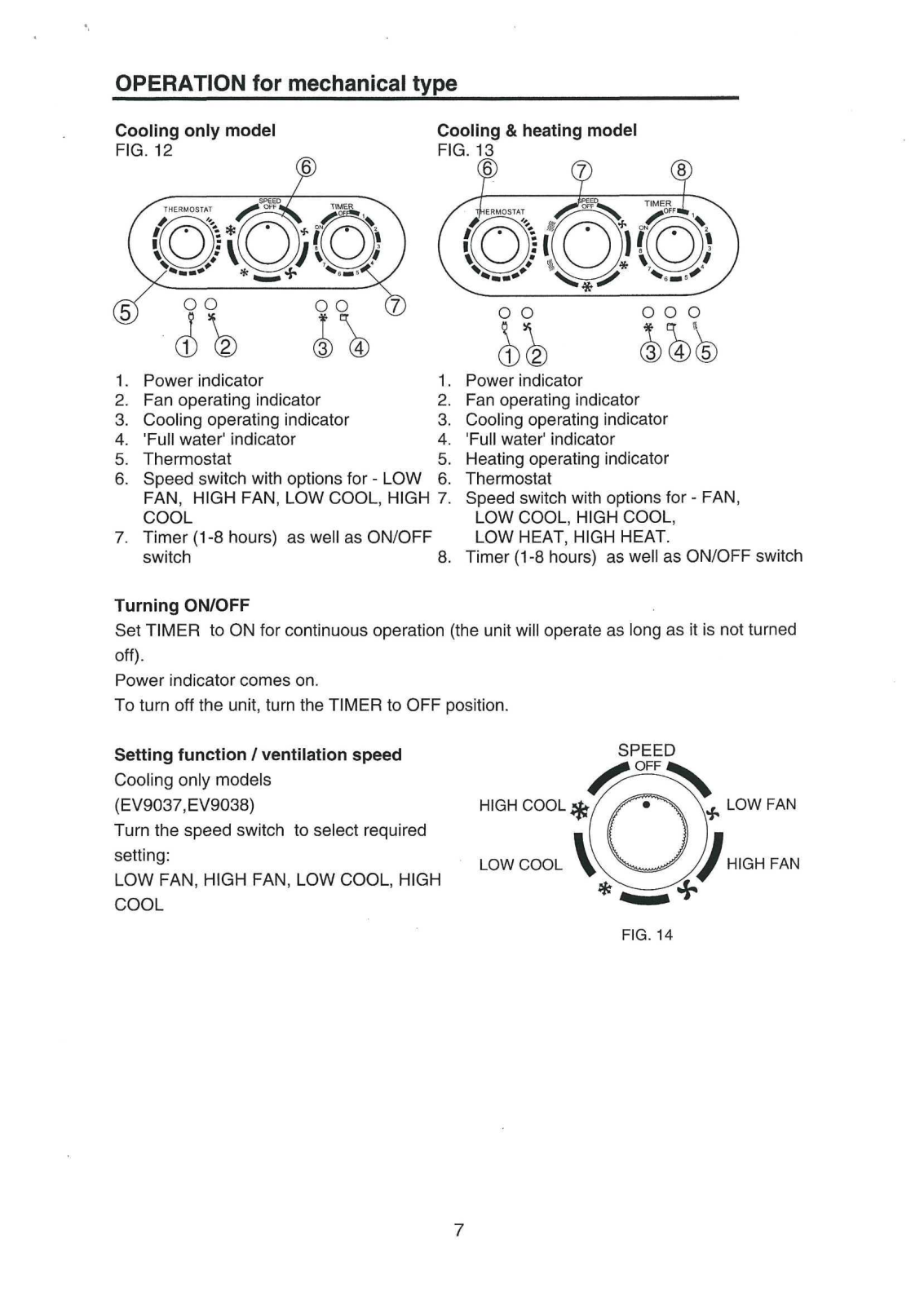

Control Panel
2.
Air outlet
3. Carrying handle
4.
Caster
ty-®
Back
5.
6.
7.
8.
9.
Air filter
Air inlet
Exhaust air outlet

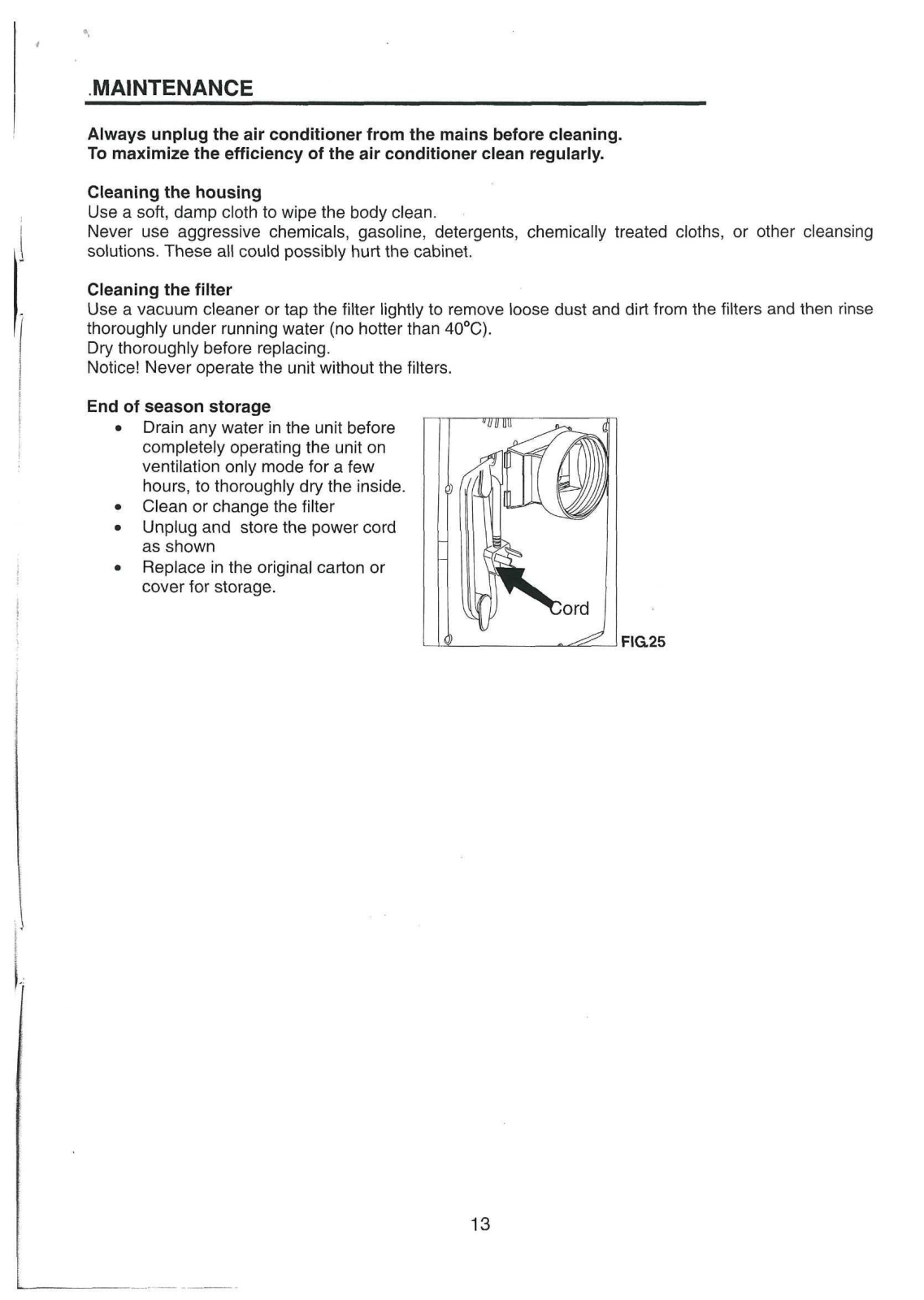

Cord storage

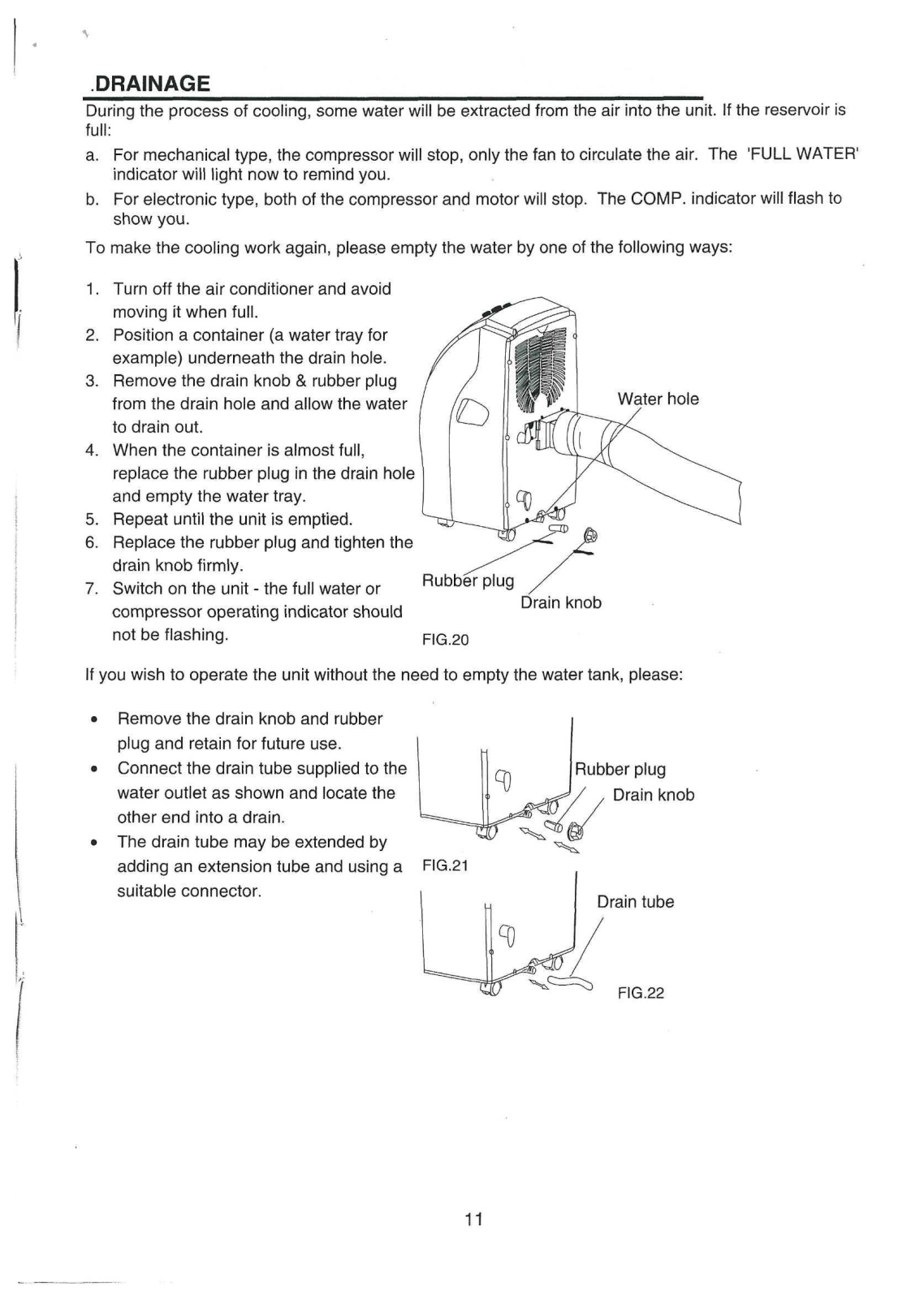

Water stopper / drainage point
Accessories
10.
Inward adaptor - for insertion over
hose and into back of the air
conditioner.
Outward adaptor - for insertion
11,
over hose and into foam strip (or
into hole in the wall/window).
Exhaust hose
12.
Foam strip - for filling the open
13.
window space and with hole for
connection to exhaust hose.
Foam strip - for filling the open
14.
window space
Round cap for filling the hole in
15.
wall/window.

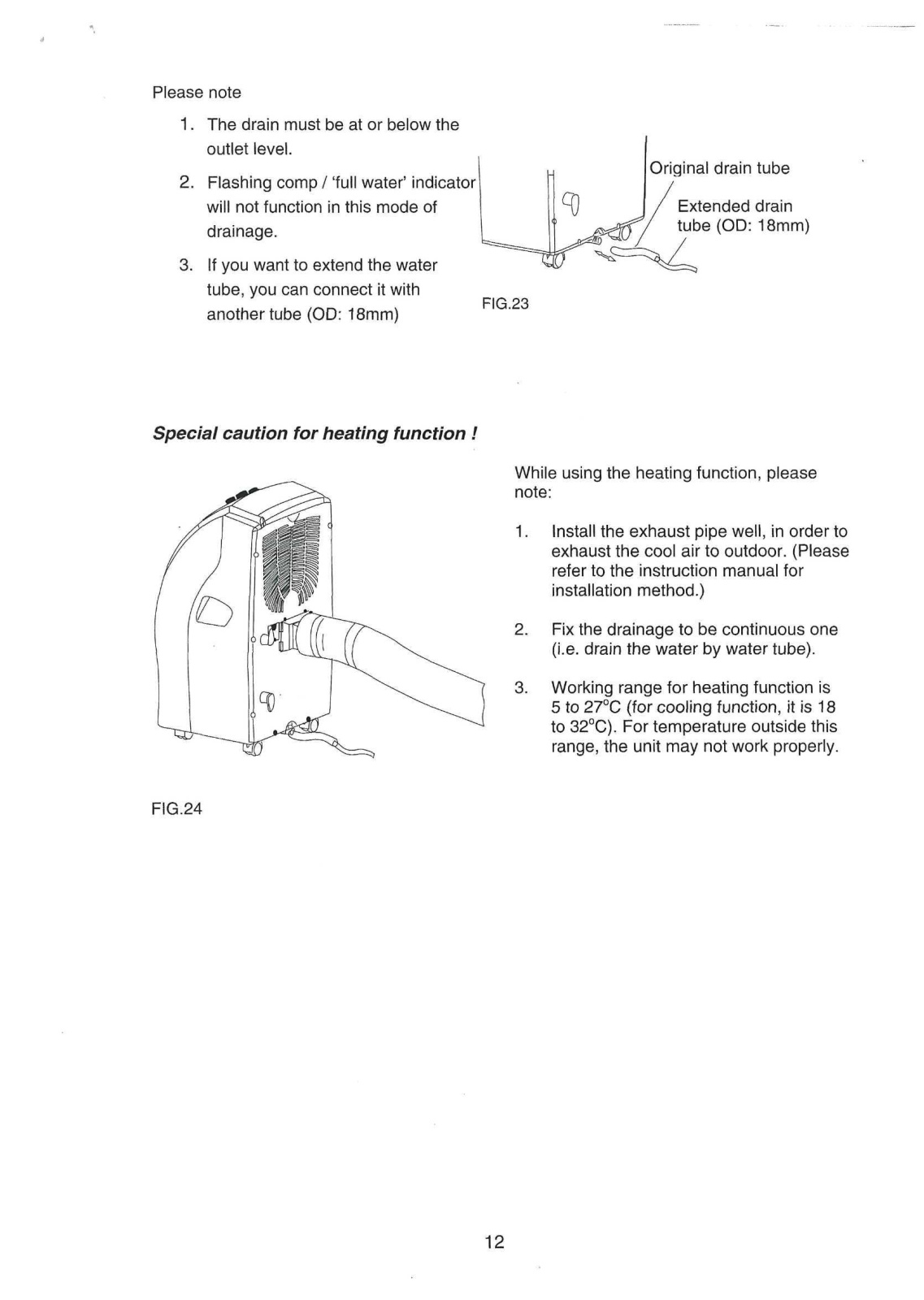

Drain tube for continuous
16.
drainage
17.

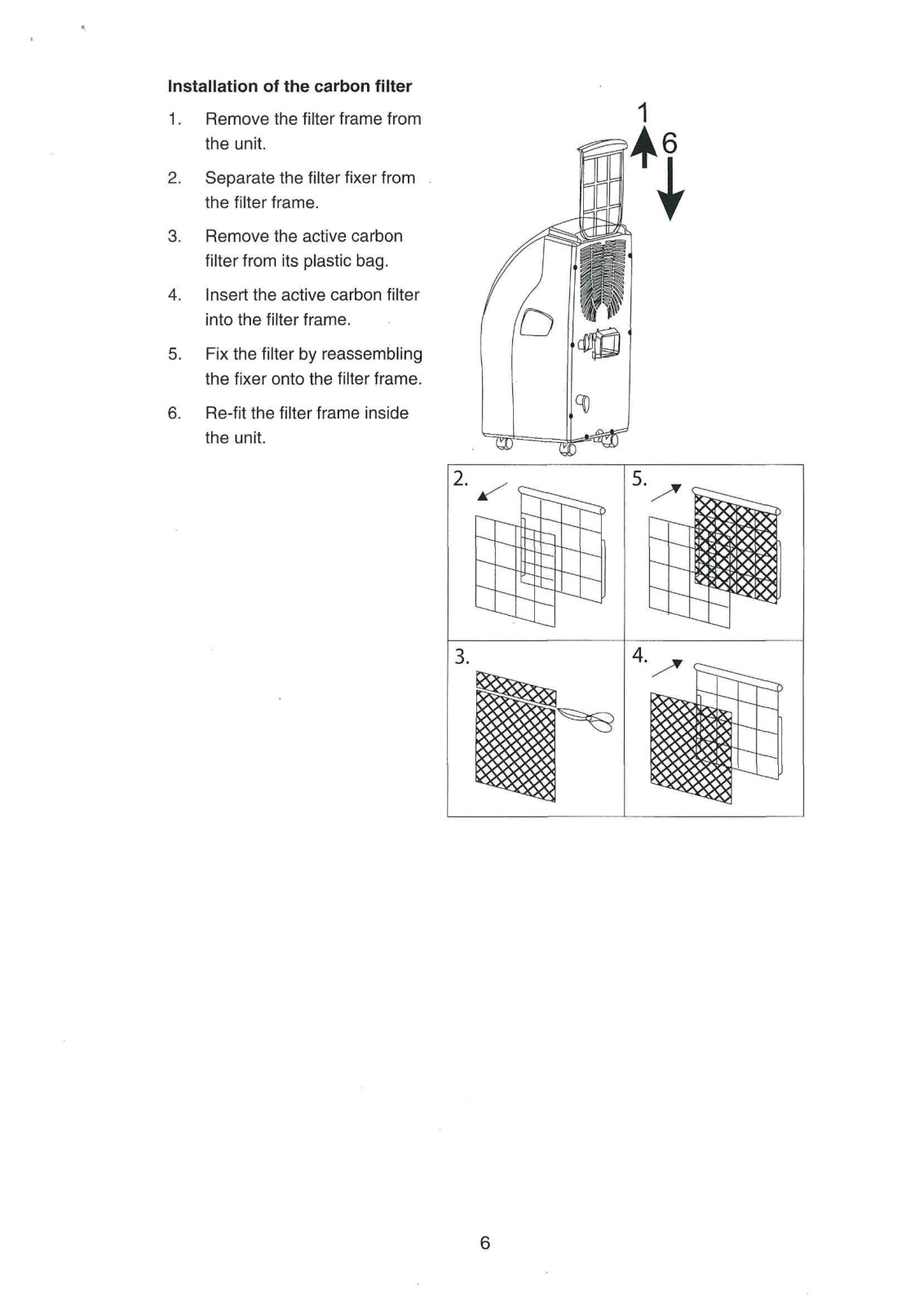

Active carbon filter

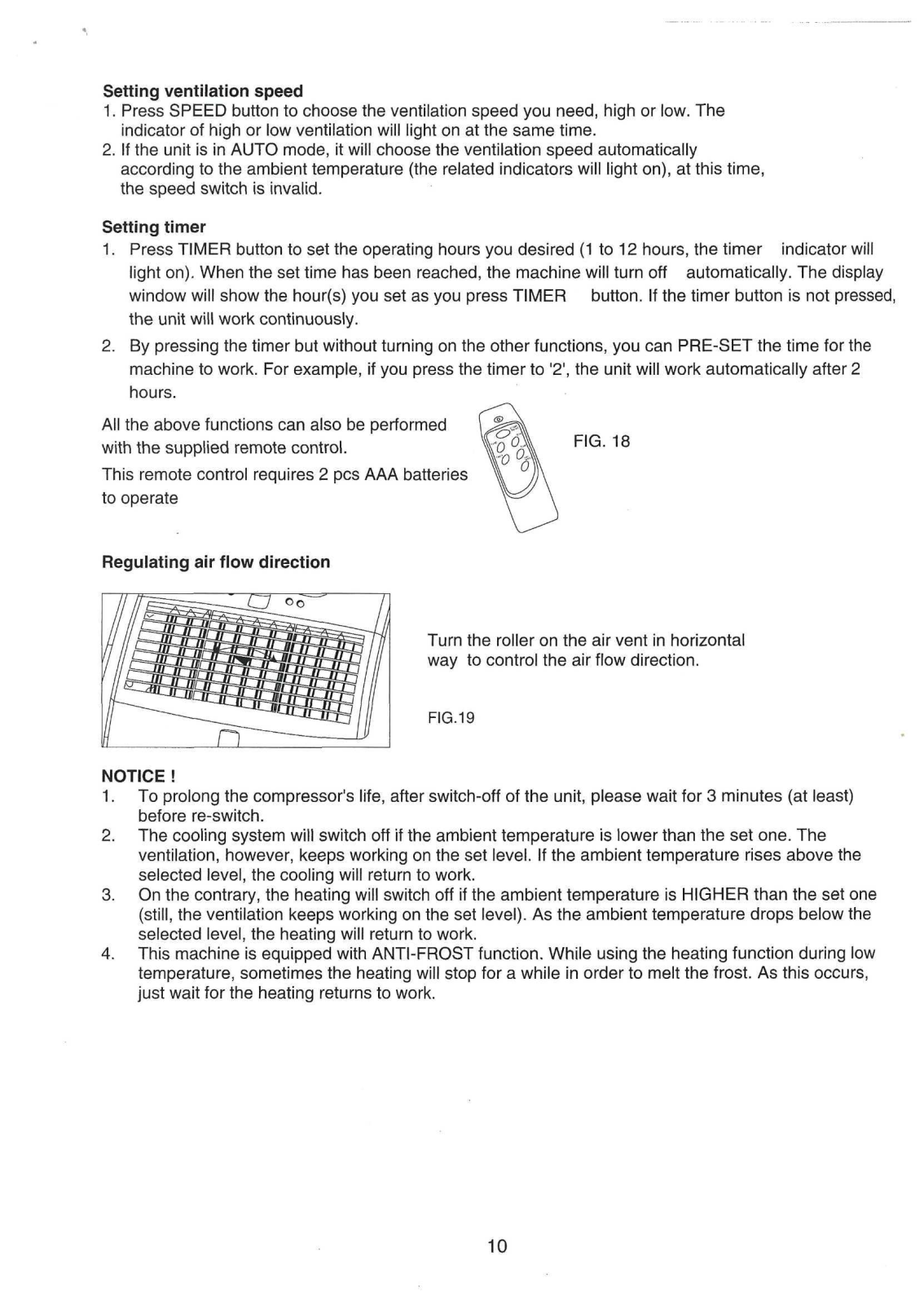

Remote control (for electronic
18.
type only)

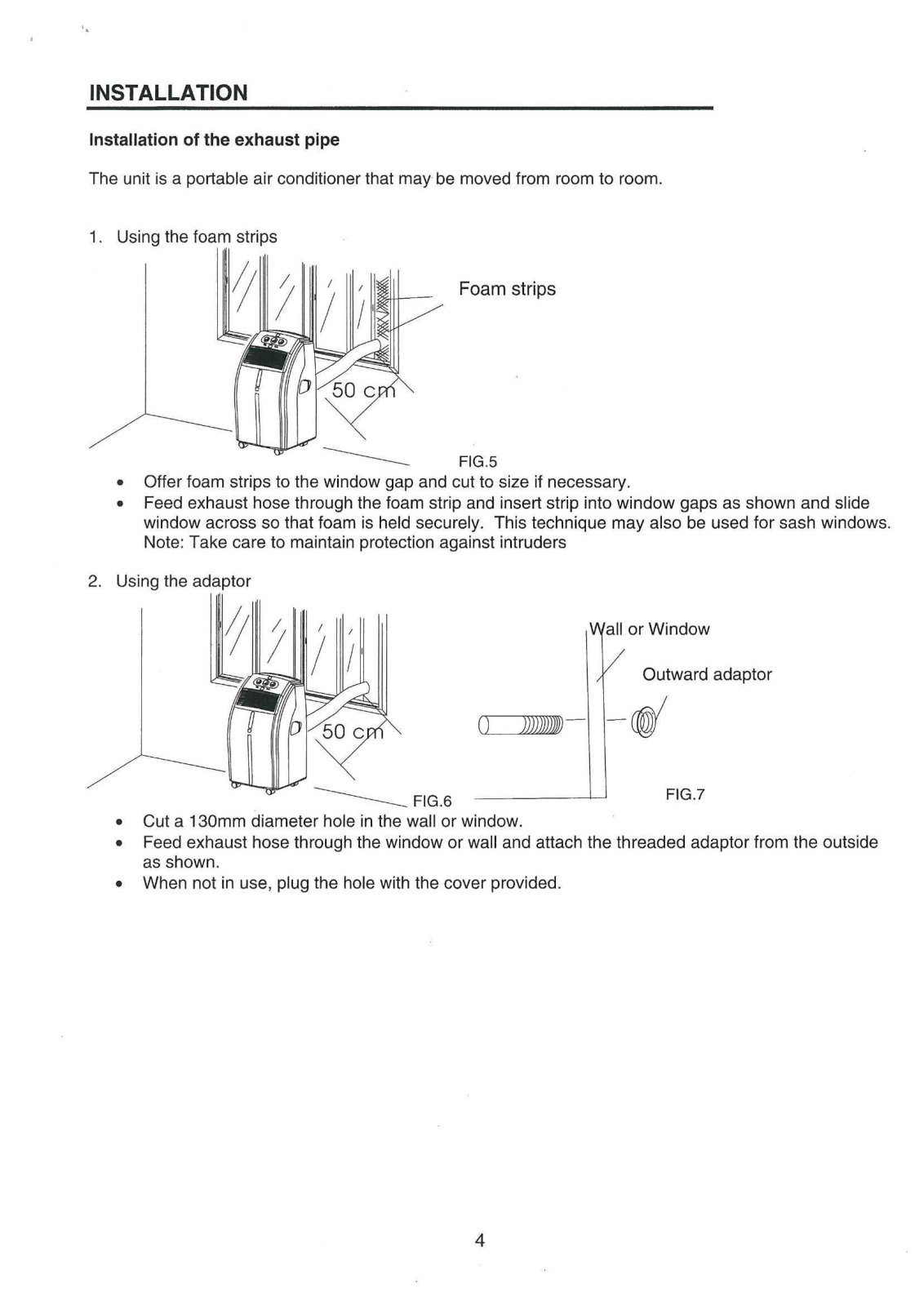

INSTALLATION

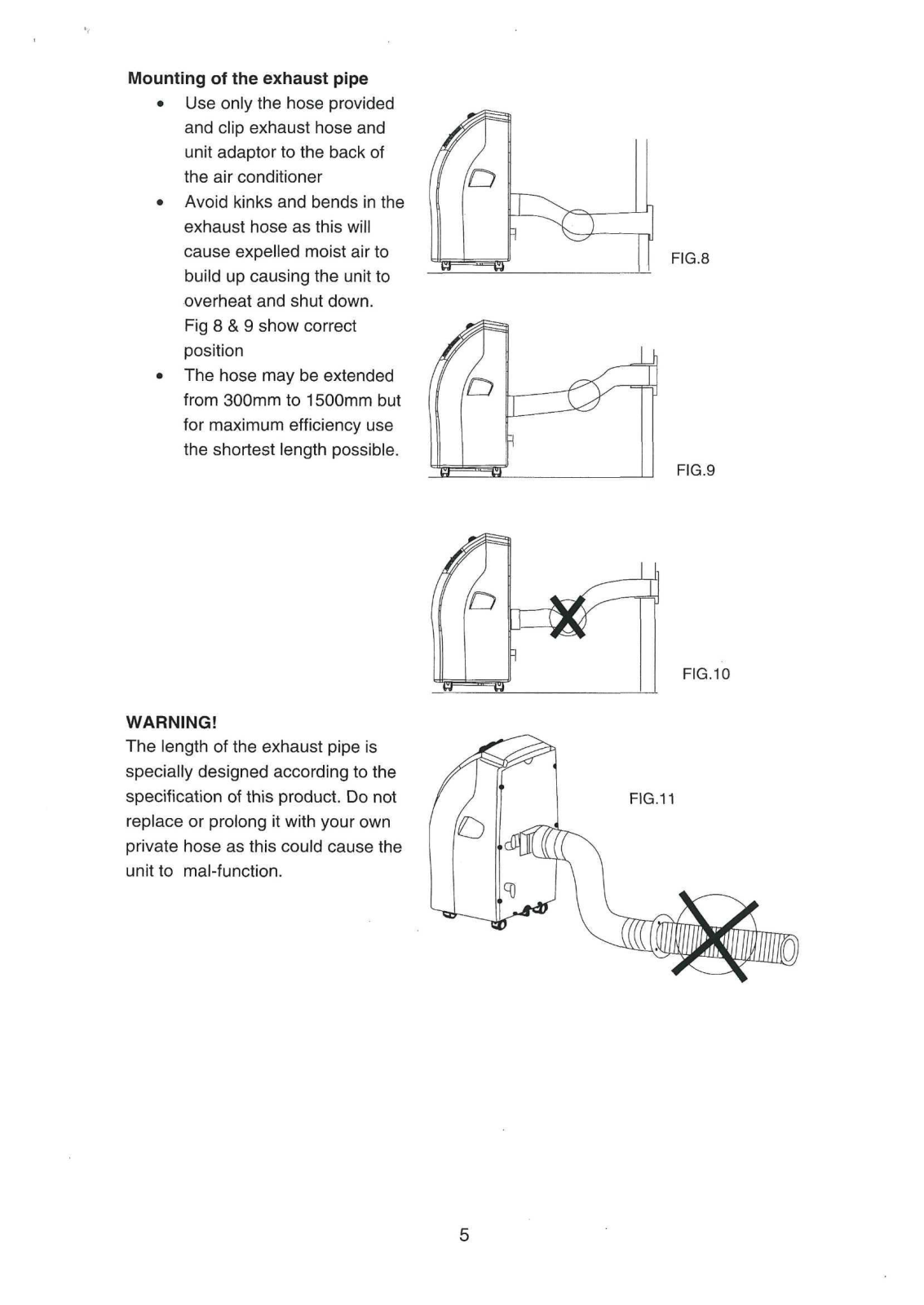

Installation of the exhaust pipe
The unit is a portable air conditioner that may be moved from room to room.
1.
Using the foam strips
Foam strips
FIG.5
Offer foam strips to the window gap and cut to size if necessary.
Feed exhaust hose through the foam strip and insert strip into window gaps as shown and slide
window across so that foam is held securely. This technique may also be used for sash windows.
Note:
Take care to maintain protection against intruders
2.
Using the adaptor
Cut a
130mm
Feed exhaust hose through the window or wall and attach the threaded adaptor from the outside
as shown.
When not in use, plug the hole with the cover provided.
d
FIG.6
diameter hole in the wall or window.
Wall or Window
Outward adaptor

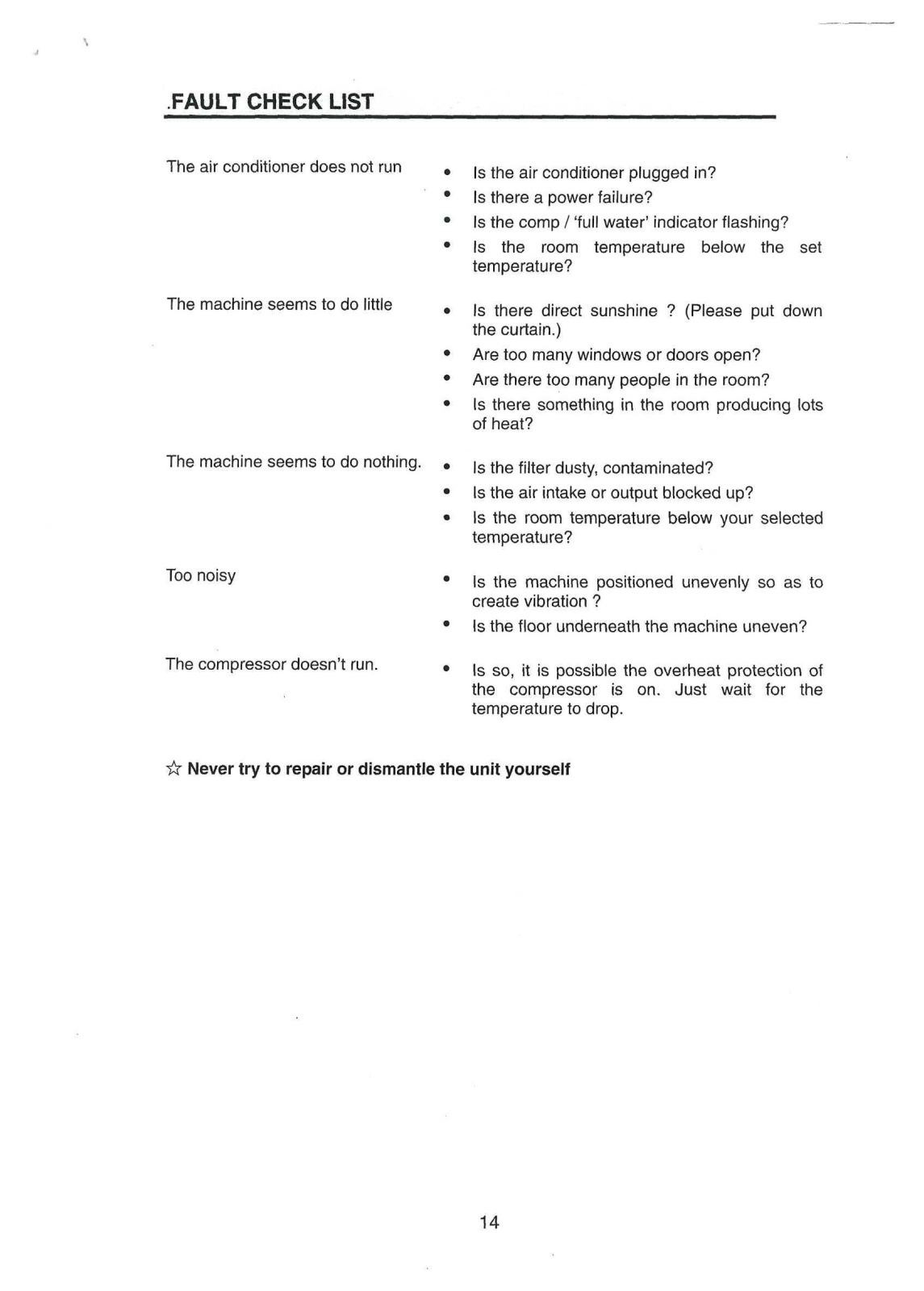

FIG.7
