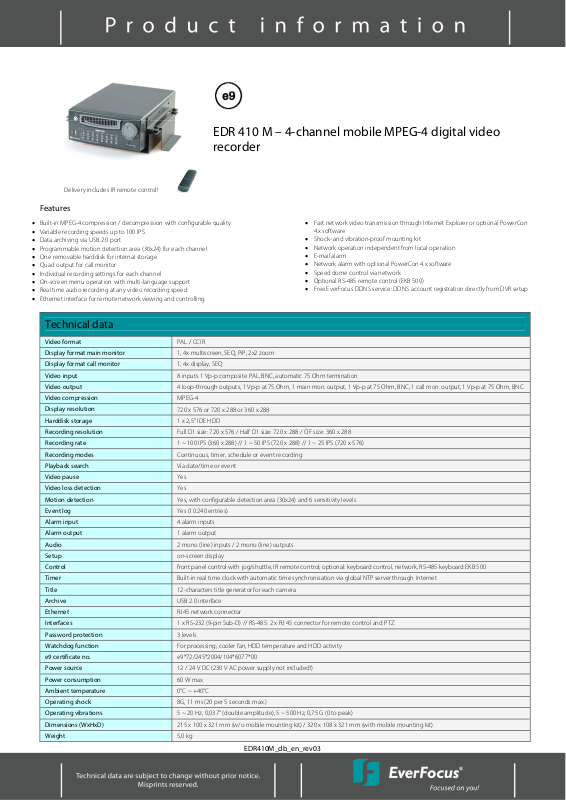

EverFocus EDR410M-R Specsheet
EDR 410 M – 4-channel mobile MPEG-4 digital video
recorder
Delivery includes IR remote control!
Features
• Built-in MPEG-4 compression / decompression with configurable quality
• Variable recording speeds up to 100 IPS
• Data archiving via USB 2.0 port
• Programmable motion detection area (30x24) for each channel
• One removable harddisk for internal storage
• Quad output for call monitor
• Individual recording settings for each channel
• On-screen menu operation with multi-language support
• Real time audio recording at any video recording speed
• Ethernet interface for remote network viewing and controlling
Technical data
Video format
Display format main monitor
Display format call monitor
Video input
Video output
Video compression
Display resolution
Harddisk storage
Recording resolution
Recording rate
Recording modes
Playback search
Video pause
Video loss detection
Motion detection
Event log
Alarm input
Alarm output
Audio
Setup
Control
Timer
Title
Archive
Ethernet
Interfaces
Password protection
Watchdog function
e9 certificate no.
Power source
Power consumption
Ambient temperature
Operating shock
Operating vibrations
Dimensions (WxHxD)
Weight
PAL / CCIR
1, 4x multiscreen, SEQ, PiP, 2x2 zoom
1, 4x display, SEQ
8 inputs 1 Vp-p composite PAL, BNC, automatic 75 Ohm termination
4 loop-through outputs, 1 Vp-p at 75 Ohm, 1 main mon. output, 1 Vp-p at 75 Ohm, BNC, 1 call mon. output, 1 Vp-p at 75 Ohm, BNC
MPEG-4
720 x 576 or 720 x 288 or 360 x 288
1 x 2,5” IDE HDD
Full D1 size: 720 x 576 / Half D1 size: 720 x 288 / CIF size: 360 x 288
1 ~ 100 IPS (360 x 288) // 1 ~ 50 IPS (720 x 288) // 1 ~ 25 IPS (720 x 576)
Continuous, timer, schedule or event recording
Via date/time or event
Yes
Yes
Yes, with configurable detection area (30x24) and 6 sensitivity levels
Yes (10.240 entries)
4 alarm inputs
1 alarm output
2 mono (line) inputs / 2 mono (line) outputs
on-screen display
front panel control with jog/shuttle, IR remote control; optional: keyboard control, network, RS-485 keyboard EKB 500
Built-in real time clock with automatic time synchronisation via global NTP server through Internet
12-characters title generator for each camera
USB 2.0 interface
RJ45 network connector
1 x RS-232 (9-pin Sub-D) // RS-485: 2 x RJ 45 connector for remote control and PTZ
3 levels
For processing, cooler fan, HDD temperature and HDD activity
e9*72/245*2004/104*6077*00
12 / 24 V DC (230 V AC power supply not included!)
60 W max.
0°C ~ +40°C
8G, 11 ms (20 per 5 seconds max.)
5 ~ 20 Hz, 0,037° (double amplitude), 5 ~ 500 Hz, 0,75 G (0 to peak)
215 x 100 x 321 mm (w/o mobile mounting kit) / 320 x 108 x 321 mm (with mobile mounting kit)
5,0 kg
EDR410M_db_en_rev03
• Fast network video transmission through Internet Explorer or optional PowerCon
4.x software
• Shock- and vibration-proof mounting kit
• Network operation independent from local operation
• E-mail alarm
• Network alarm with optional PowerCon 4.x software
• Speed dome control via network
• Optional RS-485 remote control (EKB 500)
• Free EverFocus DDNS service: DDNS account registration directly from DVR setup
Remote control devices
EKB 500 – multi-function keyboard
Technical data
Keys 48
Joystick 3D PTZ function control
Jog/shuttle DVR control
Display LCD 2 lines with 20 characters each
Baud rate 1.200 ~38.400
Serial interfaces RS-232 (service) / 2 x RS-485
Protocols Pelco-P / Pelco-D / EverFocus / ED 2200 / ED 2250
Devices Control of speed dome, DVR and EQ 2700 motorzoom camera
Cascading Up to 8 keyboards addressable
Wiring box Yes
Power source 12 V DC, via included power supply 230 V AC
Power consumption 10 W max.
Ambient temperature 0°C ~ +40°C
Dimensions (WxHxD) 360 x 110 x 200 mm
Weight 1,5 kg
PowerCon 4.x – network management software
Features
• Unlimited number of managed systems (DVRs, Megapixel / network cameras, video
• Live and playback view
• Local storage and printout of video data or single pictures on client PC
• Multi-window design with scalable video windows
• Freely definable multiviews with up to 16 DVR systems or network cameras, also mixed
• Mapview: visualisation of CCTV system in areas or buildings with freely scalable maps,
• Remote DVR configuration (EDR DVR series only)
• Remote configuration of EverFocus network cameras and video servers
• EKB 200 joystick control
rd
party applications)
servers, 3
display of different DVRs (max. 256 cameras in 1 multiview with 16 x 16-channel DVR*)
graphics (BMP or JPG format) or active symbols
* function requires specific PC + network preconditions – please contact your sales partner for further details!
• POS module for retail applications (optional)
• GPS module for object tracking (optional)
• Network alarm reception and management
• Multi-monitor support (depending on PC configuration)
• Advanced access rights management with individual user rights for
functions and system access
• Network monitor for visualisation of network traffic
• System checker: integrated background port checker with alarm function
for availability of DVRs, cameras and video servers in network
• Support of external program starts
• Basic feature support for browser-based 3
rd
party applications
Ordering information
EDR 410 M NH
EKB 500 Multi-function keyboard for speed dome and DVRs, with 3-axis joystick and jog/shuttle, 12 V DC (230 VAC power supply incl.)
PowerCon 4.x PowerCon 4.x single client version with CM stick (current version: 4.2)
PowerCon 4.x update PowerCon 4.x update version for PowerCon Pro and PowerCon station (serial number of existing version required)
4-channel MPEG-4 mobile digital video recorder, w/o harddisk, incl. mobile mounting kit,
12 / 24 V DC (230 V AC power supply not included)
Harddisk storage: optional up to 1 x 2,5” IDE HDD in a removable HDD tray
Please order your MPEG-4 mobile DVR as follows:
DVR Series
Ordering code:
EDR
If you prefer to receive the DVR and HDDs separately, please order the respective “NH” DVR model and separate harddisks in the requested size. If you
prefer to receive the DVR without any harddisks, we’ll provide you with a list of suitable harddisks which have been tested and approved for your
MPEG-4 Mobile DVR.
Model / No. of harddisks / Size of harddisks / Example:
Î You’ll receive:
410M / 1 / 40 NA Î 4-channel MPEG-4 mobile DVR with 1 built-in 2,5” 40 GB automotive harddisk
EDR410M_db_en_rev03
