EDN850H
User’s Manual
Copyright © EverFocus Electronics Corp,
Release: Dec. 2009 Rev.A
EDN850H
Product Name: EAN 850H EverFocus IP Network Cameras
Model Number(s): EDN850H
FCC Notice "Declaration of Conformity Information"
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
Installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this equipment, not expressly approved
by EverFocus or parties authorized by EverFocus could void the user's authority to
operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
EverFocus Electronics Corp.
12F, No. 79, Sec. 1, Shin-Tai Wu Rd., His-Chi,
Taipei Hsien, Taiwan, R.O.C.
EDN850H complies with CE and FCC.
2
EDN850H
About this document
All the safety and operating instructions should be read and followed before the
unit is operated. This manual should be retained for future reference. The
information in this manual was current when published. The manufacturer reserves
the right to revise and improve its products. All specifications are therefore subject
to change without notice.
Safety Notice
-These limits are designed to provide reasonable protection. This equipment
generates, uses and can radiated radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures: -Reorient or relocate the receiving antenna.
-Increase these separations between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
To reduce risk of fire or electric shock, do not expose this appliance to rain or
moisture.
Do not attempt to disassemble the appliance. To prevent electric shock, do
not remove screws or covers. There are no user-serviceable parts inside.
Contact qualified service personnel for maintenance. Handle the appliance with
care. Do not strike or shake, as this may damage the appliance.
Do not use strong or abrasive detergents when cleaning the appliance body.
Use a dry cloth to clean the appliance when it is dirty. When the dirt is hard to
remove, use a mild detergent and wipe gently.
3
EDN850H
Do not operate the appliance beyond its specified temperature, humidity or
power source ratings. Do not use the appliance in an extreme environment where
high temperature or high humidity exists. Use the appliance at temperature within
0℃ ~ +40℃ / 32 ~ 104 and a humidity below 90%. The input power source for
this appliance is 12 VDC & PoE..
Use only the recommended power supplies. Power supplies must comply
with the requirement of the latest version of IEC60950-1. Substitutions may
damage the unit or cause a fire or shock hazard.
Electrostatic-sensitive device. Use proper CMOS/MOSFET handing
precautions to avoid electrostatic discharge.
Installation should be performed by qualified service personnel only in
accordance with the National Electrical Code or applicable local codes.
Terms and Trademark
Ethernet, Internet Explorer, Linux, Microsoft, Windows, WWW are registered
trademarks of the respective holders. Other product names appearing in this User's
Guide may be trademarks or registered trademarks of their respective holders.
Java™ and all Java-related logos and trademarks are trademarks or registered
trademarks of Sun Microsystems, Inc. in the United States and other countries.
Support
If the unit ever needs repair service, the customer should contact the nearest
EverFocus Electronics Corp. Service Center for return authorization and shipping
instruction.
About AC Adaptor
Specifications for AC adaptor
Power Supply: 12VDC, 1 A
Power Output: 12VDC, 1 A
Operating Temperature: 0 ~ 40 / 32 ~ 104
4
EDN850H
External Dimensions: 56 mm x 68 mm x 101 mm / 2.24” x 2.72” x 4.04”
TABLE OF CONTENTS
1. INTRODUCTION....................................................................................................7
2. FEATURES..............................................................................................................7
3. ACCESSING THE CAMERA MENU...................................................................8
4. SETTING................................................................................................................11
SYSTEM INFO ......................................................................................................12
4.1
4.1.1 Information .................................................................................................12
4.1.2 Log ..............................................................................................................13
4.2
USER CONFIG...................................................................................................... 14
NETWORK ...........................................................................................................16
4.3
4.3.1 Network.......................................................................................................16
4.3.2 DDNS.......................................................................................................... 18
4.3.3 Bandwidth ...................................................................................................20
4.3.4 SMTP/FTP ..................................................................................................21
4.3.5 Network Alarm (reserved for PowerCon)...................................................23
4.4
VIDEO .................................................................................................................23
4.4.1 Multi Streaming ..........................................................................................24
4.4.2 Camera ........................................................................................................25
4.4.2.1 LENS....................................................................................................27
4.4.2.2 SHUTTER............................................................................................27
4.4.2.3 WHITE BALANCE Control................................................................29
4.4.2.4 BACKLIGHT ......................................................................................30
4.4.2.5 AGC (Auto Gain Control)....................................................................30
4.4.2.6 DNR (Dynamic Noise Reduction)....................................................... 31
4.4.2.7 SENS-UP .............................................................................................32
4.4.2.8 SPECIAL .............................................................................................33
4.4.2.9 EXIT ....................................................................................................41
4.5
AUDIO................................................................................................................. 42
USER .................................................................................................................43
4.6
EVENT............................................................................................................... 44
4.7
4.7.1 Event ...........................................................................................................45
4.7.2 Motion.........................................................................................................47
4.7.3 Alarm...........................................................................................................48
4.7.4 Time Mask ..................................................................................................49
5
EDN850H
4.8 SYSTEM............................................................................................................ 51
4.8.1 Date/Time....................................................................................................51
4.8.2 Daylight Saving ..........................................................................................53
4.8.3 SD Card....................................................................................................... 54
4.8.4 Maintenance................................................................................................ 56
5. SPECIFICATIONS................................................................................................58
6
EDN850H
1. INTRODUCTION
The EDN850H is weatherproof IP66 rated outdoor network dome camera which
provides H.264, MPEG-4 and MJPEG compression for multi-streaming
capabilities.
With unique digital processing technology, EDN850H can reduces the gain noise
and produce clear, obvious images in low light environments. Equipped with
build-in SD card slot, it offers local storage in which videos can be transferred to
local PC. IP66 rated weather-proof and vandal-resistant design, and Power over
Ethernet (PoE), the EDN850H is a durable network dome camera suited with
features for the most demanding environments.
2. FEATURES
z Multi stream output at 4CIF resolution @ 30fps
z H.264/MPEG4/MJPEG multi stream output for simultaneous live monitoring
and high resolution recording
z True Day/Night function with ICR module
z Built-in DNR (Dynamic Noise Reduction) for noise reduction and a 70% saving
of Disk storage
z The starlight Super-high sensitivity of 0.002 Lux/F=1.2 is achieved by setting
SENS-UP Slow Shutter 128x max.
z Built-in Vari-Focal lens
z Power over Ethernet (PoE) IEEE 802.3af
z Support MDI/MDI-X auto crossover
z Smart Wizard settings for varied Event and schedule recording
z Built-in SD memory card slot for local storage and support SDHC
z Two-way Audio
z Easy wall or ceiling installation
z Vandal Resistant & Weatherproof IP66 rated
7
EDN850H
3. ACCESSING THE CAMERA MENU
Step 1.Start an Internet Explorer browser.
Step 2. Enter the IP address or host name of the camera in the Location/Address
field of your Internet Explorer browser. (Please refer to EDN850H Installation
Guide for how to find the IP address)
Step 3. Input “Username” and “Password”. Default Username is “user1” and
default password is “11111111”.
Step 4. Click “Login” button.
Step 5. You might be required to download Active X, which is required to view
camera video. Please click "Yes".
Step 6. Congratulation!! You should be able to see the live image now.
1
○
Press button to display the "Live" page.
Double click on the image to show a full screen display, double click again or press
ESC to return normal display.
2
○
Press button to enter Setting page. In Setting page, there
are 8 sections: [System Info], [User Config], [Network], [Video], [Audio], [User],
[Event] and [System]. Please refer to “4. SETTING” for further information.
8
EDN850H
3
Press button to close EDN850H network page.
○
4
○
Video Stream
Select Video Stream from Stream 1 / Stream 2, Stream 3 and Stream 4. Please refer to
“4.4.1 Multi Streaming” for further information.
5
○
View Size
You can select View size to either reduce or enlarge the image to the appropriate view
size.
Select the view size for live images from:
704*480/640*480/352*240/320*240/176*120
6
○
Digital Zoom
Press “+” or “-“ button to enlarge / reduce the displayed image. (max. is X10)
7
Record
○
The record button is used to record the current video stream. The location where the
image file is saved can be specified in Setting -> User’s Config. Please refer to “4.2
User Config” for further information.
Note:
Record segment is limited to 5 min. If you need to do long time recording, please set
schedule recording. For more details about schedule recording, please see “4.7 Event”.
9
EDN850H
8
○
Snapshot
The Snapshot button saves a snapshot of the video image currently being displayed.
The location where the snapshot data is saved can be specified in Setting -> User’s
Config. Please refer to “4.2 User Config” for further information.
9
10
○
~ ○
Play Audio/Transmit Audio
Click the “Play Audio” and “Transmit Audio” buttons to switch the sound off and on
for the speaker and microphone, respectively.
11
○
Manual Control – Trigger Event
Press “Trigger Event” button to trigger an event directly from live view page, and
event actions will be effective if they have been set in “Event” menu. (Please refer to
“4.7.1 Event”)
12
○
Manual Control – Reset Alarm
Press “Reset Alarm” button to reset alarm output remotely.
13
Status Display
○
The name of the camera whose settings currently being configured, current date/time
and current frame rate will be displayed.
14
○
Event signals
Alarm
Motion
When an alarm or motion event is triggered, a signal icon will flash to alert user.
The first icon is for alarm event and rest of the 5 icons are for motion event. The
motion event icons which differed by colors correspond to the motion trigger areas
you have set in Motion menu. Please refer to “4.7.2 Motion” for detailed information
about Motion setup.
10
EDN850H
4. SETTING
Click this button to display the setup menu.
11
EDN850H
4.1 System Info
System information and system log check of the setup menu can be performed on this
page. The “System Info” page has 2 tabs: [Information] tab and the [Log] tab.
4.1.1 Information
System Information: Firmware version, MAC address, Video Type, Model number.
(unchangeable, for reference only)
12
4.1.2 Log
EDN850H
System Log:
Date/Time: displaying date and time of the log.
Log message: all information and event message, including login, user’s IP, reboot,
firmware upgrade, load factory default, configuration reset and event detected.
System will keep the newest 256 records.
Press button to export system log into “.txt” file and select the
location where the exported log file will be saved to.
13
4.2 User Config
EDN850H
Live view configuration is to be set by user. Each login user can make his/her own
settings for the following items:
Text Set t ing
Check the box for text of Machine name, Date/Time or Frame Rate to be
displayed on the screen.
Text Col o r
Foreground Color: Select the foreground color of text to be displayed by moving
the slide bar between Red, Green and Blue until your desire color is obtained.
14
EDN850H
Position: Select the position where the text will be displaying from Upper Left /
Lower Right / Lower Left.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
Date/Time Format Used in Text
Select Date/Time Format from the following options:
Time Format: 24 Hours or 12 Hours.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
Recording/Snapshot Export Setting
Enable Event Recording to PC: Allow event video recorded to users' PC if any
events have been set to record to PC.
Export folder: Select Export folder by clicking on button, then direct to the
folder to be exported.
File size: Able to limit the size of the single recording file in minutes. When the
single recording file size exceeds the time you set, system will create a new file to
continue recording.
Overwrite: Select “ON” for overwriting recording/snapshot file when the disk
storage capacity is full.
If the remaining hard disk capacity is less than ____ MB (enter the value you wish
to set between 50~2000), system will stop recording or start overwriting.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
Language Setting
15
EDN850H
Language: Select the language to be displayed in web page. Default language is
English. To add a new language which is not listed in the original configuration,
press the Browse button to locate the new language file (.evb) and then click the
Load button.
Note:
1. Maximum five languages can be in the language list.
2. Upload a new language file will reboot system automatically. Please
reconnect IP camera after reboot.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
4.3 Network
The network settings and the settings relating to Network, DDNS, Bandwidth,
SMTP/FTP and Network Alarm can be configured on this page.
The "Network setup" page has 5 tabs of the [Network] tab, the [DDNS] tab, the
[SMTP/FTP] tab and the [Network alarm] tab.
4.3.1 Network
The following information is required to configure the network settings. Contact
the network administrator or your Internet service provider.
16
EDN850H
• IP Type
• IP address
• Subnet mask
• Gateway (when using the gateway server/router)
• Primary DNS, Secondary DNS (when using DNS)
• HTTP Port
IP SETTING
IP Type
DHCP: Configure the DHCP server not to assign the same IP addresses used for
the other network cameras and PCs whose IP address is unique.
Refer to the network administrator for the settings of the server.
Default: DHCP.
Static IP: User can manually set the static IP for network connection.
PPPoE: This is a DSL connection application, ISP will ask user to input user name
and password.
Note: If PPPoE is used as IP type, IP Utility software will not be able to detect
the device.
IP address
When not using DHCP, enter the IP address of the camera. Do not enter the IP
address already used for PC or other network cameras.
Subnet Mask
This field is to set the netmask for your network so as the IP camera will be
recognized within the network. Example: 255.255.255.000. When DHCP is
selected, the DHCP server will assign this value automatically.
Gateway
This field is to set the gateway for your network so the IP camera will be
recognized within the network. When DHCP is selected, the DHCP server will
assign this value automatically.
17
EDN850H
Primary DNS
An IP address of DNS server that is provided by ISP.
Secondary DNS
If your ISP provides you an IP address secondary DNS, please set it here.
Username
Enter User name of the account (used only for PPPoE).
Password
Enter Password of the account (used only for PPPoE).
Press Apply to apply the setting changes or Reset to reset without saving the
change.
Port Setting
HTTP Port
Port number for HTTP/WEB communication.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
4.3.2 DDNS
18
EDN850H
DDNS setting
When accessing the camera via the Internet from the network environment of
which the global IP address is obtained using DHCP, the DDNS function is
necessary.
To use the DDNS function, it is necessary to connect to the dedicated DDNS
server. We offer 4 DDNS server providers as follow:
○ www.everfocusddns.com
○ www.sitelutions.com
○ www.dyndns.com
○ www.no-ip.com
Enable: Check the box to enable DDNS setting.
Service ISP: If you choose EverFocus DDNS server, you can obtain a free account
name from EverFocus ”www.everfocusddns.com
”.
Enter an IP Cam Account Name:
Press
button to register or update DDNS account.
.everfocusddns.com
If you wish to get a domain name from other DDNS provider, it is necessary to
configure Record ID, FQDN, Username and password and register in DDNS server.
Refer to the web site for further information about the DDNS.
19
EDN850H
Press Apply to apply the setting changes or Reset to reset without saving the
change.
4.3.3 Bandwidth
Bandwidth Setting
Max. Bandwidth: Specify, Unlimited / 64 K/ 128 K/ 256 K / 512 K / 1M / 2M / 4M
/ 8M bps. the maximum bandwidth that the camera is allowed to use on the
network. This is a useful function when connecting the camera to busy or heavily
loaded networks. The default setting is Unlimited.
Max. Client Limit: enter a value here to restrict the number of clients accessing the
camera. This is useful if you need to save on bandwidth. Up to 32 clients is
allowed to see live video simultaneously. Subsequent viewers will see a blank
image.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
20
4.3.4 SMTP/FTP
Set SMTP
EDN850H
The settings relating to the mail server used to send the e-mail notification from the
camera to predefined addresses via SMTP can be configured.
SMTP Server: Enter the IP address or the host name of the SMTP server used to
send e-mails
.
SMTP Port: Enter the port number for SMTP. Default is 25.
Authentication: Check the box, if the SMTP server requires Authentication (user/
password).
User name: Input the login user ID if the SMTP server requires Authentication.
Password: Input the password if the SMTP server requires authentication.
Receiver Address: Input the e-mail address for receiving e-mail message when the
EVENT is enabled and triggered. Please use “;” to separate address.
Sender Address: Input sender’s e-mail address, so that receiver can recognize the
sender when an event message is sent out.
21
EDN850H
Send Test Mail: Press
button to send a testing mail to the assigned
address.
Set FTP
The settings relating to the FTP server used to transmit the alarm images can be
configured.
FTP Server: Enter the IP address or the host name of the FTP server.
FTP Port: Enter the port number for FTP server. Default is 21.
Recording Path: Assign the recording path.
User Name: Set FTP User’s name.
Password: Set FTP password.
PASV mode: Check to enable Passive mode, normally enable Passive mode. When
failed to establish the connection, uncheck "PASV" mode.
Test FTP Server: Press
button to send a testing file to the assigned
FTP server.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
22
EDN850H
4.3.5 Network Alarm (reserved for PowerCon)
Set Network Alarm
This function is reserved for PowerCon software, for the detail setting please refer
to PowerCon network alarm protocol.
4.4 Video
The settings relating video such as streaming, camera OSD can be configured on
this page.
The "Video" page has 2 tabs: the [Multi-streaming] tab and the [Camera] tab.
23
EDN850H
4.4.1 Multi Streaming
Stream Setting
The system can output 4 video streams simultaneously. For each of them, user can
set compression format, resolution, quality and frame rate individually. Stream 1 is
always enabled for live view.
Check “Enable” box to enable other streams.
Format: Select encode format from H.264, MPEG4 and MJPEG.
Resolution:
NTSC: 4CIF (704*480) / VGA (640*480) / CIF (352*240) / QVGA (320*240) /
QCIF (176*120)
PAL: 4CIF (704*576) / VGA (640*480) / CIF (352*288) / QVGA (320*240) /
QCIF (176*144)
Quality: there are 8 types of quality, please choose from Highest / Higher / High /
Middle / Normal / Low / Lower / Lowest.
Frame Rate: select from NTSC: 1 / 3 / 5 / 15 / 30 fps, PAL: 1/ 2.5/5/12.5/25 fps
24
EDN850H
Note: 1. Total frame rate cannot exceed 60 fps.
2. System performance may be influenced if user enables 4 video streams
simultaneously.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
Video Recording Setting
User can set video recording by selecting one of the enabled video streamings.
This will allow user to view live images as well as to record video of the other
video streaming.
Video Stream: Select video recording stream from any enabled stream.
Video File format: Recording file will be saved as AVI or ARV, select which file
format to be used.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
4.4.2 Camera
Camera Settings
The "Camera OSD setting" can be displayed on a video monitor and can be
configured using the operation buttons on this page.
25
EDN850H
OSD setting:
Use the following buttons on the operation panel to operate the "Camera OSD
setting" using a PC. (Please refer to 4.4.2.1 for detail guide of Camera OSD
Setting)
[SET] button:
Click this button to move to the submenu.
[Left] button/ [Right] button:
Click these buttons to select the parameters.
[Down] button/ [Up] button:
Click these buttons to move the cursor.
ICR Switch Setting:
AUTO: ICR switches automatically according to the illumination.
B/W: Select to keep B/W image.
COLOR: Select to keep color image.
26
EDN850H
4.4.2.1 LENS
1. When the SETUP menu is displayed on the screen, please direct the arrow to point
to “LENS” by using the UP and DOWN buttons. Press the SET button to adjust
IRIS level (the higher is brighter). In most cases, you don’t need to adjust this,
since Lens is Auto Iris supported.
SETUP
> LENS DC <┘
SHUTTER ___
WHITE BAL. ATW
BACKLIGHT OFF
AGC MIDDLE
DNR LOW
SENS-UP AUTO
SPECIAL <┘
EXIT
<┘
LENS
> LEVEL |+++++++++| 20
Note:
Since DC lens is a built-in lens for EDN850H camera, it does not support Manual lens,
please do not select lens as Manual mode, it disables sens-up and may cause malfunction
of lens.
2. Please press SET button for saving setting and return to the previous menu.
4.4.2.2 SHUTTER
1. When the SETUP menu is displayed on the screen, please direct the arrow to point
to “SHUTTER” by using the DOWN button.
2. Select the shutter mode by pressing the LEFT or RIGHT button. Three modes are
available: FLK, ESC and Manual.
Note:
Since DC lens is a built-in lens for EDN850H camera, shutter does not support ESC and
Manual functions. ESC and Manual are reserved functions, please do not select these
two options in normal situation.
Ö FLK: Please select “FLK” mode when flickering occurs on the screen, which
is caused by an irregular balance between illumination and frequency. NTSC
model: 1/100, PAL model: 1/120.
27
EDN850H
SETUP
LENS MANUAL
> SHUTTER FLK
WHITE BAL. ATW
BACKLIGHT OFF
AGC MIDDLE
DNR LOW
SENS-UP ___
SPECIAL <┘
EXIT
Ö ESC: (Reserved).
SETUP
LENS MANUAL
> SHUTTER ESC <┘
WHITE BAL. ATW
BACKLIGHT OFF
AGC MIDDLE
DNR LOW
SENS-UP AUTO <┘
SPECIAL <┘
EXIT
Ö Manual: (Reserved)
SETUP
LENS MANUAL
> SHUTTER MANUAL <┘
WHITE BAL. ATW
BACKLIGHT OFF
AGC MIDDLE
DNR LOW
SENS-UP ___
SPECIAL <┘
EXIT
2. Press SET button when you finish all the settings.
BRIGHTNESS
BRIGHTNESS |+++++++++| 25
SHUTTER
> MANUAL 1/50
Note:
With DC lens, the shutter speed is fixed as 1/60 for NTSC and 1/50 for PAL.
28
EDN850H
4.4.2.3 WHITE BALANCE Control
The screen color can be adjusted by using the WHITE BALANCE function.
1. Please direct the arrow to point to “WHITE BAL” on the SETUP menu by using
the UP and DOWN buttons.
2. Please select the mode you would like to operate by pressing the LEFT or RIGHT
button.
Please select one of the 3 modes below:
Ö ATW (Auto Tracking White Balance): This mode can be used within the
color temperature range from 2,500°K to 8,300°K (eg, fluorescent light,
outdoor, sodium vapor lamp or inside tunnels).
Ö AWC (Auto White Balance Control): Press the SET button while the camera
is directed at a piece of white paper to get the optimum state under the
present illumination. If the environment and the light source are changed,
you need to adjust the white balance again.
Ö MANUAL: The manual adjustment mode enables a more precise adjustment.
Please select ATW or AWC first. Then change to manual adjustment mode
and press the SET button. Set the suitable color temperature, and increase or
decrease the red and blue color values at the same time while checking the
color changes of the object.
SETUP
LENS DC <┘
SHUTTER ___
> WHITE BAL. MANUAL <┘
BACKLIGHT OFF
AGC MIDDLE
DNR LOW
SENS-UP AUTO <┘
SPECIAL <┘
EXIT
WHITE BAL.
RED |+++++++++| 32
BLUE |+++++++++| 39
Note:
Under the following conditions, the WHITE BALANCE function may not operate well. In such
cases, please select the AWC mode.
1. When the object’s surroundings have a high color temperature.
2. When the object’s surroundings are dark.
3. If the camera faces a fluorescent light directly or is installed in a place where the
illumination changes constantly, the WHITE BALANCE function may become unstable.
29
EDN850H
4.4.2.4 BACKLIGHT
Even there is a massive backlight behind the object, bright images of the background
and the object can still be obtained by using the BACKLIGHT function.
1. Please direct the arrow to point to “BACKLIGHT” on the SETUP menu by using
the UP and DOWN buttons.
2. Select the mode you would like to operate by pressing the LEFT or RIGHT
button.
SETUP
LENS DC <┘
SHUTTER ___
WHITE BAL. ATW
> BACKLIGHT OFF
AGC MIDDLE
DNR LOW
SENS-UP AUTO <┘
SPECIAL <┘
EXIT
Ö HIGH: The gain increases from 0dB up to 42dB.
Ö MIDDLE: The gain increases from 0dB up to 30dB.
Ö LOW: The gain increases from 0dB up to 18dB.
Ö OFF: BACKLIGHT function does not operate.
4.4.2.5 AGC (Auto Gain Control)
1. Please direct the arrow to point to “AGC” on the SETUP menu by using the UP and
DOWN buttons.
2. Select the mode you would like to operate by pressing the LEFT or RIGHT button.
The more the level of gain increases, the brighter the screen and the level of noise
increases as well.
Ö HIGH: The gain increases from 6dB up to 42dB.
Ö MIDDLE: The gain increases from 6dB up to 30dB.
Ö LOW: The gain increases from 6dB up to 18dB.
Ö OFF: The gain is fixed at 6dB.
SETUP
LENS DC <┘
SHUTTER ___
WHITE BAL. ATW
BACKLIGHT OFF
> AGC MIDDLE
DNR LOW
SENS-UP AUTO <┘
SPECIAL <┘
EXIT
30
EDN850H
4.4.2.6 DNR (Dynamic Noise Reduction)
Dynamic Noise Reduction in video images has the following effects.
1. Images are brighter and sharper.
2. When the level of noise is reduced, the performance of a camera can apparently be
improved.
3. When it is recorded digitally, reduced noise can reduce image file size.
As the level of gain changes, the background noise in the low light level automatically
decreases.
1. Please direct the arrow to point to “DNR” on the SETUP menu by using the UP
and DOWN buttons.
2. Select the mode you would like to operate by pressing the LEFT or RIGHT
button.
SETUP
LENS DC <┘
SHUTTER ___
WHITE BAL. ATW
BACKLIGHT OFF
AGC MIDDLE
> DNR LOW
SENS-UP AUTO <┘
SPECIAL <┘
EXIT
Ö OFF: No reduction in noise level.
Ö LOW: Little reduction in noise level with nearly no ghost image. Default
value is LOW.
Ö MIDDLE: Just enough reduction in noise levels without causing much ghost
imaging.
Ö HIGH: Huge reduction in noise level, which may cause much ghost imaging.
Note:
When AGC is turned off, DNR will be disabled.
31
EDN850H
4.4.2.7 SENS-UP
SENS UP is used to keep a brilliant, vivid screen image by automatically detecting
changes in the level of light under low light level conditions. The value is from x2
~x128.
1. Please direct the arrow to point to “SENS UP” on the SETUP menu by using the
UP and DOWN buttons.
2. Select the mode you would like to operate by pressing the LEFT or RIGHT
button.
Ö AUTO: Low light level auto mode. Default value is AUTO (Up to X 10).
SETUP
LENS DC <┘
SHUTTER ___
WHITE BAL. ATW
BACKLIGHT OFF
AGC MIDDLE
DNR LOW
> SENS-UP AUTO <┘
SPECIAL <┘
EXIT
LIMIT
> AUTO X 10
Ö OFF: The function is disabled.
3. Press SET button when you finish all the settings.
Note:
1. The maximum storage magnification in low light level movement situations can be
adjusted by pressing the mini-joystick in “AUTO” mode.
2. The screen becomes brighter when the magnification increases; yet the after image
increases as well.
3. Please be noted that spots and noise may appear if storage magnification increases
when SENS-UP is operating. This is a normal phenomenon.
32
EDN850H
4.4.2.8 SPECIAL
1. Please direct the arrow to point to “SPECIAL” on the SETUP menu by using the
UP and DOWN buttons.
SETUP
LENS DC <┘
SHUTTER ___
WHITE BAL. ATW
BACKLIGHT OFF
AGC MIDDLE
DNR LOW
SENS-UP AUTO <┘
> SPECIAL <┘
EXIT
2. Select the mode you would like to operate by pressing the LEFT or RIGHT
button.
SPECIAL
> CAMERA ID OFF
COLOR ADJ.
SYNC. INT
MOTIION DET OFF
PRIVACY OFF
MIRROR OFF
SHARPNESS ON <┘
RESET
RETURN <┘
<┘
4.4.2.8.1 CAMERA ID
Input the camera ID, and it will be appeared on the monitor.
1) Please direct the arrow to point to “CAMERA” by using the UP or
DOWN button.
2) Select “ON” by pressing the LEFT or RIGHT button.
3) Press SET button.
4) Maximum 15 letters can be used for the ID.
¾ Use UP, DOWN, LEFT and RIGHT buttons to select the letters
¾ Press the SET key to lock in the letters.
5) Once a name has been selected, please choose a position where you
would like to display the name.
¾ Move the cursor onto “POS” and press the SET button.
¾ The name will appear at the top left hand corner.
¾ Please use the 4 directional buttons to find the desired position to
display the name.
33
EDN850H
6) If you would like to cancel the ID inputted, please move the cursor to
“CLR”, and all the letters inputted will be deleted.
7) Select “END” and press SET button to complete ID input.
SPECIAL
> CAMERA ID ON
COLOR ADJ.
SYNC. INT
MOTIION DET OFF
PRIVACY OFF
MIRROR OFF
SHARPNESS ON <┘
RESET
RETURN <┘
<┘
---------------
4.4.2.8.2 COLOR ADJ
Adjust the Color Gain from 0 ~ 15
SPECIAL
CAMERA ID OFF
> COLOR ADJ. <┘
SYNC. INT
MOTIION DET OFF
PRIVACY OFF
MIRROR OFF
SHARPNESS ON <┘
RESET
RETURN <┘
·
COLOR GAIN.
> LEVEL |++++++++| 8
34
EDN850H
4.4.2.8.3 SYNC
There are two SYNCHRONIZATION modes: INTERNAL and EXTERNAL
LINE-LOCK. In LINE-LOCK mode, without a synchronous generator, it
synchronizes the video signal between cameras. The Line-Lock synchronization is
only used in the places of 60Hz (NTSC models) or 50Hz (PAL models).
-INT: Internal synchronization
-LL: External line-lock synchronization
=> If you choose “LL”, you can adjust the phase your wish to set. Then press the
mini-joystick. You can adjust the phase you wish to set from 0 to 359.
SPECIAL
CAMERA ID OFF
COLOR ADJ. <┘
> SYNC. LL <┘
MOTIION DET OFF
PRIVACY OFF
MIRROR OFF
SHARPNESS ON <┘
RESET
RETURN <┘
SYNC
> PHASE |++++++++| 0
4.4.2.8.4 MOTION DETECTION
EDN850H enables you to observe movements of objects in 4 different places on
the screen, the message “MOTION DETECTED” appears on the screen when
movement is detected; therefore this helps to improve supervision efficiency. The
camera detects an object’s movement by sensing discrepancy of outline.
1) Please direct the arrow to point to “MOTION DET” by using the UP or
DOWN button.
2) Select “ON” by pressing the LEFT or RIGHT button.
3) Press SET button.
SPECIAL
CAMERA ID OFF
COLOR ADJ. <┘
SYNC. INT
> MOTIION DET ON <┘
PRIVACY OFF
MIRROR OFF
SHARPNESS ON <┘
RESET
RETURN <┘
MOTION DETECTION
> AEREA SEL AREA1
AREA STATE ON
TOP |+++++++++| 10
DOWN |+++++++++| 25
LEFT |+++++++++| 20
RIGHT |+++++++++| 40
Press SET to return
z Please select the area you would like to detect from the 4 areas in AREA SEL
mode.
z Please select ON mode for the chosen area.
35
EDN850H
z Please use the UP or DOWN button to move between TOP, DOWN, LEFT
and RIGHT for adjusting the size of the area.
z Please use the LEFT or RIGHT button to adjust the value for size of the area.
AREA1 AREA2
AREA3 AREA4
z Additionally, it is possible to change the position of the area. Please refer to
the following example for detailed steps on moving AREA1 to center.
1. The original position of AREA1 was TOP: 10, DOWN: 25, LEFT: 20 and RIGHT:
40.
AREA1
2. Increase DOWN scale value by 20. AREA1 position after change is: TOP: 10,
DOWN: 45, LEFT: 20 and RIGHT: 40.
AREA1
36
EDN850H
3. Increase TOP scale value by 20. AREA1 position after change is: TOP: 30,
DOWN: 45, LEFT: 20 and RIGHT: 40.
AREA1
4. Increase RIGHT scale value by 20. AREA1 position after change is: TOP: 30,
DOWN: 45, LEFT: 20 and RIGHT: 60.
AREA1
5. Increase LEFT scale value by 20. AREA1 position after change is: TOP: 30,
DOWN: 45, LEFT: 40 and RIGHT: 60.
AREA1
z In order to save the changes and complete the setting, press the SET button.
This allows you to return to the previous menu.
4.4.2.8.5 PRIVACY
This mode covers the areas you do not want to see on the screen.
1) Please direct the arrow to point to “PRIVACY” by using the UP or
DOWN button.
2) Select “ON” by pressing the LEFT or RIGHT button.
3) Press SET button.
37
EDN850H
SPECIAL
CAMERA ID OFF
COLOR ADJ.
SYNC. INT
MOTIION DET OFF
> PRIVACY ON <┘
MIRROR OFF
SHARPNESS ON <┘
RESET
RETURN <┘
<┘
PRIVACY
> AEREA SEL AREA1
AREA STATE. OFF
AREA TONE |+++++++++| 80
TOP |++++++++| 10
DOWN |+++++++++| 25
LEFT |+++++++++| 20
RIGHT |+++++++++| 40
z Please select the area you would like to cover from the 4 areas in AREA SEL
mode.
z Please select ON mode for the chosen area.
z Please select AREA TONE for cover area color. The smaller the number, the
darker the color.
z Please use the UP or DOWN button to move between TOP, DOWN, LEFT
and RIGHT for adjusting the size of the area to be covered.
z Please use the LEFT or RIGHT button to adjust the value for size of the area
to be covered.
AREA1 AREA2
AREA3 AREA4
z Additionally, it is possible to change the position of the area to be covered.
Please refer to the following example for detailed steps on moving AREA1 to
center.
38
EDN850H
1. The original position of AREA1 was TOP: 10, DOWN: 25, LEFT: 20 and RIGHT:
40.
AREA1
2. Increase DOWN scale value by 20. AREA1 position after change is: TOP: 10,
DOWN: 45, LEFT: 20 and RIGHT: 40.
AREA1
3. Increase TOP scale value by 20. AREA1 position after change is: TOP: 30,
DOWN: 45, LEFT: 20 and RIGHT: 40.
AREA1
4. Increase RIGHT scale value by 20. AREA1 position after change is: TOP: 30,
DOWN: 45, LEFT: 20 and RIGHT: 60.
AREA1
39
EDN850H
5. Increase LEFT scale value by 20. AREA1 position after change is: TOP: 30,
DOWN: 45, LEFT: 40 and RIGHT: 60.
AREA1
z In order to save the changes and complete the setting, press the SET button.
This allows you to return to the previous menu.
4.4.2.8.6 MIRROR
-ON: Sets a horizontal image 180 angel inversion.
-OFF: Disable the inversion.
SPECIAL
CAMERA ID OFF
COLOR ADJ. <┘
SYNC. INT
MOTIION DET OFF
PRIVACY OFF
> MIRROR OFF
SHARPNESS ON <┘
RESET
RETURN <┘
4.4.2.8.7 SHARPNESS
The contour of the video image becomes cleaner and more distinguishing as
the level of SHARPNESS increases. If the level goes up extremely, it may
affect the video image and cause noise.
-ON: Enable the SHARPNESS mode.
-OFF: Disable the SHARPNESS mode.
z Please press the SET button.
z The available range of level is 0~31.
SPECIAL
CAMERA ID OFF
COLOR ADJ. <┘
SYNC. INT
MOTIION DET OFF
PRIVACY OFF
MIRROR OFF
> SHARPNESS ON <┘
RESET
RETURN <┘
SHARPNESS
> LEVEL |+++++++++| 8
40
4.4.2.8.8 RESET
Press the SET button on RESET for 3 seconds until it restarts. It will go to
factory default value.
SPECIAL
CAMERA ID OFF
COLOR ADJ. <┘
SYNC. INT
MOTIION DET OFF
PRIVACY OFF
MIRROR OFF
SHARPNESS ON <┘
> RESET
RETURN <┘
4.4.2.8.9 RETURN
Press the SET button on RETURN. It saves all settings in SPECIAL menu
and returns to the Setup menu.
SPECIAL
CAMERA ID OFF
COLOR ADJ. <┘
SYNC. INT
MOTIION DET OFF
PRIVACY OFF
MIRROR OFF
SHARPNESS ON <┘
RESET
> RETURN <┘
EDN850H
4.4.2.9 EXIT
Press the SET button on EXIT after you finish all the settings. It will return to live
image.
Note:
If you quit the Menu without pressing EXIT, all the settings you previously did will NOT
be saved.
41
EDN850H
4.5 Audio
The EDN850H camera can transmit audio to other clients using a built-in microphone
or connecting to external microphone to play audio received from other clients via
connected speakers. This section describes how to configure the basic audio settings.
Audio
Check Enable Audio box to enable audio function.
Audio Input: Audio from an internal microphone or a line source can be connected
to the Audio connector of EDN850H. The audio source can be selected from
Internal Microphone, External Audio Input L and External Audio Input R.
Audio Input volume: Adjust the Audio Input Volume for the audio input devices
connected to the camera if there are problems with the sound input being too low
or high.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
42
4.6 USER

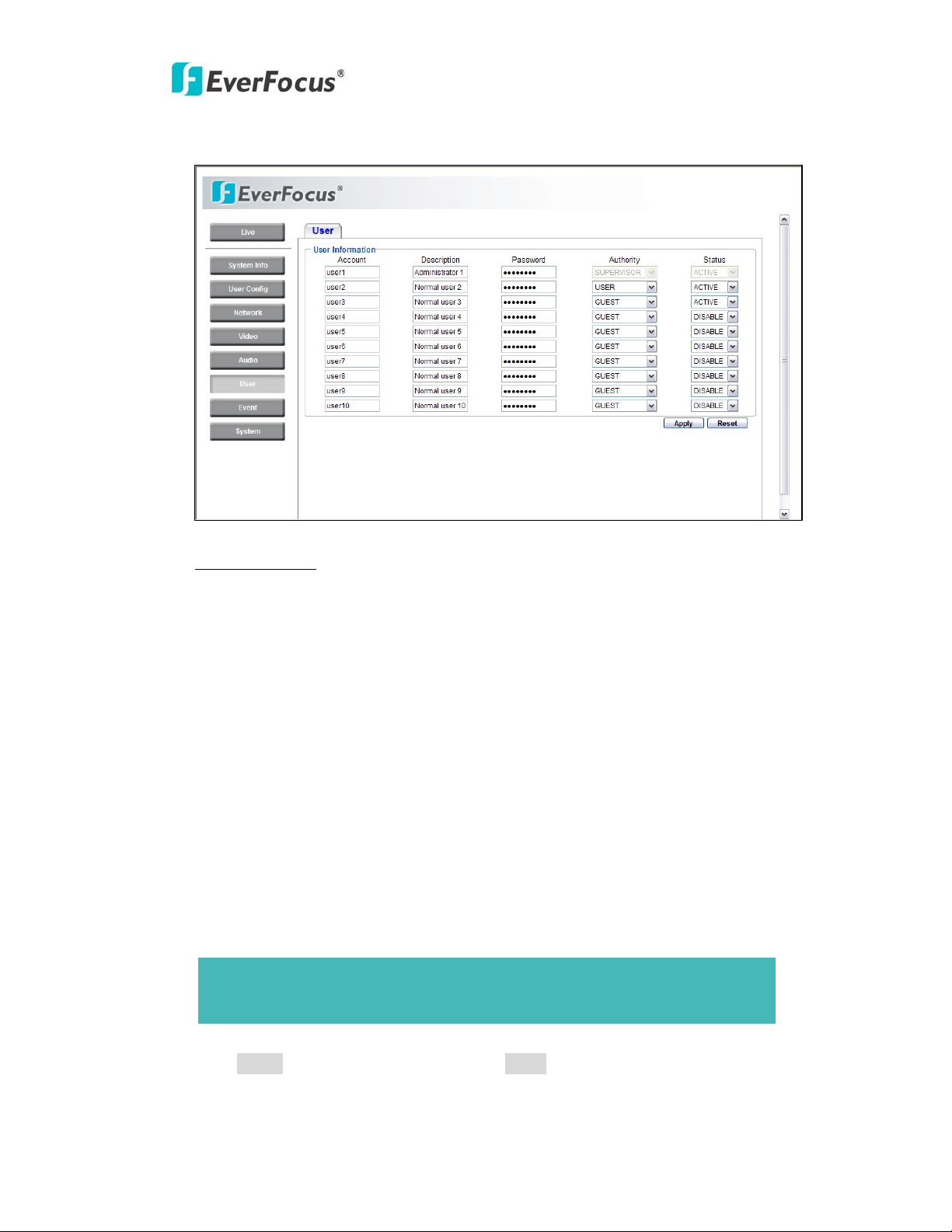

User Information
EDN850H
Maximum 10 users can be set for using the IP camera. The user information
displays the authorized users and access levels:
• Supervisor/Administrator –a supervisor/administrator has unrestricted access to
the Setting menu and can determine the registration of all other users. However,
administrator is not allowed to change supervisor’s account and password.
• User- a user can view the Live View page, system info, network, video, audio,
and adjust user config settings. The user does not have access to the “user”,
“event” and “system pages”.
• Guest- the lowest level of access, which only allows the user access to the Live
View page.
Note:
Please select Active in Status section to activate user account.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
43
EDN850H
N
4.7 EVENT
An event in the camera is when an Event Type is activated and causes certain actions
to be performed. The event type is the set of conditions that specifies how and when
which actions will be performed.
This table describes how to setup action types and event type.
Event Type
Action Type
Trigger Alarm
Send Mail notification
Upload to FTP**
Record to SD Card
Record to PC*
Network Alarm
Re-trigger
Alarm Input
x x x
x x x
x x x x
x x x x x
x x x x x
x x x
x x x
Manual
Trigger
Motion
Detection
Schedule
Recording Pre/Post-Alarm
ote: 1. * Record to PC only works when PC and IP camera are connected.
2. **Either Upload to FTP or Record to Network Storage can be selected to
record event video to remote site.
3. Up to 10 event types can be configured in the camera, and up to 3 of these
can be configured to upload images
.
44
EDN850H

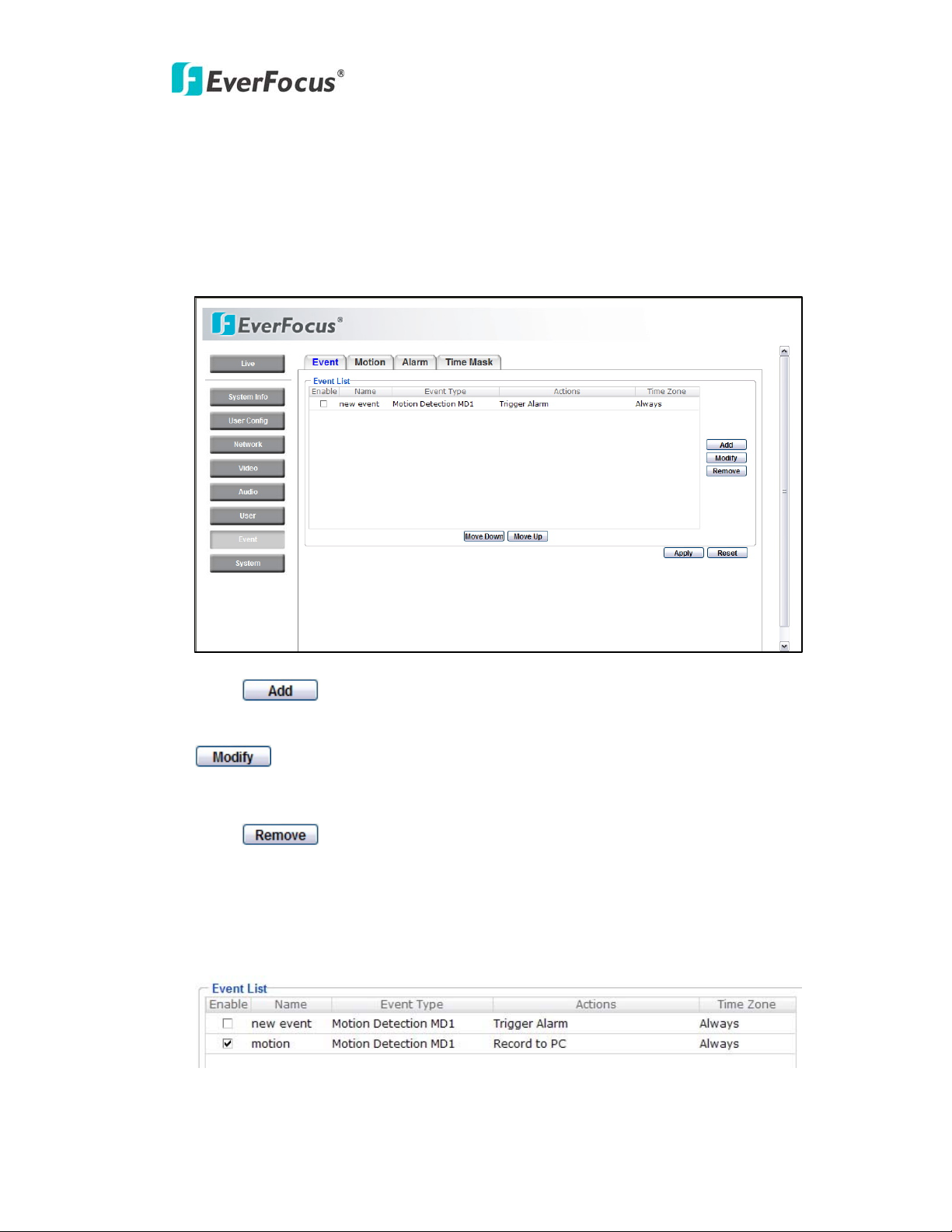

4.7.1 Event
The settings relating to event occurrences such as settings for the event occurrence,
motion, alarm and time mask can be configured on this page.
The "Event” page has 4 tabs: [Event] tab, the [Motion] tab, the [Alarm] tab and the
[Time Mask] tab.
Press
button to add an event condition.
To modify the event list, click on the event and it will be highlighted. Press
button to modify the setting.
To remove an event from event list, click on the event and it will be highlighted.
Press
button to remove the event.
Check Enable checkbox to activate event actions when the event occurs in the
specified time zone.
45
EDN850H
To change the priority of events, click on the event and it will be highlighted. Press
or button to move between events. The event that has
highest priority will be activated first.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
This example describes how to set the camera to upload images to FTP when
someone press Manual trigger button:
1. Click
button in Event page.
2. Enter an event name for the event, e.g. Event 1
3. Select “Manual Trigger” as event type.
4. Select “Upload to FTP” as action type.
46
EDN850H
5. Check “Enable Pre-alarm Buffer” and “Enable Post-alarm Buffer”. For pre-and
post alarm buffer setting, please refer to “4.7.3 Alarm”.
6. Check “Enable This Event”.
7. Select “Always” for time mask. For detail about Time Mask, please refer to
“4.7.4 Time Mask”.
8. Click
4.7.2 Motion
to save this event in event list.
Motion Detection
User can define the motion area to be detected by left clicking the mouse to draw
lines. Every click is an end point of the line. When the detection area is formed,
double click the mouse to have all the lines connected. To remove the selection,
simply right click the mouse, the selected polygon will be deleted.
Press
Press
Press
Press
47
to have the entire screen selected for motion detection.
to clear all selections.
and click on the polygon, to erase that polygon.
to update the current image.
EDN850H
There are 5 motion trigger areas, which can be distinguished by 5 different colors.
Check Enable checkbox to enable event action.
For each of them, you can set the event action to be activated. Event action can be
set in “Event” section.
Moreover, you can set the Sensitivity level for motion triggered by selecting from
1 (low), 2, 3, 4, 5, 6, 7, 8, 9 to 10 (high).
4.7.3 Alarm
Alarm Output Setting
Contact Type: Normal Close, Normal Open
Duration Time: Select duration time of alarm output from 5 sec, 10 sec, 20 sec, 30
sec, 60 sec, 2 min, 3 min and 5 min.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
Pre/Post Alarm Setting
This function is used to check what happened immediately before and after a
trigger, e.g. 5 seconds before or after a motion has been detected.
Pre-Alarm Buffer: Image saved internally in the server from the time immediately
48
EDN850H
preceding the trigger. Input the desired length of pre-trigger buffer time. It can be
set up to 120 seconds.
Post-Alarm Buffer: Image saved internally in the server from the time immediately
after the trigger. Input the desired length of post-trigger buffer time. It can be set
up to 120 seconds.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
Re-trigger Filter Setting
Re-trigger Filter: Set a re-trigger filter time, if another event is triggered during
this time, this triggered event will be ignored.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
4.7.4 Time Mask
Time Mask Setting
Time mask setting allows you to schedule event actions.
Select Always for event action to be taken continuously.
49
EDN850H
Press button to add new time period.
Mask name: Input a mask name for the new time period.
Check the check box for the day to be scheduled: Sun, Mon, Tue, Wed, Thu, Fri &
Sat.
Set the Start time and End time for time mask by clicking Up arrow or Down
arrow. Or simply press
Press
button to remove a scheduled time period.
for a full day of event action.
An example on how to set weekend as time mask is as follows:
1. Click
from time mask setting.
2. Enter Mask name, e.g. Weekend.
3. Check “Sun” & “Sat” boxes.
4. Select “Start time” and “End time” or “Full day”.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
50
EDN850H
4.8 SYSTEM
Date/Time, Daylight Saving, SD card and Maintenance settings can be performed
on this page.
The "System" page has 4 tabs of the [Date/Time] tab, the [Daylight Saving] tab,
the [SD card] tab and the [Maintenance] tab.
4.8.1 Date/Time
Machine Name Setting
Machine Name: Enter the name of the camera. The entered name will be displayed
in the status display area.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
Set Time Zone
Time Zone: Select a time zone according to the location where the camera is in
use.
Set Date/Time Manually
Date: Click the calendar and pick the date. Press << to go previous year, < to go
51
EDN850H
previous month, > to go next month and >> to go next year.
Time: Click on Hour, Minute, Seconds, am/pm; then use up arrow to increase
value and down arrow to decrease value.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
Set Date/Time Sync.
Check Enable NTP checkbox to enable NTP server.
NTP server: Time automatically adjusted by synchronizing with NTP server will
be used as the standard time of the camera.
Sync. Internal: Select an interval (1 - 24 hours: in 1 hour intervals) of
synchronization with the NTP server.
Time Zone:
Select a time zone according to the location where the camera is in use.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
52
4.8.2 Daylight Saving
EDN850H
Set Daylight Saving
Check Enable Daylight Saving checkbox to enable daylight saving.
Set the start time to daylight saving time.
Set the start week of daylight saving time: 1
st
/ 2nd / 3rd / 4th / Last
Set the start date of daylight saving time: Sunday / Monday / Tuesday / Wednesday
/ Thursday / Friday / Saturday
Set the start month of daylight saving time: January / February / March / April /
May / June / July / August / September / October / November / December.
Set the starting time change of daylight saving time: Choose the “From” time and
“End” time when daylight saving starts.
Set the end time of daylight saving time.
Set the end week of daylight saving time: 1
st
/ 2nd / 3rd / 4th / Last
Set the end date of daylight saving time: Sunday / Monday / Tuesday / Wednesday
/ Thursday / Friday / Saturday
Set the end month of daylight saving time: January / February / March / April /
May / June / July / August / September / October / November / December.
Set the ending time change of daylight saving time: Choose the “From” time and
“End” time when daylight saving ends.
53
EDN850H
Press Apply to apply the setting changes or Reset to reset without saving the
change.
4.8.3 SD Card
Setup SD Card
Notification: Notification will be made via e-mail when the remaining space of the
SD memory card reached the value selected from the following.
50%, 20%, 10%, 5%, 2%, 0%
Note:
1. When "50%" is selected, e-mail notification will be made each time the
remaining space reaches 50%, 20%, 10%, 5%, 2% and 0%.
2. E-mail notification may not always be made at a very moment when the
remaining space of the SD memory card reached the selected value.
Event Recording:
FTP backup only:
Event video will record to SD card when network is
disconnected.
54
EDN850H
Normal: Follow the event actions settings you have made in “Event” menu to
record event video to SD card.
Overwrite
: Select ON for overwriting data when SD card memory is full. Select
OFF for not overwriting SD card data.
Press Apply to apply the setting changes or Reset to reset without saving the
change.
SD Card Utility
The total size and available size of the SD memory card will be displayed.
Depending on the state of the SD memory card, the size indications will differ as
follows.
Indication Description
Capacity ___ MB, available ___MB, used ___ %
Before formatting the SD memory card, it is necessary to press button.
Once
button is pressed, button will be shown for user to
insert the SD card back.
Press
button to format SD card.
Obtain images on the SD memory card
1. Access the camera using the Windows command prompt or FTP client software.
→ The window with the user name and password entry fields will be displayed.
2. Enter the user name whose access level is "1. Administrator" and its password.
→ Log in the camera.
3. A directory of all saved data will be displayed. You are now ready to obtain
images from SD card.
Note:
1. It is impossible to access the SD memory card in the process of formatting.
2. All data saved on the SD memory card will be deleted when the SD memory
card is formatted.
3. Do not turn the power of the camera off in the process of formatting.
55
4.8.4 Maintenance
EDN850H
Maintenance Server
Reboot: The unit is rebooted without changing any of the settings. Use this method
by pressing Reboot button if the unit is not behaving as expected.
Restore: The unit is restarted and most current settings are reset to the factory
default values by pressing Restore button. The only settings saved are:
• IP setting
• DDNS setting
Default: The Default button should be used with caution. Pressing this button will
return all of the camera's settings, including the IP address, to the factory default
values. The camera will then have to be re-installed.
Save/Load Configuration Server
To take a backup of all of the configurations, press Save to save all configurations
to a config. file. If necessary, it is then possible to return to the previous settings if
the settings are changed and there is unexpected behavior.
Press the Browse button to locate the saved config. file (see above) and then click
56
EDN850H
the Load button. The settings will be restored to the previous configuration.
Upgrade Firmware
Upgrade the EDN850H with the latest firmware.
Press Browse button to search firmware file. Press Upgrade button to upgrade the
firmware.
Note 1: Do not disconnect power to the unit during the upgrade. The unit reboots
automatically after the upgrade has completed. (1-5 minutes.)
2. During upgrading process, all event recording actions will be stopped. It
will continue to record after the camera is rebooted.
57
EDN850H
A
A
A
A
A
5. SPECIFICATIONS
CAMERA
Pickup Device 1/3" Sony Super HAD Interlaced CCD
Picture Elements NTSC: 768 (H) x 494 (V); PAL: 752 (H) x 582 (V)
Sensitivity 0.002 Lux (SENS-UP 128x); 0.25 Lux/F=1.2
Day & Night
Lens Vari-Focal Lens with Auto Iris (2.8~10mm)
Video Output BNC socket, composite 1 V p-p / 75Ω
Video Output Resolution 560 TVL
VIDEO STREAMING
Video Compression H.264/MPEG-4/M-JPEG
Video Resolution 4CIF, VGA, CIF, QVGA, QCIF
Video Quality 8 levels adjustable
Frame Rate Up to 30fps
AUDIO
udio Input 3.5 mm stereo socket, sensitivity 1 Vrms
udio Output 3.5 mm stereo socket, sensitivity 1 Vrms
Compression Method IMA ADPCM (Pulse Code Modulation)
Operation Mode Two-way audio
NETWORK
Interface
Supported Protocols
Bandwidth Control
Max. Client Limit
TERMINAL I/O
larm Input 1 x input for dry contacts, Normal Open / Normal Closed adjustable
larm Output
EVENT MANAGEMENT
Event Triggered by
Notification over
Pre- and Post- Alarm
Buffer
LOCAL STORAGE
SD Card
POWER
Power Supply 12 VDC & PoE
Power over Ethernet Yes (PoE 802.3af)
Power Consumption 5W max. (12VDC)
Yes (with IR cut filter)
10Base-T/100Base-TX auto-negotiation, RJ-45 socket
Support MDI/MDI-X auto crossover function
HTTP, TCP / IP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS, DDNS,
NTP
Min. 64 kbps adjustable
32 simultaneous clients
1 x dry relay contact, Normal Open / Normal Closed adjustable,
70 VDC / 200 mA max
larm input, Manual trigger, Motion detection and Schedule
recording
Trigger alarm output, Send mail notification, Upload video to FTP,
Record video to SD card, Record video to PC and Network alarm
48MB RAM reserved for pre-alarm record up to 120 sec
Secure Disk physical layer specification version 2.0
Supports SDHC Host Specification
58
EDN850H
PHYSICAL
Weight 0.74 kg / 1.6 lbs
Dimensions 123mm (O.D.) x 107.8mm (H) ; 4.8” (O.D.) x 4.2” (H)
ENVIRONMENTAL
Operating Temp. -10°C ~50°C / 14°F~122°F
Humidity (20%~80% Humidity)
OTHERS
Waterproof IP66
Vandal Resistant Yes
59
EDN850H
Y
EverFocus Electronics Corp.
Head Office:
12F, No.79 Sec. 1 Shin-Tai Wu Road,
Hsi-Chi, Taipei, Taiwan
TEL: 886-2-26982334
FAX: 886-2-26982380
www.everfocus.com.tw
USA Office:
1801 Highland Ave. Unit A
Duarte, CA 91010, U.S.A.
TEL: +1-626-844-8888
FAX: +1-626-844-8838
www.everfocus.com
USA N. Y. Office:
415 Oser Avenue Unit S
Hauppauge, NY 11788
Tel: 631-436-5070
F
AX: 631-436-5027
www.everfocus.com
China Office:
Room B-05D-1, KESHI PLAZA, Shangdi
Information Industry Base,Haidian
District, Beijing China
100085
TEL: +86-10-62973336/37/38/39
FAX: +86-10-62971423
www.everfocus.com.cn
Europe Office:
Albert-Einstein-Strasse 1
D-46446 Emmerich, Germany
TEL: 49-2822-9394-0
FAX: 49-2822-939495
www.everfocus.de
Japan Office:
1809 WBG Maribu East 18F,
2-6 Nakase.Mihama-ku.
Chiba city 261-7118, Japan
TEL: 81-43-212-8188
FAX: 81-43-297-0081
www.everfocus.co.jp
our EverFocus product is designed
and manufactured with high quality
materials and components which can
be recycled and reused.
This symbol means that electrical and
electronic equipment, at their
end-of-life, should be disposed of
separately from your household waste.
Please, dispose of this equipment at
your local community waste
collection/recycling centre.
In the European Union there are
separate collection systems for used
electrical and electronic product.
Please, help us to cons erve the
environment we live in!
Ihr EverFocus Produkt wurde ent wickelt
und hergestellt mit qualitativ
hochwertigen Materialien und
Komponenten, die recycelt und wieder
verwendet werden können.
Dieses Symbol bedeutet, dass
elektrische und elektronische Geräte am
Ende ihrer Nutzungsdauer vom
Hausmüll getrennt entsorgt werden
sollen.
Bitte entsorgen Sie dieses Gerät bei
Ihrer örtlichen kommunalen
Sammelstelle oder im Recycling Centre.
Helfen Sie uns bitte, die Umwelt zu
erhalten, in der wir leben
!
®
EverFocus
60
Loading...
