EverFocus EDH-5240 User Manual
2 Megapixel Full HDcctv
Indoor IR Dome Camera
Operation Instructions
Model No.
Please read this manual first for correct installation and operation. This manual should be retained for future
reference. The information in this manual was current when published. The manufacturer reserves the right
to revise and improve its products. All specifications are therefore subject to change without notice.
PRECAUTIONS
1. Do not install the camera near electric or magnetic fields.
Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio
speakers since the electromagnetic fields generated from these devices may distort the video image.
2. Never disassemble the camera beyond the recommendations in this manual nor introduce
materials other than those recommended herein.
Improper disassembly or introduction of corrosive materials may result in equipment failure or other
damage.
3. Try and avoid facing the camera toward the sun.
In some circumstances, direct sunlight may cause permanent damage to the sensor and/or internal
circuits.
4. Keep the power cord away from water and other liquids and never touch the power cord with
wet hands.
Touching a wet power cord with hands or touching the power cord with wet hands may result in electric
shock.
5. Never install the camera in areas exposed to water, oil or gas.
Water, oil or gas may result in equipment failure, electric shock or, in extreme cases, fire.
6. Cleaning
Do not touch the surface of the sensor directly with the hands. Use a damp soft cloth to remove any
dirt from the camera body. Use lens tissue or a cotton tipped applicator and ethanol to clean the sensor
and the camera lens. Please do not use complex solvents, corrosive or abrasive agents for cleaning.
7. Do not operate the camera beyond the specified temperature, humidity or power source ratings.
Use the camera at temperatures within 0 ~ 40 (32℉~104℉) and humidity between 20~80%. The
input power source is 12VDC/24VAC.
EDH5240
TABLE OF CONTENTS
1. PRODUCT OVERVIEW........................................................................................................... 2
1.1 Main Features ............................................................................................................................................... 2
1.2 Package Contents.......................................................................................................................................... 2
1.3 Specifications ................................................................................................................................................ 3
1.4 Dimensions ................................................................................................................................................... 4
2. MAJOR PARTS: NAMES AND FUNCTIONS .............................................................................. 4
3. 3-AXIS GIMBAL BRACKET ..................................................................................................... 7

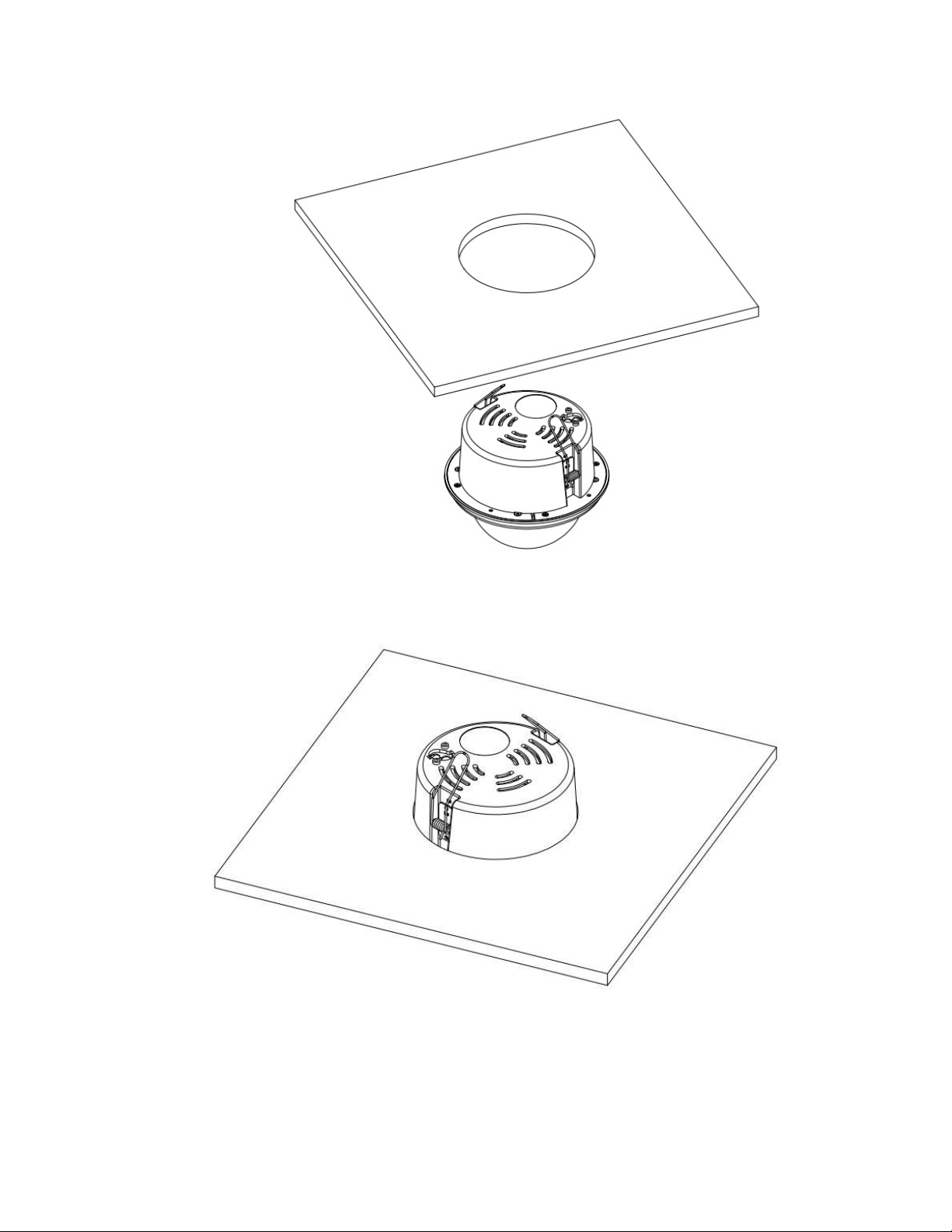

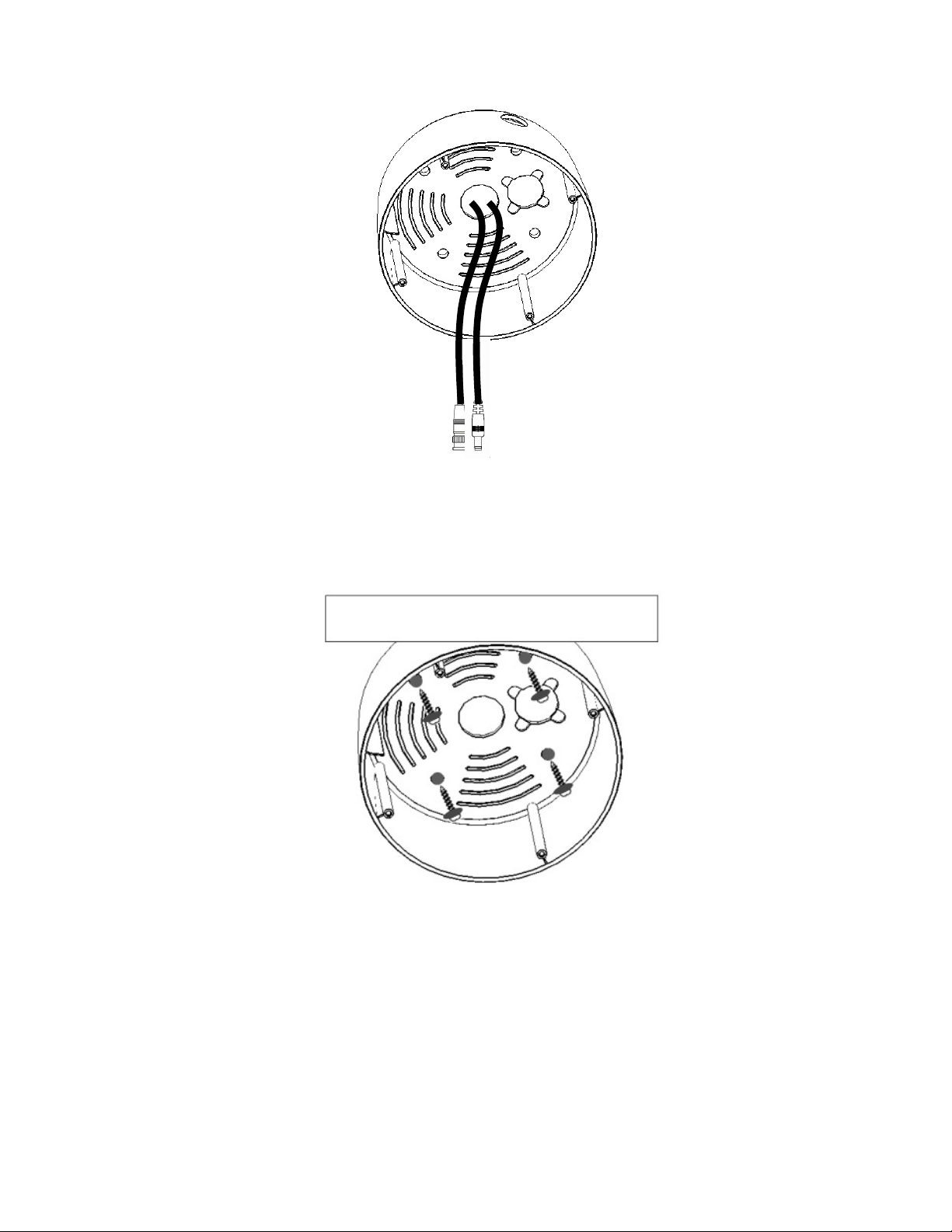

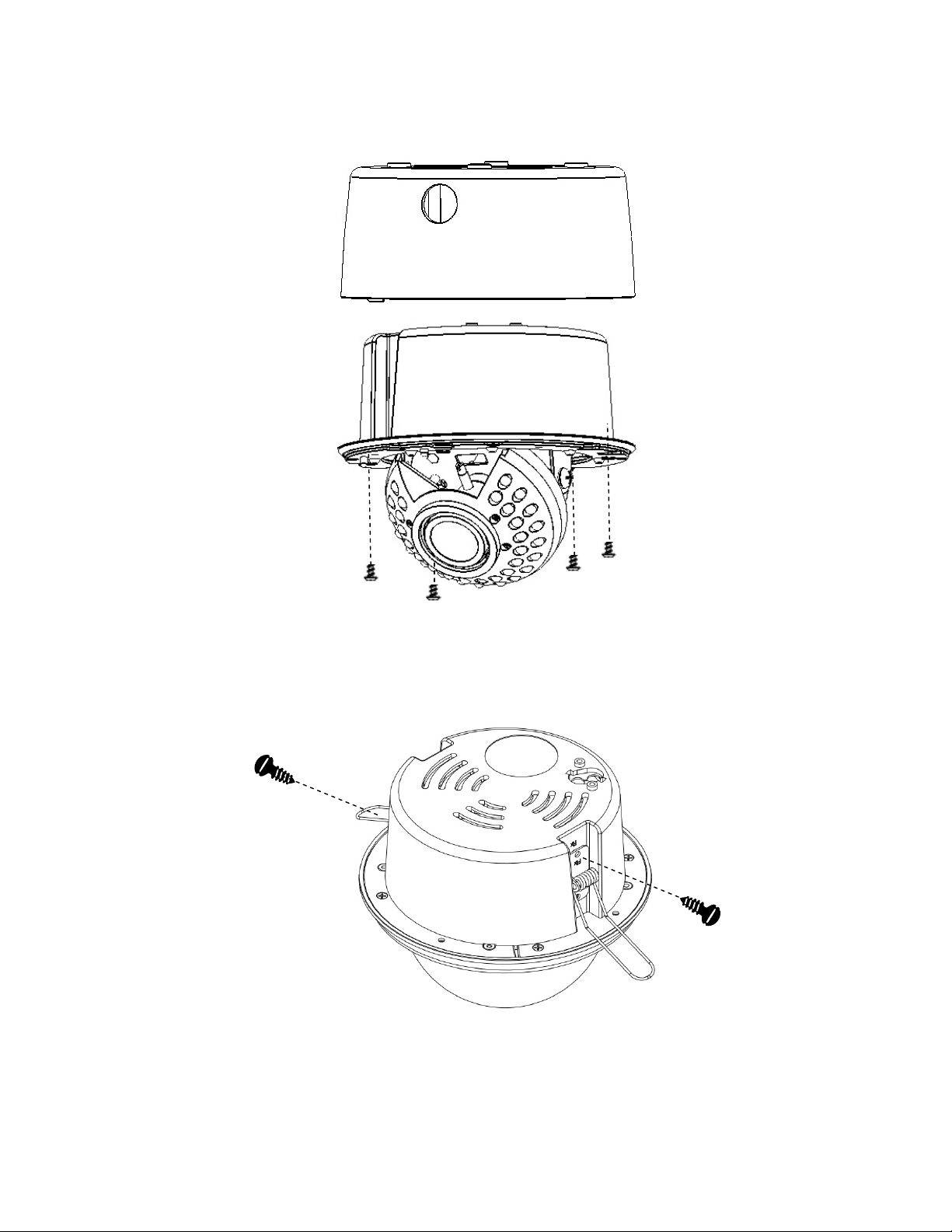

4. INSTALLATION ................................................................................................................ 8

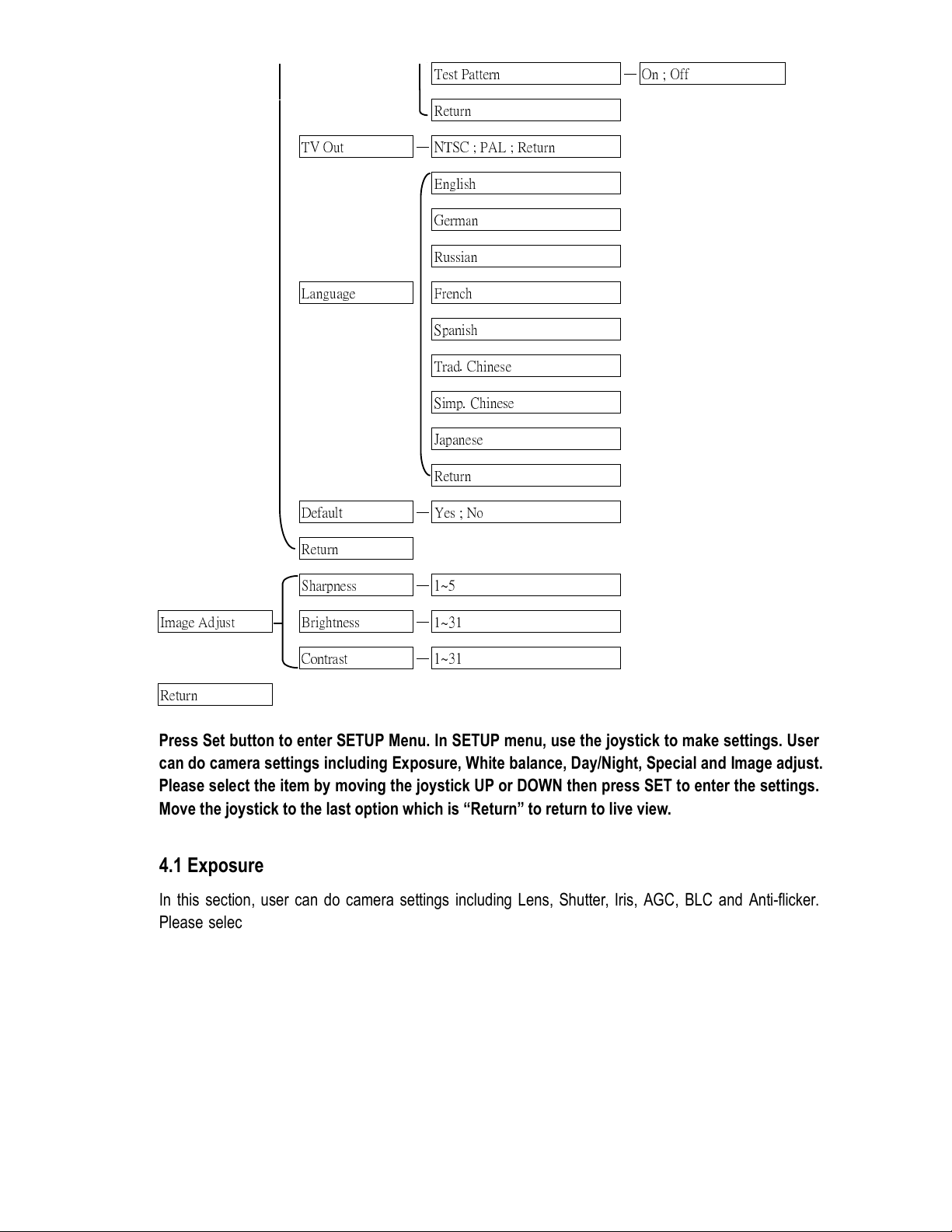

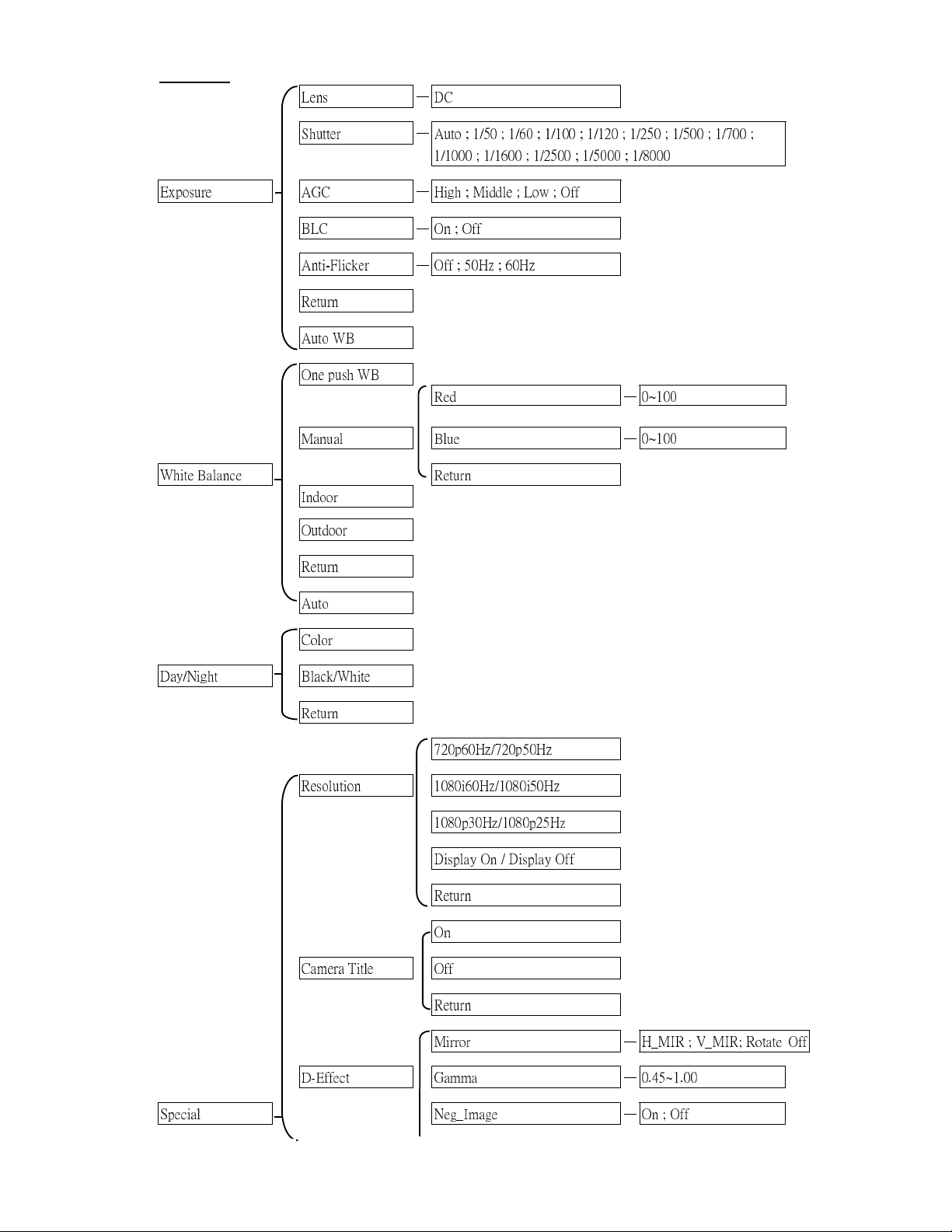

4. OSD Menu & Configuration.................................................................................................... 15
4.1 Exposure .................................................................................................................................................... 17
4.1.1 Lens ........................................................................................................................................................ 17
4.1.2 Shutter..................................................................................................................................................... 18
4.1.3 AGC (Auto Gain Control – basic low light signal amplification) ....................................................................... 18
4.1.4 BLC ......................................................................................................................................................... 18
4.1.5 Anti-Flicker ............................................................................................................................................... 18
4.2 White Balance Control.................................................................................................................................. 18
4.3 Day/Night.................................................................................................................................................... 19
4.4 Special........................................................................................................................................................ 19
4.4.1 Resolution................................................................................................................................................ 19
4.4.2 Camera Title............................................................................................................................................. 19
4.4.3 D-Effect.................................................................................................................................................... 20
4.4.4 TV standard.............................................................................................................................................. 20
4.4.5 Language................................................................................................................................................. 20
4.4.6 Default ..................................................................................................................................................... 21
4.5 Image Adjust ............................................................................................................................................... 21
4.5.1 Sharpness................................................................................................................................................ 21
4.5.2 Brightness................................................................................................................................................ 21
4.5.3 Contrast ................................................................................................................................................... 21
- 1 -
1. PRODUCT OVERVIEW
The EDH5240 is an HDcctv 3-axis indoor dome camera with true Day/Night capability plus IR
illumination, in a housing which can be surface or flush mounted. Based on a 2 megapixel progressive
scan sensor for your choice of 1080 or 720 resolution HD 100% digital images, it delivers vastly superior
video quality compared to traditional CCTV images. This superior resolution not only captures more
critical evidentiary information, but the inherent ability for megapixel video to zoom with clarity to 4X or
more improves and extends the area of coverage, expedites completion of investigations, resolves
complaints and reduces both capital and operational costs.
No major upgrade to the IT network is required to deploy this powerful technology; HDcctv cameras
communicate at digital speeds up to 1.5Gb/s over existing or new coaxial cable (RG59 or other types
for longer distances), using industry standard BNC connectors. With a vari-focal 3.3~10mm megapixel
auto iris lens, combined with high output IR LEDs to produce detailed images under low or no light
conditions out to a range of 20m/65 feet or more, the EDH5240 easily accommodates a wide range of
indoor applications while delivering stunning image quality.
1.1 Main Features
HDcctv 2 Megapixel real time 1920x1080 (or 1280x720) HD video over coax
2 megapixel progressive scan CMOS sensor
Supports video outputs of 1080i, 1080p and 720p (field select)
True day/night operation with automatic ICR module
3-axis positioning for flexible mounting and aiming
3.3~10mm AI VF megapixel lens captures the desired field of view
Field select choice of wall or ceiling, surface or flush mounting
Easy to use OSD setup menu
Dual Video Outputs: Megapixel HDcctv (BNC)
SD TV Out (BNC) for aim and focus using a standard hand held test monitor
Dual Power Source 12VDC/24VAC dual voltage auto polarity detect
IR distance up to 65 feet/20m or more; High output IR LEDs, lifespan of 20,000 hours
1.2 Package Contents
Please be careful when you unpack the box and the electronic devices inside. Check and make
sure that you have all the items listed below inside the original box:
Camera Unit x 1, including dome/cover, camera unit and outer (surface mount) base as an
assembly
This Operation Manual x 1
Accessory pack #1 containing:
4 long mounting screws
4 washers
4 plastic anchors
Hex key for cover screws
- 2 -
4 short screws to attach flush-mounting clips
Rubber plug for side hole in outer base.

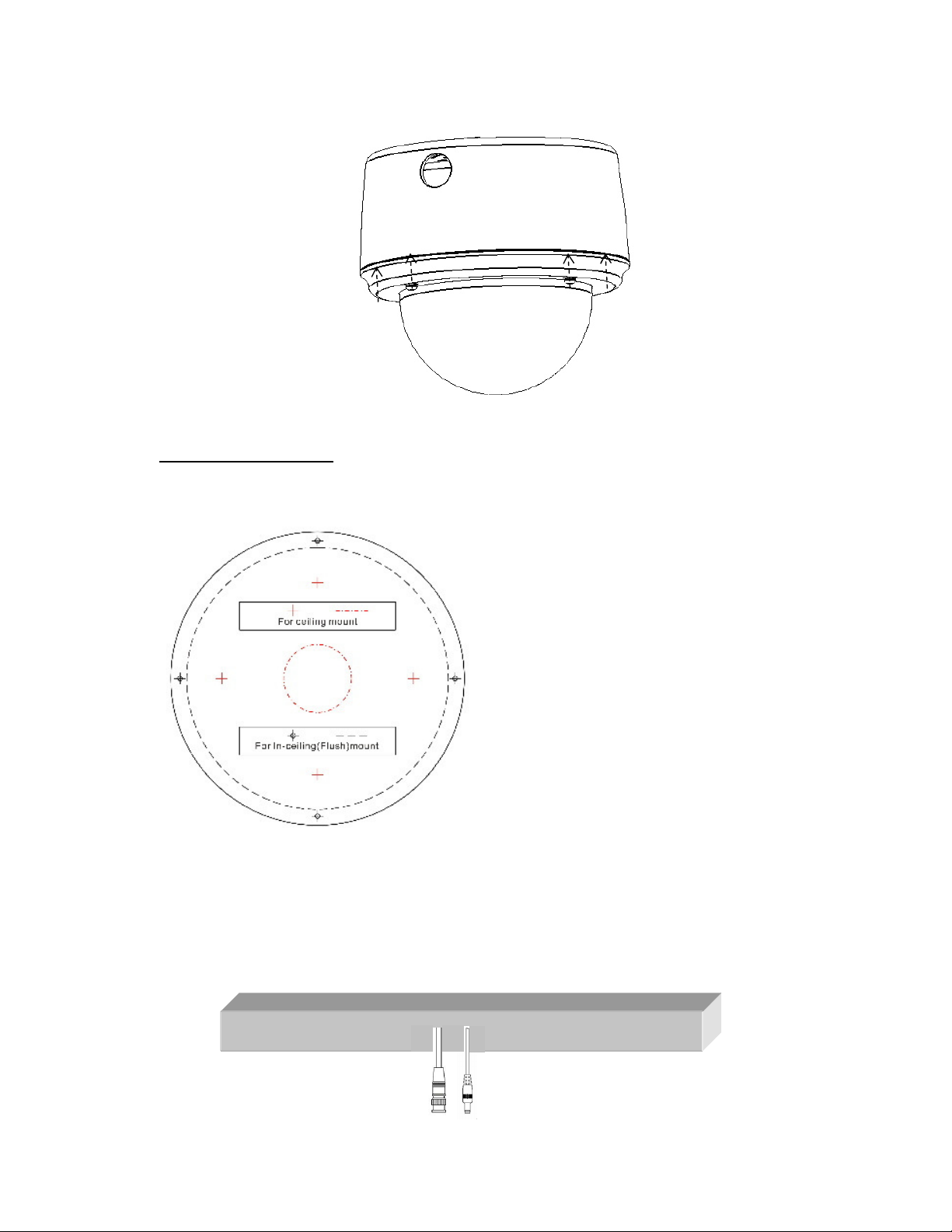

Mounting template
Power supply pigtail
Video test cable
Accessory pack #2 containing two flush mounting clips
Please Note: If an item appears to have been damaged in shipment, replace it properly in its carton
and notify the shipper. If any items are missing, notify your EverFocus Electronics Corp. Sales
Representative or Customer Service. The shipping carton is the safest container in which the unit may
be transported. Save it for possible future use.
1.3 Specifications
Pickup Device 1/2.7" 2 megapixel CMOS sensor
Image area for FOV 1080 mode: 6.61 mm diagonal; 5.76 mm H x 3.24 mm V
Image area for FOV 720 mode: 4.41 mm diagonal; 3.84 mm H x 2.16 mm V
Sensitivity 0.5lux/F=1.4 ; 0 lux IR ON
S/N Ratio 45dB
Video Format Main Output HDcctv
Resolution Main Output 1920x1080 or 1280x720
Video Mode Main Output Field select 1080i60, 1080p30 or 720p60 for 60Hz systems
1080i50, 1080p25 or 720p50 for 50Hz systems
Main Output Connector BNC-F
Video Format Test Output NTSC/PAL selectable 1V p-p
Test Output Connector Pin header; adapter cable to BNC-F supplied
Electronic Shutter Auto, 1/60(1/50)~1/8000
Lens Type Megapixel Vari-focal lens, Auto Iris, f=3.3~12mm, F=1.4
True Day/Night Control Yes (Auto IR cut filter removal)
Back Light Compensation On/Off selectable
Auto Gain Control High/Middle/Low/Off selectable
Auto White Balance AWB/One Push WB/Manual WB/Indoor/Outdoor selectable
Gamma Correction PC/TV selectable
OSD Menu Yes (operated from 5-axis joystick control)
Mirror
IR Distance 20m/65 feet
IR Wavelength 850nm
IR Emitters 34 high output LEDs
IR LED Lifespan 20,000 hours operating
Power Source 12VDC/24VAC auto polarity detect
Power Consumption 24VAC: 7.2W IR off, 11.3W max (300mA/471mA)
H_MIR/V_MIR/Rotate
Dimensions (
Weight 660kg /1.45 lbs
Operating Temperature 0°C~40°C ; 32°F~104°F (20%~80% Humidity)
ϕ x H
)
Surface Type: 140mm x 128mm / 5.5” x 5.1”
Flush Type : 140mm x 68mm / 5.5” x 2.8”
- 3 -
Certifications FCC/CE
1.4 Dimensions
2. MAJOR PARTS: NAMES AND FUNCTIONS
Front View
2. IR LEDs
1. Outer Base
3. Lens
4. Light sensor
5. Cover
- 4 -
Side View
6. Focus Adjust
7. Zoom Adjust
8. HDCC-TV Video
9. Power Input
Back View
10. Video Test Output
11. OSD menu joystick
1. Base
The camera unit sets in the dome base, when it is shipped from the factory. This base is
used for surface mounting, and is discarded for flush mounting.
- 5 -
2. IR LEDs
3. Lens
The included vari-focal, DC iris lens allows manual adjustment of the field of view (zoom &
focus).
4. Light Sensor
Light sensor is used to detect the lighting level the environment. (The light sensor is “down”
when the internal camera module is properly positioned).
5. Camera Cover
This cover will protect the camera from dust and damage.
6. Focus Ring
To set the focus, and loosen the focus ring knob, and turn the ring toward <F> or <N> as
necessary, and re-tighten when the adjustment is complete.
7. Zoom Ring
To adjust the viewing angle, loosen the zoom ring knob. Turn the ring toward <W> to Zoom
out or <T> to Zoom in as necessary, and re-tighten when the adjustment is complete.
8. HDcctv Video Output
Please connect to the BNC connector of the cable from the HD DVR or HDcctv monitor.
9. Power Input
Please connect this connector to a 12VDC or 24VAC power source.
10. Test Video Output Connector
When installing the camera, you can use this video connector to connect a portable monitor. This
will allow you to easily adjust camera’s field of view and focus.
11. OSD Menu joystick:
Use the joystick to move the cursor Upwards/Downwards. This is used to select the item to be set.
Tilt the stick to the right or left. This is used to select or adjust the parameters of the selected item.
Press in on the stick to enter the setup menu. If the item has its own setting menu (sign ),
press the stick again to display the sub- menu.
- 6 -
