Evco EV3 CHIL, EVD CHIL Installer Manual

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

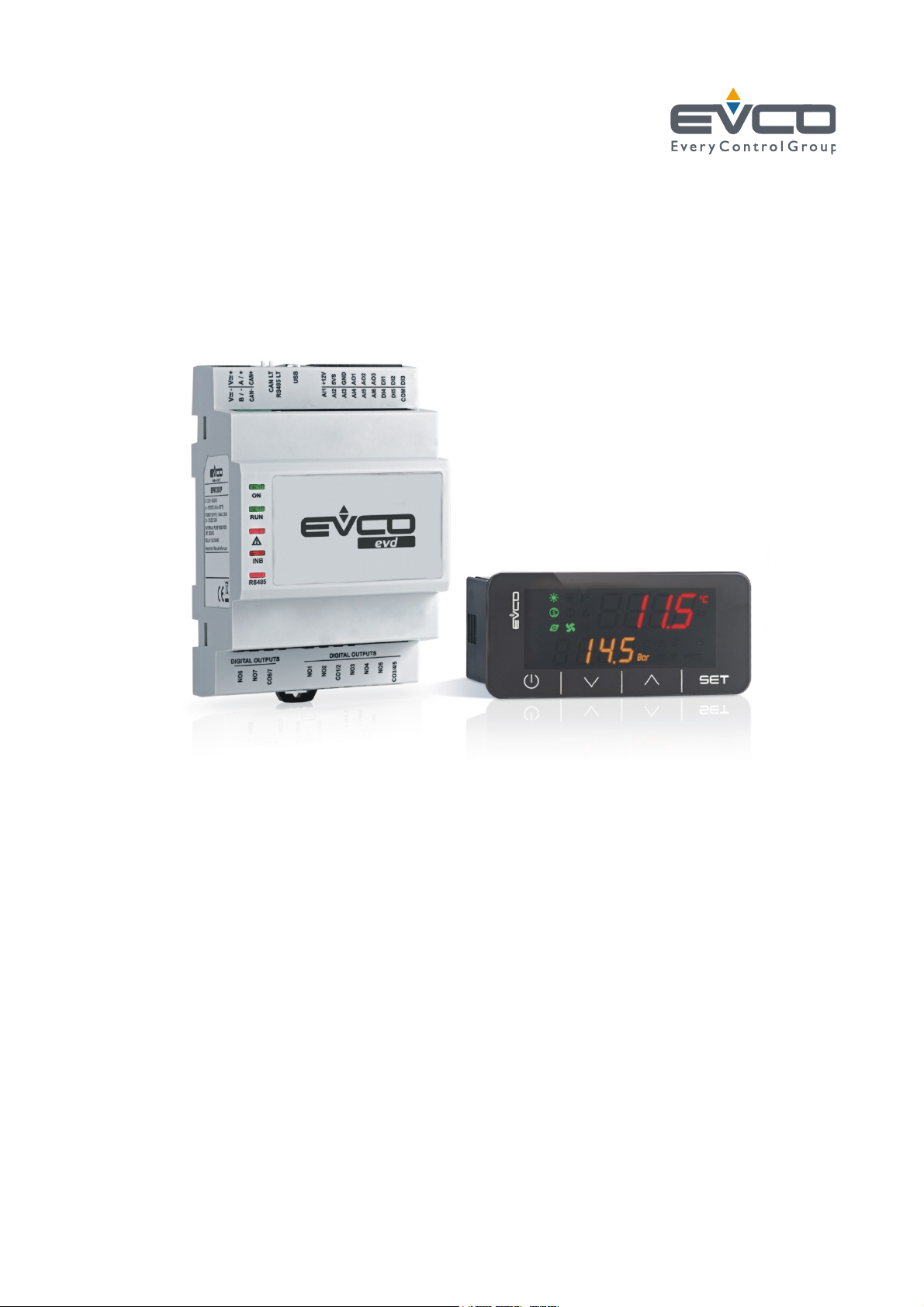

EV3 CHIL & EVD CHIL

Controllers for single-circuit chillers

Installer Manual | ENGLISH

Code 1443DCHILE124

page 1 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

Important

Read this manual carefu lly before installation and before using

the devices and take all the prescribed precautions. Keep this

manual with the devices for future consultation.

Only use the devices in the ways described in th is manual. Do

not use these devices as safety devices.

Disposal

The devices must be disposed of according to local regulations

governing the collection of electrical and electronic waste.

page 2 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

Index

1 INTRODUCTION ............................................................................................................................................................ 4

1.1 Introduction ................................................................................................................................................................. 4

1.2 Models available, purchasing codes and technical features ................................................................................................. 5

2 DESCRIPTION ............................................................................................................................................................... 7

2.1 Description of EV3 CHIL ................................................................................................................................................. 7

2.2 Description of EVD CHIL ................................................................................................................................................. 8

2.3 Description of EV3K01 ................................................................................................................................................... 9

3 MEASUREMENTS AND INSTALLATION ............................................................................................................................ 10

3.1 Measurements and installation of EV3 CHIL .................................................................................................................... 10

3.2 Measurements and installation of EVD CHIL .................................................................................................................... 10

3.3 Measurements and installation of EV3K01 ...................................................................................................................... 12

3.4 Installation precautions ................................................................................................................................................ 12

4 ELECTRICAL CONNECTION ........................................................................................................................................... 13

4.1 I/O configuration ......................................................................................................................................................... 13

4.2 Description of connectors ............................................................................................................................................. 14

4.2.1 Description of connectors for EV3 CHIL .......................................................................................................................... 14

4.2.2 Description of connectors for EVD CHIL .......................................................................................................................... 16

4.2.3 Description of EV3K01 connectors ................................................................................................................................. 18

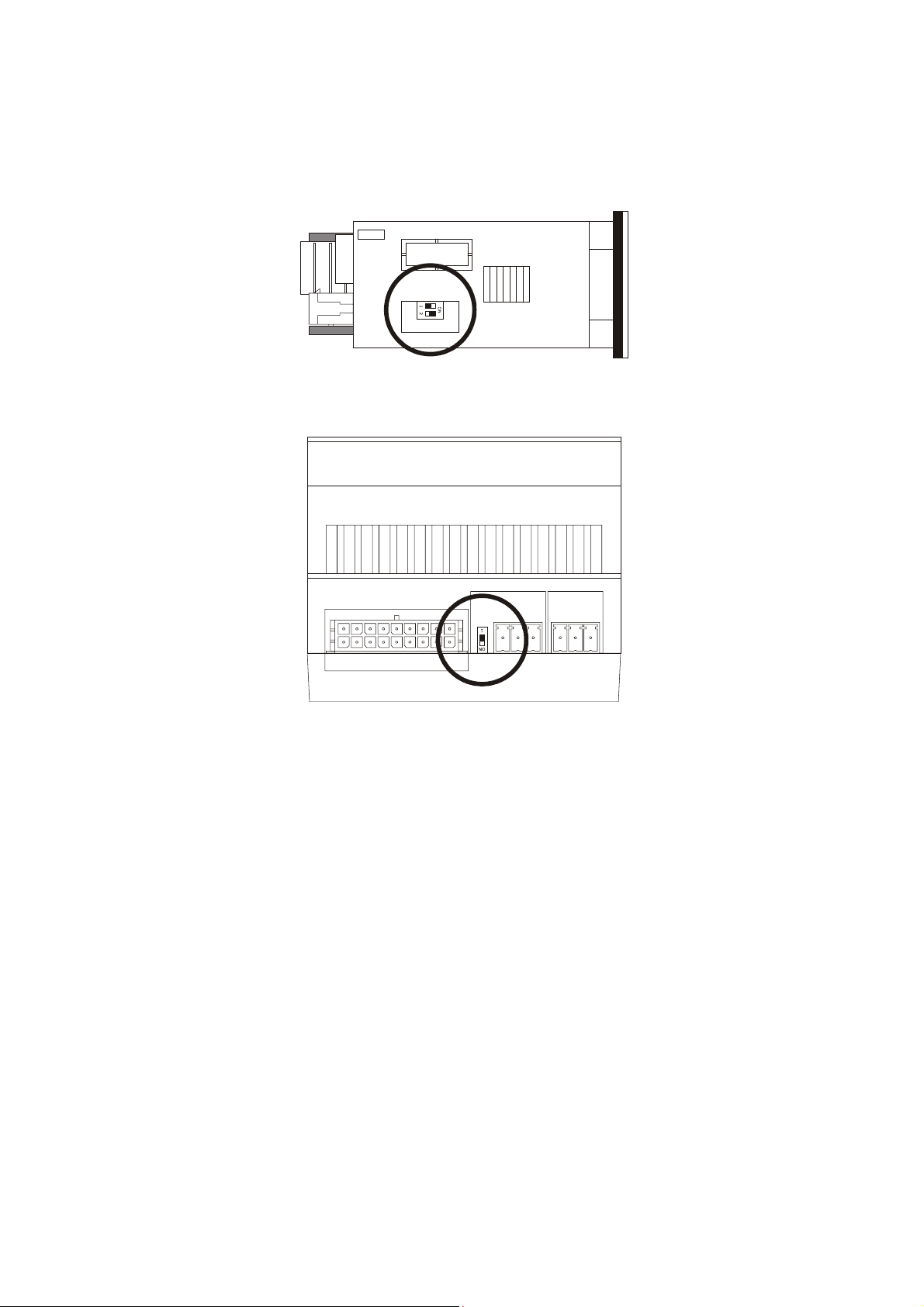

4.3 Fitting the termination resistor to the RS-485 MODBUS slave port ..................................................................................... 19

4.4 Example of electrical connection ................................................................................................................................... 20

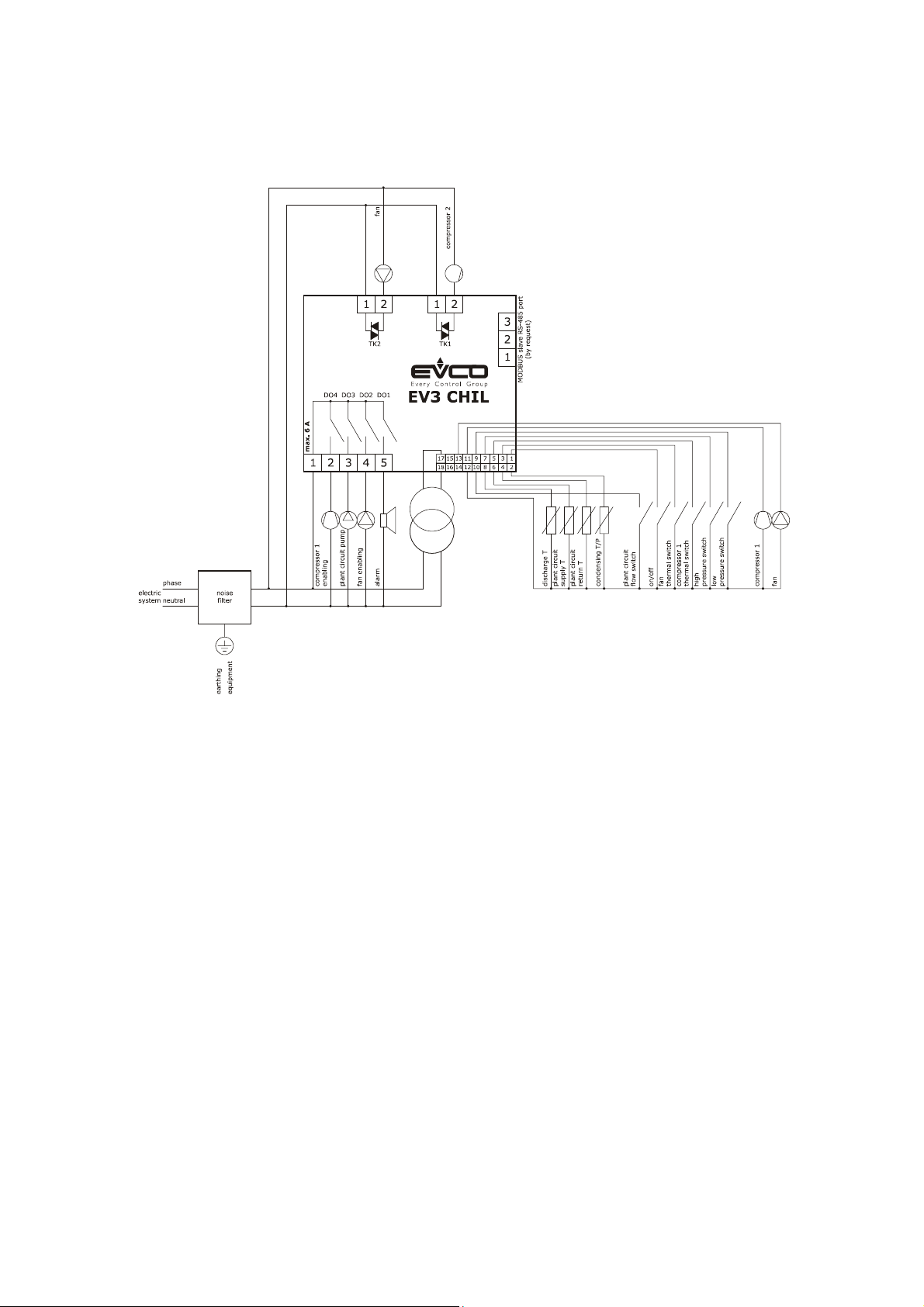

4.4.1 Example of EV3 CHIL electrical connection ..................................................................................................................... 20

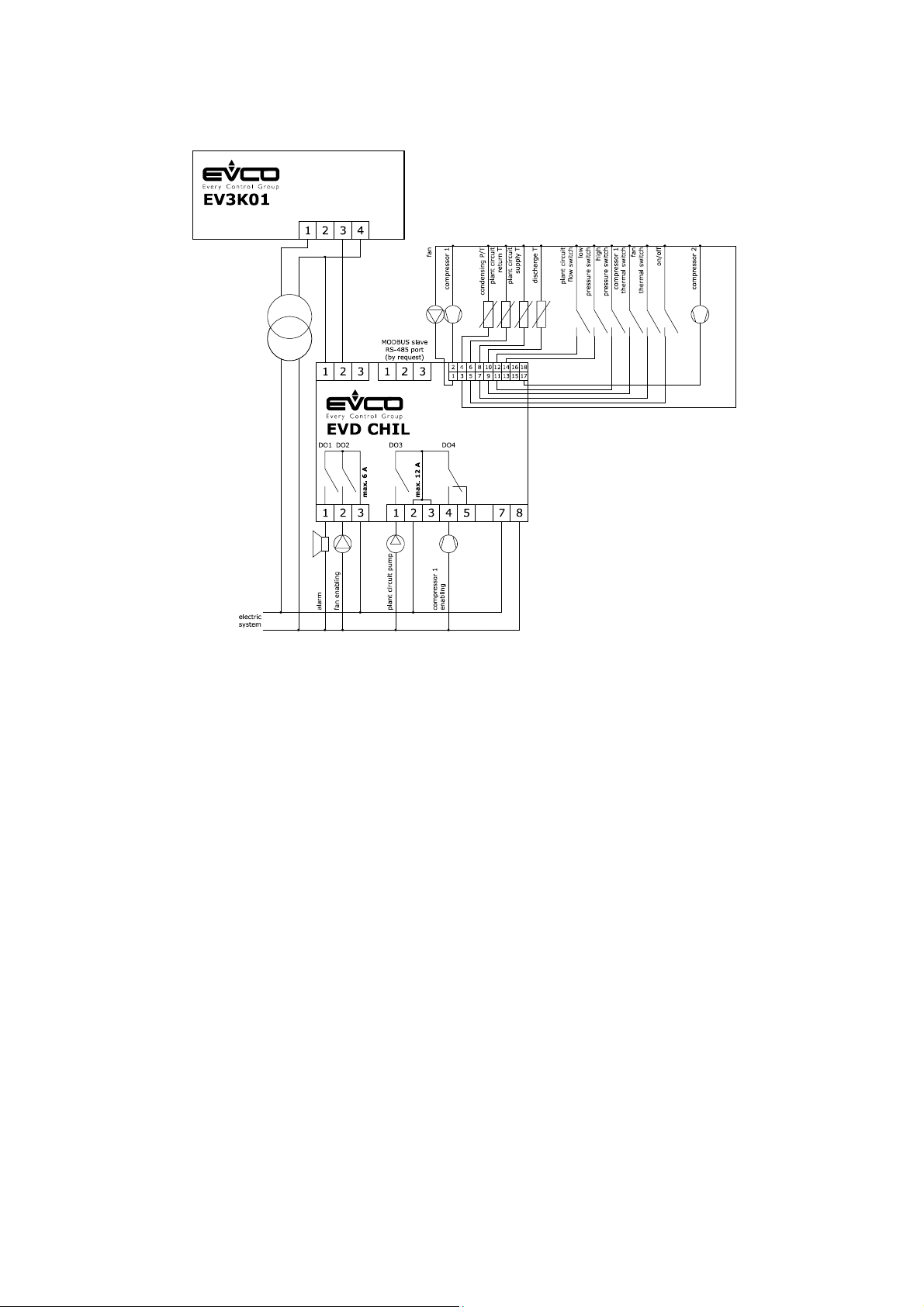

4.4.2 Example of EVD CHIL electrical connection ..................................................................................................................... 21

4.5 Precautions for electrical connection .............................................................................................................................. 22

5 DESCRIPTION OF USER INTERFACE ............................................................................................................................... 23

5.1 Key functions.............................................................................................................................................................. 23

5.2 Display ...................................................................................................................................................................... 23

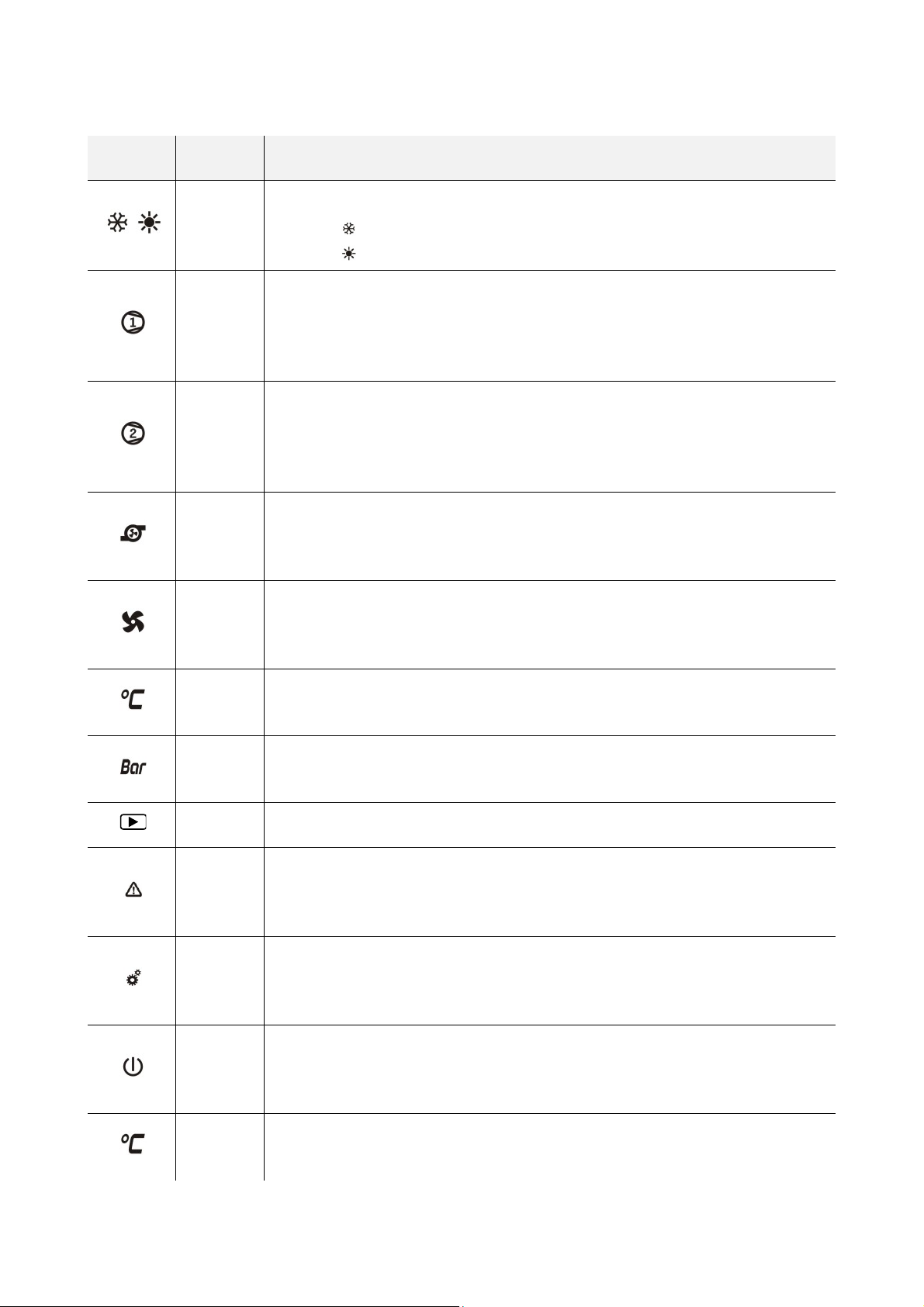

5.3 Signals ...................................................................................................................................................................... 24

5.4 Menu ......................................................................................................................................................................... 26

5.4.1 Access levels .............................................................................................................................................................. 26

5.4.2 Menu list .................................................................................................................................................................... 26

6 LIST OF PARAMETERS .................................................................................................................................................. 27

6.1 Initial information ....................................................................................................................................................... 27

7 REGULATORS ............................................................................................................................................................. 31

7.1 Compressors .............................................................................................................................................................. 31

7.1.1 Oil refresh .................................................................................................................................................................. 32

7.2 Hydraulic pump .......................................................................................................................................................... 33

7.2.1 Initial information ....................................................................................................................................................... 33

7.2.2 Function modes .......................................................................................................................................................... 33

7.2.3 Antifreeze function ...................................................................................................................................................... 33

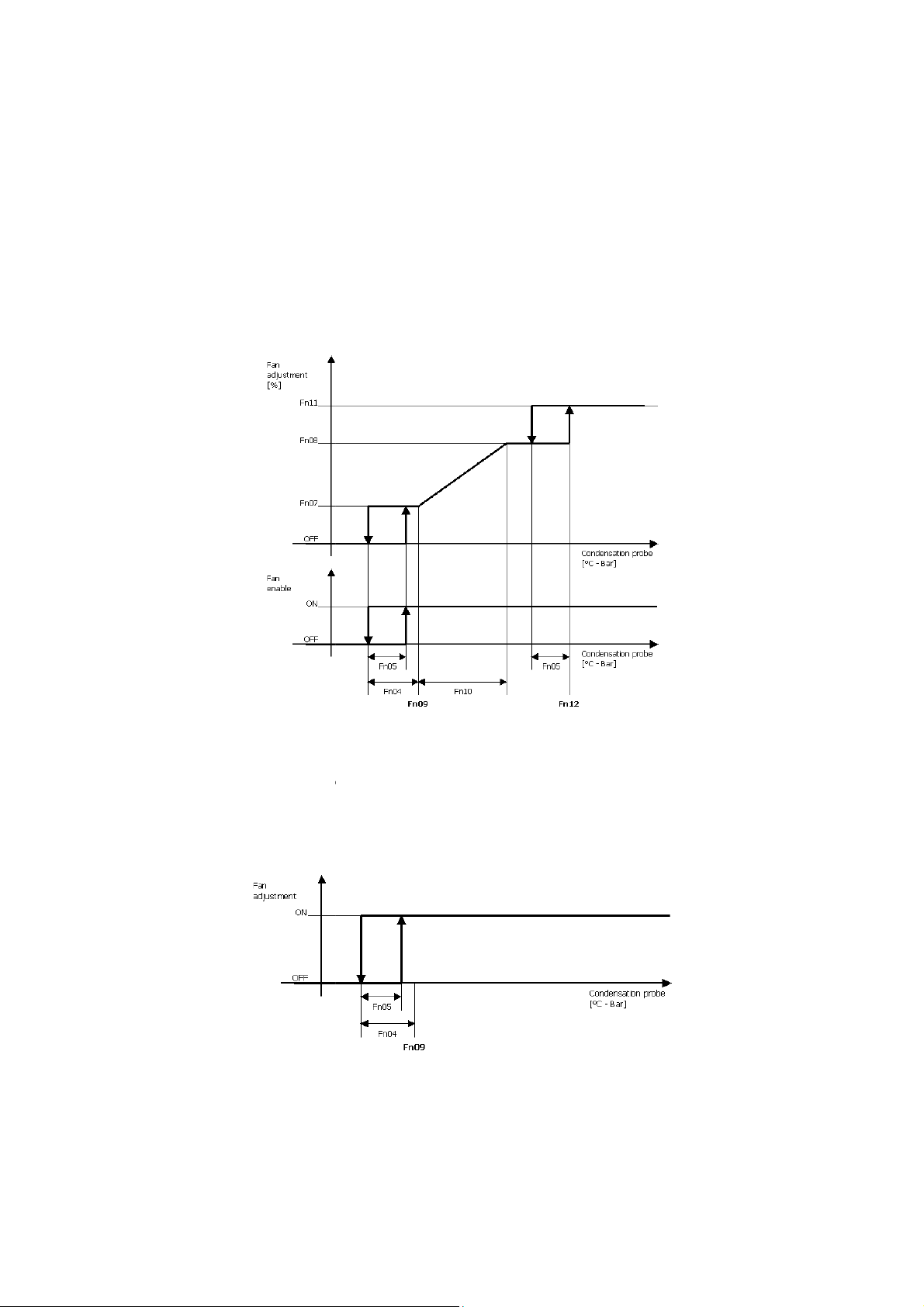

7.3 Condensation control ................................................................................................................................................... 34

8 ALARMS ..................................................................................................................................................................... 35

8.1 Initial information ....................................................................................................................................................... 35

8.2 List of alarms.............................................................................................................................................................. 35

9 ACCESSORIES ............................................................................................................................................................ 37

9.1 EVIF20SUXI non-optoisolated RS-485/USB serial interface ............................................................................................... 37

9.1.1 Initial information ....................................................................................................................................................... 37

9.2 0025100010 drip protector ........................................................................................................................................... 37

9.2.1 Initial information ....................................................................................................................................................... 37

9.3 CJAV connection kit ..................................................................................................................................................... 37

9.3.1 Initial information ....................................................................................................................................................... 37

10 TECHNICAL SPECIFICATIONS ....................................................................................................................................... 38

10.1 Technical specifications ................................................................................................................................................ 38

page 3 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

1 INTRODUCTION

1.1 Introduction

EV3 CHIL and EVD CHIL are controllers for running single-

circuit air-water and water-water chillers with up to two

compressors.

EV3 CHIL is available in the standard 74x32mm format with

built-in user interface consisting of a double custom display,

with decimal point and function icons, and four touch keys. It

guarantees IP65 protection for easy cleaning.

EVD CHIL is availab le in standard 4-module D IN format, in a

blind version that can be connected to a remote user interface

(EV3K01) if required.

These controllers are capable of running compressors and fans

of both the on-off and modulating types.

EV3 CHIL is available with a 12VAC power supply, while EVD

CHIL can be supplied with a 115... 230VAC power supply.

EV3 CHIL is designed to be installed on a panel with snap-in

brackets, while EVD CHIL is fitted to a DIN rail in a control

panel.

page 4 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

1.2 Models available, purchasing codes and technical features

The table below shows the models available, the purchasing codes and the technical features of the devices.

Models availa ble > EV3 CHIL EVD CHIL EV3K01

Purchasing codes > EV3904LM2 EV3906LM2GF EVD904BM9 EV3K01XOCT

Version

Blind •

Built-in LED (4+4 digit custom display) • • •

Connections

Micro-Fit connectors • • •

Edge connectors • •

Plug-in screw terminal blocks • • • •

Power supply

COMPACT VERSION SPLIT VERSION

12VAC not insulated • •

12VAC/DC not insulated •

115 - 230VAC insulated •

Analogue inputs

NTC 3 3 3

NTC/4-20 mA 1 1 1

Digital inputs

Dry contact 6 6 6

Analogue outputs

0-10V/phase cutting/PWM 2 2 2

page 5 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

COMPACT VERSION SPLIT VERSION

Models availa ble > EV3 CHIL EVD CHIL EV3K01

Purchasing codes > EV3904LM2 EV3906LM2GF EVD904BM9 EV3K01XOCT

Digital outputs (electro-mechanical relays; A res. @ 250 VAC)

2A SPST 4 4

3A SPST 2

8A SPDT 1

12A SPST 1

Digital outputs (triac; A res. @ 250 VAC)

200mA 1

2A 1

Digital outputs (open collector)

12VDC, max. 40mA 1

Communications ports

Powered INTRABUS • • • •

Other features

Alarm buzzer • • •

Notes Optional extras

None - Clock (not available for model EV3K01)

- RS-485 MODBUS slave port (not available for model

EV3K01).

To run 2 compressors models EV3906LM2GF and EVD904BM9 must be used.

The purchasing codes for EV3 CHIL and EVD CHIL do not include the cabling connectors, see the ACCESSORIES section.

For more models contact the EVCO sales network.

page 6 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

2 DESCRIPTION

2.1 Description of EV3 CHIL

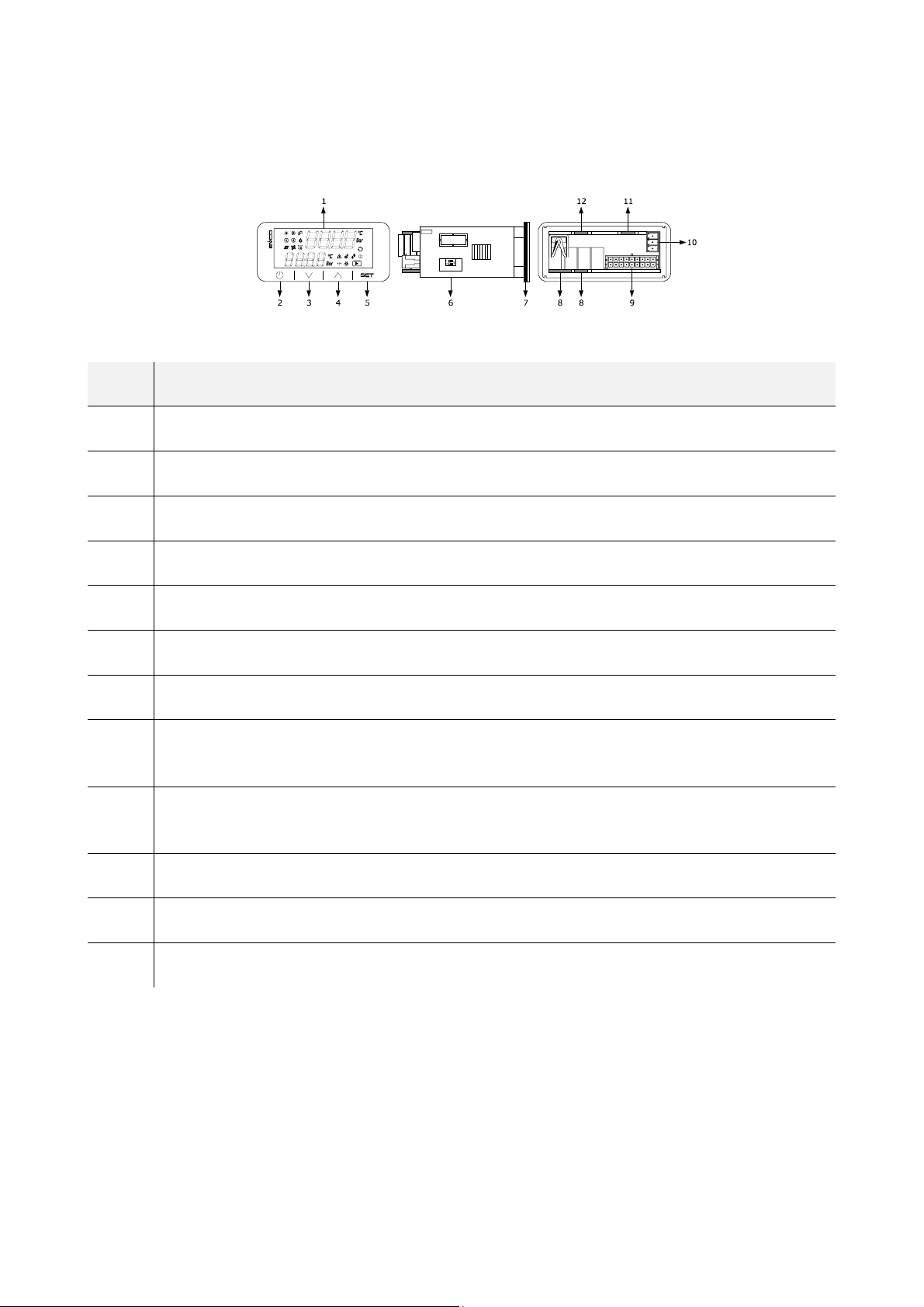

The picture below shows the layout of the EV3 CHIL.

The table below describes each part of the EV3 CHIL.

PART DESCRIPTION

1 Double row LED display, with decima l point and function icons

2 On/Off key, subsequently also called the On/Stand-by key

3 Decrease key, subsequently also called the Down key

4 Increase key, subsequently also called the Up key

5 Setting key, subsequently also called the Set key

6 Micro-switch for the termination of the RS-485 MODBUS line

7 Seal

Edge connector joint for the digital output cabling with electro-mechanical relay (for future reference, the digital outputs

8

DO1... DO4)

Male Micro-Fit connector for cabling for the power supply, analogue inputs, digital inputs, analogue outputs and the

9

INTRABUS powered port

10 If fitted, plug-in screw terminal block for the RS-485 MODBUS port cabling

11 If fitted, the joint of the Edge connector for the triac digital output cabling (for future reference, the digital output TK1).

12 If fitted, the joint of the Edge connector for the triac digital output cabling (for future reference, the digital output TK2)

For more information see subsequent sections.

page 7 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

2.2 Description of EVD CHIL

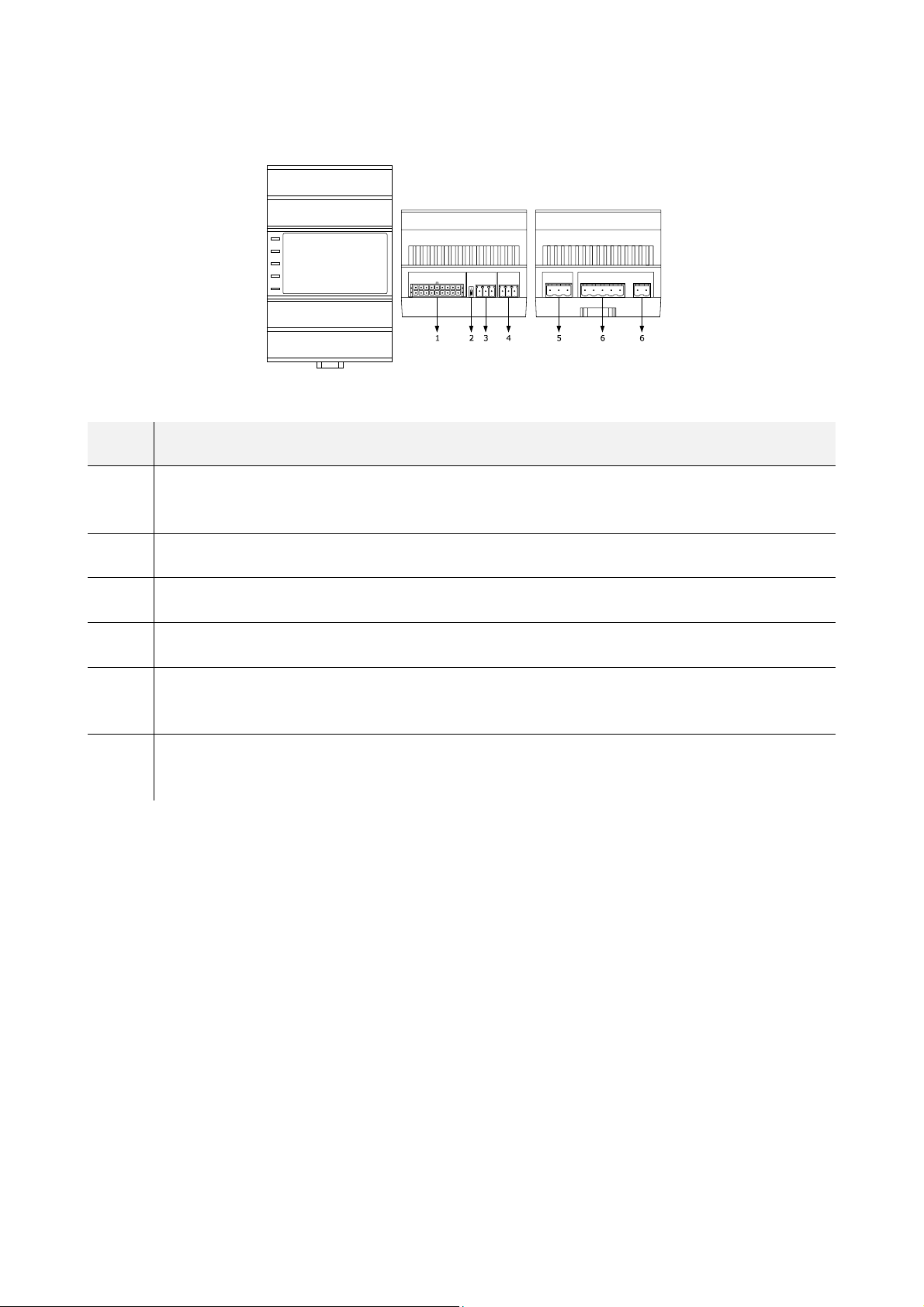

The picture below shows the layout of the EVD CHIL.

The table below describes each part of the EVD CHIL.

PART DESCRIPTION

Male Micro-Fit connector for cabling for analogue inputs, digital inputs, analogue outputs and the open collector digital

1

output (for future reference, the digital output OC1)

2 Micro-switch for the termination of the RS-485 MODBUS port

3 If fitted, plug-in screw terminal block for the RS-485 MODBUS port cabling

4 Plug-in screw terminal block for cabling for the powered INTRABUS port

Plug-in screw terminal block for cabling for the digital outputs with electro-mechanical relay (for future reference, the

5

digital outputs DO1 and DO2)

Plug-in screw terminal block for cabling for the power supply, electrical-mechanical relay digital outputs (for future

6

reference, the digital outputs DO3 and DO4)

For more information see subsequent sections.

page 8 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

2.3 Description of EV3K01

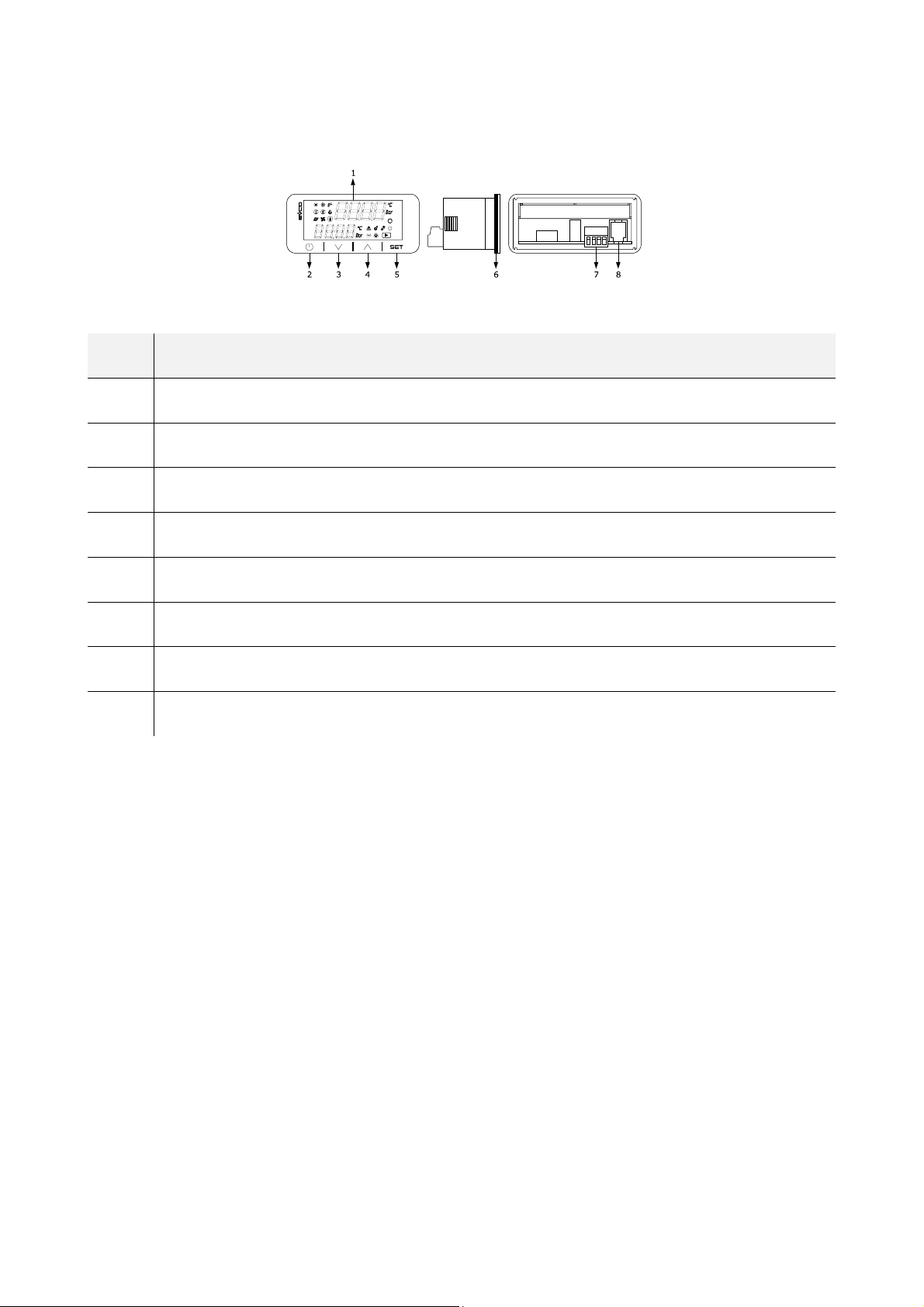

The picture below shows the layout of the EV3K01.

The table below describes each part of the EV3K01.

PART DESCRIPTION

1 Double row LED display, with decima l point and function icons

2 On/Off key, subsequently also called the On/Stand-by key

3 Decrease key, subsequently also called the Down key

4 Increase key, subsequently also called the Up key

5 Setting key, subsequently also called the Set key

6 Seal

7 Male + female plug-in screw terminal block for cabling for the power supply and the powered INTRABUS port

8 Not used

For more information see subsequent sections.

page 9 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

3 MEASUREMENTS AND INSTALLATION

3.1 Measurements and installation of EV3 CHIL

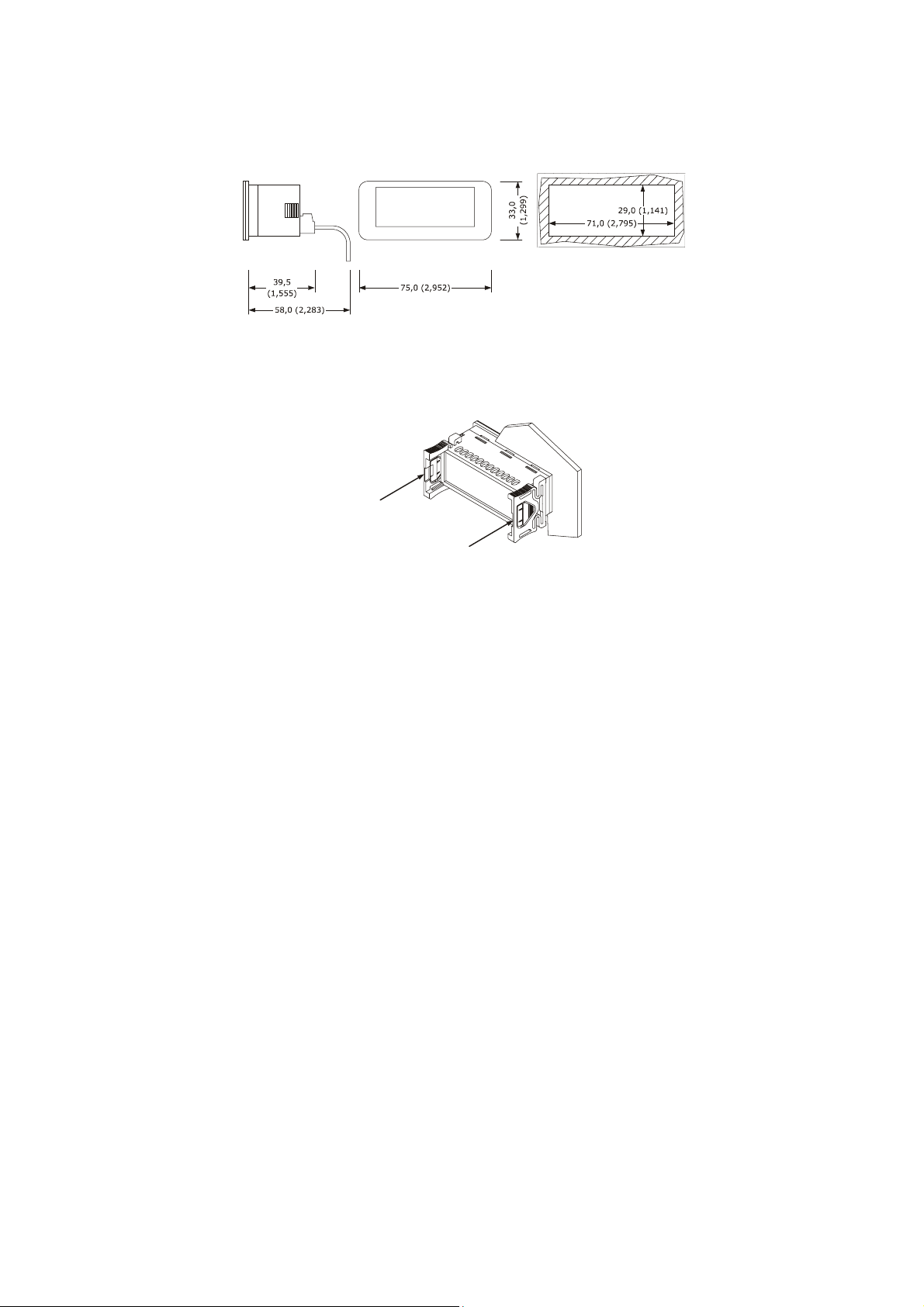

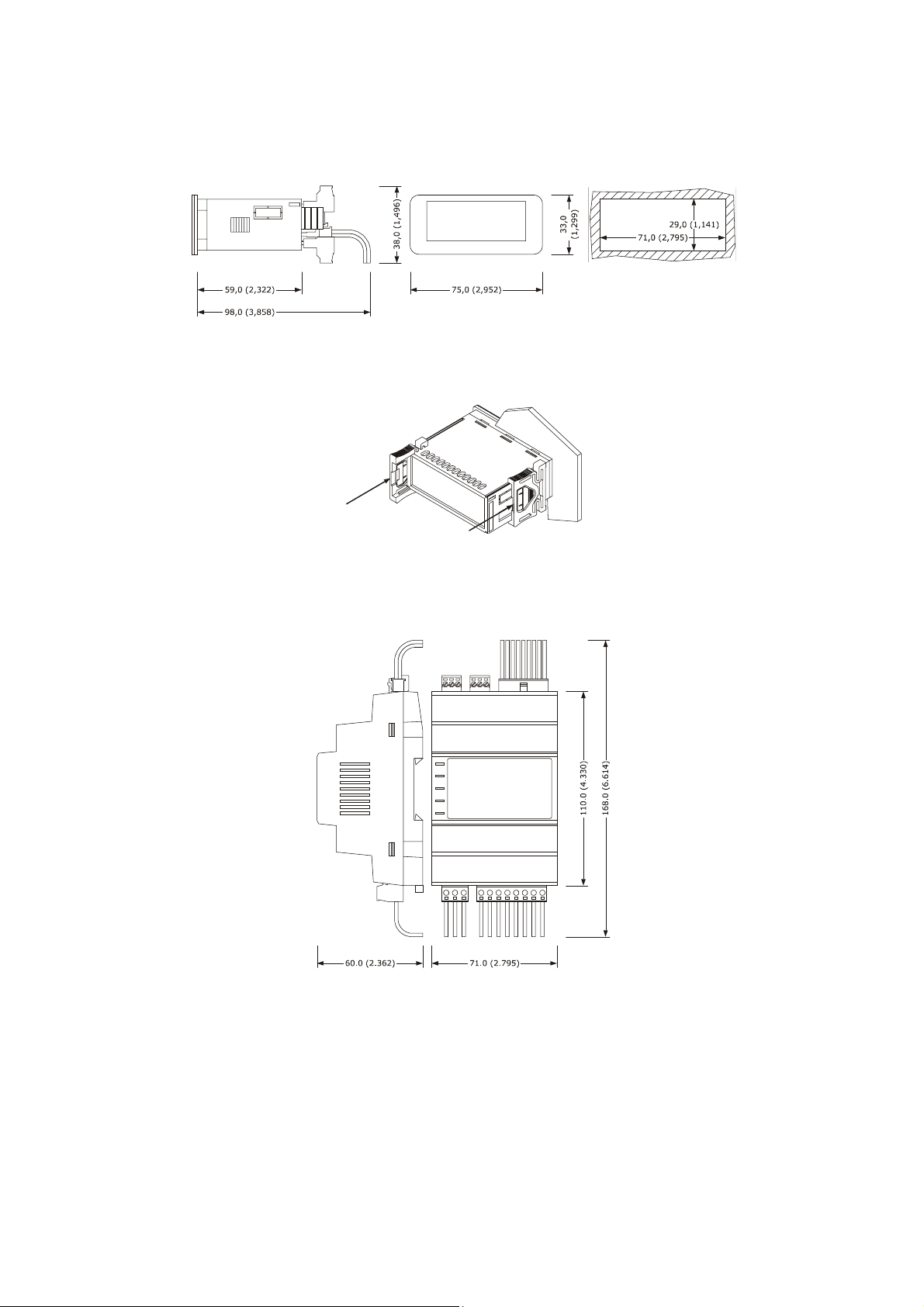

The pictures below show the measurements of EV3 CHIL; measurements are expressed in mm (inches).

To be installed on a panel with snap-in brackets provided.

The thickness of the panel on which EV3 CHIL is to be installed must be between 0.8 and 2.0mm (0.031 and 0.078 in).

3.2 Measurements and installation of EVD CHIL

The picture below shows the measurements of EVD CHIL (4 DIN modules); measurements are expressed in mm (inches).

page 10 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

Installation is on a DIN rail 35.0 x 7.5mm (1.377 x 0.295 in) or 35.0 x 15.0mm (1.377 x 0.590 in), in a control panel.

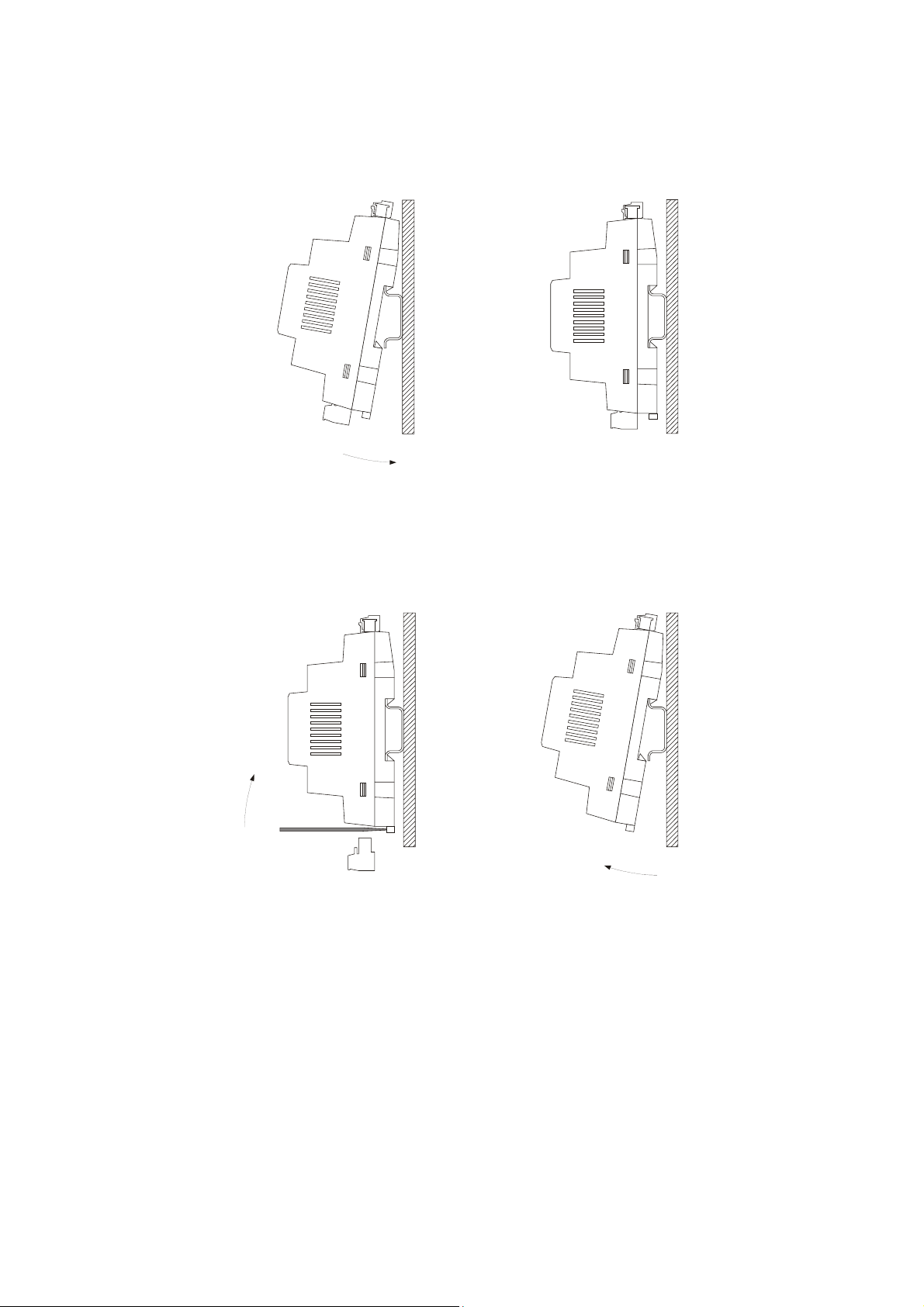

The pictures below show how to install the EVD CHIL.

1 2

To remove the EVD CHIL, first remove any plug-in screw terminal blocks

DIN rail clip, as shown in the pictures below.

3 4

fitted in the lower part, then, using a screwdriver, loosen the

To re-install the EVD CHIL first press the DIN rail clip fully in.

page 11 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

3.3 Measurements and installation of EV3K01

The pictures below show the measurements of EV3K01; measurements are expressed in mm (inches).

To be installed on a panel with snap-in brackets provided.

The thickness of the panel on which the EV3K01 is to be installed must be between 0.8 and 2.0mm (0.031 and 0.078 in).

3.4 Installation precautions

- Ensure that the working conditions for the devices (operating temperatures, humidity, etc.) are within the set limits. See

the section TECHNICAL SPECIFICATIONS.

- Do not install the devices close to heat sources (heating elements, hot air ducts, etc.), equipment with a strong magnetic

field (large diffusers, etc.), in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations or shocks.

- In compliance with safety regulations, the devices must be installed properly to ensure adequate protection from contact

with electrical parts. All protective parts must be fixed in such a way as to need the aid of a tool to remove them.

page 12 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

4 ELECTRICAL CONNECTION

4.1 I/O configuration

The table below shows the I/O configuration.

ANALOGUE INPUTS EV3904LM2 EV3906LM2GF EVD904BM9

IN1

IN2 Input water temperature (NTC) • • •

IN3 Output water temperature (NTC) • • •

IN4 Compressor discharge temperature (NTC) • • •

DIGITAL INPUTS EV3904LM2 EV3906LM2GF EVD904BM9

IN5 System flow switch (NC) • • •

IN10 (EVD)

IN6 (EV3)

IN9 (EVD)

IN7 (EV3)

IN8 Compressor 1 thermal protection (NC) • • •

Condensation temperature/pressure (NTC/4-20

mA)

On/Off • • •

Fan thermal protection • • •

• • •

IN7 (EVD)

IN9 (EV3)

IN6 (EVD)

IN10 (EV3)

ANALOGUE OUTPUTS EV3904LM2 EV3906LM2GF EVD904BM9

AO1 Compressor 1 (0-10 V/phase cutting/PWM) • • •

AO2 Fan (0-10 V/phase cutting/PWM) • • •

DIGITAL OUTPUTS EV3904LM2 EV3906LM2GF EVD904BM9

DO1 Alarm • • •

DO2 Enable fan • • •

DO3 Circulation pump • • •

DO4 Enable compressor 1 • • •

Maximum pressure switch (NC) • • •

Minimum pressure switch (NC) • • •

TK1 Compressor 2 •

page 13 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

TK2 Fan •

OC1 Compressor 2 •

4.2 Description of connectors

4.2.1 Description of connectors for EV3 CHIL

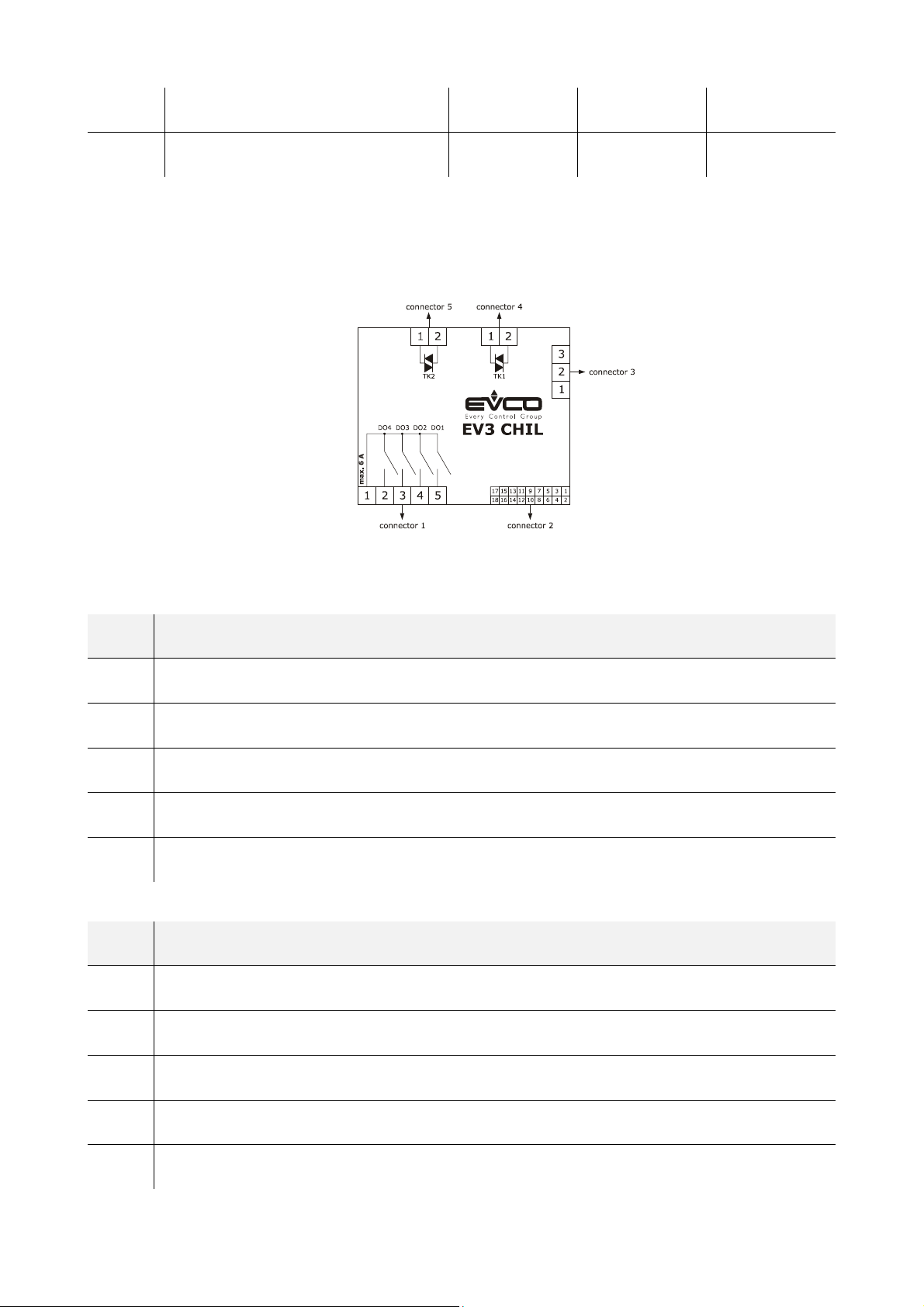

The picture below shows the layout of the EV3 CHIL connectors.

The tables below describe the EV3 CHIL connectors.

Connector 1

PART DESCRIPTION

1 Electro-mechanical relay digital outputs DO1... DO4 (max. 6A): common

2 Electro-mechanical relay digital output DO4 (2A SPST): normally open

3 Electro-mechanical relay digital output DO3 (2A SPST): normally open

4 Electro-mechanical relay digital output DO2 (2A SPST): normally open

5 Electro-mechanical relay digital output DO1 (2A SPST): normally open

Connector 2

PART DESCRIPTION

1 Dry contact digital input IN10

2 Analogue input IN1 (NTC/4-20 mA)

3 Dry contact digital input IN9

4 Analogue input IN2 (NTC)

5 Dry contact digital input IN8

page 14 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

6 Analogue input IN3 (NTC)

7 Dry contact digital input IN7

8 Analogue input IN4 (NTC)

9 Volt-free contact digital input IN6

10 Digital input IN5

11 Analogue output AO1 (0-10 V/phase cutting/PWM)

12 Reference (GND) for analogue inputs, digital inputs, analogue outputs and powered INTRABUS port

13 Analogue output AO2 (0-10 V/phase cutting/PWM)

14 INTRABUS port powered up signal

15 Power supply to analogue inputs 4-20 mA (12 VDC, max. 40 mA)

16 Reference (GND) for analogue inputs, digital inputs, analogue outputs and powered INTRABUS port

17 EV3 CHIL power supply (12VAC not insulated)

18 EV3 CHIL power supply (12VAC not insulated)

Connector 3 (if installed)

PART DESCRIPTION

1 RS-485 MODBUS port: +

2 RS-485 MODBUS port: -

3 RS-485 MODBUS port: reference (GND). NB: do not connect the cable shield.

Connector 4 (if installed)

PART DESCRIPTION

1 Triac TK1 output: GND

2 Triac TK1 output (200 mA): OUT

Connector 5 (if installed)

PART DESCRIPTION

1 Triac TK2 output: GND

2 Triac TK2 output (2 A): OUT

page 15 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

4.2.2 Description of connectors for EVD CHIL

The picture below shows the layout of the EVD CHIL connectors.

The tables below describe the EVD CHIL connectors.

Connector 1

PART DESCRIPTION

1 Electro-mechanical relay digital output DO1 (3A SPST): normally open

2 Electro-mechanical relay digital output DO2 (3A SPST): normally open

3 Electro-mechanical relay digital outputs DO1 and DO2 (max. 6A): common

Connector 2

PART DESCRIPTION

1 Electro-mechanical relay digital output DO3 (12A SPST): normally open

2 Electro-mechanical relay digital output DO3 and D04: common

3 Electro-mechanical relay digital output DO3 and D04: common

4 Electro-mechanical relay digital output DO4 (8A SPDT): normally open

5 Electro-mechanical relay digital output DO4 (8A SPST): normally closed

7 EVD CHIL power supply (115... 230 VAC insulated)

8 EVD CHIL power supply (115... 230 VAC insulated)

page 16 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

Connector 3

PART DESCRIPTION

1 Analogue output AO2 (0-10 V/phase cutting/PWM)

2 Analogue outlet AO1 (0-10 V/phase cutting/PWM)

3 Reference (GND) for analogue inputs, digital inputs, analogue outputs and powered INTRABUS port

4 Analogue input IN1 (NTC/4-20 mA)

5 Dry contact digital input IN10

6 Analogue input IN2 (NTC)

7 Dry contact digital input IN9

8 Analogue input IN3 (NTC)

9 Dry contact digital input IN8

10 Analogue input IN4 (NTC)

11 Dry contact digital input IN7

12 Digital input IN5

13 Reference (GND) for analogue inputs, digital inputs and analogue outputs

14 Dry contact digital input IN6

15 Reference (GND) for analogue inputs, digital inputs and analogue outputs

16 power supply for analogue inputs 4-20mA (12 VDC, max. 120mA)

17 Open collector digital output OC1 (12V, max. 40mA)

18 Reference (GND) for analogue inputs, digital inputs and analogue outputs

page 17 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

Connector 4 (if installed)

PART DESCRIPTION

1 RS-485 MODBUS port: reference (GND)

2 RS-485 MODBUS port: -

3 RS-485 MODBUS port: +

Connector 5

PART DESCRIPTION

1 reference (GND) for EV3K01 power supply and powered INTRABUS port

2 INTRABUS port powered up signal

3 EV3K01 power supply

4.2.3 Description of EV3K01 connectors

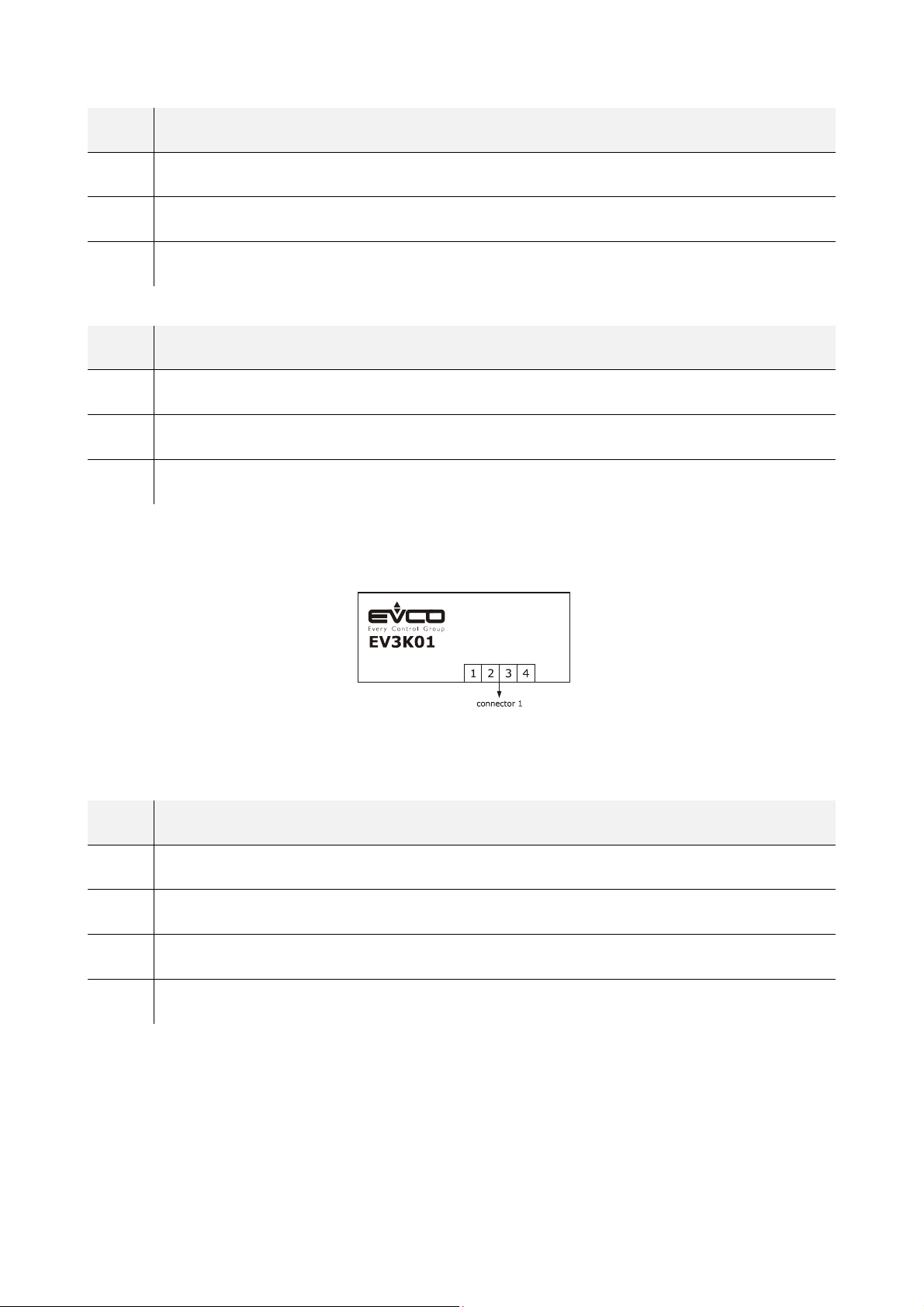

The picture below shows the layout of the EV3K01 connectors.

The table below describes the EV3K01 connectors.

Connector 1

PART DESCRIPTION

1 EV3K01 (12 VAC/DC) power supply; if EV3K01 is fed by DC power, connect the positive pole

2 Not used

3 INTRABUS port powered up signal

4 reference (GND) for EV3K01 power supply and powered INTRABUS port

page 18 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

4.3 Termination of the RS-485 MODBUS line

To reduce reflections on the signal transmitted along the cables connecting the devices to a RS-485 network it is necessary to

terminate the line ONLY at the first and last element in the network.

To terminate the line, it will be sufficient to place EV3 CHIL micro-switch 1 in position ON. Do not touch micro-switch 2.

When using EVD CHIL, place micro-switch 1 in position ON.

page 19 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

4.4 Example of electrical connection

4.4.1 Example of EV3 CHIL electrical connection

The picture below shows an example of the EV3 CHIL electrical connection.

If using triac digital outputs, we recommend connecting a noise filter. The heat sink might reach very high temperatures, do not touch

it.

page 20 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

4.4.2 Example of EVD CHIL electrical connection

The picture below shows an example of the EVD CHIL electrical connection.

page 21 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

4.5 Precautions for electrical connection

- Do not use electric or pneumatic screwdrivers on the terminal blocks of the devices.

- If the devices have been moved from a cold to a warm place, the humidity may cause condensation to form inside. Wait

about an hour before switching on the power.

- Make sure that the supply voltage, electrical frequency and power of the devices correspond to the local power supply. See

the section TECHNICAL SPECIFICATIONS.

- Disconnect the devices from the power supply before doing any type of maintenance.

- The devices must be fed by power of the same phase as that feeding any module with a phase-cutting command signal.

- If using triac digital outputs, we recommend connecting a noise filter. The heat sink might reach very high temperatures,

do not touch it.

- Connect the devices to an RS-485 network using a screened cable with twisted pair for the signal and a third separate

conductor for the reference (for example the BELDEN 3106A cable). NB: do not connect the cable shield to the reference

(GND)

- Connect the power cables as far away as possible from those for the signal.

- Do not use the devices as safety devices.

- For repairs and for further information on the devices, contact the EVCO sales network.

page 22 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

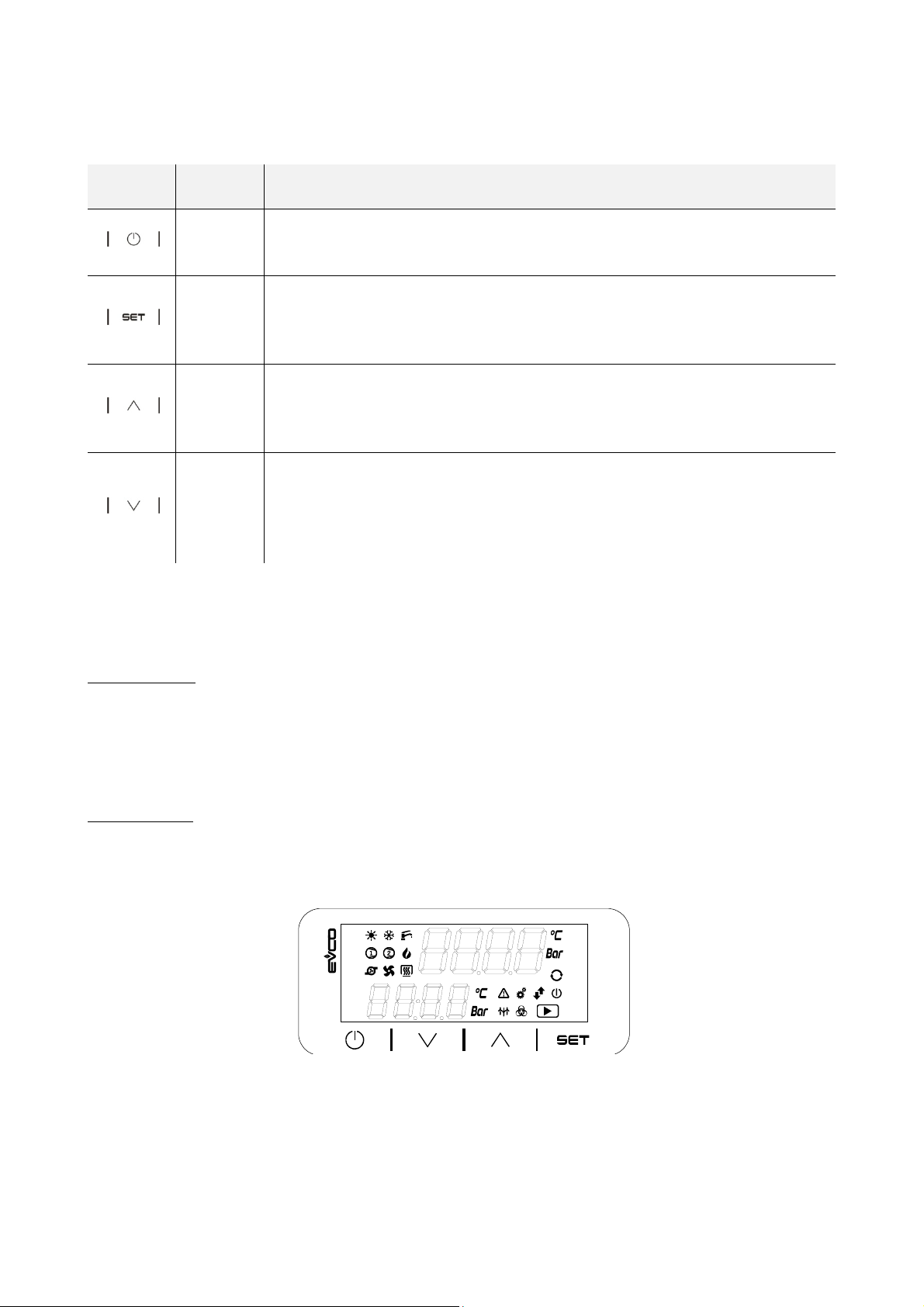

5 DESCRIPTION OF USER INTERFACE

5.1 Key functions

The table below shows the functions of the keys.

ICON NAME FUNCTION

On/stand-by

Set

Up

Down

- Prolonged pressure will switch on / switch off the device

- In set-parameters mode, it functions as a “Back” key

- Prolonged pressure makes it possible to enter or exit the set-up menu (SEtP menu)

- Press once to modify the set-point and confirm it.

- It functions as the “Enter” key in menu navigation.

In set-parameters mode:

- It enables you to move to a higher menu

- It enables you to increase the value of a parameter

In set-parameters mode:

- It enables you to move to a lower menu

- It enables you to decrease the value of a parameter

- Prolonged pressure enables you to view the measurements found by the probes.

5.2 Display

A pressure on the On/ stand-by will switch on / switch off the device. When the device is switched on with the key, it is possible to

switch it remotely to Stand-By mode by operating on the dedicated digital input through a switch.

The user interface has two display modes.

Initial display mode

- The upper row shows the input water temperature, while the lower row shows the output water temperature or any alarms

activated.

- When the device is switched on with the key but remotely put to Stand-By mode, the label “oFFd” will be displayed on the

lower row.

- When the device is switched off with the key, the label “OFF” will be displayed on the upper row, while the time will be

displayed on the lower row (if RTC is present and enabled, otherwise 4 lines ---- will be displayed.

Menu display mode

- What is disp layed depends upon the menu level you are in, using a directory tree system in which the lower row shows a

subcategory of the one shown on the upper row. To help users to identify what is being displayed, labels and codes are

used, see paragraph 5.4.2.

page 23 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

5.3 Signals

The table below shows the meaning of the LED signals of EV3 CHIL.

LED COLOUR MEANING

Controller LED

It is dependant on parameter CF06 (default 0)

0= = cooling ON

1= = cooling ON

Compressor 1 LED

- ON if the compressor is switched on

- OFF if the compressor is switched off

- BLINK if some timings are underway

Compressor 2 LED

- ON if the compressor is switched on

- OFF if the compressor is switched off

- BLINK if some timings are underway

GREEN

Hydraulic pump LED

GREEN

AMBER

AMBER Run LED

RED

- ON if the pump is switched on

- OFF if the pump is switched off

Condenser fan LED

- ON if the fan is switched on

- OFF if the fan is switched off

LED for the unit of measurement of the value shown on the lower display when the probe is

configured for temperature

LED for the unit of measurement of the value shown on the lower display when the probe is

configured for pressure

Alarm LED

- ON if an alarm is underway

- OFF if no alarm is underway

Set-up LED

- ON if the device is not showing the initial display

- OFF during normal functioning

On/stand-by LED

RED

- ON if the controller is switched off (at the same time as the “OFF” display signal)

- OFF if the controller is switched on

LED for the unit of measurement of the value shown on the upper display when the probe is

configured for temperature

page 24 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

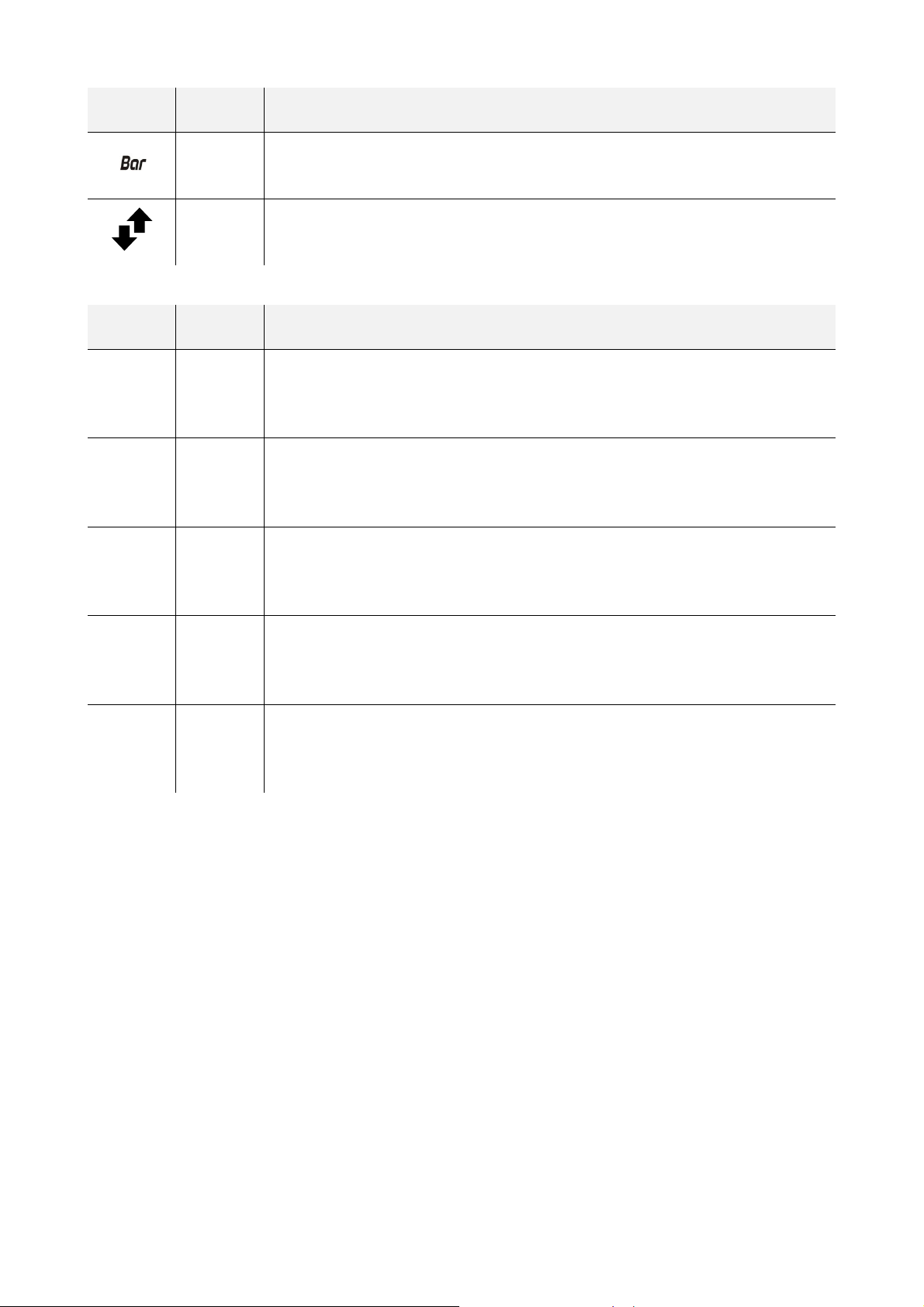

LED COLOUR MEANING

RED

LED for the unit of measurement of the value shown on the upper display when the probe is

configured for pressure

IB/RS485 LED

RED

- BLINK if an INTRABUS/RS485 commun ication is underway

- OFF if no communication is underway

The table below shows the meaning of the LED signals of EVD CHIL.

LED COLORE SIGNIFICATO

Power supply LED

ON GREEN

- ON if the controller is powered

- OFF if the controller is not powered

“RUN” LED

RUN GREEN

- ON if the controller is switched on

- OFF if the controller is switched off

Alarm LED

∆ RED

- ON if an alarm is underway

- OFF if no alarm is underway

INTRABUS LED

IB AMBER

- BLINK if an INTRABUS communication is underway

- OFF if no communication is underway

RS-485 LED

RS485 AMBER

- BLINK if an RS-485 communication is underway

- OFF if no communication is underway

page 25 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

5.4 Menu

5.4.1 Access levels

There are three access levels for navigating within the menus, two of which require a password:

U User: always visible

S Servicer: visible if the servicer password (parameter CF09, default -12) or the manufacturer password (parameter CF10,

default -123) have been entered

M Manufacturer: visible if the manufacturer password (parameter CF10, default -123) has been entered.

5.4.2 Menu list

The following menus are available:

SEtP For rapid access to the adjustment set-points

Prob Shows the temperature or pressure values for the inputs configured as probes

ALAr Shows the list of alarms underway

di Shows the status of the inputs configured as digital inputs

Ao Shows the status of the outputs configured as analogue outputs or as triac/open collector

do Shows the status of the outputs configured as digital outputs

PAr Shows and allows the device parameters to be altered. The parameters are grouped according to their function, identified

on the display by a label. Each parameter has an alphabetic code followed by two numbers, as shown in the table below.

GROUP IDENTIFICATION LABEL PARAMETER CODE

Configuration ConF CF

Compressor CoMP CP

Fan FAn Fn

Alarms ALAr AL

Adjustment rEGL rL

Pump PUMP PM

Offset OFF oF

OHr Shows the time the compressors (OH1 and OH2) and the pump (OHP) have been functioning.

HiSt In devices fitted with a clock, up to 20 alarm events can be stored in the memory. The history and details of these are

shown on the lower disp lay in the following sequence.

y xx year

M xx month

d xx day

hh:mm hours:minutes

rtC The time can be set on devices fitted with a clock.

inFo Shows the FW version (project, variation and revision)

PASS The password is entered for access to the desired level: parameter Cf09 for servicer level, Cf10 for manufacturer level.

page 26 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

6 LIST OF PARAMETERS

6.1 Initial information

The three levels of access to the parameters are shown in the first column of the following table with letters:

U User

S Servicer

M Manufacturer

For more information see the previous paragraph 5.4.1.

MENU PARAM. DEFAULT MIN. MAX. U.M. SET-POINT

U CooL 7.0 CF04 CF03 °C Temperature set-point

MENU PARAM. DEFAULT MIN. MAX. U.M. CONFIGURATION

S CF03 20.0 CooL 90.0 °C Maximum set-point value

S CF04 4.0 -50.0 CooL °C Minimum set-point value

Controller LED meaning

S CF06 0 0 1 - - - -

0 = cooling ON

1 = cooling ON

Enable clock

S CF07 1 0 1 - - - -

S CF08 1 1 200 - - - - MODBUS serial address

S CF09 1 -127 127 - - - - Servicer password

M CF10 2 -127 127 - - - - Manufacturer password

M CF11 0 0 1 - - - - Compressor parcelling number

M CF12 1 1 2 - - - - Number of compressors

M CF17 0 0 2 - - - -

0=No

1= Yes

IN1 input configurat ion type

0= Temperature [°C]

1= 4-20mA [Bar]

2= Not used

The choice of CF17 value determines the unit of

measurement for the condensation (°C or Bar)

M CF31 0,0 -50,0 80,0 Bar Start of condensation pressure scale

M CF32 50,0 -50,0 80,0 Bar Bottom of condensation pressure scale

page 27 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

AO1 output configuration type

0= Disabled

1= Phase cutting [%]

M CF35 2 0 4 - - - -

M CF36 1 0 4 - - - -

2= 0-10V [%]

3= PWM [%]

4= Frequency [Hz]

The choice of CF35 value determines the unit of

measurement for adjusting the compressor (Hz or %)

AO2 output configuration type

0 = Disabled

1= Phase cutting [%]

2= 0-10V [%]

3= PWM [%]

4= Frequency [Hz]

The choice of CF36 value determines the unit of

measurement for adjusting the fan (Hz or %)

AO1 analogue output function configuration

0= Disabled

1= Not used

M CF47 0 0 4 - - - -

M CF51 0 0 1 - - - -

MENU PARAM. DEFAULT MIN. MAX. U.M. ALARMS

M AL01 3 0 255 - - - -

M AL02 40 0 255 s Low pressure alarm bypass time

M AL05 40.0 -50.0 80.0 °C-Bar High pressure alarm set-point

2= Not used

3= Not used

4= Modulating compressor (in this case, the second

compressor cannot be used)

RUN Logo

0= Off

1= On

Number of alarms in an hour for low pressure after which

the alarm switches from automatic to manual re-arm

M AL06 5.0 -12.7 12.7 °C-Bar High pressure alarm hysteresis

M AL07 2 0 255 - - - -

M AL08 15 0 255 s Bypass time for flow alarm from pump activation

M AL09 3 0 255 s Flow alarm delay from activating flow switch input

page 28 of 46

Number of flow alarms in an hour after which the alarm

switches from automatic to manual re-arm

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

M AL10 5 0 255 s

Flow alarm re-arm delay from deactivating flow switch

input

S AL12 3,0 -127 127 °C Antifreeze alarm set-point

S AL13 2.0 0.0 25.5 °C Antifreeze alarm hysteresis

Stop fan with antifreeze alarm

M Al14 0 0 1 - - - -

0= Disabled

1= Enabled

M Al17 105.0 0.0 255.0 °C High discharge temperature alarm set-point

M AL18 15.0 0.0 25.5 °C High discharge temperature alarm hysteresis

MENU PARAM. DEFAULT MIN. MAX. U.M. COMPRESSOR

M CP01 1 0 255 s*10 Compressor OFF minimum time

M CP02 36 0 255 s*10 Compressor successive switch-ons minimum time

M CP05 20 10 CP06 Hz - % Minimum modulating compressor value

M CP06 100 CP05 255 Hz - % Maximum modulating compressor value

Cut-off hysteresis for modulating compressor adjustment

M CP08 0.0 0.0 25,5 °C

(“CooL”)

For ON-OFF adjustment set to 0

M CP09 0 0 255 Hz - % Set-point for refreshing the modulating compressor oil

M CP10 0 0 255 min Delay for refreshing the modulating compressor oil

MENU PARAM. DEFAULT MIN. MAX. U.M. COMPRESSOR ADJUSTMENT

S rL01 5.0 0.0 25.5 °C Proportional compressor adjustment band

S rL04 0 0 255 s*10 Compressor adjustment integral time

MENU PARAM. DEFAULT MIN. MAX. U.M. VENTILATION

M Fn01 20 0 255 s/10

Fan start-up time, if CF36 is set to 1 (AO2 output

configuration type = phase cutting)

M Fn02 1 0 10 ms/2 Fan phase shift

Fan mode

M Fn03 0 0 1 - - - -

0= On-call (dependant on the compressor)

1= Independent

page 29 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

M Fn04 2.0 0.0 25.5 °C-Bar Fan adjustment delta cut-off

M Fn05 1.0 0.0 25.5 °C-Bar Fan cut-off hysteresis

M Fn06 20 0 255 s Fan cut-off bypass time

M Fn07 30 0 100 Hz - % Minimum fan speed

M Fn08 100 0 100 Hz - % Maximum silent-running fan speed

M Fn09 28.0 -50.0 80.0 °C-Bar Minimum fan speed set-point

M Fn10 4.0 0.0 25.5 °C-Bar Fan adjustment proportional band

M Fn11 100 0 100 Hz - % Maximum fan speed

M Fn12 35.0 -50.0 80.0 °C-Bar Maximum fan speed set-point

M Fn13 30 0 255 s Pre-ventilation time

MENU PARAM. DEFAULT MIN. MAX. U.M. PUMP

M PM01 20 0 255 s Compressor switch-on delay from pump switch-on

M PM02 10 0 255 s Pump switch-off delay from compressor switch-off

Pump ON mode at request

M PM03 1 0 1 - - - -

0= disabled (pump on constantly)

1= enabled

S PM04 4.0 -127 127 °C Antifreeze set-point for activating pump

S PM05 2.0 0.0 25.5 °C Antifreeze hysteresis for activating pump

MENU PARAM. DEFAULT MIN. MAX. U.M. PROBE OFFSET

S oF01 0.0 -12.7 12.7 °C Offset analogue input 1 (IN1)

S oF02 0.0 -12.7 12.7 °C Offset analogue input 2 (IN2)

S oF03 0.0 -12.7 12.7 °C Offset analogue input 3 (IN3)

S oF04 0.0 -12.7 12.7 °C Offset analogue input 4 (IN4)

page 30 of 46

EVCO S.p.A.

e

a

D

o

m

s

m

a

u

a

e

r

f

t

y

t

7 REGULATORS

7.1 Compressors

The adjustment is based on the value provid

the set-point.

If the circuit is made up of more than on

featuring more working hours will be deactiv

If you wish to use a modulating compressor

proportional-integral controller (PI). Output

signal to be synchronised with the compress

Parameter CP01 determines the minimum ti

determines the minimum time between two

Parameters CP05 and CP06 have a different

output is a frequency, they represent the

minimum working percentages.

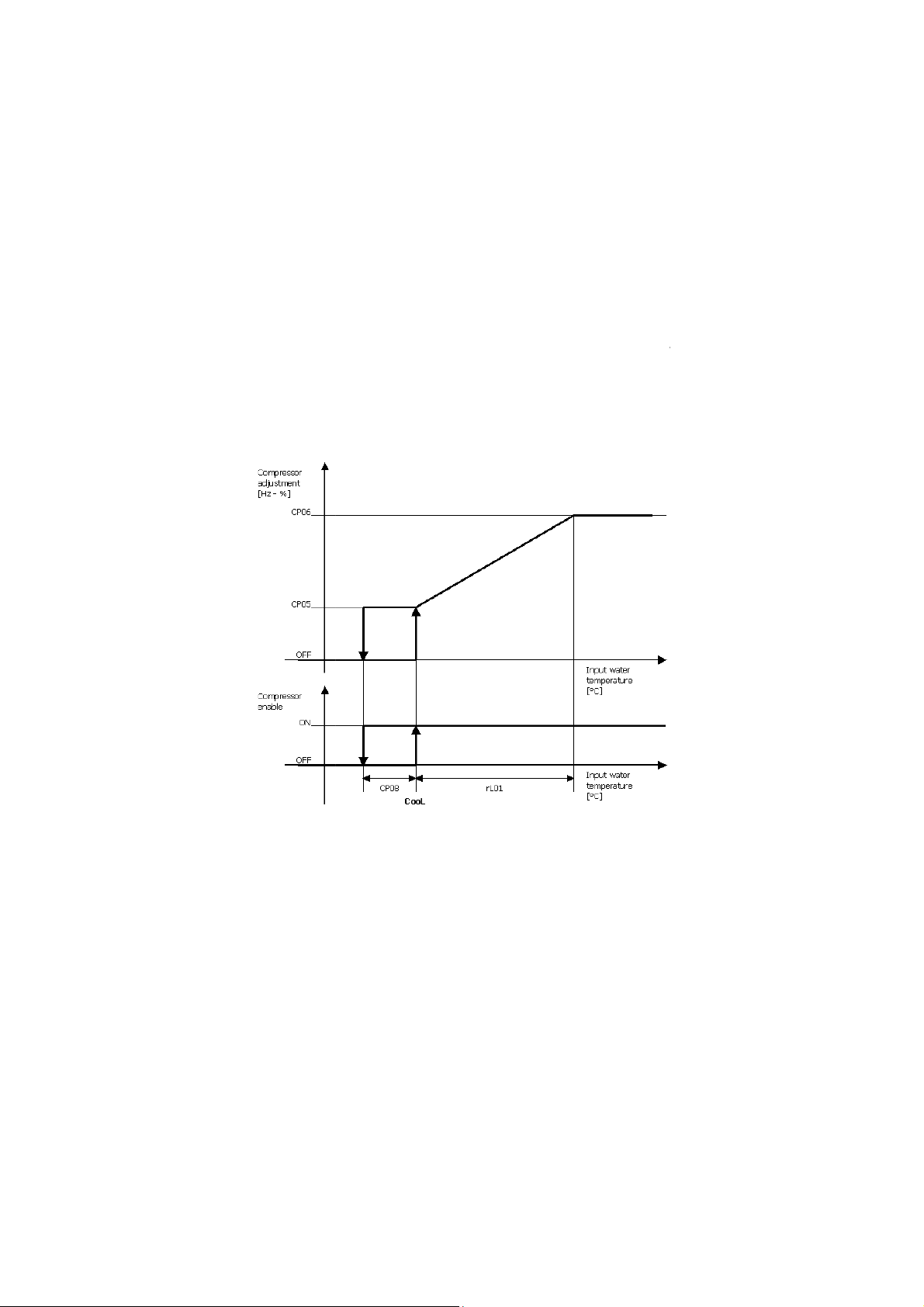

The diagram below represents proportional

compressor enable outlet is also shown.

EV3 CHIL & EVD CHIL | Installer man

d by the input water probe. The compressor is run on the b

compressor, the one featuring less working hours will b

ted first).

it is necessary to connect it to analogue output AO1, in whic

O4 provides the enable signal to the modulating compresso

r control signal, parameter CP08 must be other than 0.

e between the compressor switch-off and its successive swi

uccessive switch-ons (that is to say the maximum number o

meaning depending on the type of analogue output, selec

aximum and minimum working frequencies, otherwise the

djustment. To keep it simple, the integral component is no

al ver. 1.2 | Code 1443DCHILE124

sis of this temperature and of

activated first (and the one

h case it will be adjusted by a

DO4. In order for the enable

tch-on, while parameter CP02

switch-ons per hour).

ed by parameter CF35: if the

represent the maximum and

represented (Rl04 = 0). The

page 31 of 46

EVCO S.p.A.

p

O

(

h

2

1

o

u

O

u

P

EV3 CHIL & EVD CHIL | Installer man

al ver. 1.2 | Code 1443DCHILE124

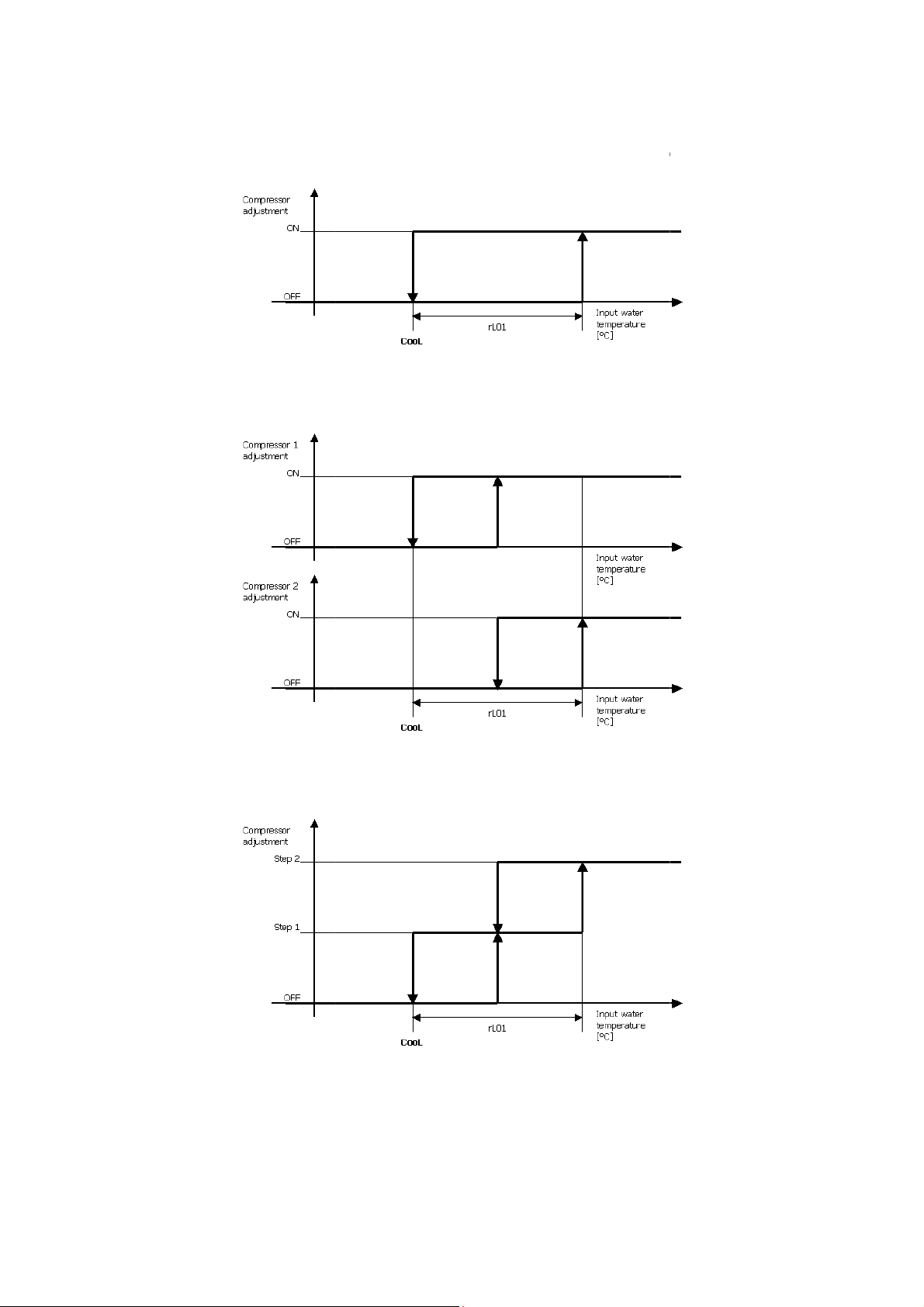

If ON-OFF type compressors are to be used,

The following combinations are possible for

- 1 compressor without parcelling

- 2 independent compressors wit

compressor 1” and compressor

arameter CP08 must be set at 0.

N-OFF adjustment:

CF11 = 1; Cf12 = 0). Compressor is connected to output D

out parcelling (CF11 = 2; Cf12 = 0). Compressor 1 is

is connected to output “Compressor 2”.

4.

connected to output “Enable

- 1 compressor with pacelling (CF

step 2 is connected to output “C

1 = 1; Cf12 = 1). Compressor step 1 is connected to outp

mpressor 2”.

7.1.1 Oil refresh

If the compressor is running at a frequency l

at the maximum power. The compressor will

wer that the CP09 parameter for a period longer than the C

remain at the maximum power until it reaches the set-point.

t “Enable compressor 1” and

10 parameter, it is activated

page 32 of 46

EVCO S.p.A.

p

t

f

n

d

e

o

u

w

o

a

c

m

7.2 Hydraulic pump

7.2.1 Initial information

The functional mode of the hydraulic pum

switched on for thermoregulation in relation

In the second case, the pump switches off a

by the regulator or switched OFF manually

pump to be stopped, as for the flow alarm in

on).

7.2.2 Function modes

The hydraulic pump can be set to function in

Continuous The pump is always i

On-call The pump is switche

delay (PM01) from

compressor is switch

EV3 CHIL & EVD CHIL | Installer man

can be set using parameter Pm03: the pump may be al

o the functioning of the compressor.

ter a delay of PM02 from when the compressor is switched

rom the remote controller. It will switch off immediately if

manual re-arm (with the flow alarm active in automatic re-

two modes.

ON mode if PM03 = 0

on at the request of the heat regulator if PM03 = 1. The

pump switch-on and the pump is switched off with a d

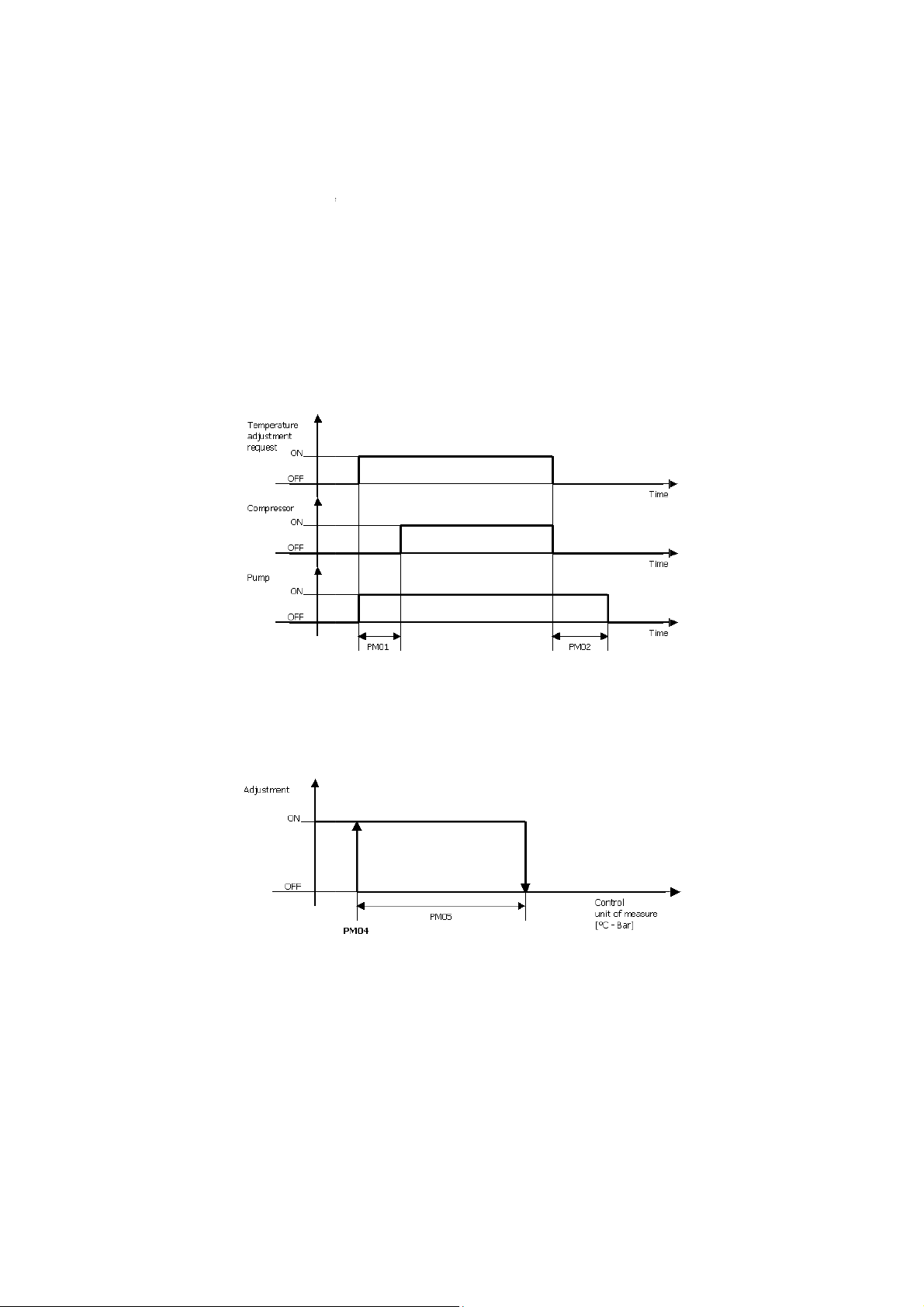

d off, as shown below:

al ver. 1.2 | Code 1443DCHILE124

ays kept switched on or be

ff every time it is deactivated

n alarm sounds requiring the

rm, the pump stays switched

ompressor is activated with a

elay (PM02) from when the

7.2.3 Antifreeze function

When the temperature of the input or output

switches off when the temperature rises ab

(PM05), as shown below.

water is below PM04, the pump is activated automatically if

ve the value of the antifreeze set-point (PM04), to which

it was switched off. The pump

ust be added the hysteresis

page 33 of 46

EVCO S.p.A.

l

t

d

e

a

m

-

t

f

p

-

n

u

b

t

c

g

EV3 CHIL & EVD CHIL | Installer man

al ver. 1.2 | Code 1443DCHILE124

7.3 Condensation contro

The condensation is controlled by adjustmen

If an ON-OFF fan is to be used, connect it to

If a proportional adjustment fan is to be use

the modulating fan it only has to be connect

If the fan is modulating, the start-up time c

(CF36 = 1).

The fan can be adjusted independently of th

switched off this will be by-passed by a ti

minimum speed if the regulator requests cut

The diagram below shows proportional adjus

s to the fan that can either be a proportional or ON-OFF type

igital output “Enable fan”

, it should be connected to analogue outlet “Fan”. If an ena

d to digital output “Enable fan”

n be set through parameter Fn01 only when the fan output

e compressor (Fn03=1) or at the request of the compresso

e equal to Fn06 from switch-on of a compressor. During

off.

ment.

.

le outlet is to be used to work

is configured as cutting phase

rs (Fn03=0). When the fan is

his period the fan will run at

In this mode, parameter Fn13 (external

condensation temperature that is too high.

compressors are switched on and the fan s

minimum speed if the regulator requests cut

The diagram below shows ON-OFF adjustme

an pre-ventilation time) is also activated to avoid the

Depending on this parameter, the fan is activated for a ti

eed is proportional to the condensation temperature. Durin

off.

t.

ompressor starting up at a

me equal to Fn13 before the

this period, the fan is set to

page 34 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

8 ALARMS

8.1 Initial information

All the alarms re-arm automatically except for:

- Antifreeze alarm: manual re-arm

- Low pressure alarm: manual re-arm if, in an hour, the number of events is higher than parameter AL01

- Flow alarm: manual re-arm if, in an hour, the number of events is higher than parameter AL07

Prolonged pressure of the On/stand-by key resets all the manual re-arm alarms and the counters of the events number per hour.

8.2 List of alarms

The table below shows the meaning of the device’s various alarm codes.

CODE DESCRIPTION

High pressure alarm

The alarm is activated both by the maximum pressure switch and when the value of the condensation probe exceeds the

AHP1

ALP1

threshold set by AL05. The alarm is deactivated when both conditions return to normal.

Main results

- The compressor is switched off.

Low pressure alarm

This alarm is activated when the pressure switch detects low pressure. It is deactivated when the pressure switch is re-

armed.

The alarm activates with a delay of Al102 from when the compressor is switched on.

Main results

- The compressors and fan are switched off.

AtC1

AdS1

AtF1

AFr1

Compressor thermal alarm

The alarm is activated if the input configured as compressor thermal alarm is active. It deactivates if the input is

inactive.

Main results

- The compressor 1 switches off.

Compressor 1 discharge alarm

The alarm is activated when the value detected by the probe configured as compressor discharge temperature rises

above the value expressed by AL17. It deactivates when the temperature falls below the value expressed by AL17 –

AL18.

Main results

- The compressor is switched off.

Fan thermal alarm

The alarm is a ctivated if the input configured as fan thermal alarm is active. It dea ctivates if the input is inactive.

Main results

- The compressors and fan are switched off.

Antifreeze alarm

The alarm is calculated on the minimum temperature reading of the input and output water probes: the alarm is

activated when the minimum value is below AL12; it is deactivated when the value is above AL12+AL13. The alarm is delayed for a period equalling AL11 from when it is switched on in hot mode.

Main results

- The compressor and fan are switched off.

page 35 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

Flow alarm

This alarm is activated when the input configured as flow switch is active for a period of AL09, with a delay of AL08 from

AFLo

AHtr

EA01

EA02

EA03

EA04

pump switch-on; it is deactivated when the input is inactive for a time amounting to AL10.

It reverts to manual re-arm if the number of alarm events in an hour exceeds AL07.

Main results

- All functions switched off.

High temperature alarm

This alarm is activated when the input water temperature exceeds Al15 for a period longer than Al16. It is deactivated

when the temperature is lower than Al15-Al13.

Main results

- Compressors switch off

Probe alarms

The alarm is activated in the following situations:

- when a probe short circuits or is interrupted

- if the upper or lower limits set for a probe are exceeded

Main results

- All functions switched off.

page 36 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

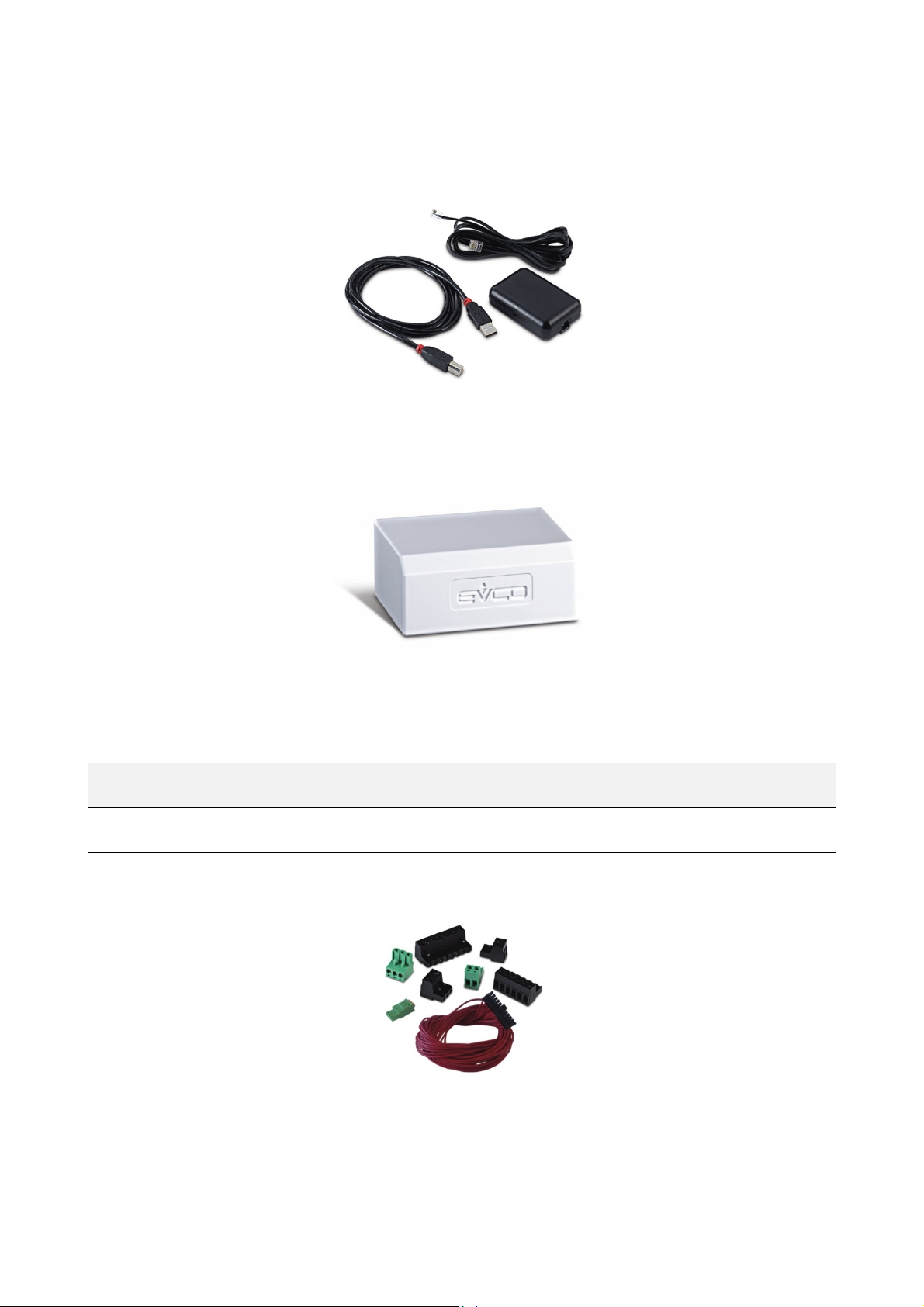

9 ACCESSORIES

9.1 EVIF20SUXI non-optoisolated RS-485/USB serial interface

9.1.1 Initial information

This interface makes it possible to connect EV3 CHIL and EVD CHIL to the set-up software Parameters Manager.

9.2 0025100010 drip protector

9.2.1 Initial information

This drip protector shie lds EV3 CHIL and EV3K01 from damp.

9.3 CJAV connection kit

9.3.1 Initial information

These kits make it possible to cable EV3 CHIL and EVD CHIL.

CONTROLLER PURCHASING CODE

EV3 CHIL CJAV37

EVD CHIL CJAV38

page 37 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

10 TECHNICAL SPECIFICATIONS

10.1 Technical specifications

EV3 CHIL

Purpose of the control

device

Construction of the

control device

Container

Category of heat and fire

resistance

EVD CHIL

EV3K01

EV3 CHIL

EVD CHIL

EV3K01

EV3 CHIL Black, self-extinguishing.

EVD CHIL Grey, self-extinguishing.

EV3K01 Black, self-extinguishing.

EV3 CHIL

EVD CHIL

Function controller.

Built-in electronic device.

D.

Measurements

Mounting methods for the

control device

Degree of front

protection

EV3K01

EV3 CHIL 75.0 x 33.0 x 59.0mm (2.952 x 1.299 x 2.322 in; L x H x D).

EVD CHIL 71.0 x 110.0 x 60.0mm (2.795 x 4.330 x 2.362 in; L x H x D); 4 DIN modules.

EV3K01 75.0 x 33.0 x 39.5mm (2.952 x 1.299 x 1.555 in; L x H x D).

EV3 CHIL To be fitted to a panel, snap-in brackets provided.

EVD CHIL

EV3K01 To be fitted to a panel, snap-in brackets provided.

EV3 CHIL IP65.

EVD CHIL IP40.

EV3K01 IP65.

On a DIN rail 35.0 x 7.5 mm (1.377 x 0.295 in) or 35.0 x 15.0mm (1.377 x

0.590 in), in a control panel.

page 38 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

- Micro-Fit connector (power supply, analogue inputs, digital inputs, analogue

outputs and powered INTRABUS communications port)

- Edge connectors (digital outputs)

- Plug-in screw terminal block

- Micro-Fit connector (analogue inputs, digital inputs, analogue outputs and open

collector digital output)

- Plug-in screw terminal blocks (power supply, electro-mechanical relay digital

outputs and communications ports).

(RS-485 MODBUS slave communications port).

Connections:

EV3 CHIL

EVD CHIL

EV3K01 Plug-in screw terminal block (power supply and communications port).

The maximum length of the connection cables are as follows:

- power supply:

- for EV3 CHIL 10m (32.8ft)

- for EVD CHIL 10m (32.8ft)

- for EV3K01:

- 10m (32.8ft) if the power supply is supplied by EVD CHIL

- 3m (9.8ft) for independent power supply

- Analogue inputs: 10m (32.8ft)

- Power supply for transducer analogue inputs 4-20mA: 10m (32.8ft)

- Digital inputs: 10m (32.8ft)

- Analogue outputs 0-10V: 10m (32.8ft)

- Phase cutting analogue outputs: 10m (32.8 ft)

- PWM analogue outputs: 1m (3.28ft)

- Electro-mechanical relay digital outputs: 10m (32.8ft)

- Triac digital outputs: 10m (32.8ft)

- Open collector digital outputs: 10m (32.8ft)

- INTRABUS powered ports: 10m (32.8 ft)

- RS-485 MODBUS slave ports: 1,000m (3,280ft); see also the MODBUS manual, specifications

and implementation guides available on http://www.modbus.org/specs.php.

Use cables of an adequate section for the current running through them.

For EV3 CHIL cabling we recommend using the CJAV37 connection kit (to be ordered separately).

For EVD CHIL cabling we recommend using the CJAV38 connection kit (to be ordered separately).

EV3 CHIL

Operating temperature

EV3K01

EV3 CHIL

Storage temperature

EV3K01

From -10 to 55°C (from 14 to 131°F). EVD CHIL

From -25 to 70°C (from -13 to 158°F). EVD CHIL

page 39 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

EV3 CHIL

Operating humidity

Pollution status of the

control device

Operating altitude

Transport altitude

EV3K01

EV3 CHIL

EVD CHIL

EV3K01

EV3 CHIL

EV3K01

EV3 CHIL

Relative humidity without condensate from 10 to 90%. EVD CHIL

2.

from 0 to 2,000m (from 0 to 6,591ft). EVD CHIL

From 0 to 3,048m (from 0 to 10,000ft). EVD CHIL

Environmental

compliance

EMC compliance

Power supply

EV3K01

EV3 CHIL

EVD CHIL

EV3K01

EV3 CHIL

EVD CHIL

EV3K01

EV3 CHIL

EVD CHIL

- RoHS 2011/65/EC

- WEEE 2012/19/EU

- REACH (EC) Regulation 1907/2006.

- EN 60730-1

- IEC 60730-1.

12VAC (±15%), 50/60 Hz (±3 Hz), max. 6VA not insulated, supplied by a class 2

circuit.

Protect the power supply with a 1 A-T 250V fuse.

115... 230VAC (+10% -15%), 50/60 Hz (±3 Hz), max. 6VA insulated.

Protect the power supply with a 2 A-T 250V fuse.

- 12VAC (+10 % -15 %), 50/60 Hz (±3 Hz), max. 7VA not insu lated.

EV3K01

- 12VDC (±15%), max. 5W not insulated, supplied by a class 2 circuit.

Protect the power supply with a 1 A-T 250V fuse.

page 40 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

EV3 CHIL

Rated impulse-withstand

voltage

Over-voltage category

Software class and

structure

Clock

EVD CHIL

4 KV.

EV3K01

EV3 CHIL III.

EVD CHIL II.

EV3K01 Not applicable.

EV3 CHIL

EVD CHIL

A.

EV3K01

EV3 CHIL

On request (with secondary lithium battery).

Battery autonomy in the absence of a power supply: > 6 months at 25°C (77°F).

Battery charging time: 24h (the battery is charged by the power supply of the

device).

EVD CHIL

Drift: ≤ 60s/month at 25°C (77°F).

Analogue inputs

EV3K01 Not available.

EV3 CHIL

4 inputs:

- 3 for NTC probes

- 1 can be set up using the configuration parameter for NTC 4-20mA probes or

EVD CHIL

transducers

EV3K01 None.

NTC analogue inputs (10 KΩ @ 25 °C, 77 °F)

Sensor type: ß3435.

Measurement field: from -50 to 150°C (from -58 to 248°F).

Resolution: 0.1°C.

Accuracy: 0.5°C from -20 to 40°C, 1°C from -40 to 120°C, 2°C from -50 to 150°C.

Protection: none.

Analogue inputs 4-20 mA

Input resistance: ≤ 200 Ω.

Resolution: 0.02mA.

Protection: none; the maximum current permitted on each input is 25mA.

Digital inputs

EV3 CHIL

6 volt-free contact input s.

EVD CHIL

page 41 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

EV3K01 None.

Volt-free contact digital inputs (5 VDC, 1,5mA)

Power supply: none.

Protection: none.

Analogue outputs

EV3 CHIL

2 outputs that can be set up using the configuration parameter for 0-10V, phase

cutting or PWM.

EVD CHIL

EV3K01 none.

Analogue outputs 0-10V (max. 10mA)

Input resistance: 1 KΩ.

Resolution: 0.01 V.

Protection: none.

Phase cutting analogue outputs

Output: 10VDC, max. 10mA

Protection: none.

PWM analogue outputs

Output: 10VDC, max. 10mA

Frequency: 10... 2KHz.

Duty: 5... 95%.

Protection: none.

Up to 6 outputs:

- 4 with SPST electro-mechanical relay, 2A res. @ 250 VAC

- 1 with triac 200mA res. @ 250VAC at 25°C (77°F)

- 1 with triac, 2A res. @ 250VAC at 25°C (77°F).

Up to 5 outputs:

- 2 with SPST electro-mechanical relay, 3A res. @ 250VAC

- 1 with SPST electro-mechanical relay, 8A res. @ 250VAC

- 1 with SPST electro-mechanical relay, 12A res. @ 250VAC

- 1 with open collector, 12VDC, max. 40mA.

Type 1.

Digital outputs

Type 1 or Type 2 Actions

EV3 CHIL

EVD CHIL

EV3K01 None.

EV3 CHIL

EVD CHIL

EV3K01 Not applicable.

page 42 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

EV3 CHIL

C.

Additional features of

Type 1 or Type 2 actions

EVD CHIL

EV3K01 not applicable.

EV3 CHIL Custom 4+4 digit display.

Displays

EVD CHIL Signalling LED.

EV3K01 Custom 4+4 digit display.

EV3 CHIL

Up to 2 ports:

- 1 powered INTRABUS port

Communications ports

EVD CHIL

- 1 RS-485 MODBUS slave port

EV3K01 1 powered INTRABUS port.

EV3 CHIL Built-in.

Alarm buzzer

EVD CHIL Not available.

EV3K01 Built-in.

page 43 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

Note

_______________________________________________________________________________________

page 44 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

EV3 CHIL & EVD CHIL

Controllers for single-circuit chillers

Installer manual version 1.2

GA - 03/16

Code 1443DCHILE124

This document is the sole property of EVCO. EVCO does n ot accept any liability for any possible errors it includes.

The customer (manufacturer, installer or end-user) assumes all responsibility for the configuration of the device.

EVCO may not be held liable for any damage caused by failure to follow the instructions.

EVCO reserves the right to make any modifications, without prejudicing the essential functional and safety features.

page 45 of 46

EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124

EVCO S.p.A.

Via Feltre 81, 32036 Sedico Belluno ITALY

Tel. 0437/8422 | Fax 0437/83648

[email protected] | www.evco.it

page 46 of 46
