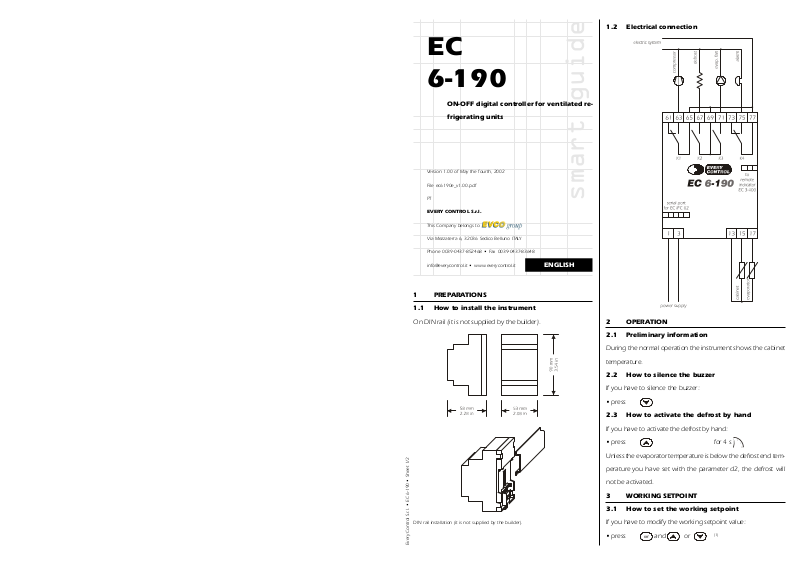

EC
6-190
ON-OFF digital controller for ventilated re-
frigerating units
Version 1.00 of May the fourth, 2002
File ec6190e_v1.00.pdf
PT
EVERY CONTROL S.r.l.
This Company belongs to
Via Mezzaterra 6, 32036 Sedico Belluno ITALY
Phone 0039-0437-852468 • Fax 0039-0437-83648
info@everycontrol.it • www.everycontrol.it
1 PREPARATIONS
1.1 How to install the instrument
On DIN rail (it is not supplied by the builder).
DIN rail installation (it is not supplied by the builder).
Every Control S.r.l. • EC 6-190 • Sheet 1/2
ENGLISH
1.2 Electrical connection
smart guide
2 OPERATION
2.1 Preliminary information
During the normal operation the instrument shows the cabinet
temperature.
2.2 How to silence the buzzer
If you have to silence the buzzer:
• press
2.3 How to activate the defrost by hand
If you have to activate the defrost by hand:
• press
Unless the evaporator temperature is below the defrost end tem-
perature you have set with the parameter d2, the defrost will
not be activated.
3 WORKING SETPOINT
3.1 How to set the working setpoint
If you have to modify the working setpoint value:
• press
and or
for 4 s
(1)
(1) you can set the working setpoint between the limits you have set with the param-
eters r1 and r2.
4 CONFIGURATION PARAMETERS
4.1 How to set the configuration parameters
Configuration parameters are arranged on two levels.
If you have to gain access the first level:
• press
and for 4 s : the instrument
will show
If you have to select a parameter:
• press
or
If you have to modify the value of the parameter:
• press
and or
If you have to gain access the second level:
• gain access the first level
• press
or for selecting
• press and or for setting “ -19 “
• press
and for 4 s : the instrument
will show
If you have to quit the procedure:
• press
and for 4 s or do not op-
erate for about 60 s.
5 SIGNALS
5.1 Signals
LED
Compressor LED
if it is lighted, the compressor will be ON
if it flashes, a compressor delay will be running (look at the parameters
C0, C1, C2 and C4)
Defrost LED
if it is lighted, the defrost output will be activated
if it flashes:
• a defrost delay will be running (look at the parameters C0, C1, C2 and
C4)
• the dripping will be running (look at the parameter d7)
Evaporator fan LED
if it is lighted, the evaporator fan will be ON
if it flashes, the after dripping evaporator fan delay will be running (look
at the parameter F5)
MEANING
6 ALARMS
6.1 Alarms
CODE
corrupted
memory
data
cabinet
probe
alarm
evapora-
tor probe
alarm
REASONS
there is the corruption
of the configuration
data of the memory of
the instrument
• the kind of cabinet
probe you have con-
nected is not right
• the cabinet probe
plays up
• the connection in-
strument-cabinet
probe is wrong
• the cabinet tempera-
ture is outside the
limits allowed by the
working range of
the instrument
• the kind of evapora-
tor probe you have
connected is not
right
• the evaporator
probe plays up
• the connection in-
strument-evaporator
probe is wrong
• the evaporator tem-
perature is outside
the limits allowed by
the working range
of the instrument
REMEDIES
switch off the power
supply of the instru-
ment: unless the alarm
disappears, you will
have to change the
instrument
• look at the param-
eter /0
• test the integrity of
the probe
• test the instrument-
probe connection
• test the temperature
close to the probe (it
has to be between
the limits allowed by
the working range)
• look at the param-
eter /0
• test the integrity of
the probe
• test the instrument-
probe connection
• test the temperature
close to the probe (it
has to be between
the limits allowed by
the working range)
EFFECTS
• you can not gain
access the setting
procedures
• the compressor, de-
frost output and
evaporator fan will
be forced OFF
• the alarm output
will be activated
• the alarm output
will be activated
• the compressor will
be forced to the sta-
tus you have set
with the parameter
C3
• if the defrost is run-
ning, it will immedi-
ately end
• the defrost will
never be activated
• the alarm output
will be activated
• if the parameter F0
has value 0, the
evaporator fan will
work in accordance
with the compres-
sor, except what
you have set with
the parameters d7,
F4 and F5
• the defrost will end
by time (parameter
d3)
F6 0 1 --- 0 kind of evaporator fan stop temperature (it is important if F0 = 0; 0 = absolute evaporator fan
stop temperature, 1 = evaporator fan stop temperature relative to the cabinet
temperature)
(5)
LABEL MIN. MAX. U.M. DEF. SERIAL NETWORK (EVCOBUS)
L0 --- --- --- --- reserved
L1 1 15 --- 1 instrument address
(2) the unit of measure depends on the parameter db
(3) unless the evaporator temperature is below the defrost end temperature you have set with the parameter d2, the defrost will not be activated
(4) the instrument restores the normal operation once the dripping ends and the cabinet temperature gets the working setpoint
(5) the evaporator fan stop temperature is “cabinet temperature - F1” ; you always have to consider the parameter F1 with positive sign.
cabinet
the cabinet tempera-
tem-
ture is outside the limit
perature
you have set with the
lower or
parameter A1 or A2
upper
tempera-
ture alarm
The instrument shows the indications above flashing and the buzzer utters an intermit-
tent beep.
test the temperature
close to the probe
(look at the parameters
A0, A1 and A2)
the alarm output will
be activated
7 TECHNICAL DATA
7.1 Technical data
Box: self-extinguishing grey.
Size: 53 x 90 x 58 mm (2.08 x 3.54 x 2.28 in, 3 DIN modules).
Installation: on DIN rail (it is not supplied by the builder).
Frontal protection: IP 40.
Connections: screw terminal blocks with pitch 5 mm (0.19 in) for cables up to
2.5 mm² (0.38 sq in, power supply, inputs and outputs), 5 poles single line female
connector with pitch 2.5 mm (0.09 in, serial port), 3 poles single line male connector
with pitch 2.5 mm (0.09 in, to remote indicator).
Ambient temperature: from 0 to 55 °C (32 to 131 °F, 10 ... 90% of relative humidity
without condensate).
Power supply: 230 Vac, 50/60 Hz, 2 VA (standard model) or 115 Vac, 50/60 Hz, 2 VA
(by request).
Alarm buzzer: included.
Measure inputs: 2 (cabinet and evaporator probe) for PTC or NTC probes.
Working range: from -50 to 99 °C (-58 to 210 °F) for PTC probe, from -40 to 99 °C
(-40 to 210 °F) for NTC probe.
Setpoint range: from -55 to 99 °C (-55 to 99 °F).
Resolution: 1 °C.
Display: one red LED 3-digit display 13.2 mm (0.51 in) high, compressor, evaporator
fan and defrost output status indicators.
Outputs: 4 relays: one 5 A @ 250 Vac relay for one ½ HP @ 230 Vac compressor
control (change-over contact), one 5 A @ 250 Vac relay for evaporator fan control
(NO contact), one 5 A @ 250 Vac relay for defrost system control (NO contact) and one
5 A @ 250 Vac relay for alarms control (the relay will be deactivated during the normal
operation and it will be activated during an alarm condition, change-over contact).
Kind of defrost: electric and hot gas defrost.
Defrost control: defrost interval, defrost end temperature and defrost maximum length
(automatic and by hand).
Every Control S.r.l. • EC 6-190 • Sheet 2/2
Serial port: TTL with EVCOBUS communication protocol, adapt for serial interface
EC IFC 02 (for the configurer/cloner system CLONE and supervision system RICS).
8 WORKING SETPOINT AND CONFIGURATION PARAMETERS
8.1 Working setpoint
LABEL MIN. MAX. U.M. DEF. WORKING SETPOINT
r1 r2 °C 2 working setpoint
8.2 First level parameters
LABEL MIN. MAX. U.M. DEF. PASSWORD
PA -55 99 --- 0 password
LABEL MIN. MAX. U.M. DEF. REGULATOR
r0 1 15 °C 2 hysteresis (differential, it is relative to the working setpoint)
LABEL MIN. MAX. U.M. DEF. DEFROST
dA --- --- °C --- evaporator temperature showing
8.3 Second level parameters
LABEL MIN. MAX. U.M. DEF. MEASURE INPUTS
/0 1 4 --- 1 kind of probe (1 = PTC, 2 = reserved, 3 = NTC, 4 = reserved)
/1 -55 99 °C 0 cabinet and evaporator probes calibration (you have to set eight points for adjusting one
degree)
/2 0 6 --- 3 probes reading speed (0 = fast, ... , 6 = slow)
/3 --- --- --- --- reserved
LABEL MIN. MAX. U.M. DEF. REGULATOR
r0 1 15 °C 2 hysteresis (differential, it is relative to the working setpoint)
r1 -55 r2 °C -50 minimum value you can assign to the working setpoint
r2 r1 99 °C 50 maximum value you can assign to the working setpoint
LABEL MIN. MAX. U.M. DEF. DEFROST
d0 0 99 h/min
(2)
8 defrost interval
(3)
(0 = the defrost will never automatically be activated)
d1 0 1 --- 0 kind of defrost (0 = electric defrost, 1 = hot gas defrost)
d2 -55 99 °C 2 defrost end temperature (evaporator temperature)
d3 1 99 min/s
d4 0 1 --- 0 defrost activation every time you turn the instrument ON (1 = YES)
d5 0 99 min/s
(2)
30 defrost maximum length
(3)
(2)
0 delay between you turn the instrument ON and the defrost activation (it is important if
d4 = 1)
d6 0 1 --- 1 freeze of the temperature showed by the instrument during the defrost (1 = YES)
d7 0 15 min/s
(2)
2 dripping time
(4)
d8 0 15 h 1 temperature alarm exclusion time since the end of the after dripping evaporator fan delay
(since the end of F5, it is important if db = 0 and A1 and/or A2 ≠ 0)
d9 0 1 --- 0 compressor protections cleaning at the moment of the defrost activation (it is important if
d1 = 1; 1 = YES)
dA --- --- °C --- evaporator temperature showing
db 0 1 --- 0 unit of measure defrost times (0 = d0 in hours, d3, d5, d7 and F5 in minutes,
1 = d0 in minutes, d3, d5, d7 and F5 in seconds)
LABEL MIN. MAX. U.M. DEF. ALARMS
A0 1 15 °C 2 hysteresis (differential, it is relative to A1 and A2, it is important if A1 and/or A2 ≠ 0)
A1 -55 0 °C -10 lower temperature alarm threshold (it is relative to the working setpoint, 0 = it will never be
activated)
A2 0 99 °C 10 upper temperature alarm threshold (it is relative to the working setpoint, 0 = it will never be
activated)
A3 0 15 h 2 temperature alarm exclusion time since you turn the instrument ON (it is important if
A1 and/or A2 ≠ 0)
A4 --- --- --- --- reserved
LABEL MIN. MAX. U.M. DEF. COMPRESSOR PROTECTION
C0 0 15 min 0 minimum delay between you turn the instrument ON and the first compressor activation
C1 0 15 min 5 minimum delay between two compressor activation in succession
C2 0 15 min 3 minimum delay between the compressor gets OFF and the following activation
C3 0 1 --- 0 compressor status during the cabinet probe alarm (0 = it will be forced OFF, 1 = it will be
forced ON)
C4 0 1 --- 0 fixed delay since the compressor gets ON and OFF (1 = YES, for 3 s)
LABEL MIN. MAX. U.M. DEF. EVAPORATOR FAN
F0 0 1 --- 1 evaporator fan action during the normal operation (0 = it will work in accordance with F1
and F2, 1 = it will be forced ON); look at F3 as well
F1 -55 99 °C -1 evaporator fan stop temperature (evaporator temperature, it is important if F0 = 0); look at
F6 as well
F2 2 15 °C 2 hysteresis (differential, it is relative to F1, it is important if F0 = 0)
F3 0 1 --- 1 evaporator fan OFF when the compressor is OFF (1 = YES)
F4 0 1 --- 1 evaporator fan OFF during the defrost (1 = YES)
F5 0 15 min/s
(2)
15 after dripping evaporator fan delay
