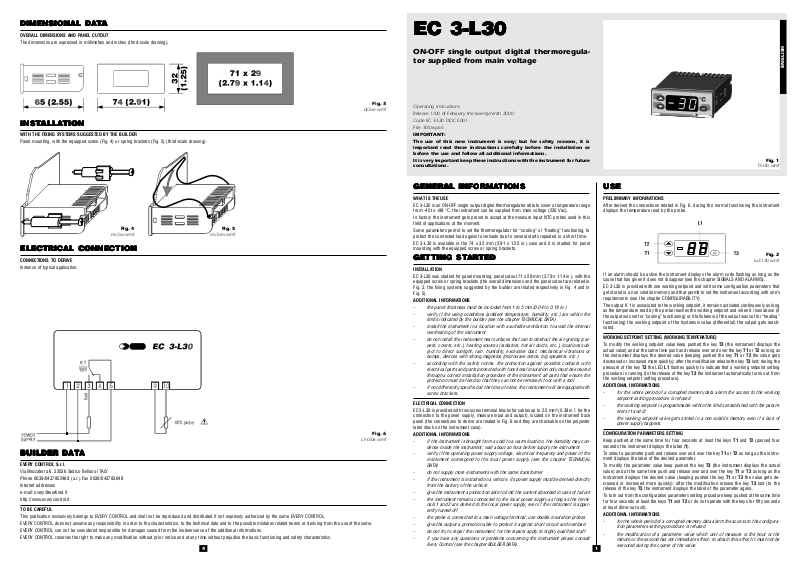

OVERALL DIMENSIONS AND PANEL CUTOUT
The dimensions are expressed in millimetres and inches (third-scale drawing).
TT
AA
T
A
TT
AA
EC 3-L30EC 3-L30
EC 3-L30
EC 3-L30EC 3-L30
ON-OFF single output digital thermoregulator supplied from main voltage
ENGLISH
ds3ve.wmf
INSTINST
ALLAALLA
ALLA
ALLAALLA
TIONTION
TION
TIONTION
TT
T
TT
Fig. 4
ms3vv.wmf
AA
A
AA
ms3vm.wmf
4
Fig. 5
c3-l30e.wmf
INST
INSTINST
WITH THE FIXING SYSTEMS SUGGESTED BY THE BUILDER
Panel mounting, with the equipped screw (Fig. 4) or spring brackets (Fig. 5) (third-scale drawing).
ELECTRICAL CONNECTIONELECTRICAL CONNECTION
ELECTRICAL CONNECTION
ELECTRICAL CONNECTIONELECTRICAL CONNECTION
CONNECTIONS TO DERIVE
Instance of typical application.
BUILDER DABUILDER DA
BUILDER DA
BUILDER DABUILDER DA
EVERY CONTROL S.r.l.
Via Mezzaterra 6, 32036 Sedico Belluno ITALY
Phone 0039/0437852468 (a.r.) Fax 0039/043783648
Internet addresses
e-mail: every@worknet.it
http://www.everycontrol.it
TO BE CAREFUL
This publication exclusively belongs to EVERY CONTROL and shall not be reproduced and distributed if not expressly authorized by the same EVERY CONTROL.
EVERY CONTROL does not assume any responsibility in order to the characteristics, to the technical data and to the possible mistakes related herein or deriving from the use of the same.
EVERY CONTROL can not be considered responsible for damages caused from the inobservance of the additional informations.
EVERY CONTROL reserves the right to make any modification without prior notice and at any time without prejudice the basic functioning and safety characteristics.
Fig. 3
Fig. 6
Operating instructions
Release 1/00 of February the twenty-ninth 2000
Code EC 3-L30 DOC E001
File 3l30e.p65
IMPORTANT:
The use of this new instrument is easy; but for safety reasons, it is
important read these instructions carefully before the installation or
before the use and follow all additional informations.
It is very important keep these instructions with the instrument for future
consultations.
GENERAL INFORMAGENERAL INFORMA
GENERAL INFORMA
GENERAL INFORMAGENERAL INFORMA
WHAT IS THE USE
EC 3-L30 is an ON-OFF single output digital thermoregulator able to cover a temperature range
from -40 to +99 °C; the instrument can be supplied from main voltage (230 Vac).
In factory the instrument gets preset to accept at the measure input NTC probes used in this
field of applications at the moment.
Some parameters permit to set the thermoregulator for “cooling” or “heating” functioning, to
protect the connected load against overloads due to several starts repeated in a short time.
EC 3-L30 is available in the 74 x 32 mm (2.91 x 1.25 in.) case and it is studied for panel
mounting with the equipped screw or spring brackets.
GETTING STGETTING ST
GETTING ST
GETTING STGETTING ST
INSTALLATION
EC 3-L30 was studied for panel mounting, panel cutout 71 x 29 mm (2.79 x 1.14 in.), with the
equipped screw or spring brackets (the overall dimensions and the panel cutout are related in
Fig. 3, the fixing systems suggested by the builder are related respectively in Fig. 4 and in
Fig. 5).
ADDITIONAL INFORMATIONS
- the panel thickness must be included from 1 to 5 mm (0.04 to 0.19 in.)
- verify if the using conditions (ambient temperature, humidity, etc.) are within the
limits indicated by the builder (see the chapter TECHNICAL DATA)
- install the instrument in a location with a suitable ventilation, to avoid the internal
overheating of the instrument
- do not install the instrument near surfaces that can to obstruct the air-grating (carpets, covers, etc.), heating sources (radiators, hot air ducts, etc.), locations subject to direct sunlight, rain, humidity, excessive dust, mechanical vibrations or
bumps, devices with strong magnetos (microwave ovens, big speakers, etc.)
- according with the safety norms, the protection against possible contacts with
electrical parts and parts protected with functional insulation only must be ensured
through a correct installation procedure of the instrument; all parts that ensure the
protection must be fixed so that they can not be removed if not with a tool
- if not differently specified at the time of order, the instrument will be equipped with
screw brackets.
ELECTRICAL CONNECTION
EC 3-L30 is provided with two screw terminal blocks for cables up to 2.5 mm² (0.38 in.², for the
connection to the power supply, measure input and output), located on the instrument back
panel (the connections to derive are related in Fig. 6 and they are checkable on the polyester
label stuck on the instrument case).
ADDITIONAL INFORMATIONS
- if the instrument is brought from a cold to a warm location, the humidity may condense inside the instrument; wait about an hour before supply the instrument
- verify if the operating power supply voltage, electrical frequency and power of the
instrument correspond to the local power supply (see the chapter TECHNICAL
DATA)
- do not supply more instruments with the same transformer
- if the instrument is installed on a vehicle, its power supply must be derived directly
from the battery of the vehicle
- give the instrument a protection able to limit the current absorbed in case of failure
- the instrument remains connected to the local power supply as long as the terminals 1 and 2 are derived to the local power supply, even if the instrument is apparently turned off
- the probe is connected to a main voltage terminal; use double insulation probes
- give the output a protection able to protect it against short circuit and overload
- do not try to repair the instrument; for the repairs apply to highly qualified staff
- if you have any questions or problems concerning the instrument please consult
Every Control (see the chapter BUILDER DATA).
ARAR
AR
ARAR
TEDTED
TED
TEDTED
TIONSTIONS
TIONS
TIONSTIONS
USEUSE
USE
USEUSE
PRELIMINARY INFORMATIONS
After derived the connections related in Fig. 6, during the normal functioning the instrument
displays the temperature read by the probe.
iu3130.wmf
If an alarm should be active the instrument displays the alarm code flashing as long as the
cause that has given it does not disappear (see the chapter SIGNALS AND ALARMS).
EC 3-L30 is provided with one working setpoint and with some configuration parameters that
get stored in a non volatile memory and that permit to set the instrument according with one’s
requirements (see the chapter CONFIGURABILITY).
The output K 1 is associated to the working setpoint, it remains activated continuously as long
as the temperature read by the probe reaches the working setpoint and when it rises above (if
the output was set for “cooling” functioning) or it falls below (if the output was set for “heating”
functioning) the working setpoint of the hysteresis value (differential) the output gets reactivated.
WORKING SETPOINT SETTING (WORKING TEMPERATURE)
To modify the working setpoint value keep pushed the key T3 (the instrument displays the
actual value) and at the same time push and release over and over the key T1 or T2 as long as
the instrument displays the desired value (keeping pushed the key T1 or T2 the value gets
decreased or increased more quickly): after the modification release the key T3 last; during the
pressure of the key T3 the LED L1 flashes quickly to indicate that a working setpoint setting
procedure is running (to the release of the key T3 the instrument automatically turns out from
the working setpoint setting procedure).
ADDITIONAL INFORMATIONS
- for the whole period of a corrupted memory data alarm the access to the working
setpoint setting procedure is refused
- the working setpoint is programmable within the limits established with the parameters r1 and r2
- the working setpoint value gets stored in a non volatile memory even if a lack of
power supply happens.
CONFIGURATION PARAMETERS SETTING
Keep pushed at the same time for four seconds at least the keys T1 and T2 (passed four
seconds the instrument displays the label /1).
To select a parameter push and release over and over the key T1 or T2 as long as the instrument displays the label of the desired parameter.
To modify the parameter value keep pushed the key T3 (the instrument displays the actual
value) and at the same time push and release over and over the key T1 or T2 as long as the
instrument displays the desired value (keeping pushed the key T1 or T2 the value gets decreased or increased more quickly); after the modification release the key T3 last (to the
release of the key T3 the instrument displays the label of the parameter again).
To turn out from the configuration parameters setting procedure keep pushed at the same time
for four seconds at least the keys T1 and T2 or do not operate with the keys for fifty seconds
at least (time-out exit).
ADDITIONAL INFORMATIONS
- for the whole period of a corrupted memory data alarm the access to the configuration parameters setting procedure is refused
- the modification of a parameter value which unit of measure is the hour or the
minute or the second has not immediate effect; to obtain this effect it must not be
executed during the course of the value
1
Fig. 1
f3-l30.wmf
Fig. 2
- the configuration parameters values get stored in a non volatile memory even if a
lack of power supply happens.
CONFIGURABILITYCONFIGURABILITY
CONFIGURABILITY
CONFIGURABILITYCONFIGURABILITY
WORKING SETPOINT
LABEL MIN. MAX. U.M. ST. WORKING SETPOINT
r1 r2 °C 0 working setpoint
It establishes the temperature associated to the output K 1.
CONFIGURATION PARAMETERS
LABEL MIN. MAX. U.M. ST. MEASURE INPUT
/1 -15 +15 °C 0 calibration
It establishes a threshold to add algebraically to the signal coming from the measure input (for
instance to correct the signal).
LABEL MIN. MAX. U.M. ST. ON-OFF TEMPERATURE REGULATOR ASSOCIATED TO THE
r0 +1 +15 °C +2 hysteresis (differential)
It establishes the hysteresis (differential) relative to the working setpoint.
r1 -40 +99 °C -40 minimum working setpoint programmable
It establishes the minimum working setpoint programmable; the instrument automatically verifies if the value established with the parameter r1 is below the maximum working setpoint
programmable established with the parameter r2.
r2 -40 +99 °C +99 maximum working setpoint programmable
It establishes the maximum working setpoint programmable; the instrument automatically
verifies if the value established with the parameter r2 is above the minimum working setpoint
programmable established with the parameter r1.
r3 0 1 --- 0 “cooling” or “heating” functioning
It establishes the output functioning, as indicated:
0 = “cooling” functioning
1 = “heating” functioning.
LABEL MIN. MAX. U.M. ST. OUTPUT K 1 PROTECTION
C0 0 15 min. 0 disabling time to the output activation from the instru-
It establishes the time that disables the output activation from the moment of the instrument
start.
SIGNALS AND ALARMSSIGNALS AND ALARMS
SIGNALS AND ALARMS
SIGNALS AND ALARMSSIGNALS AND ALARMS
SIGNALS
If the LED L1 is turned ON it means that the output K 1 is activated.
ALARMS
If the instrument displays the indication “E2” flashing (corrupted memory data alarm) it means
that there is a corruption of the configuration data in the memory (turn OFF and turn ON again
the instrument: if to the turning ON again the alarm does not disappear the instrument must be
replaced); during this alarm the access to the working setpoint setting and the configuration
parameters setting procedures is refused and the output K 1 gets forced to the status OFF.
If the instrument displays the indication “E0” flashing (probe failure alarm) it means that: the
kind of connected probe is not proper (verify the kind of connected probe), the probe is faulty
(verify the probe integrity), there is a mistake in the instrument-probe connection (verify the
instrument-probe connection integrity), the temperature read by the probe is outside the limits
permitted by the probe in use (verify that the temperature near the probe be inside the limits
permitted by the probe); during this alarm the output K 1 gets forced to the status OFF.
ADDITIONAL INFORMATIONS
- the alarm codes are related in order of precedence.
TECHNICAL DATECHNICAL DA
TECHNICAL DA
TECHNICAL DATECHNICAL DA
TECHNICAL DATA
Case: plastic black (PC-ABS), self-extinguishing.
Size: 74 x 32 x 65 mm (2.91 x 1.25 x 2.55 in.).
Installation: panel mounting, panel cutout 71 x 29 mm (2.79 x 1.14 in.),
Type of protection: IP 54.
Connections: screw terminal blocks with pitch 5 mm (0.19 in., power
Ambient temperature: from 0 to +60 °C (+32 to +140 °F, 10 ... 90 % of not con-
Power supply: 230 Vac, 50/60 Hz.
Measure inputs: 1 for NTC probes.
Working range: from -40 to +99 °C.
Setting range: from -40 to +99 °C.
Resolution: 1 °C.
Display: 2-digit display 12.5 mm (0.49 in.) high red LED display
Outputs: one change-over contact 8 (3) A @ 250 Vac relay for regu-
HOW TO ORDERHOW TO ORDER
HOW TO ORDER
HOW TO ORDERHOW TO ORDER
CODING SYSTEM
Instrument name: EC 3-L30.
Desired measure input: N (for NTC probes).
Desired power supply: 220 (230 Vac).
WORKING SETPOINT AND TO THE OUTPUT K 1
ment start
TT
AA
T
A
TT
AA
with the equipped screw or spring brackets.
supply, measure input and output) for cables up to 2.5 mm²
(0.38 in.²).
densing relative humidity).
with automatic minus sign, output status indicator.
lation load management.
