EUCHNER CES-AZ-ALS-xxx User Manual

Operating instructions

Non-Contact Safety System

CES-AZ-ALS-... (Unicode)

With n-Switching Monitoring Outputs

More than safety.

Operating Instructions Safety System CES-AZ-ALS-...

Contents

Correct use 3

Possible combinations for CES components 4

Exclusion of liability and warranty 4

General safety instructions 5

Function 6

Block diagrams CES-AZ-ALS-... 7

Mounting 8

Electrical connection 10

Safety in case of faults 10
Fuse protection of the power supply and the safety contacts 10
Connection example CES-AZ-ALS-01B 11
Connection example CES-AZ-ALS-02B 12
Connection example CES-AZ-ALS-04B 13

Setup 14

LED indicators 14
Teach-in operation 14
Functional check 16

System status table 18

Technical data 19

Evaluation unit CES-AZ-ALS-01B 19
Evaluation unit CES-AZ-ALS-02B 21
Evaluation unit CES-AZ-ALS-04B 23
Read head CES-A-LNN-... 25
Read head CES-A-LSP-... 27
Read head CES-A-LNA-... 29
Read head CES-A-LNA-SC 31
Read head CES-A-LCA-... 33
Read head CES-A-LQA-SC 35
Read head CES-A-LMN-SC 37
Actuator CES-A-BBN 39
Actuator CES-A-BSP 40
Actuator CES-A-BDN-06 41
Actuator CES-A-BBA/CES-A-BCA 42
Actuator CES-A-BQA 43
Actuator CES-A-BDA 44
Actuator CES-A-BMB 45

Ordering information and accessories 46

Inspection and service 48

Service 48

Declaration of conformity 49

2

Operating Instructions Safety System CES-AZ-ALS-...

Correct use

The Coded Electronic Ssafety switch series CES are a type series of technical
safety devices for monitoring moveable separating safety guards.

In combination with a separating safety guard and the machine control, this safety
component prevents dangerous machine movements from occurring while the
safety guard is open. A stop command is triggered if the safety guard is opened
during the dangerous machine function.

Before safety switches are used, a risk assessment must be performed on the
machine in accordance with:

Ì EN ISO 13849-1, Safety of machinery. Safety related parts of control systems.

General principles for design

Ì EN ISO 14121-1, Safety of machinery. Risk assessment. Principles
Ì IEC 62061, Safety of machinery. Functional safety of safety-related electrical,

electronic and programmable electronic control systems.

Correct use includes compliance with the relevant requirements for installation
and operation, in particular

Important:

Ì EN ISO 13849-1, Safety of machinery. Safety related parts of control systems.

General principles for design

Ì EN 1088, Safety of machinery. Interlocking devices associated with guards.

Principles for design and selection

Ì EN 60204-1, Safety of machinery. Electrical equipment of machines. General

requirements

Ì EN 60947-5-3 Specification for low-voltage switchgear and controlgear. Con-

trol circuit devices and switching elements. Requirements for proximity devices
with defined behavior under fault conditions (PDF)

The following components can be connected to the evaluation unit CES-AZ--ALS... :

Ì CES read heads
Ì CEM read heads
Ì CET read heads
Ì CKS Electronic-Key adapter

For further information, refer to the operating instructions of the corresponding
component and to the following table Possible combinations for CES components.

Ì The devices permit a safety-related stop function, initiated by a safety guard

according to Table 8 - DIN EN ISO 13849-1: 2008-12.

Ì The safety-related function of the PDF is the opening of the output

contacts (13/14, 23/24) when the actuator is absent.

Ì The user is responsible for the integration of the device into a safe overall

system. For this purpose, the overall system must be validated, e.g. in ac­cordance with EN ISO 13849-2.

Ì Correct use requires observing the permissible operating parameters (see

Technical data).

Ì If a product data sheet is included with the product, the information on the

data sheet applies in case of discrepancies with the operating instructions.

Ì It is only allowed to use components that are permissible in accordance with

the table below.

3

Operating Instructions Safety System CES-AZ-ALS-...

Possible combinations for CES components

Actuator

Evaluation unit Read head

CES-A-BSP-104970

104970

CES-A-BBN-106600

106600

CES-A-BDN-06-104730

104730

CES-A-BBA

071840

CES-A-BCA

088786

CES-AZ-ALS-01B

On request

CES-AZ-ALS-02B

On request

CES-AZ-ALS-04B

113090

CES-A-LSP-...

All items

CES-A-LNN-...

All items

CES-A-LCA-...

All items

CES-A-LNA-...

All items

CES-A-LQA-SC

095650

CES-A-LMN-SC

077790

CEM-A-LE05K-S2

094800

CEM-A-LE05R-S2

095792

CEM-A-LH10K-S3

095170

CEM-A-LH10R-S3

095793

CET1-AX-LRA-...

095735

CET1-AX-LDA-...

100399

CKS-A-L1B-...

113130

20

15 19

15 15 16

15 15 16

15 15 23

CES-A-BQA

098108

CES-A-BDA

084720

5

CES-A-BMB

077791

CEM-A-BE05

094805

CEM-A-BH10

095175

CET-A-BWK-50X

096327

CKS-A-BK1...

CKS key

●

●

15 Combination possible, typ. switch-on distance 15 mm

Key to symbols

Combination possible

Combination possible, guard locking for process protection

Combination possible, guard locking for personal protection

Combination not permissible

Exclusion of liability and warranty

In case of failure to comply with the conditions for correct use stated above, or
if the safety instructions are not followed, or if any servicing is not performed as
required, liability will be excluded and the warranty void.

4

Operating Instructions Safety System CES-AZ-ALS-...

General safety instructions

Safety switches fulfill personal protection functions. Incorrect installation or tamper­ing can lead to severe injuries to personnel.

The number of teach-in and switching operations is saved in the internal memory
in the evaluation unit. If necessary, this memory can be read by the manufacturer.

Check the safe function of the safety guard particularly

Ì after any setup work
Ì after the replacement of a CES component
Ì after an extended period without use
Ì after every fault

Independent of these checks, the safe function of the safety guard should be
checked at suitable intervals as part of the maintenance schedule.

Warning!

Danger of fatal injury in the event of incorrect connection or incorrect use.

Ì Safety switches must not be bypassed (bridging of contacts), turned away,

removed or otherwise rendered ineffective.
On this topic pay attention in particular to the measures for reducing the pos­sibility of bypassing from EN 1088:1995+A2:2008, Section 5.7.

Important:

The device is only allowed to be installed and placed in operation by authorized
personnel

Ì who are familiar with the correct handling of safety components
Ì who are familiar with the applicable EMC regulations
Ì who are familiar with the applicable regulations on health and safety and ac-

cident prevention

Ì who have read and understood the operating instructions.

Prior to use, read the operating instructions and keep these in a safe place.
Ensure that the operating instructions are always available during mounting,
setup and servicing work. EUCHNER cannot provide any warranty in relation to
the readability of the CD for the storage period required. For this reason you
should archive a printed copy of the operating instructions. You can download
the operating instructions from www.EUCHNER.de.

5

Operating Instructions Safety System CES-AZ-ALS-...

Function

The safety system CES-AZ-ALS... meets the following safety requirements:

Ì Category 4, PLe according to EN ISO 13849-1
Ì Proximity device with self-monitoring type PDF-M according to EN 60947-5-3
Ì Redundant design of the circuit in the evaluation unit with self-monitoring. As a

result, the safety system is still effective even if a component fails.

Ì When the safety guard is opened and closed, it is checked whether the safety

system relays open and close correctly.

The non-contact safetysystem CES consists of three components:

Ì Coded actuator
Ì Read head
Ì Evaluation unit

The number of read heads that can be connected depends on the evaluation unit:

CES-AZ-ALS-01B

CES-AZ-ALS-02B

CES-AZ-ALS-04B ¨ 4 read heads

It is also possible to connect a start button (monitoring of the falling edge) and a
feedback loop for monitoring external relays and contactors.

The individual configuration is defined by a setup procedure.

Each delivered actuator possesses a unique electronic coding and so is a unique
element in the system used. The code in an actuator cannot be reprogrammed.

The read heads are fastened to the fixed part of the safety guard and are each
connected to the evaluation unit via a two-core screened cable.

The actuator fastened to the movable part of the safety guard is moved towards the
read head by closing the door. When the switch-on distance is reached, power is
supplied to the actuator by the read head by induction and data can be transferred.

The bit pattern read is compared with the code saved in the evaluation unit. If the
data match, the door monitoring output O1 orO1...O2 or O1...O4 (semiconductor
outputs, n-switching) on the related read head are set LOW . If all data for all read
heads activated match, the safety outputs (relay outputs) are then enabled. The
OUT LED illuminates.

Optionally, a feedback loop can be connected to the evaluation unit. The evaluation
unit can then only be started with the feedback loop closed. A welded contactor
contact in the release path will thus be detected the next time the machine is started.

¨ 1 read head

¨ 2 read heads

Due to the combination of dynamic polling of the actuators and the redundant,
diverse design of the safety electronics with two safety outputs, the evaluation
unit will enter the safe state with every detectable fault.

When a safety guard is opened, the safety outputs switch off the safety circuit and
the OUT LED goes out. The state of the safety outputs is monitored internally by
positively driven NC contacts (relay output).

Independent of the switching state of the safety circuit, the position of all safety
doors can be polled via the outputs O1 or O1...O2 or O1...O4.

If an internal fault occurs in the evaluation unit, the safety circuit is switched off,
the diagnostic output (DIA) is set LOW and the DIA LED illuminates red.

The device can be reset using the Reset button.

6

Operating Instructions Safety System CES-AZ-ALS-...

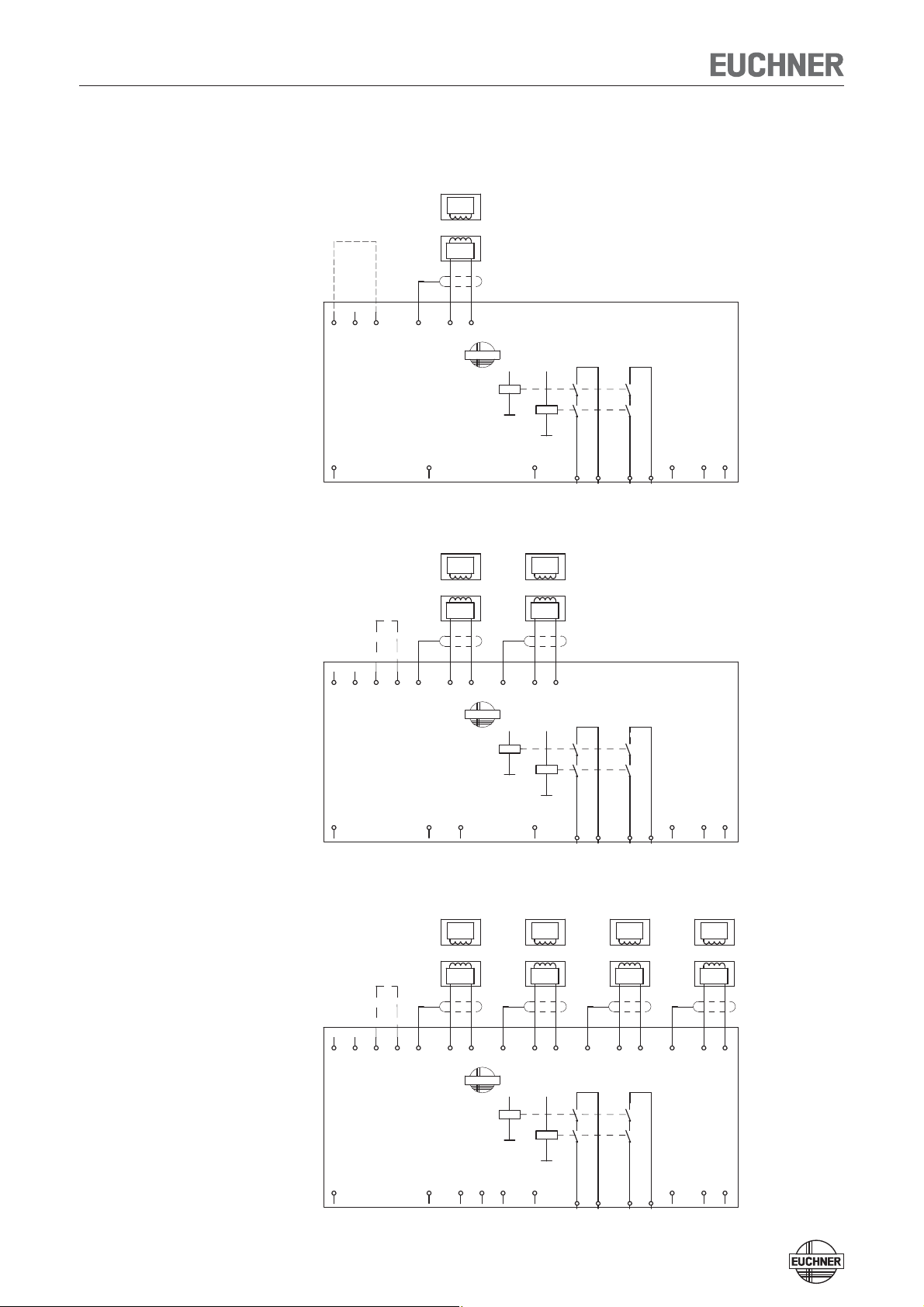

Block diagrams CES-AZ-ALS-...

CES-AZ-ALS-01B

UB, 0V Power supply
J, 0V Jumper for teach-in operation
H11/H12 Connection read head 1
SH1 Screen read head 1
TST Test input (see Self-test with test

O1 Semiconductor monitoring output
DIA Diagnostics output
13, 14 Connection for relay contact A,

23, 24 Connection for relay contact B,

Y1, Y2 Feedback loop
S Connection for start button

input TST page 16)

safety relay enable

safety relay enable

(monitoring of the falling edge)

Activation of the

teach-in operation

with jumper on

J, 0V.

0V

UB

J

CES-AZ-ALS-01B

TST

SH1

O1

Trans­ponder

Read­head

H11

1

H12

EUCHNER

+

K2

K1

DIA

+

23 24

13 14

Y1 Y2 S

UB, 0V Power supply
J1, J2 Jumper for teach-in operation
H11/H12, H21/H22 Connection read heads 1 and 2
SH1, SH2 Screen read heads 1 and 2
TST Test input (see Self-test with test

O1, O2 Semiconductor monitoring

DIA Diagnostics output
13, 14 Connection for relay contact A,

23, 24 Connection for relay contact B,

Y1, Y2 Feedback loop
S Connection start button

input TST page 16)

outputs

safety relay enable

safety relay enable

(monitoring of the falling edge)

CES-AZ-ALS-02B

Activation of the

teach-in operation

with jumper on

J1, J2.

0V

UB

J1 J2 SH1

H11

CES-AZ-ALS-02B

TST

O1

CES-AZ-ALS-04B

Activation of the

teach-in operation

with jumper on

J1, J2.

Trans­ponder

Read­head

H12

O2

Trans­ponder

Read­head

1

EUCHNER

1

K2

SH2

+

K1

Trans­ponder

Read-

H21

DIA

Trans­ponder

Read-

head

head

2

H22

+

23 24 13 14

2

Trans­ponder

Read­head

3

Y1 Y2 S

Trans­ponder

Read­head

4

UB, 0V Power supply
J1, J2 Jumper for teach-in operation
H11/H12...H41/H42 Connection for read heads 1...4
SH1...SH4 Screen read heads 1...4
TST Test input (see Self-test with test

O1...O4 Semiconductor monitoring

DIA Diagnostics output
13, 14 Connection for relay contact A,

23, 24 Connection relay contact B,

Y1, Y2 Feedback loop
S Connection for start button

input TST page 16)

outputs

safety relay enable

enable safetyrelay

(Monitoring of the falling edge)

0V

UB

CES-AZ-ALS-04B
113090

TST

J1 J2

SH1

O1

H11

O2

H12

7

EUCHNER

K2

O3

SH2

O4

H21

+

K1

DIA

H2223SH3

+

24

H31

13

H3214SH4

Y1

H41

Y2

H42

S

Operating Instructions Safety System CES-AZ-ALS-...

Mounting

Caution!

Safety switches must not be bypassed (bridging of contacts), turned away,
removed or otherwise rendered ineffective.

Ì On this topic pay attention in particular to the measures for reducing the pos-

sibility of bypassing according to EN 1088:1995.A2:2008, Sec. 5.7.

Ì The evaluation unit must be mounted in a control cabinet with a minimum

degree of protection of IP 54. A snap-in element on the rear of the device is
used for fastening to standard rails.

Ì If several evaluation units are mounted side by side in a control cabinet with-

out air circulation (e.g. fan), a minimum distance of 10 mm must be main­tained between the evaluation units.
This distance enables the heat from the evaluation unit to dissipate.

Caution!

Risk of damage to equipment as a result of incorrect installation. Read heads
or actuators must not be used as a mechanical end stop.

Ì Fit an additional end stop for the movable part of the safety guard.

Important:

Ì From the assured switch-off distance S

the safety outputs are safely shut

ar

down.

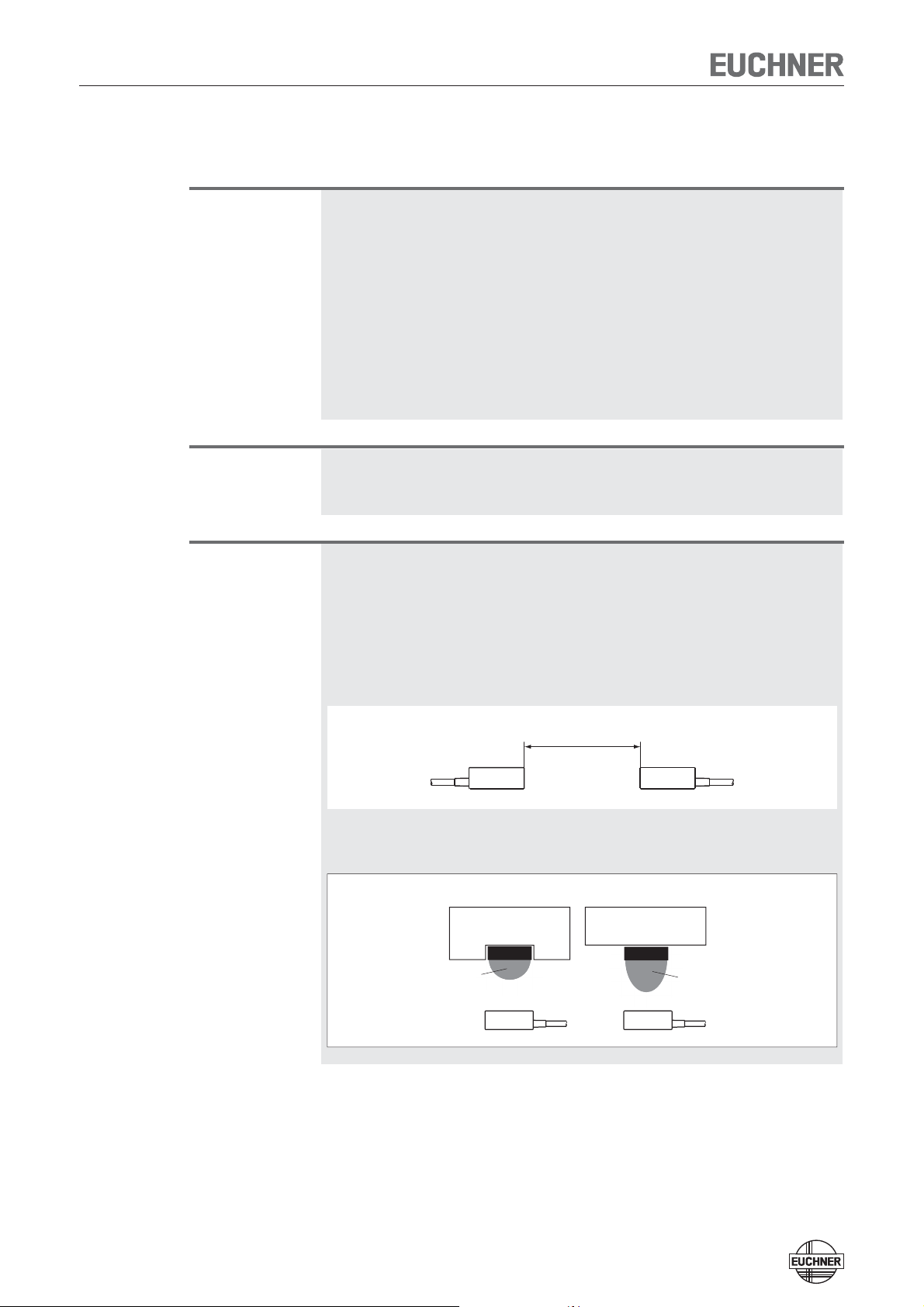

Ì When mounting several read heads, observe the stipulated minimum distance

to avoid mutual interference.

- For CES-A-LNA/-LCA s

- For CES-A-LMN s

- For CES-A-LQA s

= 50 mm

min.

= 20 mm

min.

min.

= 80 mm

s

min

Ì If the actuator is installed fl ush, the switching distance changes as a function

of the installation depth and the safety guard material.

Flush mounting Surface mounting

Operating

Actuator

distance

Actuator

Operating

distance

8

Operating Instructions Safety System CES-AZ-ALS-...

Note the following points:

Ì Actuator and read head must be easily accessible for inspection and replace-

ment.

Ì The switching operation must only be triggered by the specific actuator desig-

nated for this purpose.

Ì Actuator and read head must be fitted so that

Ì the front faces are at the minimum switch-on distance 0.8 x S

when the safety guard is closed (see section Operating distances). To avoid
entering the area of possible side lobes, a minimum distance is to be main­tained in case of a side approach direction. See section Typical operating
distance for the related actuator.

Ì when the safety guard is open up to the distance S

tance), a hazard is excluded.

Ì the actuator is positively mounted on the safety guard, e.g. by using the

safety screws included.

Ì they cannot be removed or tampered with using simple means.

Ì Pay attention to the maximum tightening torque for the read head or safety

switch and actuator mountings of 1 Nm. For read heads/actuators made of
PE-HD, the maximum tightening torque is only 0.5 Nm.

or closer

ao

(assured switch-off dis-

ar

9

Operating Instructions Safety System CES-AZ-ALS-...

Electrical connection

Warning!

In case of an error, loss of the safety function through incorrect connection.

Ì Door monitoring outputs must not be used as safety outputs.
Ì Lay the connection cables with protection to prevent the risk of short cir-

cuits.

Caution!

Risk of damage to equipment or malfunctions as a result of incorrect connection.

Ì All the electrical connections must either be isolated from the mains supply

by a safety transformer according IEC EN 61558-2-6 with limited output volt­age in the event of a fault, or by other equivalent isolation measures.

Ì All electrical outputs must have an adequate protective circuit for inductive

loads. The outputs must be protected with a free-wheeling diode for this pur­pose.

Ì Use cable material made of copper with a temperature resistance of min.

75 °C.

Ì The tightening torque for the screws on the connection terminals must be

0.6 ... 0.8 Nm.

Ì The connection cable for the read heads must only be extended using

EUCHNER plug connectors and adequate consideration must be given to
EMC. Intermediate terminals must not be used.

Ì The screen on the connection cable for the read head must be connected

to the appropriate terminal SH1 ... 4 on the evaluation unit. The portion of
cable from which insulation is stripped should be kept as short as possible

(max. 3 cm).

Safety in case of faults

Ì The operating voltage U
Ì The connections for the read heads are not short circuit-proof.
Ì A short circuit between 13/14 and 23/24 can be detected only by means of

external pulsing.

Ì A short circuit in the cable can be excluded by laying the cable with protection.

is reverse polarity protected.

B

Fuse protection of the power supply and the safety
contacts

Ì Provide external contact fuses (6 A gG fuse or 6 A circuit breaker, characteris-

tic B or C) for relay outputs.

Ì The power supply is to be protected with a max. 8A fuse before terminal U

.

B

10

Operating Instructions Safety System CES-AZ-ALS-...

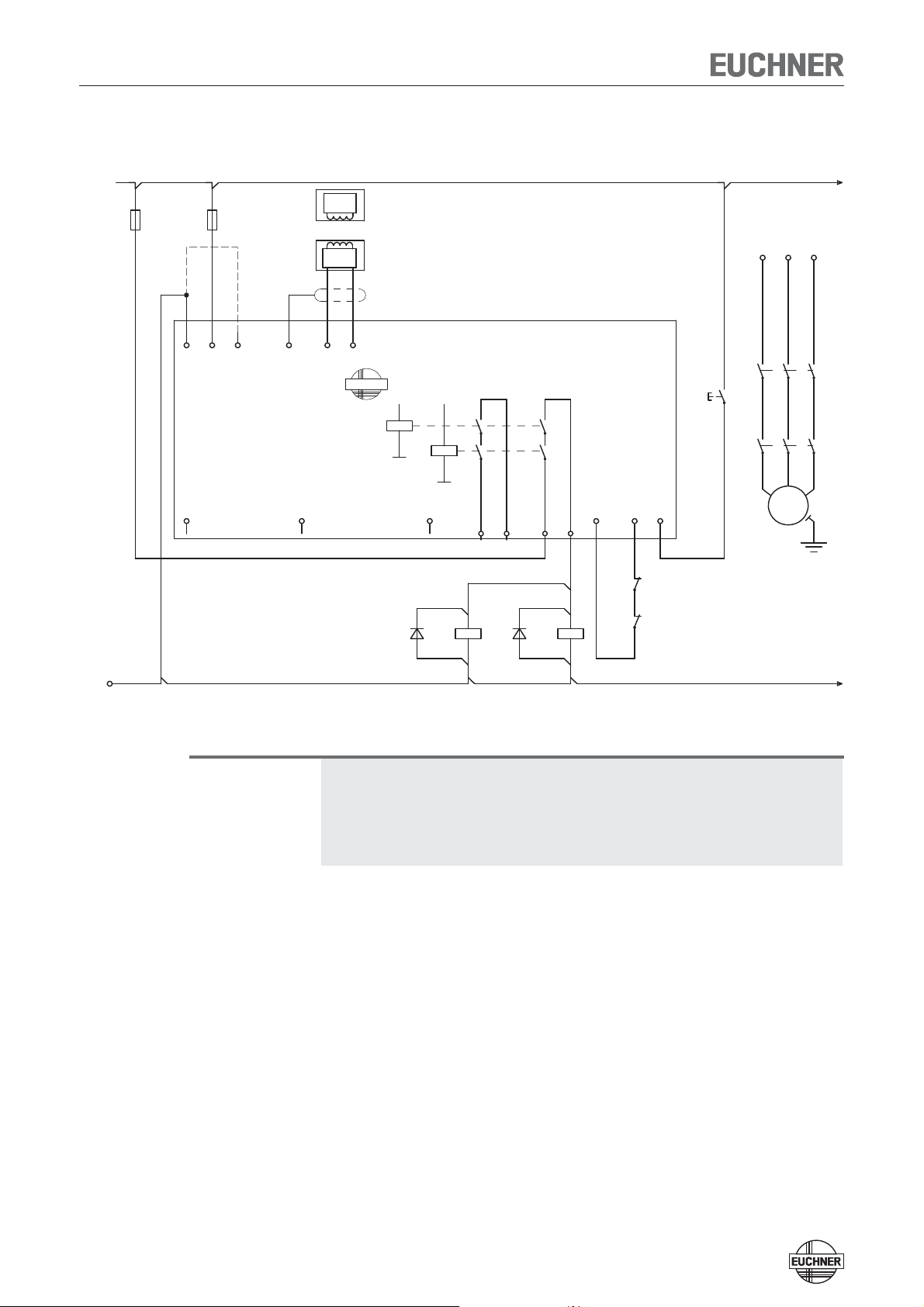

Connection example CES-AZ-ALS-01B

24 VDC

Trans-

ponder

-F1

-F2

0V

UB

CES-AZ-ALS-01B

TST

J SH1

O1

Read­head

H11

1

H12

EUCHNER

K2

+

K1

DIA

+

23 24

13 14

Y1

Y2

L2

L1

-K3

L3

13

23

33

14

24

34

Start

13

23

-K4

14

S

-M1

33

24

34

M

~

3

GND

Important:

21

-K4

22
21

-K3

22

-V1

-K3

A1

-V2

A2

-K4

A1

A2

feedback loop

To achieve category 4 according to EN ISO 13849-1 it is necessary to monitor
the downstream contactors (here contacts on -K3 and -K4 in the feedback loop).
This example shows only an excerpt that is relevant for connection of the CES
system. The example illustrated here does not show complete system planning.
The user is responsible for safe integration in the overall system.

If only one enable path is to be used for control (e. g. of downstream contactors),
failures involving a short circuit between the contacts on the enable path and, for
example, the power supply must be excluded.

With reference to EN ISO 13849-2 Table D.5, this exclusion can be provided if

Ì the cables are inside an electrical installation space and
Ì the enclosure meets the related requirements (see EN 60204-1 or IEC 60204-1).

This example shows only an excerpt that is relevant for connection of the CES
system. The example illustrated here does not show complete system planning.
The user is responsible for safe integration in the overall system.

11

Operating Instructions Safety System CES-AZ-ALS-...

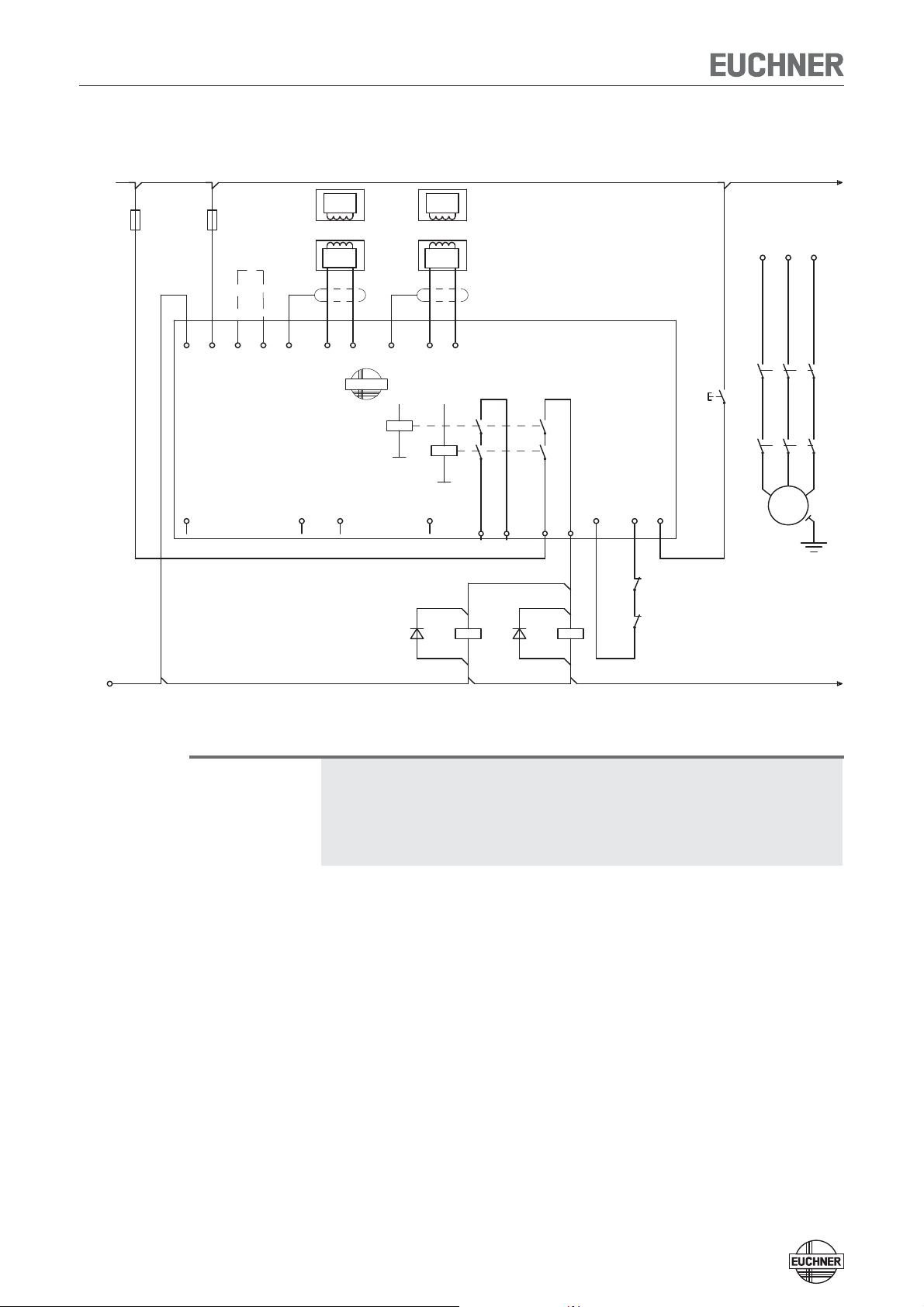

Connection example CES-AZ-ALS-02B

24 VDC

-F1

-F2

0V

UB

CES-AZ-ALS-02B

TST

J1 J2 SH1

O1

Trans-

ponder

Read­head

H11

O2

1

H12

EUCHNER

SH2

K2

+

K1

Trans­ponder

Read­head

H21

DIA

2

H22

+

23 24

13 14

Y1

Y2

L2

L1

-K3

L3

13

23

33

14

24

34

Start

13

23

-K4

14

S

-M1

33

24

34

M

~

3

GND

Important:

21

-K4

22
21

-K3

22

-V1

-K3

A1

-V2

A2

-K4

A1

A2

feedback loop

To achieve category 4 according to EN ISO 13849-1, it is necessary to monitor
the downstream contactor (here contacts on -K3 and -K4 in the feedback loop).
This example shows only an excerpt that is relevant for connection of the CES
system. The example illustrated here does not show complete system planning.
The user is responsible for safe integration in the overall system.

If only one enable path is to be used for control (e. g. of downstream contactors),
failures involving a short circuit between the contacts on the enable path and, for
example, the power supply must be excluded.

With reference to EN ISO 13849-2 Table D.5, this exclusion can be provided if

Ì the cables are inside an electrical installation space and
Ì the enclosure meets the related requirements (see EN 60204-1 or IEC 60204-1).

This example shows only an excerpt that is relevant for connection of the CES
system. The example illustrated here does not show complete system planning.
The user is responsible for safe integration in the overall system.

12

Operating Instructions Safety System CES-AZ-ALS-...

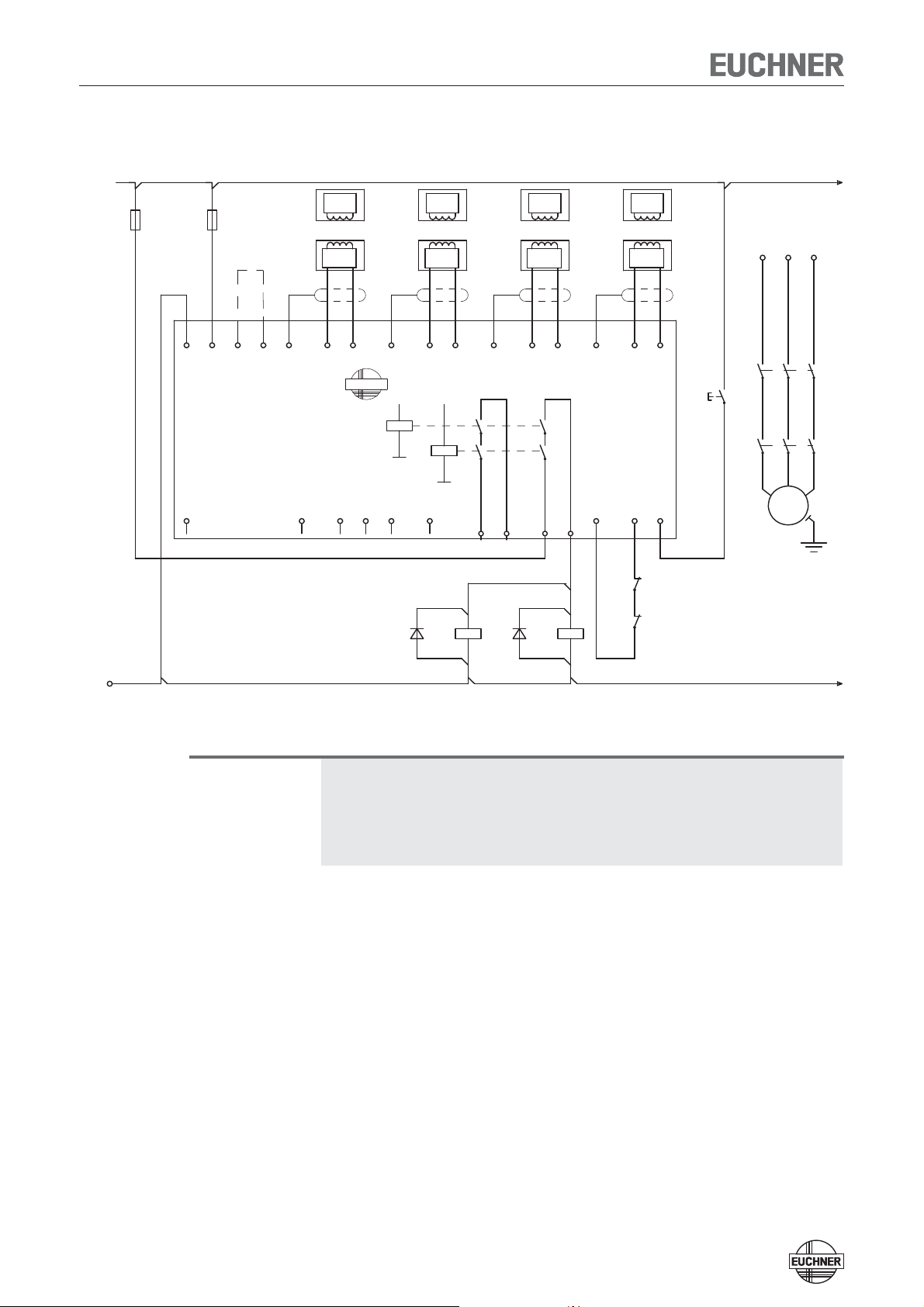

Connection example CES-AZ-ALS-04B

24 VDC

-F1

-F2

0V

UB

CES-AZ-ALS-04B
113090

TST

J1 J2 SH1

O1

Trans-

ponder

Read­head

H11

O2

1

H12

EUCHNER

SH2

K2

O3

O4

+

K1

Trans­ponder

Read­head

H21

DIA

2

H22

+

23

SH3

24

Trans­ponder

Read­head

H31

13

3

H32

14

SH4

Y1

Trans­ponder

Read­head

H41

Y2

4

H42

S

Start

-K3

-K4

-M1

L2

L1

L3

13

23

33

14

24

34

13

23

33

14

24

34

M

~

3

GND

Important:

21

-K4

22
21

-K3

22

-V1

-K3

A1

-V2

A2

-K4

A1

A2

feedback loop

To achieve category 4 according to EN ISO 13849-1, it is necessary to monitor
the downstream contactor (here contacts on -K3 and -K4 in the feedback loop).
This example shows only an excerpt that is relevant for connection of the CES
system. The example illustrated here does not show complete system planning.
The user is responsible for safe integration in the overall system.

If only one enable path is to be used for control (e. g. of downstream contactors),
failures involving a short circuit between the contacts on the enable path and, for
example, the power supply must be excluded.

With reference to EN ISO 13849-2 Table D.5, this exclusion can be provided if

Ì the cables are inside an electrical installation space and
Ì the enclosure meets the related requirements (see EN 60204-1 or IEC 60204-1).

This example shows only an excerpt that is relevant for connection of the CES
system. The example illustrated here does not show complete system planning.
The user is responsible for safe integration in the overall system.

13

Operating Instructions Safety System CES-AZ-ALS-...

Setup

LED indicators

STATE Green LED State display (multifunction display using flashing modes)

OUT Yellow LED Safety circuit closed

DIA LED red - Operating fault or

- External fault (fault in the feedback loop) or

- Teach-in process not valid or

- Internal device fault or

- TST input activated (function test active)

A detailed description of the LED indicators can be found in the section System

status table page 18.

Teach-in operation

Important:

Before the system forms a functional unit, the parameters are set in the evaluation
unit using a teach-in operation (number of connected read heads, assignment of
the actuators to the read heads, with or without automatic start, with or without
feedback loop). During this process the read heads are activated and the actuator
code taught-in.

These configuration parameters are saved in the non-volatile memory in the evalu­ation unit.

During the teach-in operation the safety outputs are open. The system is in the
safe state.

Ì During the teach-in operation the following conditions must be met:

Ì There must be no state change, e.g. opening a safety guard or closing a

further safety guard or a change in the signal on the terminals for the start
button and the feedback circuit.

Ì The power supply must not be switched off.

Ì If these conditions are not met, the evaluation unit switches to the safe fault

state (diagnostics LED illuminates) and signals this operating fault with the
STATE LED by 3 short flashes that are repeated every second. The teach-in
operation must be repeated.

Ì The number of teach-in operations is unlimited. The evaluation unit can be

re-configured as often as required.

Ì Actuators cannot be interchanged without a renewed teach-in operation.
Ì An actuator that has not been subjected to teach-in will not be detected by

the related read head.

Ì Even if only one new actuator needs to be taught, a complete new teach-in

operation must be carried out as described in the section Setup .

Ì Do not change DIP switches during operation.

To trigger a teach-in operation, the user must perform the following actions in the
stipulated order:

1. Prepare for teach-in operation

Ì Power supply U

is to be switched off

B

Ì Fit a jumper between terminals J1 and J2 (for CES-AZ-ALS-01B between J

and 0V)

14

Operating Instructions Safety System CES-AZ-ALS-...

2. Set required configuration on DIP switches (activate inputs for read heads)

Switch designation Switch position left (OFF) Switch position right (ON)

1 No read head connected to

2 No read head connected to

3 No read head connected to

4 No read head connected to

5 Automatic start

6 No feedback loop connected Feedback loop connected

3. Set required configuration on machine

Ì Close all doors to be monitored (the actuators must be in the operating

distance of the related read head)

Ì For operating mode Manual start: keep start button closed
Ì For operating mode With feedback loop: keep feedback loop closed

4. Start teach-in operation

Ì Switch on operating voltage
Ì Wait for self-test (STATE LED flashes for approx. 10 seconds at 15 Hz)
Ì Teach-in operation starts (STATE LED flashes at approx. 1 Hz)
Ì Wait for acknowledgement of the teach-in operation (STATE LED goes out

after approx. 10 seconds)

terminals H11, H12, SH1

terminals H21, H22, SH2

terminals H31, H32, SH3

terminals H41, H42, SH4

(No start button connected)

Read head connected to

terminals H11, H12, SH1

Read head connected to

terminals H21, H22, SH2

Read head connected to

terminals H31, H32, SH3

Read head connected to terminals

H41, H42, SH4

Manual start

(Start button connected)

Tip!

5. End teach-in operation

Ì Remove jumper between J1 and J2 (on CES-AZ-ALS-01B between J and 0V)
Ì For operating mode Manual start: start button must be connected
Ì For operating mode With feedback loop: feedback loop must be con-

nected

Ì Press reset button or interrupt operating voltage for at least 10 seconds
Ì Wait for self-test (STATE LED flashes for approx. 10 seconds at 15 Hz)

6. Check all safety guards for effectiveness

Changing the configuration / new actuator

The evaluation unit can be re-configured as often as required. For this purpose you
must proceed as per the first teach-in operation according to the Setup procedure
section.

Faulty actuators can be replaced. Then a complete teach-in operation must be
performed as per the section Setup . The number of teach-in operations is unlimited.

After acknowledging the teach-in operation you can use the monitoring outputs O1
... O4 for the diagnostics. All actuators that are in the operating distance of a read
head at this time are signaled on the related monitoring output. In the case of an
fault you can quickly see which actuators have not been detected, e. g. because it
has been forgotten to close a safety door prior to teach-in.

This function is only available during setup.

15

Operating Instructions Safety System CES-AZ-ALS-...

Functional check

After installation and any fault, the safety function must be fully checked. Proceed
as follows:

Warning!

Danger of fatal injury as a result of faults in installation and functional check.

Ì Before carrying out the functional check, make sure that there are no per-

sons in the danger area.

Ì Observe the valid accident prevention regulations.

1. Switch on operating voltage.

Ì The safety switch carries out a self-test.

The green STATE LED flashes for 10 seconds with 15 Hz.
The STATE LED then illuminates continuously.
The OUT and ERROR LEDs do not light up.

2. Close all safety guards.

Ì The machine must not start automatically.
Ì The green STATE LED and the yellow OUT LED light up continuously.

3. Enable operation in the control system.

4. Open the safety guard.

Ì The machine must switch off and it must not be possible to start it as long as

the safety guard is open.

Ì The green STATE LED illuminates continuously; the OUT and ERROR LEDs do

not illuminate.

Repeat steps 2-4 for each safety guard.

Self-test with test input TST

On electromechanical safety switches or magnetic switches, the function test can
be performed by cyclically opening the safety guard.

From category 2 according to EN ISO 13849-1 and in accordance with EN 60204­1 : 1997 (sec. 9.4.2.4), a function test must be performed on the entire safety
system on start-up or after defined intervals.

Testing of the internal function of the unit is not necessary because the device
monitors itself in real time. Welding of an output contact (relay output) is detected
by the device at the latest the next time the safety guard is opened. A short circuit
in the output cable is not detected by the device.

In addition, the entire safety circuit can be tested without opening the safety guard.
For this purpose, opening of the safety guard can be simulated by applying 24 V
DC to the test input TST.

The safety outputs are switched off, enabling testing of the complete safety circuit.
The diagnostic output DIA of the evaluation unit is also set LOW as a monitoring
function.

When the test input TST is reset, the evaluation unit resets the diagnostic output
DIA to HIGH, the red LED switches off and normal operation continues.

16

Operating Instructions Safety System CES-AZ-ALS-...

In Manual start operating mode, the start button must be pressed again to start
the system.

Important:

After the self-test the test input TST must be set or connected to 0 V.

17

Operating Instructions Safety System CES-AZ-ALS-...

System status table

LED

Operating mode

Setup

Normal operation

Function test

Fault display

Operating fault

State

STATE

(green)

OUT

(yellow)

DIA

(red)

4 Hz Initial setup after delivery without jumper connected to J1, J2 or J, 0V.

1 Hz Teach-in operation

Acknowledgement of completion of teach-in operation.

15 Hz
(10 s)

3 x

4 x

Self-test, duration approx. 10 seconds, is performed after applying the operating voltage U

Normal operation, not all monitored doors are closed.

Normal operation, all monitored doors are closed (after pressing the start button, for Manual start operating
mode)

Function test active (TST input = 24 V)

Internal component failure or actuator CES-A-BMB in the inadmissible range or excessively high external
interference (EMC)

Configuration fault:

Teach-in operation must be performed again

Possible causes:

- State change during the teach-in operation

- The DIP switch setting and the configuration did not match during the teach-in operation

- DIP switch setting has been changed without teach-in operation

- The teach-in jumper (J1, J2 or J, 0V) was fitted with power supply switched on

- Closed feedback loop (Y1,Y2) present, although a feedback loop was not present during teach-in

- 24 V signal present at the start button input (S) although teach-in was performed with "Automatic start"
operating mode.

Fault in feedback loop
Possible causes:

- Malfunction of the monitored contactor

- Following removal from the operating distance, actuator is not outside the operating distance long enough.
As a result the feedback loop cannot be closed in this short time. Note the release time for the monitored
contactor.

- Feedback loop was not closed on starting the evaluation unit.

B

Key to symbols

Important:

Note:

N 0 Volt or not connected

1 24 Volt

0 0 Volt

LED not illuminated

LED illuminated

15 Hz (10 s)

3 x +

3 x

X Any state

LED flashes for 10 seconds at 15 Hz

LED flashes three times and then illuminates continuously

LED flashes three times, and this is then repeated

If you do not find the displayed device status in the System status table, this indi­cates an internal device fault. In this case, you should contact the manufacturer.

The read heads CES-A-LNN and CES-A-LSP have an integrated LED for the indication
of the door position. The LED illuminates with the safety guard closed.

18

Operating Instructions Safety System CES-AZ-ALS-...

Technical data

Evaluation unit CES-AZ-ALS-01B

Ì Housing for DIN rail mounting, IP 20
Ì Relay output
Ì 1 read head can be connected
Ì Door monitoring output n-switching

Dimension drawing

22,5

H11

SH1

H12

TST

+UB

S

0V

J

Safety Unit

STATE OUT DIA

56

S
Y

RESET

CES-AZ

Unicode

13

O1

Y1 23

14 DIA Y2 24

Suitable for standard 35 mm DIN rail

Switching characteristics

Ì 2 safety outputs

with 2 NO contacts each
(relay outputs)

Ì 1 door monitoring output

(Semiconductor output,
n-switching,
not a safety output)

114

closed

(actuator detected)

Safety guard

(actuator not in the operating

Read head Actuator Read head

99

open

distance)

19

13

23

VO1

0

14

24

13

23

14

24

0V O1

Operating Instructions Safety System CES-AZ-ALS-...

Technical data CES-AZ-ALS-01B

Note:

If a product data sheet is included with the product, the information on the data
sheet applies in case of discrepancies with the operating instructions.

Parameter

min. typ. max.

Value

Unit

Housing material Plastic PA6.6
Dimensions 114 x 99 x 22.5 mm
Weight 0.2 kg
Ambient temperature at U

= DC 24 V -20 - +55 °C

B

Atmospheric humidity, not condensing - - 80 %
Degree of protection IP20
Degree of contamination 2
Mounting DIN rail 35 mm according to EN 60715
Number of read heads 1 read head per evaluation unit
Connection (screw terminals) 0.14 - 2.5 mm²
Operating voltage U
Current consumption I
External fuse (operating voltage U

(regulated, residual ripple < 5 %) 21 24 27 V DC

B

(with relay energized)

B

) 0.25 - 8 A

B

1)

- 150 - mA

Safety contacts 2 (relays with internally monitored contacts)
Switching current (relay outputs)

- At switching voltage AC/DC 21 ... 60 V

- At switching voltage AC/DC 5 ... 30 V 10 - 4000

1 - 300

mA

- At switching voltage AC 5 ... 230 V (160 V ATEX) 10 - 2000
External fuse (safety circuit) according to EN 60269-1 6 A gG or 6 A circuit breaker (characteristic B or C)
Utilization category according to EN 60947-5-1 AC-12 60V 0.3A / DC-12 60V 0.3A

AC-12 30V 4A / DC-12 30V 4A

AC-15 230V 2A / DC-13 24V 3A
Classification acc. to EN 60947-5-3 PDF-M
Rated insulation voltage U

i

Rated impulse withstand voltage U

imp

250 V

4kV
Rated conditional short-circuit current 100 A
Resilience to vibration In acc. with EN 60947-5-2
Mechanical operating cycles (relays) 10 x 10
Switching delay from state change

2)

- - 210 ms

6

Time difference (between the switching points of the two relays) - - 25 ms
Current via feedback loop Y1/Y2 5 8 10 mA
Permissible resistance via feedback loop - - 600
Ready delay
Dwell time

3)

4)

Switching frequency max.

5)

-1012s

3- -s

- - 0.25 Hz

Ω

Repeat accuracy R acc. to EN IEC 60947-5-3 ≤10 %
Monitoring outputs (diagnostics DIA, O1, semiconductor

output, n-switching, short-circuit proof)

- Output voltage switched (low) 0 - 1

- Switching voltage 21 24 27

V DC

- Switching current - - 20 mA
Start button input S, test input TST

- Input voltage LOW 0 - 2
HIGH

15 - U

B

V DC

- Input current HIGH 5 8 10 mA
EMC protection requirements In acc. with EN 60947-5-3

Reliability values according to EN ISO 13849-1
as a function of the switching current at 24 V DC ≤ 0.1 A ≤ 1 A ≤ 3 A

Category 4
Performance Level (PL) e

-8

PFH

d

1.9 x 10
Mission time 20 years
Number of switching cycles/year 760 000 153 000 34 600

1) Without taking into account the load currents on the monitoring outputs.

2) Corresponds to the risk time according to EN 60947-5-3. This is the maximum switch-off delay for the safety outputs following removal of the actuator. In case of EMC interference in excess
of the requirements in accordance with EN 60947-5-3, the switch-off delay can increase to max. 250 ms. After a brief actuation < 0.25 s, the switch-on delay can increase to max. 3 s if this is
followed immediately by further actuation.

3) After the operating voltage is switched on, the relay outputs are switched off and the door monitoring contact is set HIGH during the ready delay. For the visual indication of the delay, the green
STATE LED flashes at a frequency of approx. 15 Hz.

4) The dwell time is the time that the actuator must be inside or outside the operating distance.

5) In case of monitoring with feedback loop, the actuators must remain outside the operating distance, e.g. with a door open, until the feedback circuit is closed.

20

Operating Instructions Safety System CES-AZ-ALS-...

Evaluation unit CES-AZ-ALS-02B

Ì Housing for DIN rail mounting, IP 20
Ì Relay output
Ì 2 read heads can be connected
Ì Door monitoring outputs n-switching

Dimension drawing

45

1

4

1

13

TST

S

J1

STATE OUT DIA

5612

O2

O1

Y1

23

DIA

J2

H1
H2

S
Y

Y2

24

14

H11

H21

Safety Unit

RESET

CES - AZ

Unicode

+UB0VSH1

H12

SH2

H22

Suitable for 35-mm DIN rail according to EN 60715

Switching characteristics

2 safety outputs

Ì

with 2 NO contacts each
(relay outputs)

Ì 2 door monitoring outputs

(semiconductor outputs ,
n-switching,
not safety outputs)

closed

(all actuators detected)

Safety guard

(e. g. actuator 1 not in the

operating distance)

Read head 1 Actuator 1 Read head 1

open

9

9

21

13
23

14
24

0V O1

13
23

14
24

0V O1

0V O2 0V O2

Operating Instructions Safety System CES-AZ-ALS-...

Technical data CES-AZ-ALS-02B

Note:

If a product data sheet is included with the product, the information on the data
sheet applies in case of discrepancies with the operating instructions.

Parameter

min. typ. max.

Value

Unit

Housing material Plastic PA6.6
Dimensions 114 x 99 x 45 mm
Weight 0.25 kg
Ambient temperature at U
Atmospheric humidity, not condensing - - 80 %

= DC 24 V -20 - +55 °C

B

Degree of protection IP20
Degree of contamination 2
Mounting DIN rail 35 mm according to EN 60715
Number of read heads Max. 2 read heads per evaluation unit
Connection (screw terminals) 0.14 - 2.5 mm²
Operating voltage U
Current consumption I
External fuse (operating voltage U
Safety contacts 2 (relays with internally monitored contacts)

(regulated, residual ripple < 5 %) 21 24 27 V DC

B

(with relay energized)

B

) 0.4 - 8 A

B

1)

- 150 - mA

Switching current (relay outputs)

- At switching voltage AC/DC 21 ... 60 V

- At switching voltage AC/DC 5 ... 30 V 10 - 6000

1 - 300

mA

- At switching voltage AC 5 ... 230 V 10 - 2000
External fuse (safety circuit) according to EN 60269-1 6 A gG or 6 A circuit breaker (characteristic B or C)
Utilization category according to EN 60947-5-1 AC-12 60V 0.3A / DC-12 60V 0.3A

AC-12 30V 6A / DC-12 30V 6A

AC-15 230V 2A / DC-13 24V 3A
Classification acc. to EN 60947-5-3 PDF-M
Rated insulation voltage U
Rated impulse withstand voltage U
Rated conditional short-circuit current 100 A

i

imp

Resilience to vibration In acc. with EN 60947-5-2
Mechanical operating cycles (relays) 10 x 10
Switching delay from state change

2)

- 2 activated actuators - - 290

- 1 activated actuator - - 210

250 V

4kV

6

ms

Time difference between the switching points of the two relays - - 25 ms
Manual start operating mode

- Duration of operation of start button 250 - -

- Start button response delay - 200 300

ms

Current via feedback loop Y1/Y2 5 8 10 mA
Permissible resistance via feedback loop - - 600
Ready delay
Dwell time
Switching frequency max.

3)

4)

5)

-1012s
3- -s

- - 0.25 Hz

Ω

Repeat accuracy R acc. to EN IEC 60947-5-3 ≤10 %
Monitoring outputs (diagnostics DIA, O1...O2, semiconductor

output, n-switching, short-circuit proof)

- Output voltage switched (low) 0 - 1

- Switching voltage 21 24 27

V DC

- Switching current - - 20 mA
Start button input S, test input TST

- Input voltage LOW 0 - 2
HIGH 15 - U

- Input current HIGH 5 8 10 mA

B

V DC

EMC protection requirements According to EN60947-5-3

Reliability values according to EN ISO 13849-1
as a function of the switching current at 24 V DC ≤ 0.1 A ≤ 1 A ≤ 3 A

Category 4
Performance Level (PL) e
PFH

d

Mission time 20 years

1.9 x 10

-8

Number of switching cycles/year 760 000 153 000 34 600

1) Without taking into account the load currents on the monitoring outputs.

2) Corresponds to the risk time according to EN 60947-5-3. This is the maximum switch-off delay for the safety outputs following removal of the actuator. In case of EMC interference in excess of
the requirements in accordance with EN 60947-5-3, the switch-off delay can increase to max. 430 ms. After a brief actuation < 0.4 s, the switch-on delay can increase to max. 3 s if this is fol­lowed immediately by further actuation.

3) After the operating voltage is switched on, the relay outputs are switched off and the monitoring outputs are set HIGH during the ready delay. For the visual indication of the delay, the green
STATE LED flashes at a frequency of approx. 15 Hz.

4) The dwell time is the time that the actuator must be inside or outside the operating distance.

5) In case of monitoring with feedback loop, the actuators must remain outside the operating distance, e.g. with a door open, until the feedback circuit is closed.

22

Operating Instructions Safety System CES-AZ-ALS-...

Evaluation unit CES-AZ-ALS-04B

Ì Housing for DIN rail mounting, IP 20
Ì Relay output
Ì 4 read heads can be connected
Ì Door monitoring outputs n-switching

Dimension drawing

45

13

TST

S

J1

STATE OUT DIA

O2

O1

Y1

23

DIA

J2

H1
H2
H3
H4

O3

Y2

+UB0VSH1

H12

14

H11

SH2

H22

H21

Safety Unit

RESET

CES - AZ

Unicode
S
Y

O4

H31

H32

SH3

24

H41

H42

SH4

Suitable for 35-mm DIN rail according to EN 60715

Switching characteristics

Ì

2 safety outputs
with 2 NO contacts each
(relay outputs)

Ì 4 door monitoring outputs

(semiconductor outputs,
n-switching,
not safety outputs)

114

closed

(all actuators detected)

Read head 1 Actuator 1 Read head 1

Safety guard

(e.g. actuator 1 not in the oper-

ating distance)

99

open

23

13
23

14
24

0V O1

0V O2

13
23

VO1

0

14
24

0V O2

0V O3 0V O3

0V O4 0V O4

Operating Instructions Safety System CES-AZ-ALS-...

Technical data CES-AZ-ALS-04B

Note:

If a product data sheet is included with the product, the information on the data
sheet applies in case of discrepancies with the operating instructions.

Parameter

Housing material

min. typ. max.

Value

Plastic PA6.6

Unit

Dimensions 114 x 99 x 45 mm
Weight 0.25 kg
Ambient temperature at U
Atmospheric humidity, not condensing - - 80 %

= DC 24 V -20 - +55 °C

B

Degree of protection IP20
Degree of contamination 2
Mounting DIN rail 35 mm according to EN 60715
Number of read heads Max. 4 read heads per evaluation unit
Connection (screw terminals) 0.14 - 2.5 mm²
Operating voltage U
Current consumption I
External fuse (operating voltage U
Safety contacts 2 (relays with internally monitored contacts)

(regulated, residual ripple < 5 %) 21 24 27 V DC

B

(with relay energized)

B

) 0.4 - 8 A

B

1)

- 150 - mA

Switching current (relay outputs)

- At switching voltage AC/DC 21 ... 60 V

- At switching voltage AC/DC 5 ... 30 V 10 - 6000

1 - 300

mA

- At switching voltage AC 5 ... 230 V 10 - 2000
External fuse (safety circuit) according to EN 60269-1 6 A gG or 6 A circuit breaker (characteristic B or C)
Utilization category according to EN 60947-5-1 AC-12 60V 0.3A / DC-12 60V 0.3A

AC-12 30V 6A / DC-12 30V 6A

AC-15 230V 2A / DC-13 24V 3A
Classification acc. to EN 60947-5-3 PDF-M
Rated insulation voltage U
Rated impulse withstand voltage U
Rated conditional short-circuit current 100 A

i

imp

Resilience to vibration In acc. with EN 60947-5-2
Mechanical operating cycles (relays) 10 x 10
Switching delay from state change

2)

250 V

4kV

6

- 4 activated actuators - - 450

- 3 activated actuators - - 370

- 2 activated actuators - - 290

ms

- 1 activated actuator - - 210
Time difference between the switching points of the two relays - - 25 ms
Manual start operating mode

- Duration of operation of start button 250 - -

- Start button response delay - 200 300

ms

Current via feedback loop Y1/Y2 5 8 10 mA
Permissible resistance via feedback loop - - 600
Ready delay
Dwell time
Switching frequency max.

3)

4)

5)

-1012s
3- -s

- - 0.25 Hz

Ω

Repeat accuracy R acc. to EN IEC 60947-5-3 ≤10 %
Monitoring outputs (diagnostics DIA, 01...04, semiconductor
output, n-switching, short-circuit proof)

- Output voltage switched (low) 0 - 1

- Switching voltage 21 24 27

V DC

- Switching current - - 20 mA
Start button input S, test input TST

- Input voltage LOW 0 - 2
HIGH 15 - U

- Input current HIGH 5 8 10 mA

B

V DC

EMC protection requirements According to EN60947-5-3

Reliability values according to EN ISO 13849-1
as a function of the switching current at 24 V DC ≤ 0.1 A ≤ 1 A ≤ 3 A

Category 4
Performance Level (PL) e
PFH

d

Mission time 20 years

1.9 x 10

-8

Number of switching cycles/year 760 000 153 000 34 600

1) Without taking into account the load currents on the monitoring outputs.

2) Corresponds to the risk time according to EN 60947-5-3. This is the maximum switch-off delay for the safety outputs following removal of the actuator. In case of EMC interference in excess of
the requirements in accordance with EN 60947-5-3, the switch-off delay can increase to max. 750 ms. After a brief actuation < 0.8 s, the switch-on delay can increase to max. 3 s if this is followed
immediately by further actuation.

3) After the operating voltage is switched on, the relay outputs are switched off and the monitoring outputs are set HIGH during the ready delay. For the visual indication of the delay, the green
STATE LED flashes at a frequency of approx. 15 Hz.

4) The dwell time is the time that the actuator must be inside or outside the operating distance.

5) In case of monitoring with feedback loop, the actuators must remain outside the operating distance, e.g. with a door open, until the feedback circuit is closed.

24

Operating Instructions Safety System CES-AZ-ALS-...

Read head CES-A-LNN-...

Ì Rectangular design 42 x 25 mm
Ì Attachment compatible with series CES-A-LNA/LCA
Ì LED for the indication of the door position

Dimension drawing

4,5

25

8

With connection cable

Note

Active face

±0,1

42

32

52,7

5,3

12

With M8 plug con-

nector

Active face

LED

4,1

5,4

9

Typical operating distance

With evaluation unit CES-AZ-ALS-... and actuator CES-A-BBN

Y

40

35

30

25

-30

-25

15

20

X

20

15

10

5

-5

5

5

10

-5

-1
0

-1
5

-20

-2
5

-3
0

-35

-4
0

-20

-15

-10

10

15

20

25

30

Z

4,6

Active face

19,4

4,1

For a side approach direction for the actuator and read head, a minimum distance
of s = 6 mm must be maintained so that the operating distance of the side lobes
is not entered.

25

Operating Instructions Safety System CES-AZ-ALS-...

Terminal assignment

Read head with connection cable

Screen

4

BN

WH

H11 H12SH1

Evaluation unit
CES-AZ-ALS-...

Technical data

Parameter Value Unit

min. typ. max.

Housing material Reinforced thermoplastic (PBT), fully encapsulated
Dimensions 42 x 25 x 12 mm
Weight (without connection cable) 0.025 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit
Connection M8 plug connector, 3-pin or connection cable
LED indicator White, valid actuator detected

In combination with actuator CES-A-BBN-106600

Assured switch-off distance S
in y direction - - 80
Operating distance for center offset m = 0

- Switch-on distance - 15 -

- Assured switch-on distance S

- Switching hysteresis 1 4 -

In combination with actuator CES-A-BDN-06-104730

Assured switch-off distance S
in y direction - - 80
Operating distance for center offset m = 0

- Switch-on distance - 19 -

- Assured switch-on distance S

- Switching hysteresis - 4 ­Cable length See ordering table 25 m

1) These values apply for the surface installation of the read head and the actuator.

in x/z direction - - 50

ar

1)

ao

in x/z direction - - 50

ar

1)

ao

10 - -

14 - -

1

3

Read head

mm

mm

26

Operating Instructions Safety System CES-AZ-ALS-...

Read head CES-A-LSP-...

Ì Optimized for aluminum profile mounting
Ì LED for the indication of the door position

Dimension drawing

18,1

3,3

M5

Ø 5,2 (2x)

Active face

97,1

With M5

plug connector

With

connection cable

8,3

1057,5

5

R3

LED

R4

7

Typical operating distance

With evaluation unit CES-AZ-ALS-... and actuator CES-A-BSP

Y

65

60

55

50

45

40

35

30

25

20

15

10

5

5

10

5

10

15

20

25

30

X

15

-5
20

-10

-15

-20

-25

-30

-35

-40

-45

-5
0

-55

-60

-65

25

30

Z

Mounting distance

CES-A-LSP-...

≤10

≤20

5

Note

For a side approach direction for the actuator and read head, a minimum distance
of s = 6 mm must be maintained so that the operating distance of the side lobes
is not entered.

27

Operating Instructions Safety System CES-AZ-ALS-...

Terminal assignment

Read head with connection cable

Screen

3

Read head

BN

WH

H11 H12SH1

Evaluation unit
CES-AZ-ALS-...

Technical data

Parameter Value Unit

min. typ. max.

Housing material Reinforced thermoplastic, fully encapsulated
Weight (without connection cable) 0.02 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit
Connection M5 plug connector, 3-pin
LED indicator White, valid actuator detected

In combination with actuator CES-A-BSP-104970

Assured switch-off distance S
Operating distance for center offset m = 0
with vertical approach direction (x direction)

- Switch-on distance - 20 -

- Assured switch-on distance S

- Switching hysteresis 1 4 ­Cable length See ordering table 25 m

1) These values apply for the installation of the read head and the actuator in an aluminum profile 45 x 45 mm.

--45

ar

ao

1)

10 - -

1

4

CES-A-LSP

mm

28

Operating Instructions Safety System CES-AZ-ALS-...

Read head CES-A-LNA-...

Ì Rectangular design 42 x 25 mm
Ì Hard-wired cable

Dimension drawing

"l"

2 safety screws M4 x 14
included Active face Active face

42

CES-A-L XXXXXX

±0,1

32

12

4,5



25

4,6

8

Typical operating distance

With evaluation unit CES-AZ-ALS-... and CES-A-BBA actuators

Y

20

15

10

5

5

10

5

10

15

20

X

15

20

Z

Note

For a side approach direction forthe actuator and read head, a minimum distance
of s = 3 mm must be maintained so that the operating distance of the side lobes
is not entered.

Terminal assignment

Read head with connection cable

BN

H11

Evaluation unit
CES-AZ-ALS-...

WH

H12 SH1

Screen

Read head

29

Operating Instructions Safety System CES-AZ-ALS-...

Technical data

Parameter Value Unit

min. typ. max.

Housing material Fortron, reinforced thermoplastic, fully encapsulated
Dimensions 42 x 25 x 12 mm
Weight (incl. 10 m cable) 0.3 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67/IP69K
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit

In combination with actuator CES-A-BBA

Assured switch-off distance S
Operating distance for center offset m = 0

ar

1)

- Switch-on distance - 15 -

- Assured switch-on distance S

ao

- Switching hysteresis 0.5 2 ­Minimum distance s for side approach direction - 3 -

In combination with actuator CES-A-BDA

Assured switch-off distance S
Operating distance for center offset m = 0

ar

2)

- Switch-on distance - 16 -

- Assured switch-on distance S

ao

- Switching hysteresis 0.5 2 ­Minimum distance s for side approach direction - 4 ­Connection cable Hard-wired encapsulated connection cable, with crimped ferrules

Cable length - - 25 m

1) These values apply for surface installation of the read head and the actuator.

2) These values apply for non-metallic surrounding material. Other materials on request.

--26

10 - -

--33

11 - -

PUR, ∅ 4.8 mm, suitable for drag chain

PVC, ∅ 4.6 mm

mm

mm

30

Operating Instructions Safety System CES-AZ-ALS-...

Read head CES-A-LNA-SC

Ì Rectangular design 42 x 25 mm
Ì M8 plug connector (snap-action and screw terminals)

Dimension drawing

6,8

10

min.38

2 safety screws M4 x 14
included

26,5

20 1,

Typical operating distance

4232,6

±0,1

32

CES-A-L 077715

A0

Active face

CES-A-L 077715

A0

25

5
4,



5,5

Cable outlet with
angled connector

12

4,6

8

Active face

3

1

4

Note

With evaluation unit CES-AZ-ALS-... and CES-A-BBA actuators

Y

20

15

10

5

5

10

5

10

15

20

X

15

20

Z

For a side approach direction forthe actuator and read head, a minimum distance
of s = 3 mm must be maintained so that the operating distance of the side lobes
is not entered.

31

Operating Instructions Safety System CES-AZ-ALS-...

Terminal assignment

Read head with plug connector

WH

BN

H11 H12 SH1

Evaluation unit
CES-AZ-ALS-...

Screen

3

4

1

View on the plug
connector of the

read head

Technical data

Parameter Value Unit

min. typ. max.

Housing material Fortron, reinforced thermoplastic, fully encapsulated
Dimensions 42 x 25 x 12 mm
Weight (incl. 10 m cable) 0.3 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67/IP69K
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit

In combination with actuator CES-A-BBA

Assured switch-off distance S
Operating distance for center offset m = 0

- Switch-on distance - 15 -

- Assured switch-on distance S

- Switching hysteresis 0.5 2 ­Minimum distance s for side approach direction - 3 -

In combination with actuator CES-A-BDA

Assured switch-off distance S
Operating distance for center offset m = 0

- Switch-on distance - 16 -

- Assured switch-on distance S

- Switching hysteresis 0.5 2 ­Minimum distance s for side approach direction - 4 ­Connection M8 plug connector (snap-action and screw terminals), 3-pin
Connection cable - - 25 m

1) These values apply for surface installation of the read head and the actuator.

2) These values apply for non-metallic surrounding material. Other materials on request.

ar

ao

ar

ao

1)

2)

--26

10 - -

--33

11 - -

mm

mm

32

Operating Instructions Safety System CES-AZ-ALS-...

Read head CES-A-LCA-...

Ì Rectangular design 42 x 25 mm
Ì Plastic PE-HD housing material, suitable for use in aggressive media (e.g. ac-

ids, alkalis)

Dimension drawing

Note

32

Flat seal

l

48

42

± 0,1

31

25

Active face

14

12

 4,5

2 safety screws M4 x 14
included

The flat seal provided must be used during assembly.

Typical operating distance

With evaluation unit CES-AZ-ALS-... and actuator CES-A-BCA

Y

20

15

10

5

5

10

5

10

15

20

X

15

20

Z

4,6

 8

Active face

Note

For a side approach direction for the actuator and read head, a minimum distance
of s = 3 mm must be maintained so that the operating distance of the side lobes
is not entered.

33

Operating Instructions Safety System CES-AZ-ALS-...

Terminal assignment

Read head with connection cable

BN

Screen

Read head

WH

H11

Evaluation unit
CES-AZ-ALS-...

H12 SH1

View on the plug
connector of the

read head

Technical data

Parameter Value Unit

min. typ. max.

Housing material Plastic PE-HD without reinforcement, fully encapsulated
Flat seal material Fluororubber 75 FPM 4100
Dimensions 42 x 25 x 12 mm
Weight (incl. 10 m cable) 0.3 kg
Ambient temperature -25 - +50 °C
Degree of protection IP67/IP69K
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit

In combination with actuator CES-A-BCA

Assured switch-off distance S
Operating distance for center offset m = 0

- Switch-on distance - 15 -

- Assured switch-on distance S

- Switching hysteresis 0.5 2 ­Minimum distance s for side approach direction - 3 -

In combination with actuator CES-A-BDA

Assured switch-off distance S
Operating distance for center offset m = 0

- Switch-on distance - 16 -

- Assured switch-on distance S

- Switching hysteresis 0.5 2 ­Minimum distance s for side approach direction - 4 ­Connection cable Hard-wired encapsulated connection cable, with crimped ferrules

Cable length - - 25 m

1) These values apply for surface installation of the read head and the actuator.

2) These values apply for non-metallic surrounding material. Other materials on request.

--26

ar

ao

ar

ao

1)

10 - -

--33

2)

11 - -

PVC, ∅ 4.6 mm

mm

mm

34

Operating Instructions Safety System CES-AZ-ALS-...

Read head CES-A-LQA-SC

Ì Rectangular design 50 x 50 mm
Ì M8 plug connector (snap-action and screw terminals)

Dimension drawing

20,2

0
0,25

-

50

7

Ø 4,5

20

6

Active face

Typical operating distance

-30

30

X

x1

0,25

0

-

50

±0,15

40

Y

30

20

10

10

10

20

20

30

Z

-30

M8

±0,15

40

With actuator CES-A-BBA or CES-A-BCA

Y

30

20

10

10

10

20

30

X

20

30

With actuator CES-A-BQA on evaluation unit CES-AZ-...-01B

35

Z

Operating Instructions Safety System CES-AZ-ALS-...

Terminal assignment

Read head with connection cable

Screen

4

BN

WH

H11 H12SH1

Evaluation unit
CES-AZ-ALS-...

Technical data

Parameter Value Unit

min. typ. max.

Housing material Fortron, reinforced thermoplastic, fully encapsulated
Dimensions 50 x 50 x 20.2 mm
Weight 0.08 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit

In combination with actuator CES-A-BBA or CES-A-BCA

Assured switch-off distance S
Operating distance for center offset m = 0

- Switch-on distance - 15 -

- Assured switch-on distance S

- Switching hysteresis 2 3 -

In combination with actuator CES-A-BQA on evaluation unit CES-AZ-...-01B

Assured switch-off distance S
Operating distance for vertical approach direction
Center offset m = 0

- Switch-on distance - 23 -

- Assured switch-on distance S

- Switching hysteresis 2 3 ­Operating distance for side approach direction
Distance in x direction = 10 mm

- Switch-on distance - 28 -

- Assured switch-on distance S

- Switching hysteresis 1 1.3 ­Connection cable - - 25 m

1) These values apply for surface installation of the read head and the actuator.

ar

ao

--60

ar

1)

ao

ao

1)

10 - -

16 - -

24 - -

1

Read head

3

--47

mm

mm

36

Operating Instructions Safety System CES-AZ-ALS-...

Read head CES-A-LMN-SC

Ì Cylindrical design M12
Ì M8 plug connector (snap-action and screw terminals)

Dimension drawing

Note

Leseabstand

1)

19,7

32

M12x1

1) Clear zone (area of the active face without metal housing)

s

m

Mittenversatz

1)

5

8

30

37

4

M8x1

35

im gesteckten

Zustand

Active face

17

The read head is allowed to be installed as a maximum up to the clear zone (area
of the active face without metal housing).

Typical operating distance

Note

With evaluation unit CES-AZ-ALS-... and actuator CES-A-BMB

Y

8

8

6

6

8

X

6

4

2

2

2

4

4

6

8

6

8

Z

A minimum distance of s = 1.2 mm must be maintained.

37

Operating Instructions Safety System CES-AZ-ALS-...

Terminal assignment

Read head with plug connector

WH

BN

H11 H12 SH1

Evaluation unit
CES-AZ-ALS-...

Screen

3

4

1

View on the plug
connector of the

read head

Technical data

Parameter Value Unit

min. typ. max.

Housing material Nickel-plated CuZn housing sleeve

Dimensions M12 x 1, length 38 mm
Weight (incl. 10 m cable) 0.2 kg
Ambient temperature -25 - +70 °C
Ambient pressure

(only of active face in installed condition)
Degree of protection IP67
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit

In combination with actuator CES-A-BMB on evaluation unit CES-AZ-ALS-04B

Assured switch-off distance S
Operating distance for center offset m = 0

- Switch-on distance - 5 -

- Assured switch-on distance S

- Switching hysteresis 0.1 0.3 ­Connection M8 plug connector (snap-action and screw terminals), 3-pin
Connection cable - - 15 m

1) These values apply for surface installation of the read head in steel.

ar

ao

1)

- - 10 bar

--10

3.5 - -

Plastic PBT GF20 cap

mm

38

Operating Instructions Safety System CES-AZ-ALS-...

Actuator CES-A-BBN

Ì Rectangular design 42 x 25 mm
Ì Attachment compatible with series CES-A-LNA/LCA

Dimension drawing CES-A-BBN

4,5

25

8

Active face

12

42

±0,1

32

Active face

Technical data

Parameter

Housing material Reinforced thermoplastic (PBT), fully encapsulated
Dimensions 42 x 45 x 12 mm
Weight 0.025 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Active face opposite read head
Power supply Inductive via read head

min. typ. max.

Value

Unit

39

Operating Instructions Safety System CES-AZ-ALS-...

Actuator CES-A-BSP

Ì Optimized for aluminum profile mounting

Dimension drawing CES-A-BSP

2

R

18,1

1057,5

Active face

6

Ø 5,2

5

97,1

Technical data

Parameter

Housing material Reinforced thermoplastic, fully encapsulated
Weight 0.02 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Active face opposite read head
Power supply Inductive via read head

min. typ. max.

Value

Unit

40

Operating Instructions Safety System CES-AZ-ALS-...

Actuator CES-A-BDN-06

Ì Cylindrical design ∅ 6 mm

Dimension drawing CES-A-BDN-06

* min.
30
Ø

6,1

30

*

30

*

* metal-free zone

+

0,5

26

0

Installation options

6

+

0,1
0

x

y

z

Technical data

Parameter

min. typ. max.

Housing material Macromelt PA-based plastic
Dimensions 26 x ∅ 6mm
Weight 0.005 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Active face opposite read head
Power supply Inductive via read head

Value

Unit

41

Operating Instructions Safety System CES-AZ-ALS-...

Actuator CES-A-BBA/CES-A-BCA

Ì Rectangular design 42 x 25 mm
Ì CES-A-BCA suitable for use in aggressive media (e.g. acids, alkalis)
Ì In combination with read head CES-A-LNA.../CES-A-LCA...

Dimension drawing CES-A-BBA

Note

42

CES-A-B 071840

±0,1

32

2 safety screws M4 x 14
included

25

Active face

ø4,5

4,6

12

ø8

Active face

Dimension drawing CES-A-BCA

48

42

± 0,10

2 safety screws M4 x 14
included

32

Flat seal

31

25

Active face

CES-A-BCA: The flat seal provided must be used during assembly.

212

 4,5

4,6

8



Active face

Technical data

Parameter

Housing material

- CES-A-BBA Fortron, reinforced thermoplastic, fully encapsulated

- CES-A-BCA Plastic PE-HD without reinforcement, fully encapsulated
Flat seal material (CES-A-BCA only) Fluororubber 75 FPM 4100
Dimensions 42 x 25 x 12 mm
Weight 0.02 kg
Ambient temperature

- CES-A-BCA -25 - +50
Degree of protection IP67/IP69K
Installation position Active face opposite read head
Power supply Inductive via read head

min. typ. max.

Value

Unit

°C- CES-A-BBA -25 - +70

42

Operating Instructions Safety System CES-AZ-ALS-...

Actuator CES-A-BQA

Ì Rectangular design 50 x 50 mm

Dimension drawing CES-A-BQA

20,2

0

Ø 4,5

6

Active face

0
0,25

-

50

0,25

-

50

±0,15

40

±0,15

40

Technical data

Parameter

min. typ. max.

Housing material Fortron, reinforced thermoplastic, fully encapsulated
Dimensions 50 x 50 x 20.2 mm
Weight 0.07 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Active face opposite read head
Power supply Inductive via read head

Value

Unit

43

Operating Instructions Safety System CES-AZ-ALS-...

Actuator CES-A-BDA

Ì Round design ∅ 20 mm
Ì In combination with read head CES-A-LNA.../CES-A-LCA...

Dimension drawing

∅ 20

Active face Active face

2,2

Technical data

Parameter

Housing material Plastic PC
Dimensions ∅ 20 x 2.2 mm
Weight 0.0008 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Active face opposite read head
Power supply Inductive via read head

min. typ. max.

Value

Unit

44

Operating Instructions Safety System CES-AZ-ALS-...

Actuator CES-A-BMB

Ì Cylindrical design M12 x 75
Ì In combination with read head CES-A-LMN-SC (with read head CES-A-LNA.../

LCA... operating distance on request)

Dimension drawing

0,80

11

M12x0,75

6

Active face

Notes

Ì The actuator can be screwed into the M12 x 0.75 thread provided with the aid

of an insertion tool (Order No. 037 662).

Ì Flush installation of the actuator in steel is allowed.

Technical data

Parameter

Housing material Stainless steel
Dimensions M12 x 0.75, depth 6 mm
Weight 0.002 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Active face opposite read head
Power supply Inductive via read head

min. typ. max.

Value

Unit

45

Operating Instructions Safety System CES-AZ-ALS-...

Ordering information and accessories

Evaluation units

Series

CES-AZ-ALS...

Read heads

CES-A-LNN-...

CES-A-LSP-...

CES-A-LNA-...

CES-A-LNA-SC

CES-A-LCA-...

CES-A-LQA-SC

CES-A-LMN-SC

Category according to

EN ISO 13849-1

415

Series Cable/connection type Cable length "l" [m] Order no./item

M8 plug connector

M5 plug connector

M8 plug connector -

M8 plug connector

M8 plug connector -

Switch-on distance typ.

V

Cable PVC

SC

V

Cable PVC

SB

V

Cable PVC

P

Cable PUR

V

Cable PVC

SC

[mm]

Number of read heads Order no./item

1

2

4

5

-

5

10

15

20

25

-

5

10

15

25

5

10

15

10

-

On request

CES-AZ-ALS-01B

On request

CES-AZ-ALS-02B

113090

CES-AZ-ALS-04B

106602

CES-A-LNN-05V-106602

106601

CES-A-LNN-SC-106601

104966

CES-A-LSP-05V-104966

104967

CES-A-LSP-10V-104967

106271

CES-A-LSP-15V-1062716

106272

CES-A-LSP-20V-106272

104968

CES-A-LSP-25V-104968

104969

CES-A-LSP-SB-104969

071845

CES-A-LNA-05V

071846

CES-A-LNA-10V

071847

CES-A-LNA-15V

071975

CES-A-LNA-25V

077806

CES-A-LNA-05P

077807

CES-A-LNA-10P

084682

CES-A-LNA-15P

077715

CES-A-LNA-SC

088785

CES-A-LCA-10V

095650

CES-A-LQA-SC

077790

CES-A-LMN-SC

46

Operating Instructions Safety System CES-AZ-ALS-...

Actuator

Series Comment Version Order no./item

CES-A-BBN

CES-A-BSP

CES-A-BDN-06

CES-A-BBA

CES-A-BCA

CES-A-BQA

CES-A-BDA

CES-A-BMB

Accessories

Installation material

read head CES-A-LSP-...

actuator CES-A-BSP

Insertion tool

Series Comment Version Order no./item

for

and

2 safety screws M4 x 14 are supplied -

Please order installation material sepa-

2 safety screws M4 x 14 are supplied -

2 safety screws M4 x 14 are supplied

2 safety screws M4 x 14 are supplied -

For Bosch profiles with 8 mm groove 2 screws and 2 clamping pieces

For Bosch profiles with 10 mm groove 2 screws and 2 clamping pieces

For ITEM profiles with 8 mm groove 2 screws and 2 clamping pieces

rately

--

Flat seal included

-

--

For actuator CES-A-BMB -

-

Housing material PE-HD

106600

CES-A-BBN-106600

104970

CES-A-BSP-104970

104730

CES-A-BDN-06-104730

071840

CES-A-BBA

088786

CES-A-BCA

098108

CES-A-BQA

084720

CES-A-BDA-20

077791

CES-A-BMB

106633

Installation material 8-groove

Installation material 10-groove

Installation material 8-groove

Bosch

106634

Bosch

106635

ITEM

037662

47

Operating Instructions Safety System CES-AZ-ALS-...

Inspection and service

Warning!

Loss of the safety function because of damage to the system.
In case of damage, the related safety component must be replaced. The replace­ment of individual parts in a safety component is not permitted.

Regular inspection of the following is necessary to ensure trouble-free long-term
operation:

Ì Check the switching function (see section Functional check)
Ì Check the secure fastening of the devices and the connections
Ì Check for soiling
Ì Check for sealing of the plug connector on the safety switch
Ì Check for loose cable connections on the plug connector.
Ì Check of the switch-off distance

No servicing is required, repairs to the device are only allowed to be made by the
manufacturer.

Note:

Service

The year of manufacture can be seen in the lower right corner of the rating plate.

The current version number in the format X.X.X. can also be found on the device.

If service support is required, please contact:

EUCHNER GmbH + Co. KG

Kohlhammerstraße 16

D-70771 Leinfelden-Echterdingen

Service telephone:

[phone]

E-mail:

[e-mail]

Internet:

www.euchner.de

48

Operating Instructions Safety System CES-AZ-ALS-...

Declaration of conformity

49

Operating Instructions Safety System CES-AZ-ALS-...

50

Operating Instructions Safety System CES-AZ-ALS-...

51

More than safety.

Euchner GmbH + Co. KG
Kohlhammerstraße 16
D-70771 Leinfelden-Echterdingen

[e-mail]
www.euchner.de

Edition:
113996-02-10/13
Title:
Operating Instructions Safety System CES-AZ-ALS-...
(translation of the original operating instructions)
Copyright:
© EUCHNER GmbH + Co. KG, 10/2013

Subject to technical modifications, no responsibility
is accepted for the accuracy of this information.
