System Manual Safety System CES-A-W5H-01
Correct Use
The Coded Electronic Safety switches series CES are safety devices for monitor­ing movable safety guards.
In combination with a separating safety guard and the machine control, this safety component prevents dangerous machine movements from occurring while the safety guard is open. A stop command is triggered if the safety guard is opened during the dangerous machine function.
Before safety switches are used, a risk assessment must be performed on the machine in accordance with:
EN ISO 13489-1, Safety of machinery. Safety related parts of control systems.
General principles for design
EN ISO 14121-1, Safety of machinery. Risk assessment. Principles
IEC 62061, Safety of machinery – Functional safety of safety-related electrical, electronic and programmable electronic control systems.
Correct use includes compliance with the relevant requirements for installation and operation, in particular
Important!
EN ISO 13489-1, Safety of machinery. Safety related parts of control systems.
General principles for design
EN 1088, Safety of machinery. Interlocking devices associated with guards.
Principles for design and selection
EN 60204-1, Safety of machinery. Electrical equipment of machines. General requirements
EN 60947-5-3 Specification for low-voltage switchgear and controlgear. Con-
trol circuit devices and switching elements. Requirements for proximity devices with defined behaviour under fault conditions (PDF)
The safety switches CES-A-W5... are only allowed to be operated in conjunction with the designated actuators and the related connection cable from EUCHNER. On the use of a different actuator or another connection cable, EUCHNER provides no warranty for safe function.
The devices are intended for use in safety circuits and, together with
connected evaluation units, permit safety functions according to DIN EN ISO 13849-1: 2008-12 - Table 8, such as a safety-related stop func­tion, prevention of unexpected start-up, etc.
The safety-related function of the PDF is switch-off (low) of one of the
outputs (LA, LB) when the actuator is absent.
The user is responsible for safe integration of the device in a safe overall
system. For this purpose the overall system must be validated, e.g. in accor­dance with EN ISO 13849-2. The permissible operating parameters must be observed for correct use
(see Technical data). If a product data sheet is included with the product, the information on the
data sheet applies in case of discrepancies with the operating instructions. Only components may be used that are permissible in accordance with the
table below.
3
System Manual Safety System CES-A-W5H-01
4
Possible combinations for CES components
Actuator
Safety switch
CES-A-BBA
071840
CES-A-W5H-01
097525
Combination possible
Combination possible, guard locking for process protection
Key to symbols
Combination possible, guard locking for personal protection
Combination not permissible
CES-A-BCA
088786
CES-A-BDA
084720
CES-A-BMB
077791
CES-A-BQA
098108
CES-A-NBA-...
All items
CES-A-BPA
098775
Exclusion of Liability and Warranty
In case of failure to comply with the conditions for correct use stated above, or if the safety instructions are not followed, or if any servicing is not performed as required, liability will be excluded and the warranty void.
System Manual Safety System CES-A-W5H-01
General Safety Instructions
Check the safe function of the safety guard particularly
after any setup work
after the replacement of a CES component
after an extended period without use
after every fault
Independent of these checks, the safe function of the safety guard should be checked at suitable intervals as part of the maintenance schedule.
Warning!
Danger of fatal injury in the event of incorrect connection or incorrect use.
Safety switches must not be bypassed (bridging of contacts), turned away,
removed or otherwise rendered ineffective. On this topic pay attention in particular to the measures for reducing the pos­sibility of bypassing from EN 1088:1995+A2:2008, section 5.7.
The device is only allowed to be installed and placed in operation by authorized personnel
who are familiar with the correct handling of safety components
who are familiar with the applicable EMC regulations
who are familiar with the applicable regulations on health and safety
who have read and understood the operating instructions and the system
manual
Important!
Prior to use, read the operating instructions and the system manual of the CES components used, and keep these in a safe place. Ensure the operating instruc­tions and the system manual are always available during mounting, setup and servicing. EUCHNER cannot provide any warranty in relation to the readability of the CD for the storage period required. For this reason you should archive a printed copy of the system manual. If you should lose the operating instruc­tions or the system manual, you can download these documents from www. EUCHNER.de.
5
System Manual Safety System CES-A-W5H-01
6
System Description
As the unique actuator codes are not evaluated, the CES-A-W5... version can only be used for applications in which a hazard cannot result from possible tampering with the system.
The safety switch CES-A-W... meets the following safety requirements:
Category 4, PLe according to EN ISO 13849-1
Proximity device with self-monitoring type PDF-M according to EN 60947-5-3.
Redundant design of the circuit in the evaluation unit with self-monitoring. As a
result, the safety system is still effective even if a component fails.
The switching state of the semiconductor outputs is checked internally when
the safety guard is opened and closed.
The CES non-contact safety system consists of three components:
Coded actuator
Safety switch with integrated read head
Evaluation unit
On the safety switch CES-A-W... the read head is integrated with the evaluation unit in a standard housing according to EN 60947-5-2.
Each delivered actuator possesses a unique electronic coding and so is a unique element in the system used. The code in an actuator cannot be reprogrammed.
Unlike systems with unique code detection, on the CES-A-W5... a specific code is not requested but instead it is only checked whether the actuator is of a type that can be detected by the system (multicode detection). There is no exact com­parison of the actuator code with the code defined in the evaluation unit (unique code detection).
The evalation unit with integrated read head is fastened to the fixed part of the safety guard.
The actuator fastened to the movable part of the safety guard is moved towards the read head by closing the door. When the switch-on distance is reached, power is supplied to the actuator by the inductive read head and data can be transferred.
If a permissible code is detected, the safety outputs (semiconductor outputs) are enabled, and the door monitoring output (semiconductor output) is also set HIGH.
Due to the combination of dynamic polling of the actuator and the redundant, diverse design of the safety electronics with the two feedback safety outputs, the evaluation unit will enter the safe state with every detectable fault.
When the safety guard is opened, the safety outputs switch off the safety circuit and the door monitoring output (OUT) is switched LOW. The state of the safety outputs is monitored internally by two microprocessors.
On an internal fault in the evaluation unit, the safety circuit is switched off and the OUT/ERROR LED illuminates red.
The evaluation unit has a redundant switching design with self-monitoring. This means that the safety system is still effective even if a component fails.
System Manual Safety System CES-A-W5H-01
1 2 3 4 5 6 7 8
0V
+ U
LA LB
OUT
+LA
-LAB +LB
B
I1
O1
0 V
0 V
E2
I9
O9
0 V
0 V
0 V
OUT
DC +24 V
+LB
-LAB
LB
+LA
LA
+ U
0V
(RD)
(BU)
(YE)
(PK)
(GN)
(GY)
(BN)
(WH)
+LA
LA
R
B
-LAB
+
-
Trans-
ponder
Pin assignment:
Common ground for output A and B
Load A
Pin
Core color
WH/white
BN/brown
GN/green
YE/yellow GY/gray PK/pink BU/blue
RD/red
Function
Coded actuator
Read head with evaluation unit CES-A-W5...
Housing: 118 x 40 x 40 mm
Connection: M 12x1 8-pin, screened
Read head
Safety input
Pulsed output
Input
Safety input
Pulsed output
Output circuit:
Screen bonding clamp
The screen on the connection cable is connected internally to the screen bonding clamp on the housing.
Safety PLC
with static /
dynamic signals
Connection example with safety PLC
Power supply for load A
Test pulse 0
Test pulse 1
Block diagram
7
System Manual Safety System CES-A-W5H-01
8
Changing the approach direction
Caution!
Risk of damage to equipment as a result of trapped cables.
Make sure that the cables are not trapped or torn off when the approach
direction is changed.
The active face of the read head can be adjusted in 5 directions. It is marked by the red face.
Unscrew the screws on the fastening bracket.
1.
Pull the read head from the fastening bracket and tilt the read head by 90°
2. (arrow 2).
The active face is now pointing downward.
Turn the read head by 180° (arrow 3).
3.
Re-tighten the screws for the read head on the fastening bracket. Tightening
4. torque 0.6 Nm.
Fastening bracket
Housing
Active face
Read head
Remove the clip from the underside of the housing to change the lateral ap-
5. proach direction.
Pull the read head off the housing and turn it in 90°-steps in the desired ap-
6. proach direction.
Fit the read head to the housing and re-fit the clip.
7.
Clip
Housing
Read head
Other approach directions
System Manual Safety System CES-A-W5H-01
min. 80mm
Operating
distance
Actuator
Operating
distance
Actuator
Flush mounting
Surface maounting
Installation
Caution!
Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise rendered ineffective.
On this topic pay attention in particular to the measures for reducing the pos-
sibility of bypassing according to EN 1088:1995.A2:2008, sec. 5.7.
Caution!
Risk of damage to equipment as a result of incorrect installation. Safety switches must not be used as a mechanical end stop.
Fit an additional end stop for the movable part of the safety guard.
Important!
From the assured switch-off distance Sar, the safety outputs are safely shut
down. When mounting several safety switches, observe the stipulated minimum dis-
tance to avoid mutual interference.
If the actuator is installed flush, the switching distance changes as a function
of the installation depth and the safety guard material.
Note the following points:
Actuator and safety switch must be easily accessible for inspection and re-
placement.
The switching operation must only be triggered by the specific actuator desig-
nated for this purpose.
9
System Manual Safety System CES-A-W5H-01
10
Actuator and safety switch must be fitted so that
the front faces are at the minimum switch-on distance 0.8 x Sao or closer
(see section Operating distances). To avoid entering the area of possible side lobes, a minimum distance is to be maintained in case of a side approach direction. See section Typical operating distance for the related actuator. when the safety guard is open up to the distance Sar (assured switch-off dis-
tance), a hazard is excluded. the actuator is positively mounted on the safety guard, e.g. by using the
safety screws included. they cannot be removed or tampered with using simple means.
Pay attention to the maximum tightening torque for the read head or safety
switch and actuator mountings of 1 Nm. For read heads/actuators made of PE-HD, the maximum tightening torque is only 0.5 Nm.
System Manual Safety System CES-A-W5H-01
+UB
0 V OUT
0 V
+24 V
+LA
LA
+LB
LB
-LAB
S11
S12
S22
S21
A2
A1
CES-A-W5...
Electrical Connection
Warning!
Loss of the safety function due to incorrect connection. Not suitable for safety relays that realize short-circuit monitoring with different potentials (0 V/24 V). The voltage at +LA/+LB must correspond to the informa tion in the technical data.
-
Warning!
Caution!
In case of an error, loss of the safety function through incorrect connection.

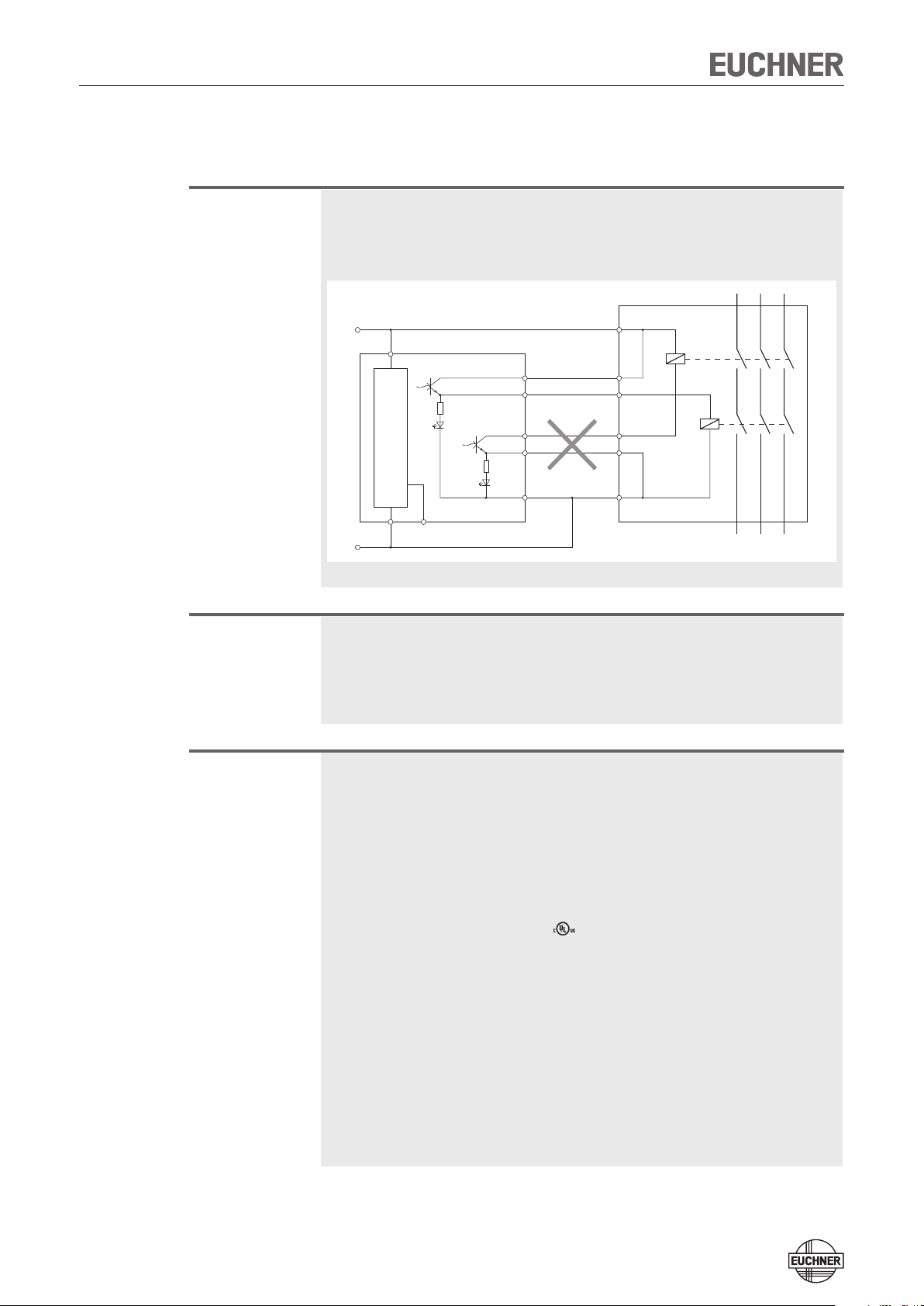

To ensure safety, both safety outputs (LA and LB) must always be evaluated.
The monitoring output OUT must not be used as a safety output.
Lay the connection cables with protection to prevent the risk of short cir-
cuits.
Risk of damage to equipment or malfunctions as a result of incorrect connec­tion.
The inputs on an evaluation unit connected must be positive-switching, as the
two outputs on the safety switch deliver a level of +24 V in the switched-on state. All the electrical connections must either be isolated from the mains supply
by a safety transformer according IEC 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures. For use and operation as per the requirements, a power supply with the
feature "for use in class 2 circuits" must be used. The same requirement ap­plies to the safety outputs. Alternative solutions must comply with the following requirements: a) Electrically isolated power supply unit with a max. open-circuit voltage of 30
V/DC and a limited current of max. 8 A.
b) Electrically isolated power supply unit in combination with fuse as per UL248.
This fuse should be designed for max. 3.3 A and should be integrated into the 30 V/DC voltage section.
All electrical outputs must have an adequate protective circuit for inductive
loads. The outputs must be protected with a free-wheeling diode for this pur­pose.
11
System Manual Safety System CES-A-W5H-01
12
Caution!
Power devices which are a powerful source of interference must be installed
in a separate location away from the input and output circuits for signal pro­cessing. The cable routing for safety circuits should be as far away as pos­sible from the cables of the power circuits. If a common power supply is used, all the inductive and capacitive loads
(e.g. relay contactors) connected to the power supply must be connected to appropriate interference suppressors.
Warning!
Electrical connection may only be performed by authorized personnel trained
in EMC and with the device and wiring isolated. The device is fully encapsulated, it is therefore not possible to remove the lid
from the housing.
Important!
If the device does not appear to function when operating voltage is applied (e.g. green STATE LED does not illuminate or flash), the safety switch must be returned unopened to the manufacturer.
Safety in case of faults
The operating voltage UB is reverse polarity protected.
The contacts LA/LB and -LA/-LB are short circuit-proof, however they are not
reverse polarity protected.
A short circuit between LA and LB can only be detected by external pulsing.
A short circuit in the cable can be excluded by laying the cable with protection.
The device meets the necessary EMC regulations even with an unscreened
connection cable. For applications that are particularly sensitive to interfer­ence, a screened cable can be connected to the screen bonding clamp. This bonding clamp can be electrically connected to the machine ground via the fastening screws. The screen at the open end of the cable must also be con­nected electrically to the machine ground.
System Manual Safety System CES-A-W5H-01
Safety switch CES-A-W5...
Voltage drop as a function of switching current and cable length (examples)
Switching current Cable length "l" Voltage drop Max. voltage drop Max. voltage drop
[mA] [m] Output [V] Cable [V] Total [V]
(safety control system with
6
pulsed signals)
50
(safety relay)
400
(e. g. small contactor)
1 -100 1,4 0,1 1,5
101 - 300 1,4 0,4 1,8
1 - 15 1,5 0,2 1,7
16 - 50 1,5 0,5 2,0
51 - 100 1,5 1,0 2,5
101 - 300 1,5 3,0 3,5
1 - 15 1,7 1,2 2,9
16 - 50 1,7 4,0 5,7
51 - 100 1,7 8,0 9,7
101 - 300 1,7 - -
13
System Manual Safety System CES-A-W5H-01
14
Correct connection
Important!
To ensure safety, both safety outputs (LA and LB) must be evaluated. To achieve category 4 according to EN ISO 13849-1, it is necessary to moni­tor the downstream contactors.
 
Warning!
In case of an error, loss of the safety function through incorrect connection.
To ensure safety, both safety outputs (LA and LB) must always be evaluated. Single-channel use of the safety outputs leads to a reduction of the category in accordance with EN ISO 13849-1.
M
+ 24 V
+ 24 V
+ 24 V
0 V
+U
B
OUT
-LAB
LB
+LB
LA
+LA
Monitoring output
(no safety fnction!)
Safety output LB
Safety outpu LA
To the
control system
Application
CES-A-W5...
+ 24 V
+ 24 V
+ 24 V
0 V
+U
B
OUT
-LAB
LB
+LB
LA
+LA
CES-A-W5...
M
Monitoring output
(no safety fnction!)
Safety output LB
Safety outpu LA
To the
control system
Application
System Manual Safety System CES-A-W5H-01
+24V DC
-F1
GND
Power Supply
Safety - PLC with static / dynamic signals
O1 Pulsed output
O2 Pulsed output
I1 Input
I2 Input
A1
+LA
LA
+LB
LB
-LAB
0V
+UB
OUT
Read head
6
3
8
4
EUCHN ER
CES-A-W5H- 01
097525
7
1
GND
+24V DC
-F2
2
5
Connection example
CES-A-W5H-01
Important!
To achieve category 4 according to EN ISO 13849-1, it is necessary to monitor the downstream contactors (not shown here). This example shows only an excerpt that is relevant for connection of the CES system. The example illustrated here does not show complete system planning. The user is responsible for safe integration in the overall system.
15
System Manual Safety System CES-A-W5H-01
16
8
3
5
7
4
21
6
Pin assignment safety switch CES-A-W5...
The screen on the connection cable is con-
nected internally to the device screen bond-
ing clamp via the knurled nut on the M12
LED indicators
1 0 V 5 OUT 2 + UB 6 + LA 3 LA 7 -LAB 4 LB 8 +LB
View of connection side of the device
plug connector.
Reset
STATE LED green Normal operation
Flashing Self-test after operating voltage is applied
OUT/ERROR LED yellow Valid actuator detected
LED red - Error message
(see status table)
In case of an operating fault, the evaluation unit can be reset to the operating state by interrupting the power supply for approx. 10 seconds.
System Manual Safety System CES-A-W5H-01
Functional check
After installation and any fault, the safety function must be fully checked. Proceed as follows:
Warning!
Danger of fatal injury as a result of faults in installation and functional check.
Before carrying out the functional check, make sure that there are no per-
sons in the danger area. Observe the valid accident prevention regulations.
Switch on operating voltage.
1.
The safety switch carries out a self-test.
The green STATE LED flashes up to three times. The STATE LED then lights up continuously. The OUT and ERROR LEDs do not light up.
Close all safety guards.
2.
The machine must not start automatically.
The green STATE LED and the yellow OUT LED light up continuously.
Enable operation in the control system.
3.
Open the safety guard.
4.
The machine must switch off and it must not be possible to start it as long as
the safety guard is open.
The green STATE LED lights up continuously; the OUT and ERROR LEDs do not
light up.
Repeat steps 2-4 for each safety guard.
17
System Manual Safety System CES-A-W5H-01
18
System Status Table
Operating mode
Normal operation
State indication
Fault display
Key to symbols
PLC
Output
Actuator/
Guard position
Safety outputs LA and LB
closed on 1 Normal operation, door closed
open off 0 Normal operation, door open
X off 0
X off 0
OUT (status signal)
N 0 Volt or not connected
1 24 Volt
0 0 Volt
LED display
STATE (green)
3 x +
State
OUT/ERROR (yellow)
OUT/ERROR (red)
Self-test after operating voltage is applied
Device-internal component failure or excessively high interference (EMC) or short circuit/external power at the LA/LB safety output
LED is not lit
LED is lit
3 x +
X Any state
LED flashes three times and then lights up continuously
System Manual Safety System CES-A-W5H-01
+LA
LA
+LB
LB
+UB OUT
+LA
LA
+LB
LB
+UB
OU T
30
M12x1
±0,1
±0,1
13
118
45,5
40
5,3
60
7,3
( 131 )
16,5
40,5
30
40
LED gn LED rd/ye
Technical Data
Note
If a product data sheet is included with the product, the information on the data sheet applies in case of discrepancies with the operating instructions.
Safety switch CES-A-W5...
Read head and evaluation unit integrated in the standard housing
ApprovalsApprovals
Semiconductor output
M12 plug connector
Dimension drawing
Active face
Read head
Safety guard
ing distance)
Read head
Switching characteristics
2 safety outputs
(semiconductor outputs) 1 door monitoring output
closed (actuator detected) open (actuator not in the operat-
Actuator
(semiconductor output, not a safety output)
Typical operating distance
See page 22 and page 24.
19
System Manual Safety System CES-A-W5H-01
20
Technical Data
Parameter
min. typ. max.
Value
Unit
Housing material Plastic PBT V0 GF30 Dimensions According to EN 60947-5-2 mm Weight 0,4 kg Ambient temperature at UB = DC 24 V -20 - +55 °C Degree of protection IP67 Degree of contamination 3 Rated insulation voltage U Rated impulse withstand voltage U Rated conditional short-circuit current 100 A
i
imp
- - 300
- - 1,5 kV
1)
Resilience to vibration According to EN 60947-5-2 Installation position Any Connection type M12 plug connector, 8-pin, screen can be applied Operating voltage UB (regulated, residual ripple < 5 %) 18 24 27 V DC For the approval according to UL the following applies Operation only with UL Class 2 power supply, or equivalent measures Current consumption 80 mA Switching load according to UL max. DC 24 V, class 2 External fuse (operating voltage UB) 0,25 - 8 A Power supply for load U(+LA)/U(+LB) 18 - 27 V DC Safety outputs (LA / LB, 2 semiconductor outputs, p-switch
ing, short circuit-proof, electrically decoupled)
- Output voltage U(LA/U(LB)
2)
-
HIGH U(LA) U(+LA) - 1.5 - U(+LA) HIGH U(LB) LOW U(LA)/U(LB)
U(+LB) - 1.5 - U(+LB) V DC
0 - 1 Switching current per safety output 1 - 400 mA External fuse (U(+LA)/U(+LB), safety circuit 400 mA medium slow-blow Utilization category to EN 60947-5-2 DC-13 24V 400mA Classification according to EN 60947-5-3 PDF-M Door monitoring output (OUT, semiconductor output, p-
switching, short circuit-proof)
- Output voltage 0.8 x U
- Max. load - - 20 mA Switching delay from state change Discrepancy times of both safety outputs - - 120 ms Ready delay Dwell time
4)
5)
3)
B
- - 180 ms
- - 3 s
0,5 - - s
- U
B
V DC
Switching frequency - - 1 Hz Repeat accuracy R according to EN IEC 60947-5-3 10 % Mounting distance between 2 read heads or 2 actuators
80 - - mm EMC protection requirements In acc. with EN 60947-5-3 LED displays STATE Green LED: Normal operation
OUT/ERROR Yellow LED: Actuator detected OUT/ERROR Red LED: - EMC interference
- Internal electronics fault
- Invalid teach-in operation
Reliability figures according to EN ISO 13849-1
Category 4 Performance Level (PL) PL e PFH
d
Mission time 20 years
1) Tested by BG up to 75 V.
2) Values at a switching current of 50 mA without taking into account the cable lengths.
3) Corresponds to the risk time according to EN 60947-5-3. This is the maximum switch-off delay for the safety outputs following removal of the actuator.
4) After the operating voltage is switched on, the semiconductor outputs are switched off and the monitoring outputs are set LOW during the ready delay.
5) The dwell time of an actuator inside and outside the operating distance must be at least 0.5 s to ensure reliable detection of internal faults in the evaluation unit (self-monitoring).
6) Applying the limit value from EN ISO 13849-1:2008, section 4.5.2 (MTTF
= max. 100 years), BG certifies a PFHd of max. 2.47 x 10-8.
d
3,7 x 10-9 / h
6)
V
Ordering table
Series Category according to EN ISO 13849-1 Order no. / item
CES-A-W5...
4
097525
CES-A-W5H-01
System Manual Safety System CES-A-W5H-01
30
±0,1
40
- 0,25
0
CES-A-BPA-098775
IP67
CD
10
4
Ø 5,2
Actuator CES-A-BPA
Cube-shaped design 40 x 40 mm
Dimension drawing CES-A-BPA
2 safety screws M4 x 14 are supplied
Active face
Active face
Technical Data
Parameter
Housing material PPS Dimensions 40 x 40 x 10 mm Weight 0,025 kg Ambient temperature -25 - +70 °C Degree of protection IP67/IP69K Installation position Active face opposite read head Power supply Inductive via read head
min. typ. max.
Ordering table
Series Comment Version Order no. / item
CES-A-BPA
2 safety screws M4 x 14 are supplied
Value
-
098775
CES-A-BPA
Unit
21
System Manual Safety System CES-A-W5H-01
22
45 40 35 30 25 20 15 10
-45
5
Z
Y
X
5
10
15
20
25
30
35
40
45
45
40
-45
35
30
25
20
15
10
5
Typical operating distance
Only in conjunction with actuator CES-A-BPA on surface mounting.
For a side approach direction for the actuator and read head, a minimum distance of s = 6 mm
must be maintained so that the operating distance of the side lobes is not entered.
Operating distance for center offset m = 0
Parameter
Switch-on distance - 22
Assured switch-on distance S
Switching hysteresis 1 2 -
Assured switch-off distance S
1) On surface mounting on aluminum, in a non-metallic environment the typical switching distance increases to 30 mm.
ao
ar
min. typ. max.
15 - -
- - 58
Value
Unit
1)
-
mm
System Manual Safety System CES-A-W5H-01
CES-A-B 071840
25
ø8
ø4,5
42
32
±0,1
12
4,6
42
32
± 0,10
25
31
48
4,
5
8
2 12
4,6
Actuator CES-A-BBA/CES-A-BCA
Cube-shaped design 42 x 25 mm
CES-A-BCA suitable for use in aggressive media (e.g. acids, alkalis)
Approvals CES-A-BBA onlyApprovals CES-A-BBA only
Approvals CES-A-BCA onlyApprovals CES-A-BCA only
Dimension drawing CES-A-BBA
Active face Active face
2 safety screws M4 x 14 are supplied
Dimension drawing CES-A-BCA
Flat seal
2 safety screws M4 x 14 are supplied
Active face
Active face
Note
CES-A-BCA: The flat seal provided must be used during assembly.
Technical Data
Parameter
Housing material
- CES-A-BBA Fortron, reinforced thermoplastic, fully encapsulated
- CES-A-BCA Plastic PE-HD without reinforcement, fully encapsulated Flat seal material (CES-A-BCA only) Fluororubber 75 FPM 4100 Dimensions 42 x 25 x 12 mm Weight 0,02 kg Ambient temperature
- CES-A-BCA -25 - +50 Degree of protection IP67/IP69K Installation position Active face opposite read head Power supply Inductive via read head
min. typ. max.
Ordering table
Series Comment Version Order no. / item
CES-A-BBA
CES-A-BCA
2 safety screws M4 x 14 are supplied
2 safety screws M4 x 14 are supplied
Flat seal included
Housing material PE-HD
Value
-
071840
CES-A-BBA
088786
CES-A-BCA
Unit
°C- CES-A-BBA -25 - +70
23
System Manual Safety System CES-A-W5H-01
24
X
25
15
20
10
5
20
25
30
5
10
15
-30
30
-30
25
20
15
10
5
Y
Z
Typical operating distance
Only in combination with actuator CES-A-BBA or CES-A-BCA
For a side approach direction for the actuator and safety switch, a minimum distance of s = 4 mm
must be maintained so that the operating distance of the side lobes is not entered.
Value
1)
Unit
mm
Operating distance for center offset m = 0
Parameter
Assured switch-on distance S
ao
Switch-on distance - 20 -
Switching hysteresis 2 3 -
Assured switch-off distance S
ar
1) The values apply for surface installation of the actuator.
min. typ. max.
18 - -
- - 40
System Manual Safety System CES-A-W5H-01
Inspection and Service
Warning!
Loss of the safety function because of damage to the device. In case of damage, the related safety component must be replaced. The replace­ment of individual parts in a safety component is not permitted.
Regular inspection of the following is necessary to ensure trouble-free long-term operation:
Check the switching function (see section Functional check)
Check the secure fastening of the devices and the connections
Check for soiling
Check for sealing of the plug connector on the safety switch
Check for loose cable connections on the plug connector.
Check of the switch-off distance
No servicing is required. Repairs to the device are only allowed to be made by the manufacturer.
Note!
Service
The year of manufacture can be seen on the rating plate in the lower right corner.
If service support is required, please contact:
EUCHNER GmbH + Co. KG
Kohlhammerstraße 16
D-70771 Leinfelden-Echterdingen
Service telephone:
07 11 / 75 97 - 301
E-mail:
info@euchner.de
Internet:
www.euchner.de
25
System Manual Safety System CES-A-W5H-01
26
Declaration of Conformity
System Manual Safety System CES-A-W5H-01
27
More than safety.
Euchner GmbH + Co. KG Kohlhammerstraße 16 D-70771 Leinfelden-Echterdingen
info@euchner.de www.euchner.de
Issue: 097526-07-01/12 Title: System Manual Safety System CES-A-W5... (Translation of the Original Operating Instructions) Copyright: © EUCHNER GmbH + Co. KG, 01/2012
Subject to technical modifications; no responsibility is accepted for the accuracy of this information.
Loading...
