ETS-Lindgren HI-2200 User Manual
HI-2200
RF Survey Meter
User Manual
ETS-Lindgren L.P. reserves the right to make changes to any product described
herein in order to improve function, design, or for any other reason. Nothing
contained herein shall constitute ETS-Lindgren L.P. assuming any liability
whatsoever arising out of the application or use of any product or circuit
described herein. ETS-Lindgren L.P. does not convey any license under its
patent rights or the rights of others.
© Copyright 2003–2009 by ETS-Lindgren L.P. All Rights Reserved. No part
of this document may be copied by any means without written permission
from ETS-Lindgren L.P.
Trademarks used in this document: The ETS-Lindgren logo and ProbeView are
trademarks of ETS-Lindgren L.P.; Microsoft and Windows are registered
trademarks of Microsoft Corporation in the United States and/or other countries.
Revision Record | HI-2200, RF Survey Meter, Manual | Part #H-600095, Rev. D
Revision Description Date
A Initial Release December, 2003
B Update Application section and
overall style
C Update Model H210 H-Field Probe
specifications; rebrand
D Updated dynamic range for
Model C300 E-Field Probe
ii |
April, 2007
September, 2008
June, 2009
Table of Contents
Notes, Cautions, and Warnings .............................................. vii
1.0 Introduction .......................................................................... 9
Control / Meter Module Features ................................................................. 10
Harness ....................................................................................................... 10
Standard Configuration ................................................................................ 10
Optional Items .............................................................................................. 11
ETS-Lindgren Product Information Bulletin ................................................. 12
2.0 Maintenance ....................................................................... 13
Battery Replacement ................................................................................... 13
Annual Calibration ....................................................................................... 13
Replacement and Optional Parts ................................................................. 14
Service Procedures ..................................................................................... 14
3.0 Specifications ..................................................................... 15
Meter Specifications .................................................................................... 15
Probe Specifications .................................................................................... 15
Model E100 E-Field Probe................................................................... 15
Model H200 H-Field Probe .................................................................. 16
Model H210 H-Field probe................................................................... 17
Model C300 E-Field Probe .................................................................. 17
Model C310 E-Field Probe .................................................................. 18
Physical Specifications ................................................................................ 19
4.0 Assembly and Installation ................................................ 21
Installing the Batteries ................................................................................. 21
5.0 Keypad and Display ........................................................... 23
Keypad Description ...................................................................................... 23
Screens Description ..................................................................................... 25

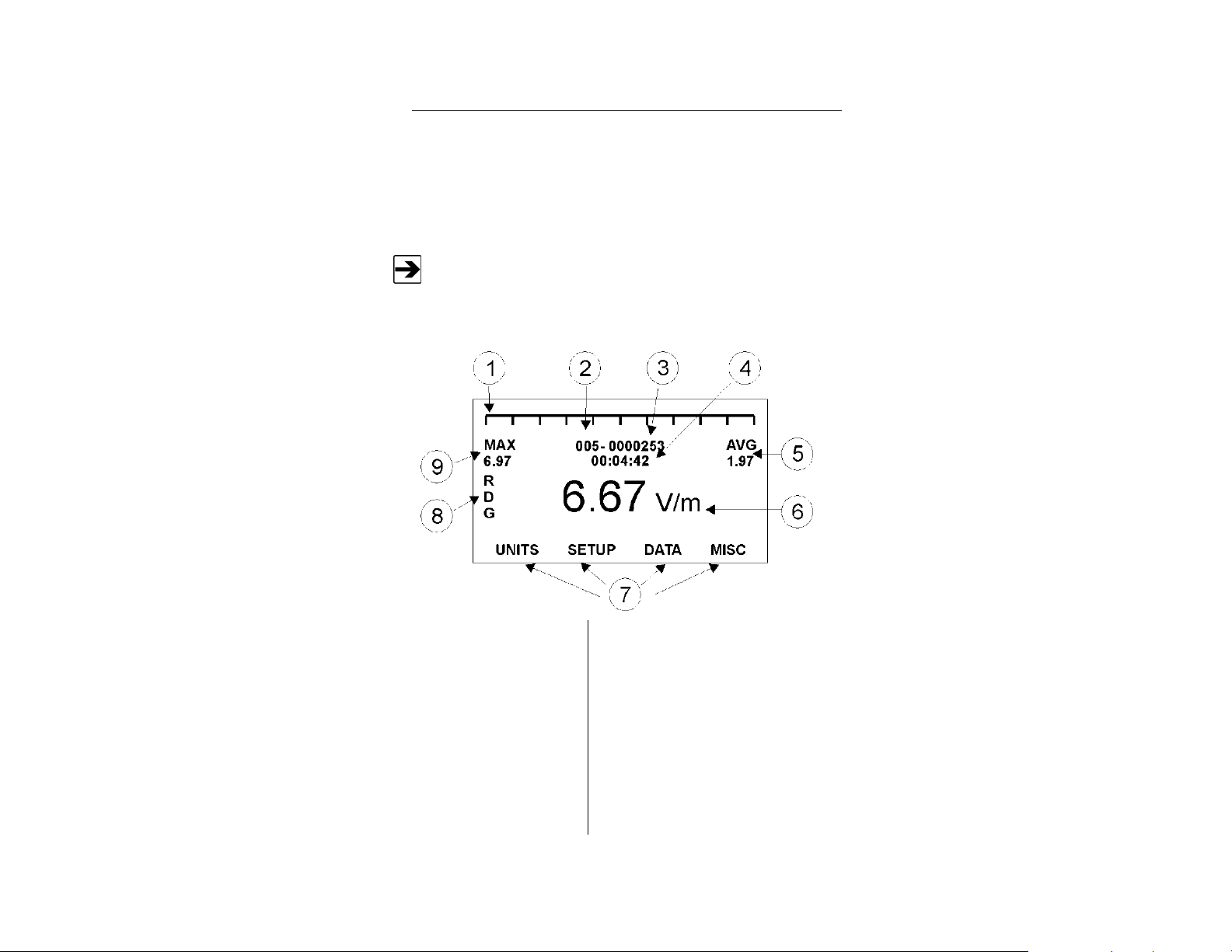

Monitoring and Top Level Navigation Screen ...................................... 25
6.0 Operation ............................................................................ 27
Connecting the Probe .................................................................................. 27

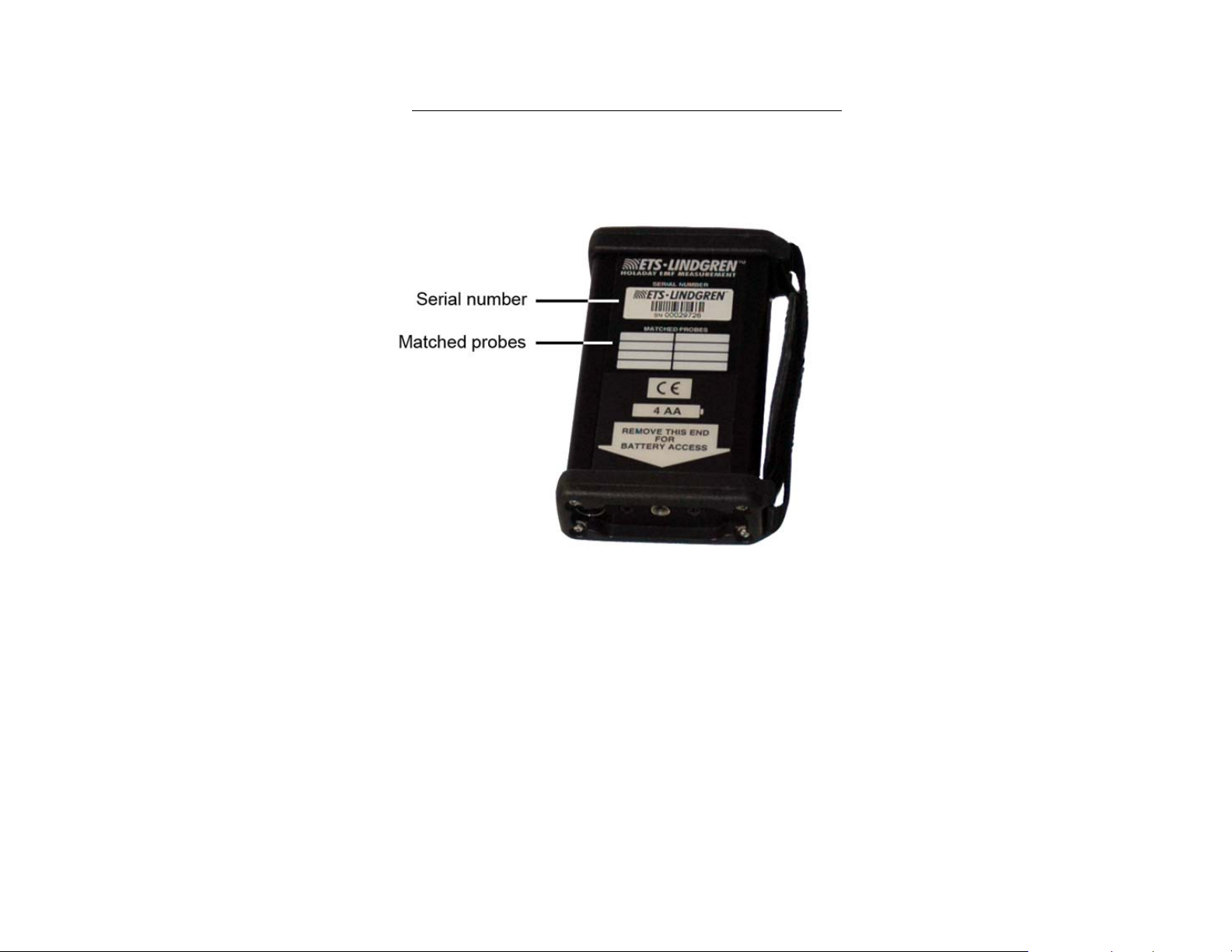

About Matched Probes ................................................................................ 28
Powering Up ................................................................................................ 29
| iii
Possible Error Messages at Start Up ................................................... 29
Probe Units .................................................................................................. 29
Units for the E-Field Probe .................................................................. 29
Units for the H-Field Probe .................................................................. 30
Units for the Conformal Field Probes................................................... 30
Setup ........................................................................................................... 30
Log Mode ............................................................................................. 30
Alarm Point .......................................................................................... 31
Audio .................................................................................................... 31
Graph Style .......................................................................................... 32
Avg Window ......................................................................................... 32
Display Mode ....................................................................................... 33
Number Digits ...................................................................................... 34
AVG Mode ........................................................................................... 34
Data ............................................................................................................. 34
Log View .............................................................................................. 34
Log Upload .......................................................................................... 35
Log Delete ........................................................................................... 35

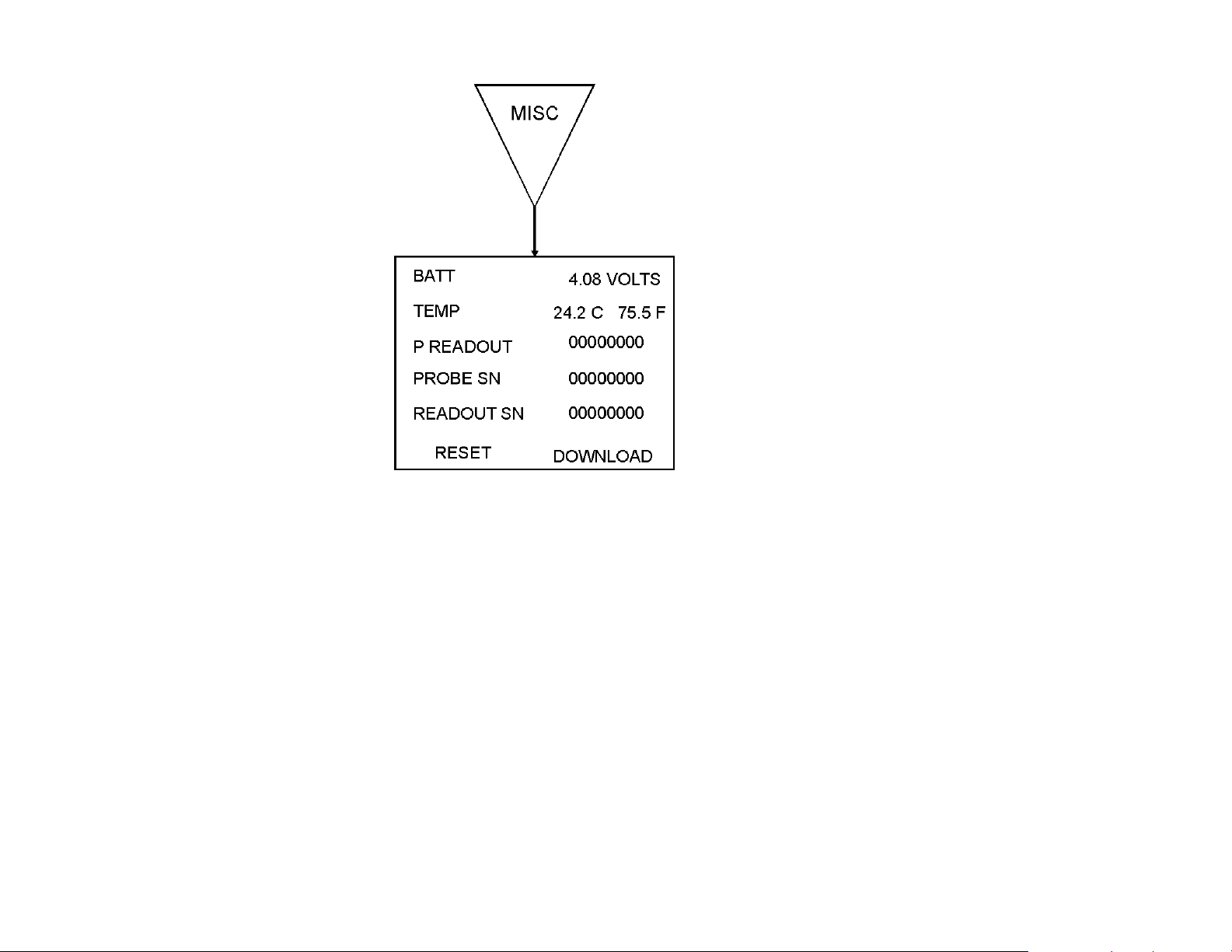

Miscellaneous .............................................................................................. 36
Reset ................................................................................................... 36
Download ............................................................................................. 36
7.0 Application ......................................................................... 37
Begin Logging .............................................................................................. 37
Probe Support Structures ............................................................................ 38
Averaging ..................................................................................................... 38
8.0 Upload Utility ...................................................................... 41
Install Upload Utility ..................................................................................... 41
Start Upload Utility ....................................................................................... 41
Upload Data ................................................................................................. 42
View Data .................................................................................................... 42
9.0 Download Utility ................................................................. 43
Install Download Utility ................................................................................. 43
Start Download Utility .................................................................................. 43
Download the File ........................................................................................ 44
Appendix A: Warranty ............................................................. 45
iv |

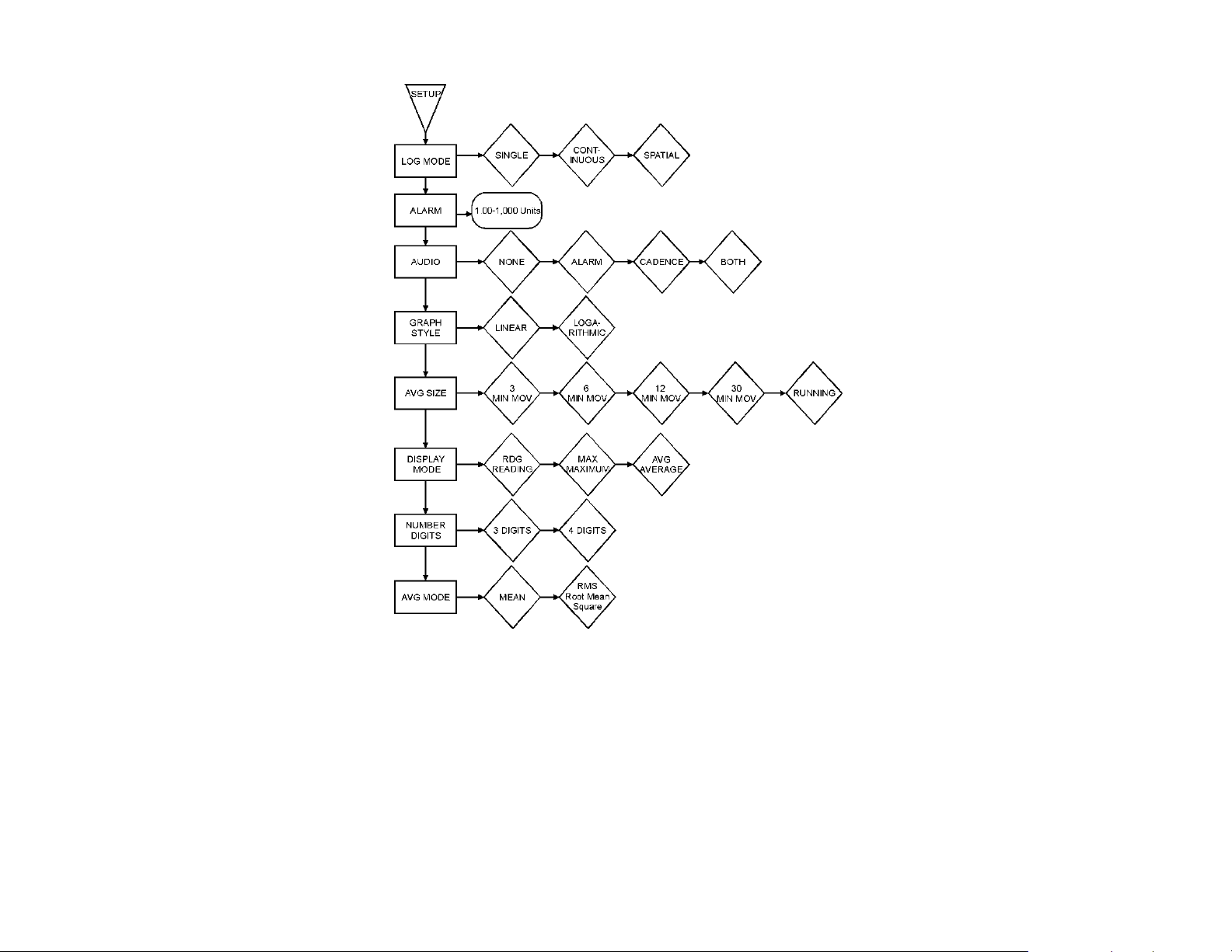

Appendix B: Menu Tree ........................................................... 47

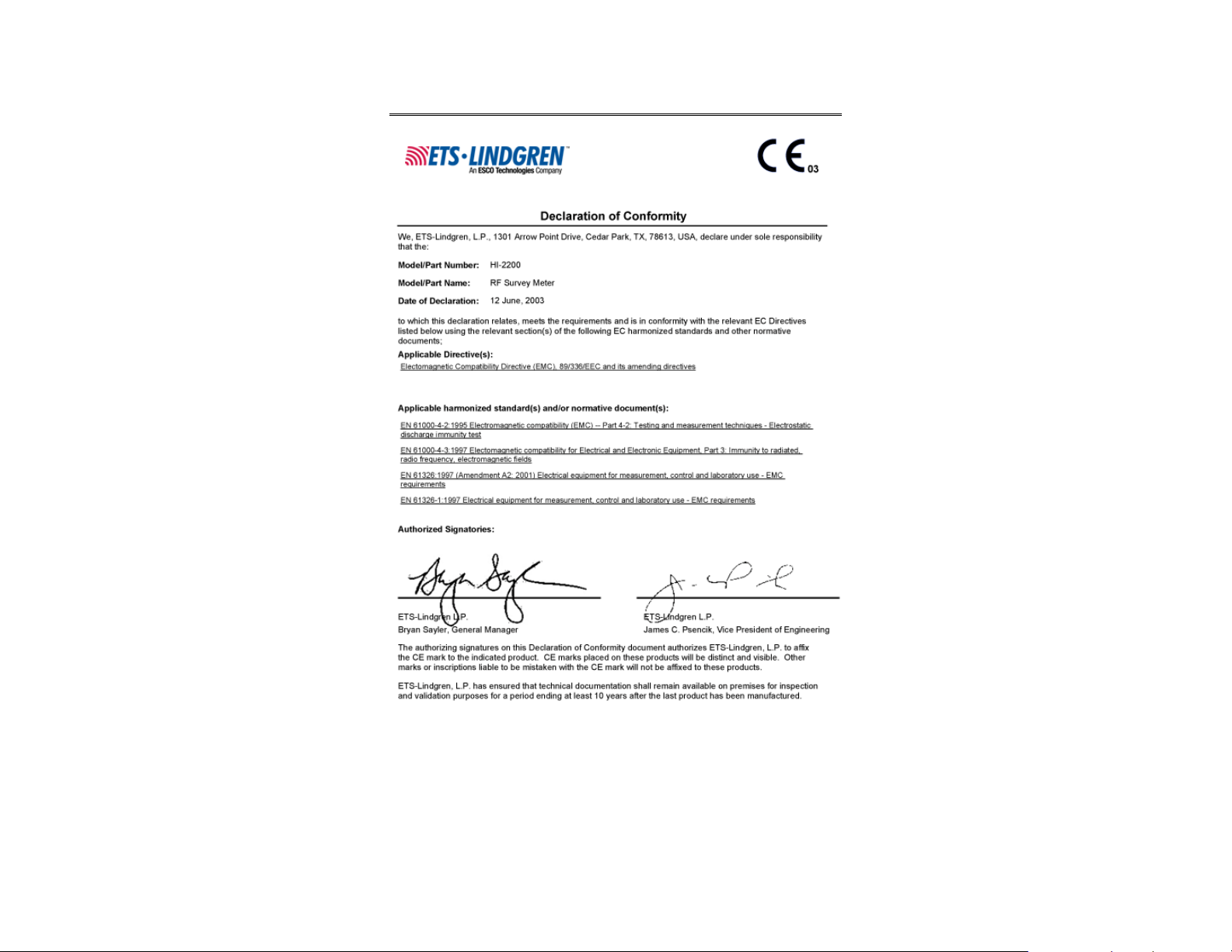

Appendix C: EC Declaration of Conformity .......................... 53
| v
This page intentionally left blank.
vi |
Notes, Cautions, and Warnings
Note: Denotes helpful information intended to
See the ETS-Lindgren Product Information Bulletin for safety,
regulatory, and other product marking information.
provide tips for better use of the product.
Caution: Denotes a hazard. Failure to follow
instructions could result in minor personal injury
and/or property damage. Included text gives proper
procedures.
Warning: Denotes a hazard. Failure to follow
instructions could result in SEVERE personal injury
and/or property damage. Included text gives proper
procedures.
| vii
This page intentionally left blank.
viii |
1.0 Introduction
The ETS-Lindgren Holaday HI-2200
RF Survey Meter is designed for basic
radio frequency (RF) safety
measurements. The survey meter is a
compact measurement system with
interchangeable probes that provides
testing flexibility. Applications include
broadcast, commercial radio, television,
mobile communication, and health care
facilities. Electric and magnetic probes
are sold separately; see the
specifications section for a detailed
description of available probes.

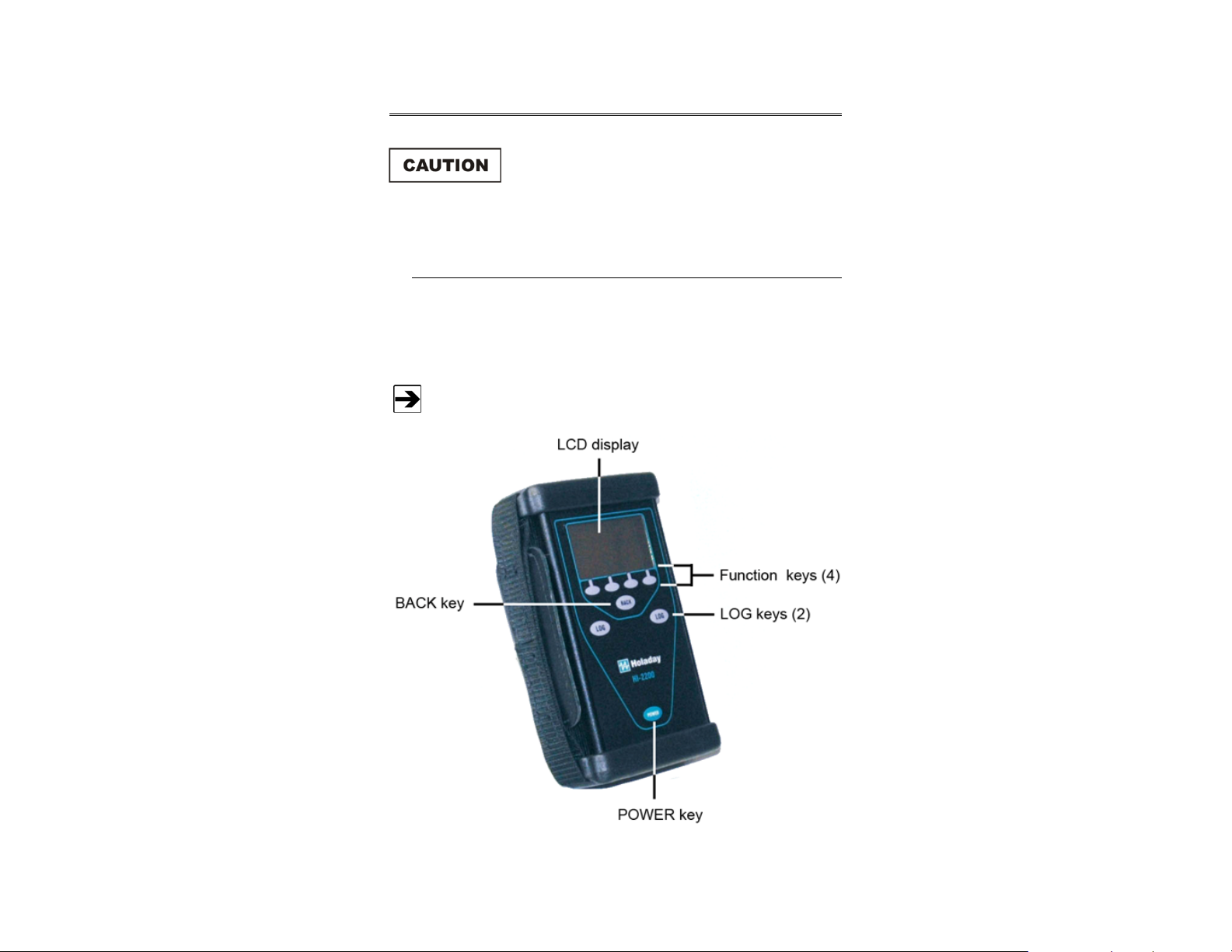

The front panel of the HI-2200 includes an LCD display and a keypad; for a
description of the keys, see Keypad Description on page 23. A probe connection
is located at the top of the unit. At the bottom of the unit is a serial I/O connector
configured as a mini DIN, and a receptacle for mounting the unit on a tripod,
dielectric handle, or the harness.
Introduction | 9
Control / Meter Module Features
• Data logging capability
• Interchangeable field probes
• Easy to use space and temporal averaging
• Lightweight, hand-held design
• Large graphical display
• Adjustable alarm threshold
• User selectable meter units
• RS-232 data interface
• Greater than 20 hour battery life for four, AA, replaceable alkaline
batteries
• Reversible hand strap for right or left hand use
Harness
The HI-2200 harness is designed to assist in carrying the unit in the field. The
purpose of the harness is to provide hands-free movement. It is not intended to
be a climbing harness. Above ground level, use proper personal safety
equipment while climbing.
Standard Configuration
• RF Survey Meter
• RS-232 Cable, Mini-DIN to D89
• Upload/Download Software
• Harness
• Carrying Case
• AA Alkaline Batteries (4)
10 | Introduction
Optional Items
• H-651020 Fiber Optic Link Kit—ProbeView II™ software combined
with the Fiber Optic Link Kit allows the user to optically link the HI-2200
with a personal computer for remote monitoring and data logging. The
use of the optical interface and fiber cable reduces the possibility of
field disturbances as seen when using traditional wire cables.
• H-491009 Tripod—This
Dielectric Tripod is the preferred
method for mounting field probes
for making unperturbed field
measurements. It includes a
1/4–20 UNC threaded stud for
mounting any ETS-Lindgren
probe with a tripod mount. It is
designed with an adjustable
center post and a rotating mount.
Introduction | 11
ETS-Lindgren Product Information Bulletin
See the ETS-Lindgren Product Information Bulletin included with your shipment
for the following:
• Warranty information
• Safety, regulatory, and other product marking information
• Steps to receive your shipment
• Steps to return a component for service
• ETS-Lindgren calibration service
• ETS-Lindgren contact information
12 | Introduction
2.0 Maintenance
Before performing any maintenance, follow
the safety information in the ETS-Lindgren
Product Information Bulletin included with
your shipment.
Maintenance of the HI-2200 is limited to
external components such as cables or
connectors.
WARRANTY
If you have any questions concerning
maintenance, contact ETS-Lindgren
Customer Service.
Battery Replacement
The HI-2200 requires four AA batteries. See Specifications on
page 15 for additional battery specifications.
If the HI-2200 RF Survey Meter fails to power on, the batteries may be depleted.

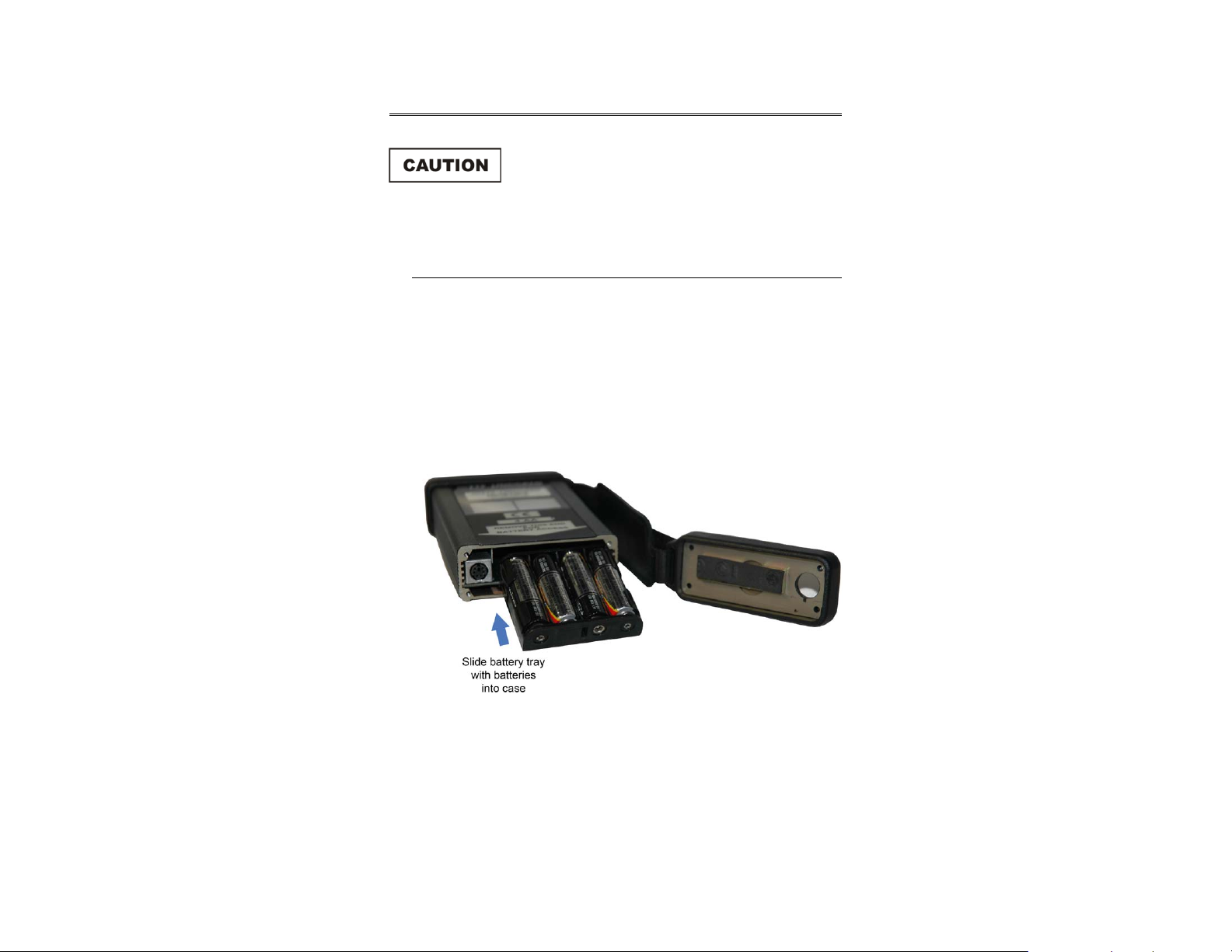

To replace the batteries, follow the steps in Installing the Batteries on page 21 to
remove the battery tray from the HI-2200 and install new batteries.
Annual Calibration
See the Product Information Bulletin included with your shipment for information
on ETS-Lindgren calibration services.
Maintenance | 13
Replacement and Optional Parts
Following are the part numbers for ordering replacement or optional parts for the
HI-2200.
Part Description Part Number
RF Survey Meter HI-2200
RS-232 Cable, Mini-DIN to D89 H-220110
Upload/Download Software H-491196
Harness H-470588
Carrying Case H-491243
AA Alkaline Batteries (4) 400032
Fiber Optic Link Kit H-651020
Tripod H-491009
Service Procedures
For the steps to return a system or system component to ETS-Lindgren for
service, see the Product Information Bulletin included with your shipment.
14 | Maintenance
3.0 Specifications
Meter Specifications
Internal Memory: >65,000 data points
User Selectable Units
(Probe Dependent):
Battery: Four AA
Operating Life: Approximately 20 hours
Operating Temperature: -10oC to 50oC
Connector: RS-232 I/O serial interface six-pin
V/m, μW/cm
mA/m
(1.2–1.5 V Nominal Alkaline or
Nickel-Metal Hydride or
Nickel-Cadmium)
(with new alkaline batteries)
mini DIN
Probe Specifications
2
, mW/cm2, W/m2 A/m,
Probes must be calibrated or matched prior to using them with the
HI-2200. For more information, see Matched Probes on page 28.
The following tables represent probes that are designed to be used with the
HI-2200 RF Survey Meter.
MODEL E100 E-FIELD PROBE
Model E100 E-Field Probe
Sensor Type: Electric Field
Detection: Isotropic (Total Field Indication)
Frequency Range: 100 kHz – 5 GHz
Frequency Response: ± 1 dB (1 MHz to 4 GHz)
Dynamic Range: 0.3 V/m to 800 V/m (Single Range)
Specifications | 15
Model E100 E-Field Probe
Overload Withstand: >1200 V/m
Isotropic Response: ± 0.7 dB @ 400 MHz
Units of Measure: V/m, µW/cm
2
,
mW/cm2, W/m2
E-Field Probe Dimension:
• Overall Length:
260 mm (10.3 in)
• Sensor Cover:
60 mm x 71.1 mm
2.4 in x 2.8 in
MODEL H200 H-FIELD PROBE
Model H200 H-Field Probe
Sensor Type: Magnetic Field
Detection: Isotropic (Total Field Indication)
Frequency Range: 5 MHz to 300 MHz
Frequency Response: ± 1 dB (10 MHz to 100 MHz)
± 2.5 dB (5 MHz to 300 MHz)
Dynamic Range: 30 mA/m – 10 A/m (Single Range)
Overload Withstand: 20 A/m
Isotropic Response: ± 0.7 dB @ 100 MHz
2
Units of Measure: A/m, mA/m µW/cm
,
mW/cm2, W/m2
E-Field Probe Dimension:
• Overall Length:
260 mm (10.3 in)
• Sensor Cover (Diameter):
60 mm (2.4 in)
16 | Specifications
Loading...
