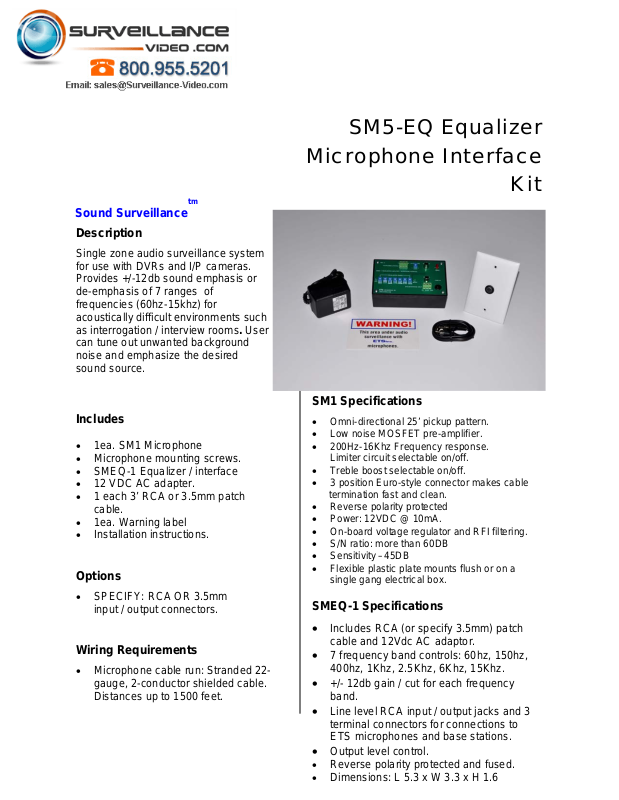

ETS SM5-EQ Specsheet

Sound Surveillance tm

Description

Single zone audio surveillance system
for use with DVRs and I/P cameras.
Provides +/-12db sound emphasis or
de-emphasis of 7 ranges of
frequencies (60hz-15khz) for
acoustically difficult environments such
as interrogation / interview rooms. User
can tune out unwanted background
noise and emphasize the desired
sound source.

SM5-EQ Equalizer

Microphone Interface

Kit

Includes

• 1ea. SM1 Microphone

• Microphone mounting screws.

• SMEQ-1 Equalizer / interface

• 12 VDC AC adapter.

• 1 each 3’ RCA or 3.5mm patch

cable.

• 1ea. Warning label

• Installation instructions.

Options

• SPECIFY: RCA OR 3.5mm

input / output connectors.

Wiring Requirements

• Microphone cable run: Stranded 22-

gauge, 2-conductor shielded cable.
Distances up to 1500 feet.

SM1 Specifications

• Omni-directional 25’ pickup pattern.

• Low noise MOSFET pre-amplifier.

• 200Hz-16Khz Frequency response.

Limiter circuit selectable on/off.

• Treble boost selectable on/off.

• 3 position Euro-style connector makes cable

termination fast and clean.

• Reverse polarity protected

• Power: 12VDC @ 10mA.

• On-board voltage regulator and RFI filtering.

• S/N ratio: more than 60DB

• Sensitivity –45DB

• Flexible plastic plate mounts flush or on a

single gang electrical box.

SMEQ-1 Specifications

• Includes RCA (or specify 3.5mm) patch

cable and 12Vdc AC adaptor.

• 7 frequency band controls: 60hz, 150hz,

400hz, 1Khz, 2.5Khz, 6Khz, 15Khz.

• +/- 12db gain / cut for each frequency

band.

• Line level RCA input / output jacks and 3

terminal connectors for connections to
ETS microphones and base stations.

• Output level control.

• Reverse polarity protected and fused.

• Dimensions: L 5.3 x W 3.3 x H 1.6
