ETS LEGEND 548, Rejuvasun 34, Ultimate Envy 434 User Manual

user manual

30068-02A

2 - Legend 548 Assembly and User Manual

30068-02A

48 MONTH “GOLD MEDAL” WARRANTY

Your ETS Distributor (including ETS, LLC if purchased
directly), through a manufacturer’s warranty, warrants
your tanning unit to be free of structural defects in mate­rial and workmanship, under normal use, for its lifetime.
Your ETS Distributor will, at its discretion, repair any
structural defect which materially affects the performance
of the tanning unit, or replace the tanning unit.

For forty-eight (48) months following the purchase date
of your tanning unit, your ETS Distributor will provide
replacements for parts that prove to be defective in ma­terial or workmanship, with the following exceptions:
gas springs, ballasts and electronic lamp starters are war­ranted against manufacturer’s defects for a period of one
(1) year; “glow tube” lamp starters and cracked or broken
endcaps are warranted against manufacturer’s defects for
a period of ninety (90) days; fl uorescent lamps are war-
ranted against manufacturer’s defects for a period of thirty
(30) days; acrylics are warranted against manufacturer’s
defects for a period of one (1) year (prorated) following
the purchase date of your tanning unit. Shipping charges
will be covered during the fi rst ninety (90) days following
the purchase date.

Your ETS Distributor (including ETS, LLC if purchased
directly), also extends to you a two (2) year parts warranty
on all T-Max® remote system components. External volt­age transformers (buck-boosters) are covered by a one (1)
year parts and labor warranty , provided you send back the
defective transformer.

Labor costs associated with repair or replacement work
covered by this warranty will be reimbursed for repair or
replacement work required to be performed for a period
of ninety (90) days following the shipping date of your
tanning unit. Normal wear and tear, damage from misuse
or abuse, damage incurred in transit or damages resulting
from unauthorized repairs or modifi cations are not cov-
ered by this warranty . Warranty coverage does not include
cosmetic abnormalities such as scratches, nicks, dents, or
other cosmetic changes that do not materially interfere
with the function of the tanning unit.

THIS 48 MONTH “GOLD MEDAL” WARRANTY IS
EXPRESSLY MADE IN LIEU OF ANY OTHER WAR­RANTIES, EXPRESS OR IMPLIED, INCLUDING
ANY IMPLIED WARRANTIES OF MERCHANTABIL­ITY AND FITNESS FOR A PARTICULAR PURPOSE,

WHICH ARE HEREBY DISCLAIMED. No one has the
authority to change or modify this 48 Month “Gold Medal”
Warranty in any respect. To obtain service under this 48
Month “Gold Medal” Warranty, contact your authorized
ETS Distributor (or ETS, LLC if purchased directly).
Proof of purchase, including serial number, is required.

IN NO EVENT SHALL YOUR DISTRIBUTOR OR
THE MANUFACTURER BE LIABLE AT LAW OR IN
EQUITY FOR ANY LOSS, LIABILITY, DAMAGE OR
EXPENSE IN AN AMOUNT IN EXCESS OF THE PUR­CHASE PRICE RECEIVED, OR FOR LOSS OF USE
OR PROFITS, LOSS OF TIME, INCONVENIENCE,
RENTAL OR SUBSTITUTE PRODUCTS, LOSS OF
BUSINESS, LOSS OF INCOME, OR ANY OTHER IN­CIDENTAL, INDIRECT, SPECIAL OR CONSEQUEN­TIAL DAMAGES. Some states do not allow the exclu­sion or limitation of incidental or consequential damages,
and the above limitation or exclusion will not apply to
residents of some states. This 48 Month “Gold Medal”
Warranty gives you specifi c, legal rights and you may
have other rights which may vary from state to state.

All warranty service must be performed by an autho­rized service person using only ETS authorized replace­ment parts. Use of non-authorized parts may void your
warranty. All labor charges must be authorized by your
ETS Distributor prior to the start of repairs and must not
exceed the established rates and time allotment policies
established by your ETS Distributor. If your tanning
unit must be returned for service within thirty (30) days
from the purchase date, freight charges will be paid for
by your ETS Distributor, after which all freight charges
shall be at your expense. Contact your ETS Distributor
for the authorized Service Center nearest you. This war­ranty is serial number specifi c and only applies to tanning
units purchased through an authorized ETS Distributor.
This warranty is extended to the individual or legal entity
whose name appears on the original sales document and
may not be transferred to any other individual or legal en­tity . This warranty is void if the tanning unit is modifi ed in
any manner from its original design.

To obtain warranty service, contact your place of pur­chase. Proof of purchase, including serial number, is
required for verifi cation. Contact ETS, LLC only if you
purchased your equipment directly.

Legend 548 Assembly and User Manual - 3

30068-02A

Thank you for purchasing this tanning bed.
It has been designed to provide years of de­pendable service for you.

Please read all the instructions in this booklet
before installing and using the unit. Always
be sure to observe all safety precautions.

Contents

Unpacking and inspection .......................6

Pre-installation Planning ..........................6

Electrical Requirements ............................6

Disassembly ............................................7

Assembly ...............................................20

Electrical Connections ...........................32

Audio ....................................................33

Mood Mode™ Lighting ..........................33

Remote Connections .............................34

T-Max® Products .................................... 34

T-Max® Wireless Remote System ...........34

Remote System Hook-up Scenarios ........34

Operation ..............................................38

Before You Tan ........................................38

Exposure Times .......................................38

The Keypad ............................................39

The Tanning Session................................ 40

Care and Maintenance ..........................41

Cleaning After Use .................................41

Thorough Periodic Cleaning ...................41

Cleaning the Canopy and Bench ............41

Mechanical Inspection ...........................41

Opening / Replacing Acrylics .................42

Removing/Replacing Fluorescent Lamps .42

Replacement Lamps ...............................42

Removing/Replacing Face Tanner Lamp ..43

Troubleshooting ......................................44

Updating Timer Software ........................46

Parameters .............................................46

4 - Legend 548 Assembly and User Manual

30068-02A

DANGER

Ultraviolet radiation. Follow instructions. Avoid overexposure. As with

natural sunlight, overexposure can cause eye and skin injury and al­lergic reactions. Repeated exposure may cause premature aging of the skin and skin cancer. WEAR
PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM IN­JURY TO THE EYES. Medications or cosmetics may increase your sensitivity to the ultraviolet radiation.
Consult physician before using sunlamp if you are using medications or have a history of skin problems
or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you are unlikely to tan from
the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan or tan
minimally should not use this equipment.

To use, lie down under canopy and pull down as far as adjustment will allow. Do not use without clear plastic panels in
place. Untanned persons should not tan on consecutive days during their fi rst week of tanning. Never tan more than once
a day. Tanning normally appears after the fi rst few sessions and maximizes after approximately four weeks. Tan once or
twice per week thereafter to maintain appearance. Persons already having a base tan may begin at advanced levels cor­responding to the extent of their base tan.

New lamps emit approximately 10% more ultraviolet radiation during the fi rst 50 hours of operation. Recommended tan-
ning times should therefore be reduced by approximately 10% during that period.

WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear
protective eyewear when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defi ned
under 21 CFR 1040.20. Other types of eyewear may not provide adequate protection. Failure to use protective eyewear
may result in severe burns or other eye injury. If discomfort develops, discontinue use and consult a physician.

THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT:
Velocity® Ultra Wolff® VEL 71-T12-180W VS-R BI-PIN
Heraeus OH 30/50 (facial unit)
Soft Facial LightSources Model F25T5/BL/BP (shoulder unit)

THIS EQUIPMENT MUST BE EARTH GROUNDED.

This product is in conformity with performance standards for sun lamp products under 21 CFR PART

1040.20 and ANSI/UL Standard 482. Certifi ed to CAN/CSA Standard C22.2 NO. 224.

Disconnect power before attempting to clean, relamp, or engage in the maintenance of this product

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 10 MINUTES

Level 1/Week 1

Level 2 Level 3 Level 4 Level 5

Skin Type: 1st-3rd Sessions
I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 2 4 6 8 10
III Normal (Burns moderately and tans average.) 3 5 7 10 10
IV Dark (Burns minimally, tans easily and above average.) 4 6 8 10 10

88465

Legend 548 Assembly and User Manual - 5

30068-02A

DANGER

Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive.

Tout comme pour les rayons du soleil, une exposition excessive peut causer des blessures
aux yeux et à la peau et provoquer des réactions allergiques. Une exposition répétée peut causer le vieillissement pré­maturé de la peau et provoquer le cancer de la peau. PORTEZ DES LUNETTES PROTECTRICES: LE NON-RESPECT
DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE GRAVES BRÛLURES OU DES LÉSIONS OCULAIRES
À LONG TERME. Les médicaments ou les produits cosmétiques peuvent augmenter votre sensibilité au rayonnement
ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous souffrez d’une
maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il
est peu probable que vous bronzerez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont
une peau claire qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.

Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible. N’utilisez pas la lampe sans les pan­neaux de plastique transparents. La première semaine de bronzage, les personnes qui n’ont pas un hâle initial ne doivent
pas se faire bronzer tous les jours. Ne vous faites jamais bronzer plus d’une fois par jour. Le bronzage commence normale­ment à apparaître après les premières séances : il atteint son apogée au bout d’environ quatre semaines. Les personnes
qui ont déjà un teint hâlé peuvent commencer à des niveaux plus élevés, selon l’importance de leur hâle initial.

Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures
de fonctionnement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.

AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes
dans la pièce doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection
pour les yeux recommandées: Les coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR

1040.20. Les autres types de lunettes protectrices peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes
protectrices, ce produit peut causer des brûlures ou lésions oculaires graves. Si vous souffrez d’un malaise, arrêtez
l’utilisation et consultez un médecin.

SEULES LES LAMPES SUIVANTES ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT :
Velocity® Ultra Modèle VEL 71-T12-180W VS-R BI-PIN
Heraeus OH 30/50 (unité faciale)
Soft Facial LightSources Modèle F25T5/BL/BP (unité en bandoulière)

Cet équipement doit être mis à la terre.

Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents
21 CFR, partie 1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.

TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 10 MINUTES

Élevé 1/Semaine 1

Élevé 2 Élevé 3 Élevé 4 Élevé 5

Type de peau: 1ere-3e
I Peau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ
II Peau claire (brûle facilement et bronze très peu) 2 4 6 8 10
III Peau normale (brûle et bronze de façon modérée) 3 5 7 10 10
IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 4 6 8 10 10

Débrancher l’alimentation électrique avant de nettoyer l’appareil ,

d’en faire l’entretien ou de changer les lampes

88465

6 - Legend 548 Assembly and User Manual

30068-02A

Unpacking and inspection

Your new tanning bed arrives completely
assembled. The reason for this is to assure
everything has been tested at the factory. Be­fore performing any work, inspect the unit
carefully and identify any issues that may
have happened during shipping. Notify the
transportation company immediately to re­port any shipping damage.

Record the serial number of the unit in the
area provided at the back of this manual.
This information will be required whenever
you call customer service.

Pre-installation Planning

The following instructions outline a com­plete disassembly and reassembly. Prepare
an area for disassembly to place items prior
to installation in the fi nal space.

No hardware has been provided as the hard­ware needed will be removed during the
disassembly process. Be sure to keep track
of all hardware removed.

Electrical Requirements

You are responsible for preparing the facility
for your tanning bed. Please have an electri­cian present at the time your tanning bed is
installed. That way the installation crew can
fully verify all functions before they leave.

This unit runs on 220VAC service and must
be hardwired directly to a junction box on a
dedicated circuit. A professional electrician

is recommended for electrical installation.

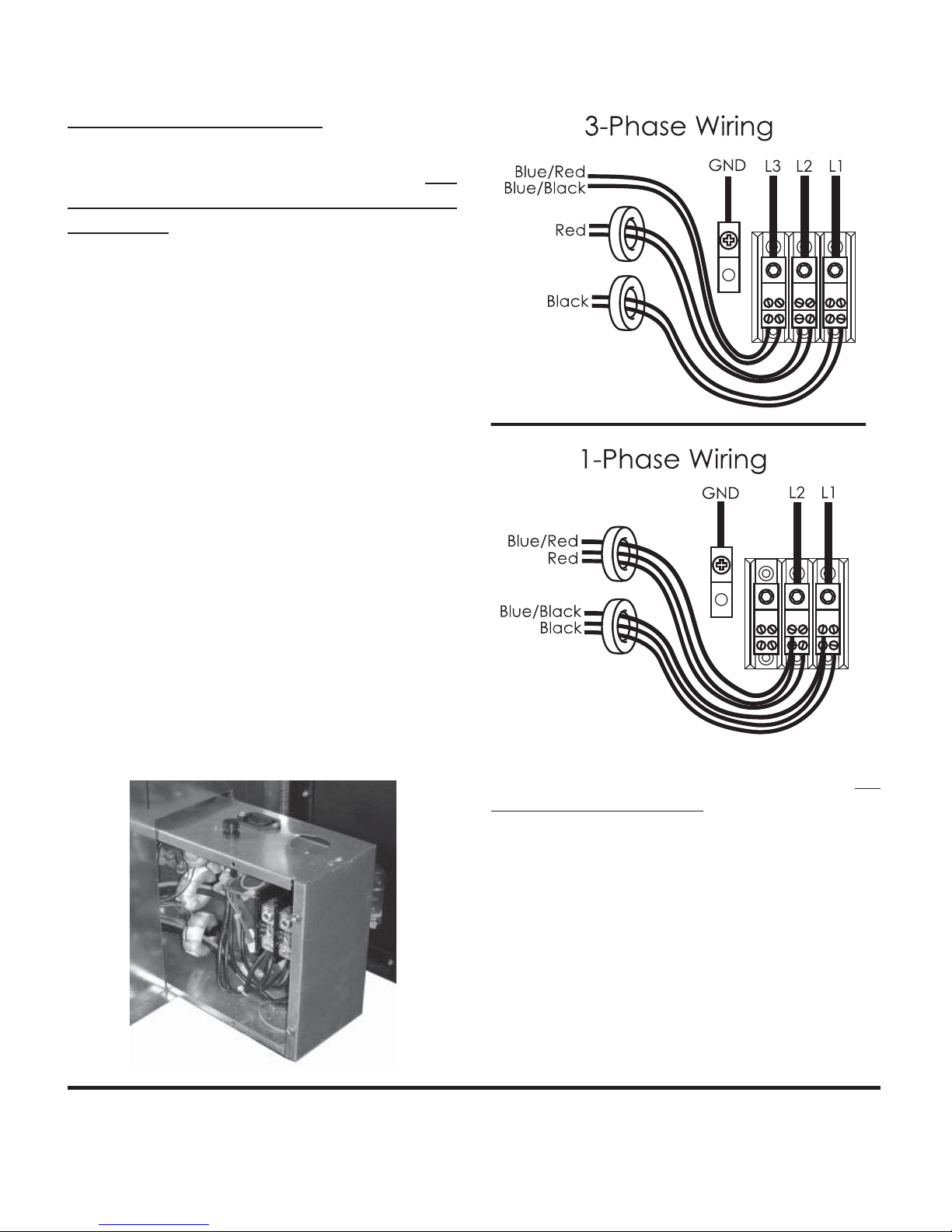

This unit requires a minimum 40A cir­cuit breaker on a 3-phase line (3 wire plus
ground). Alternatively, it requires a minimum
60A circuit breaker on a single phase line (2
wire plus ground). See page 32.

Proper assembly of your sunbed
requires 3-4 people. Plan to have
some helpers assist you.

CAUTION

DO NOT lift the unit using the plastic
endcaps. They are not designed to
hold the weight of the unit and may
break, causing damage to the unit and
possible injury.

CAUTION

Air from the room is used to cool the
sunbed. Maximum ambient room tem­perature should be 80°F. Place your
sunbed no closer than 6” from any
wall. Make sure nothing obstructs the
airfl ow into or out of the fan openings.
A poorly ventilated room may cause
the unit to become hot and cause dis­comfort to the user.

CAUTION

Voltage must be between 215-245 AC
(loaded) or may require a buck-boost­er for proper operation. Excessively
high voltage could cause damage and
void the warranty.

CAUTION

Legend 548 Assembly and User Manual - 7

30068-02A

Disassembly

Your new tanning bed arrives completely
assembled. The reason for this is to assure
everything has been tested at the factory.
Therefore you must fi rst disassemble the bed
before moving it into the salon room.

To avoid possible assembly issues, if you
fi nd you can move the unit without further
disassembly, feel free to do so and begin the
assembly process at a suitable step.

Remember to save all hardware removed. It
will all be used during reassembly.

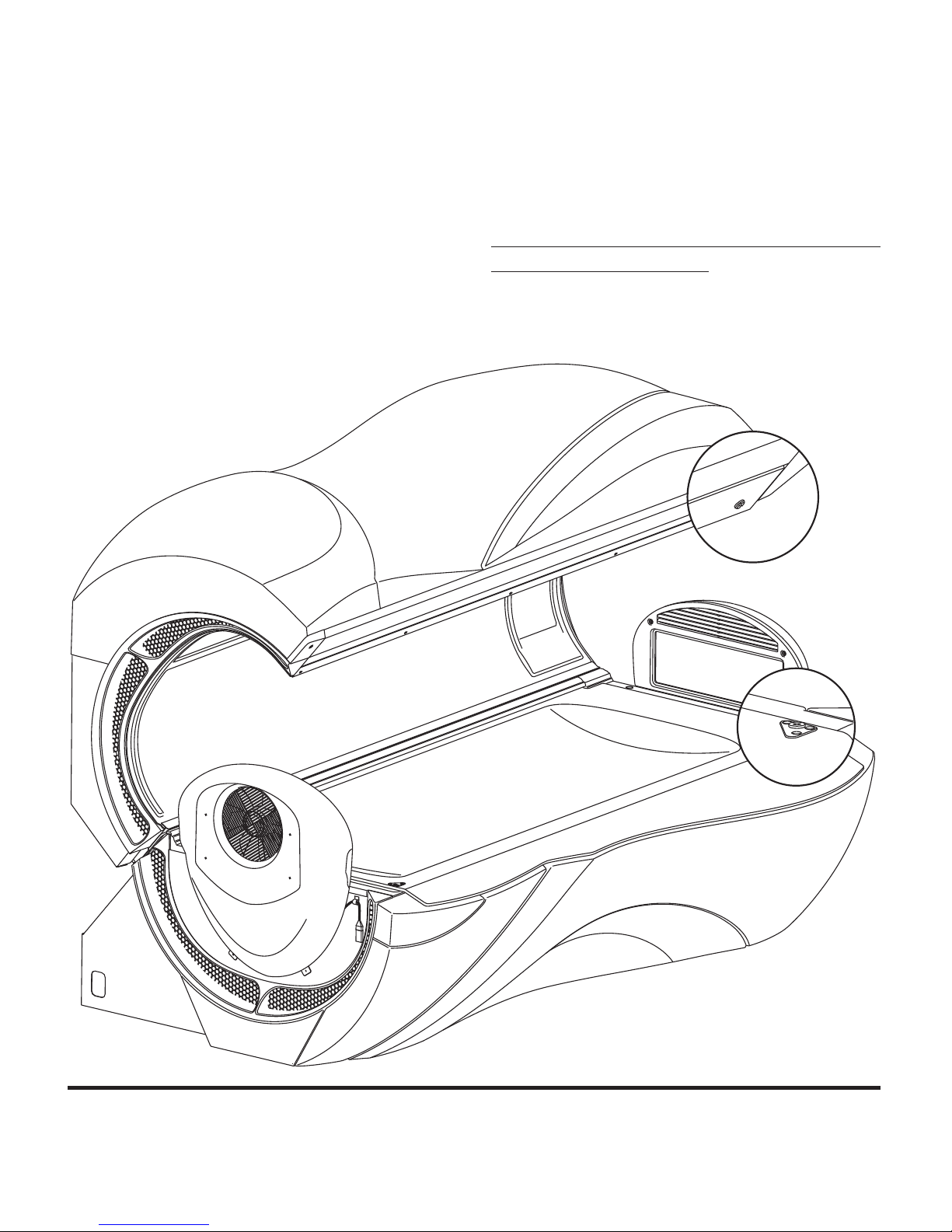

First, remove the shipping pins locking the
canopy down and raise the canopy. Press­ing the canopy down slightly will loosen the
pins so they can be removed easily.

Shipping Pin

8 - Legend 548 Assembly and User Manual

30068-02A

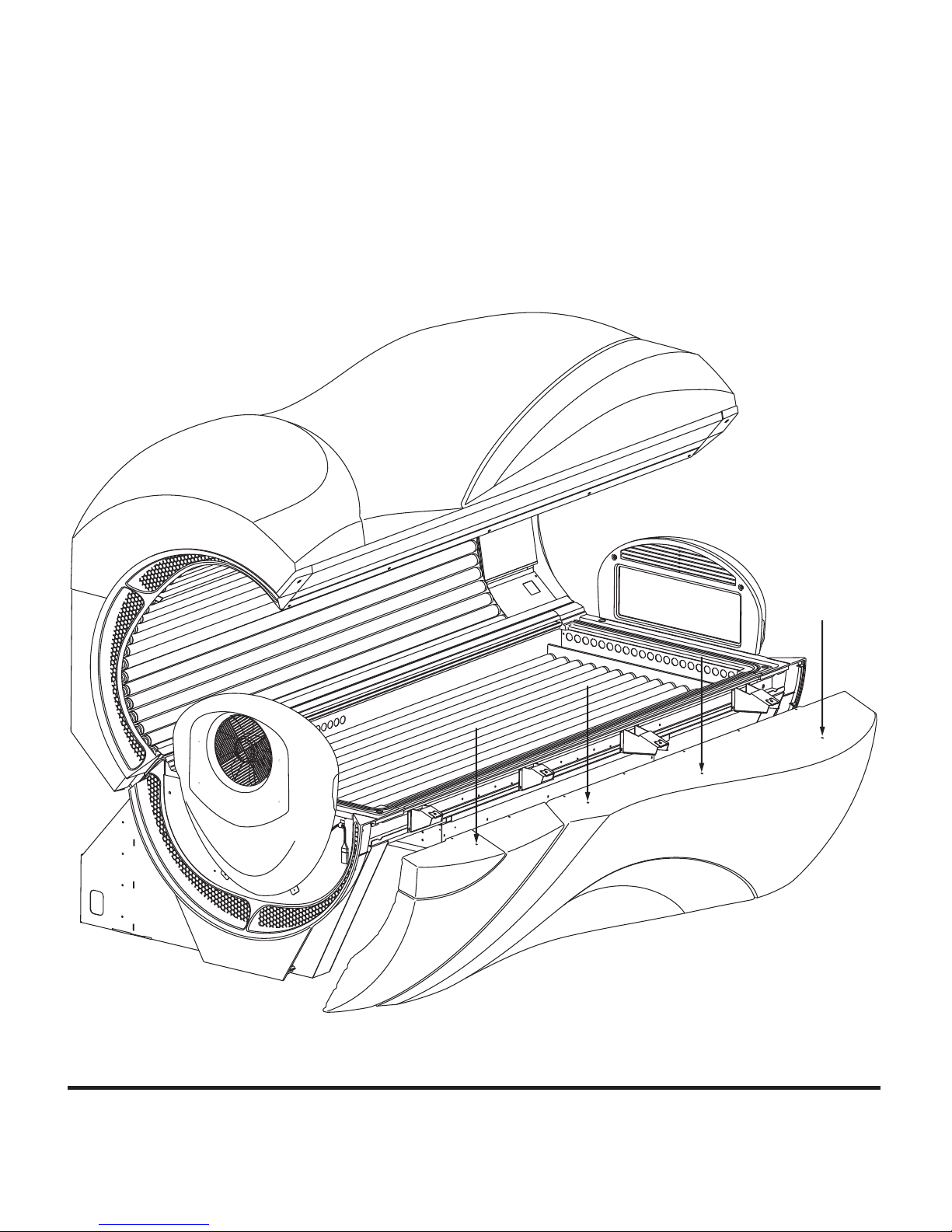

Remove the bench and canopy acrylics.

The bench acrylic is secured by (2) 1/4­20x1” Phillips screws at the front corners.
Remove the screws and simply raise the
acrylic slightly and pull free of the alumi­num channel at the back.

Five captive screws across the front of the
canopy hold the canopy acrylic in place.
Loosen these screws and the front channel
will swing down. The screws will remain in
the channel. Swing the channel down farther
to release the acrylic and lower the acrylic
to clear the handle.

Attached to the canopy acrylic are 2 exciters
(speakers). Disconnect the white connector
on the wiring harness running from these
exciters into the bed.

Now lift the acrylic from the back channel.

Legend 548 Assembly and User Manual - 9

30068-02A

On top of the skirt are 4 Phillips fl at head
screws. Remove these screws.

Now tip the skirt forward and lift off the pegs
at the bottom.

As the skirt is removed you will fi nd a cable
attached. This powers the Mood Mode ac­cent lighting. Disconnect this cable and set
the skirt aside.

10 - Legend 548 Assembly and User Manual

30068-02A

Find the harnesses under the bench and dis­connect them all. Don’t worry about mixing
them up. They are all keyed to only connect
to their proper mate.

Most harnesses connect with locking re­ceptacles, like the one shown below. Sim­ply squeeze the “wings” on either side and
pull the connectors apart. Do not pull on the
wires.

A few of the connectors have a wire tie
around them. This wire tie is removable and
does not need to be cut.

Note: You may fi nd it helpful to label the
cables for ease and speed of reassembly. A
simple number on the connector with a felt
tip pen works great.

Legend 548 Assembly and User Manual - 11

30068-02A

The body fan is held in place with (2) #10­24x1/2” screws at the bottom. Remove
these screws, then lift the body fan assembly
straight up and off the bed. Be careful of the
power cable.

The shoulder tanner comes off in the same
manner.

12 - Legend 548 Assembly and User Manual

30068-02A

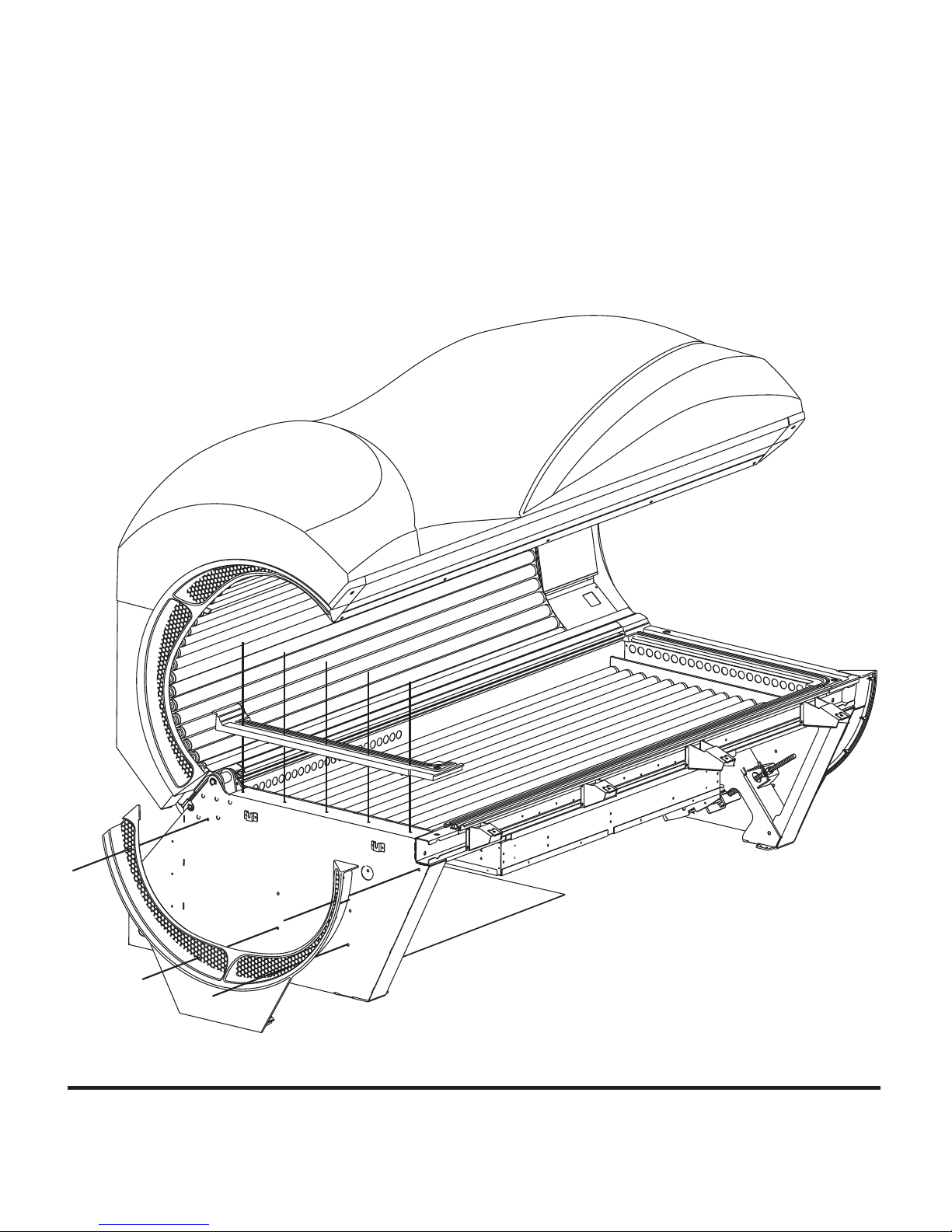

The bench endcaps are held in place by (4)
#10-24x1” screws each.

The acrylic end supports are held in place
by (5) #10-24x1” fl at head screws each.

Remove both pieces from each end and set
aside.

Legend 548 Assembly and User Manual - 13

30068-02A

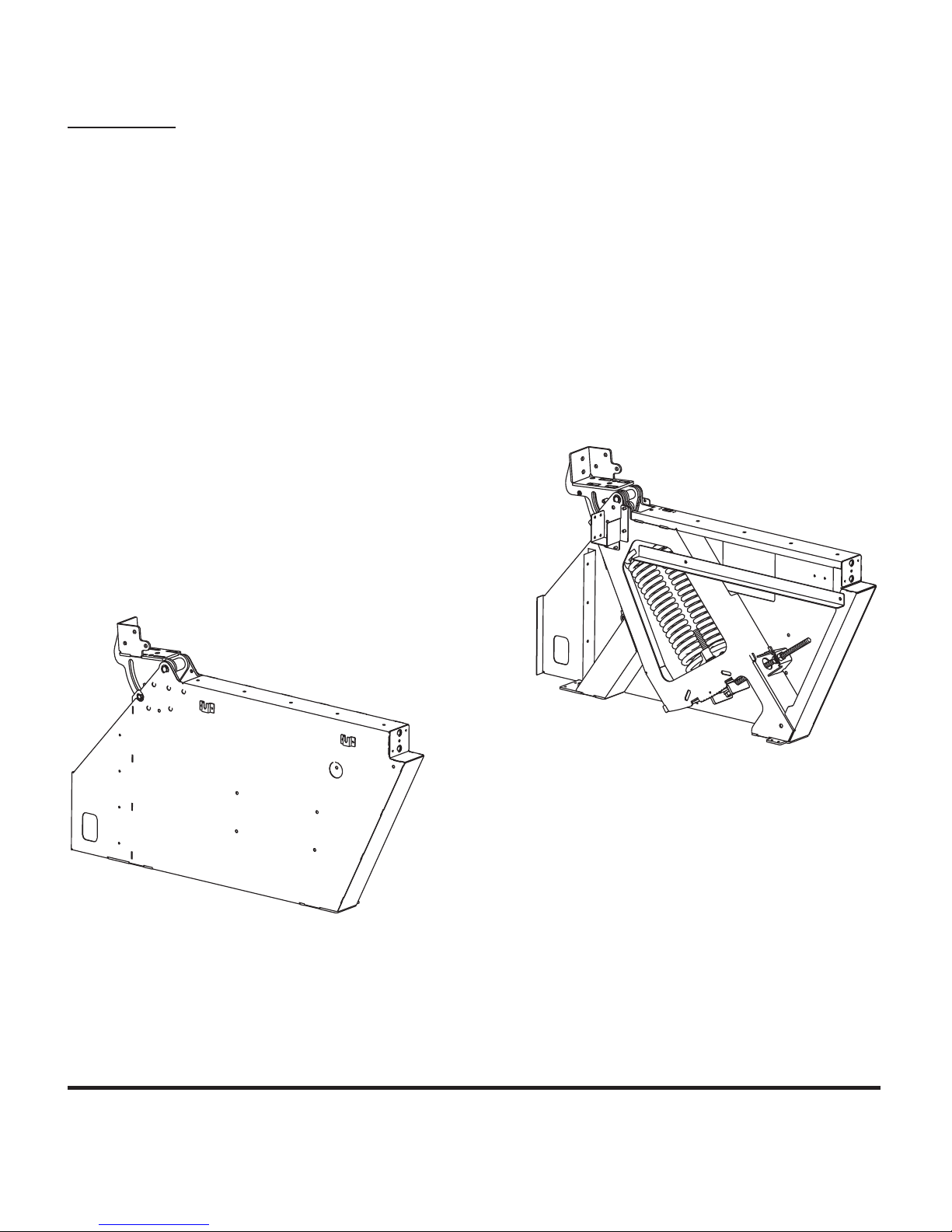

The front cross member is held in place with
(4) 5/16-18x1” hex socket bolts.

14 - Legend 548 Assembly and User Manual

30068-02A

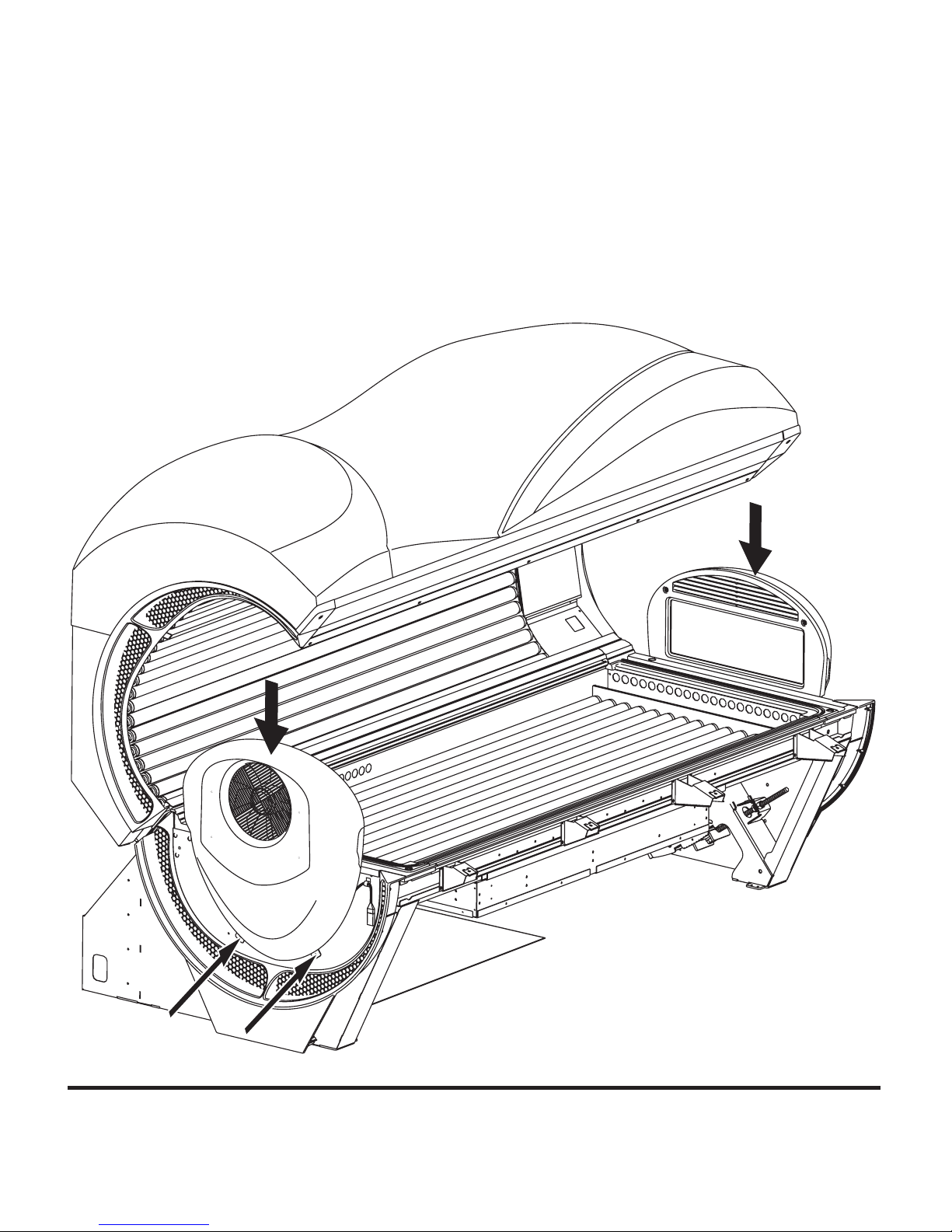

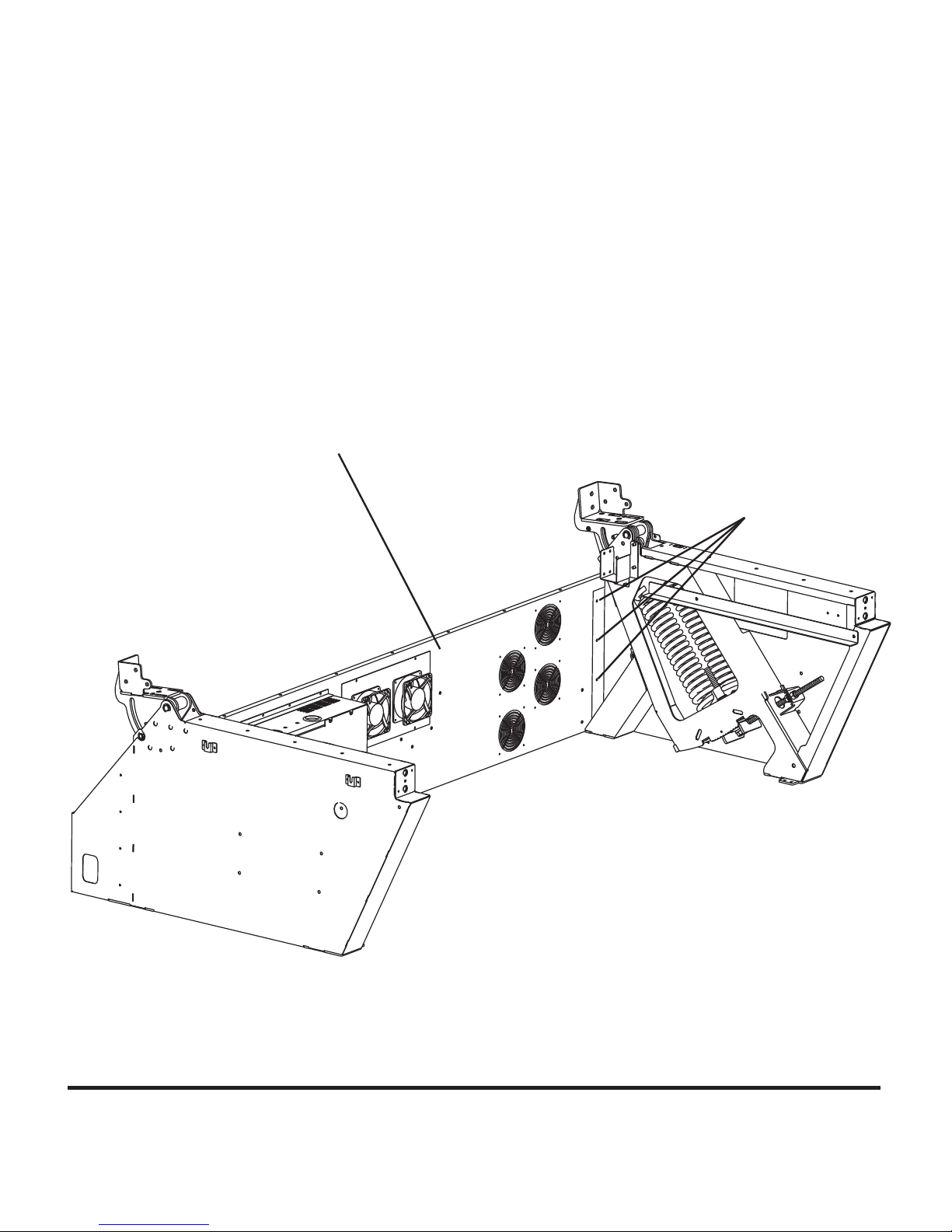

Next, remove the (6) #10 Phillips sheet
metal screws holding the fan plenum to the
back panel. This plenum routes air from the
cooling fans through the lamp box.

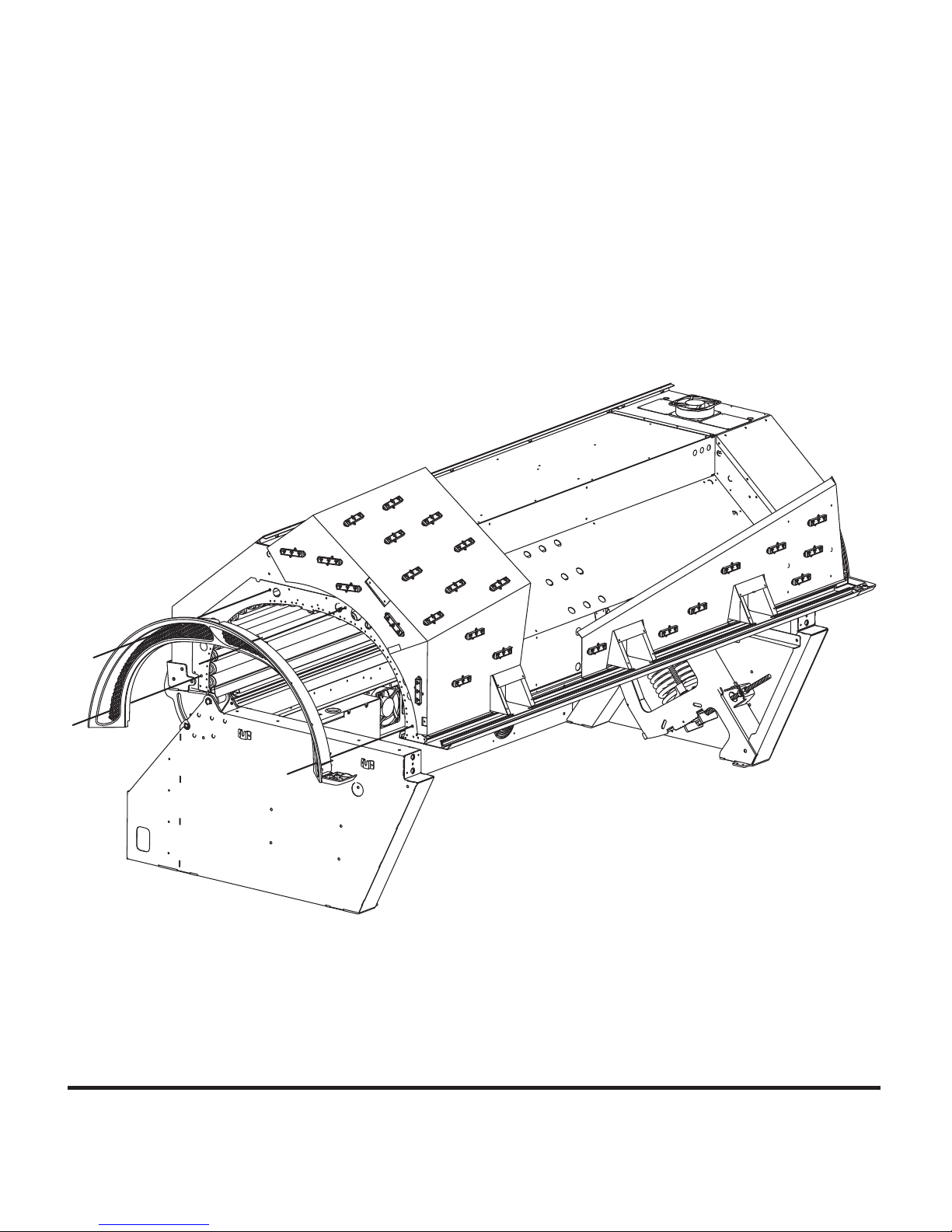

Carefully lift the lamp box out of the bench,
being careful not to damage the plenum.

Three #10x1/2” screws hold the fl oor pro-
tector panel. Remove it and set aside.

PLENUM

FLOOR PROTECTOR
PANEL

Legend 548 Assembly and User Manual - 15

30068-02A

Lift springs under extreme tension.

Failure to properly install the shipping
pins could result in damage to the unit
and/or personal injury when removing
the canopy.

WARNING

Close the canopy and reinstall the shipping
pins to hold the lift system in place.

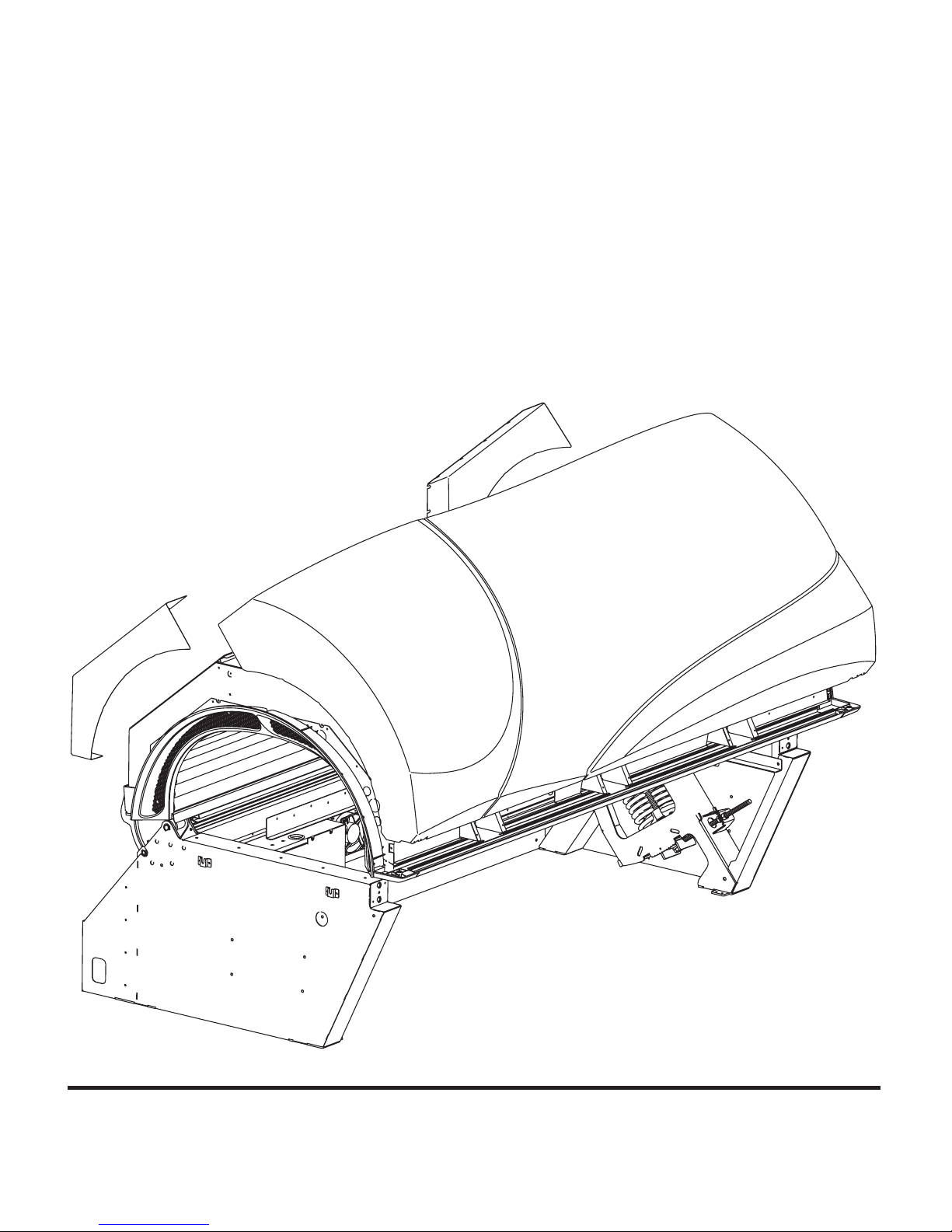

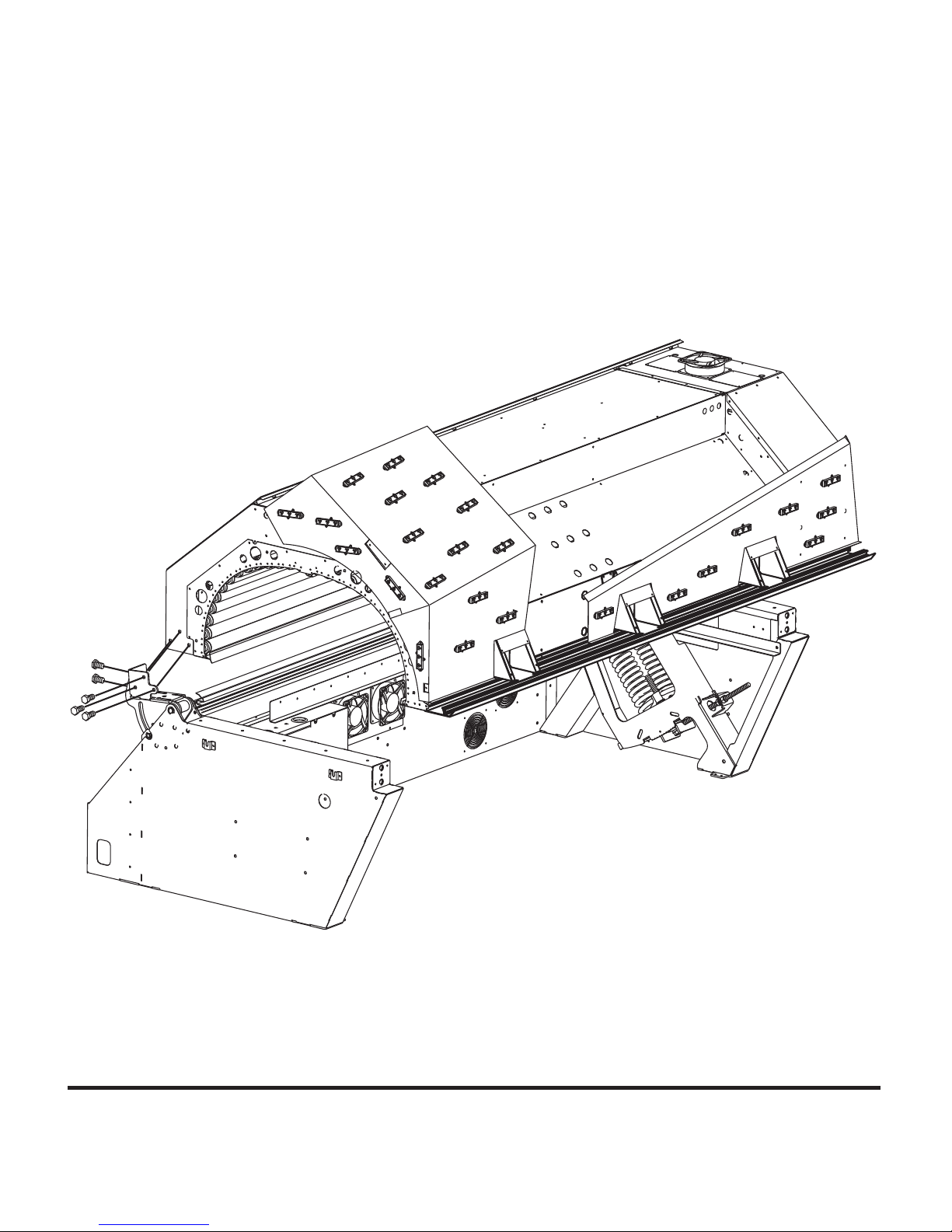

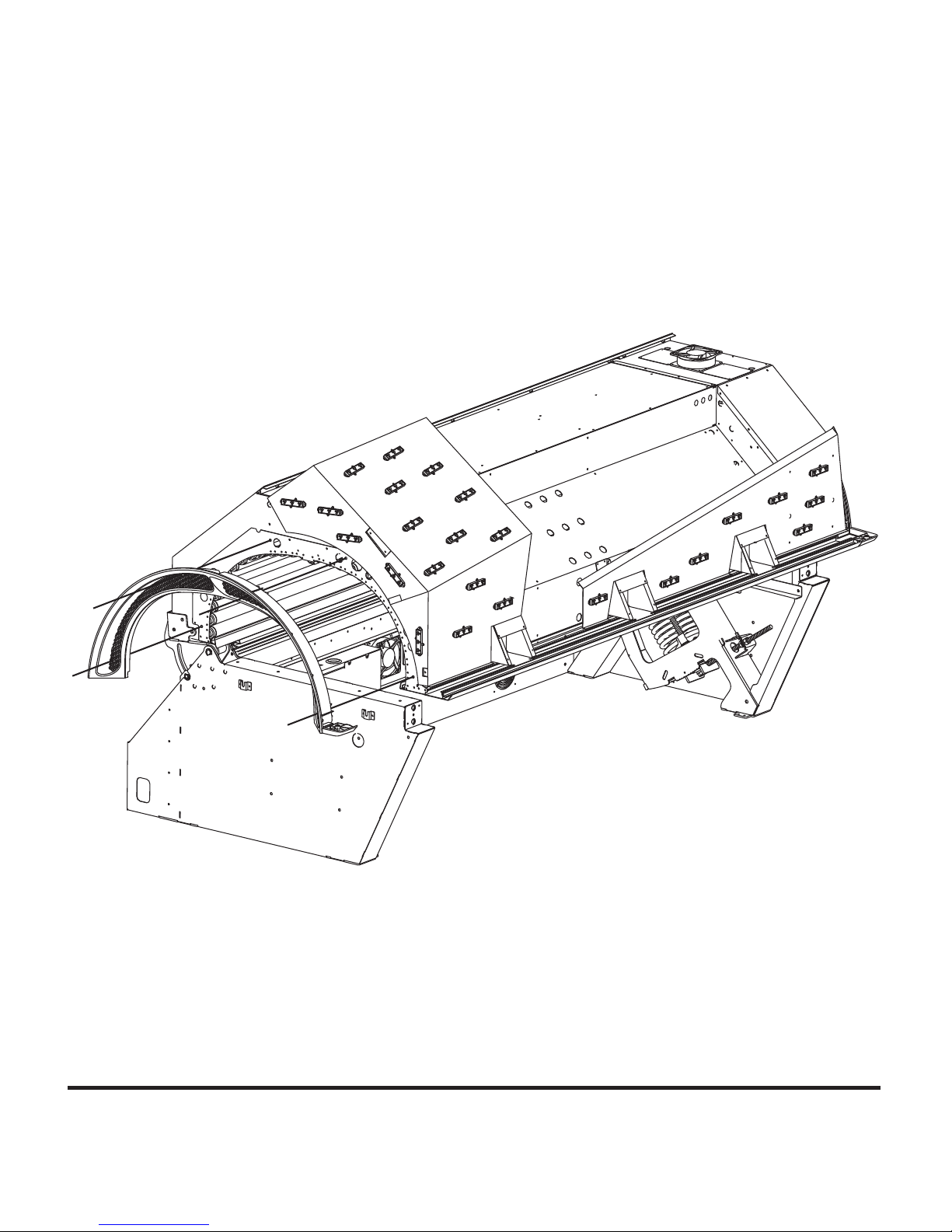

Remove the canopy cover and rear corner
covers.

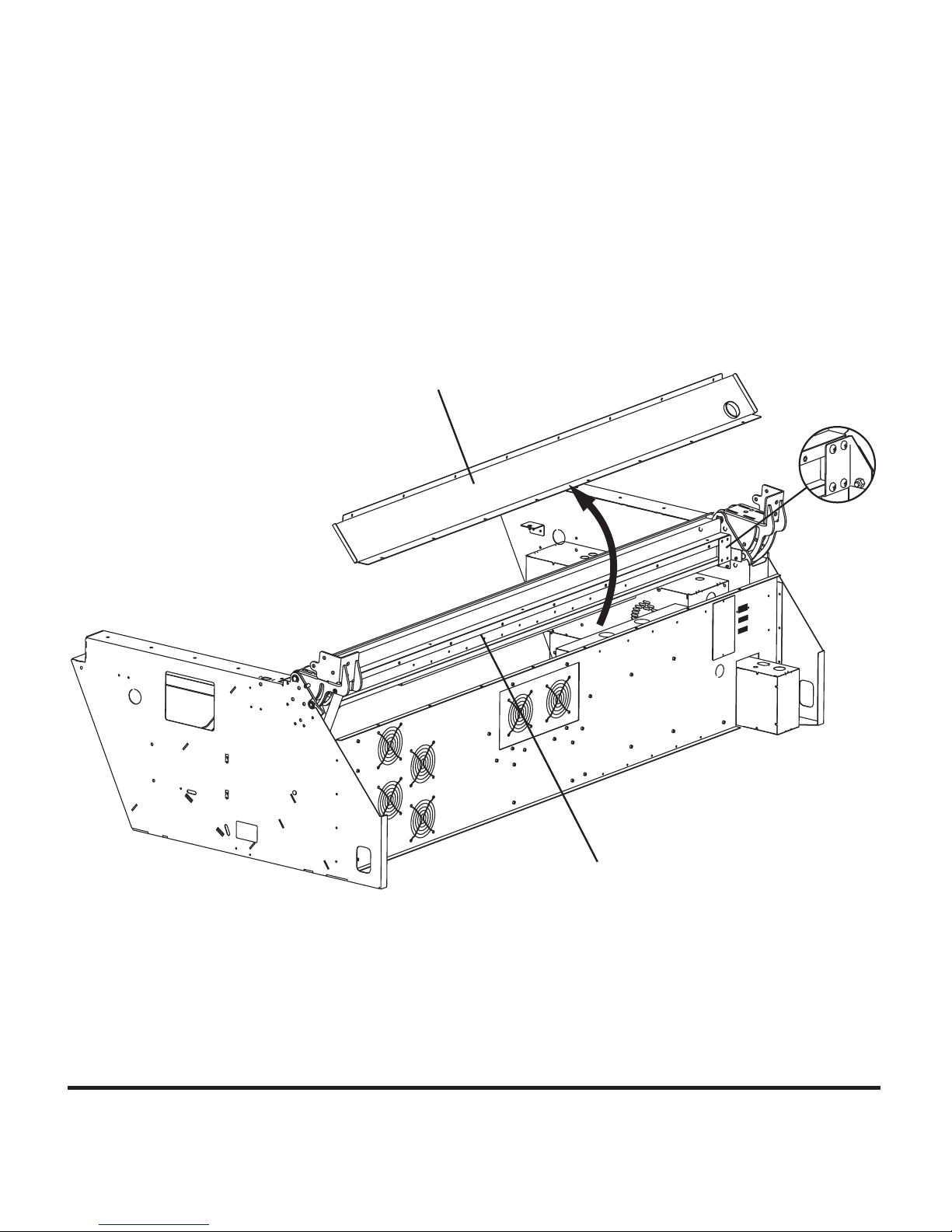

The back of the canopy cover includes the
metal panel. Loosen the (8) 1/4-20 Phillips
screws securing the back covers just a few
turns. Do not remove these screws. The front
corners of the canopy cover are held by (1)
#10-32x1” fl at head screw in each corner.
Remove these screws. Carefully lift the cov­er from the bed.

The rear corner covers are attached with (6)
#10x1/2” screws each. Simply loosen these
screws and the covers will slip off.
