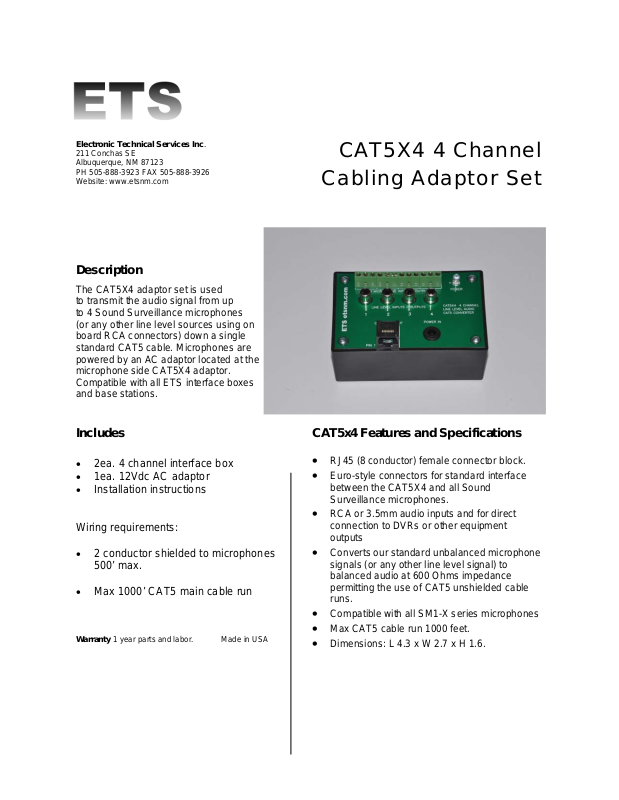

Description

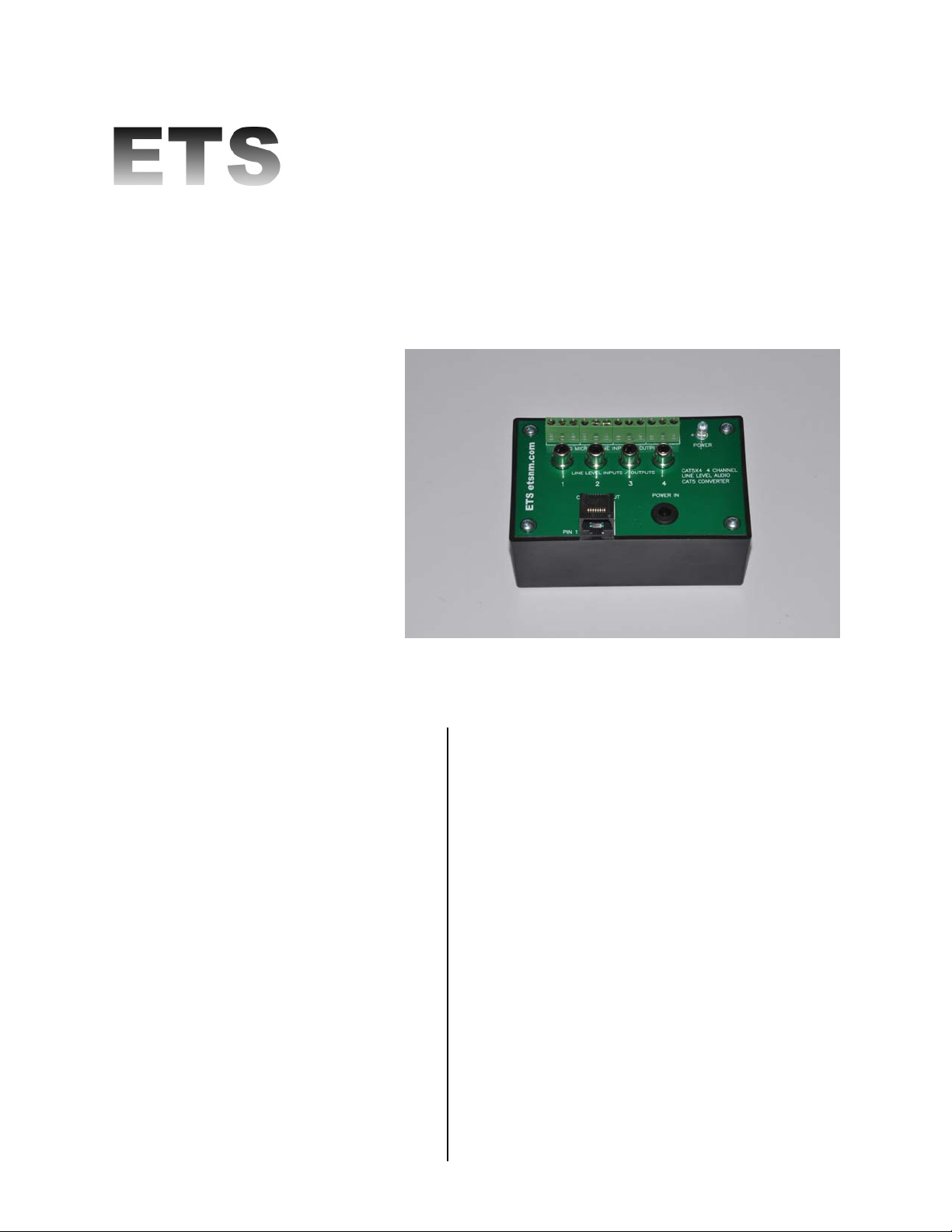

The CAT5X4 adaptor set is used
to transmit the audio signal from up
to 4 Sound Surveillance microphones
(or any other line level sources using on
board RCA connectors) down a single
standard CAT5 cable. Microphones are
powered by an AC adaptor located at the
microphone side CAT5X4 adaptor.
Compatible with all ETS interface boxes
and base stations.
CAT5X4 4 Channel
Cabling Adaptor Set
Includes
• 2ea. 4 channel interface box
• 1ea. 12Vdc AC adaptor
• Installation instructions
Wiring requirements:
• 2 conductor shielded to microphones
500’ max.
• Max 1000’ CAT5 main cable run
Warranty 1 year parts and labor. Made in USA
CAT5x4 Features and Specifications
• RJ45 (8 conductor) female connector blo ck.
• Euro-style connectors for standard interface
between the CAT5X4 and all Sound
Surveillance microphones.
• RCA or 3.5mm audio inputs and for direct
connection to DVRs or other equipment
outputs
• Converts our standard unbalanced microphone
signals (or any other line level signal) to
balanced audio at 600 Ohms impedance
permitting the use of CAT5 unshielded cable
runs.
• Compatible with all SM1-X series microphones
• Max CAT5 cable run 1000 feet.
• Dimensions: L 4.3 x W 2.7 x H 1.6.
