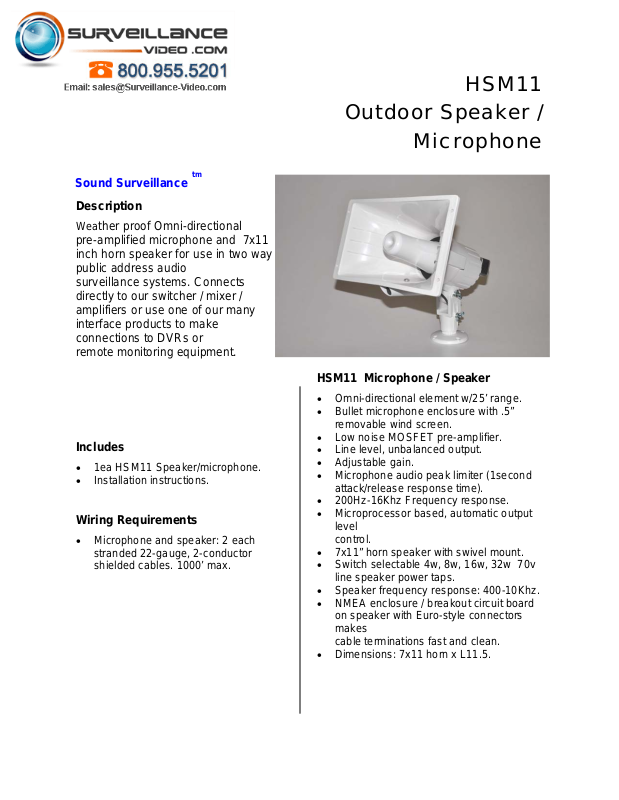

Page 1
Sound Surveillance tm
Description
Weather proof Omni-directional
pre-amplified microphone and 7x11
inch horn speaker for use in two way
public address audio
surveillance systems. Connects
directly to our switcher / mixer /
amplifiers or use one of our many
interface products to make
connections to DVRs or
remote monitoring equipment.
Includes
• 1ea HSM11 Speaker/microphone.
• Installation instructions.
Wiring Requirements
• Microphone and speaker: 2 each
stranded 22-gauge, 2-conductor
shielded cables. 1000’ max.
HSM11
Outdoor Speaker /
Microphone
HSM11 Microphone / Speaker
• Omni-directional element w/25’ range.
• Bullet microphone enclosure with .5”
removable wind screen.
• Low noise MOSFET pre-amplifier.
• Line level, unbalanced output.
• Adjustable gain.
• Microphone audio peak limiter (1second
attack/release response time).
• 200Hz-16Khz Frequency response.
• Microprocessor based, automatic output
level
control.
• 7x11” horn speaker with swivel mount.
• Switch selectable 4w, 8w, 16w, 32w 70v
line speaker power taps.
• Speaker frequency response: 400-10Khz.
• NMEA enclosure / breakout circuit board
on speaker with Euro-style connectors
makes
cable terminations fast and clean.
• Dimensions: 7x11 horn x L11.5.
