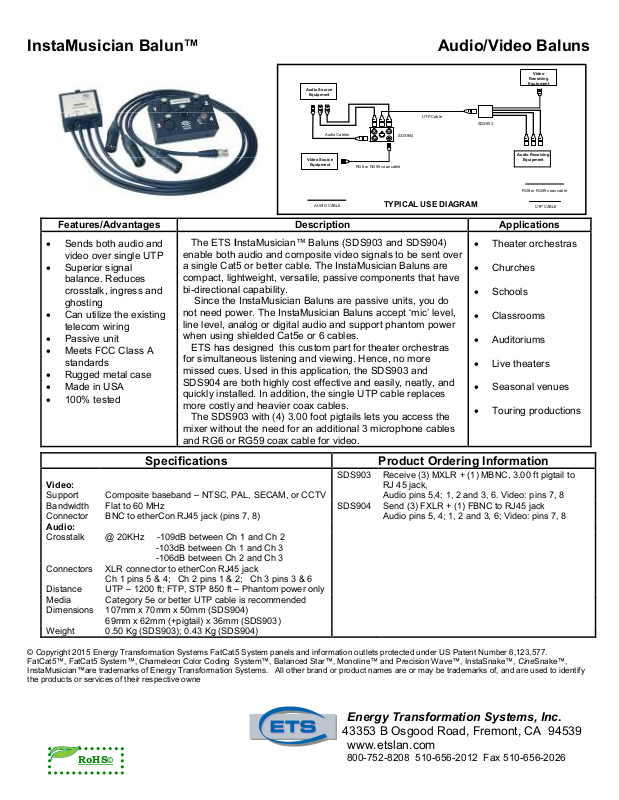

ETS InstaMusician Balun Data Sheet

InstaMusician Balun™ Audio/Video Baluns

RoHS

TYPICAL USE DIAGRAM

Equipment

Audio Source

Equipment

Audio Cables

SDS904

UTP Cable

SDS903

Video Source

Equipment

RG6 or RG59 coax cable

AUDIO CABLE

Features/Advantages Description Applications

• Sends both audio and
video over single UTP

• Superior signal
balance. Reduces
crosstalk, ingress and
ghosting

• Can utilize the existing
telecom wiring

• Passive unit

• Meets FCC Class A

standards

• Rugged metal case

• Made in USA

• 100% tested

The ETS InstaMusician™ Baluns (SDS903 and SDS904)
enable both audio and composite video signals to be sent over
a single Cat5 or better cable. The InstaMusician Baluns are
compact, lightweight, versatile, passive components that have
bi-directional capability.
Since the InstaMusician Baluns are passive units, you do
not need power. The InstaMusician Baluns accept ‘mic’ level,
line level, analog or digital audio and support phantom power
when using shielded Cat5e or 6 cables.
ETS has designed this custom part for theater orchestras
for simultaneous listening and viewing. Hence, no more
missed cues. Used in this application, the SDS903 and
SDS904 are both highly cost effective and easily, neatly, and
quickly installed. In addition, the single UTP cable replaces
more costly and heavier coax cables.
The SDS903 with (4) 3.00 foot pigtails lets you access the
mixer without the need for an additional 3 microphone cables
and RG6 or RG59 coax cable for video.

• Theater orchestras

• Churches

• Schools

• Classrooms

• Auditoriums

• Live theaters

• Seasonal venues

• Touring productions

Specifications Product Ordering Information

Video:

Support Composite baseband – NTSC, PAL, SECAM, or CCTV Audio pins 5,4; 1, 2 and 3, 6. Video: pins 7, 8
Bandwidth Flat to 60 MHz SDS904 Send (3) FXLR + (1) FBNC to RJ45 jack
Connector BNC to etherCon RJ45 jack (pins 7, 8) Audio pins 5, 4; 1, 2 and 3, 6; Video: pins 7, 8

Audio:

Crosstalk @ 20KHz -109dB between Ch 1 and Ch 2

Connectors XLR connector to etherCon RJ45 jack

Distance UTP – 1200 ft; FTP, STP 850 ft – Phantom power only
Media Category 5e or better UTP cable is recommended
Dimensions 107mm x 70mm x 50mm (SDS904)

Weight 0.50 Kg (SDS903); 0.43 Kg (SDS904)

© Copyright 2015 Energy Transformation Systems FatCat5 System panels and information outlets protected under US Patent Number 6,123,577.
FatCat5™, FatCat5 System™, Chameleon Color Coding System™, Balanced Star™, Monoline™ and Precision Wave™, InstaSnake™, CineSnake™,
InstaMusician™are trademarks of Energy Transformation Systems. All other brand or product names are or may be trademarks of, and are used to identify
the products or services of their respective owne

SDS903 Receive (3) MXLR + (1) MBNC, 3.00 ft pigtail to

RJ 45 jack,

-103dB between Ch 1 and Ch 3

-106dB between Ch 2 and Ch 3

Ch 1 pins 5 & 4; Ch 2 pins 1 & 2; Ch 3 pins 3 & 6

69mm x 62mm (+pigtail) x 36mm (SDS903)

Video

Receiving

Audio Receiving

Equipment

RG6 or RG59 coax cable

UTP CABLE

Energy Transformation Systems, Inc.
43353 B Osgood Road, Fremont, CA 94539
www.etslan.com

©

800-752-8208 510-656-2012 Fax [phone]
