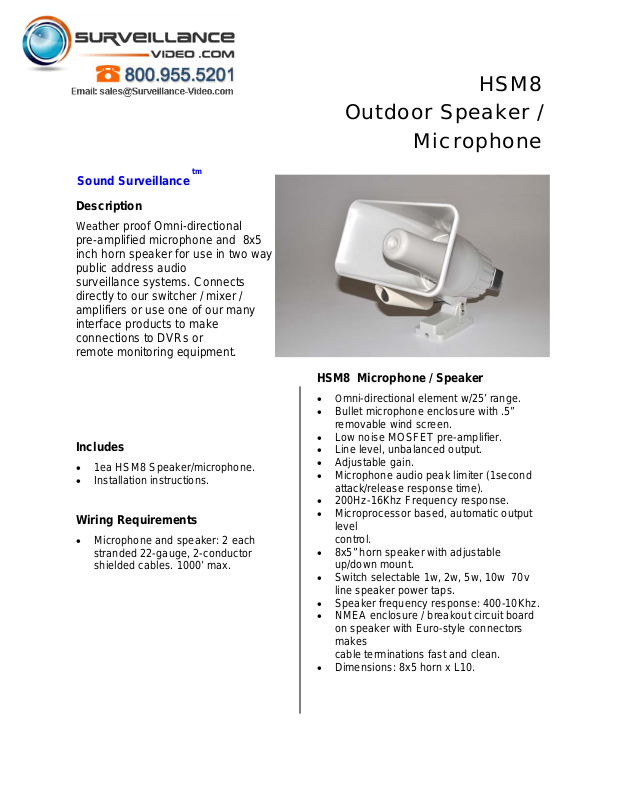

ETS HSM8 Specsheet

Sound Surveillance tm

Description

Weather proof Omni-directional

pre-amplified microphone and 8x5
inch horn speaker for use in two way
public address audio
surveillance systems. Connects
directly to our switcher / mixer /
amplifiers or use one of our many
interface products to make
connections to DVRs or
remote monitoring equipment.

Includes

• 1ea HSM8 Speaker/microphone.

• Installation instructions.

Wiring Requirements

• Microphone and speaker: 2 each

stranded 22-gauge, 2-conductor
shielded cables. 1000’ max.

HSM8

Outdoor Speaker /

Microphone

HSM8 Microphone / Speaker

• Omni-directional element w/25’ range.

• Bullet microphone enclosure with .5”

removable wind screen.

• Low noise MOSFET pre-amplifier.

• Line level, unbalanced output.

• Adjustable gain.

• Microphone audio peak limiter (1second

attack/release response time).

• 200Hz-16Khz Frequency response.

• Microprocessor based, automatic output

level
control.

• 8x5” horn speaker with adjustable

up/down mount.

• Switch selectable 1w, 2w, 5w, 10w 70v

line speaker power taps.

• Speaker frequency response: 400-10Khz.

• NMEA enclosure / breakout circuit board

on speaker with Euro-style connectors
makes
cable terminations fast and clean.

• Dimensions: 8x5 horn x L10.
