ETS CAT5-BB User Manual

CAT5-BB Instructions

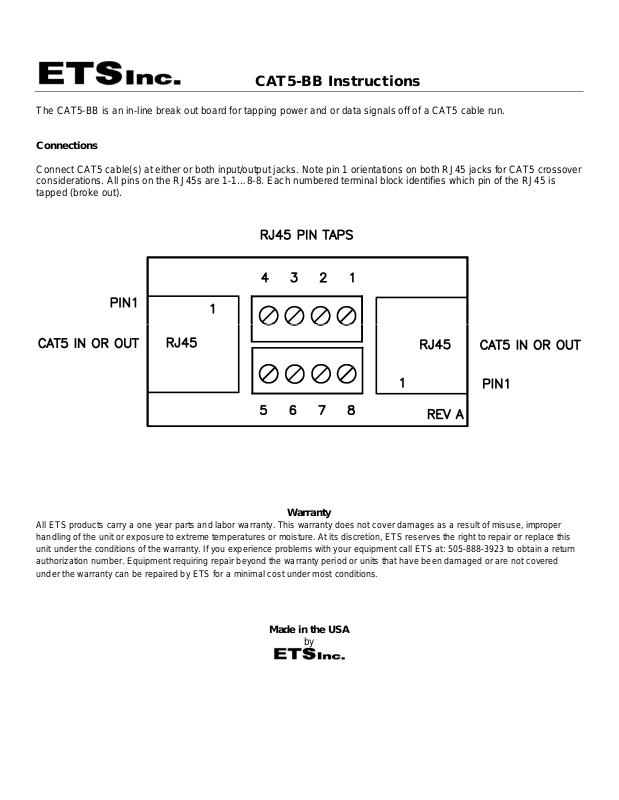

The CAT5-BB is an in-line break out board for tapping power and or data signals off of a CAT5 cable run.

Connections

Connect CAT5 cable(s) at either or both input/output jacks. Note pin 1 orientations on both RJ45 jacks for CAT5 crossover
considerations. All pins on the RJ45s are 1-1…8-8. Each numbered terminal block identifies which pin of the RJ45 is
tapped (broke out).

Warranty

All ETS products carry a one year parts and labor warranty. This warranty does not cover damages as a result of misuse, improper
handling of the unit or exposure to extreme temperatures or moisture. At its discretion, ETS reserves the right to repair or replace this
unit under the conditions of the warranty. If you experience problems with your equipment call ETS at: 505-888-3923 to obtain a return
authorization number. Equipment requiring repair beyond the warrant y period or un its that have been damaged or are not covered
under the warranty can be repaired by ETS for a minimal cost under most conditions.
