ETC Source Four Zoom CE User Manual
Copyright © 2007 Electronic Theatre Controls, Inc.
All Rights reserved.
Product information and specifications subject to change.
Part Number:
7060M1260-06.01
Rev A
Released: August 2007
CE User Manual
Production Dates: September 2004 - Present
Zoom
i Table of Contents
Table of Contents
ETC®, Emphasis®, Expression®, Insight™, Imagine™, Focus™, Express™, Unison®, Obsession® II, ETCNet2™,
EDMX™, Source Four
®
, Revolution®, Sensor®, and WYSILink™ are either registered trademarks or trademarks
of Electronic Theatre Controls, Inc. in the United Stat es and other countries.
All other trademarks, both marked and not marked, are the property of their respe ct ive owners.
ETC in te nds this do cumen t, whether pr inted o r electronic, to be provid ed in its e nt irety.
Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Source Four Zoom CE guidelines . . . . . . . . . . . . . . . . . . . . . . . .2
Basic assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Luminaire information . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .3
Colour frame holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

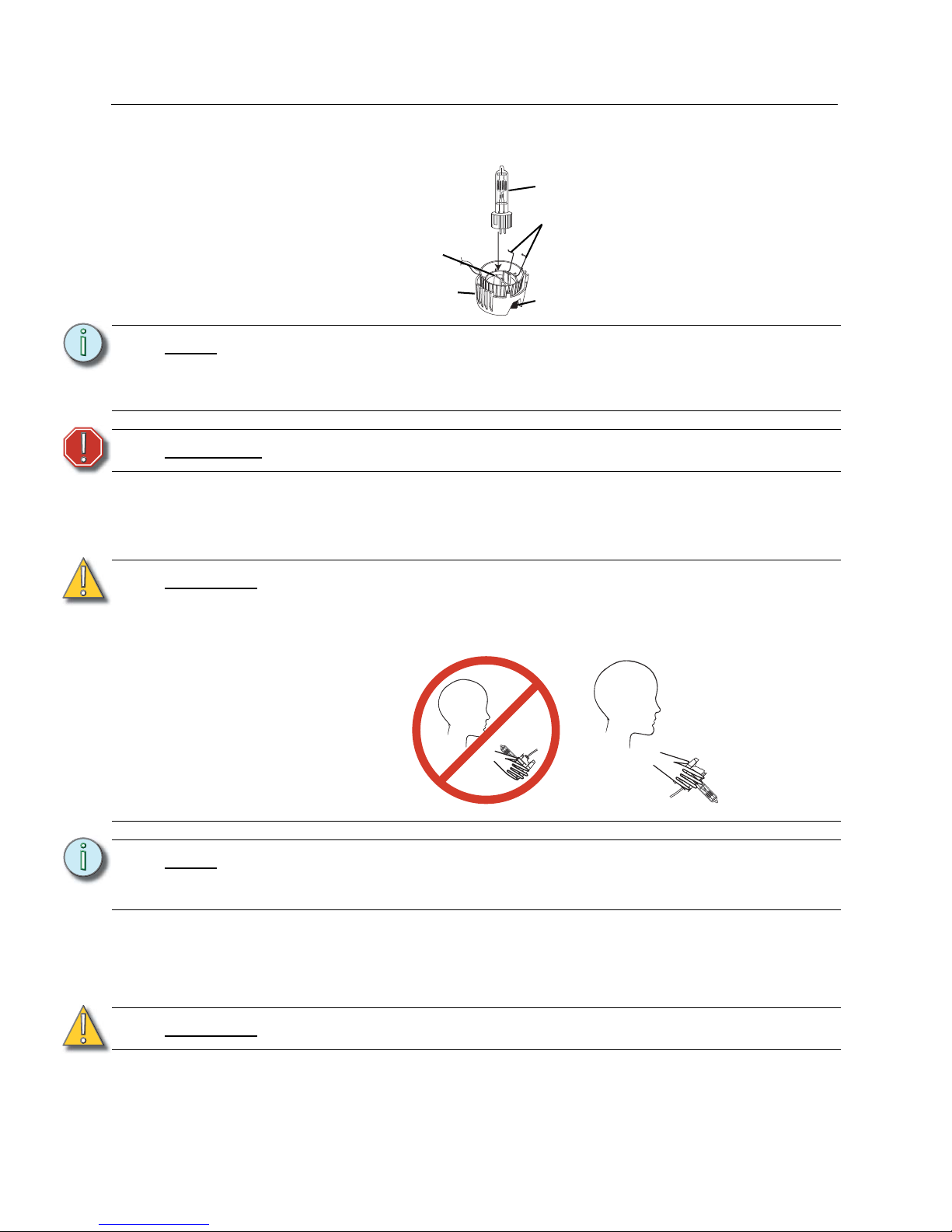

Replacing the HPL lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

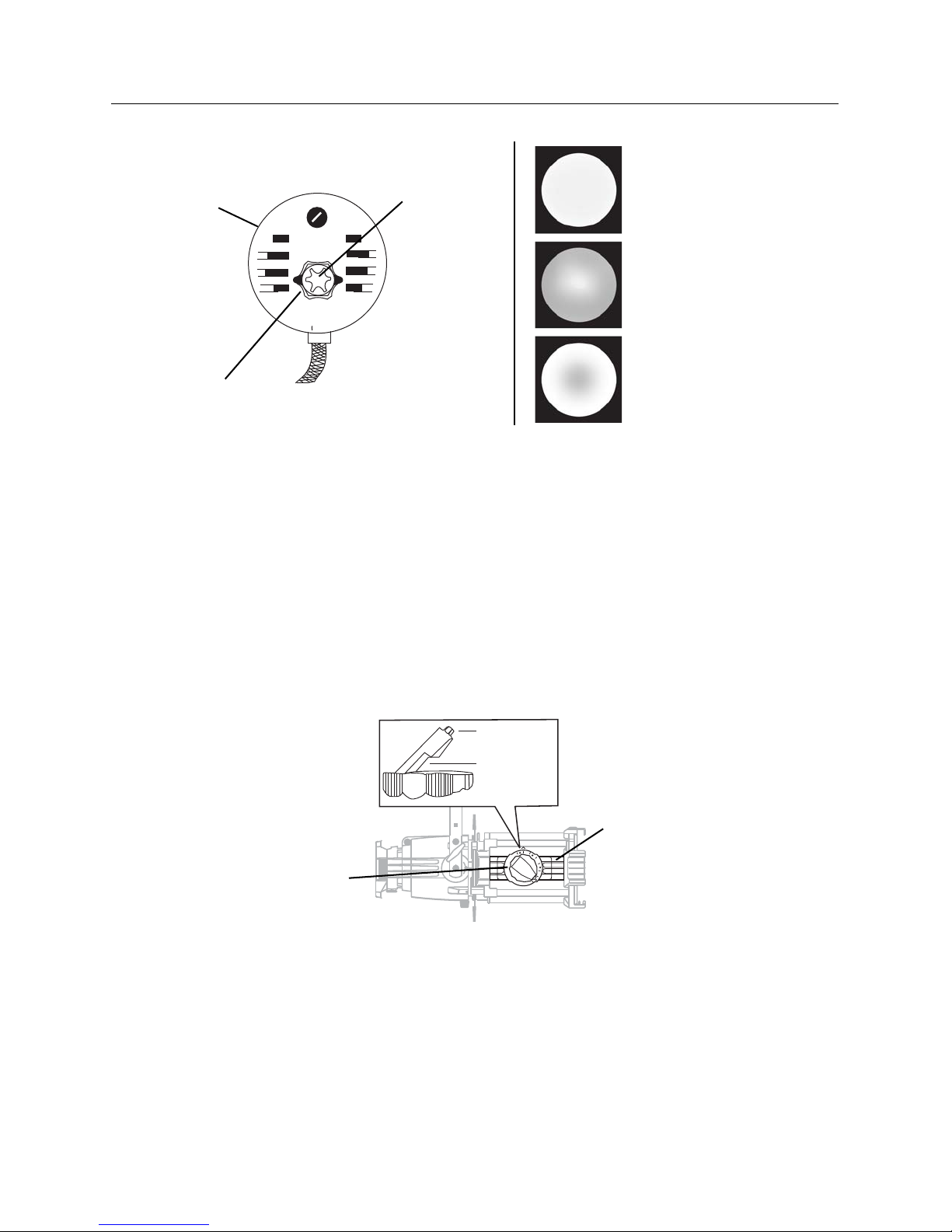

Centering lamp and adjusting the field . . . . . . . . . . . . . . . . . . . .6
Selecting the field angle and focusing the beam . . . . . . . . . . . . .6

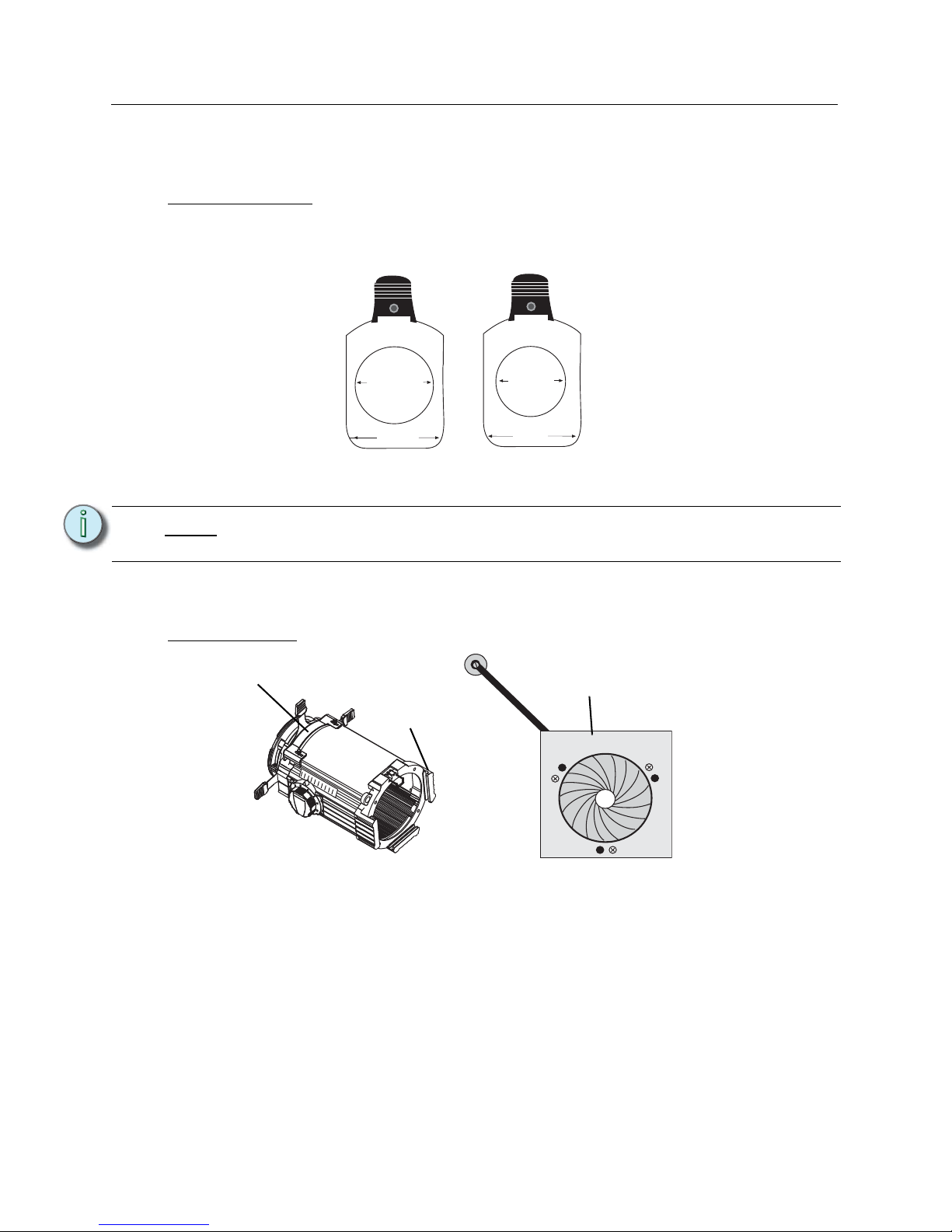

Shaping the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

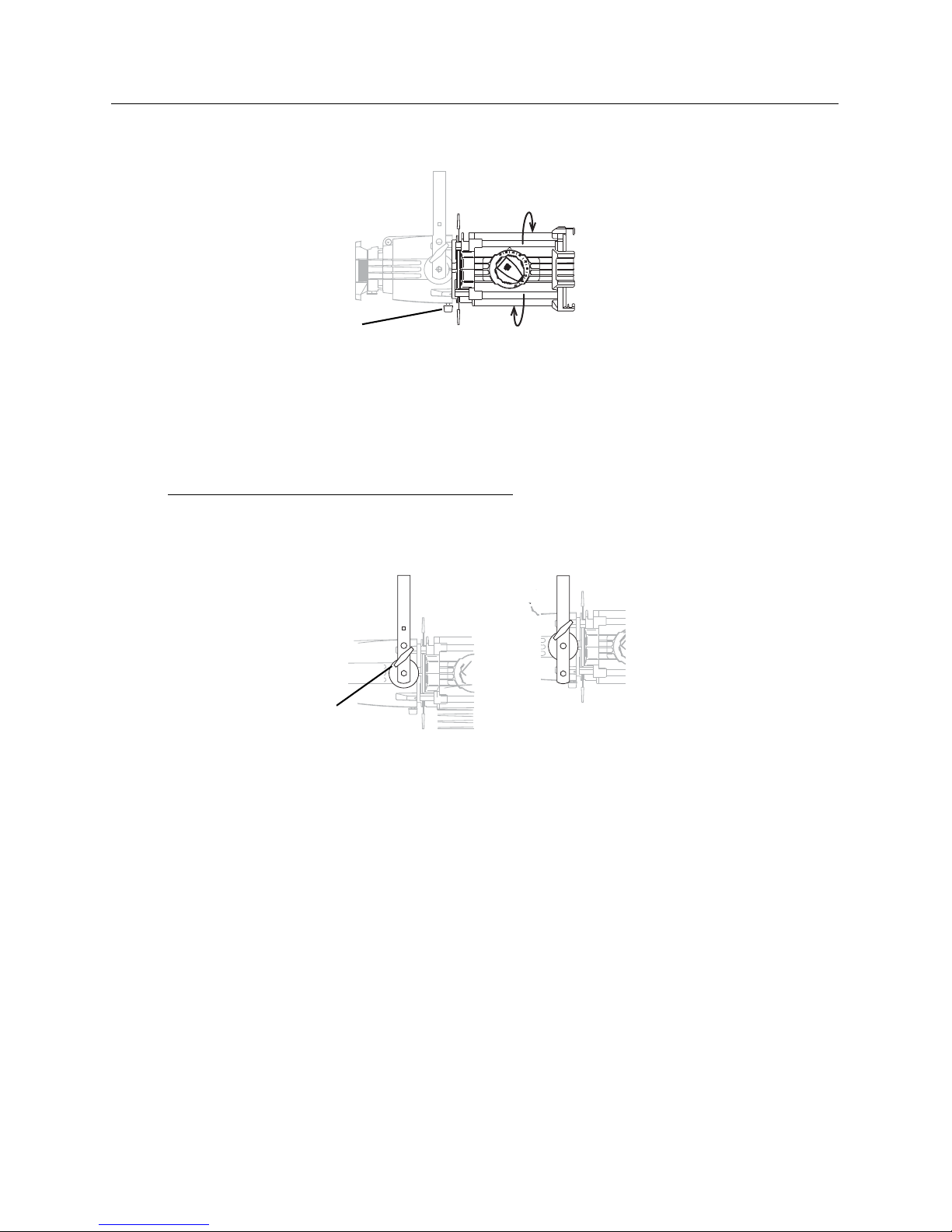

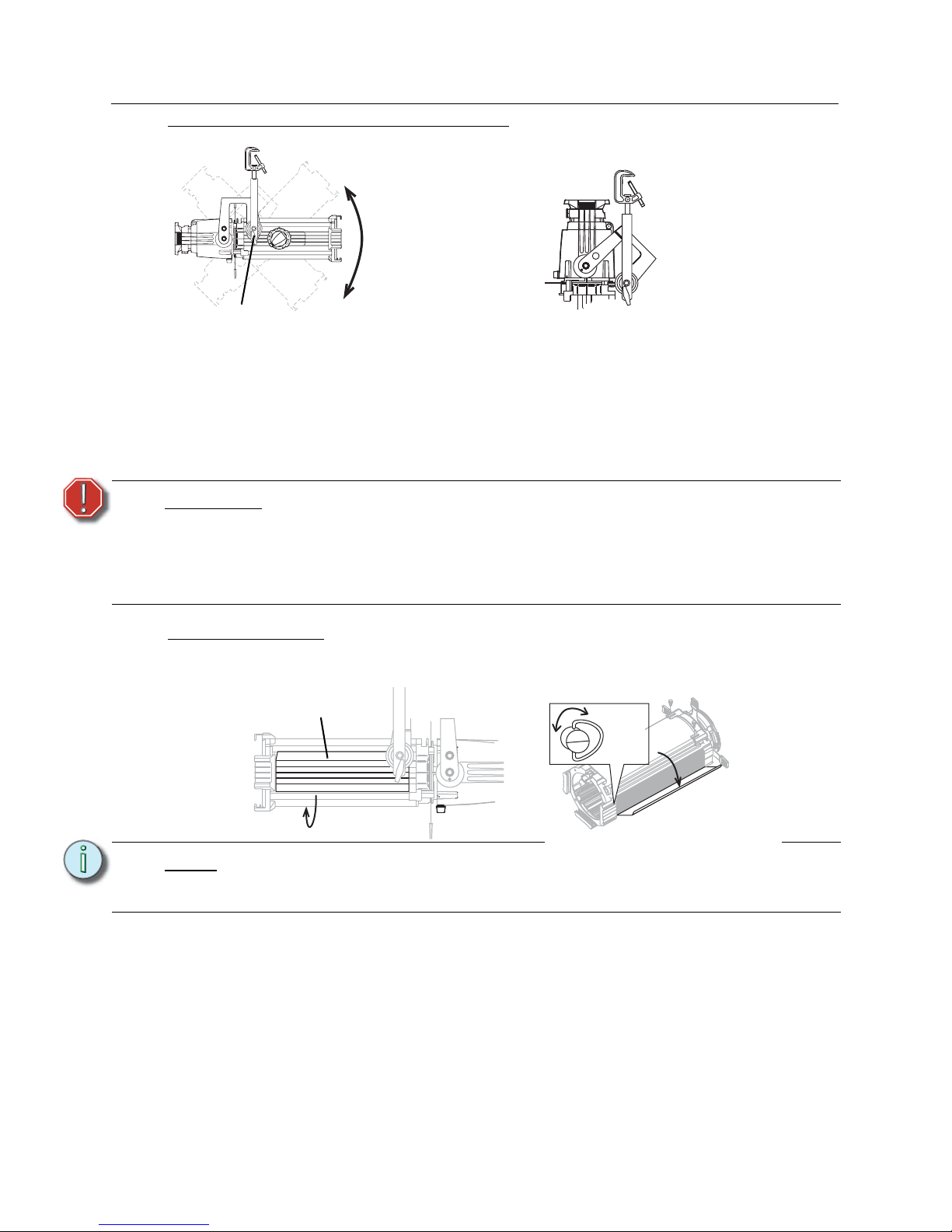

Rotating the barrel assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

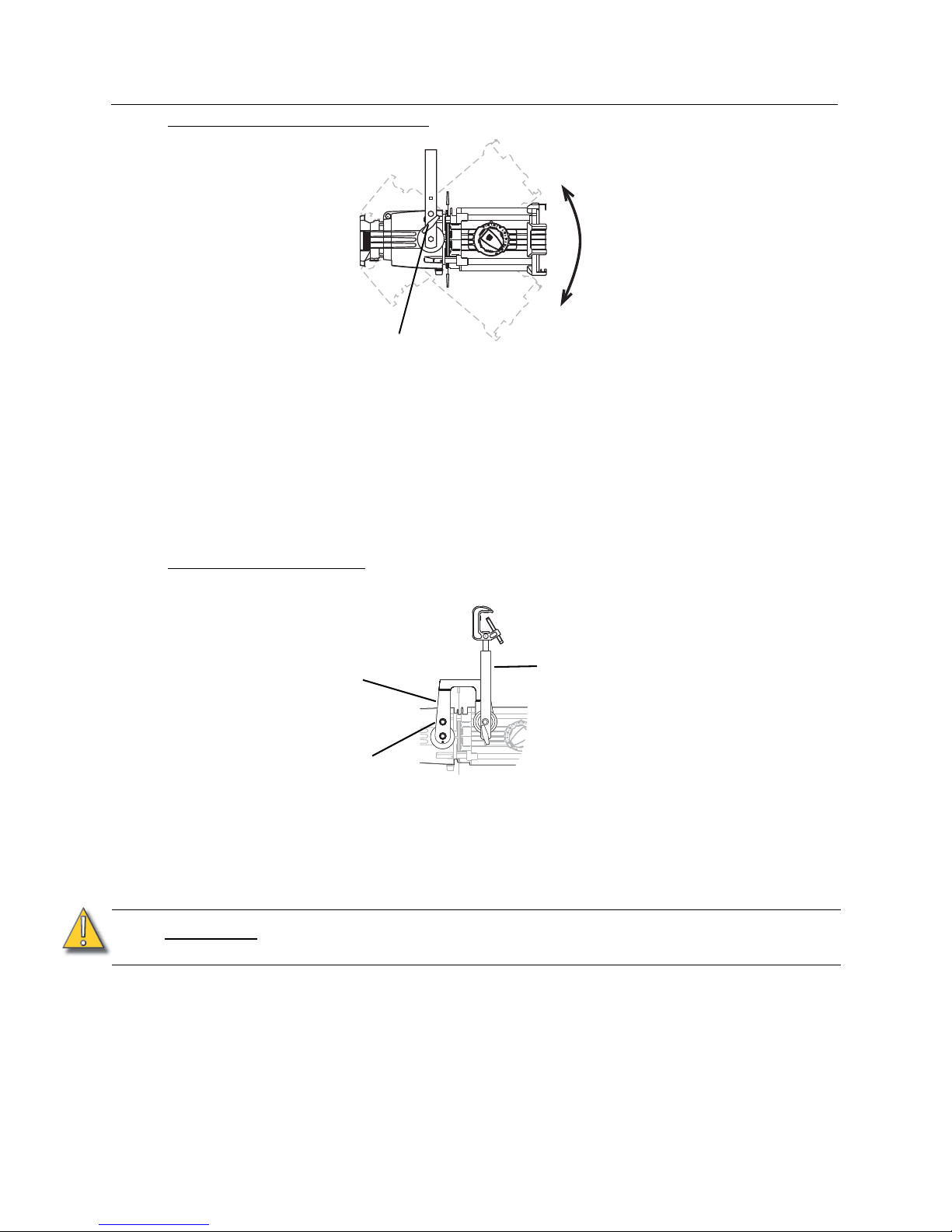

Adjusting the optional balance yoke position — 15°-30° Zoom . .9
Cleaning lens and reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Portable appliance test
(PAT) . . . . . . . . . . . . . . . . . . . . . . . . . .11
1
English
Declaration of conformity
We, Electronic Theatre Controls, Europe Ltd., declare under sole responsibility that the product:
Product name: Source Four Zoom CE
Product type/model: Source Four Zoom CE
Lot: n/a
Batch/Serial number: n/a
Item numbers: one of each model
to which this declaration relates in conformity with the following standards:
EN60598-1:2000 Luminaires, General requirements and tests
EN60598-2-17:1990 Specification for luminaires for stage lighting, television, film, and
photographic studios (outside and indoor) - equiv. BS 4533-
102.17:1990
following the provisions of EU LV Directive(s) 73/23/EEC
London, United Kingdom
Mr. Adam Bennette
(Place of issue) (Name of authorised person)
(Date of issue) (signature of authorised person)
Electronic Theatre Controls Europe, Ltd. Registered office:
Unit 26-28, Victoria Industrial Estate, Grant Thornton House
Victoria Road, London W3 6UU U.K. Melton St., London NW1 28W, England
Telephone (+44) (0)20 896 1000 Registered in England No. 3057796
Fax (+44) (0)20 896 2000 VAT No. 6629487 90
2 Source Four Zoom CE User Manual
English
Source Four Zoom CE guidelines
The Source Four Zoom CE is intended for professional use only. Read the entire User Guide
before using equipment.
• Do not mount the Source Four Zoom CE on or near a flammable surface.
• Use the Source Four Zoom CE in dry locations only, where humidity does not exceed 90 percent.
• The luminaire is for indoor use only and is not intended for outdoor use.
• For temporary installations, mount and support the Source Four Zoom CE only by the primary suspension yoke
holes. Suspend the luminaire from a hook clamp or a stand mount, using a securely tightened steel bolt (up to Ø
12 mm), flat washer and locking washer.
• In addition to primary suspension, attach a safety cable (ETC part #7060A1022) or chain to the secondary suspension point on the Source Four Zoom CE.
• If the external cable is damaged, it shall be replaced by ETC or our service agents.
• Always hang the Source Four Zoom CE with the colour frame held securely behind the retaining clip.
• Always replace the lamp if it becomes damaged or thermally deformed.
• Disconnect the unit from power before all cleaning and maintenance.
• The Source Four Zoom CE is suitable for indoor use with a maximum ambient temperature: T
a
=45C
• Maximum exterior surface temperature: T
max
=217ºC
• A multilingual label sheet is included with this manual. Affix the label of the appropriate language over the existing
warning label on the extension yoke. Do not cover ETC trademark or CE mark.
• The Source Four Zoom CE contains a CE safety screen that covers the lens to prevent injury from broken glass
due to lamp failure. Do not remove the safety screen.
• Keep the luminaire at least 0.8 meters away from any lit surface. Lighted objects at this distance or greater will not
exceed 90ºC temperature from projected light.
WARNING:
Please note the following safety precautions.
0.8m
3
English
Basic assembly
Luminaire information
Wiring and power information
A plug of at least 2.5 amp (220/240V) rating should be attached to the luminaire’s mains lead. The
wires in the mains lead are 1.55mm
2
each and coloured in accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
Current rating: 120V/5 amp maximum
240V/2.5 amp maximum
Operating frequency: 50/60 Hz
WARNING:
Please note the following safety warnings before use:
Do not mount the luminaire on or near combustible surfaces.
Do not operate the luminaire without a lens installed.
Always hang the luminaire with the color frame retaining clip in the locked
position.
Remove cardboard insert from lens tube before connecting power to your
fixture.
WARNING:
This luminaire must be earthed.
Figure 1
Lamp housing
Insulated handle
Reflector housing
Yoke
Pattern holder slot
Drop-in iris slot
Shutters
Color frame
Barrel
25°-50° lens tube
Barrel rotation knob
Focus dial
Color frame
retaining gel clip
15°-30° lens tube
Optional
Balancing yoke
Retainer bolt
Yoke locking knob
t 180 °c
