Unison Echo-Echoflex InterfaceETC
Echo Interface Series
GENERAL INFORMATION
The Unison Echo-Echoflex Interface allows for wireless
communication between Unison Echo® and Echoflex control
systems. When it’s not practical to run wires between every device
in your building’s control system, the Echo-Echoflex Interface is
the solution. Using the built-in 902 MHz radio the Echo-Echoflex
Interface can transmit or receive wireless signals to communicate
with any Echoflex control device within 80 feet (24 meters). And
since the Echo-Echoflex Interface is a DIN-rail-mount device, you can
install it nearly anywhere.
APPLICATIONS
• Retrofits
• Hospitality
• Healthcare facilities
• Conference and meeting rooms
• Retail
• Houses of worship
FEATURES
• Four Echoflex product inputs to trigger Echo Presets
• Four Echo zone outputs to control Echoflex power products
• Onboard configuration and testing tools
• Input and output status indicators
• EchoConnect
freedom to easily place devices wherever they are needed
• Optional external antenna kit available
GENERAL
• UL and cUL LISTED
• CE Marked
®
two-wire topology-free system gives you the
ORDERING INFORMATION
Product
MODEL DESCRIPTION
EEI Echo-Echoflex Interface
Accessories
MODEL DESCRIPTION
EEI-EA External Antenna Kit
ECHO-DIN Echo Low-Voltage DIN-Rail Cover Kit
Echo Power Requirements
EchoConnect: 1 Unit of Output Power
Auxiliary Power: 50mA
Echo Presets
Supports 16 Echo Presets
1 of 4
Unison Echo-Echoflex InterfaceETC
Echo Interface Series
SPECIFICATIONS
FUNCTIONAL
• Receives wireless trigger from Echoflex system and translates it into an Echo preset trigger
• Receives zone level from Echo system and translates it into a wireless Echoflex command
• Compatible with Echo stations, senors, interfaces and power controllers
• Compatible with Echoflex station, sensors and a power controllers
MECHANICAL
• Buttons and LED indicators for wireless inputs and wired output configuration and status
• Din-rail mounting complies with DIN43880 (35/7.5 rail)
• Constructed of injection-molded black ABS plastic
• Connection for external antenna (provided separately)
ELECTRICAL
• Connects via two-wire EchoConnect control network through low-voltage Class 2 wiring + 24VDC auxiliary power
- Topology-free wiring over Belden 8471 or equivalent and one #14 ESD drain wire
- Two #16 AWG wires for 24VDC auxiliary power
• Wiring may be bus, loop, homerun or any combination of these
• Supports optional use of Belden 1583A or equivalent Ethernet control wire when used with Cat5 termination accessories
• Supports up to 500 meters (1,640 feet) of control wiring
- Up to 300 meters (1,000 feet) using Cat5
• MicroSD card slot for firmware maintenance
• 902 MHz wireless radio
• 80-foot (24-meter) open-air transmission range
• UL and cUL Listed, CE Marked
• UL2043 LISTED for use in plenum
THERMAL
• Ambient room temperature: 0-50°C / 32-122°F
• Ambient humidity: 5-95% non-condensing
2 of 4
ECHO FAMILY OF PRODUCTS
Unison Echo-Echoflex InterfaceETC
Echo Interface Series
EchoConnect Power Supplies
MODEL DESCRIPTION
E-SPS 6U Room Station Power Supply, Knockout Mount
E-SPS-DIN 16U DIN rail Station Power Supply with 24V Aux
E-SPM 16U DRd Station Power Module
E-SPM-A 16U DRd Station Power Module with 24V Aux
E-SPM-RM 16U Rack-Mount Station Power Module Aux
E-SPM-RM-A 16U Rack-Mount Station Power Module 24V Aux
E-SPM-WM 16U Wall-Mount Station Power Module
E-SPM-WM-A 16U Wall-Mount Station Power Module 24V Aux
E-APS 24V Aux Power Supply, Knockout Mount
Echo Stations
MODEL DESCRIPTION
E1001 Inspire One Button Station
E1002 Inspire Two Button Station
E1004 Inspire Four Button Station
E1006 Inspire Six Button Station
E1008 Inspire Eight Button Station
E1104 Inspire Four Button with Fader Station
EPS05 Echo Preset Station - 5 Button
EPS10 Echo Preset Station - 10 Button
EPSLO Echo Lockout Station
E-ATC Echo TimeClock
Echo Responsive Controls
MODEL DESCRIPTION
ELS Light Sensor
EOCC Ceiling-Mount PIR Occupancy Sensor
EVAC Ceiling-Mount PIR Vacancy Sensor
E-DOC-C Ceiling-Mount Dual Tech Occupancy Sensor
E-DVAC-C Ceiling-Mount Dual Tech Vacancy Sensor
E-DOC-W Wall-Mount Dual Tech Occupancy Sensor
E-DVAC-W Wall-Mount Dual Tech Vacancy Sensor
E-DOC-SM1 Switch-Mount Dual Tech Sensor - One Button
E-DOC-SM2 Switch-Mount Dual Tech Sensor - Two Button
Echo Interfaces
MODEL DESCRIPTION
EACC EchoAccess™ Interface
EEB Echo Expansion Bridge
EDMXC Echo DMX Scene Controller
EEI Echo-Echofl ex Interface
ECII Echo Contact Input Interface
ECOI Echo Contact Output Interface
Zone Controllers
MODEL DESCRIPTION
ERC One Zone Relay Controller
EDRC Two Zone Relay Controller
ELD One Zone 0-10V Dimming Controller
EDLD Two Zone 0-10V Dimming Controller
ESSC One Zone SmartSpace Controller
EDSSC Two Zone SmartSpace Controller
ELVD 600-Watt Phase Adaptive Dimmer
ELVD-277 600-Watt Phase Adaptive Dimmer- 277V
Room Controllers
MODEL DESCRIPTION
ERMC4 Four Zone Room Controller
ERMCT4 Four Zone Room Controller with TimeClock
ERMC8 Eight Zone Room Controller
ERMCT8 Eight Zone Room Controller with TimeClock
Panel Products
MODEL DESCRIPTION
ERP Echo Relay Panel Mains Feed
ERP-FT Echo Relay Panel Feed Through
SensorIQ Sensor IQ Intelligent Breaker System
SR3 Sensor3 Power Control System
DRd Unison DRd with Echo Control
3 of 4
Unison Echo-Echoflex InterfaceETC

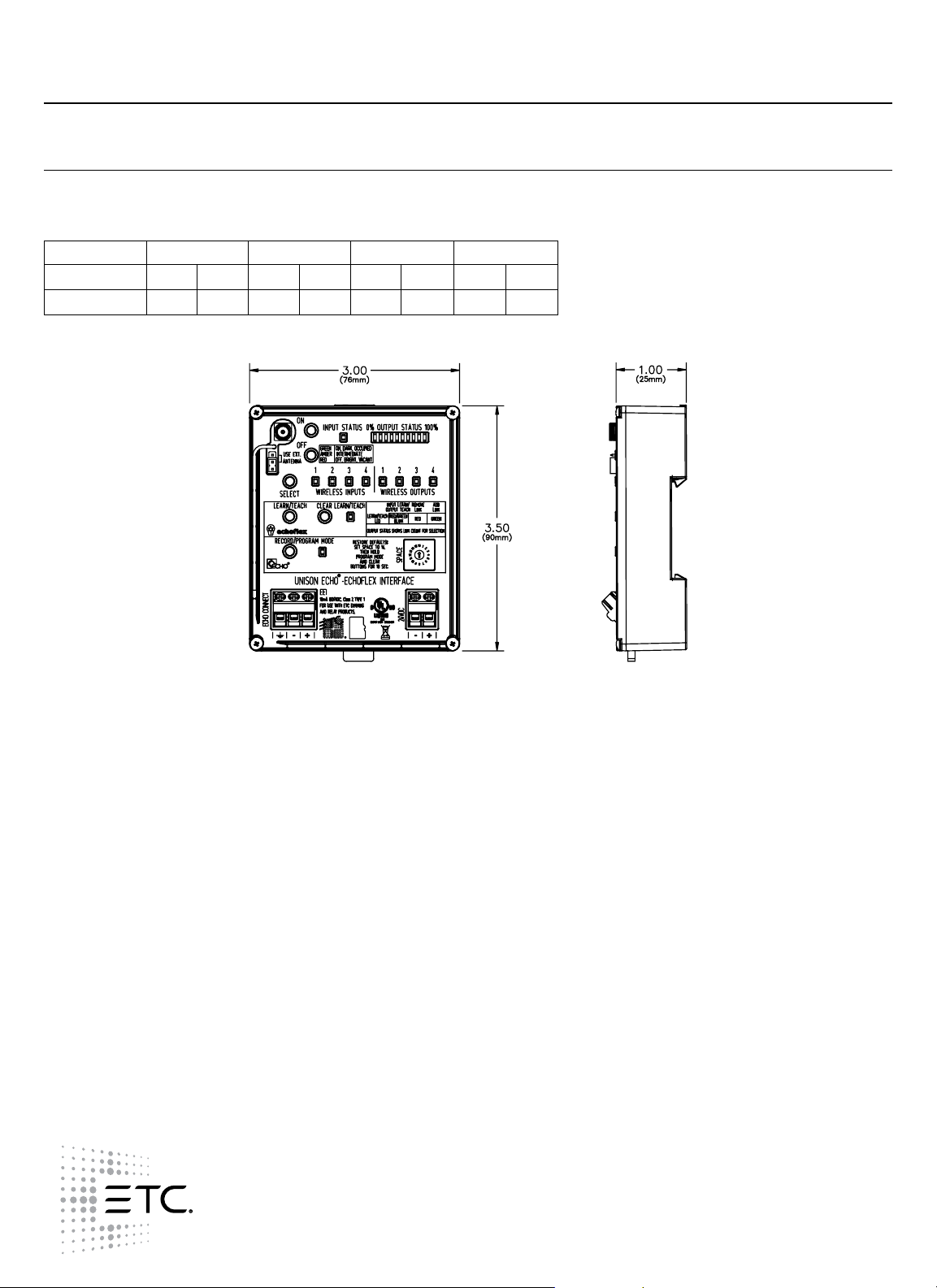

PHYSICAL
Product Information
MODEL HEIGHT WIDTH DEPTH WEIGHT
inches mm inches mm inches mm lbs kgs
EEI 3.5 90 3.0 76 1.0 25 0.22 0.10
Echo Interface Series
Corporate Headquarters n 3031 Pleasant View Rd, PO Box 620979, Middleton WI 53562 0979 USA n +1 608 831 4116
London, UK n Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK n +44 (0) 20 8896 1000
Rome, IT n Via Pieve Torina, 48, 00156 Rome, Italy n +39 (06) 32 111 683
Holzkirchen, DE n Ohmstrasse 3, 83607 Holzkirchen, Germany n +49 (80 24) 47 00-0
Hong Kong n Room 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong n +852 2799 1220
Web n etcconnect.com n Copyright©2017 ETC. All Rights Reserved. All product information and specifications subject to change. 7186L1018 Rev C 08/17
