OWNER’S MANUAL
WINDOW EVAPORATIVE AIR COOLER
MODEL: N30W
READ AND SAVE THIS INSTRUCTION MANUAL
Date Purchased: _______________________________ Purchased From: _______________________________
P/N 70852
REV. 4/09
Evaporative Cooling
Evaporative cooling uses the principle of evaporation to lower the air temperature. Hot, dry air is passed through wet­ted fi lters and is converted to refreshingly cooled air. Essick Coolers make the best use of the evaporative process by controlling the fl ow of water, spreading the water evenly over the fi lters, and keeping a steady stream of cooled air entering your home. It is exhausted out open windows or doors, carrying heat, smoke and odors along with it. Essick evaporative coolers are up to 80% less costly to operate than refrigerated air conditioners.
Cautions: To prevent harm to yourself and others, and to avoid damage to your cooler, PLEASE follow these guidelines.
When Installing When Operating When Servicing
Make sure that unit is installed on a sound structure that will support the full operat­ing weight of the cooler. See page 4.
Before attempting to hang the cooler in the window, remove the louver to reduce weight.
Do Not connect power to cooler before in­stallation is complete.
Make sure that circuit cooler is plugged into is equipped with a (slow blow) breaker large enough to support the full amperage of the cooler
To reduce the risk of fi re or electrical shock, DO NOT use this fan with any Solid-state speed control device.
This cooler is equipped with an automatic thermally protected motor. If it shuts off on its own for any reason, it can restart
without warning.
Always Unplug the cooler before attempt­ing service of any kind.
Be sure to disconnect nit from power source before servicing. If not, it can be turned on from inside the house and start unexpectedly.
If the motor shuts off because of thermal overload, check into the problem immedi­ately. If allowed to continue, permanent damage will occur.
MOUNTING
To install this cooler, the following tools are required:
• Adjustable wrenches
• Screwdrivers
• Electric drill
• 3/16” drill bit
• Level
1. Cut the Side Sealer Channels so that two of them will span the window when butted together. Place two of the channels on the bottom duct fl ange as shown.
2. Place the cooler in the center of the window with the bottom duct fl ange resting against the sill.
3. Pull out the Spacer-Rods so as to allow the Rubber Feet to rest against the side of the house. Tighten the Adjustment Screws.
4. Lower the window to rest on top of the duct behind the top duct fl ange.
5. Fasten a stop above the inside window sash to prevent the window from being raised. Raising the window may cause the cooler to fall.
6. Adjust the Spacer-Rods to level the cooler. This will ensure proper water ow to the pads.
7. Install the Chain Supports (Not Included).
a. Drill pilot holes in the window frame, 3 feet above the top of the duct
and the width of the cooler apart. Install the Screw-Hooks in these pilot
holes to the full depth of the thread. b. Hook one end of each Chain over each Screw-Hook. c. Place S-Hooks in the holes at the top rear of the cooler. d. Place the opposite end of the S-Hooks in the free end of each Chain.
Make sure the chains are taut, but not so tight they pull the bottom of the
cooler away from the wall.
CHAIN
S-HOOK
Side Sealer Channel
SCREW HOOK
8. Install the Side Sealer Panels. These panels are the correct height, but need to be trimmed to fi t the width of our window. Trim the panels so that they reach from the window frame to the side of the duct. Slide the panels in the channels you placed on the bottom duct fl ange. Install the remaining Side-Sealer Channels over the top duct ange and the Side-Sealer Panels.
INSTALL OVERFLOW AND DRAIN
1. Slide the Rubber Washer over the Drain Bushing and push through the hole in the bottom of the cooler from the top side.
2. Secure the Drain Bushing from beneath the pan with the Lock Nut. Make sure the Rubber Washer does not twist while tightening, which could cause it to leak. NO
NOT OVERTIGHTEN.
3. Thread the Overfl ow Tube into the Drain Bushing and HAND TIGHTEN.
4. If leakage occurs after Reservoir is full retighten the Overfl ow Pipe until leaking stops. A small amount of silicone caulk may be used if necessary.
Side Sealer
Side Sealer Channel
FLOAT VALVE INSTALLATION
1. Place the threaded portion of the Float Valve through the hole provided in the Float Bracket (inside unit) as shown.
2. Slip the Fiber Washer over the threaded portion of the fl oat and secure with the Ring Nut. Be sure the Float does not turn while you are tightening the nut.
WATER LINE CONNECTION
1. Find the closest outside water faucet, and install a Water Connection Kit (not included with cooler) as shown. If an exterior faucet is not available, locate the closest cold water pipe and install a saddle valve assembly.
2. Route tubing into cooler. Place Compression Nut and Ferrule over end of tub­ing. Insert the tubing into fl oat valve and tighten Compression Nut to secure.
NOTE: Over tightening a compression fi tting will cause that fi tting to leak. It is best to secure the connections, turn on the water, and then snug the tting until leaking stops.
ADJUSTING WATER LEVEL AND FLOAT VALVE
1. To adjust water level, bend the fl oat valve rod.
2. Check all water connections for leaks.
3. Make sure the Float Valve cuts off completely when the desired water level has been reached (1/2” to 3/4” below top of Overfl ow Tube). If the oat does not stop the water completely, the water level will rise and run out the Overfl ow Tube.
4. Double check the Overfl ow Tube for leaks.
START UP
1. Plug in the electrical cord to a standard grounded receptacle. Be sure the circuit breaker protecting the receptacle is of suffi cient size.
2. Open windows in rooms where you want cooling to be directed.
3. Turn the cooler to the High Fan position. Observe the amount of air being delivered. Note: On cool nights (or days) or when the humidity level is high, the fan positions may be used for ventilation purposes.
4. Turn the cooler to the Low Fan position. This should signifi cantly reduce the amount of air being delivered.
5. Turn the cooler to the Pump Only position. The pump should run and not the fan. Check to see that water is fl owing from all three Water Trays.
6. Turn the cooler to the High Cool position. Check to see that all three Pads are wetting evenly with no dry patches. The Pads may take up to 20 min­utes to wet fully. If the Pads have dry patches, you can adjust the level of each Water Tray by screws on each end.
7. Adjust window openings to achieve desired cooling level.
Overflow
Tube
Bushing
Rubber
Gasket
Lock
Nut Reservoir
Compression Nut
Ferrule
Ring Nut
Fiber Washer
Float
Ferrule
Compression Nut
Faucet
Sillcock
Water Supply Valve
MAINTENANCE
1. Once a month during cooling season, inspect your cooler for leaks, blocked water lines and excessive residue build-up on the pads.
2. At the end of the season, drain the reservoir. Remove the drainpipe and let water and dirt pass through the drain fi tting.
3. Lime build-up can occur in the water reservoir and on louvers. Clean this off at least once per season. If any rust or bare metal spots occur on the cabinet or louver, the metal should be sanded, primed and painted with a good quality paint.
4. If freezing weather occurs in your area, it is best to shut off the water supply at the source and drain the supply line to the cooler.
5. A cooler cover is recommended to prevent rain and weather from damaging your cooler.
6. To prevent the Shaft from rusting, coat with a wax based lubricant. Allow lubricant to dry completely and all fumes to dis­perse before turning on the cooler.
DO NOT GET WATER ON MOTOR OR PUMP MOTOR
NOTE: Depending on the mineral content of the water or the amount of air borne dust in your are, you may need
to replace fi lter pads during the season.
It is best to replace fi lter pads again at the end of the season. Old fi lter pads soak up lime and salts, which can rust
the louvers and the cabinet during the winter months.
TO REPLACE PADS
1. Remove louver (U) from cooler.
2. Unhook pad holders (V) at the sides of the louver and above and below side pads inside cooler.
3. Remove old pads (W) and discard.
4. Tuck in rear pad to make sure hot air can not by-pass fi lter .
5. Place pad holders over new pad and hook into place.
6. For the side pads, center pad over louver openings in cabinet, hook pad holder below pad, tilt into place and hook at top.
WIRING DIAGRAM
TROUBLESHOOTING
Problem Cause Remedy
Motor cycles on and off • Extension cord (if one used) too long
Fails to start • No electrical power
Water draining from overfl ow • Float improperly adjusted • Adjust fl oat Blower vibrates excessively or
rattles
Not cooling • Blocked water lines
• Circuit breaker not large enough
• Circuit breaker tripped or fuse blown
• Blower wheel out of balance or out of alignment
• Debris in blower housing
• Windows opened too little or too much.
• Uneven pad wetting
• Pump clogged or failed
• Pads plugged with dirt and water deposits
• Choose a shorter or heavier gauge cord
• Consult a licensed electrician
• Check all electrical connections and cords
• Reset circuit breaker or replace fuse
• Replace the blower wheel
• Clear debris
• Check incoming water line, fl oat and water distributor for blockages and clear.
• Adjust window openings
• Level water trays, check for blocked water slots in water trays
• Clean pump or replace
• Replace pads

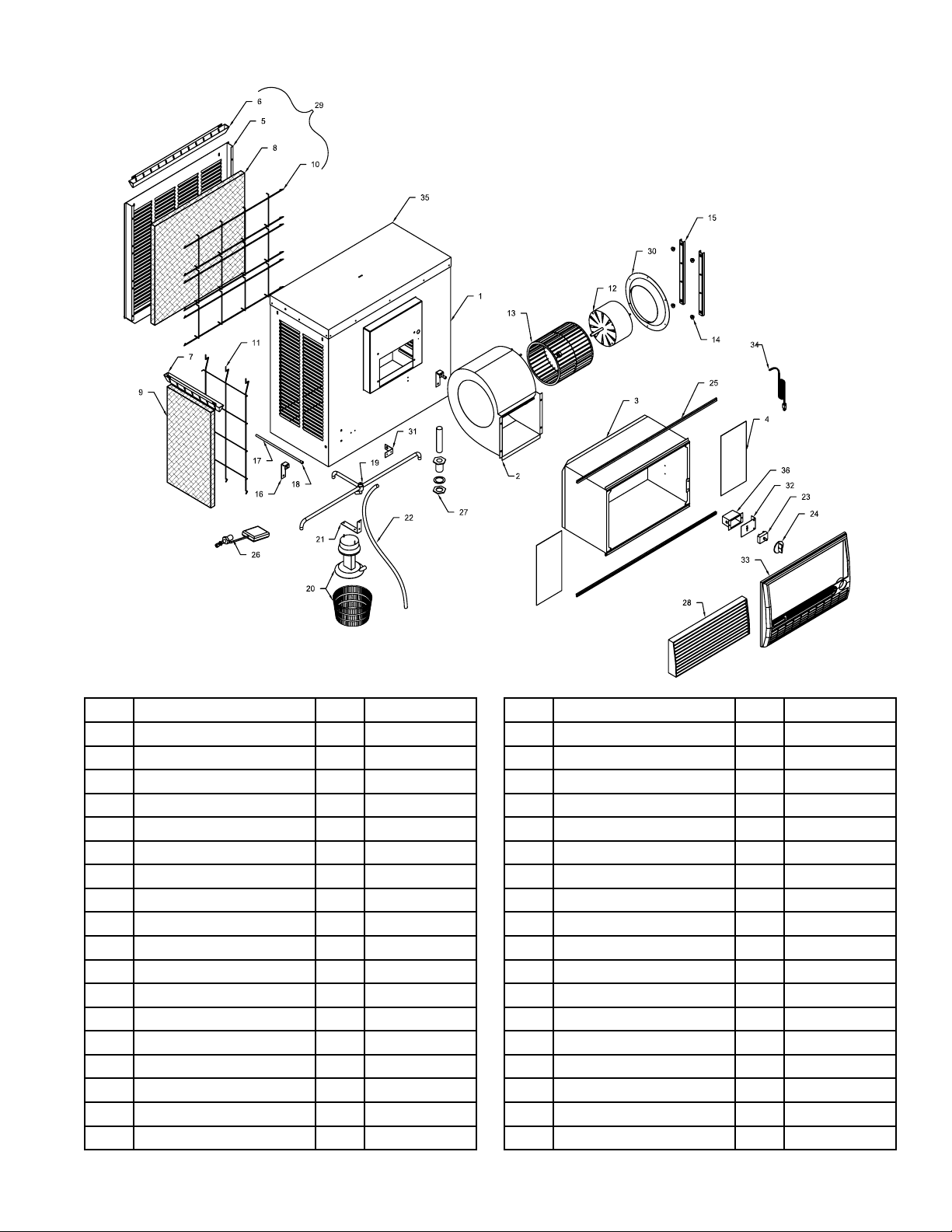

REPLACEMENT PARTS
N30W
Item Description Qty Part No. Item Description Qty Part No.
1 Cabinet 1 322160-001 19 Water Distributor 1 3D-30 2 Blower 1 70866 20 Pump Assembly 1 70569 3 Duct 1 322120-001 21 Pump Bracket 1 504281 4 Side Sealer 2 110603 22 Water Hose 1 70276 5 Louver 1 224007-007 23 Switch 1 110425 6 Water Tray - Back 1 226003-002 24 Knob 1 110839-006 7 Water Tray - Side 2 226004-001 25 Side Sealer Channel 4 110599 8 Filter - Back 1 110098 26 Float Valve 1 FL-C
9 Filter - Side 2 110084 27 Water Overfl ow Kit 1 3OA-1 10 Pad Retainer - Back 2 3PW-5 28 Sub-Vent Assembly 1 310839-103 11 Pad Retainer - Side 2 70415 29 Louver Assembly 1 324007-107 12 Motor 1 110441-2 30 Inlet Ring 1 224120-004 13 Blower Wheel 1 110764 31 Float Bracket 1 70373 14 Motor Mount Bushing 4 110731 32 Switch Bracket 1 70798 15 Motor Mount 2 218109-001 33 Grill Frame 1 110839 16 Stand-off Bracket 2 70417 34 Cord 1 70414 17 Stand-Off Rod 2 110811 35 Top 1 222160-007 18 Rubber Foot 2 110706 36 Switch Box 1 524342

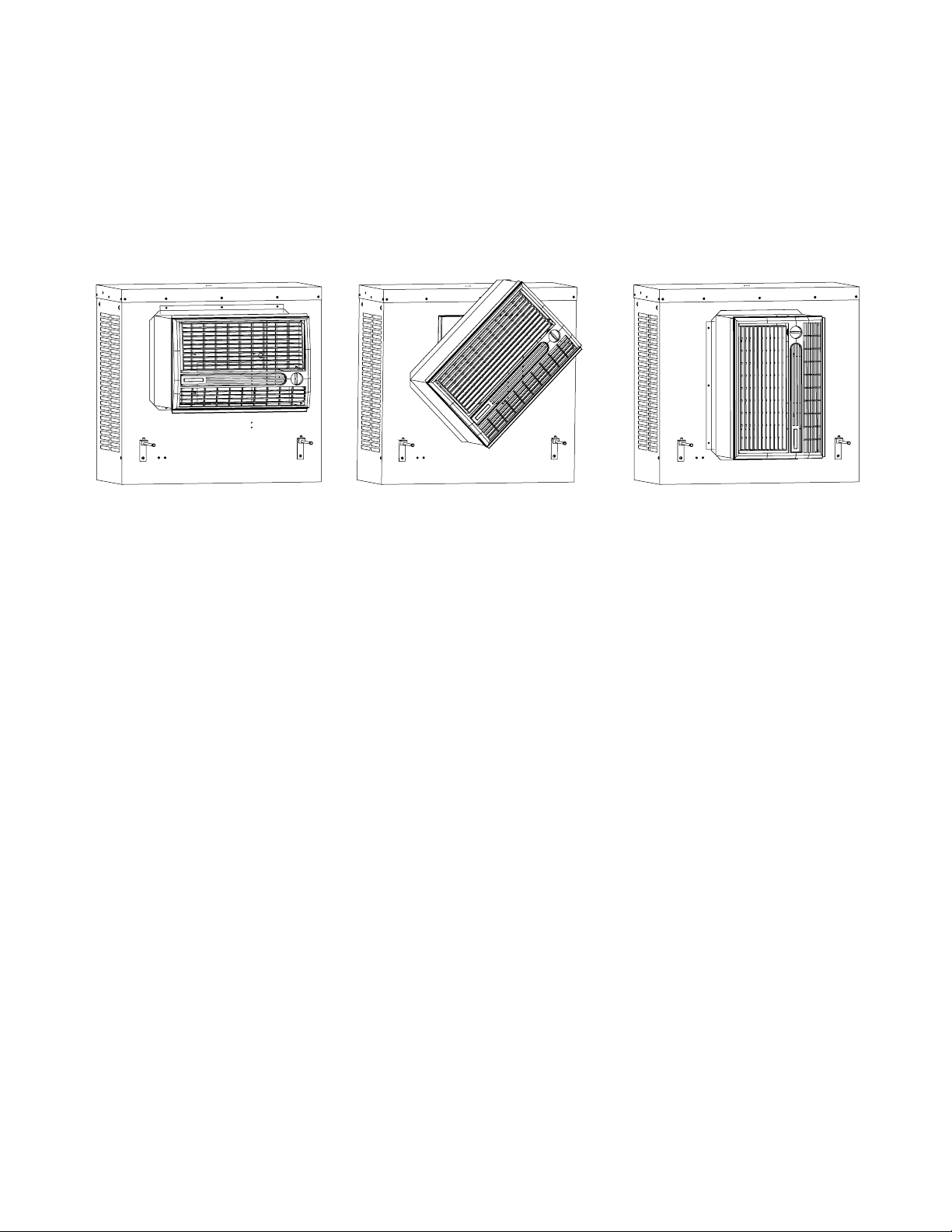

Instructions to Convert Unit to Vertical Duct Confi guration
1. Remove the 13 screws holding the Duct in place.
2. Turn the Duct 90 degrees counter-clockwise.
3. Align the Duct with the 3 holes provided above the blower panel.
4. Insert 3 screws at the top and bottom of the duct.
5. Place the Duct Mount Strip over the side Duct Flange and insert 3 screws into the holes provided. Proceed with the installation as normal. The side Sealer Channels will go on the same fl anges as for a horizontal duct.
You may use the Side Sealers provided to close off the window above your cooler’s duct.
LIMITED WARRANTY
This warranty is extended to the original purchaser only . It does not cover damages incurred during shipping or through accident, neglect, or abuse by the owner. Essick Air Products does not authorize any person or representative to as­sume any other or different liability in connection with this cooler.
TERMS AND CONDITIONS OF WARRANTY
The BOTTOM PAN is guaranteed against leakage due to rusting out for Five Years. All other original parts provided by Essick Air Products are warranted against defects in material or factory workmanship for One Year.
EXCLUSIONS FROM THE WARRANTY
Essick Air Products is not responsible for incidental or consequential damage resulting from any malfunction. Essick Air Products is not responsible for any damage occurring from the use of water softeners, chemicals, de-scale
material, or if a higher horsepower motor than what Essick Air Products recommends is used in the unit. Essick Air Products is not responsible for the cost of service calls to diagnose cause of trouble, or labor charge to repair
and/or replace parts.
HOW TO OBTAIN SERVICE UNDER THIS WARRANTY
Contact the Dealer where you purchased the evaporative cooler. If for any reason you are not satisfi ed with the re- sponse from the Dealer, contact the Customer Service Department: Essick Air Products Inc., 5800 Murray Street, Little Rock, Arkansas 72209. 1-800-643-8341.
