Esatto EVD7 User Manual

Product:

esatto.house 01

Model Code/s:

Vented Dryer

User Mnul

EVD7

Exctly wht
you need

Online:

esatto.house

User Manual 2

Residentia Group

—
Head Office.
118 Campbell Street
Collingwood, VIC
Australia 3066
—
ACN.
600 546 656
—
Online.
residentia.group

Congratulations on purchasing your vented dryer. The Esatto brand is proudly
distributed within Australia by Residentia Group Pty Ltd.

Please refer to the warranty card at the rear of this manual for information
regarding your product’s parts and labour warranty, or visit us online at
www.residentiagroup.com.au.

At Residentia Group, we are customer obsessed and our Support Team are
there to ensure you get the most out of your appliance. Should you want to
learn more about your dryer such as the various washing modes or importantly
taking care of the appliance, our Support Team are here to help.

You can use our online Support Centre at anytime by visiting
http://support.residentiagroup.com.au, or you can contact us via phone by
dialling: 1300 11 HELP (4357).

It is important that you read through the following use and care manual
thoroughly to familiarise yourself with the installation and operation
requirements of your appliance to ensure optimum performance.

Again, thank you for choosing an Esatto appliance and we look forward to being
of service to you.

Kind Regards,
The esidentia Team

Postage.
PO Box 341, Mt Eliza
Victoria Australia 3930

Telephone.
1300 11 4357
Email.
[e-mail]

esatto.house 03

Contents

02

Welcome

04

Technical
Specications

05

Before First Use

04

Safety
Instructions

05

Your Esatto
Vented Dryer

06

Installation
Instructions

07

Control Panel

10

Cleaning &
Maintenance

12

Warranty
Information

08

Operating Your
Vented Dryer

10

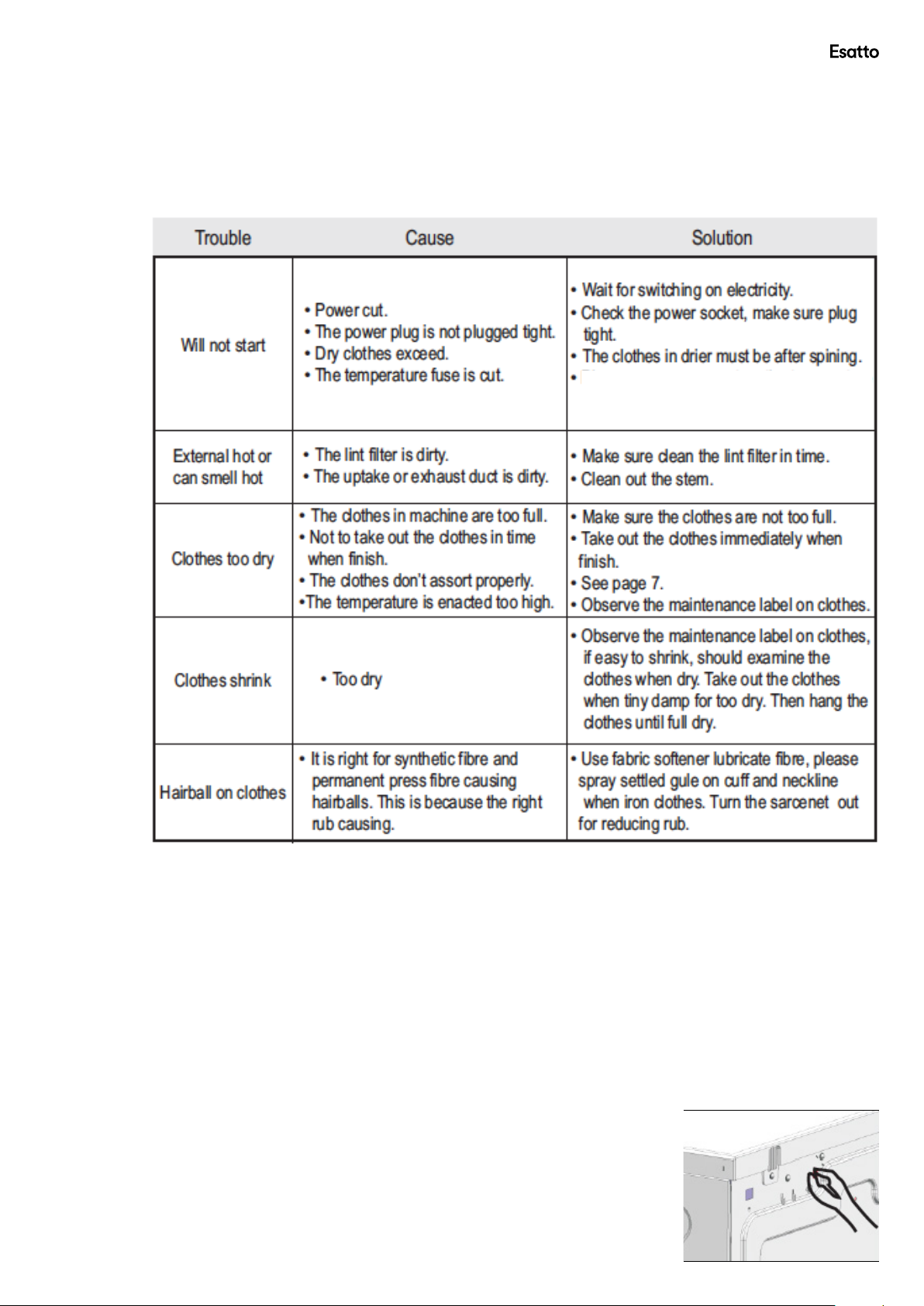

Troubleshooting

14

Notes

User Manual 04

Safety Instructions

→ This appliance is only intended for use indoors only within a domestic

environment.

→ This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.
→ Children should be supervised to ensure that they do not play with the appliance.
→ The dryer is not to be used with any clothing articles which have had industrial chemicals

used for cleaning.
→ The lint trap must be cleaned frequently- we recommend after each use.
→ Adequate ventilation must be provided.
→ Never dry unwashed items with your clothes dryer.
→ Items that have been soiled with substances including cooking oils, alcohol, petrol,

waxes, etc, should be thoroughly washed in hot water with detergent before being dried

within your clothes dryer.
→ Never use your clothes dryer to dry items such as latex, foam rubber, waterproof textiles,

rubber backed articles, or pillows tted with foam.
→ The nal cycle of your clothes dryer programs is a cool down cycle to reduce the

temperature of your clothes. This is incredibly important to ensure that your clothing

items won’t be damaged. NEVER stop your clothes dryer before the end of its drying

program unless all items are quickly removed and spread out to ensure the heat is

dissipated.
→ Ensure all objects are removed from pockets.
→ If the power cord is in any way damaged it must be replaced by the manufacturer, its

service agent or a qualied and licensed electrician.

UNPACKING
→ During transportation, protective packaging was used to protect the appliance against

any damage. After unpacking, please dispose of all elements of packaging in a way

that will not cause damage to the environment. All materials used for packaging the

appliance are environmentally friendly; they are 100% recyclable and are marked with the

appropriate symbol.

Caution! During unpacking, the packaging materials (polythene bags, polystyrene

pieces, etc.) should be kept out of reach of children.

DISPOSAL OF THE APPLIANCE
→ Old appliances should not simply be disposed of with normal household waste, but

should be delivered to a collection and recycling centre for electric and electronic

equipment. A symbol shown on the product, the instruction manual or the packaging

shows that it is suitable for recycling.
→ Materials used inside the appliance are recyclable and are labeled with information

concerning this. By recycling materials or other parts from used devices you are making a

signicant contribution to the protection of our environment.
→ Information on appropriate disposal centres for used devices can be provided by your

local authority.

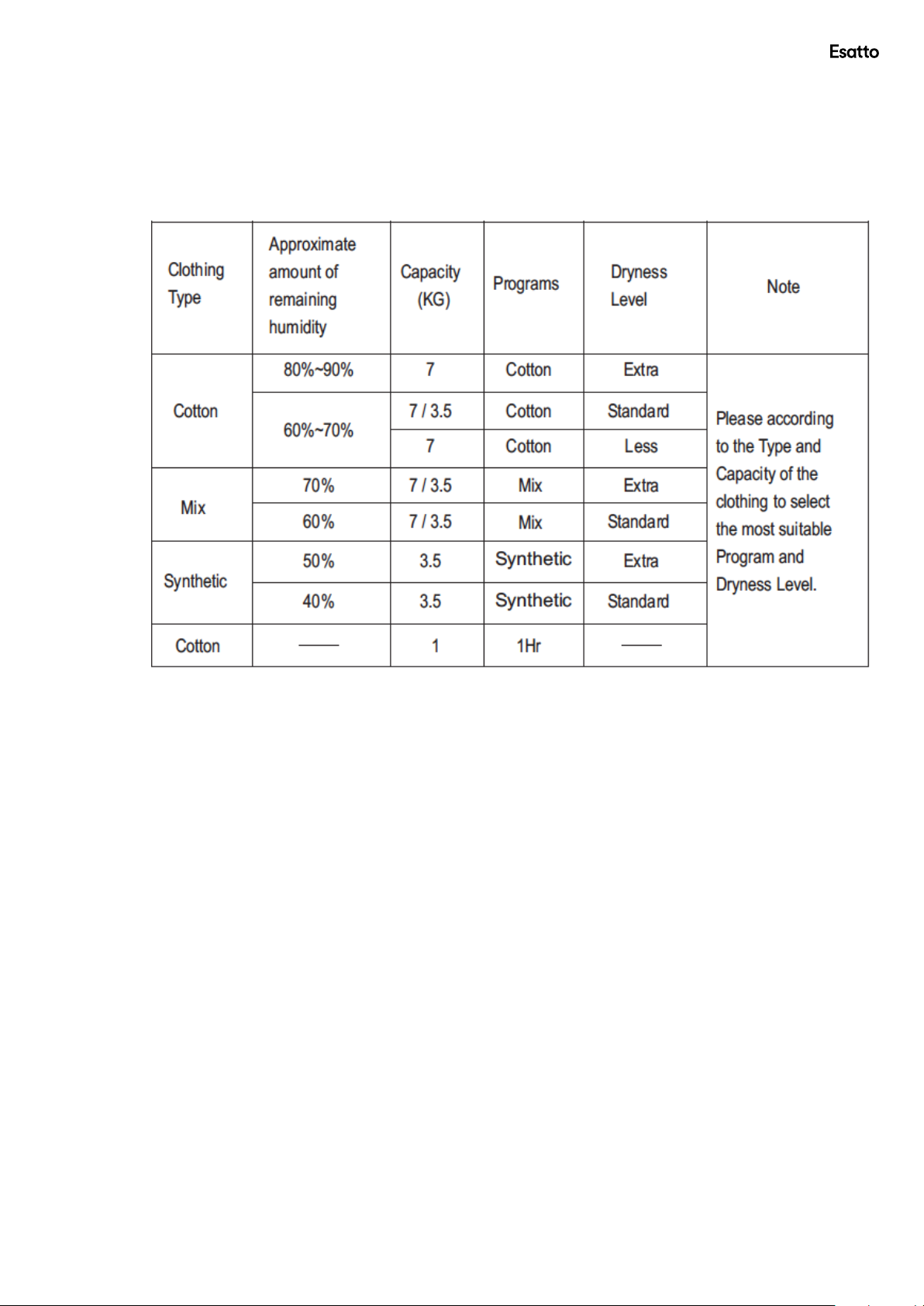

Technical Specications

Your Esatto Vented Dryer

esatto.house 05

1. Top-board 2. Control Panel 3. Door 4. Front Panel

5. Side panel 6. Filter 7. Flex tube (only to rear vent) 8. Power plug

9. Door lock/switch 10. Tumbling Drum 11. Front vent

Before First Use

Step 1. Power source and grounding

The dryer employs alternative current with the rated voltage and frequency. When the voltage uctuates

between 6% of rated voltage, the dryer can work normally. Your clothes dryer should be on a dedicated
power socket for both convenience and safety.

Step 2. Precautions

→ Ensure all packaging, user manuals, paper and plastic are removed from within the clothes dryer before

operation.

→ Ensure the vents aren’t blocked and adequate air-ow exists.
→ Always check your clothing articles care instructions to ensure they are suitable for use within a clothes

dryer. Not all clothes are suitable for use within clothes dryers. The table below explains common

symbols on care instructions for clothing:
