Esatto VDE45W User Manual

Product:

Model Code/s:

Vented Dryer

4.5kg

User Mnul

VDE45W

Exctly wht
you need

Online:

esatto.house

User Manual 02

Residentia Group

—
Head Office.
118 Campbell Street
Collingwood, VIC
Australia 3066
—
ACN.
600 546 656
—
Online.
residentia.group

Congratulations on purchasing your new clothes dryer. The Esatto brand is proudly
distributed within Australia by esidentia Group Pty Ltd.

Please refer to the warranty card at the rear of this manual for information regarding
your product’s parts and labour warranty, or visit us online at www.residentia.group

At esidentia Group, we are customer obsessed and our Support Team are
there to ensure you get the most out of your appliance. Should you want to learn
more about recommended drying proceedures, the various features of your dryer,
and importantly taking care of your appliance when cleaning, our Support Team
are here to help. You can use our online Support Centre at anytime by visiting
http://support.residentiagroup.com.au, or you can contact us via calling us on
1300 11 HELP (4357).

It is important that you read through the following use and care manual thoroughly
to familiarise yourself with the installation and operation requirements of your
appliance to ensure optimum performance.

Again, thank you for choosing an Esatto appliance and we look forward to being
of service to you.

Kind Regards,
The esidentia Team

Postage.
PO Box 341, Mt Eliza
Victoria Australia 3930

Telephone.
1300 11 4357
Email.
[email protected]

esatto.house 03

Contents

02

Welcome

06

Your Esatto
Vented Dryer

11

Installation
Instructions

04

Safety
Instructions

07

Operating
Your Dryer

13

Maintenance

14

Troubleshooting
& Technical
Specications

16

Purchase
Details

15

Appendix

18

Warranty
Information

Safety Instructions

User Manual 04

DRY CARE SYMBOLS

Please pay attention to use the drying machine if the
materials of your clothes can not be dried by it or contain
the symbols as follows:

IMPORTANT SAFEGUARDS

When using electrical appliances, in order to reduce the risk
of re, electric shock, and/or injury to persons, basic safety
precautions should always be followed, including:

FOR YOUR SAFETY

Read all instructions carefully, even if you are quite familiar
with the appliance.

IMPORTANT!

• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.

• Young children should be supervised to ensure that they
do not play with the appliance.

• INDOOR USE ONLY this appliance is not intended for
outdoor use.

• Do not place naked ame sources, such as candles, on
the appliance.

• Do not locate the appliance or cord near heat sources
such as radiators, heaters, air ducts or direct sunlight.

• Do not block any of the ventilation openings. Ensure
that vents are not covered by newspapers, tablecloths,
curtains, etc.

• Do not run the cord under oor coverings. Instead,
arrange the cord away from trac areas where it will
not become a trip hazard.

• To disconnect the appliance, turn the appliance o,
switch o the power outlet and remove the plug from
the power outlet.

• Do not misuse the cord. Never carry the appliance by
the cord or pull to disconnect it from the outlet. Instead,
grasp the plug and pull to disconnect.

• Do not operate the appliance if it has a damaged
cord or plug; after the appliance malfunctions; or has
been dropped or damaged in any way. Consult the
manufacturer.

• Do not attempt to repair, disassemble or modify this
appliance. The warranty becomes void if not serviced or
repaired by a Qualied person.

• Do not place items that have been soiled with
ammable liquids inside the dryer without washing
them with detergent thoroughly before hand.

• Do not excessively bend, stretch, twist or bind the
power cord or place heavy objects on it. This appliance
is only to be serviced by a qualied person. There are no
user-serviceable parts inside.

• Do not use an extension cord with this appliance.

• Do not install in a tight tting cabinet.

• Do not overload the tumble dryer.

• Ensure foreign objects do not nd their way into the tub
of the tumble dryer.

• The door window may be hot after a long drying cycle.
Please ensure children are kept away from the machine.

esatto.house 05

• If the tumble dryer is not wall mounted, place in a at,
rm, dry and drafty place. Use the adjustable front legs
to assist in leveling the dryer if need be. Do net place it
on any soft material such as foam or plastic.

• Do not use ammable or combustible materials such as
gas, petrol, alcohol or lacquer in the tumble dryer.

• After turning o the power supply to the tumble dryer,
wait at least 2 minutes before turning it back on again.

• Please remove the transport packaging at the rear of the
tumble dryer, prior to use.

• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.

CAUTION!

If this appliance is supplied from a cord extension set or an
electrical portable outlet device, the cord extension set or
electrical portable outlet device must be positioned so that
it is not subject to splashing or ingress of moisture.

Oil-aected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer. The
items become warm, causing an oxidation reaction in the
oil. Oxidation creates heat. If the heat cannot escape, the
items can become hot enough to catch re. Piling, stacking
or storing oil-aected items can prevent heat from escaping
and so create a re hazard.

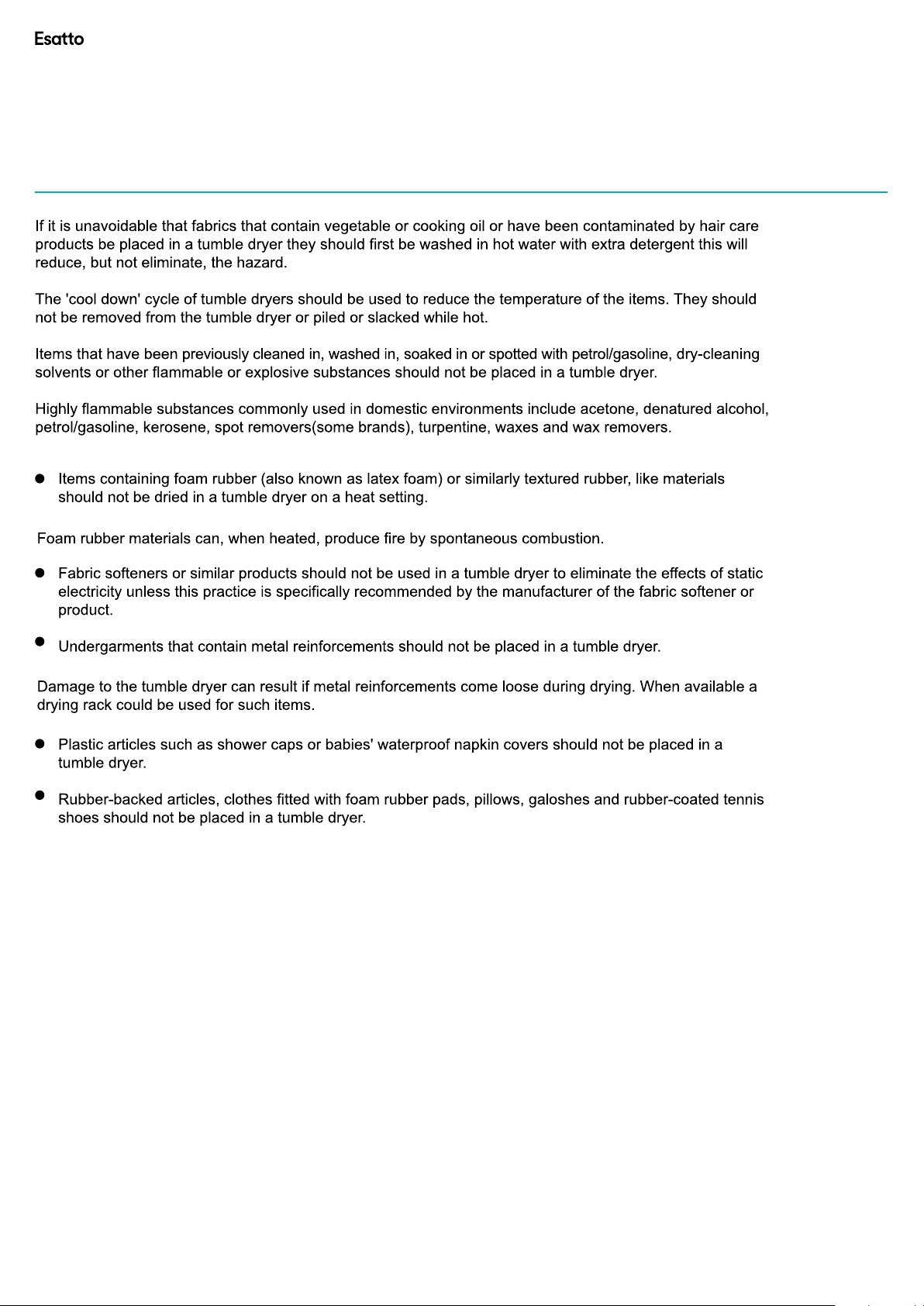

• If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should rst
be washed in bot water with extra detergent-this will
reduce, but not eliminate, the hazard.

• Do not dry unwashed items in the tumble dryer.

• Items that have been soiled with substances such
as cooking oil, acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows tted with foam rubber pads should not be
dried in the tumble dryer.

• Fabric softeners, or similar products, should be used as
specied by the fabric softener instructions.

• The nal part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be
damaged.

• Remove all objects from pockets such as lighters and
matches.

WARNING

Never stop a tumble dryer before the end of the drying cycle
unless all items are quickly removed and spread out so that
heat is dissipate.

• The maximum mass of dry textile material in kilograms
to be used in the appliance;

• That the tumble dryer is not to be used if industrial
chemicals have been used for cleaning;

• That the lint trap has to be cleaned frequently, if
applicable;

• That lint must not to be allowed to accumulate around
the tumble dryer (not applicable for appliances intended
to be vented to the exterior of the building);

• That adequate ventilation has to be provided to avoid
the back ow of gases into the room from appliances
burning other fuels, including open res.

NOTE:

This instruction is not required if the tumble dryer
discharges the air into the room.

• For appliances with ventilation openings in the base,
that a carpet must not obstruct the openings;

• That exhaust air must not be discharged into a ue
which is used for exhausting fumesfrom appliances
burning gas or other fuels.

NOTE:

This instruction is not required if the tumble dryer
discharges the air into the room.

• That the appliance must not be installed behind a
lockable door, a sliding door or a door with a hinge on
the opposite side to that of the tumble dryer, in such
a way that a full opening of the tumble dryer door is
restricted.

User Manual 06

Your Esatto Vented Dryer

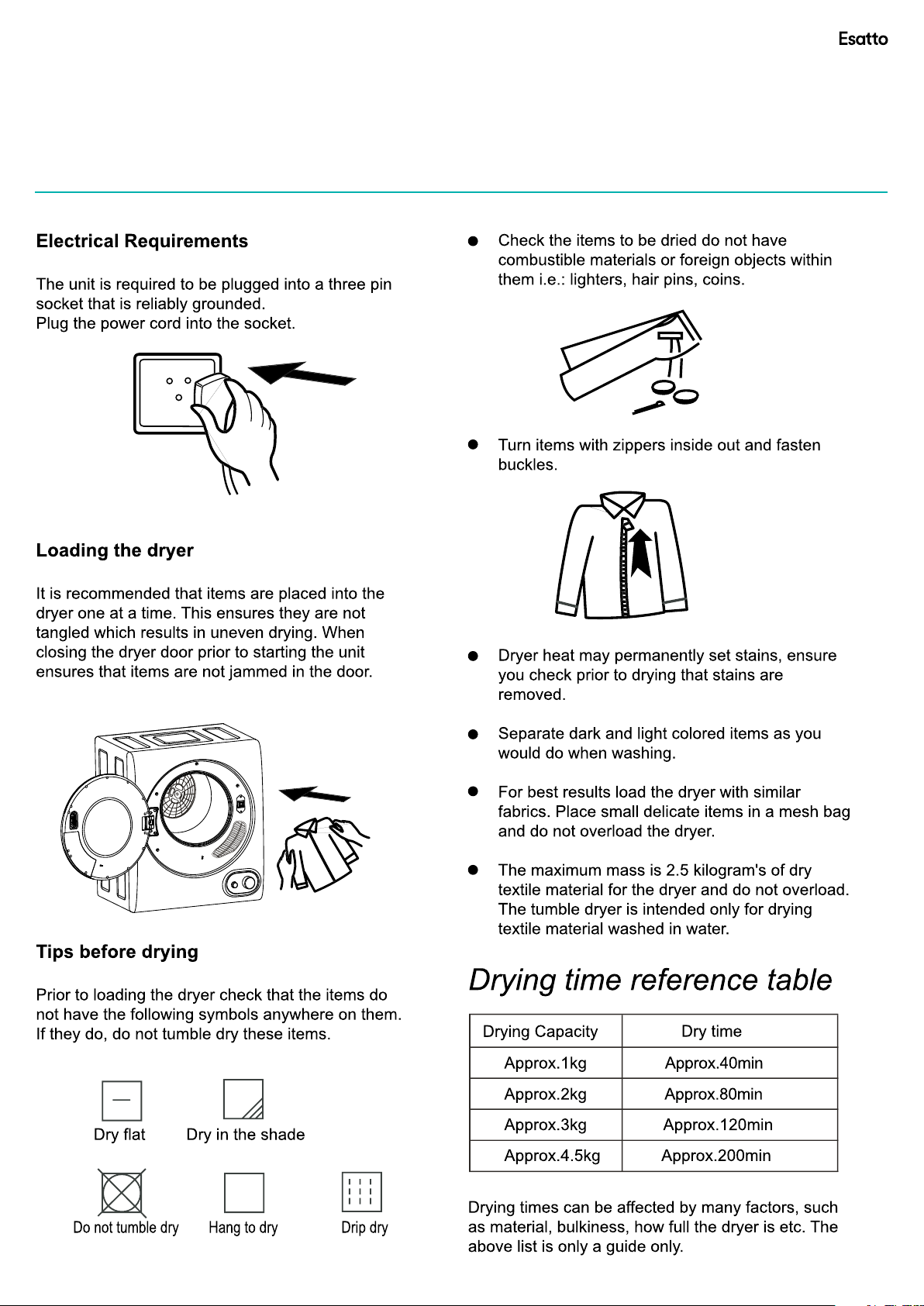

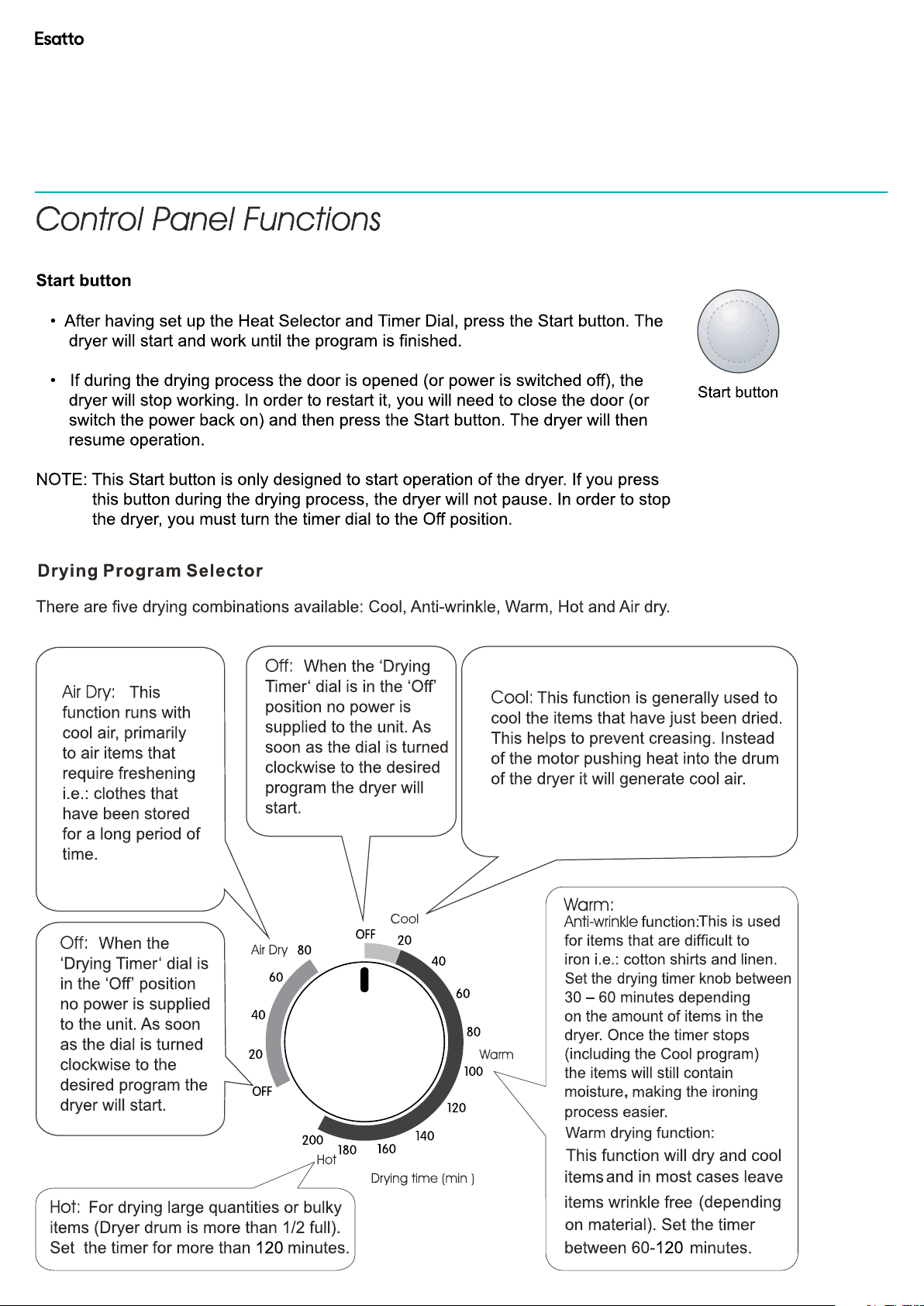

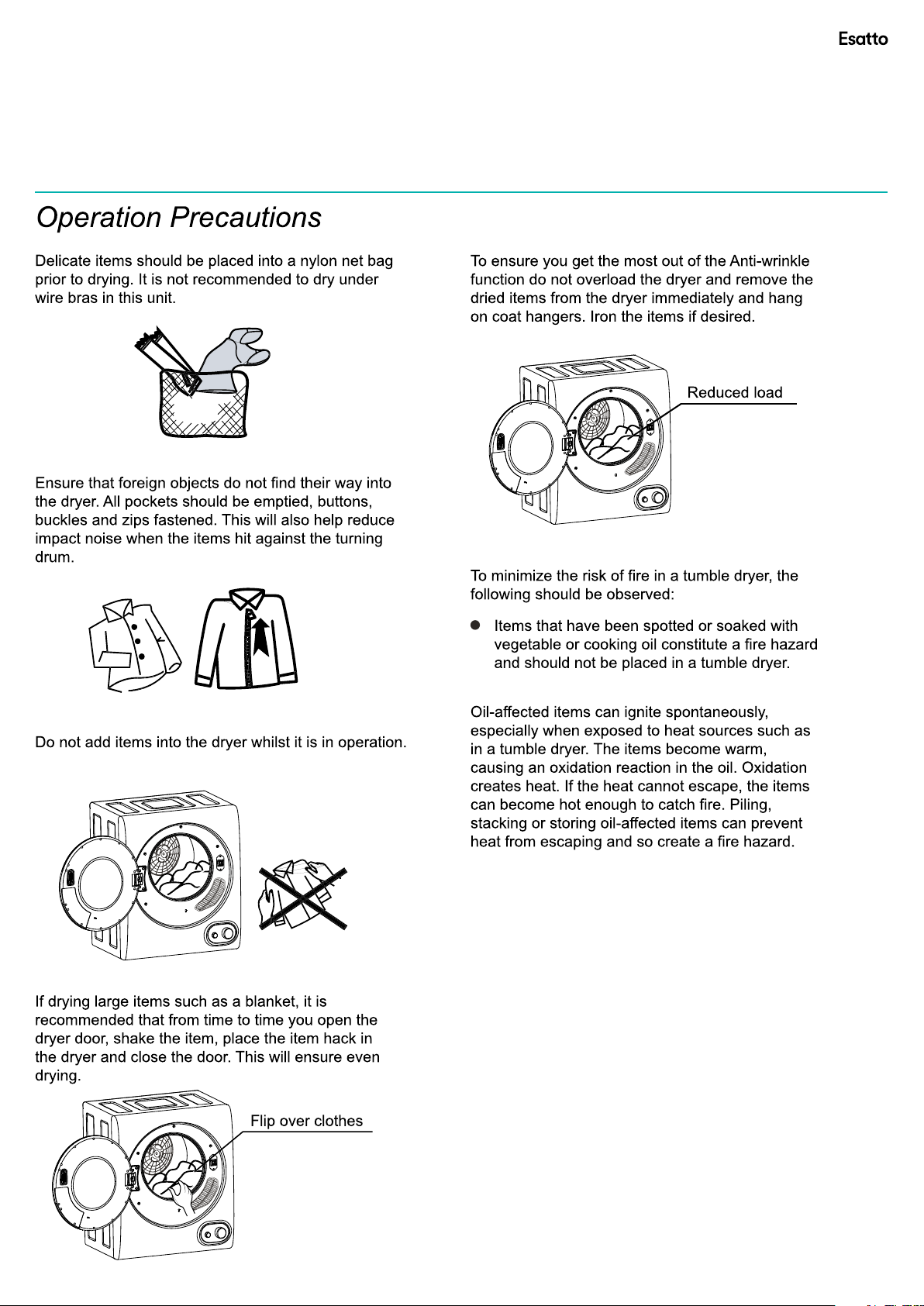

Operating Your Dryer

esatto.house 07

User Manual 08

esatto.house 09

User Manual 10

esatto.house 11

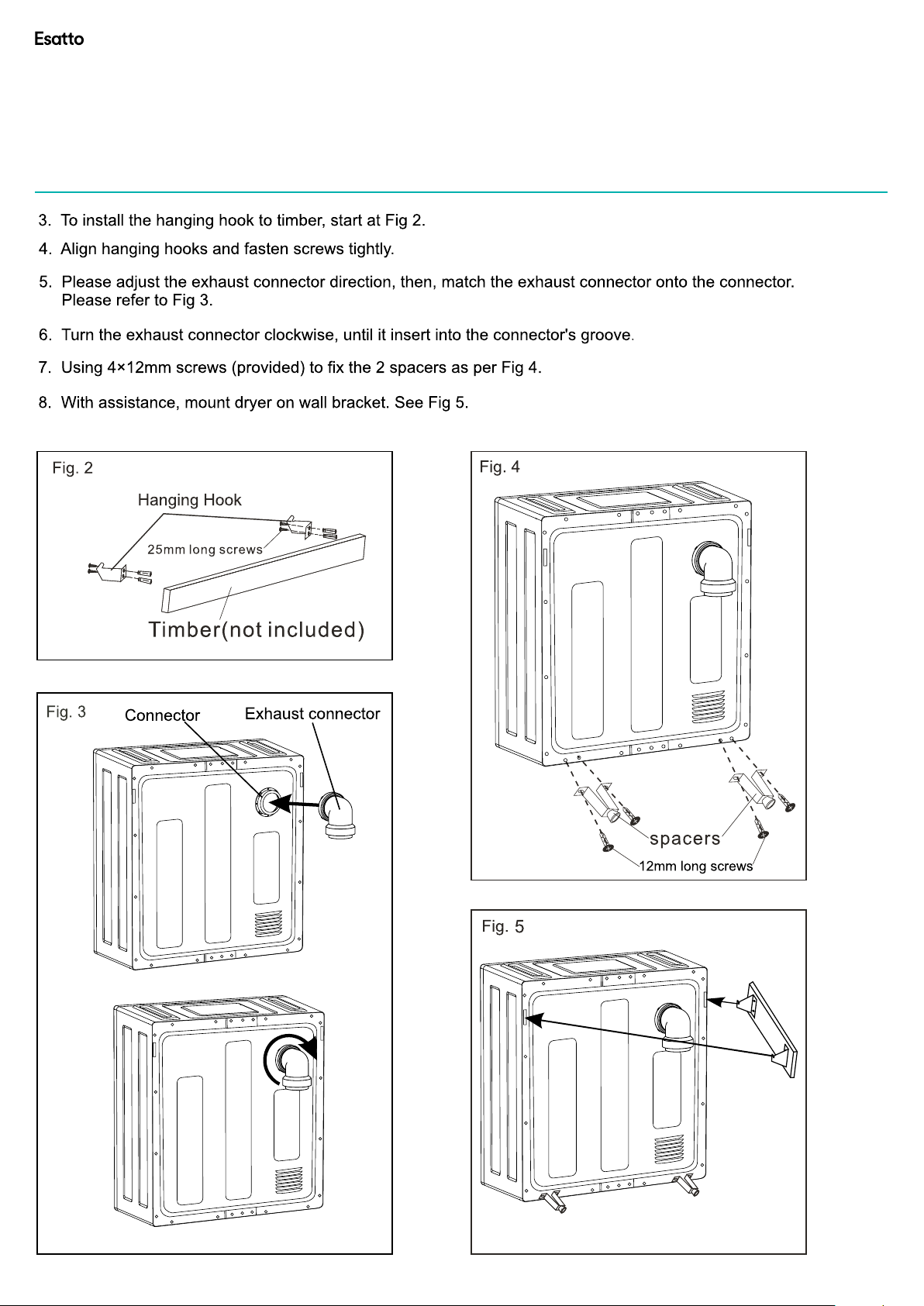

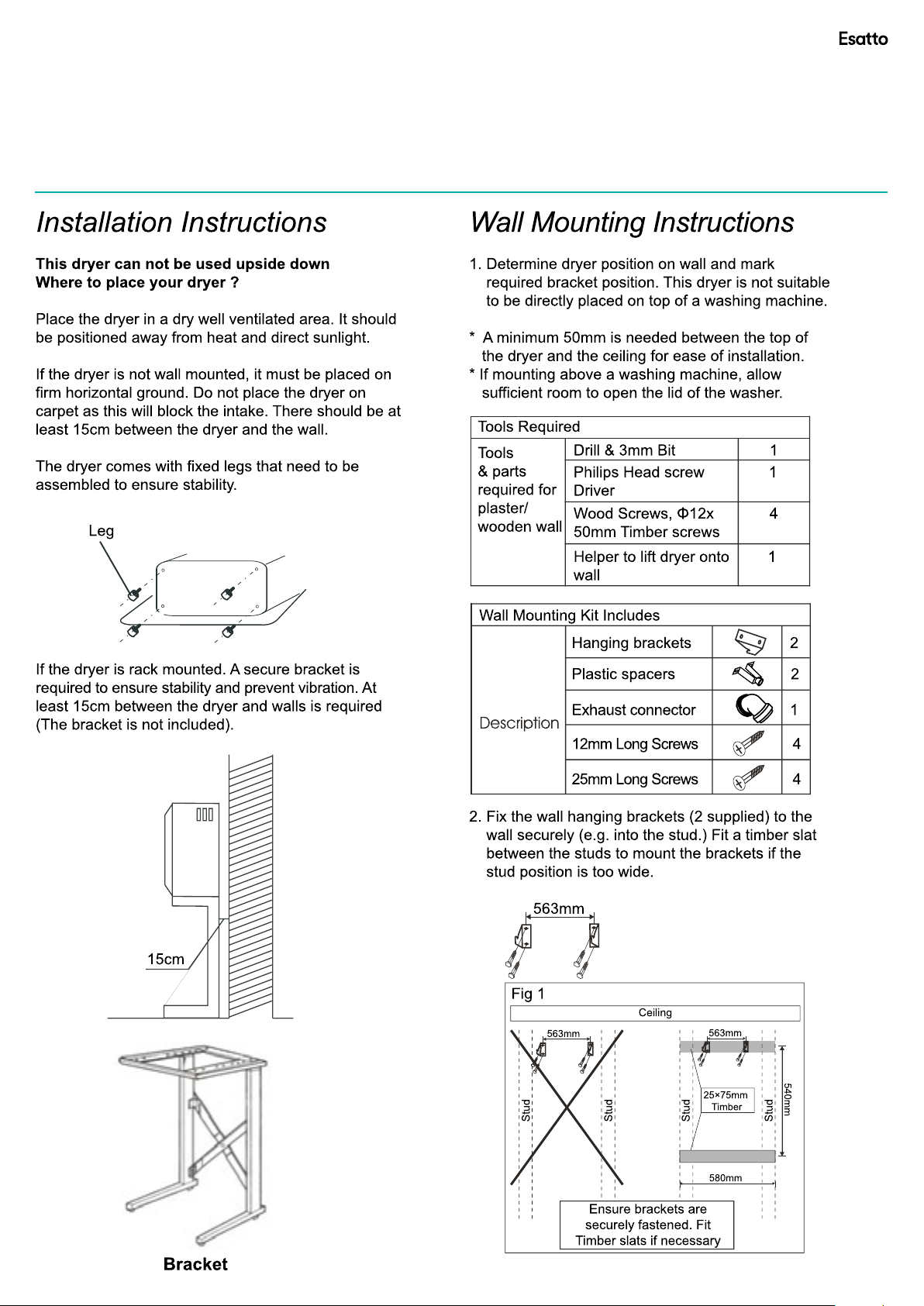

Installation Instructions

User Manual 12

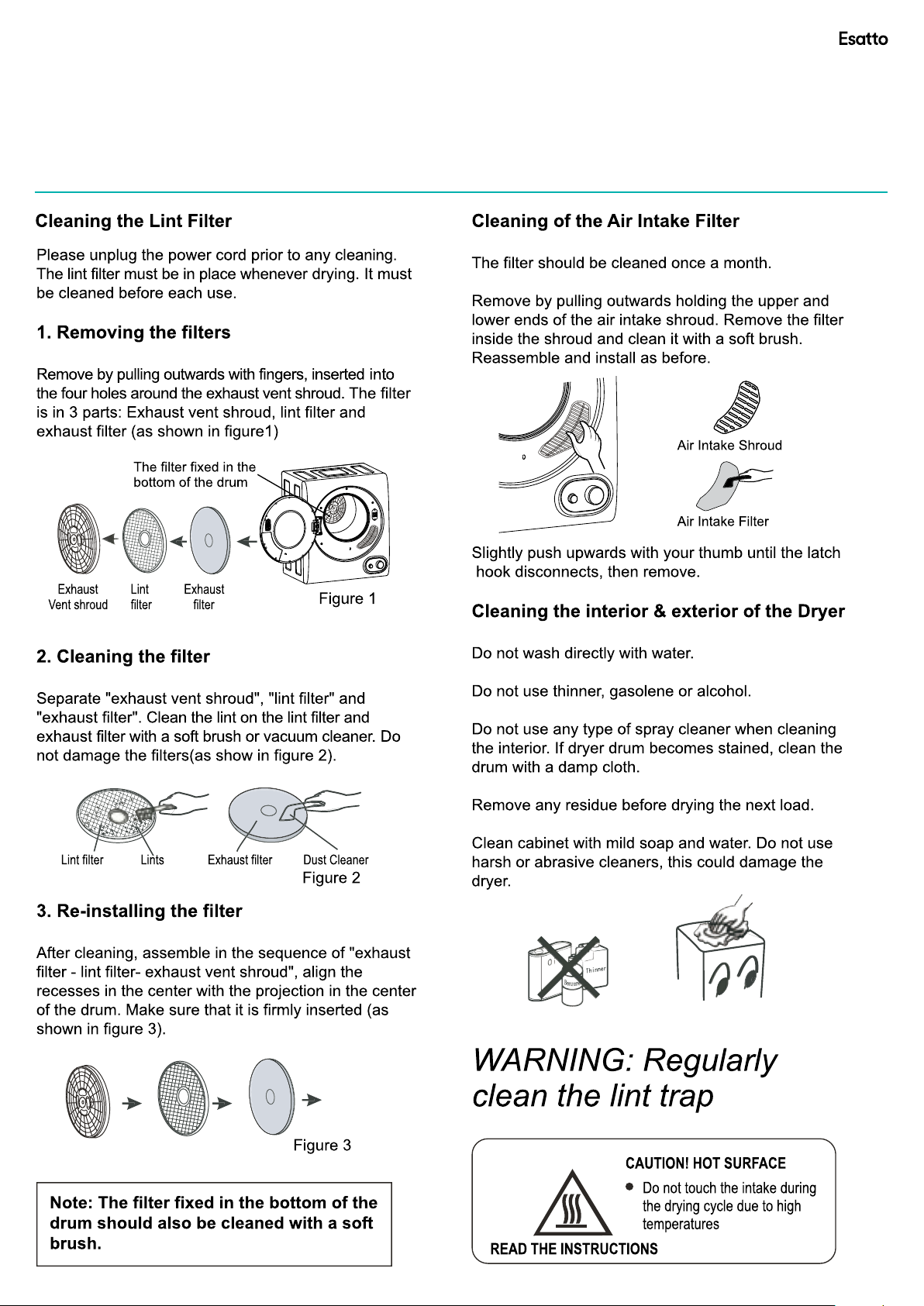

Maintenance

esatto.house 13

User Manual 14

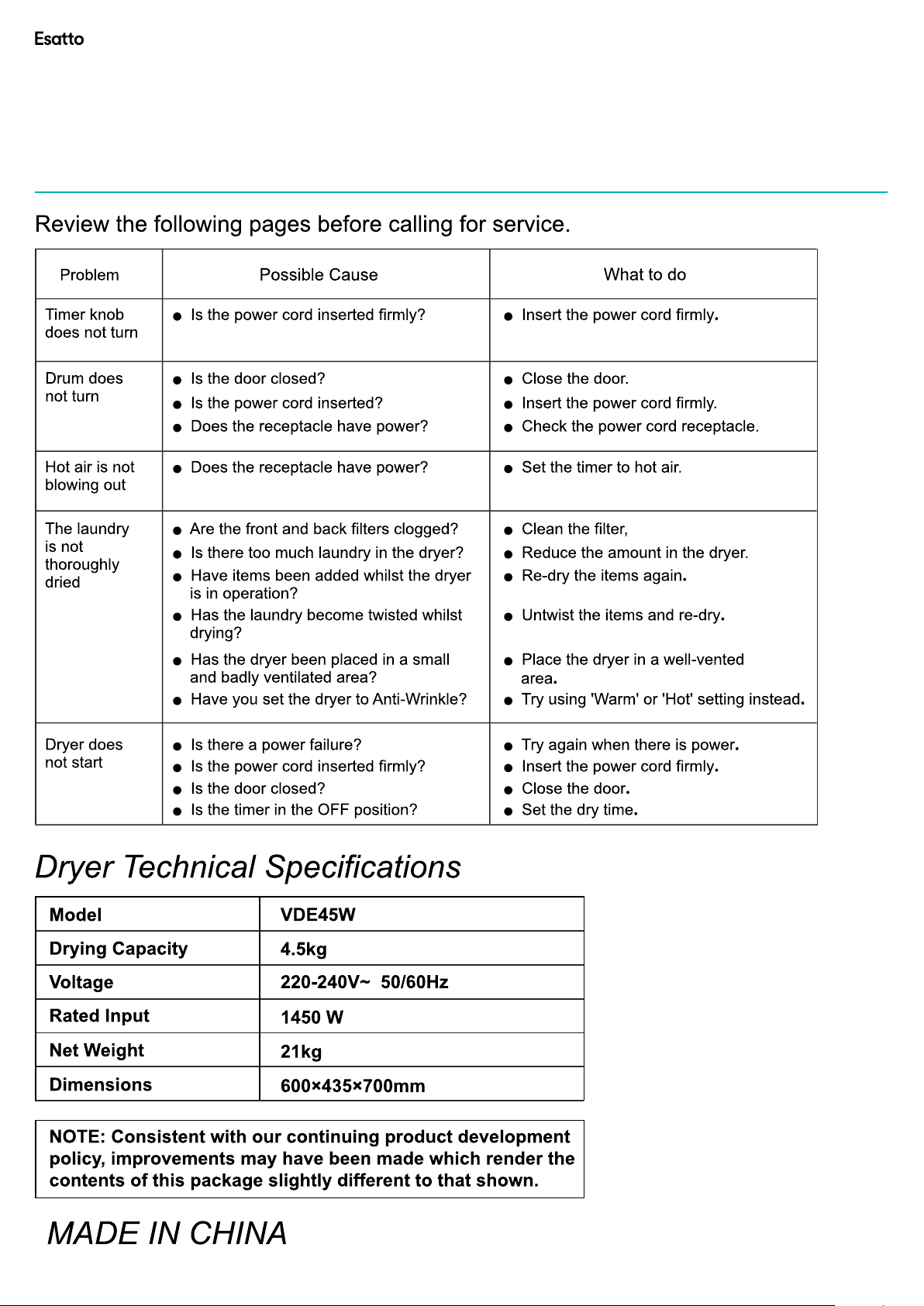

Troubleshooting & Technical Specs.

esatto.house 15

Appendix

The label and sign on the fabric can help you to choose the best way to launder your clothes.

Normal wash

Gentle wash

Iron

Do not iron

Iron with cloth

40

Wa r m w a sh
(max 40℃ )

Coo l iron( max 110 ℃ )

Warm iro n.mediu m
(ma x 150℃)

Dry after wash

Hand wash

Do not wash

Dry clean

Do not dry clean

Warmly dry clean

Bleach

Do not bleach

Dry clean normal cycle
with any solvent

A

F

Dry clean normal cycle
petroleum solvent only

Line Dry

Chlorine bleach
may be used

C

C

Chlorine bleach
not be used

Tumble dry normal

Dry flat

No Wring

Tumble dry. Medium
(max 150℃ )

Tumble dry. Low heat
(max 110℃)

Drip dry

Hang to dry
/Line dry

No machine wash

Steam Iron

Line Dry in shade

Do not tumble dry

To avoid fire,electrical shock and other accidents,please remember the following reminding:

- Only the voltage indicated in power label can be used. If you are not clear of the voltage
at home, please contact the local power bureau.

- When you are using the heating function, the maximum current through the washing
machine will reach 10A. Therefore, please make sure the power supply units (current,
voltage and cable) can meet the normal load requirements for the machine.

- Protect the power cord properly. Power cord shall be fixed well so that it will not trip the
people or other t

hings and be damaged. Special attention shall be paid to the socket. It

shall be plugged into the sockets easily and attention shall be paid to the plug location.

- Do not make the wall-mounted socket overloaded or cable extended. Overloading of the
wiring may cause fire or electrical shock. Do not pull out power plug with wet hand.

- To ensure your safety, power plug shall be inserted into an earthed three-pole socket.
Carefully check and ensure that your socket is properly and reliably earthed.

Purchase Details

User Manual 16

For future reference, please record the following information
which can be found on the rating plate and the date of
purchase which can be found on your sales invoice.

STORE DETAILS

STORE NAME

ADDRESS

TELEPHONE

|

|

PURCHASE DATE

|

PRODUCT DETAILS

MODEL NO.

SERIAL NO.*

|

|

The rating plate of your hob is located on the underneath
of the appliance. Therefore please t the duplicate data
plates or label on the outside of the cupboard to sure that
the label can be easily seen during operation.

|

Attach your receipt
to this page

esatto.house 17

Warranty Information

User Manual 18

WARRANTY TERMS & CONDITIONS
WASHING MACHINES & CLOTHES DRYERS

This document sets out the terms and conditions of the
product warranties for Residentia Group Appliances. It is
an important document. Please keep it with your proof of
purchase documents in a safe place for future reference
should you require service for your Appliance.

1. IN THIS WARRANTY
(a) ‘acceptable quality’ as referred to in clause 10 of this

warranty has the same meaning referred to in the ACL;

(b) ‘ACL’ means Trade Practices Amendment (Australian

Consumer Law) Act (No.2) 2010;

(c) ‘Appliance’ means any Residentia Group product

purchased by you accompanied by this document;

(d) ‘ASR’ means Residentia Group authorised service

representative;

(e) ‘Residentia Group’ means Residentia Group Pty Ltd

of 118 Campbell St, Collingwood VIC, ACN 600 546
656 in respect of Appliances purchased in Australia;

(f ) ‘major failure’ as referred to in clause 10 of this

warranty has the same meaning referred to in the ACL
and includes a situation when an Appliance cannot
be repaired or it is uneconomic for Residentia Group,
at its discretion, to repair an Appliance during the

Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal,

domestic or household use (i.e. normal
single family use) as set out in the instruction
manual, the Appliance is warranted against
manufacturing defects for 24 months, following
the date of original purchase of the Appliance;

(h) ‘you’ means the purchaser of the Appliance not having

purchased the Appliance for re-sale, and ‘your’ has a

corresponding meaning.

2. This warranty only applies to Appliances purchased

and used in Australia and is in addition to (and does

not exclude, restrict, or modify in any way) any

non-excludable statutory warranties in Australia.

3. During the Warranty Period Residentia Group or its

ASR will, at no extra charge if your Appliance is readily

accessible for service, without special equipment and

subject to these terms and conditions, repair or replace

any parts which it considers to be defective. Residentia

Group or its ASR may use remanufactured parts to

repair your Appliance. You agree that any replaced

Appliances or parts become the property of Residentia

Group. This warranty does not apply to light globes,

batteries, lters or similar perishable parts.

4. Parts and Appliances not supplied by Residentia Group

are not covered by this warranty.

esatto.house 19

5. You will bear the cost of transportation, travel and
delivery of the Appliance to and from Residentia Group
or its ASR. If you reside outside of the service area,
you will bear the cost of:

(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and

from Residentia Group or its ASR, in all instances,
unless the Appliance is transported by Residentia
Group or its ASR, the Appliance is transported at
the owner’s cost and risk while in transit to and from
Residentia Group or its ASR.

6. Proof of purchase is required before you can make
a claim under this warranty.

7. You may not make a claim under this warranty unless
the defect claimed is due to faulty or defective parts
or workmanship. Residentia Group is not liable in the
following situations (which are not exhaustive):

(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly

maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or

incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions

supplied with the Appliance;
(b) the Appliance is modied without authority from

Residentia Group in writing;

(c) the Appliance’s serial number or warranty seal has

been removed or defaced;

(d) the Appliance was serviced or repaired by anyone

other than Residentia Group, an authorised repairer
or ASR.

8. This warranty, the contract to which it relates and the

relationship between you and Residentia Group are
governed by the law applicable where the Appliance
was purchased.

10. For Appliances and services provided by Residentia
Group in Australia, the Appliances come with a
guarantee by Residentia Group that cannot be
excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled
to have the Appliance repaired or replaced if the
Appliance fails to be of acceptable quality and the
failure does not amount to a major failure. The benets
to you given by this warranty are in addition to your
other rights and remedies under a law in relation to the
Appliances or services to which the warranty relates.

11. At all times during the Warranty Period, Residentia
Group shall, at its discretion, determine whether repair,
replacement or refund will apply if an Appliance has a
valid warranty claim applicable to it.

12. To enquire about claiming under this warranty, please
follow these steps:

(a) carefully check the operating instructions, user manual

and the terms of this warranty;

(b) have the model and serial number of the Appliance

available;

(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.

13. You accept that if you make a warranty claim,
Residentia Group and its ASR may exchange
information in relation to you to enable Residentia
Group to meet its obligations under this warranty.

IMPORTANT
Before calling for service, please ensure that the steps
in point 12 have been followed.

Telephone contacts
→ Service & Spares: Please call 1300 11 HELP (4357)

9. To the extent permitted by law, Residentia Group
excludes all warranties and liabilities (other than as
contained in this document) including liability for any
loss or damage whether direct or indirect arising from
your purchase, use or non use of the Appliance.

The Australian Consumer Law requires the
inclusion of the following statement with
this warranty:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Appliances

Exctly wht
you need

WWW.RESIDENTIA.GROUP
