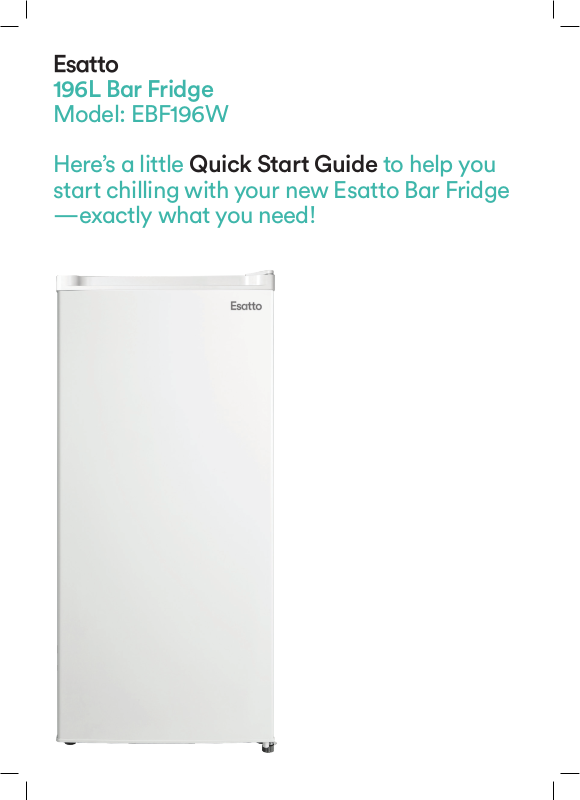

Esatto EBF196W Quick Guide

196L Br Fridge

Model: EBF196W

Here’s  little Quick Strt Guide to help you
strt chilling with your new Estto Br Fridge
—exctly wht you need!

QSG V1.2

196L Br Fridge

Model: EBF196W

Let’s get strted!

Instlltion Tips

• Two person installation: Use two or more people to move and install the appliance. Failure to do so
can result in back or other injury.

• Freestanding design: This appliance is designed to be freestanding only, and should not be recessed
or built-in.

• Floor surface: This appliance must be properly positioned on a dry, sturdy, level surface that is
strong enough to support it when it is fully loaded.

• Ambient temperature: The ambient temperatures must correspond to the climate class ( T )
indicated on the rating plate of the appliance: 16° C – 38° C

• Clearances: Ensure that air can circulate freely around the back of the cabinet, which is necessary
to cool the compressor and condenser. Allow at least 10cm clear space at the back, 10cm at the
sides of the unit and 30cm between the top and any surface above (i.e. a bench top). If you are
installing your refrigerator next to a xed wall, leave sucient space on the hinge side to allow for
the door to swing open.

Note / For further installation instructions see Pages 9–11 of your User Manual.

Temperture Control

The temperature controls are located on the inside of the fridge.

• Turn the temperature control knob to MAX, to lower the internal
fridge temperature.

• Turn the temperature control knob to MIN, to increase the internal
fridge temperature.

• When the dial faces “OFF” the unit will not be operating.

Note / When starting up for the rst time, keep the refrigerator still for
2 hours before connecting it to power supply. Before putting any fresh or
frozen foods in the fridge, ensure the fridge has run for 2–3 hours, or for
above 4 hours in summer when the ambient temperature is high.

Product Detils Get in touch

Size (mm) / 1232H x 550W x 575D
Energy Rating / 4 Stars
Warranty / 2 Years
