Esatto DW4CS User Manual

User Manual
45cm Slimline
Dishwasher

\

\

DW4CS

Dear Customer, Congratulations on purchasing your new dishwasher.

The Residentia brand is proudly distributed within
Australia by Residentia Group Pty Ltd.

Please refer to the warranty card at the rear of this
manual for information regarding your product’s
parts and labour warranty, or visit us online at
www.residentiagroup.com.au.

At Residentia Group, we are customer obsessed and
our Support Team are there to ensure you get the most
out of your appliance. Should you want to learn more
about the various washing functions when cleaning or
even the preferred dishwashing powder/tablets, our
Support Team are here to help.

You can use our online Support Centre at anytime by
visiting http://support.residentiagroup.com.au, or you
can contact us via phone by dialling 1300 11 HELP (4357).

It is important that you read through the following use
and care manual thoroughly to familiarise yourself with
the installation and operation requirements of your
appliance to ensure optimum performance.

Again, thank you for choosing a Residentia appliance
and we look forward to being of service to you.

Kind Regards,

The Residentia Team

T 1300 11 4357
E [e-mail]
W residentiagroup.com.au
ACN

600 546 656

Residentia Group

PO Box 581
Stanhope Gardens
NSW Australia 2768

Residentia\User Manual

Contents\Page
Safety Instructions\04
Your Dishwasher\06
Installation Instructions\07

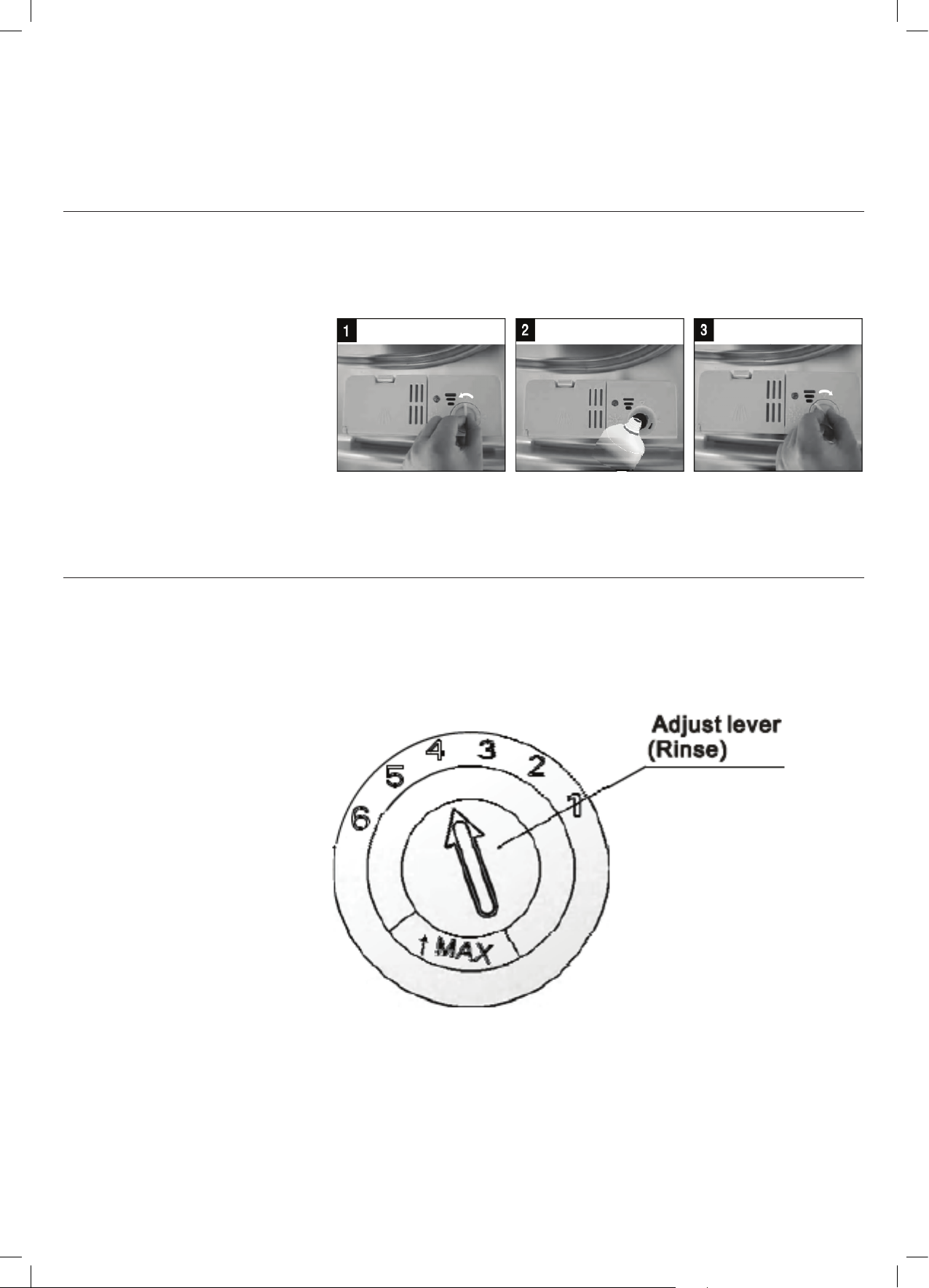

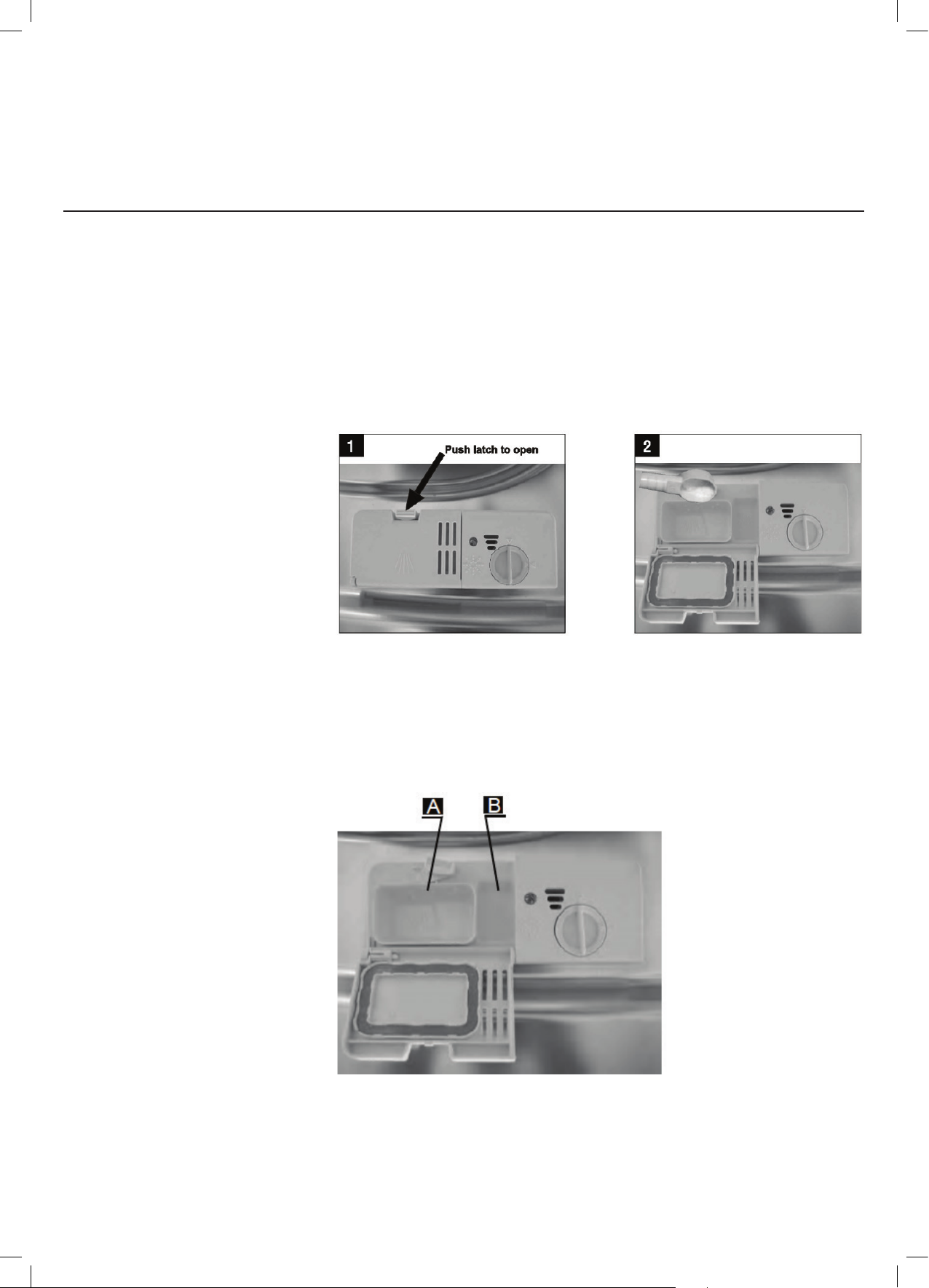

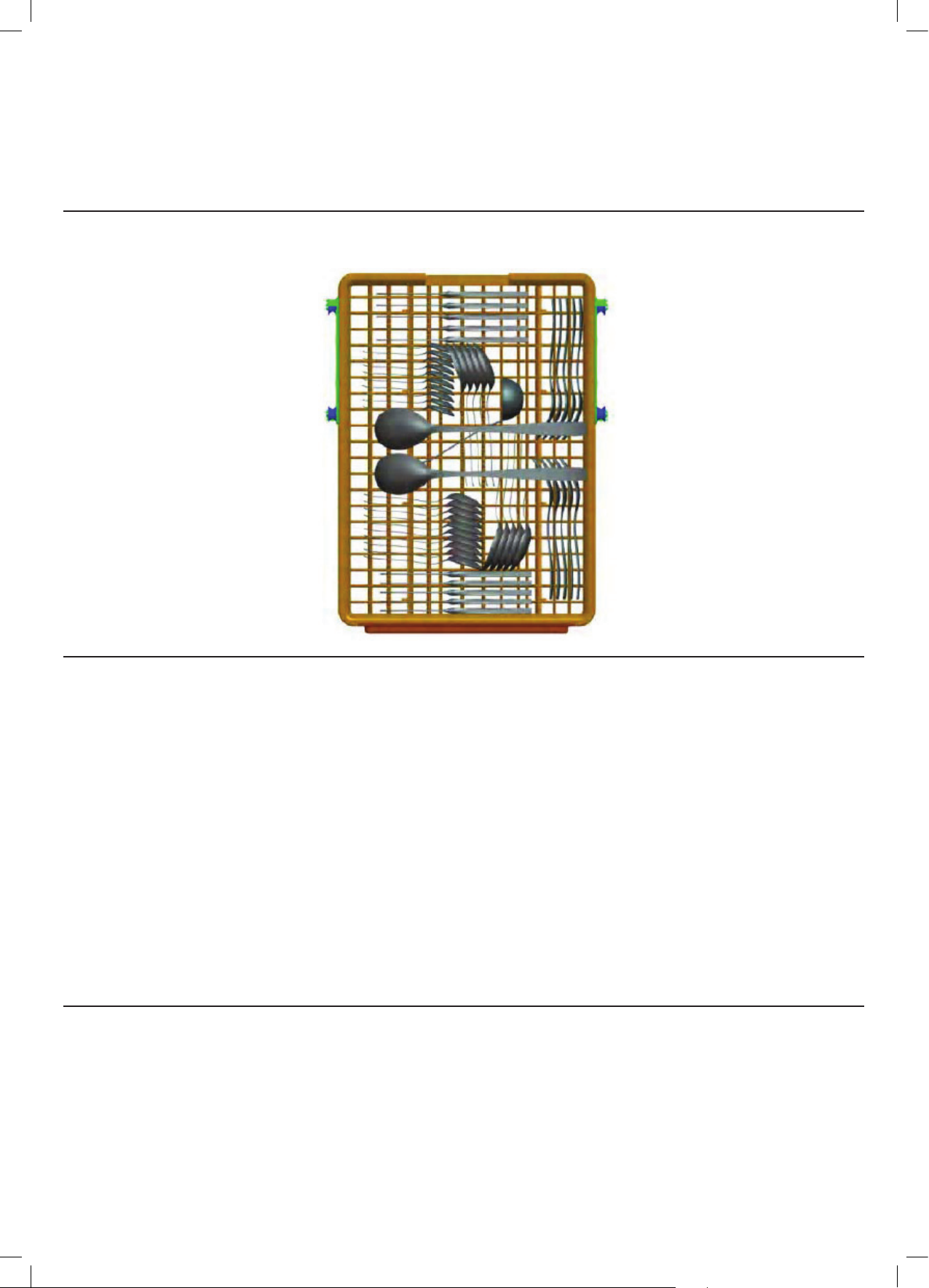

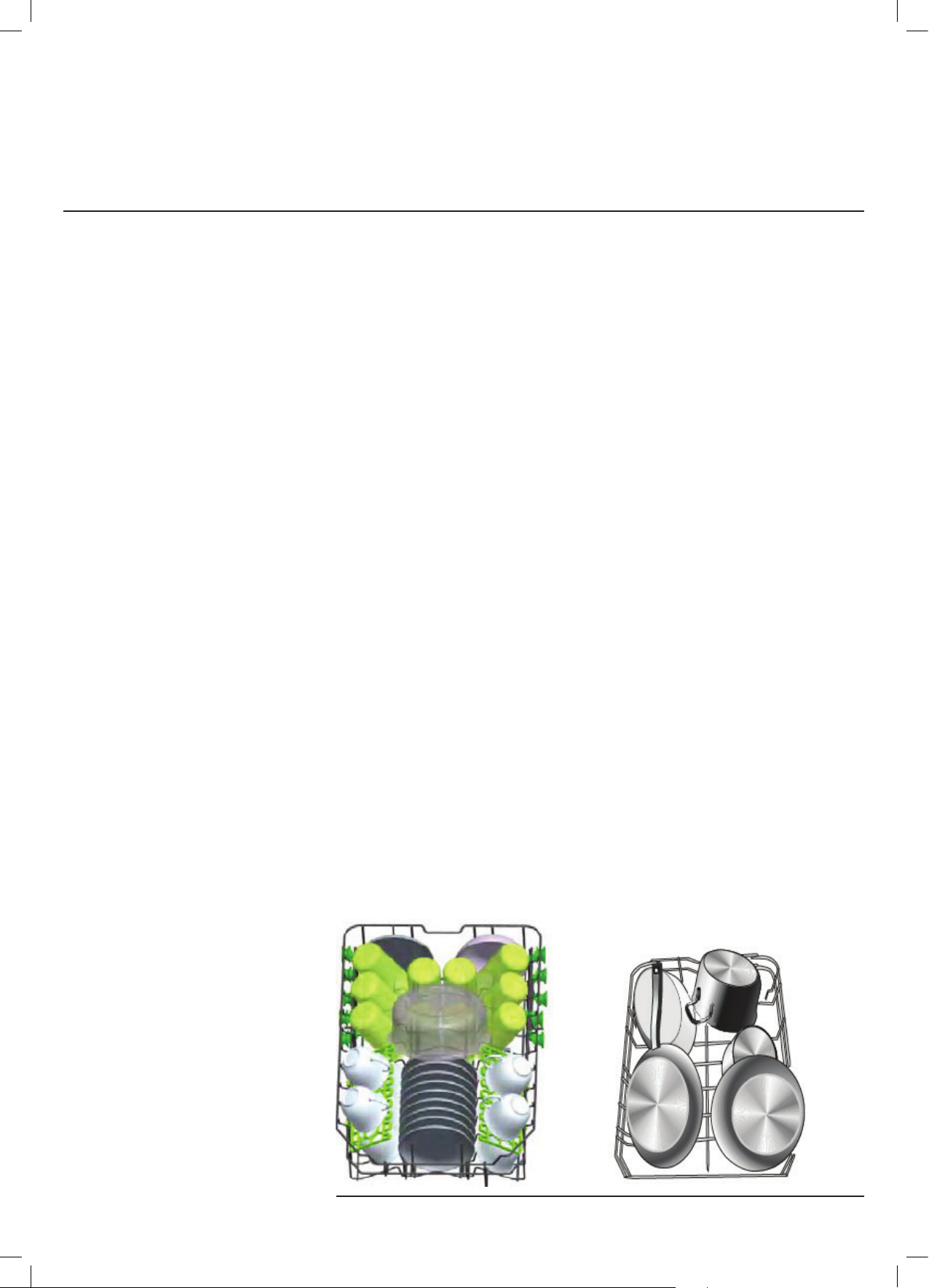

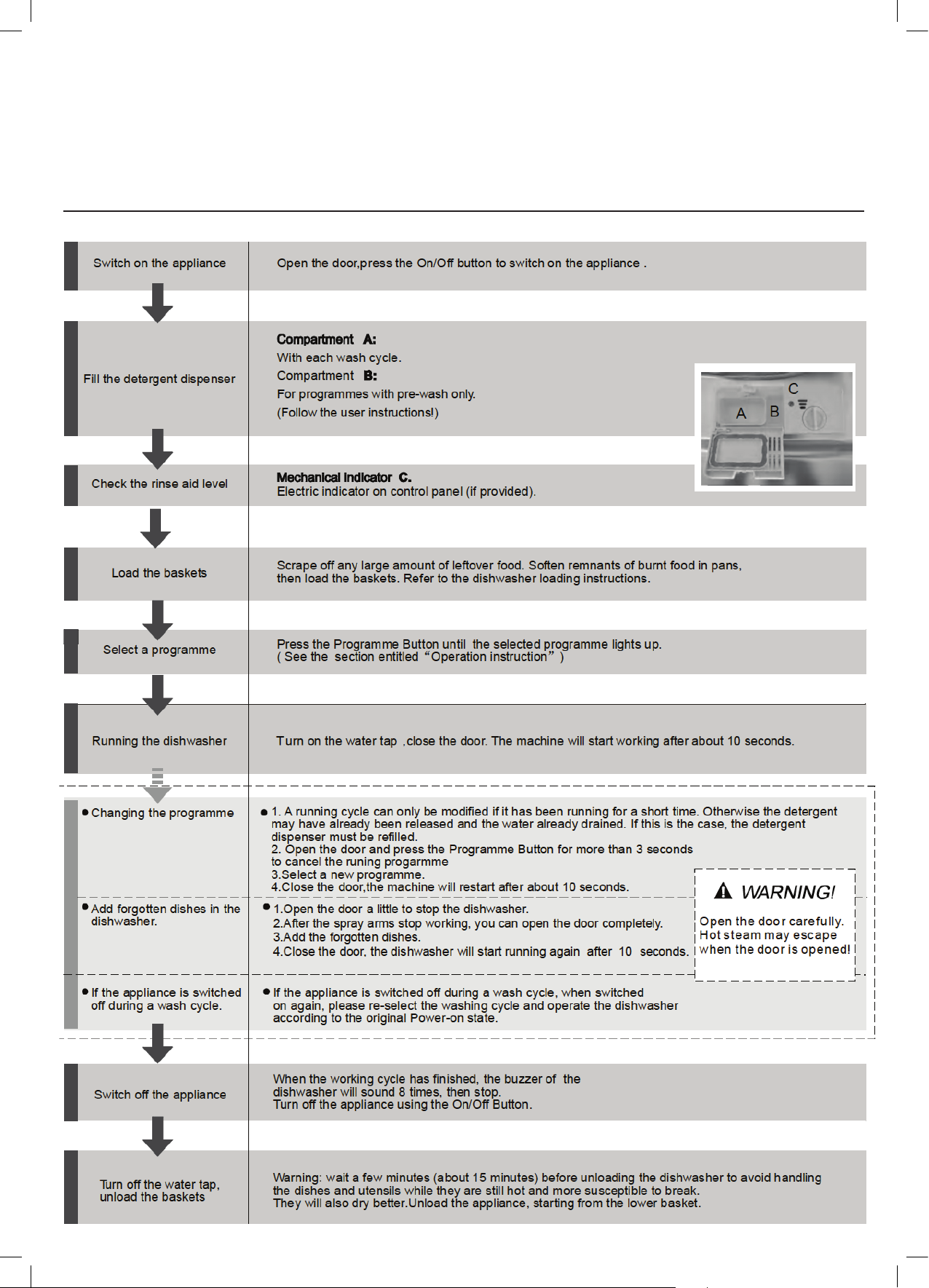

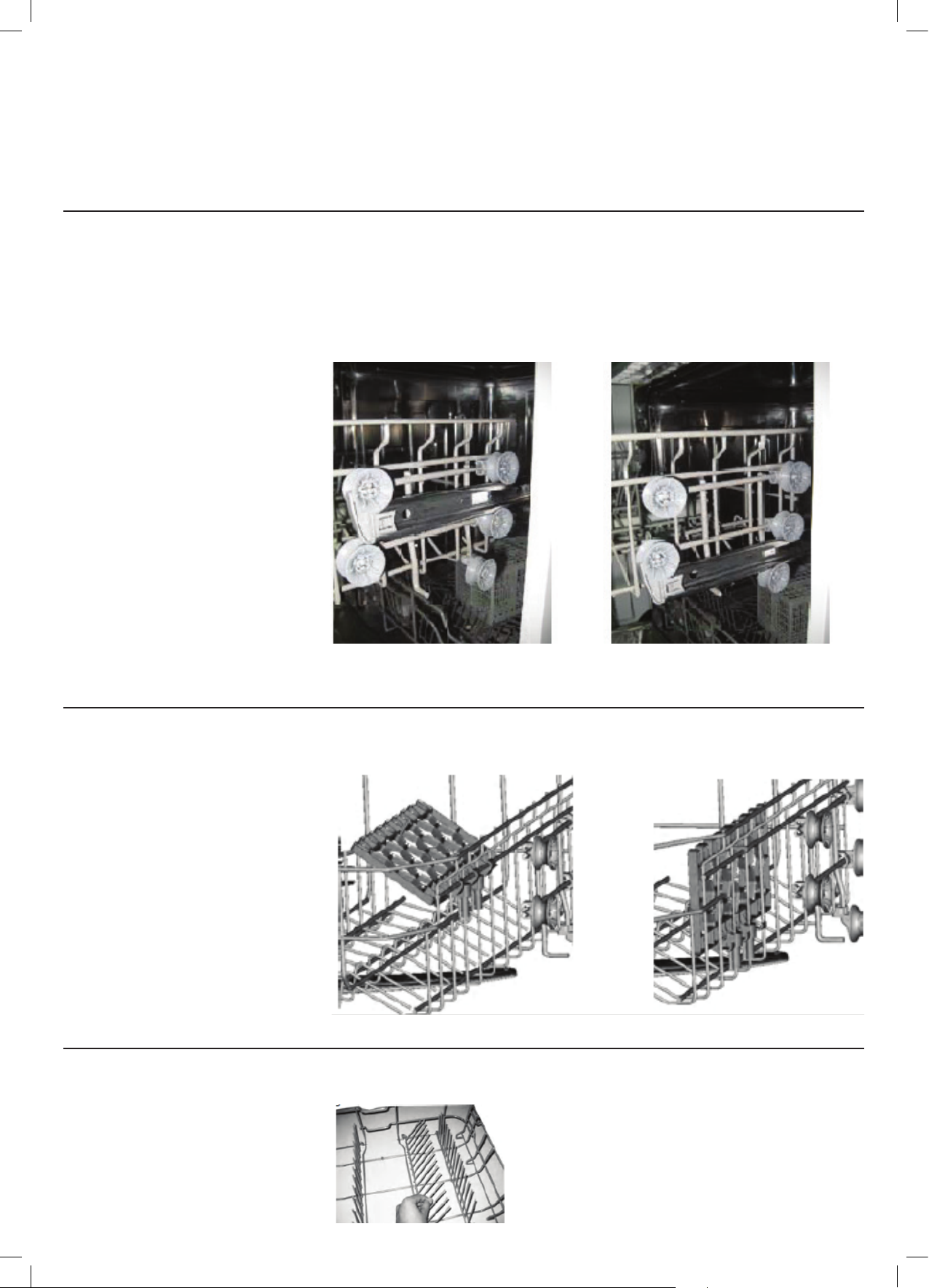

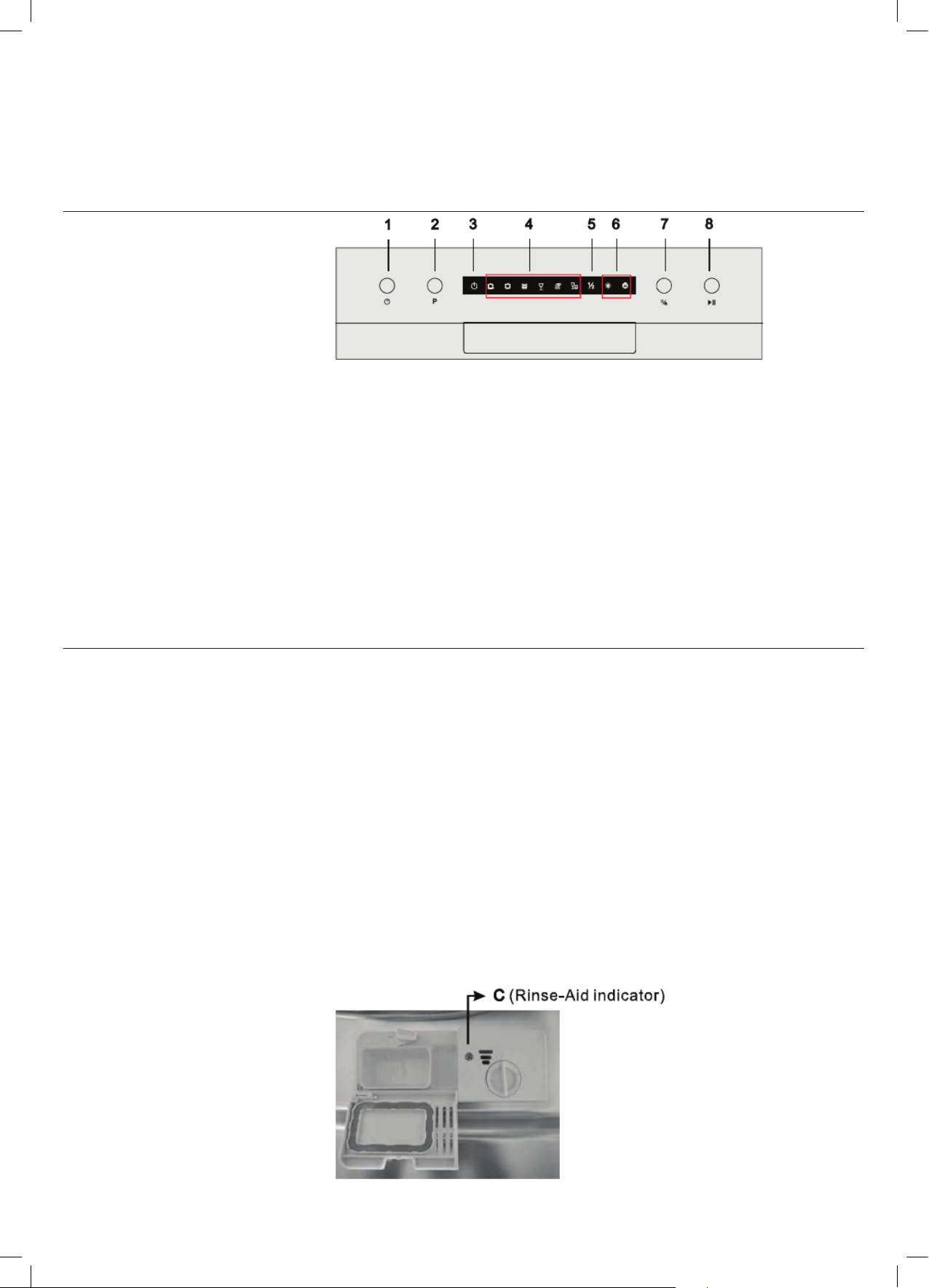

Operating Your Dishwasher\09
Cleaning & Maintenance\16

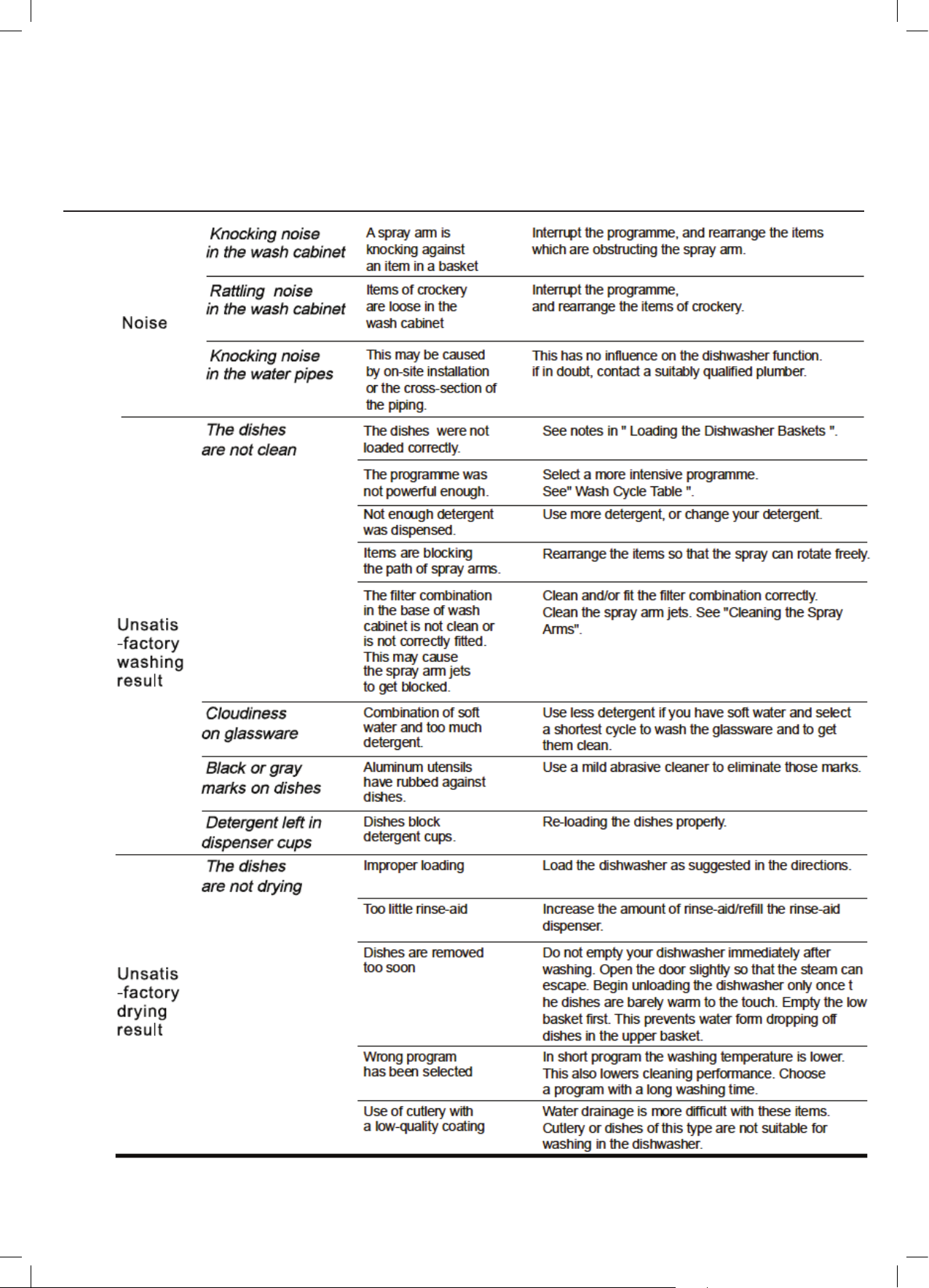

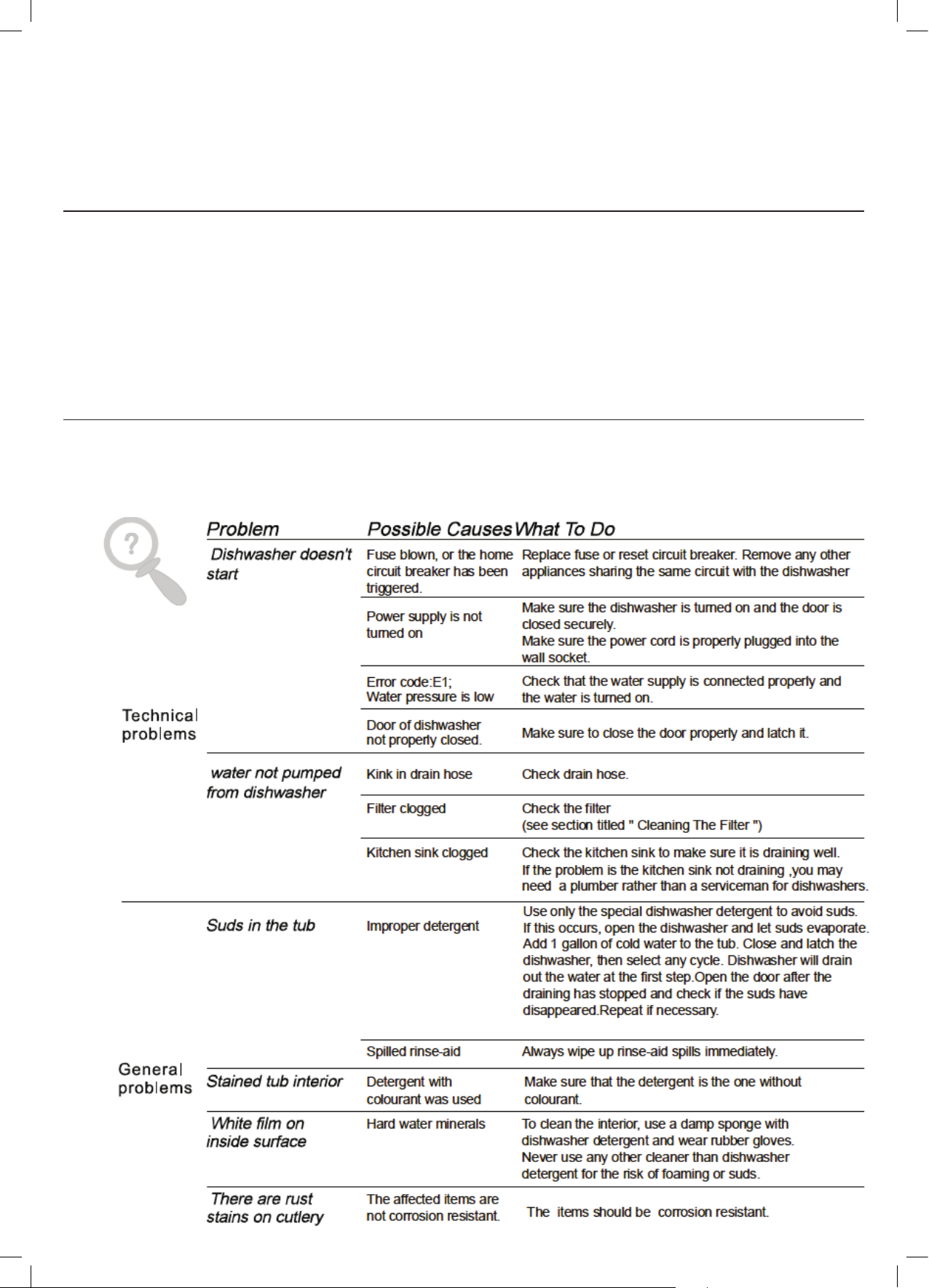

Troubleshooting & Technical Data\18
Receipt\21
Purchase Details\21
Warranty Information\24

Residentia\04

Safety Instructions

This dishwasher is intended to be used in domestic
environments only, including:

— household kitchen;
— sta/oce kitchen;
— hotel/motel kitchens; or
— bed and breakfast type environments.

It has not been designed for use in commercial kitchen
environments.

Warning

Please ensure that you carefully read this user manual
before installing and using the dishwasher, as it will help
you to use and maintain the dishwasher properly.

— Keep it as a reference for the future as it also contains

your product warranty card.

— Pass this user manual on to any subsequent owners of

the appliance.

Important!
The electricity supply to the dishwasher must be cut

o before any adjustments or maintenance work is
undertaken.

— This dishwasher must be grounded. In the event of a

malfunction or product failure, grounding will reduce
the risk of an electric shock by providing a path of
least resistance of electric current.

— The plug must be plugged into an appropriate outlet

that is installed and grounded in accordance with all
local codes.

\

Warning

Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock. Check
with a qualified electrician or service representative if you
are in doubt as to whether your dishwasher is grounded
properly. Never modify the plug supplied with the
appliance. If the plug doesn't fit the outlet, have a licenced
and suitably qualified electrician install the correct outlet.

— Do not abuse, sit on, or stand on the door or dish rack

of the dishwasher.

— Do not touch the heating element during or

immediately after use. (This instruction is only
applicable to machines with a visual heating element.)

— Do not operate your dishwasher unless all enclosure

panels are properly in place. Open the door very
carefully if the dishwasher is operating, there is a risk
of water squirting out.

— Do not place any heavy objects on or stand on the

door when it is open. The appliance could tip forward.

— When loading items to be washed:

1) Locate sharp items so that they are not likely to
damage the door seal;

2) Warning: Knives and other utensils with sharp points

must be loaded in the basket with their points down
or placed in a horizontal position.

— When using your dishwasher, you should prevent

plastic items from coming into contact with the
heating element.(This instruction is only applicable to
machines with a visual heating element.)

— Check that the detergent compartment is empty after

completion of the wash cycle.

— Do not wash plastic items unless they are marked

dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's
recommendations.

— Use only detergent and rinse additives designed for an

automatic dishwasher.

— Never use soap, laundry detergent, or hand-washing

detergent in your dishwasher. Keep these products
out of the reach of children.

— Keep children away from detergent and rinse.

Always be sure to keep the dishwasher door closed
with children around, as there may still be residual
detergent inside.

User Manual\05

\Safety Instructions\

— This appliance is not intended for use by persons

(including children with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.)

— Children should be supervised to ensure that they do

not play with the appliance.

— The door should not be left open, since this could

increase the risk of tripping.

— If the supply cord is damaged, it must be replaced by

the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.

— Remove the door to the washing compartment when

removing an old dishwasher from service or discarding
it.

— During installation, the power supply must not be

excessively or dangerously bent or flattened.

— The appliance is to be connected to the water mains

using new hose sets and that old hose-sets should not
be reused.

— The maximum number of place settings to be washed

is 14.

— The maximum permissible inlet water pressure is

1Mpa.

— The minimum permissible inlet water pressure is

0.04Mpa.
— Never use an extension cord.
— It's recommended to provide a separate circuit to

serve your dishwasher alone and you should use the
required 10 amp fuse.

— An extension hose can be used but should be no

longer than 4 meters, otherwise the performance of
the dishwasher will be eected.

Unpacking

During transportation, protective packaging was used
to protect the appliance against any damage. After
unpacking, please dispose of all elements of packaging
in a way that will not cause damage to the environment.
All materials used for packaging the appliance are
environmentally friendly; they are 100% recyclable and are
marked with the appropriate symbol.

— During unpacking, the packaging materials (polythene

bags, polystyrene pieces, etc.) should be kept out of
reach of children.

Disposal of the appliance

Old appliances should not simply be disposed of with
normal household waste, but should be delivered to a
collection and recycling centre for electric and electronic
equipment. A symbol shown on the product, the instruction
manual or the packaging shows that it is suitable for
recycling.

Materials used inside the appliance are recyclable and
are labelled with information concerning this. By recycling
materials or other parts from used devices you are
making a significant contribution to the protection of our
environment.

Information on appropriate disposal centres for used
devices can be provided by your local authority.

Declaration of conformity

The manufacturer declares that the dishwasher is built
using certified materials and requires the appliance to be
installed in accordance with the standards currently in
force. This appliance must be used by a trained person for
domestic purposes only.

Residentia\06

Your Dishwasher

Specifications

\

1 Top Spray Arm 2 Cutlery Rack 3 Upper Basket
4 Inner Pipe 5 Lower Basket 6 Dispenser
7 Cup Shelf 8 Spray Arms 9 Filter assembly
10 Inlet pipe connector 11 Drain Pipe

Model Product dimensions (w×d×h) Product features

DW4CS 448mm, 600–1175mm, 845mm — 10 Place Setting capacity

— Upper slide-out cutlery tray

User Manual\07

Installation Instructions

It’s important to carefully read the following installation instructions before beginning the installation of your dishwasher.

Important! The installation of the pipes and electrical outlets should

be completed by suitably licensed and qualified persons.

Positioning The installation position of the dishwasher should be near the existing inlet,

drainage wastepipe and power outlet.

— Choose a position near your sink to facilitate the installation of inlet and

drain hoses (refer to figure one).

— If the dishwasher is installed in the corner of your kitchen cabinetry, make

sure an allowance is made to ensure your dishwasher door can freely open
without obstruction from other cabinetry/door handles.

— The dishwasher back should rest against the wall behind, whilst the sides

should rest against the adjacent cabinets or walls.

— The dishwasher is equipped with water supply and drain hoses that can be

positioned either to the right or left hand sides, dependent on your required
installation.

— As per the diagram (left), ensure that when you are installing your

dishwasher in a corner situation, adequate space is left to allow the door to
open without hitting other cabinetry or handles.

\

Drain Hose Connection

Insert the drain hose into a drain pipe with a minimum diarmeter of 40mm, or connect it onto the trap of your sink
where a dishwasher connection is present.

Important!

The top of the hose must be less than 1000mm high, as

illustrated below.

Residentia\08

Levelling the dishwasher Once you have positioned the dishwasher in your desired location, it needs

Important! Your dishwasher must be level for it's proper operation and

Dishwasher installation steps Now that your dishwasher is level and in position, you can finalise the

— Connect the inlet hose to the cold water supply .
— Connect the drain hose as per the instructions on page 9 of this user

— Plug in the power cord to your desired outlet.

\Installation Instructions\

to be levelled correctly. Using a spirit level, you can wind each of the feet to
ensure the dishwasher is stable and level.

wash performance. Use a spirit level to ensure this is the
case.

installation of the dishwasher.

manual.
