Esatto DW42CS User Manual
User Manual
60cm\Freestanding
\
Dishwasher
DW42CS
\
Dear Customer, Congratulations on purchasing your new dishwasher.
The Residentia brand is proudly distributed within
Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this
manual for information regarding your product’s
parts and labour warranty, or visit us online at
www.residentiagroup.com.au.
At Residentia Group, we are customer obsessed and
our Support Team are there to ensure you get the most
out of your appliance. Should you want to learn more
about your dishwasher and taking care of it, our Support
Team are here to help.
You can use our online Support Centre at anytime by
visiting http://support.residentiagroup.com.au, or you
can contact us via phone by dialling 1300 11 HELP (4357).
It is important that you read through the following use
and care manual thoroughly to familiarise yourself with
the installation and operation requirements of your
appliance to ensure optimum performance.
Again, thank you for choosing a Residentia appliance
and we look forward to being of service to you.
Kind Regards,
The Residentia Team
T 1300 11 4357
E info@residentiagroup.com.au
W residentiagroup.com.au
ACN
600 546 656
Residentia Group
PO Box 581
Stanhope Gardens
NSW Australia 2768
Residentia\User Manual
Contents\Page
Safety Instructions\04
Quick Operation\07
Operating Instruction\08
Prior using for the First Time\09

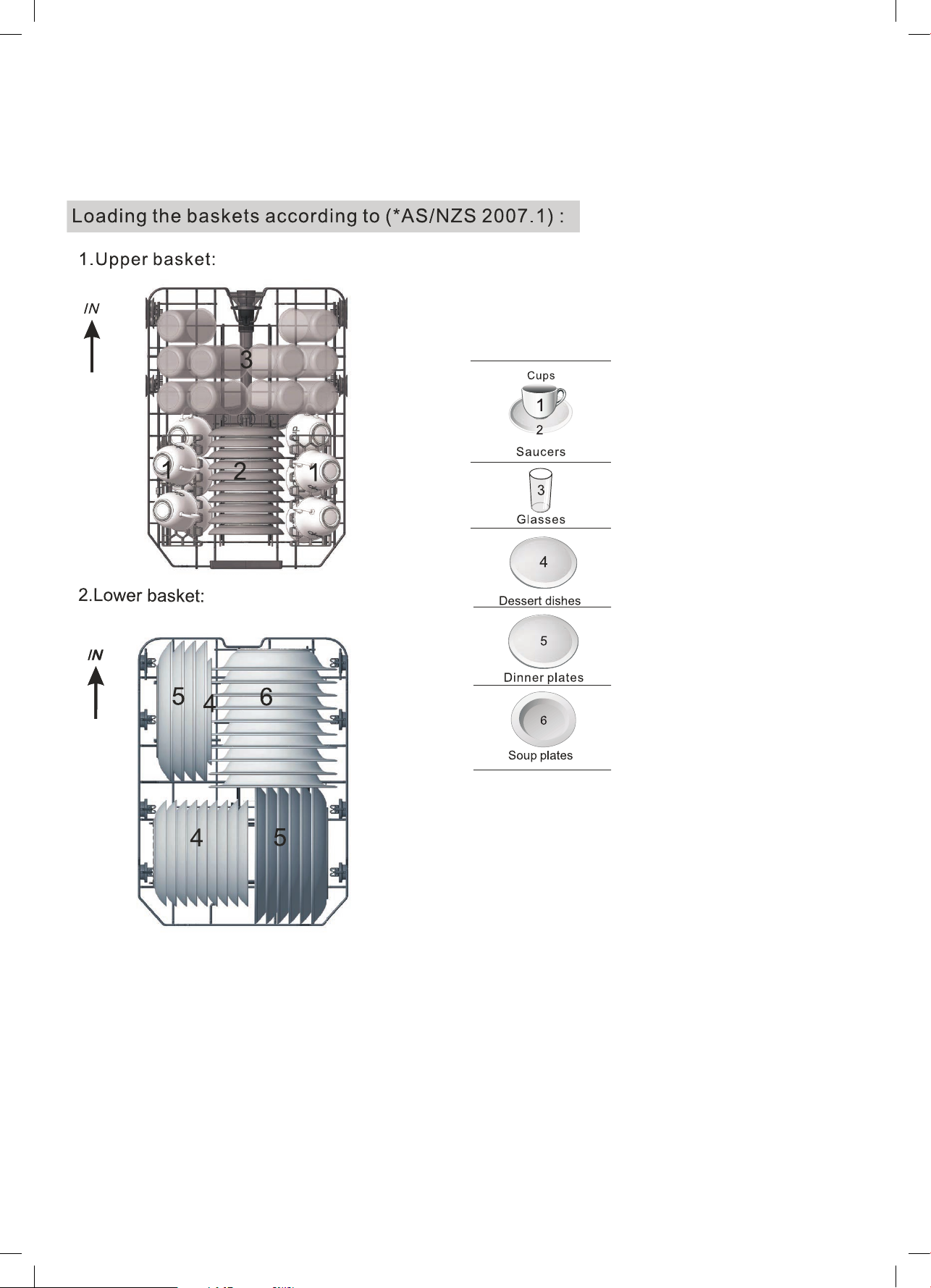

Loading the Dishwasher Baskets\12
Starting a Washing Program\10

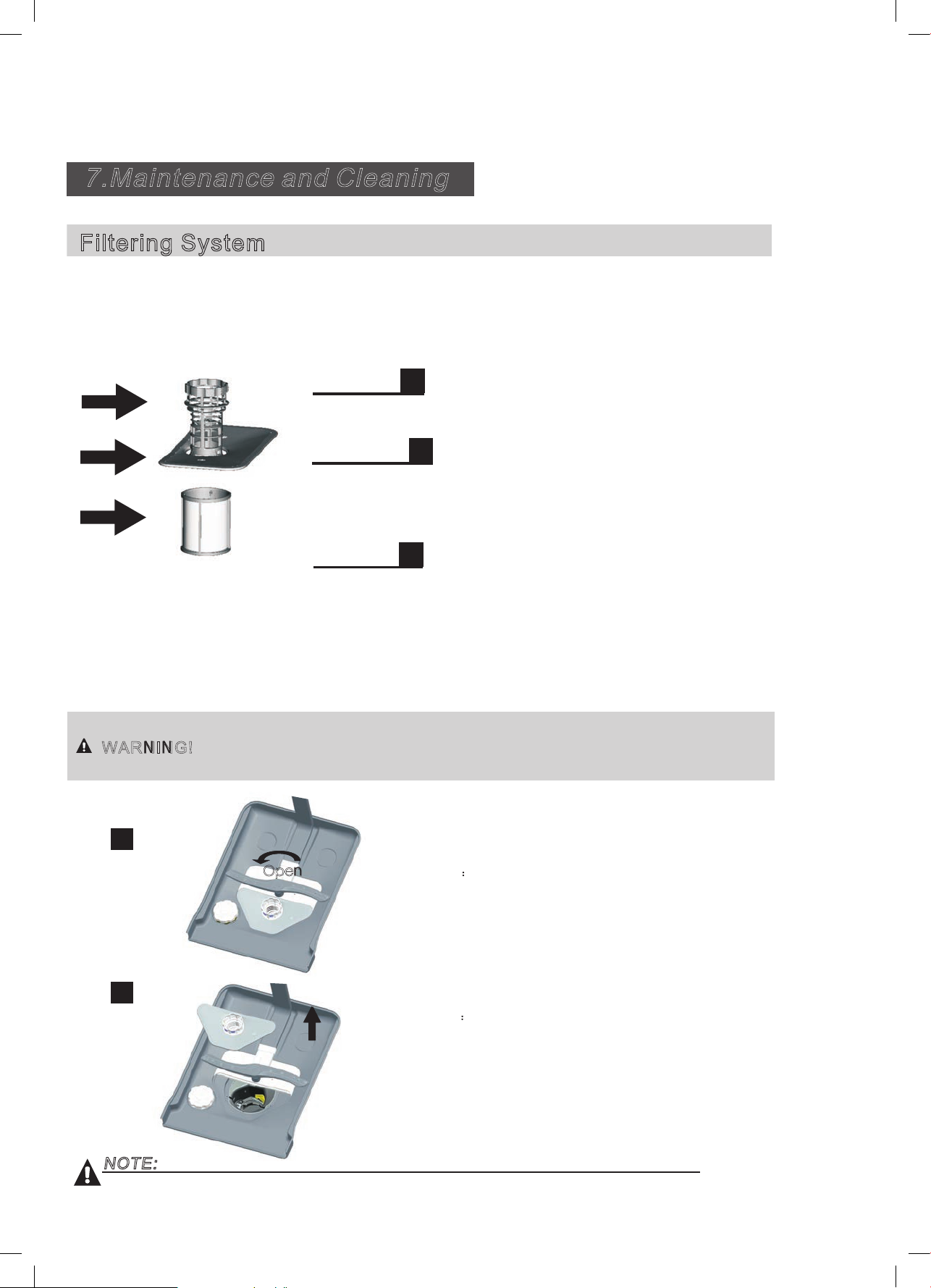

Maintenance and Cleaning
\
16

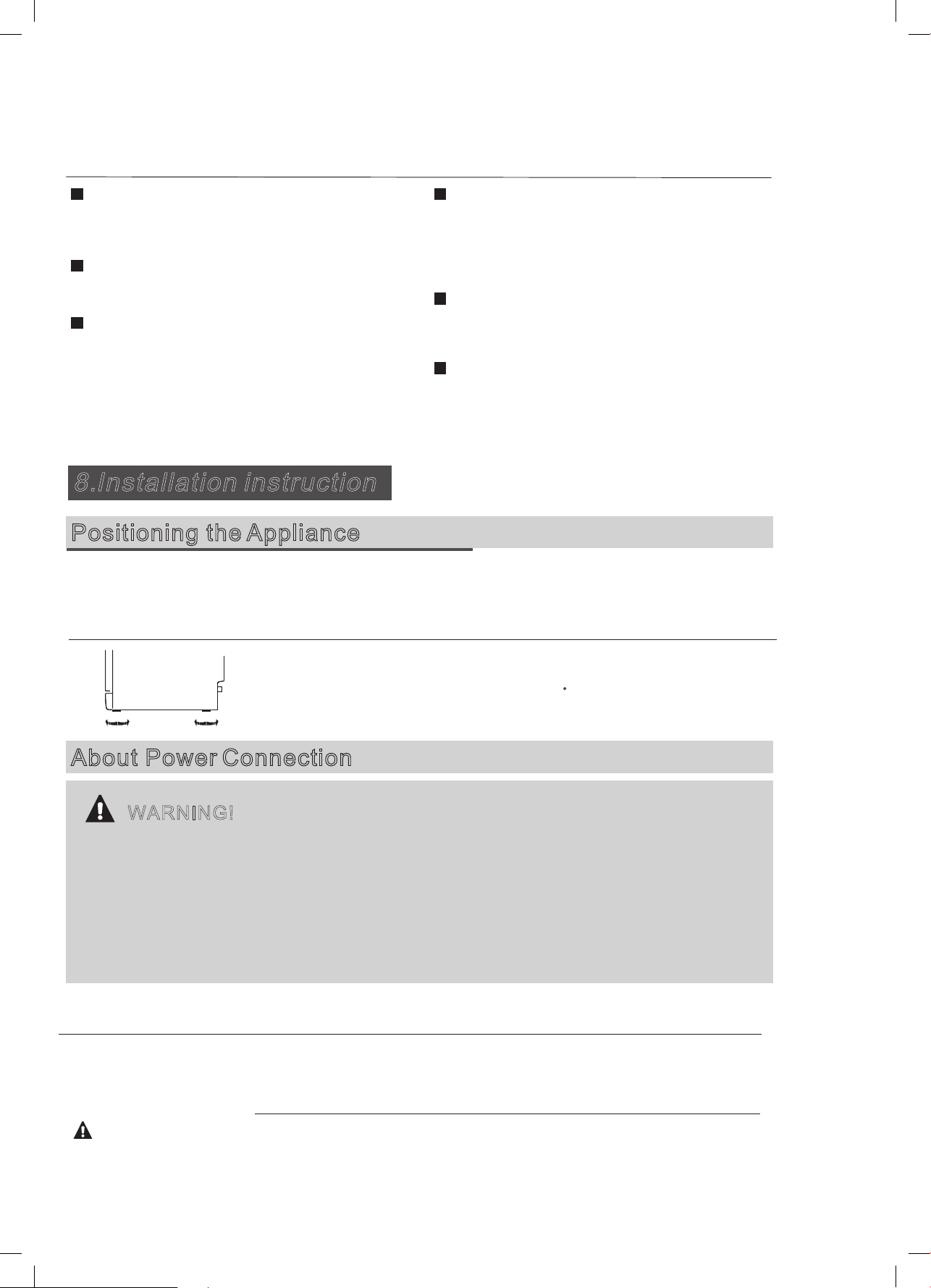

Installation Instruction\18
Troubleshooting Tips\21
Technical Information\23
Warranty\26
Residentia\04
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
Check that the detergent is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the
equivalent. For plastic it ems n check th e m anufacturer's
ot so marked,
recommendations.
Use only det ergent and rins e add itives des igned for a n aut omatic dish washer.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
Children should be supervised to ensure that they do not play with the appliance.
The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously
bent or flattened.
Do not tamper with controls.

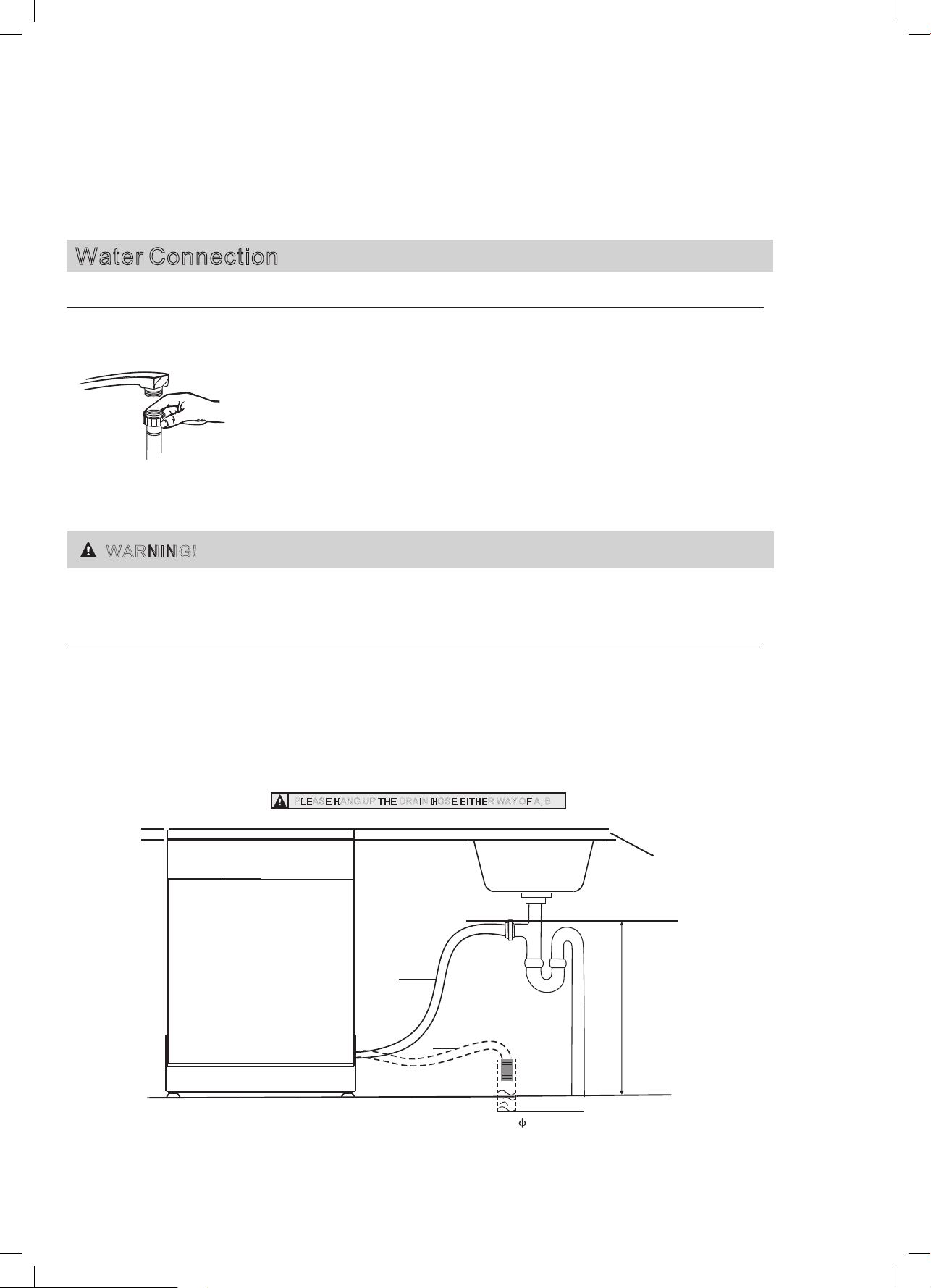

The appliance is to be connected to the water mains using new hose sets and
that old hose-sets should not be reused.
The maximum number of place settings to be washed is
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.
powder
10.
1.IMPORTANT SAFETY INFORMATION
WARNING!
This appliance is intended to be used in household and similar
applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
For EN60335-1
This appliance is not intended for use by persons(including children )with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
For IEC60335-1
This appliance is for indoor use only, for household use only. To protect
against the risk of electrical shock, do not immerse the unit, cord or plug in
water or other liquid.
Please unplug before cleaning and maintenance the appliance .Use a soft
cloth moisten with mild soap, and then use a dry cloth to wipe it again .
When using your dishwasher,
follow the precautions listed below:
This appliance must be . In the event of a malfunction or breakdown,
earthing
resistance of electric current. This appliance is equipped with a cord having
an equipment- conductor and a plug.
The plug must be plugged into an appropriate outlet that is installed and
earth ed
Improper connection of the equipment- conductor can result
in the risk of an electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly .
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
EARTHING INSTRUCTIONS
earthed
will reduce the risk of an electric shock by providing a path of least
earthing earthing
in accordance with all local codes and ordinances.
earthing
earthed
User Manual\05
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
Check that the detergent is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the
equivalent. For plastic it ems n check th e m anufacturer's
recommendations.
Use only det ergent and rins e add itives des igned for a n aut omatic dish washer.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
Children should be supervised to ensure that they do not play with the appliance.
The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously
bent or flattened.
powder
ot so marked,
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets and
that old hose-sets should not be reused.
The maximum number of place settings to be washed is
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.
10.
Residentia\06
User Manual\07
2.Quick operation guide
For detailed operating method read the corresponding content on the instruction manual.
If the appiance was under standby mode, it will be power off automaticly after 30 minutes without any operation.
For detailed operating method read the corresponding content on the instruction manual.
2.Quick operation guide
Switch on the appliance
Open the door, press the to switch on the appliance.On/Off button
Compartment A:
For each wash cycle.
Fill the detergent dispenser
Check the rinse aid level
Load the baskets
Select a program
Running the dishwasher
Compartment B:
For programs with pre-wash only.
(Follow the user instructions)
Mechanical indicator C.
Electric indicator on control panel (if provided).
Scrape off any large food particles. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Close the door,press the Program Button until the selected program lights up.
( See the section entitled Operation instruction )
T urn on the water tap and press the
after about 10 seconds.
Start/Pause Button. The machine will start working
C
B
A
Changing the program
Add forgotten dishes in the
dishwasher.
If the appliance is switched
off during a wash cycle.
Switch off the appliance
Turn off the water tap,
unload the baskets
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If in this case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button, the machine will be in standby state, press the program
button more than 3 seconds then you can change the program to the desired cycle setting.
3. Press the Start/Pause Button, the dishwasher will run after 10 seconds.
1.Press the Start/Pause Button to stop the washing.
2.Open the door a little.
3.After the spray arms stop working, you can open the door
completely.
4.Add forgotten dishes.
5.Close the door.
6.Press the Start/Pause Button, the dishwasher will run
after 10 seconds.
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
When the working cycle is finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the utton.
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald,as
the dishes and utensils are still hot and more susceptible to break.
They could also dry better.Unload the appliance, starting from the lower basket.
On/Off B
WARNING!
Open the door carefully.
Hot steam may escape
when the door is opened!
Residentia\08
3.Operation Instruction
IMPORTANT
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
Control Panel
5
1. On/Off Button: to switch On/Off the appliance;
2.Alt function Button: Dual zone wash function, press the
button to select either upper basket or lower basket
loaded, and the response indicators will light on.
3.Delay Button : Press the button to add the delay time;
4.Child lock function: press Delay button and
Button
5. Rinse Aid indicator:
Indicates when the dispenser needs to be refilled
6. Program ending indicator:
7.water tap indicator:
8.Display window:
display the remain time,delay time and error code.
9. Program indicator:
display the program selected.
simultaneously to lock the program;
Alt function
10.Child lock indicator;
11. Extra drying indicators;
Lower basket loaded indicators:
12.
To show lower basket loaded functionstarting up or not;
Upper basket loaded indicators:
13.
To show upper basket loaded functionstarting up or not;
14.Program Button : To Press the button to select
15.Extra drying Button : To select Extra drying function.
16.Start /Pause button: To start the selected washing
program or pause the washing program when the
machine is working starting up or not;
Dishwasher Features
Front view
1
2
3
4
5
6
Top spray arm
1
Cutlery rack
2
Upper basket
3
4
5
6
7
9
8
Inner pipe
Lower basket
Dispenser
Back View
9
10
Cup shelf
7
Spray arms
8
Filter assembly
9
10
Inlet pipe connector
Drain pipe
11
11
User Manual\09
4.
Prior using for the first time
Before using your dishwasher for the first time:
A. Fill the rinse aid dispenser
B. Fill in detergent
A. Rinse Aid Dispenser
Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser i s located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level
indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the
rinse-aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 fu ll
1 / 2 fu ll
1 / 4 full - Should refill to eliminate spotting
Empty
To open the dispenser, turn the cap t o the "open" (left) arrow and lift i t out.
1
Pour the rinse aid into the dispenser, being careful not to overfill.
2
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
3
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Do n't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid sp ill during filling with an ab sorbent clo th to avo id excess foaming
during the next wash.
Loading...
