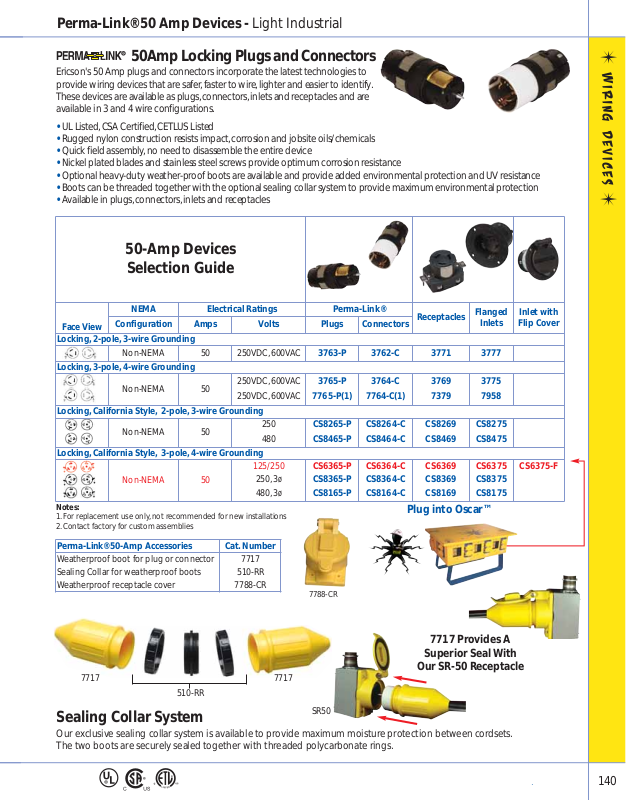

Ericson Perma-Link Catalog Page

140

Perma-Link® 50 Amp Devices - Light Industrial

50Amp Locking Plugs and Connectors

Ericson's 50 Amp plugs and connectors incorporate the latest technologies to
provide wiring devices that are safer, faster to wire, lighter and easier t o identify.
These devices are available as plugs, connectors, inlets and r ec eptacles and are
available in 3 and 4 wire configurations.

• UL Listed, CSA Certified, CETLUS Listed

• Rugged nylon construction resists impact, corrosion and jobsite oils/chemicals

• Quick field assembly, no need to disassemble the entire devic e

• Nickel plated blades and stainless steel screws provide optimum corrosion resistance

• Optional heavy-duty weather-proof boots are available and provide added environmental protection and UV resistance

• Boots can be threaded together with the optional sealing collar system to provide maximum envir onmental pr ot ection

• Available in plugs, connectors, inlets and receptacles

Sealing Collar System

Our exclusive sealing collar system is available to provide maximum moisture protection between cordsets.
The two boots are securely sealed together with threaded polycarbonate rings.

7717

510-RR

7717

SR50

Notes:

1. For replacement use only, not recommended for new installations

2. Contact factory for custom assemblies

7788-CR

Perma-Link® 50-Amp Accessories Cat. Number

Weatherproof boot for plug or connector 7717
Sealing Collar for weatherproof boots 510-RR
Weatherproof receptacle cover 7788-CR

50-Amp Devices

Selection Guide

Face View

NEMA Electrical Ratings Perma-Link®

Receptacles

Flanged

Inlets

Inlet with

Flip Cover

Configuration Amps Volts Plugs Connectors

Locking, 2-pole, 3-wire Grounding

Non-NEMA 50 250VDC, 600VAC 3763-P 3762-C 3771 3777

Locking, 3-pole, 4-wire Grounding

Non-NEMA 50

250VDC, 600VAC 3765-P 3764-C 3769 3775
250VDC, 600VAC 7765-P(1) 7764-C(1) 7379 7958

Locking, California Style, 2-pole, 3-wire Grounding

Non-NEMA 50

250 CS8265-P CS8264-C CS8269 CS8275
480 CS8465-P CS8464-C CS8469 CS8475

Locking, California Style, 3-pole, 4-wire Grounding

Non-NEMA 50

125/250 CS6365-P CS6364-C CS6369 CS6375 CS6375-F

250, 3

ø

CS8365-P CS8364-C CS8369 CS8375

480, 3

ø

CS8165-P CS8164-C CS8169 CS8175

7717 Provides A

Superior Seal With

Our SR-50 Receptacle

Plug into Oscar™
