Ericson Wiring Devices Catalog

115

Wiring Devices

Original 1950’s Advertisement

116

Wiring Devices

24/7 Emergency Assistance Hotline

1-877-OSCAR99 (672-2799)

117

Wiring Devices - Overview

Ericson Manufacturing Company offers a wide
variety of plugs and connectors to fit your needs.

• Two-screw cable clamp secures c or d and pr ovides superior strain-relief

• Withstand high impact, c orrosion , oils, greases, solvents and other

chemicals across -20 °C to + 100°C

• Individual wire pockets help prevent flashovers

• Rubberized outer housing for superior grip and impact resistance

• Flexibility of reverse-cover design creates weather-resistant

c

onnections by interchanging covers

• Internal cord seals keep out water/mud/dust

• Available in all black

• Quick field assembly with cord grip nut

• Superior water/mud/dust resistance provided by safety compression cor d grips

• Withstand high impact, c orr osion, oils, greases, solvents and other chemicals

acr

oss -20 °C to + 100°C

• Flexibility of reverse-cover design (straight blade devices) cr eates

w

eather-resistant connections by interchanging covers

• Custom marking available on cord grip nut

• Available in all black

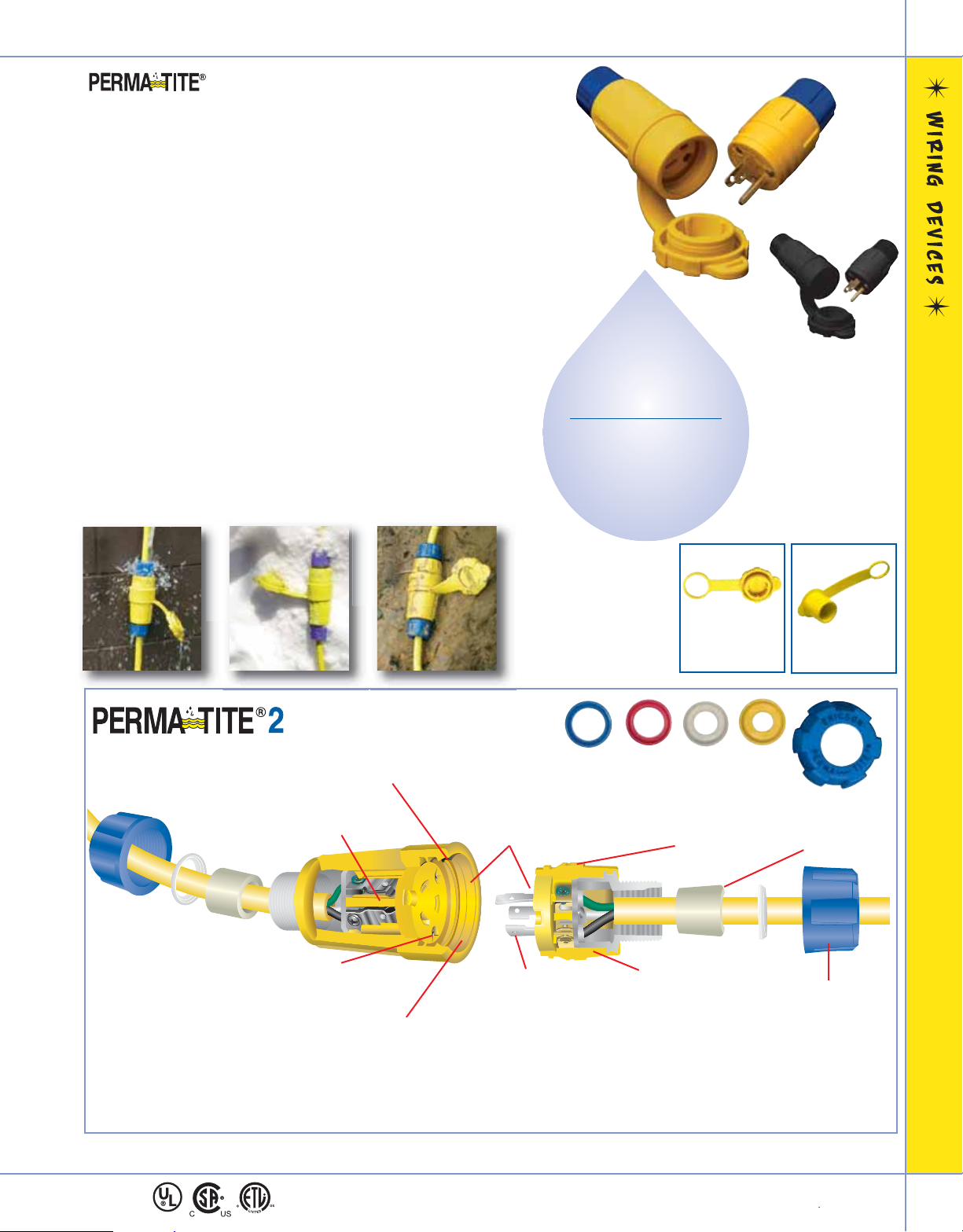

• Tongue & gr oove sealing system provides extreme environmental protection

of:

· NEMA Type 4, 4X, 6, 6P & IP67

• Devices resist high-pressure hose down of 1,500 psi.

• Withstand high impact, c orr osion, oils, greases, solvents and other chemicals

acr

oss -20 °C to + 100°C

• Removable/replaceable self-retained sealing cap provided with connector

to keep out contaminants when not in use (plug cap also available)

• Custom marking available on cord grip nut

• Available in all black

• Translucent body allows device to glow fr om power on lamp (EL Models)

• Wide open “suitcase” style construction makes wiring easy

• Fits 10/3 to 18/3 cord diameters

• Rugged design withstands abuse on the jobsite

• Color coded termination screws for ground, hot and neutral

• Combo screw heads speed up installation

• Rubberized “grip” cushions and surrounds device

• Economy priced

• Rugged nylon construction resists impact, corrosion and jobsite oils/chemicals

• Quick field assembly, with color coded markings

• Nickel plated blades and stainless steel screws provide optimum corrosion resistance

• Boots can be threaded together with the optional sealing collar system to provide

maximum en

vironmental protection

• Available in plugs, connectors, inlets and receptacles

• Rubberized grey “Twist-Grip” for ease of connection

50 Amp Devices

Commercial Grade

118

Wiring Devices - Overview

Smart Monitor

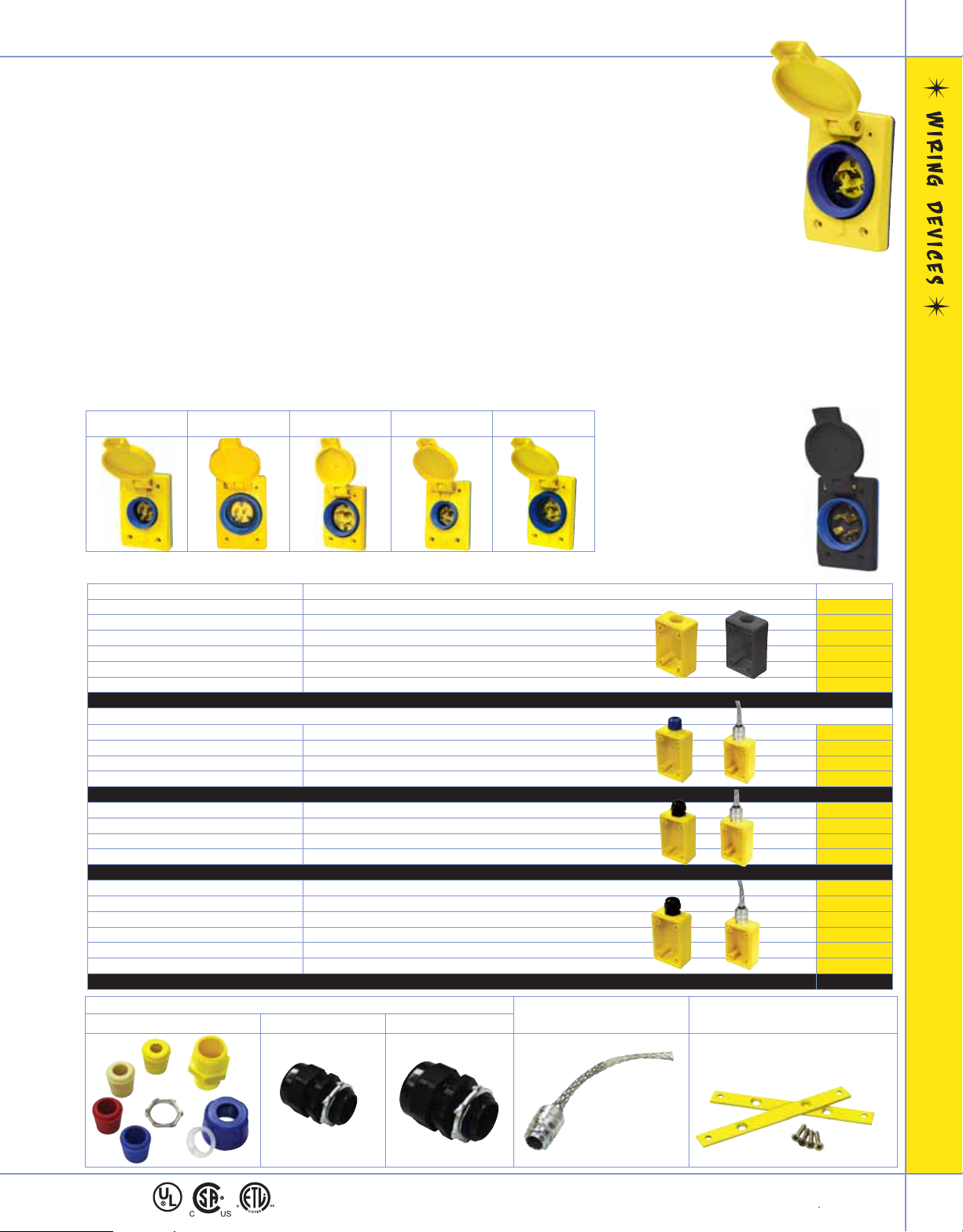

FS Series Single Receptacles & Male Inlets Under All Weather Flip Covers

Adapters

New From Ericson… Industrial application SmartCords factory built to last and
last. Models with Smart Connector (Economy Safe) and both Smart Plug and
connector are available. 24/7 monitoring with Assured Grounding Compliance
to NEC and OSHA standards. Built with the highest quality materials to with­stand your environment.

• Weather r esistant boot seals around Ericson Perma-Tite plug to provide weather resistant

protection

• Spring-loaded flip-lid covers the rec eptacle when not in use

• T wo independent fully rated receptacles in one easy to install assembly

• Impact, chemical & corrosion resistant construction stands up to demanding environments

• Mounts easily to 6200 series FS/FD boxes and any flat surface

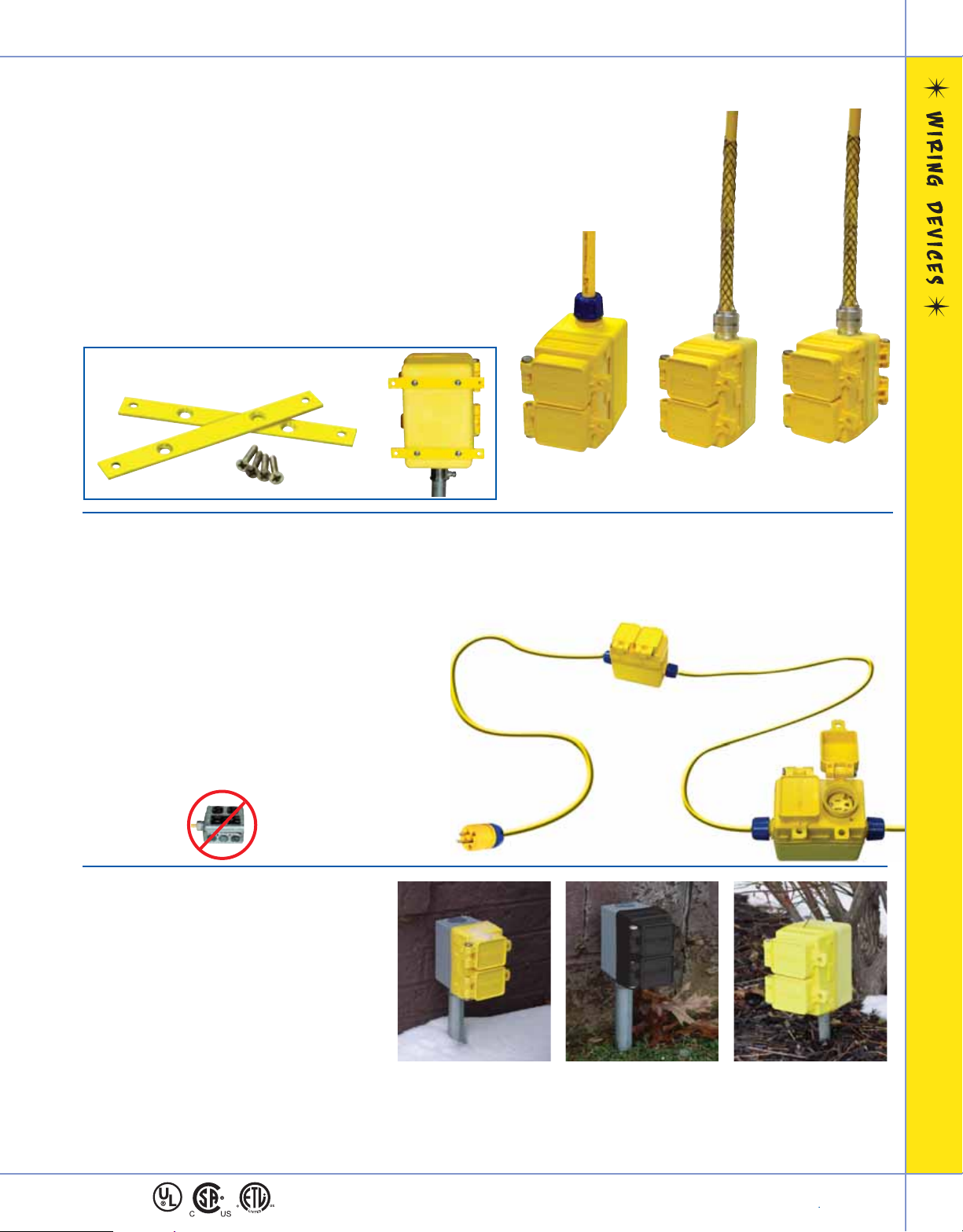

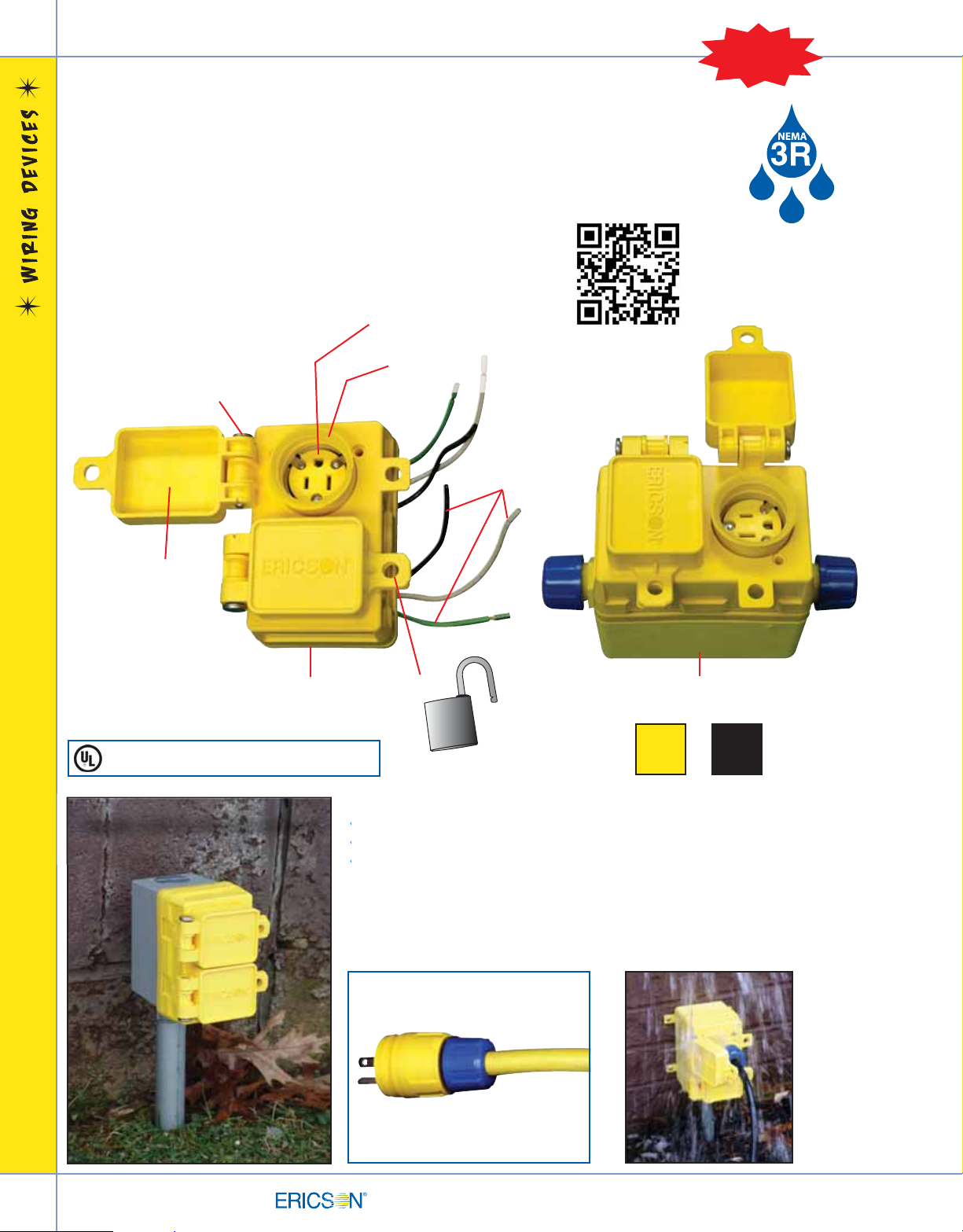

Double Outlet Receptacle with Cover Plates - PWDX Series

Smart Cords

NEW!

NEW!

NEW!

NEW!

• Super bright 2-color LED technology

• Smart Monitor Module

• Easy to wire

• Clear internal wiring cover

• Multiple cord grommets included

• Makes OSHA safety compliance easy

and cost eff

ective

3 Styles to Pick From:

• Perma-Link®

• Perma-Grip™

• Perma-Tite® 2

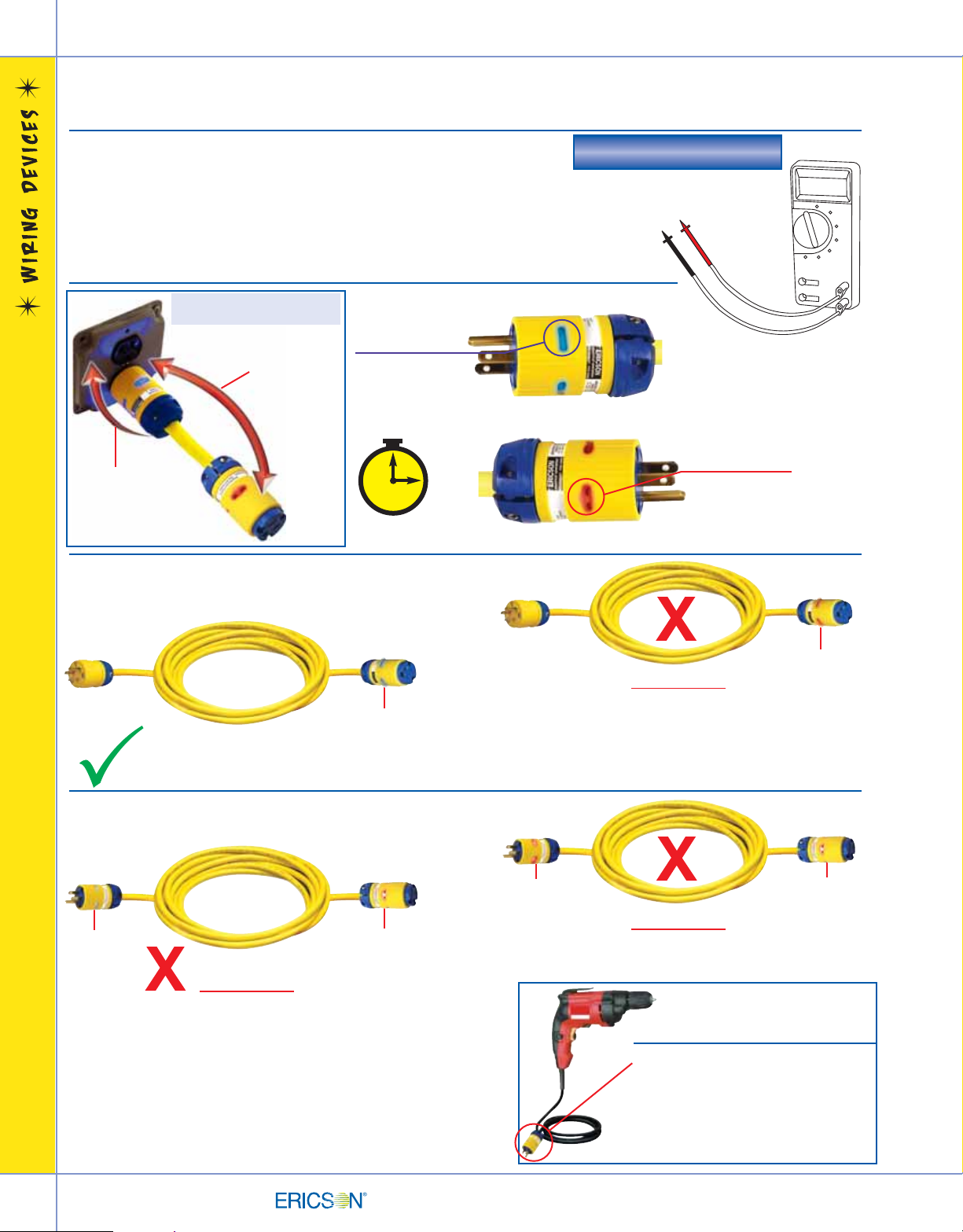

24/7 Monitoring of These 7 Events

• No Ground

• Loss of Ground In Cord

• Hot/Neutral Swap

• Reverse Polarity

• Hot on Ground

• Open Neutral

Features of All Smart Monitor Plugs & Connectors:

• Weather r esistant boot seals around Ericson Perma-Tite plug to provide

weather resistant protection

• Spring-loaded flip-lid covers rec eptacle when not in use

• Includes cover plate, rubber boot, stainless steel mounting plate/mounting screws

• Impact, chemical & corrosion resistant construction stands up to demanding environments

• Mounts easily to 6200 or 6300 series FS/FD boxes and any flat surface

• Collar plug seals and grips all types of round plugs or connectors

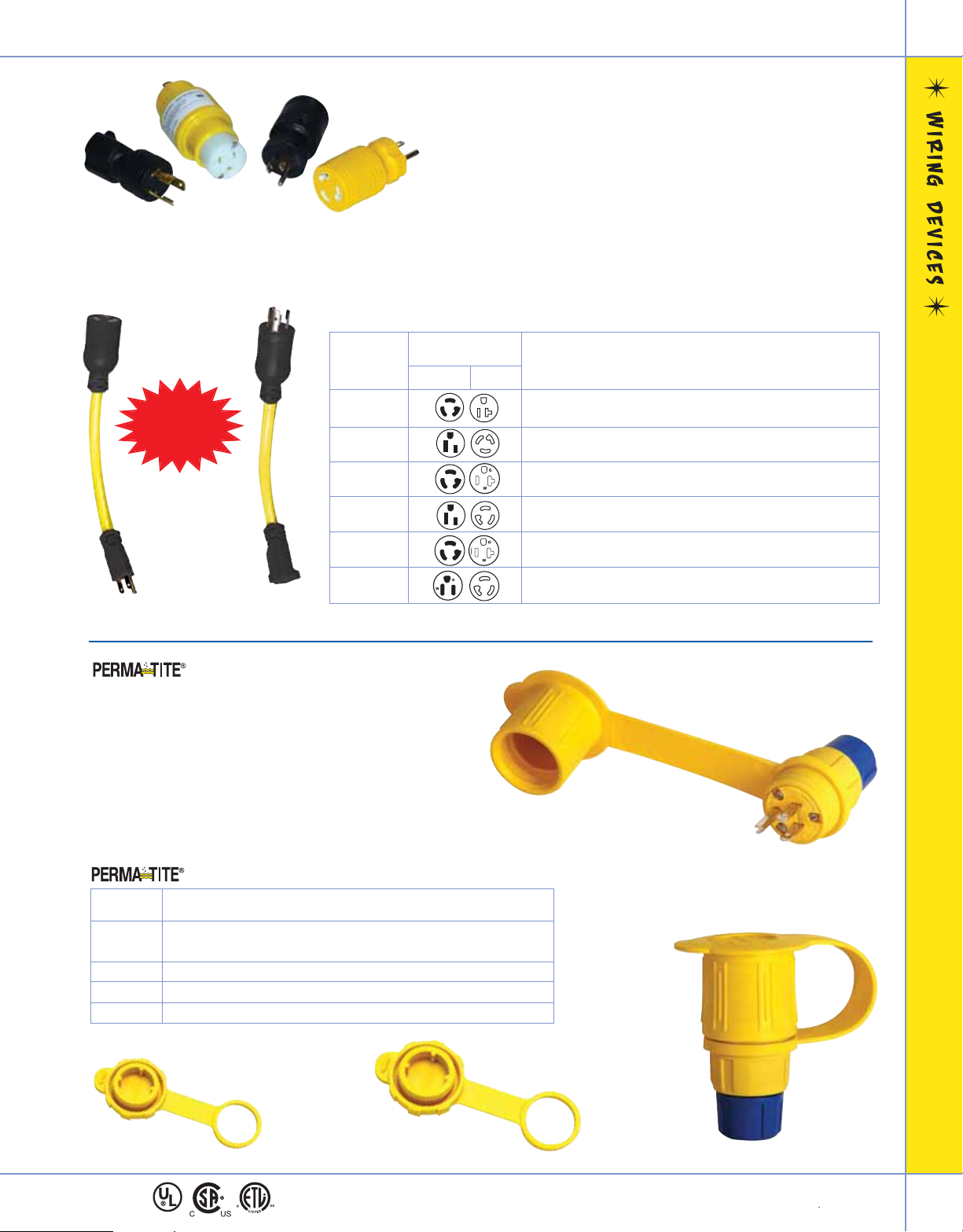

NEMA Change Adapters

Now make quick, secur e connections between straight-blade and locking
plugs and connectors with Ericson's NEMA configuration adapters.

• Heavy-duty non-conducting housing and using heavy gauge

solid brass blades

• Compact size makes them easy to use and transport

• Available in molded style or short cords

119

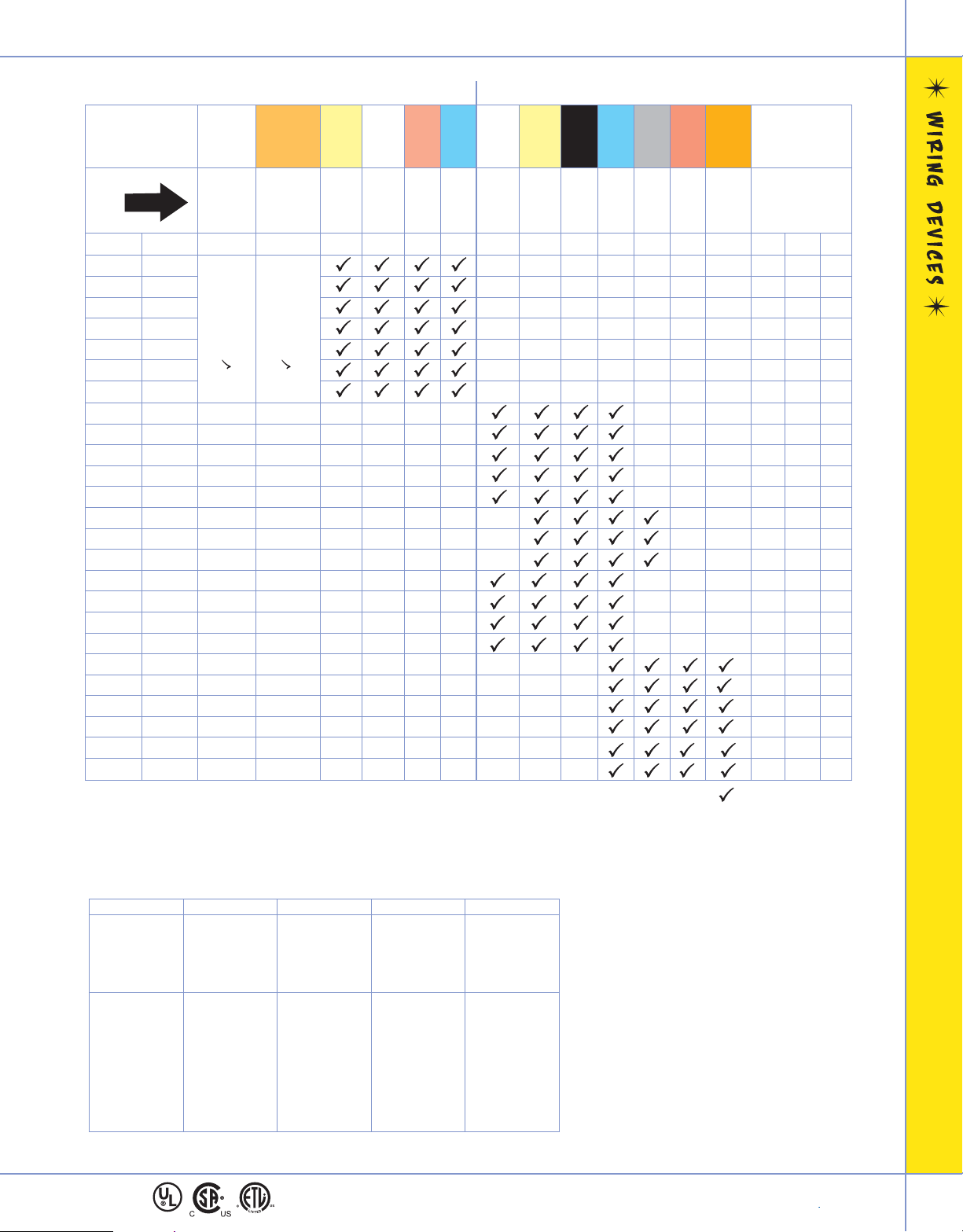

NEMA Chart

Ericson

NEMA Char t

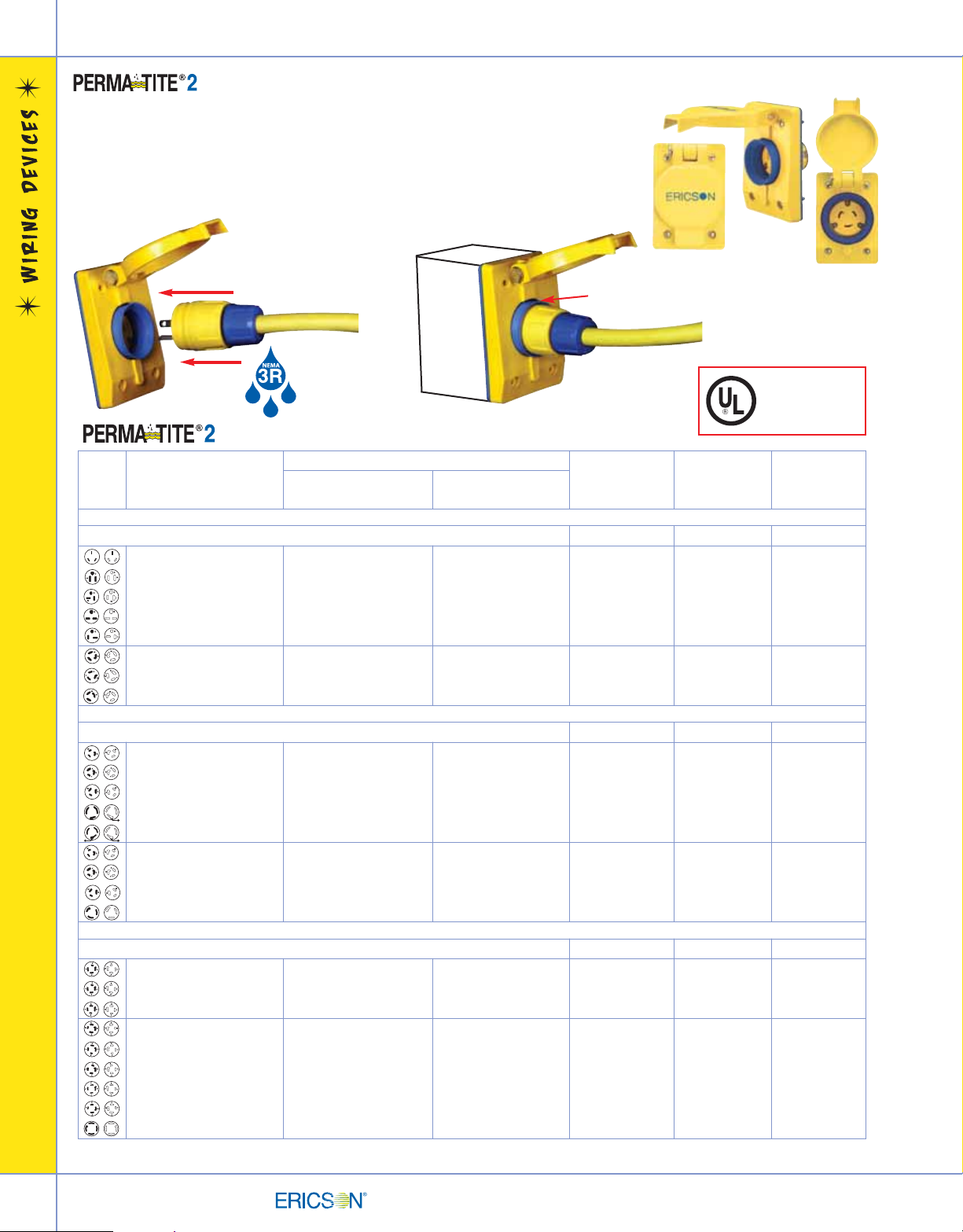

NEMA Electrical Ratings PERMA-TITE® 2 PERMA-GRIP™

Face View Configuration Amps Volts Plugs Connectors Plugs Connectors

2-pole, 3-Wire Grounding

5-15 15 125 1510-PW6P 1610-CW6P 1510-PG 1610-CG
5-20 20 125 1512-PW6P 1612-CW6P 1512-PG 1612-CG
6-15 15 250 1514-PW6P 1614-CW6P 1514-PG 1614-CG
6-20 20 250 1516-PW6P 1616-CW6P 1516-PG 1616-CG

L5-15 15 125 1520-PW6P 1620-CW6P 1520-PG 1620-CG
L6-15 15 250 1522-PW6P 1622-CW6P 1522-PG 1622-CG
L7-15 15 277 1524-PW6P 1624-CW6P 1524-PG 1624-CG

L5-20 20 125 2310-PW6P 2410-CW6P 2310-PG 2410-CG
L6-20 20 250 2312-PW6P 2412-CW6P 2312-PG 2412-CG
L7-20 20 277 2314-PW6P 2414-CW6P 2314-PG 2414-CG

3-Pole, 3-Wire Non-Grounding

Non-NEMA 20 125/250 2316-PW6P 2416-CW6P 2316-PG 2416-CG
Non-NEMA 20/10 205/600 2317-PW6P 2417-CW6P 2317-PG 2417-GC
Non-NEMA 15A/10A 125V/250V 1507-PW6P 1607-CW6P 1507-PG 1607-CG

3-Pole, 4-Wire Grounding

L14-20 20 125/250 2320-PW6P 2420-CW6P
L15-20 20 250, 3Ø 2322-PW6P 2422-CW6P
L16-20 20 480, 3Ø 2324-PW6P 2424-CW6P

2-Pole, 3-Wire Grounding

L5-30 30 125 2510-PW6P 2610-CW6P 2510-PG 2610-CG
L6-30 30 250 2512-PW6P 2612-CW6P 2512-PG 2612-GC
L7-30 30 277 2514-PW6P 2614-CW6P 2514-PG 2614-CG

3-Pole, 3-Wire Non-Grounding

Non-NEMA 30 125/250 2516-PW6P 2616-CW6P

3-Pole, 4-Wire Grounding

L14-30 30

125/250

3Ø

2520-PW6P 2620-CW6P

L15-30 30 250, 3Ø 2522-PW6P 2622-CW6P
L16-30 30 480, 3Ø 2524-PW6P 2624-CW6P
L17-30 30 600, 3Ø 2526-PW6P 2626-CW6P

4-Pole, 4-Wire

L18-30 30

120/208

3Ø wye

2530-PW6P 2630-CW6P

4-Pole, 4-Wire Non-Grounding

Non-NEMA 30

120/208

3Ø wye

2528-PW6P 2628-CW6P

EXTREME

BEST

120

NEMA Chart

PERMA-LINK® Economy Grade* Smart Monitor* Single Outlet Male Inlets Dual Recept (PWDX)

Face View Plugs Connectors Plugs Connectors Plugs Connectors FS Cover Plates Receptacle with Cover

2-pole, 3-Wire Grounding

1510-P 1610-C 5266-E 5269-E 1510-PXX 1610-CXX 2715-FS10 2705-15/A 1610-PWDX
1512-P 1612-C 1512-PXX 1612-CXX 2715-FS12 2705-20/A 1612-PWDX
1514-P 1614-C

Note: Lighted

power-on glow

models also:

5266-EL

& 5269-EL

2715-FS14 1614-PWDX

1516-P 1616-C 2715-FS16 1616-PWDX
1520-P 1620-C 2715-FS20 2705-L15/A 1620-PWDX

1522-P 1622-C 2715-FS22 1622-PWDX
1524-P 1624-C 2715-FS24 1624-PWDX

2310-P 2410-C 2310-PXX 2410-CXX 2820-FS10 2705-L20

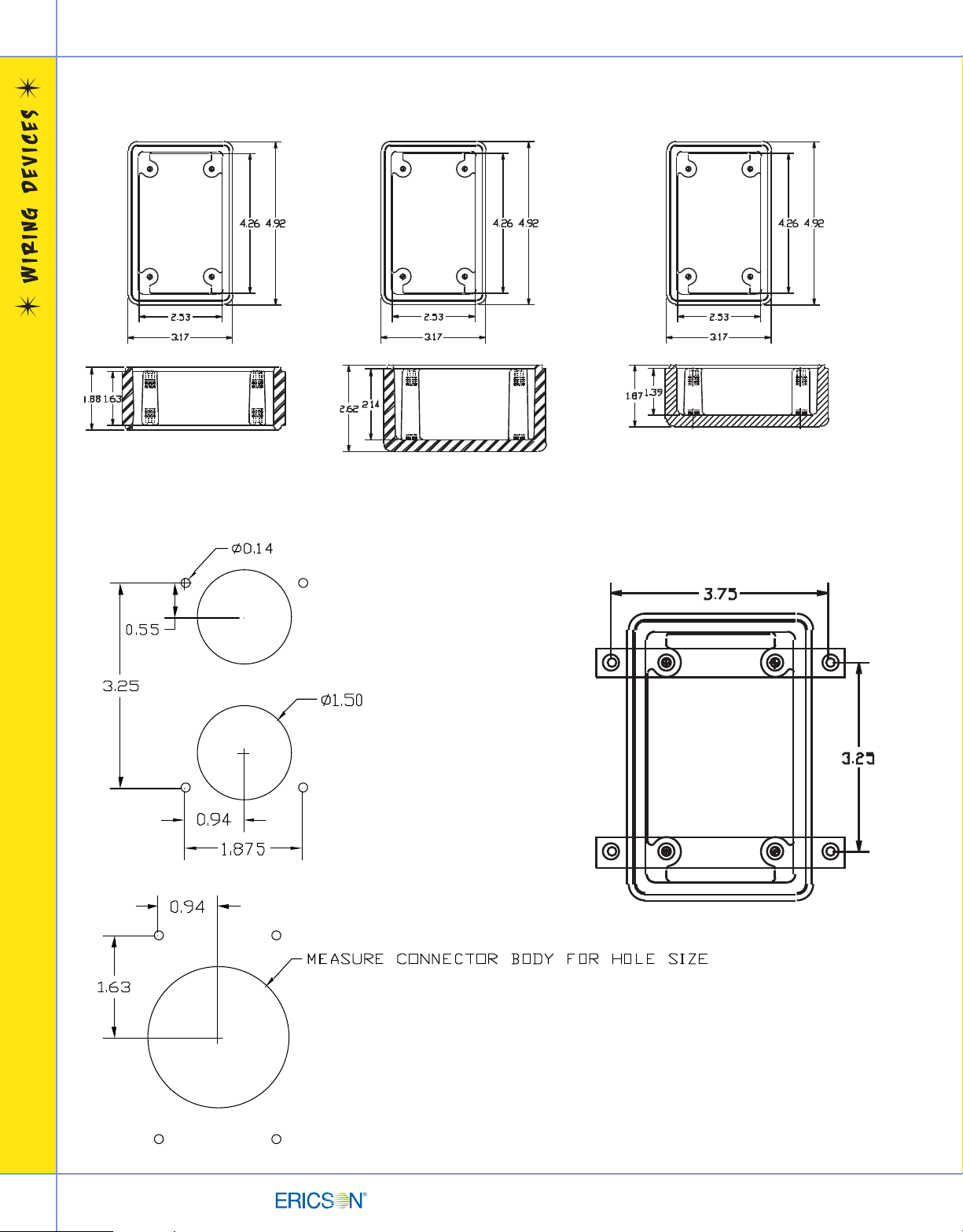

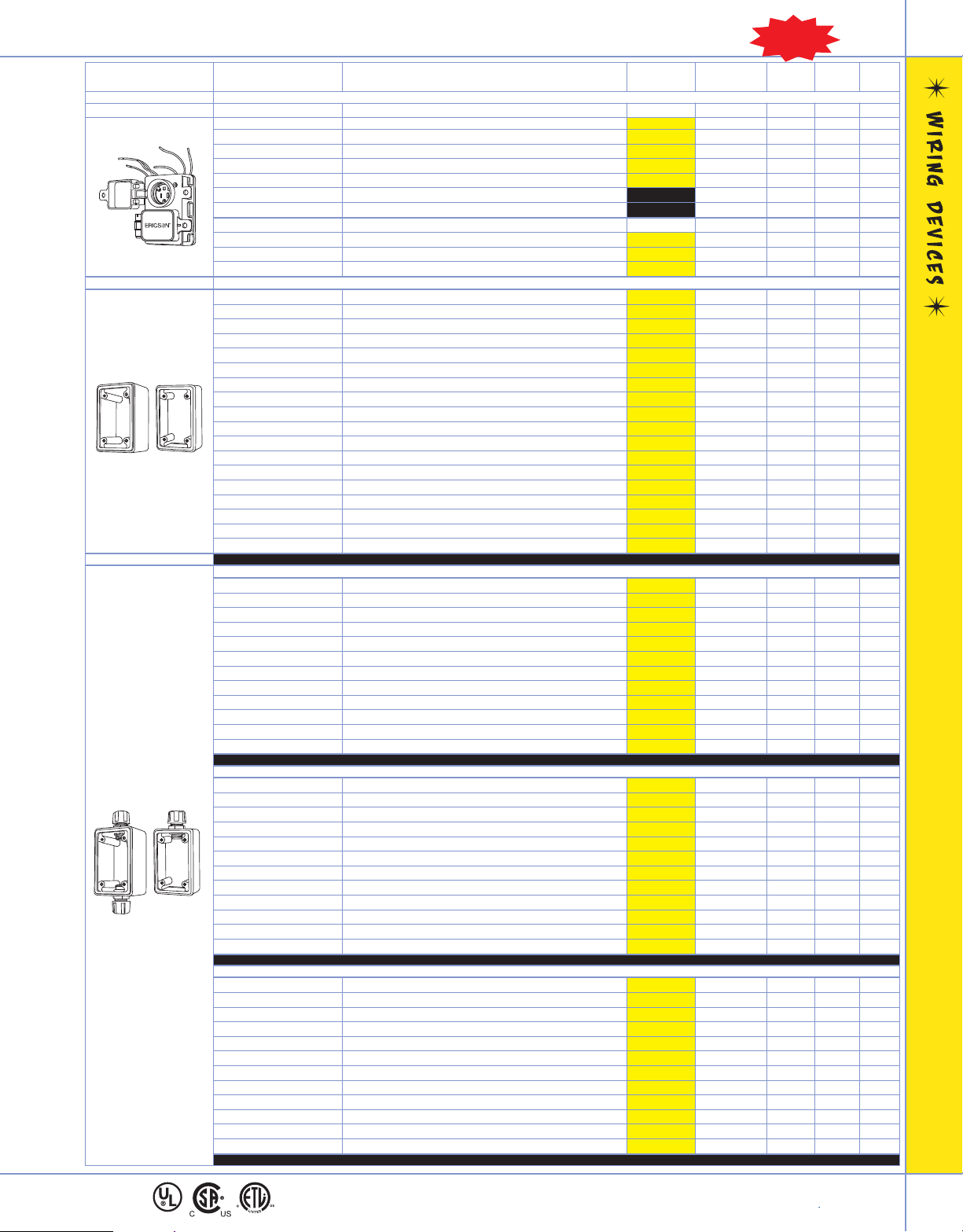

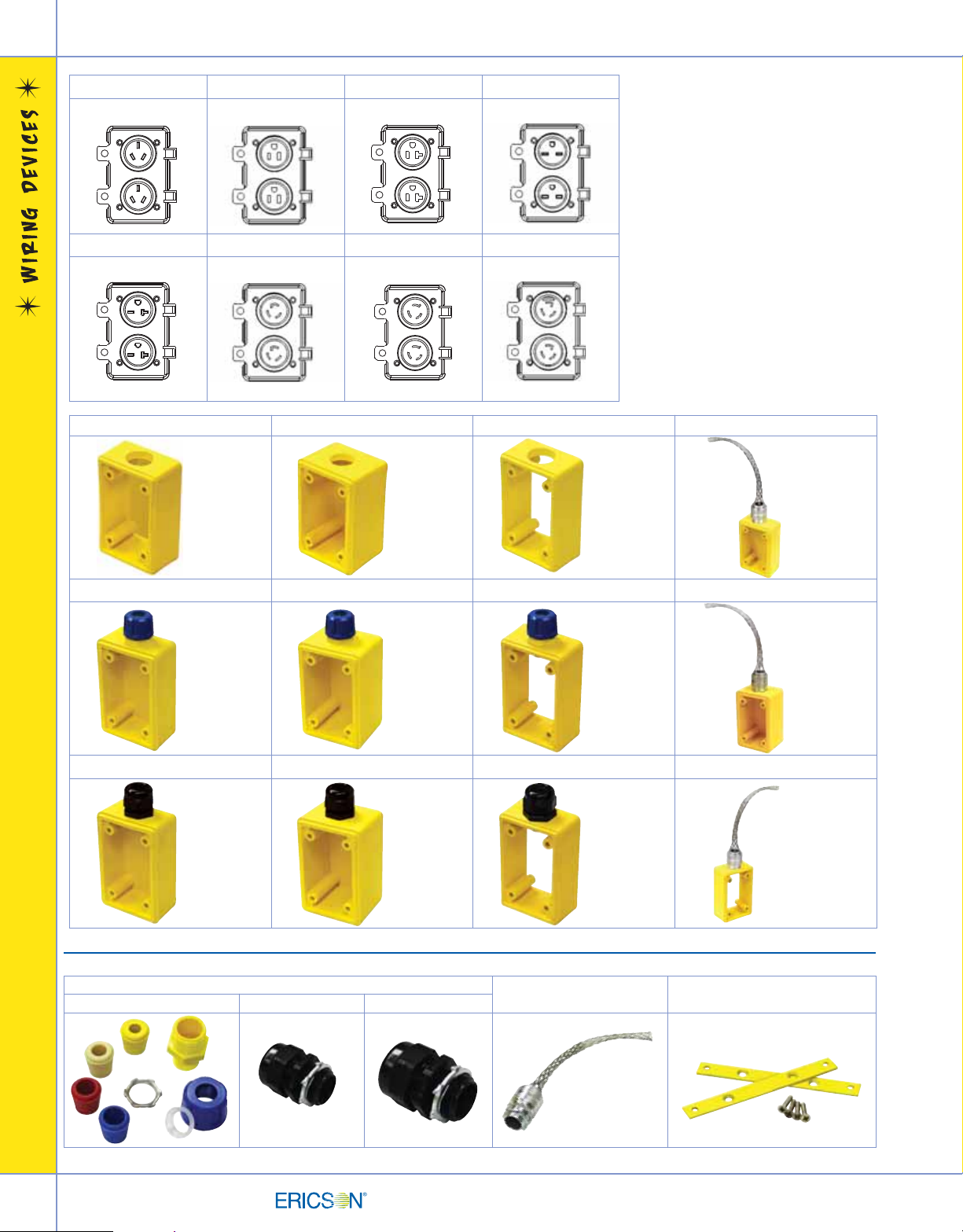

6200 Series Boxes

For FS S

eries &

PWDX Series

· Rubberized

· Fully Enclosed

· Single and Double

Sided

· Standard and Deep

2312-P 2412-C 2820-FS12
2314-P 2414-C

2820-FS14

3-Pole, 3-Wire Non-Grounding

*Part Number

Note for

Smart Monitors:

PLUGS (-PXX)

PML

Perma-Link® Style

PMGL

Perma-Grip™ Style

PW6PL

Perma-Tite®2 Style

CONNECTORS (-CXX

)

CML

Perma-Link® Style

CMGL

Perma-Grip™ Style

CW6PL

Perma-Tite®2 Style

2316-P 2416-C 2820-FS16

2317-P 2417-C 2820-FS17

1507-P 1607-C 2715-FS07

3-Pole, 4-Wire Grounding

2320-P 2420-C 2920-FS20 2705-L142
2322-P 2422-C 2920-FS22
2324-P 2424-C 2920-FS24 2705-L162

2-Pole, 3-Wire Grounding

2510-P 2610-C 2830-FS10 2705-L30
2512-P 2612-C 2830-FS12
2514-P 2614-C 2830-FS14

3-Pole, 3-Wire Non-Grounding

2516-P 2616-C 2830-FS16

3-Pole, 4-Wire Grounding

2520-P 2620-C 2930-FS20 2705-L143
2522-P 2622-C 2930-FS22

2524-P 2624-C 2930-FS24 2705-L163
2526-P 2626-C 2930-FS26 2705-L173

4-Pole, 4-Wire

2530-P 2630-C

2930-FS30

4-Pole, 4-Wire Non-Grounding

2528-P 2628-C 2930-FS28

NEW!

BETTER GOOD

SMART

121

Wiring Devices

Yes we can. Ericson can customize our offering of wiring devices to
meet your individual needs. The custom solution can be as simple as
the popular printing on the back of the cord grip nut to fully custom
colored and labeled product. Minimum order sizes will apply and well
as some setup fees. Contact us to discuss your needs and custom
design details.

How to order: Contact you local Ericson Factory Representative or call us at 1-800-Ericson (374-2766)

Custom Cord

Nut Printing

Notes:

1. Some customization can void certain agency safety listings or warranty.

2. Minimum quantities will apply. Other design and tooling fees may apply.

Cord nut

available in

custom colors

Custom

cord nut

printing

Available in
custom colors

Custom blade
non-NEMA
configuration

122

Wiring Devices - Commercial Grade

EL Models

T ranslucent

Body

“Glows”

Devices Selection Guide

Commercial Grade Plugs & Connectors

The Ericson 5266 and 5269 Series of Commercial Grade plugs offer the latest in design innovation and quality in an economy
grade wiring device. The demands of today’s electrical industry are met with this new design with features never before
seen in a commercial device. Designed to provide years of trouble free service in demanding industrial, construction and
rental environments. Available in 2 styles, with and without the power on “glow” module to light up the entire device.

• 2 styles – with and without internal

lamp module (see chart)

• T

ranslucent body allows device

to glo

w from power on lamp

• Tough, soft feel, rubber overmold

grip surrounds devic

e body

• Wide open “suitcase” st yle

construction makes wiring easy

• Two captive screw body clamp

design is easy to assemble

• C

ord diameter matching inserts fit a

wide range of c

ord sizes

• Solid brass blades for optimum

electrical c

ontact

• Fits 10/3 to 18/3 cord diameters*

• Rugged design withstands abuse on

the jobsite

• Clear int

ernal conductor cover

allows visual inspec

tion

• Color coded termination screws for

ground

, hot and neutr al

• Combo screw head

Face

View

NEMA

Configuration

Electrical Ratings

With Internal Glow Light Without Internal Glow Light

Amps Volts Plugs C onnectors Plugs Connectors

Straight Blade, 2-pole, 3-wire Gr ounding De vices

5-15 15 125 5266-EL 5269-EL 5266-E 5269-E

5266-E

(non-lighted)

5269-E

(non-lighted)

Notes:

*Cord diameters - .3 to .6 inch
**Slot - Phillips

Tough, soft feel, rubber
overmold grip

Tough nylon translucent body allows
glow module to illuminate entire device

1

Built-in internal
secondary cord
clamps

5266-EL Lighted

Inserts allow a

wide range of

cord sizes

#16/3 to #10/3

Solid brass blades

Heavy duty ground pin

Clear terminal cover Color coded

terminal screws**

Cord diameter inserts*

1 Piece Design - EZ To Wire

1. Available on - EL models only

Power o n
360° glow
module

1

Exclusive!

123

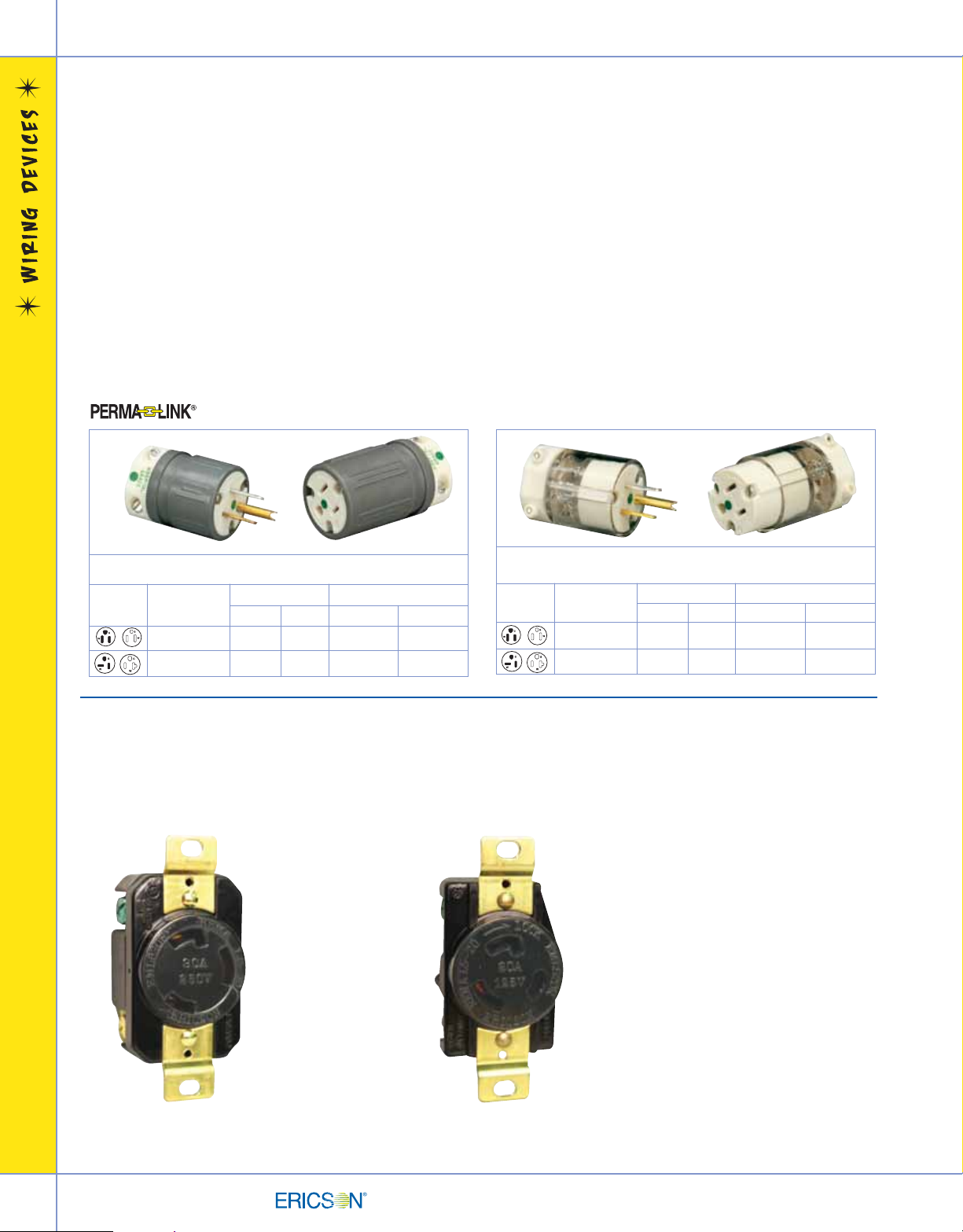

Perma-Link® Devices- Light Industrial

Plugs and Connectors

United States patent number 4,021,092 was assigned to today's Perma­Link® plugs and connectors which are classified among the most rugged
and safest wiring devices available. They incorporate many of the same
features as Ericson Perma-Tite® 2 and Perma-Grip™ devices and utilize a
two-screw cable clamp. Perma-Link® plugs and connectors are designed
to provide many years of trouble-free service in the most demanding
industrial and construction environments.

• UL Listed and CSA Certified

• Two-screw cable clamp secures

wir

e and provides strain-relief

• Solid brass blades for optimum

elec

trical and mechanical

performance

• Keyed body and cover for easy

alignment/assembly

• Molded-in non-slip finger-grips

mak

es devices easy to assemble

and handle

• Withstand high impact, c orr osion,

oils, greases, solvents and other
chemicals across -20 °C to 100 °C

• Individual wire pockets help

pr

event flashovers

• Transparent back plate speeds

wiring inspec

tion

• Selected models available with

Gr

ound Continuity Monitor

• Available individually or on

factory assembled cord sets

• Flexibility of reverse-cover design

cr

eates weather-resistant
connections by interchanging
covers

• Ericson's exclusive Brilliant

Blue and R

adiant Yellow High

Visibility Dual Color Safety System

Note: Add - BLK for all black as available.

All Black Available

124

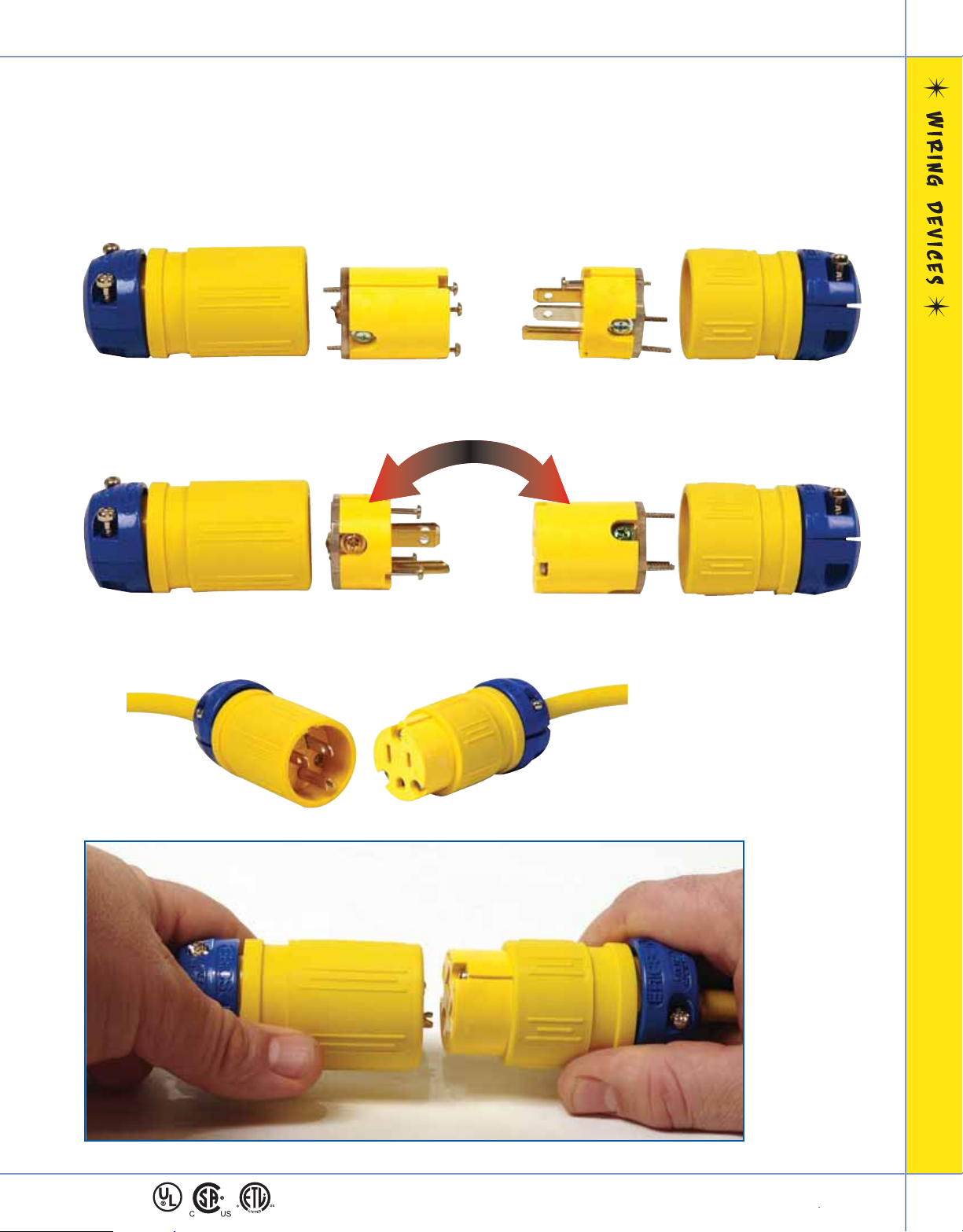

Perma-Link® - Conversion For Weather Resistance

Versatile Weather-Resistant Field Conversion

Our Perma-Link®plugs and connectors (straight blade only) are designed so they can easily be converted to create
weather-resistant connections by interchanging the internal assemblies. Insert the plug body into the connector cover,
and the connector body into the plug cover. There are no extra parts to purchase.

Step 1:

Disassemble The Plug & Connector As Shown

Step 2:

Swap Plug & Connector Assemblies

Step 3:

Assemble Cords Per Bag Instructions

Now

Your Perma-Link® Plugs & Connectors

Are More Weather Resistant!

SWAP

1510-P
After conversion

1610-C
After conversion

125

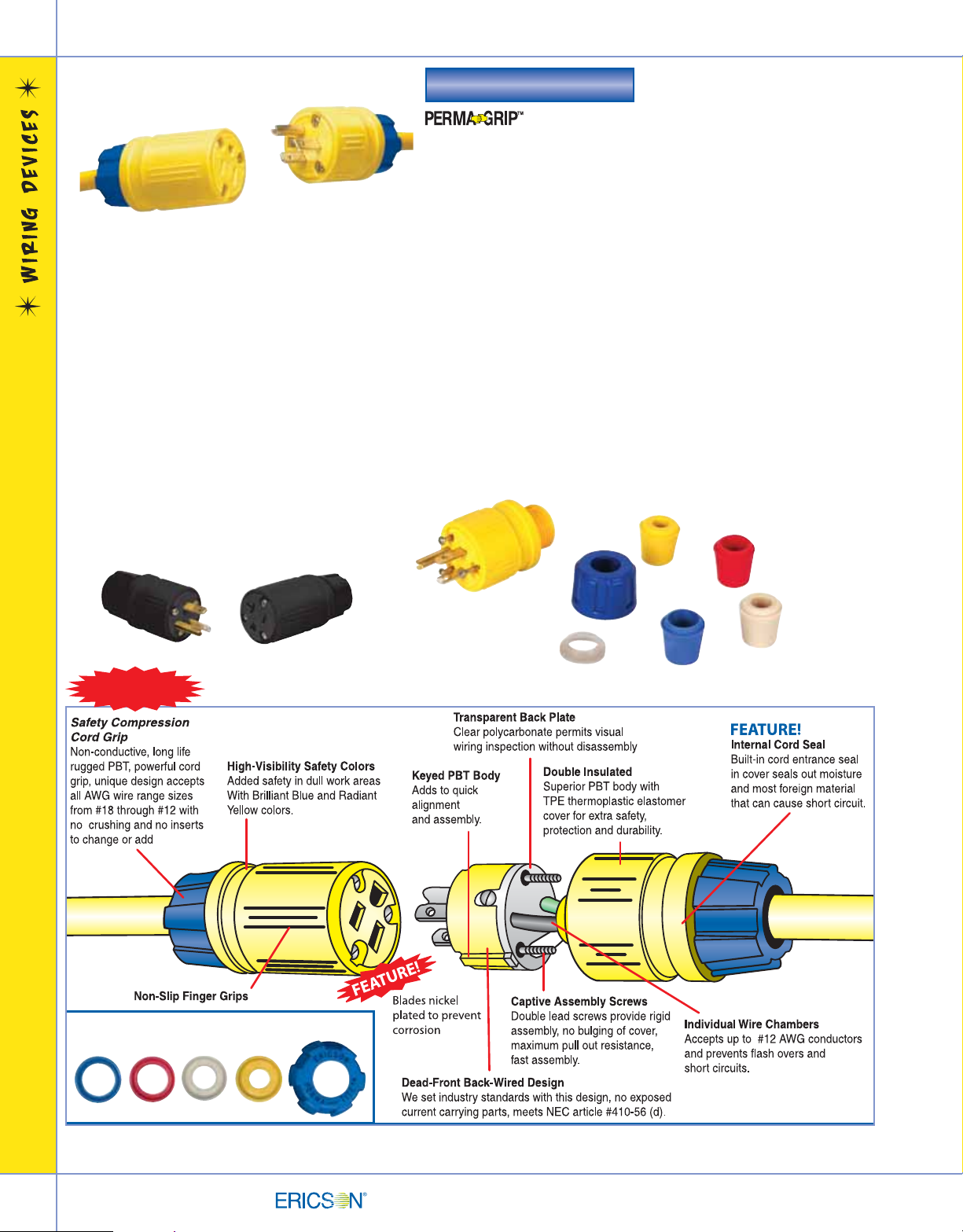

Perma-Grip™ Devices - Industrial

Plugs and Connectors

Ericson's industry exclusive design combines the Perma-Tite® cord
grip with the industry proven design of its Perma-Link® devices to
provide a line of incredibly tough plugs and connectorsthat stand
up to the most demanding industrial and construction environments.

• UL Listed and CSA Certified, some ETL Listed

• Quick field assembly, no cable clamp screws to

tight

en, simply twist on the c ord grip nut

• Water/mud/dust resistance pro vided by safety

c

ompression cord grips

• Keyed body and cover for easy alignment/assembly

• Color coded rubber cord-seal bushings

acc

ommodate a wide range of cable diameters

• Molded-in non-slip fingers grips makes devices easy

t

o assemble and handle

• Withstand high impact, c orr osion, oils, greases,

solvents and other chemicals across -20 °C - +65 °C

• Nickel plated brass blades and ground pin stops

c

orrosion and keeps solid electrical contact

• Individual wire pockets help prevent flashovers

• Transparent back plate speeds wiring inspection

• Selected models available with Ground Continuity

Monit

or

• Available individually or on factory assembled

cord sets

• Flexibility of reverse-cover design (straight blade

devic

es) creates weather-resistant connections by

interchanging covers

• Ericson's exclusive Brilliant Blue and Radiant

Y

ellow High Visibility Dual Color Safety System

EXTRA GROMMETS Color coded rubber cord sealer
grommets supplied for a variety of diameters.

FEATURE

ERICSON EXCLUSIVE

All Black

Available

Complete Kit as Shown

Note: Add - BLK for all black as available.

126

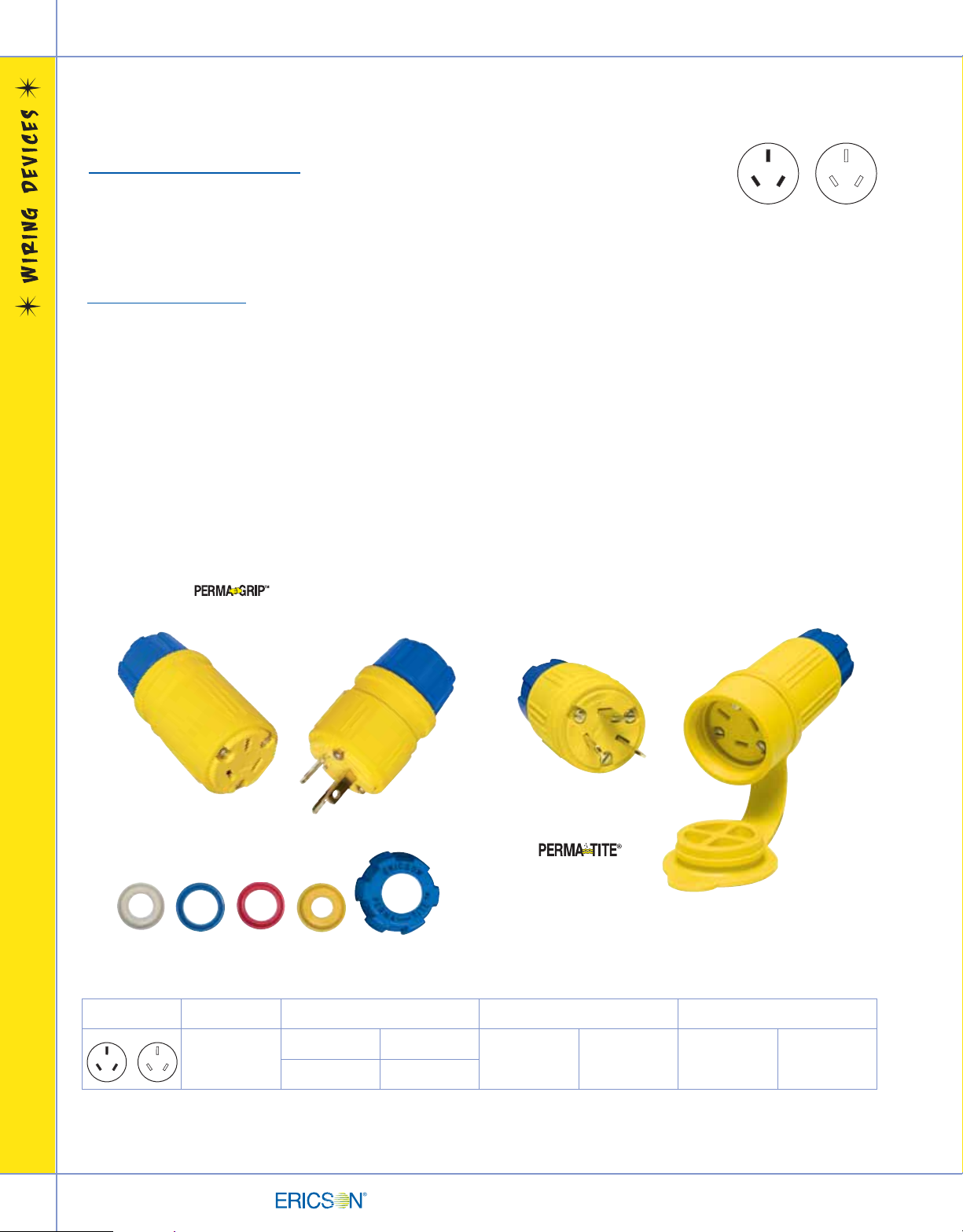

Perma-Tite® 2 Devices - Extreme Conditions

2 Plugs and Connectors

Perma-Tite®2 plugs and connectors are engineered and manufactured to
the highest quality standards to provide the ultimate in electrical service
and protection. They are designed and proven to do their best under the
worst conditions in a broad array of the most severe food processing,
industrial, marine, construction and petro-chemical work environments.

Typical Applica tions

• Food processing

• Pulp and paper mills

• Refineries and

Petr

o Chem Facilities

• Ship yards

• Utilities

• Marine

EXTRA GROMMETS Color coded rubber cord sealer

grommets supplied for a variety of diameters.

UNIQUE WATER/DUST WIPER

Seals out moisture, mud and particles.

ORIGINAL DEAD-FRONT
BACK-WIRED CONSTRUCTION

We set industry standards with
this design with no exposed
current carrying parts.

CORROSION RESISTANT ASSEMBLY SCREWS

Stainless double lead assembly screws made for
plastics exclusively to insure fast assembly and
withstand high torque and pullout

PBT BODY

Rugged thermoplastic polyester
body in plug and connector.

CORROSION
RESISTANT NICKEL
PLA TED BLADES

Current carrying
blades and contacts
of high conductivity
copper alloy with
nickel plating for
corrosion resistance.

FINGER GRIPS

Non-slip finger grips
aid in assembly

CORD
JACKET
SEAL

SAFETY
COMPRESSION
CORD GRIP

Non-conductive, long life
rugged PBT, powerful
cord grip, unique design
accepts a variety of wire
sizes with no crushing
and no inserts to change
or add.

EIGHT POINT SEALING

Unique rubber to rubber tongue
and groove eight point seal-tite
system when mated.

DOUBLE INSULA TED

Superior PBT body
with TPE thermoplastic
elastomer cover for
extra safety, protection
and durability.

• UL Listed & CSA Certified, some ETL Listed

• Tongue & gr oove sealing system provides environmental protection of:

· NEMA Type 4, 4X, 6, 6P & IP67

• Devices resist high-pressure hose down of 1,500 psi.

• Plug & Connector bodies made with PBT chosen for its high resistance to

moisture absorption,

high voltage arcing and carbon tracking

• Keyed body and cover for easy alignment/assembly

• Color coded sealing bushings are provided to fit a variety of cord diamet ers

• Removable/replaceable self-retained sealing cap provided with connector

to k

eep out contaminants when not in use

• Nickel plated blades for corrosion resistance

• Transparent back-plate makes f or quick visual wiring checks

• Ericson's new brilliant Blue and Radiant Yellow High Visibility Dual

Color Saf

ety System symbolizes that legendary Ericson Quality

NEMA TYPE

4,

4X, 6, 6P & IP67

• Excels in demanding

outdoor & in-plant

environments

• Resists hose directed water,

the entry of water during

prolonged submersion at a

limited depth & damage

from external ice

formation

WATER

SNOW

MUD

15PW

Plug Cover

Available

16CW

Connector

Cover

Available

All Black

Available

Note: Add - BLK for all black as available.

127

Smart Monitor Series

Smart Monitor Plugs & Connectors Constantly Monitors These Conditions:

· No Ground · Loss of Ground In Cord · Hot/Neutral Swap · Reverse Polarity · Hot on Ground · Open Neutral

· No Ground

· Loss of Ground In Cord

· Hot/Neutral Swap

· Reverse Polarity

· Hot on Ground

· Open Neutral

How It Works - Diagnostic Safety Cords

Full Diagnostic Safety Cords*

Using Smart Monitor
with T ool Cords

Cordset is OK to Use

• Safety ear th ground is OK

• power polarity is OK

Do Not Use

• Check power source for proper

wiring and ground

• Check cord for cuts, nicks etc.

• Check plug wiring

• Check connector wiring

Do Not Use

• Check power source for wiring

or missing earth ground

Do Not Use

• Source power is OK

• Check cord for cuts, nicks etc.

• Check connector wiring

Blue LED On

Blue OK to use tool**

Red STOP!

• Check power source for wiring

or missing earth ground

• Check for miswired receptacle

Red LED OnBlue

Red

Red

Red LED On

Economy Safe Cords

Plug

Monitors

Power

Source

THESE SMART DEVICES WA T CH

SO Y OUDON

’THAVETO.

Connector

Monitors Cordset

After Plug

· Super Bright LED Technology

· Smar t Monitor Module

· Keyed body and cover

· Easy to wire

· Clear internal wiring cover

· Non-slip finger grips

· Color coded terminal screws

· Multiple cord grommets included

· Rubberized outer body

· Safety Yellow and Blue body

Features Of All Smart Monitor Plugs & Connectors:

BLUE

OK TO USE

LEDs light up to let you know power is O.K.

24/7

Monitoring

RED

STOP, CALL AN

ELECTRICIAN!

LEDs light up to let you know there is a problem

ERICSON EXCLUSIVE

“LIKE HAVING A METER

IN EVERY PLUG...”

1510-P

1610CML123B

Shown

1510PML123B

Shown

* Full diagnostic safety cords give easy-to-understand indications which
saves time tracking down electrical safety issues.

**This device does not diagnose any tool internal issues. This device is
an indication that the power and safety earth ground are present.

1610-CML

1510-P 1610-CML

128

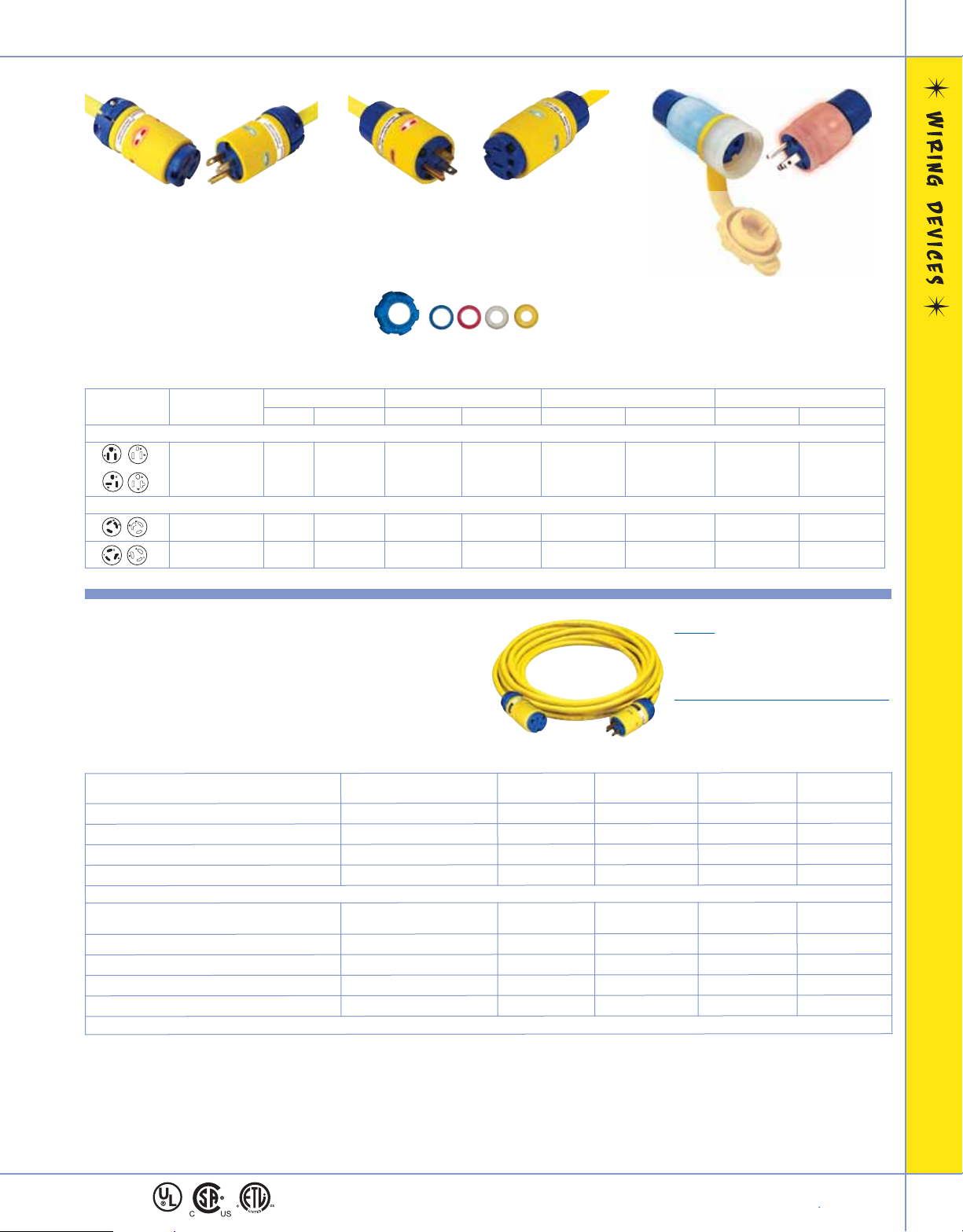

Smart Monitor Series

Cord

Tough 600V rated SOW cordage
for long lasting wear

Smart Monitor Connector

Checks entire cordset from the
plug to the connector

Plug & Connector Selection Guide

Cordset Selection Guide

Face View

NEMA

Configuration

Electrical Ratings Perma-Link® Perma-Grip® Perma-Tite® 2

Amps Volts Plugs Connectors Plugs Connectors Plugs Connectors

Straight Blade, 2-pole, 3-wire Grounding Devices

5-15 15 125 1510-PML 1610-CML 1510-PMGL 1610-CMGL 1510-PW6PL 1610-CW6PL
5-20 20 125 1512-PML 1612-CML 1512-PMGL 1612-CMGL 1512-PW6PL 1612-CW6PL

Locking, 2-pole, 3-wire Grounding

L5-20 20 125 2310-PML 2410-CML 2310-PMGL 2410-CMGL 2310PW6PL 2410-CW6PL
L5-15 15 125 1520-PML 1620-CML 1520-PMGL 1620-CMGL 1520-PW6PL 1620-CW6PL

Cord Clamp Style Cord Grip Style

Wa ter Tight Style

Perma-Tite2™ All Weather
Cord Grip Nut Style features:

·All weather - NEMA 6P rated

·Super sealing rings

· Nickel plated solid brass blades

·Super sealing cord grip nut design

·Connector includes cover

·360˚ indication

XXXX-CW6PL

Perma-Grip™ Cord Grip
Nut Style Features:

·Nickel plated solid brass blades

·Super sealing cord grip

nut design

XXXX-PMGL

Perma-Link™ C

ord

Clamp Style Features:

·Internal cord seal

·Dual screw self-centering clamp

·Rubberized outer body

XXXX-

PML

Economy Safe SmartCords P/N* Length

Non-smart

PLUG

Smart

Connector

Cord S i ze

Rating

1610XXX143

A= 25ft B= 50Ft D=100ft

1510-___

1610-__L

#14/3 SOW

15A

1610XXX123

1510-___

1610-__L

#12/3 SOW

15A

1612XXX123

1510-___

1610-__L

#12/3 SOW

20A

2410XXX123 2310-___

2410-__L

#12/3 SOW

20A

Note: plug and connector type will be based on selection made of the master cordset part number - style will match

Full Diagnostic Safety SmartCords P/N** Length

Smart PLUG

Smart

Connector

Cord S i ze

Rating

1510XXX143

A= 25ft B= 50Ft D=100ft

1510-___L

1610-__L

#14/3 SOW

15A

1510XXX123

1510-___L

1610-__L

#12/3 SOW

15A

1512XXX123

1512-___L

1610-__L

#12/3 SOW

20A

2310XXX123

2310-___L

2410-__L

#12/3 SOW

20A

Note: plug and connector type will be based on selection made of the master cordset part number

* Replace XXX with: (Economy Cordsets Only)
CML = PermaLink Style Light Industrial Wiring Devices ( non-smart Plug and Smart Connector installed)
CMGL = PermaGrip Style Industrial Wiring Devices with nickel plated blades (non-smart Plug and Smart Connector installed)
CW6PL = PermaTite Style Industrial All-Weather Wiring Devices (non-smart Plug and Smart Connector installed)

** Replace XXX with: (Full Diag Cordsets Only)
PML = PermaLink Style Light Industrial Wiring Devices (Smart Plug and Smart Connector installed)
PMGL = PermaGrip Style Industrial Wiring Devices with nickel plated blades (Smart Plug and Smart Connector installed)
PW6PL = PermaTite Style Industrial All-Weather Wiring Devices (Smart Plug and Smart Connector installed)

1510PML123A shown

New From Ericson… Industrial application SmartCords factory
built to last and last. Models with Smart Connector (Economy
Safe) and both Smart Plug and Connector are available. 24/7
monitoring with Assured Grounding Compliance to NEC and
OSHA standards. Built with the highest quality materials to
withstand your environment.

129

“Crowsfoot” Devices - Non-NEMA

1507-PG

1607-CG

1507-PW6P 1607-CW6P

Perma-Grip™plug and connector

with industry exclusive cord grip

nut for rapid field assembly

Perma-Tite®

2

plug and connector

Perma-Grip™ & Perma-Tite®2 plugs & connectors come
with color coded rubber cord seal bushings for
a variety of cable diameters.

This Non-NEMA configuration, commonly called the “crowsfoot”, is widely used in critical applications that require
equipment to be plugged into a specific electrical system to ensure proper function or to prevent equipment damage.

Typical Applications

• Low-voltage hand lamps and matching transformers

• Data acquisition/logging equipment to detect level and flow measurements on tanks and valves

• Sensitive electronic equipment that must be used on voltage regulated circuits

Features Guide

• Plug and connector bodies made with PBT chosen for its high resistance to moisture absorption, high voltage arcing

and carbon tracking.

• Transparent back-plate makes for quick visual wiring checks.

• Keyed body and cover for easy alignment/assembly.

• Color-coded sealing bushings are provided to fit a variety of cord diameters.

• Perma-Tite® 2 devices have the eight-point rubber t ongue and gr oove sealing system to provide environmental protection.

• Rubber sealing cap provided with Perma-Tite® 2 connector to keep out contaminants when not in use.

• Optional plug cover available - order catalog number 15PW.

• Ericson's exclusive Brilliant Blue and Radiant Yellow High Visibility Dual Color Safety System.

•

Perma-Tite® 2 devices rated NEMA 4, 4X, 6, 6P & IP67.

Face View NEMA Config. Electrical Ratings Perma-Grip™ Perma-Tite® 2

Non-NEMA

15A 125V

1507-PG 1607-CG 1507-PW6P 1607-CW6P

10A 250V

130

Plugs and Connectors

Original 1980’s Advertisement

131

PWDX Series

NEW!

All Weather Heavy Duty
Double Outlet Receptacle with Cover Plates - PWDX

• Weather r esistant boot seals around plug to provide weather resistant protection*

• Spring-loaded flip-lid covers rec eptacle when not in use

• Impact, chemical & corrosion resistant construction stands up to demanding environments

• Mounts easily to 6200 series FS/FD/FT boxes and any flat panel surface

• Also mounts to permanent FS boxes for outdoor power

• Spring loaded flip covers with SS hardwar e

• Lock out tabs

* U

se Ericson Perma-Tite® 2 plugs for the ultimate in weather resistanc e

Features

•All weather/heavy duty

•Spring loaded covers

•3 lip built-in seal

•Hose down

•Heavy duty receptacles

•Lockout/tag out

Applications

•Food processing

•Pendant cord c eiling dr op po wer

•Wall mounted outdoor power

•Outdoor lighting landscape power

•Venue landscape power

•3 Phase cordsets

•Convention and trade show power taps

Mates with Ericson

Perma-Tite®2 Series Plugs

For the Ultimate in

Weather P r oof Sealing

Stainless steel

hardware

Heavy duty receptacle with

popular NEMA configurations

3 seal plug grip seals out

hose driven liquids

Spring loaded

flip covers

Rubberized

box seal

Lockout tabs

Pre-wired and

ready to install

Rubberized

FS & FD Boxes

WET LOCATION TESTED & APPROVED

GREAT FOR OUTDOOR POWER!

Yellow

Black

WHEN USED WITH

PERMA-TITE®2 PLUG

See the Video

The PWDX Series is designed for hanging pendant power where splash and
hose-down are used. The PWDX spring-loaded flip co vers are extra deep and
internally sealed to guard against splash and hose directed liquids. The
non-metallic design is perfect for food and liquid processing where metal
and glass fragments are not acceptable. The non-metallic cord grip assembly
(an Ericson Exclusive Feature), is tested to hold the PWDX assembly for y ears of
worry free service.

• Single PWDX or Double Receptacle Assemblies

• Each connection covered with spring loaded flip cover

• SS spring and pin hinge assembly

• Great for outdoor or hose down areas

• Lockout/Tagout tabs on each receptacle

• Use wall mount kit to secure (sold separately)

132

PWDX Series - Applications

Optional Wall Mount Kit

Double

Pow er “Stringer” Application

Perfect for outdoor power taps at home, business
or outdoor venues, the PWDX is designed to mate
with any metallic FS box for a solid all-weather
seal. Use the black versions for more discrete
hiding of power taps. GFCI protection is
recommended at the service panel with a GFCI
circuit breaker to protect the service line, metal
conduit /enclosure and PWDX receptacles.

• Perfect for holiday or street lighting in cities

• Much heavier duty than standard clear rain covers

• Mates will all standard metallic FS enclosures

Outdoor Landscape Power

6234WFS with

1610-PWDX

pendant style

6212NFS Box with

1610-PWDX “pendant

non-metallic” style

6260WK

Double 1610-PWDX

on 6234WFT

enclosure

The versatile PWDX assemblies can be used to build a superior outdoor rated power distribution “stringer” c or dset. Use the
“feed-thru” models to link the PWDX assemblies along cord for the ultimate in outdoor sealed power drops. Mate the Ericson
Brand Perma-Tite2 plugs with the PWDX to get the highest level of dust, rain, hose, spray or snow/ice protection. Great for local
carnivals and fairs where compliance is mandatory and non-metallic enclosures are dangerous or not allowed*.

• “Bathtub” enclosure design restricts water and rain entry

• Use for compliant power stringers

• Mate with Perma-Tite2 plugs for the ultimate in

weather tight sealing

*T

he NEC restricts the use of metallic “job” boxes for use in

tempor

ary relocateable power cords. Only use non-metallic

enclosures designed and tested to meet compliance.

6234WFS with

1610-PWDX

pendant style

6212 NFSF box with 1610-PWDX assembly

1610-PWDX

on metallic FS

1610-PWDX-BLK

on outdoor FS

6212FS mounted to

rigid conduit with

1610-PWDX receptacles

133

PWDX Series - Accessories

(NM) Non Metallic Bushing Kits

Wire Mesh Grips

Wall/Post Mount Kit

6260WK

82005 - 1/2” 82034 - 3/4” 82010 - 1”

1607-PWDX 1610-PWDX 1612-PWDX 1614-PWDX

1616-PWDX 1620-PWDX 1622-PWDX 1624-PWDX

6212FS 6234FD 6234FT 6234WFS

6212NFS 6212NFD 6212NFT 6210WFD

6234NFS 6234NFD 6234NFT 6234WFT

82005W = 1/2”
82034W = 3/4”

82010W = 1”

Kit

NEMA 5-15 NEMA 5-20 NEMA

NEMANEMANEMANEMA

134

PWDX Series

NEW!

Part Number Description Color Strain Relief

NEMA

Config Amps Volts

PWDX Dual Receptacle & Cover Assembly/ Prewired
Straight

1607-PWDX
1610-PWDX Receptacle & Flip Cover, Duplex, All Weather, 5-15 Yellow n/a 5-15 15 125
1612-PWDX Receptacle & Flip Cover, Duplex, All Weather, 5-20

Yellow n/a 5-20 20 125

1614-PWDX Receptacle & Flip Cover, Duplex, All Weather, 6-15

Yellow n/a 6-15 15 250

1616-PWDX Receptacle & Flip Cover, Duplex, All Weather, 6-20

Yellow n/a 6-20 20 250

1610-PWDX-BLK Receptacle & Flip Cover, Duplex, All Weather, 5-15, Blk

Black n/a 5-15 15 125

1612-PWDX-BLK Receptacle & Flip Cover, Duplex, All Weather, 5-20, Blk

Black n/a 5-20 20 125

Locking

1620-PWDX Receptacle & Flip Cover, Duplex, All Weather, L5-15

Yellow n/a L5-15 15 125

1622-PWDX Receptacle & Flip Cover, Duplex, All Weather, L6-15

Yellow n/a L6-15 15 250

1624-PWDX Receptacle & Flip Cover, Duplex, All Weather, L7-15

Yellow n/a L7-15 15 277

Boxes for PWDX - Punched - No Bushing Kit

6212FS Box, Std Depth, PWDX, No bushing, 1/2" NPT Yellow
6234FS Box, Std Depth, PWDX, No bushing, 3/4" NPT

Yellow

6210FS Box, Std Depth, PWDX, No bushing, 1" NPT

Yellow

6212FD Box, Deep, PWDX, No bushing, 1/2" NPT

Yellow

6234FD Box, Deep, PWDX, No bushing, 3/4" NPT

Yellow

6210FD Box, Deep, PWDX, No bushing, 1" NPT

Yellow

6212FT Box, OPEN, PWDX, No bushing, 1/2" NPT

Yellow

6234FT Box, OPEN, PWDX, No bushing, 3/4" NPT

Yellow

6210FT Box, OPEN, PWDX, No bushing, 1" NPT

Yellow

6212FSF Box, Std Depth, PWDX, No Bushing, Feed thru, 1/2" NPT

Yellow

6234FSF Box, Std Depth, PWDX, No Bushing, Feed thru, 3/4" NPT

Yellow

6210FSF Box, Std Depth, PWDX, No Bushing, Feed thru, 1" NPT

Yellow

6212FDF Box, Deep, PWDX, No Bushing, Feed thru, 1/2" NPT

Yellow

6234FDF Box, Deep, PWDX, No Bushing, Feed thru, 3/4" NPT

Yellow

6210FDF Box, Deep, PWDX, No Bushing, Feed thru, 1" NPT

Yellow

6212FTF Box, OPEN, PWDX, No Bushing, Feed thru, 1/2" NPT

Yellow

6234FTF Box, OPEN, PWDX, No Bushing, Feed thru, 3/4" NPT

Yellow

6210FTF Box, OPEN, PWDX, No Bushing, Feed thru, 1" NPT

Yellow

ALL BLACK - add -BLK to part number for all black

Boxes for PWDX - 1/2" NPT Bushing Installed (N = Non Metallic W = Wire Mesh)

6212NFS Box, Std Depth, PWDX, NM Bushing, 1/2" NPT

Yellow

6212NFD Box, Deep, PWDX, NM Bushing, 1/2" NPT

Yellow

6212NFT Box, OPEN, PWDX, NM Bushing, 1/2" NPT

Yellow

6212NFSF Box, Std Depth, PWDX, NM Bushing, Feed thru, 1/2" NPT

Yellow

6212NFDF Box, Deep, PWDX, NM Bushing, Feed thru, 1/2" NPT

Yellow

6212NFTF Box, OPEN, PWDX, NM Bushing, Feed thru, 1/2" NPT

Yellow

6212WFS Box, Std Depth, PWDX, WireMesh Bushing, 1/2" NPT

Yellow

6212WFD Box, Deep, PWDX, WireMesh Bushing, 1/2" NPT

Yellow

6212WFT Box, OPEN, PWDX, WireMesh Bushing, 1/2" NPT

Yellow

6212WFSF Box, Std Depth, PWDX, WireMesh Bushing, Feed thru, 1/2" NPT

Yellow

6212WFDF Box, Deep, PWDX, WireMesh Bushing, Feed thru, 1/2" NPT

Yellow

6212WFTF Box, OPEN, PWDX, WireMesh Bushing, Feed thru, 1/2" NPT

Yellow

ALL BLACK - add -BLK to part number for all black

Boxes for PWDX - 3/4" NPT Bushing Installed (N = Non Metallic W = Wire Mesh)

6234NFS Box, Std Depth, PWDX, NM Bushing, 3/4" NPT

Yellow

6234NFD Box, Deep, PWDX, NM Bushing, 3/4" NPT

Yellow

6234NFT Box, OPEN, PWDX, NM Bushing, 3/4" NPT

Yellow

6234NFSF Box, Std Depth, PWDX, NM Bushing, Feed thru, 3/4" NPT

Yellow

6234NFDF Box, Deep, PWDX, NM Bushing, Feed thru, 3/4" NPT

Yellow

6234NFTF Box, OPEN, PWDX, NM Bushing, Feed thru, 3/4" NPT

Yellow

6234WFS Box, Std Depth, PWDX, WireMesh Bushing, 3/4" NPT

Yellow

6234WFD Box, Deep, PWDX, WireMesh Bushing, 3/4" NPT

Yellow

6234WFT Box, OPEN, PWDX, WireMesh Bushing, 3/4" NPT

Yellow

6234WFSF Box, Std Depth, PWDX, WireMesh Bushing, Feed thru, 3/4" NPT

Yellow

6234WFDF Box, Deep, PWDX, WireMesh Bushing, Feed thru, 3/4" NPT

Yellow

6234WFTF Box, OPEN, PWDX, WireMesh Bushing, Feed thru, 3/4" NPT

Yellow

ALL BLACK - add -BLK to part number for all black

Boxes for PWDX - 1" NPT Bushing Installed (N = Non Metallic W = Wire Mesh)

6210NFS Box, Std Depth, PWDX, NM Bushing, 1" NPT

Yellow

6210NFD Box, Deep, PWDX, NM Bushing, 1" NPT

Yellow

6210NFT Box, OPEN, PWDX, NM Bushing, 1" NPT

Yellow

6210NFSF Box, Std Depth, PWDX, NM Bushing, Feed thru, 1" NPT

Yellow

6210NFDF Box, Deep, PWDX, NM Bushing, Feed thru, 1" NPT

Yellow

6210NFTF Box, OPEN, PWDX, NM Bushing, Feed thru, 1" NPT

Yellow

6210WFS Box, Std Depth, PWDX, WireMesh Bushing, 1" NPT

Yellow

6210WFD Box, Deep, PWDX, WireMesh Bushing, 1" NPT

Yellow

6210WFT Box, OPEN, PWDX, WireMesh Bushing, 1" NPT

Yellow

6210WFSF Box, Std Depth, PWDX, WireMesh Bushing, Feed thru, 1" NPT

Yellow

6210WFDF Box, Deep, PWDX, WireMesh Bushing, Feed thru, 1" NPT

Yellow

6210WFTF Box, OPEN, PWDX, WireMesh Bushing, Feed thru, 1" NPT

Yellow

ALL BLACK - add -BLK to part number for all black

135

Perma-Tite®2 - FS Series Receptacle with Cover Plates

NOTES:

1. Does not include receptacle. Use with standard receptacles of same electrical ratings.

Single Outlet Receptacle with Cover Plates - FS Series

• Weather r esistant boot seals around Ericson Perma-Tite plug to

provide weather resistant protection

• Spring-loaded flip-lid covers rec eptacle when not in use

• Includes cover plate, rubber boot, stainless steel mounting plate/mounting screws

• Impact, chemical & corrosion resistant construction stands up to demanding environments

• Mounts easily to any FS and FD boxes and any flat surface

Mate the FS cover with

Perma-Tite®2 for all

weather sealing

Also Available in:

• Green

• Black

• Sand

Rubberized

Seal

All Weather
Connection

See
Next
Page

for

6300

Boxes

Single Outlet Cover Plates - FS Series

Face

View

NEMA

Configuration

Electrical Ratings

FS Female

Receptacle

2705

Male Inlet

Std Opening

2705

Male Inlet

Large Opening

Amps Volts

15A Straight Blade & Locking 20A Straight Blade

Flip Seal Cover w/ weatherproof boot only

2700-FS

(1)

1 7/16” Dia. 2” Dia.
Non-NEMA 10/15 Amp 125/250 Volt 2715FS07
5-15 15 Amp 125 Volt 2715-FS10 2705-15 2705-15A
5-20 20 Amp 125 Volt 2715-FS12 2705-20 2705-20A
6-15 15 Amp 250 Volt 2715-FS14
6-20 20 Amp 250 Volt 2715-FS16
L5-15 15 Amp 125 Volt 2715-FS20 2705-L15 2705-L15A
L6-15 15 Amp 250 Volt 2715-FS22
L7-15 15 Amp 277 Volt 2715-FS24

20A & 30A Locking, 3-Wire

Flip Seal Cover w/ weatherproof boot only

2800-FS

(1)

2 1/8” Dia.
L5-20 20 Amp 125 Volt 2820-FS10 2705-L20
L6-20 20 Amp 250 Volt 2820-FS12
L7-20 20 Amp 277 Volt 2820-FS14
Non-NEMA 20 Amp 125/250 Volt 2820-FS16
Non-NEMA 20 Amp/10 Amp 250 Volt/600 Volt 2820-FS17
L5-30 30 Amp 125 Volt 2830-FS10
L6-30 30 Amp 250 Volt 2830-FS12
L7-30 30 Amp 277 Volt 2830-FS14
Non-NEMA 30 Amp 125/250 Volt 2830-FS16

20A & 30A Locking, 4-Wire

Flip Seal Cover w/ weatherproof boot only

2900-FS

(1)

2 1/8” Dia.
L14-20 20 Amp 125/250 Volt 2920-FS20 2705-L142
L15-20 20 Amp 250 Volt, 3

ø

2920-FS22

L16-20 20 Amp 480 Volt, 3

ø

2920-FS24 2705-L162

L14-30 30 Amp 125/250 Volt 2930-FS20
L15-30 30 Amp 250 Volt, 3

ø

2930-FS22

L16-30 30 Amp 480 Volt, 3

ø

2930-FS24

L17-30 30 Amp 600 Volt, 3

ø

2930-FS26

L18-30 30 Amp 120/208 Volt, 3 øwye 2930-FS30
Non-NEMA 30 Amp 120/208 Volt, 3 øwye 2930-FS28

WHEN USED WITH

PERMA-TITE®2 PLUG

Wet Location

Tested &

Approved

136

FS Series

6300 Series Boxes for FS Series Mounting

Single Male Inlet Assemblies with Cover Plates - 2705 FS Series

• Weather r esistant boot seals around the connector to provide weather resistant protection

• Spring-loaded flip-lid covers inlet when not in use

• Includes cover plate, ru bber boot, stainless steel mounting plat e/mounting screws

• Impact, chemical & corrosion resistant construction stands up to demanding environments

• Mounts easily to any 6300 series FS/FD boxes and any flat surface

• Spring Loaded SS hardware flip co ver

2705-15 2705-15A 2705-L142 2705-L15 2705-L20

(NM) Non Metallic Bushing Kits

Wire Mesh Grips

Wall/Post Mount Kit

6260 WK

82005 - 1/2” 82034 - 3/4” 82010 - 1”

82005W = 1/2”
82034W = 3/4”

82010W = 1”

Fits 6300

Series Boxes

Kit

Application Notes:

The 2705 series of male inlets is designed for all weather power inlet on a variety of applications. The heavy duty flip cover
assembly and superior round sealing collar provides a superior seal against the elements. Use for inlet power only. Never use
these devices for power output or receptacle. These devices must be wired dead and cannot be accidentally energized without
a connector in place.

•Pow er inlet for powered food trolley carts

•Pow er char ging inlet for fire trucks, ambulances and electric service vehicles

• Power charging port for electric battery cars or golf carts

• Power inlet for machines in tough environments

• Power inlet for portable temporary power panels

Also av

ailable in all black or
customized - call Ericson
for details

Part Nu m b e r

Description Color

6312FS Box, Std Depth, 6300, No bushing, 1/2" NPT

Yellow

6334FS Box, Std Depth, 6300, No bushing, 3/4" NPT

Yellow

6310FS Box, Std Depth, 6300, No bushing, 1" NPT

Yellow

6312FD Box, Deep, 6300, No bushing, 1/2" NPT

Yellow

6334FD Box, Deep, 6300, No bushing, 3/4" NPT

Yellow

6310FD Box, Deep, 6300, No bushing, 1" NPT

Yellow

** ALL BLACK: add -BLK to part number for all black

Boxes for 2705 - 1/2" NPT Bushing Installed (N=Non Metallic W = Wire Mesh)

6312NFS Box, Std Depth, 6300, NM Bushing, 1/2" NPT

Yellow

6312NFD Box, Deep, 6300, NM Bushing, 1/2" NPT

Yellow

6312WFS Box, Std Depth, 6300, WireMesh Bushing, 1/2" NPT

Yellow

6312WFD Box, Deep, 6300, WireMesh Bushing, 1/2" NPT

Yellow

Boxes for 2705 - 3/4" NPT Bushing Installed (N=Non Metallic W = Wire Mesh)

6334NFS Box, Std Depth, 6300, NM Bushing, 3/4" NPT

Yellow

6334NFD Box, Deep, 6300, NM Bushing, 3/4" NPT

Yellow

6334WFS Box, Std Depth, 6300, WireMesh Bushing, 3/4" NPT

Yellow

6334WFD Box, Deep, 6300, WireMesh Bushing, 3/4" NPT

Yellow

Boxes for 2705 - 1" NPT Bushing Installed (N=Non Metallic W = Wire Mesh)

6310NFS Box, Std Depth, 6300, NM Bushing, 1" NPT

Yellow

6310NFD Box, Deep, 6300, NM Bushing, 1" NPT

Yellow

6310NFT Box, OPEN, 6300, NM Bushing, 1" NPT

Yellow

6310WFS Box, Std Depth, 6300, WireMesh Bushing, 1" NPT

Yellow

6310WFD Box, Deep, 6300, WireMesh Bushing, 1" NPT

Yellow

6310WFT Box, OPEN, 6300, WireMesh Bushing, 1" NPT

Yellow

** ALL BLACK: add -BLK to part number for all black

137

Physical Box Sizes

FS Standard BoxFD Deep BoxFT Feed Thru Box

6260 WK Wall Kit

Mounting Templates

2700, 2800 or 2900
series on flat panel

PWDX on flat panel

138

Configuration Adapters & Perma-Tite® 2 Plug Cover

NEMA Configuration Adapters

Now make quick, secur e connections between straight-blade
and locking plugs and connectors with Ericson's NEMA
configuration adapters.

• Heavy-duty non-conducting housing and using heavy gauge

solid brass blades

• C

ompact size makes them easy to use and transport

• Available in four of the most popular models

2 Plug Cover

• Use with Ericson's Perma-Tite® plugs to seal out water,

dust and other contaminants and to protect blades
from damage when plug is not in-use

• Eight-point rubber tongue and groovesealing system

pro

vides environmental protection

• Additional protection provided by a unique internal

wate

r/dust wiper

• Easy to assemble

• Ericson's Radiant Yellow for High Visibility on job sites

16CW - Fits 16XXCW6P Connectors 24CW - Fits 24XXCW6P Connectors

26CW - Fits 26XXCW6P Connectors

2 Plug Cover Selection Guide

Catalog

Number Description

15PW

Male closure cap, for use with 15A Straight Blade
& Locking devices and 20A Straight Blade devices.

16CW Female replacement cover for CW6P connectors
24CW Female Large replacement cover for CW6P connectors
26CW Female 30 Amp Large replacement cover for CW6P connectors

NEMA Configuration Adapters Selection Guide

123-20P15C

123-15P20C

Catalog

Number

NEMA

Configur

ation

Description

Male Female

1705 Male 15A, 125V twist (L5-15P) to 20A, 125V straight (5-20R)

1712 Male 15A, 125V straight (5-15P) to 15A, 125V twist (L5-15R)
1740 Male 20A, 125V twist (L5-20P) to 20A, 125V straight (5-20R)

1744 Male 15A, 125V straight (5-15P) to 20A, 125V twist (L5-20R)

123-20P15C Male 20A, 125V twist (L5-20P) to 15A, 125V straight (5-15R)

123-15P20C Male 15A, 125V straight (5-15P) to 20A, 125V twist (L5-20R)

Heavy Duty

#12/3 Cord

600V Rated

15PW with

1510-PW6P Plug

L6-30

EML630R

L5-20

EML520R

139

Perma-Link® Devices - Light Industrial

Hospital Grade Selection Guide

INSULATED/INSTITUTION GRAY RUBBER COVER

White and light “institution” gray colors identify this style
which provides superior insulation. They are clearly
marked “Hospital Grade” and clearly marked with a green
dot to signify UL Hospital Grade. Non-conductive cord
clamp to accommodate cord sizes #16/3 SJ through
#12/3 SO.

F AST WIRING CHECK THROUGH CLEAR COVER

White PBT and transparent polycarbonate housing identify
this type which permits visual inspection of wiring terminations
without disassembly. Impact resistance, and non-conductive.
Cord clamp has removable insert to accommodate #16/3 SJTW
through #12/3 SO cord sizes.

Hospital Grade Perma-Link®Plugs and Connectors

The same rugged internal construction as our standard Perma-Link line is found in these units, and in addition they meet UL
Hospital Grade standards. Designed for reliable long life, built to withstand exceptional abuse, these dead-front, back-wired
devices save installation time, provide maximum protection and can be used for straight blade installations in hospitals,
schools, and extended care facilities. Constructed of rugged polybutylene therephthalate (PBT) and a high-tech thermoplastic
elastomer (TPE), they have passed tests for ground pin ret ention, ground resistance, face impact, ground temperature contact,
fault current, line blade retention and abrupt removal.

EML520R & EML630R

Ericson offers our same heavy duty receptacles that we use in our own Temporary Power Panels. These wiring devices are
primarily used in our OSCAR series and can be used as replacement parts for those products. Features such as color coded
screw terminals with combo heads for ease of wiring makes these superior devices the best choice.

Hospital Grade Devices with Gray Covers

Face View

NEMA

Configuration

Electrical Ratings Perma-Link

Amps Volts Plugs Connectors

5-15 15 125 1530-PH 1630-CH
5-20 20 125 1532-PH 1632-CH

Hospital Grade Devices with Clear Covers
Straight Blade, 2-pole, 3-wire Gr ounding

Face View

NEMA

Configuration

Electrical Ratings Perma-Link

Amps Volts Plugs Connectors

5-15 15 125 1530-PHC 1630-CHC
5-20 20 125 1532-PHC 1632-CHC

140

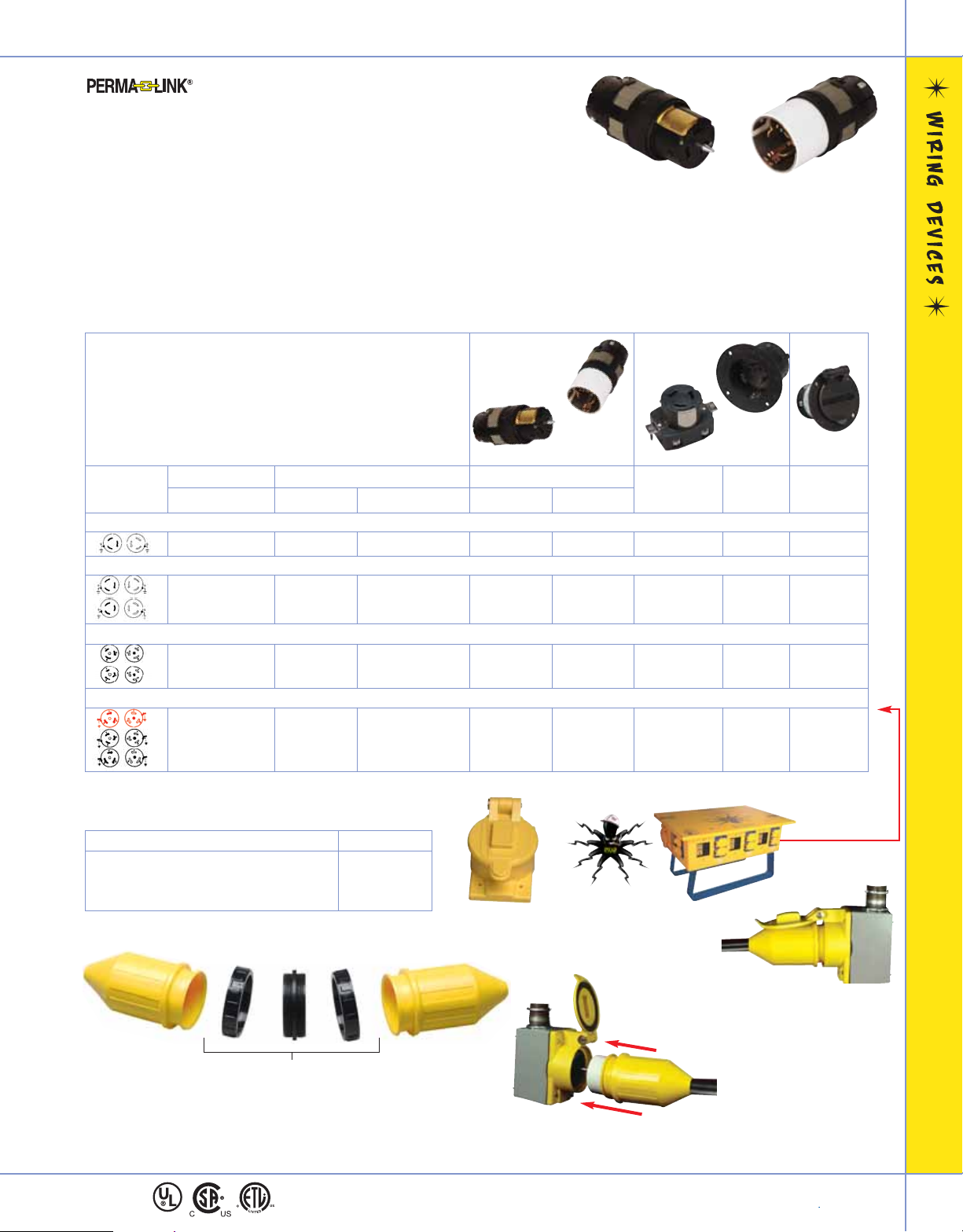

Perma-Link® 50 Amp Devices - Light Industrial

50Amp Locking Plugs and Connectors

Ericson's 50 Amp plugs and connectors incorporate the latest technologies to
provide wiring devices that are safer, faster to wire, lighter and easier to identify.
These devices are available as plugs, connectors, inlets and receptacles and are
available in 3 and 4 wire configurations.

• UL Listed, CSA Certified, CETLUS Listed

• Rugged nylon construction resists impact, corrosion and jobsite oils/chemicals

• Quick field assembly, no need to disassemble the entire device

• Nickel plated blades and stainless steel screws provide optimum corrosion resistance

• Optional heavy-duty weather-proof boots are available and provide added environmental protection and UV resistance

• Boots can be threaded together with the optional sealing collar system to provide maximum envir onmental pr ot ection

• Available in plugs, connectors, inlets and receptacles

Sealing Collar System

Our exclusive sealing collar system is available to provide maximum moisture protection between cordsets.
The two boots are securely sealed together with threaded polycarbonate rings.

7717

510-RR

7717

SR50

Notes:

1. For replacement use only, not recommended for new installations

2. Contact factor y for custom assemblies

7788-CR

Perma-Link® 50-Amp Accessories Cat. Number

Weatherproof boot for plug or connector 7717
Sealing Collar for weatherproof boots 510-RR
Weatherproof receptacle cover 7788-CR

50-Amp Devices

Selection Guide

Face View

NEMA Electrical Ratings Perma-Link®

Receptacles

Flanged

Inlets

Inlet with
Flip Cover

Configuration Amps Volts Plugs Connectors

Locking, 2-pole, 3-wire Grounding

Non-NEMA 50 250VDC, 600VAC 3763-P 3762-C 3771 3777

Locking, 3-pole, 4-wire Grounding

Non-NEMA 50

250VDC, 600VAC 3765-P 3764-C 3769 3775
250VDC, 600VAC 7765-P(1) 7764-C(1) 7379 7958

Locking, California Style, 2-pole, 3-wire Grounding

Non-NEMA 50

250 CS8265-P CS8264-C CS8269 CS8275
480 CS8465-P CS8464-C CS8469 CS8475

Locking, California Style, 3-pole, 4-wire Grounding

Non-NEMA 50

125/250 CS6365-P CS6364-C CS6369 CS6375 CS6375-F

250, 3

ø

CS8365-P CS8364-C CS8369 CS8375

480, 3

ø

CS8165-P CS8164-C CS8169 CS8175

7717 Provides A

Superior Seal With

Our SR-50 Receptacle

Plug into Oscar™

141

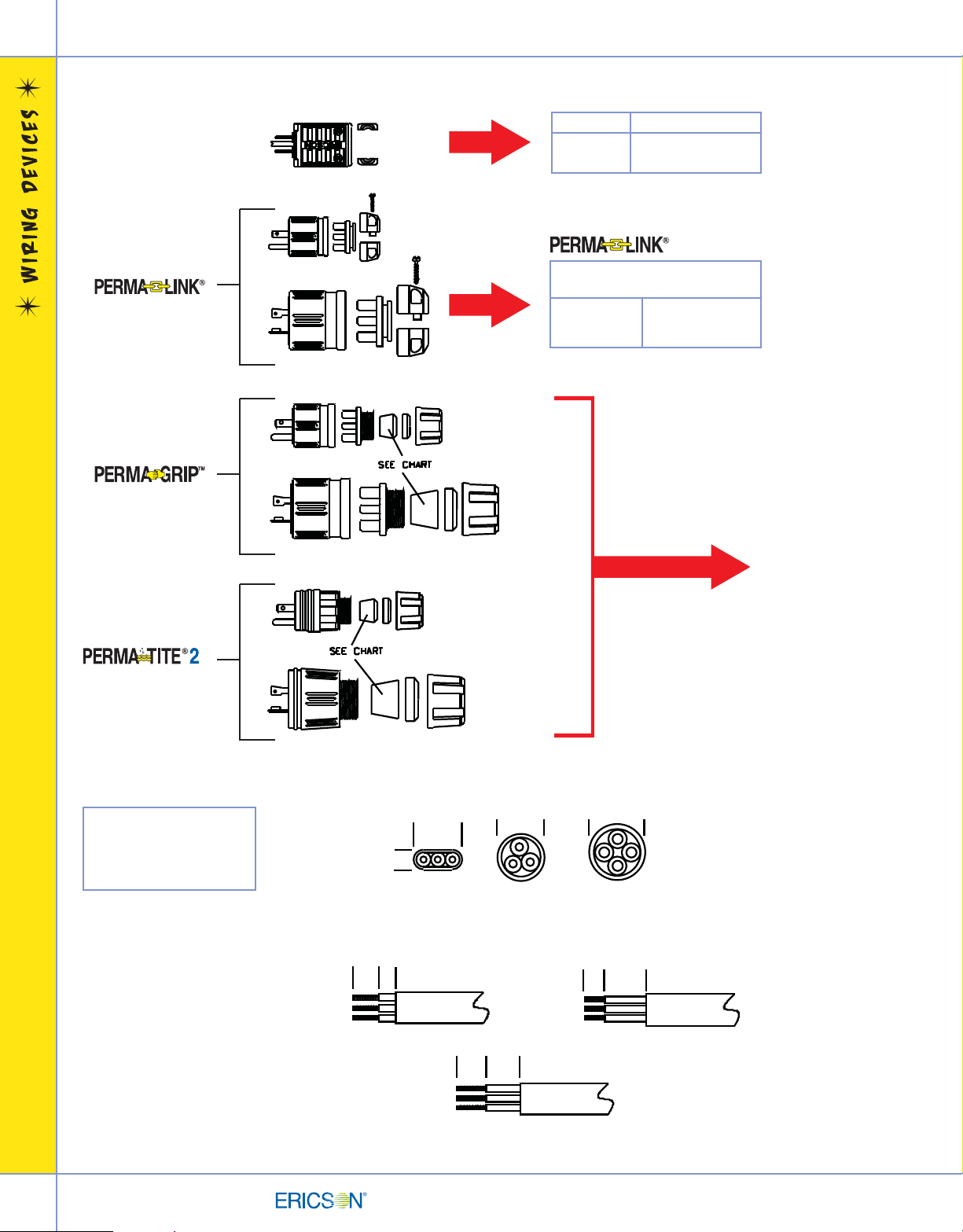

Grommet Sizes

Devices

Commercial

Grade

Commercial Grade

Insert Used Cord Diameter

Both Less than .220 - .450”
None O ver .460 - .650”

Self centering cord clamp
accommodates cord diameters

Small .335 - .720”

Med/Large .360 - 1.0”

Y

.50 .50

.75 1.0

.50 1.0

O.D.

O.D.

UF Cable

Large

Small

Small

Small

Large

Large

Commercial Grade Only

For Grommet

Sizing

See Chart

Next Page

Perma-Link®, Perma-Grip™

& Perma-Tite® 2

Smart Monitor Devices Only

3 Wire
Round

Strip Lengths

Dimensions in inches

Round Cord Only

4 Wire

Round

X

142

Grommet Sizes

Sm

White

OVAL

# 24

Sm

Orange

OVAL

# 25

Sm

Yellow

# 21

Sm

White

# 20

Sm
Red
# 16

Sm

Blue

# 18

Lg

White

# 91

Lg

Yellow

# 90

Lg

Black

# 89

Lg

Blue #

88

Lg
Gray
# 87

Lg

Red

# 86

Lg

Orange

# 85

MAX
CORD
DIA.
(inch)

OVAL (UF)

.160

x .360

OVAL

(UF) .230

x .440

0.370 0.450 0.560 0.610 0.450 0.560 0.630 0.690 0.750 0.830 0.900
WIRE

Plug

Connector

Yellow White* Red Blue White* Yellow Black Blue Gray Red Orange 3 4 3Ø

1510 1610

Optional **

Optional **

X
1512 1612 X
1514 1614 X
1516 1616 X
1520 1620 X
1522 1622 X
1524 1624 X
2310 2410 X
2312 2412 X
2314 2414 X
2316 2416 X X
2317 2417 X
2320 2420 X
2322 2422 X X
2324 2424 X X
2510 2610 X
2512 2612 X
2514 2614 X
2516 2616 X X
2520 2620 X
2522 2622 X X
2524 2624 X X
2526 2626 X X
2528 2628 X X
2530 2630 X X

* May also appear as light tan
** May be ordered separately - Call Ericson for details

= Included in package

Diameter Ranges of Portable Electrical Cord
In Accordance with UL 62

Type AWG Size 2 Conductors 3 Conductors 4 Conductors

SJ,SJE, SJOO,

SJO, SJEO, SJT,

SJTO, SJTOO

18 0.280-0.315 0.300-0.335 0.325-0.365
16 0.305-0.340 0.325-0.360 0.350-0.395
14 0.335-0.375 0.360-0.395 0.390-0.435
12 0.405-0.455 0.425-0.475 0.465-0.520
10 0.540-0.605 0.565-0.635 0.625-0.700

S, SE, SOO, SO

SEO, ST, STOO,

STO

18 0.340-0.385 0.360-0.400 0.385-0.430
16 0.365-0.410 0.385-0.430 0.410-0.460
14 0.495-0.550 0.520-0.575 0.560-0.620
12 0.565-0.625 0.590-0.655 0.640-0.710
10 0.615-0.685 0.650-0.720 0.700-0.775

8 0.780-0.880 0.830-0.930 0.925-1.050
6 0.920-1.050 0.970-1.100 1.050-1.200
4 1.060-1.210 1.130-1.280 1.250-1.450
2 1.210-1.400 1.300-1.500 1.450-1.650

B10200XX B10220XX
