Page 1
182
Reels
REELS
Made in
the USA
24/7 Emergency Assistance Hotline
1-877-OSCAR99 (672-2799)
Page 2
183
Product Overview
Made in
the USA
3000 Series - Light Duty Reels
• Commercial duty black cord reel
• High impact, corrosion resistant non-metallic housing
• Ideal for use in commercial/industrial workshops, auto garage & machine shops
• Reel mounts to wall or ceiling
• Reel swivels 180° to cover wide range work area
• Compact size allows mounting in tight spaces- Only 6” wide x 11” diameter
• Available with NEMA 5-15 Tri-Tap
TM
outlets or fluorescent handlamp
2900 Series - Light Duty Cord Reels
• Light duty bright yellow cord reel with steel housing
• Ideal for use in machine shops, automotive garages and commercial and light
industrial wo
rkshops
• Reel mounts to wall or ceiling
• 2 ft. primary cord with molded-on NEMA 5-15 plug provides wide reach to
plug in to near
est receptacle
4000 Series - Industrial
• UL Listed & CSA certified
• Ideal for Indoor and Outdoor Use - NEMA 4 Rated
• Compact Size (12.75” H x 7.75”W - 18 lbs. less cable)
• Heavy Formed Steel Stand (5/16” - thick)
• Available in 3 and 4 Conductors (incl. dedicated ground)
• All-Steel Pawl and Ratchet with 4 Locking Positions
• Automatic Locking Ratchet With lockout Lever Option
5000 Series - Large Cable Cord Reels
• Ideal for Indoor and Outdoor use (wet or dry)
• Weatherproof NEMA 4X Slip Ring Enclosure
• Heavy All-Steel Construction
• Formed Steel Stand with Multiple Mounting Holes
• 35 Amp/600 Volt Slip Ring
• Available in Welding & Grounding Reel Version
• Supplied with Type SOW or SOOW Cable installed
6000/7000 Series - Extra Long Cord Reels
• Excellent performance in industrial indoor and outdoor applications (wet or dry)
• Built to NEMA 4 Standards/CSA certified
• Standard two-piece roller-guide design for maintainability, with a 345º mounting range
• Reels are sized to handle Type SOW, Type W or Type G cable
• Add an extra 7 feet of cable for hookup/safety wrap, as well as an extra 10% of total travel
length for str
etch applications

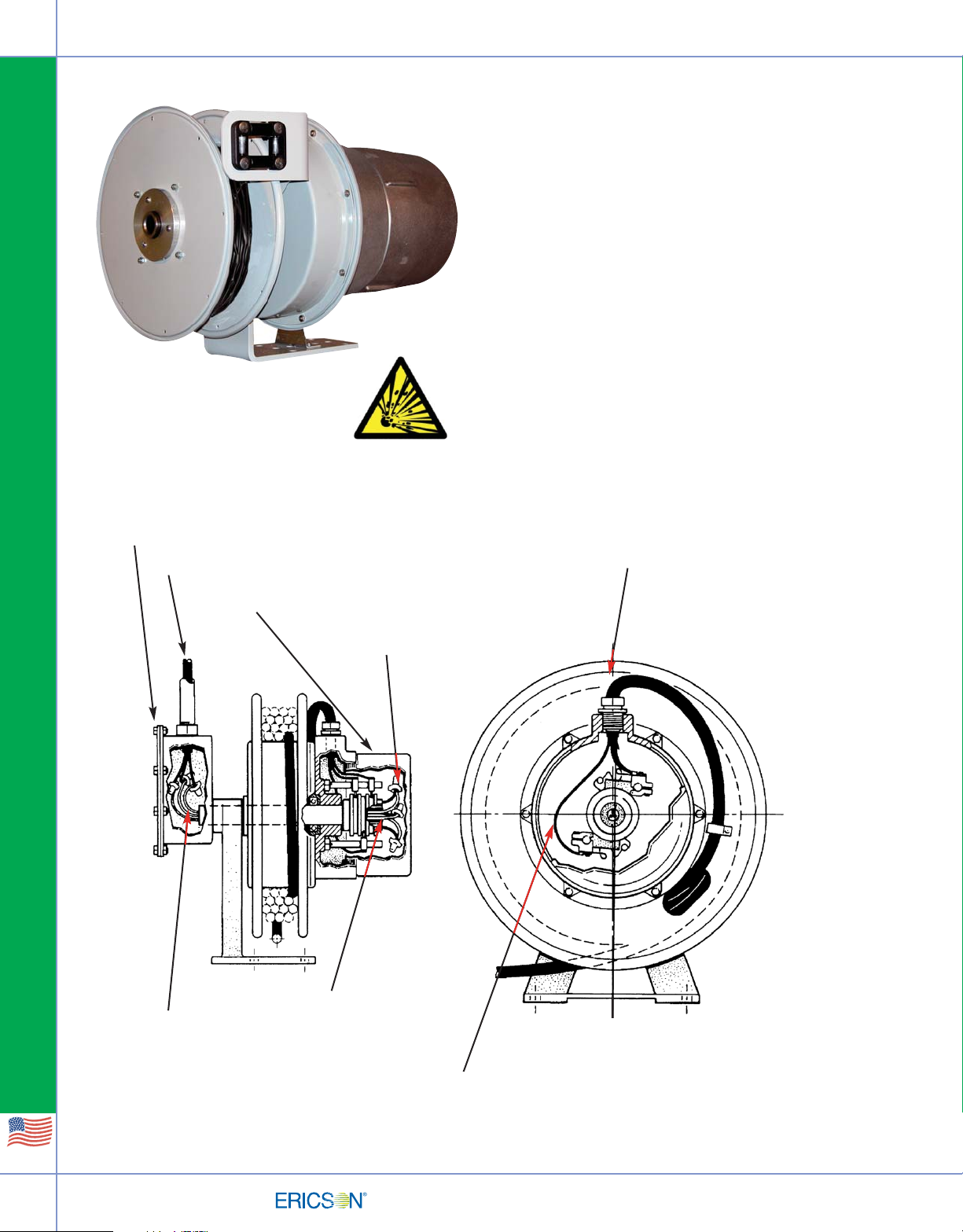

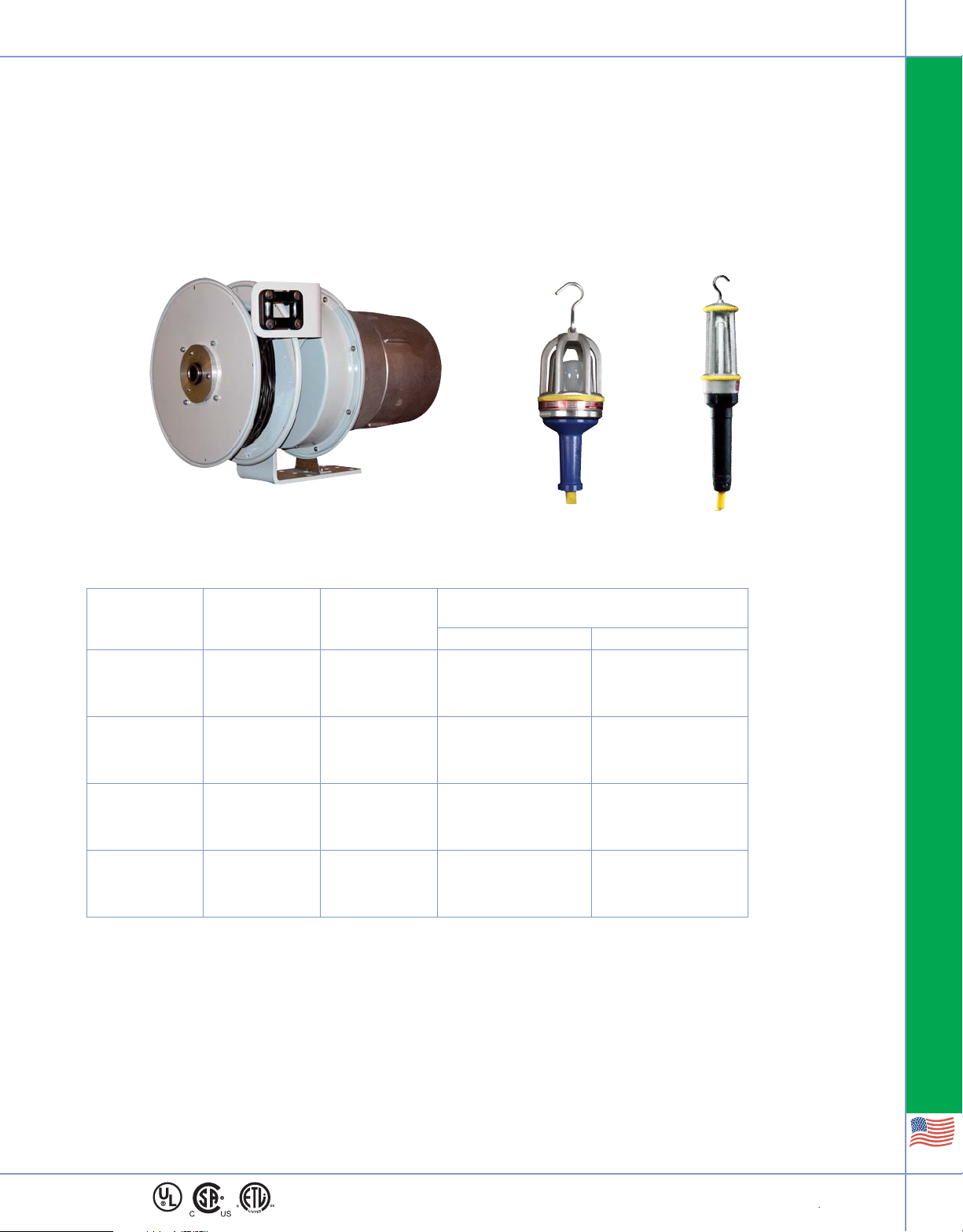

8000 Series - Hazardous Location Reels
Enclosures are designed to comply with requirements for Class I, Div 1 - Groups
C & D and Class II, Groups F & G but are not certified by any regulatory body
• Built to NEC standards
• Indoor or outdoor use
• Rugged fabricated steel and cast aluminum construction
• 30 Amp / 600 Volt advanced slip ring assembly
EXPLOSION
PROOF!
REELS
Page 3
135
184
Reel Construction
REELS
Made in
the USA
Five Basic Parts:
Base/Stand: Supports and mounts the reel
Spring Motor: Motor which rotates the spool
Spool: Composed of a Drum and two Flanges
Definition of Terms:
Active Length: The difference between the minimum and maximum payout of cable
Safety Wrap: Cable that stays on the reel at maximum payout (Usually 2 complete wraps)
Sag Factor: The effect of gravity on actual travel length during stretch applications (6% - 10%)
Lift Height: The distance between where the cable lays to the center line of spool
Payout: Pulling cable out of the reel
Retract or Rewind: Rewinding cable back into the reel
Slip Ring: Transfers power from a stationary source to rotating source
Roller Guide: Guides the cable during payout and rewind
Components of a Cable Reel
Ratchet
(Optional)
Base (aka Frame/Stand)
Flange
Entrance Ring
Spool Drum
Slip Ring Enclosure
Slip
Ring
Optional
Ball Stop
Roller
Guide
Spring
Motor
Quick Index & Application Guide
Reel Series
Typical Applications
Commercial Facilities
Dry environments
where no r
ain, spray or
other moisture is present
such as workshops
& auto garages.
Light Industrial
Dry environments
where no r
ain, spray or
other moisture is present such as schools
and firehouses.
General Industrial
Dry environments where
subject t
o frequent use
to supply light or power
to portable or moving
equipment.
Heavy-Duty Industrial
Dry or wet areas where rain,
spra
y or other moisture is
present. Reel used to supply
light or power to portable or
moving equipment.
Hazardous Locations
Classified per NEC article
500 & where r
ain, spray or
other moisture is present.
3000 Commercial Duty
•
2900 Light Duty
•
4000 Industrial Duty
• • •
5000 Industrial Duty
• • • •
6000 Heavy Duty Industrial
• • • •
7000 Heavy Duty Industrial
• • • •
8000 Hazardous Location
•

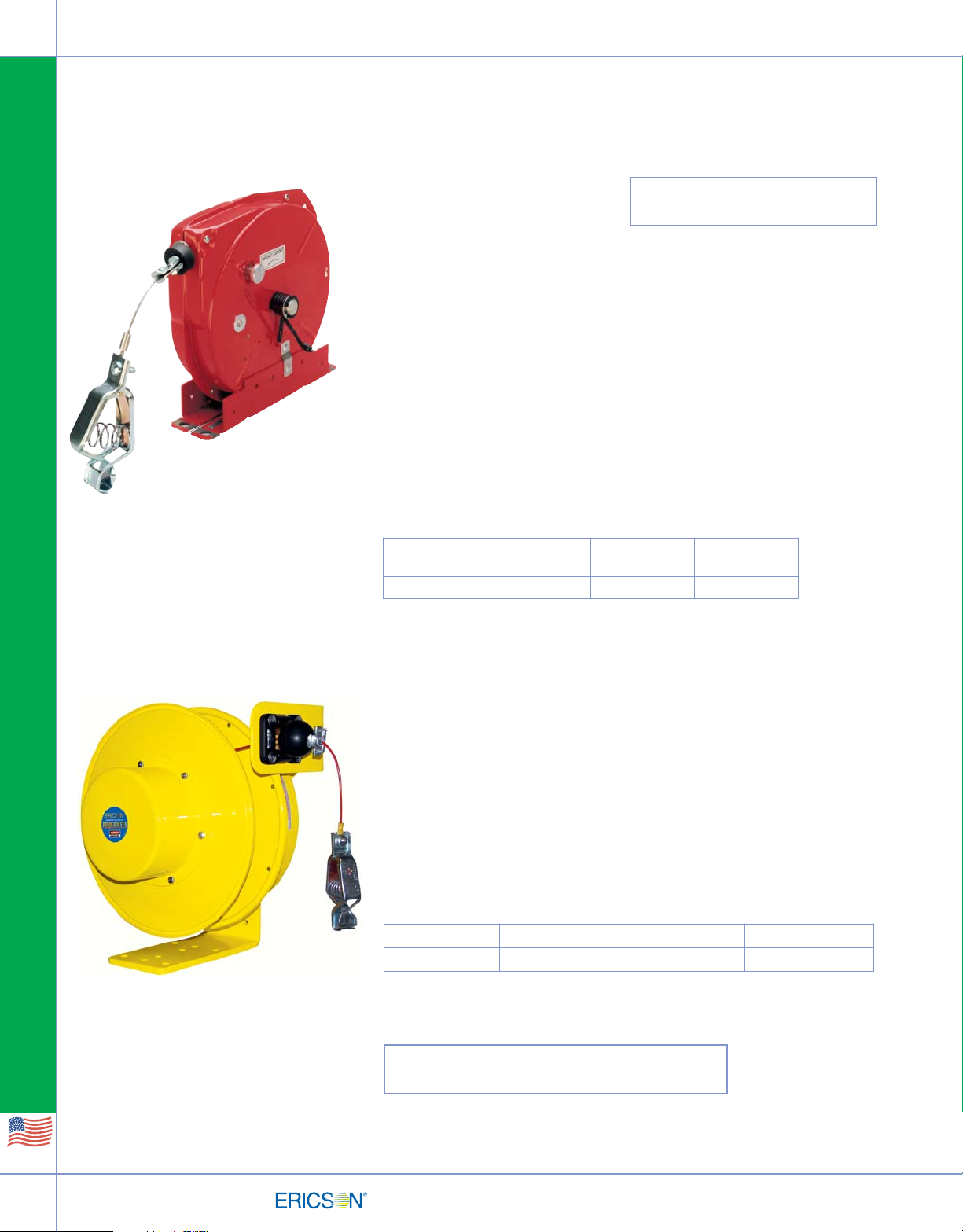

SDR Grounding Reels
• • • •
Page 4
136
185
Specifying Your Cable Reel
Made in
the USA
REELS
Follow these three steps to make sure you get the best
reel for your application needs. Your local representative
or the sales team at our factory are glad
to help if you need additional assistance.
Step 1: Mechanical Requirements:
• How will the reel be used? Stretch, Lift, Drag, or
Retrieve? (See left for guidance)
• What type of environment will the reel be located in?
(Indoors, outdoors, corrosive environment)
• What is the Duty Cycle? (How often will be reel payout
and retract?)
• What is the maximum speed of equipment?
(Maximum r
ecommended speed is 150 feet per minute)
Step 2: Electrical Requirements:
• How much amperage is the cable expected to handle?
• At what voltage?
• What will the reel be required to handle: power, control,
or communication signals?
• Ho
w many total conductors are required? (Please
include one conduc
tor for dedicated ground)
• What gauge (AWG) cable is required? The amperage
and total number of conductors required will
determine the gauge
Step 3: Cable Length Requirements:
• ADD: Active Length: The difference between the
minimum operating payout
• PLUS: Inactive Length: Cable that always stays out of
the reel,
even at full retraction
• PLUS: Safety Wrap:* Cable that stays on the reel at
maximum pay
out - See note below for details
• PLUS: Sag Factor - (Stretch Only): Add 10% to Active
and Inactive Length total
• Lift Height - (Drag/Retrieve): The distance between
where the cable lays up to the spool center line. Max 4’
• Hook up Length: Cable required for termination at both
ends - 2-3’ Spool End
* NO
TE: • Series 4000 = 2’
• Series 5000 = 2’
• Series 6000 = 5’
• Series 7000 = 5’
• Series 8000 = 3’
Stretch
The cable is “stretched” horizontally and is unsupported. The reel may be
stationary mounted or mounted onto moving equipment. Cable is pulled
out by machine. An extra 6% -10% in cable beyond active travel is
required for cable sag.
Lift
The reel needs to “lift” the cable vertically. The reel is usually stationary.
Cable is pulled out of the reel by machine or by hand (as with an overhead
light source or a pendant station.)
Retrieve
The reel needs to pickup (“retrieve”) the cable. The reel is mounted
on moving equipment. Cable is pulled out by machine.
Drag
The reel needs to “drag” the cable through supports or along the ground
horizontally. The reel is usually stationary. Cable can be pulled out by hand
or by machine. Note: This application is the hardest on cable life.
Page 5
137
186
3000 Series - Light Duty Cord Reels
REELS
Made in
the USA
• Commercial duty black cord reel
• High impact, corrosion resistant non-metallic housing
• Ideal for use in commercial/industrial workshops,
automotiv
e garage & machine shops
• Reel mounts to wall or ceiling
• Reel swivels 180° to cover wide range work area
• Compact size allows mounting in tight spaces-
Only 6” wide x 11”
diameter
• Ratchet lock holds cord at desired position
• Available with NEMA 5-15 Tri-Tap
TM
outlets or
fluorescent handlamp
• Installation kit comes complete with instruction
sheet, mounting bracket and all the hardware
needed for a complete installation
• Circuit breaker to prevent overload
3000 Series Cord Reel Selection Guide
Angle Light Tri-Tap Outlet
Non-metallic Housing with:
With 50-ft. of cable 3163-50-AL 3163-50-TT
SPECIFICATIONS:
Cord Size #16/3 #16/3
Cord Type SJTOW SJTW
Circuit Breaker 8 Amps 8 Amps
Cord Outlets N/A (3) NEMA 5-15
Primary: Cord Length 2 ft. 2 ft.
Power Switch in
Handlamp Handle
Yes _
Side Outlet in
Handlamp Handle
(1) NEMA 5-15 _
Bulb Wattage 13 watt _
Bulb Included Yes _
Ballast Location Handle _
2900 Series - Light Duty Cord Reels
• Light duty bright yellow cord reel with steel housing
• Ideal for use in machine shops, automotive garages
and commercial and light industrial workshops
• Reel mounts to wall or ceiling
• 2 ft. primary cord with molded-on NEMA
5-15 plug pro
vides wide reach to plug in
to nearest receptacle
• Reel comes with incandescent
or fluoresc
ent handlamp
• Ratchet lock holds cord at
desired position
2900 Series Selection Guide
Cord GA.,
#Cond. & Type
Length
#16/3 SJT 30’ 2900
#18/2 SJT 40’ 2910
Specifications:
Volts 120 120
Amps 10 7
Handlamp:
Wattage 100 watt 13 watt
Switch Yes Yes
Side Outlet Yes
2900
2910
Page 6
138
187

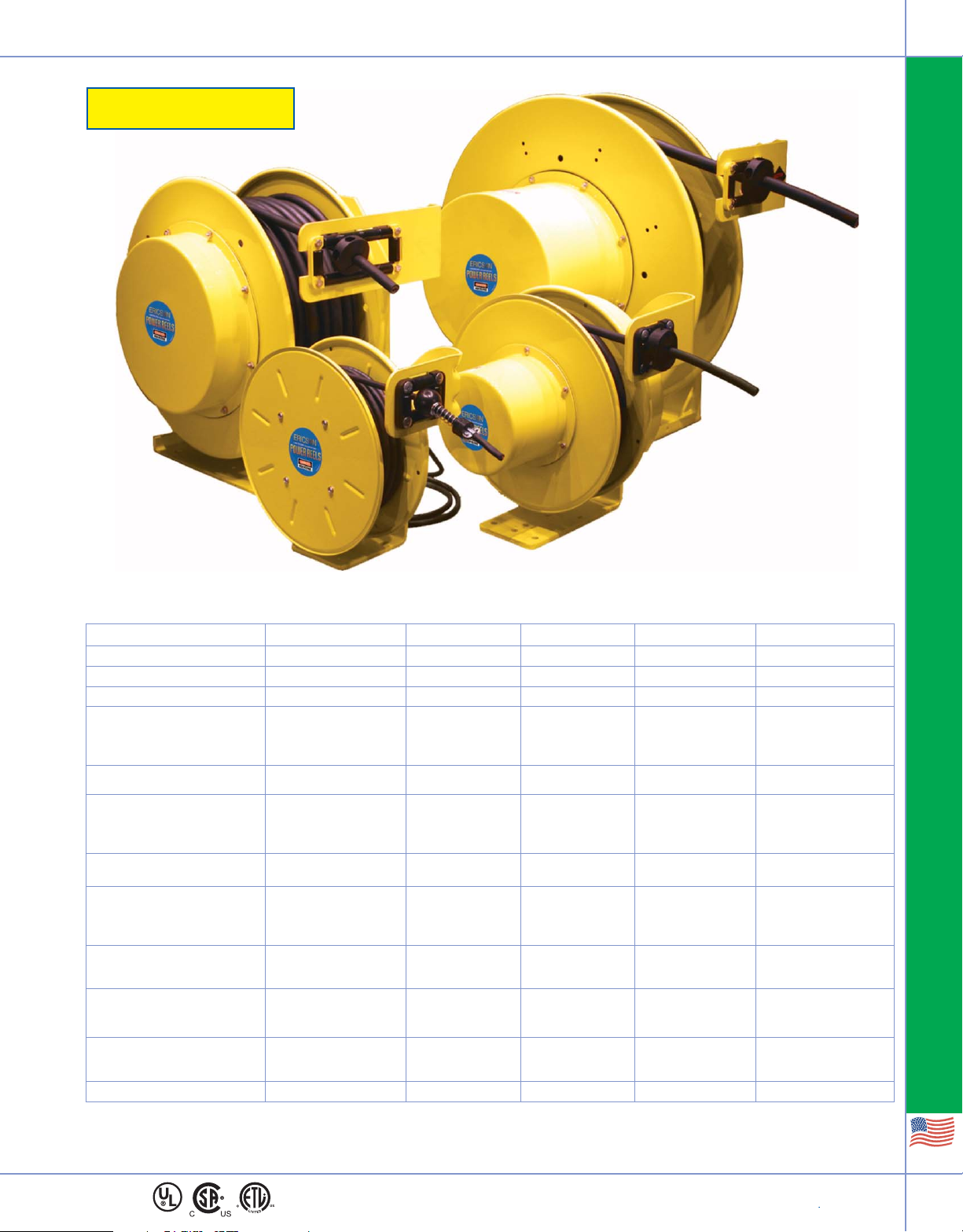

Industrial Reels
Made in
the USA
REELS
6000 Series
4000 Series
5000 Series
7000 Series
Standard Reel Offering 4000 5000 6000 7000 8000
Lift/Drag Application Standard Standard Standard Standard Standard
Ball Stop included Y
es Yes Yes Yes Yes
Ratchet Installed Yes Yes Yes Yes Yes
Primary Power Cord & Plug
attached to Reel
Yes - Molded plug
matches amp rating of
cord/reel
No - must
run conduit
and hardwire
No - must
run conduit
and hardwire
No - must
run conduit
and hardwire
No - must
run conduit a
nd hardwire
SJ Cord Type Standard Not available Not available Not available Not available
SO Cord Type
By part number
designation only -SO Standard Standard Standard
Standard - XP
locations must have
SO cable per NEC
Blunt Secondary Standard Standard Standard Standard Standard

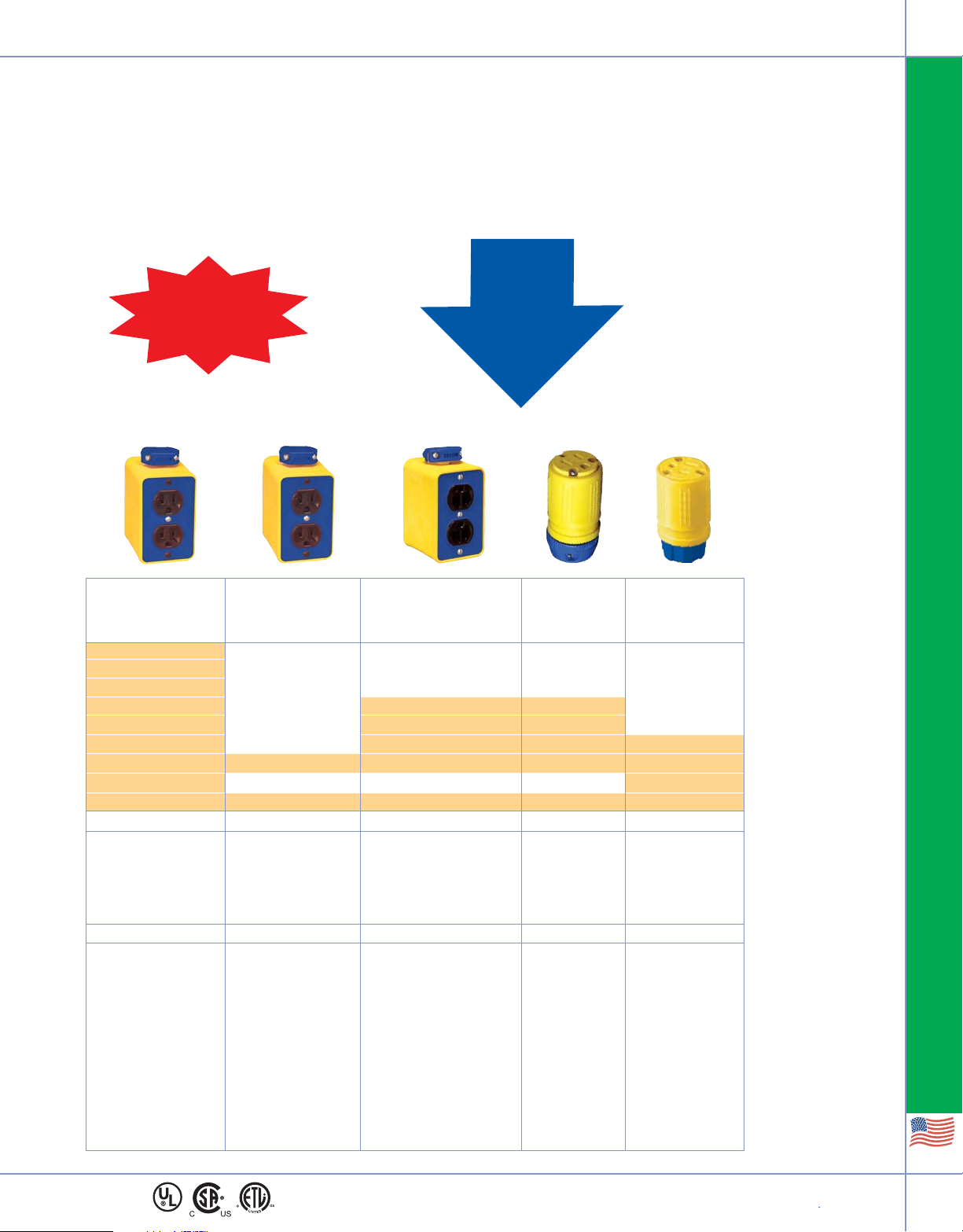

Add-ons installed - Lights Power Boxes - Single
Connectors
Per part number
& cord size
limitations
Per part number
& cord size
limitations
Per part number
& cord size
limitations
Per part number
& cord size
limitations
XP Type only - Per part
number & cord size
limitations
Stretch/Retrieve No Ball Stop
No Ratchet installed Not available Custom RFQ Only Custom RFQ Only Custom RFQ Only Custom RFQ Only
Cord Type - Standard #16/3 SJOW to #12/4
#16/3 SOW
to #10/6
#16/3 SOW
#10/4
#16/4 SOW
to #10/4
#16/3 SOW
to #14/4
Electrical Rating
(Amps @ 120V) 10A to 20A 5A to 25A 8A to 25A 12A to 25A 8A to 20A
Lengths Available 25 to 50 Ft 20 to 70 ft 70 to 150 ft 125 to 150 Ft 20 to 50 ft
SPECIFICATIONS
Page 7
139
188

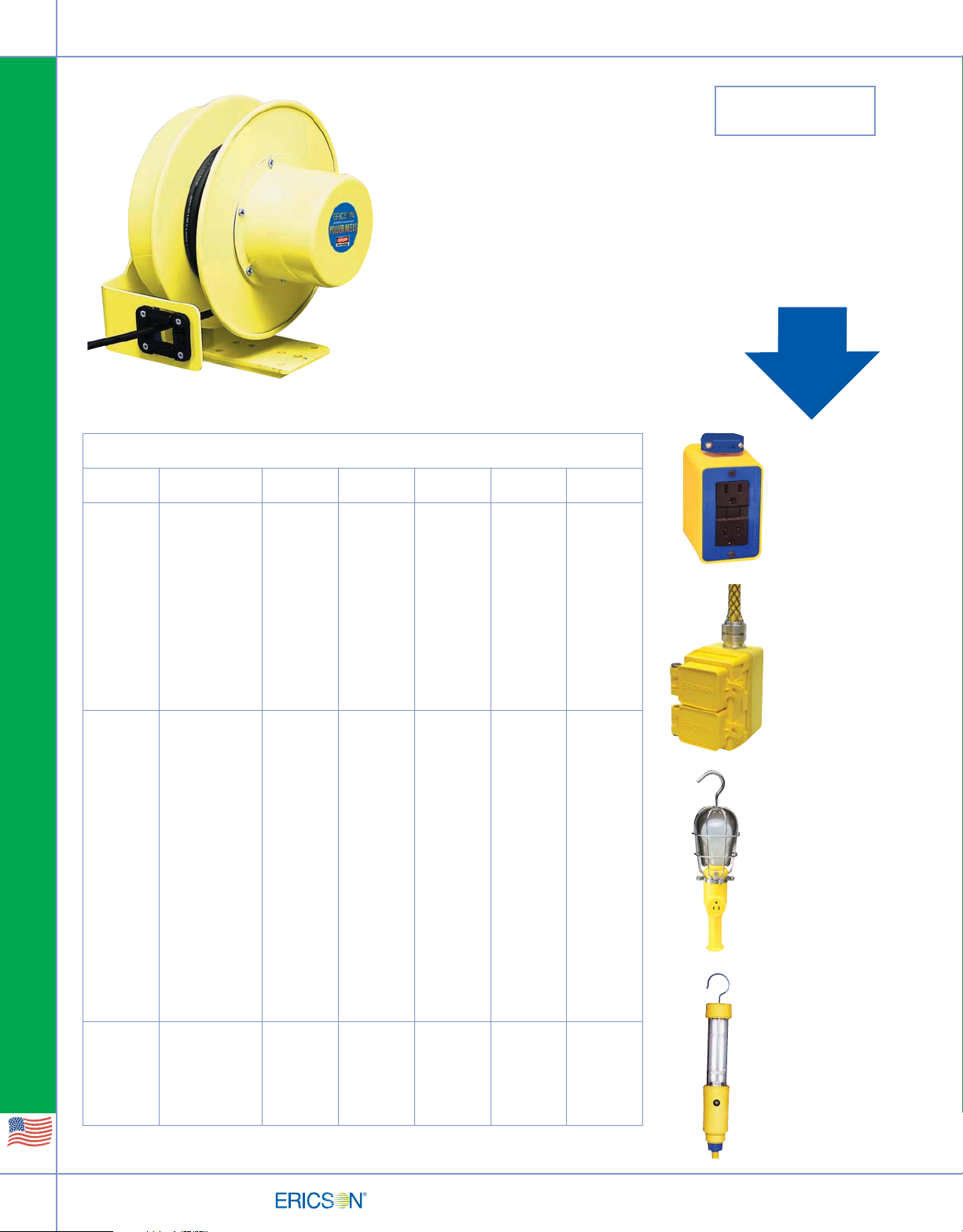

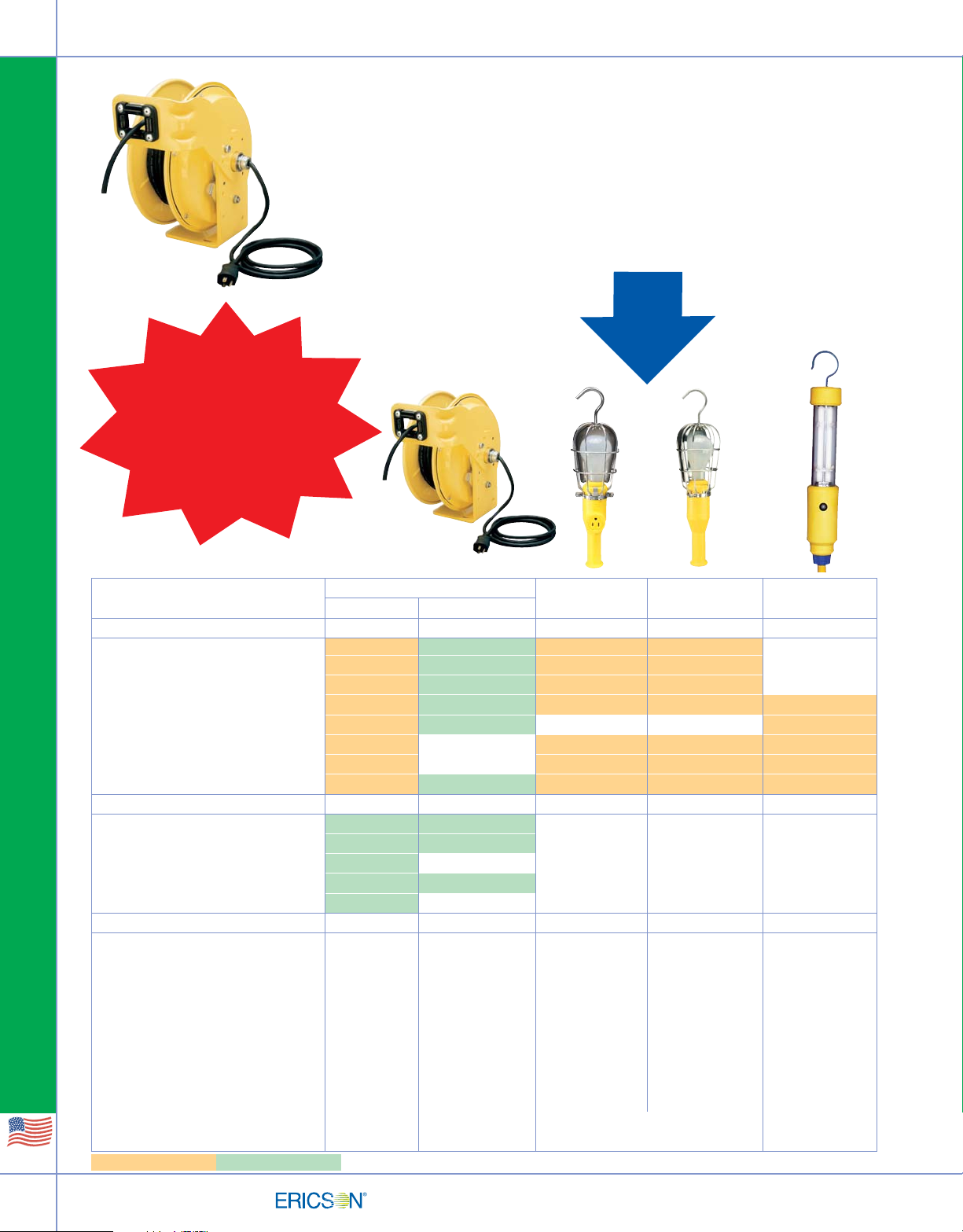

4000 Series - Industrial Grade Cord Reels
REELS
Made in
the USA
• UL Listed & CSA certified
• Ideal for Indoor and Outdoor Use - NEMA 4 Rated (wet or
dry - less electrical options & molded plug which are NEMA 2)
• Safety-Yellow Powder-Coated Finish
• Compact Size (12.75” H x 7.75”W - 18 lbs. less cable)
• Heavy Formed Steel Stand (5/16” - thick)
• Available in 3 and 4 Conductors (incl. dedicated ground)
• All-Steel Pawl and Ratchet with 4 Locking Positions
• Automatic Locking Ratchet With lockout Lever Option
• Adjustable / Removable Steel Cable Guide (3/16” - thick)
• Low-Friction, 4-roller cable guide
4000 Series Cord Reel Selection Guide
12 Gauge = SJOOW 14 Gauge = SJOOW
16 Gauge = SOW Only
Reel w/ Cable Only
944-RS
Handlamp
744-RS
Handlamp
900
Handlamp
See Table SOW Cable
Reels with 3-Conductor Cable
with 25-ft. of #16/3 AWG
4163-25 4163-25SO 4163-25-HSS 4163-25-HS
with 35-ft. of #16/3 AWG
4163-35 4163-35SO 4163-35-HSS 4163-35-HS
with 50-ft. of #16/3 AWG
4163-50 4163-50SO 4163-50-HSS 4163-50-HS
with 30-ft. of #14/3 AWG
4143-30 4143-30SO 4143-30-HSS 4143-30-F
with 40-ft. of #14/3 AWG
4143-40 4143-40SO 4143-40-F
with 50-ft. of #14/3 AWG
4143-50 See 5000 Series Reels 4143-50-HSS 4143-50-HS 4143-50-F
with 25-ft. of #12/3 AWG
4123-25 See 5000 Series Reels 4123-25-HSS 4123-25-F
with 50-ft. of #12/3 AWG
4123-50
4123-30-S0
4123-50-HSS 4123-50-HS 4123-50-F
Reels with 4-Conductor Cable
with 35-ft. of #16/4 AWG
4164-35 4164-35SO
with 50-ft. of #16/4 AWG
4164-50 4164-50SO
with 35-ft. of #14/4 AWG
4144-35
with 25-ft. of #12/4 AWG
4124-25 4124-25SO
with 35-ft. of #12/4 AWG
4124-35
SPECIFICATIONS:
Electrical Ratings 300V 600V
Reels with A
WG #16/3,#16/4 10A,
8A 10A, 8A 125v/10A 125v/10A 125v/2A
Reels with AWG #14/3, #14/4 15A,12A 15A,12A 125v/15A 125v/15A 125v/2A
Reels with AWG #12/3, #12/4 20A,16A 20A, 16A 125v/20A 125v/20A 125v/2A
Cord Type SJOW SOW SJOW SJOW SJOW
Power Switch in Handlamp Handle _ _ Yes Yes Yes
Side Outlet in Handlamp Handle _ _ Yes No No
Guard Material _ _ Zinc Plated Steel Zinc Plated Steel Non-Metallic
Handle Material _ _ Vinyl Nitrile Rubber Vinyl Nitrile Rubber Vinyl Nitrile Rubber
Bulb Wattage _ _
100 Watt 13 Watt Fluorescent
Bulb Included _ _
GREAT FOR
SCHOOLS
,
FIREHOUSES
& PULL DOWN
DISPLAY POWER
+ + +
ADD
ONE OF
THESE
GREAT
OPTIONS
Orange = NEMA 2 Green = NEMA 4
Page 8
140
189
4000 Series - Industrial Grade Cord Reels
Made in
the USA
REELS
• Adjustable Ball Stop Included
• 6’ Feeder Cord (Note: Molded plug included on all 3 conductor cables, 4 conductor cable supplied without plug)
• Slip Ring: 30 Amps, 600 Volts
• Available with and without handlamps or receptacle box pre-installed
Ball Stop
&
Ratchet
Included
6000 Outlet Box
(2) NEMA 5-15
Duplex Receptacles
(Non-GFCI)
6000 Outlet Box
(2) NEMA 5-20R Duplex
Receptacles
(Non-GFCI)
6029 Extra-Deep Outlet Box
(1) NEMA 5-15 Duplex Recpt.
& (1) NEMA 5-15 GFCI
duplex Recpt.
NEMA 5-15C
Connector
Perma-Link®
NEMA 5-20C
Connector
Perma-Grip™
4143-30-B 4143-30-BG 4143-30-1610
4143-40-B 4143-40-BG 4143-40-1610
4143-50-B 4143-50-BG 4143-50-1610
4123-25-B 4123-25-B20 4123-25-BG 4123-25-1610 4123-25-1612CG
4123-30S0-B
4123-50-B 4123-50-B20 4123-50-BG 4123-50-1610 4123-50-1612CG
125v/10A 125v/10A 125v/10A
125v/15A 125v/15A 125v/15A
125v/20A 125v/20A 125v/20A
SJOW SJOW SJOW
_ __
_ __
_ __
_ __
_ __
_ _ _
CTS* - Cord gauge is too small *Two independent GFCI circuits
ADD
ONE OF
THESE
GREAT
OPTIONS
Page 9
141
190

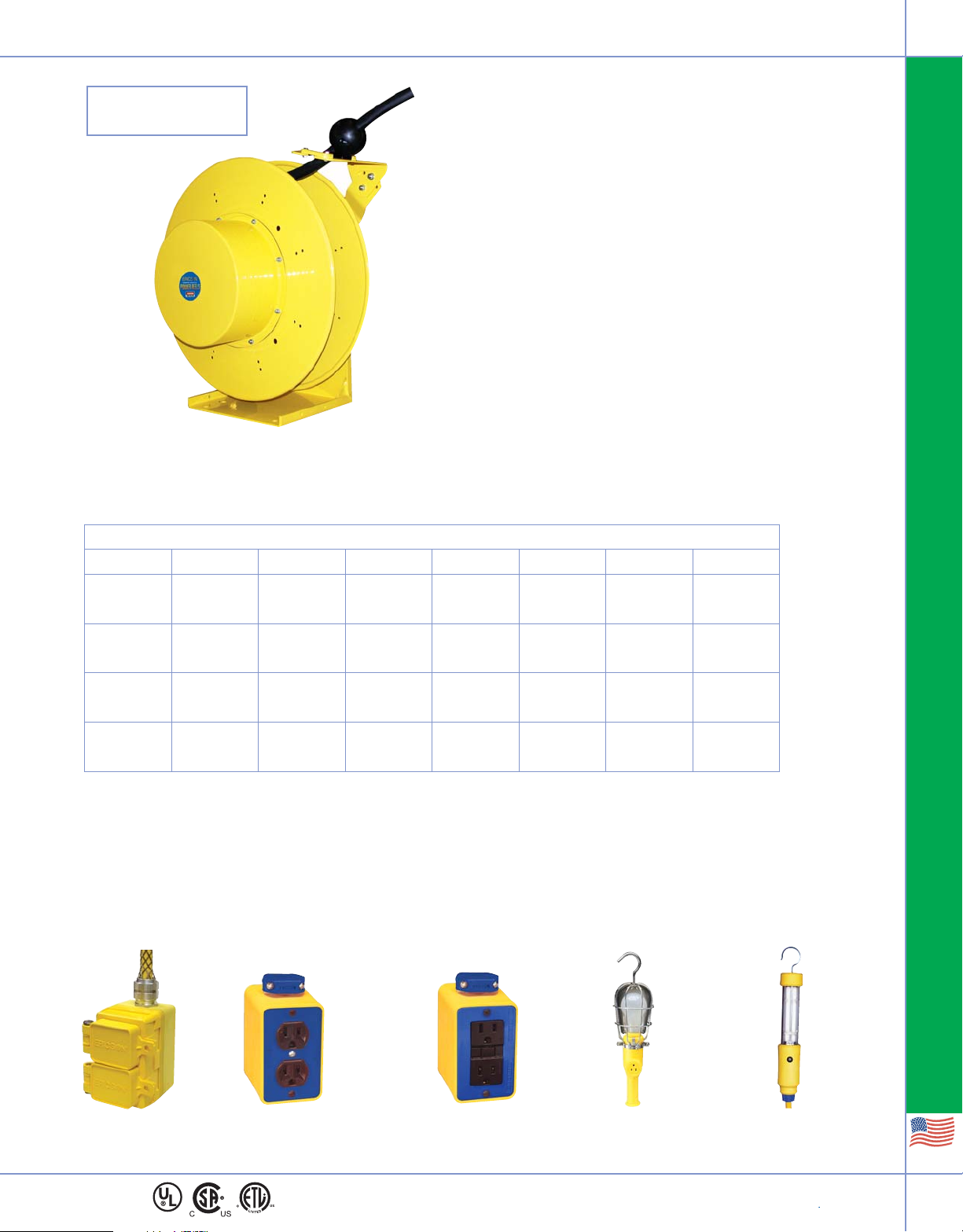

5000 Series - Large Cable Cord Reels
REELS
Made in
the USA
• Ideal for indoor and outdoor use (wet or dry)
• Weatherproof NEMA 4 slip ring enclosure
• Heavy all-steel construction
• Safety-yellow powder-coated finish
• Numbered terminal blocks for simplified hookup
• Formed steel stand with multiple mounting holes
• Guide arm (4-roller, adjustable to 12 positions for
efficient cable stor
age)
• Ratchet - positive lock including constant tension feature
• 35 Amp/600 volt slip ring
• Available in welding & grounding reel version
• Supplied with Type SOW or SOOW cable installed
• Primary feeder cord with watertight cable gland
supplied with reel
5000 Series Cord Reels Selection Guide
For Reel Dimensions, refer to the end of this section.
SOW Cable Gauge & Conductors - 600V
Amp Rating 20’ 30’ 40’ 50’ 60’
16/3 10A 5163-20 5163-30 5163-40 5163-50 5163-60
16/4 8A 5164-20 5164-30 5164-40 5164-50 5164-60
16/6 8A 5166-20 5166-30 5166-40 5166-50
16/8 7A 5168-20 5168-30 5168-40 5168-50
16/10 5A 51610-20 51610-30 51610-40
16/12 5A 51612-20 51612-30 51612-40
14/3 15A 5143-20 5143-30 5143-40 5143-50 5143-60
14/4 12A 5144-20 5144-30 5144-40 5144-50 5144-60
14/6 12A 5146-20 5146-30 5146-40 5146-50
14/8 10.5A 5148-20 5148-30
14/10 7.5A 51410-20
12/3 20A 5123-20 5123-30 5123-40 5123-50 5123-60
12/4 16A 5124-20 5124-30 5124-40 5124-50
12/6 16A 5126-20 5126-30
12/8 14A 5128-20
10/3 25A 5103-20 5103-30 5103-40 5103-50
10/4 20A 5104-20 5104-30 5104-40 5104-50
10/6 20A 5106-20 5106-30
Ratchet & ball stop
included
-HSS
Handlamp for
any 3-wire cord
(Not for #16 AWG)
-F
13 watt
Fluorescent
Handlamp
-1612-PWDX
20 Amp
5-20R T
Slot 1612-PWDX
(Not for #16 A
WG)
-BG-20
Not for #16 AWG
ADD
ONE OF
THESE
GREAT
OPTIONS
Page 10
191
6000/7000 Series - Extra Long Cord Reels
Made in
the USA
REELS
• Our 6000 Series and 7000 Series reels are your top-quality,
low-cost alternative to other spring reels of this capacity.
These reels offer heavy-duty performance at some of the
most attractive prices in the market.
• Excellent performance in industrial indoor and outdoor
applications (wet or dr
y)
• Built to NEMA 4 Standards/CSA certified
• Heavy all-steel construction
• Safety-yellow powder-coated finish
• Standard two-piece roller-guide design for maintainability,
with a 345º mounting range
• Saf
ety-sealed, lifetime lubricated spring motor canister
• Generously sized slip ring housing with fully articulating
brushes for fla
wless contact in adverse conditions
• Variety of ring amp ratings from 35-150 Amps
• Reels are sized to handle Type SOW, Type W or Type G cable
• Add an extra 7 feet of cable for hookup/safety wrap, as well as
an extr
a 10% of total travel length for stretch applications
• Primary power conductors supplied with reel
For Reel Dimensions, refer to the end of this section.
SOW Cable Gauge & Conductors
Amp Rating 70’ 80’ 90’ 100’ 125’ 150’
16/3 10 6163-70 6163-80 6163-90 6163-100 6163-125 6163-150
16/4 8 6164-70 6164-80 6164-90 6164-100 6164-125 7164-150
14/3 15 6143-70 6143-80 6143-90 6143-100 6143-125 7143-150
14/4 12 6144-70 6144-80 6144-90 6144-100 7144-125 7144-150
12/3 20 6123-70 6123-80 6123-90 6123-100 7123-125 7123-150
12/4 16 6124-70 6124-80 6124-90 6124-100 7124-125
10/3 25 6103-70 6103-80 6103-90 6103-100 7103-125
10/4 20 6104-70 6104-80 6104-90 6104-100 7104-125
6000 & 7000 Series Cord Reels Selection Guide
6000 Box
GFCI
944-RS 900
Add-Ons - Add to Base Part Number (Call for Details)
6000 Box1612-PWDX
NEMA 5-20 T Slot
++ + +
Ratchet & ball stop
included
-1612-PWDX -B -BG20 -HSS -F
(not for #16 AWG) (not for #16 AWG)
Page 11
143
192
8000 Series - Hazardous Location Cord Reels
REELS
Made in
the USA
• Enclosures are designed to comply with requirements for
Class I, Div 1 - Groups C & D and Class II, Groups F & G
but are not certified by any regulatory body
• Built to NEC standards
• Indoor or outdoor use
• Rugged fabricated steel and cast aluminum construction
• 30 Amp / 600 Volt advanced slip ring assembly
• Threaded junction box and slip ring enclosure
• SOW-A cable on factory assembled models
• Spring activated ratchet
• 4-roller adjustable cable guide
• Maximum dimensions: 14 1/2” H x 14 1/2” W x 17” D
• Note: 5 additional feet of cable required for safety wrap
and hookup
Guab Box
All Explosion Proof Reels Come with Feeder for Listing
Threaded Slip Ring Cover into Entrance Housing
Solderless Connectors Attaching Slip
Ring Leads to Sealed Shaft Leads
Watertight Cable Connector
Furnished with Entrance Housing
Hazardous Duty (Explosion-Proof) Sealing Compound Seals
Brush Leads in the Hazardous Duty (Explosion Proof) Housing
Slip Ring Brush Leads from Spooled Cable
Hazardous Duty (Explosion Proof)
Sealing Compound around Slip
Ring Leads
Slip Ring Leads
from Slip Ring
EXPLOSION
PROOF!
Page 12
144
193
8000 Series - Hazardous Location Cord Reels
Made in
the USA
REELS
8000 Series Hazardous Duty Reel Selection Guide
Reel & Handlamps Meet or Exceed
Hazardous Location Requirements
• Class I, Div. I, Groups C & D
• Class II, Groups F & G
SOW Cable
Gauge &
Conductors
Length of
Cable
Reel with
Cable Only
Reel w/ Hazardous Duty Handlamp
2600 2500
16/3 20’ 8163-20 8163-20-XPI 8163-20-XPF
16/3 40’ 8163-40 8163-40-XPI 8163-40-XPF
16/3 50’ 8163-50 8163-50-XPI 8163-50-XPF
16/4 20’ 8164-20
16/4 40’ 8164-40
16/4 50’ 8164-50
14/3 20’ 8143-20 8143-20-XPI 8143-20-XPF
14/3 40’ 8143-40 8143-40-XPI 8143-40-XPF
14/3 50’ 8143-50 8143-50-XPI 8143-50-XPF
14/4 20’ 8144-20
14/4 40’ 8144-40
14/4 50’ 8144-50
+
Add a Hazardous Handlamp for a Complete System
2600
100W Incandescent
2500
26W Fluorescent
Page 13
145
194
SDR Series Static Discharge Grounding Reel
REELS
Made in
the USA
• Built to NEC Standards
• For indoor use only
• Rugged all steel construction
• Compact Design
• Mounts in any position
• Red epoxy coated finish
• Feet are unfinished for maximum electrical contact
• Resistance not exceeding 0.3 OHMS
• Includes aircraft type cable: 3/32” diameter standard steel
• Includes 100 Amp grounding clamp
• Includes automatic locking ratchet with lockout feature
for c
onstant tension
Areas used for fuel handling, mines and other places where airborne flammables may exist, require reliable static
discharge systems...and Ericson has them. Ericson grounding reels are perfect for discharging dangerous static
electricity build-up in environments with a risk of fire due to flammable particulates.
Small size
Coated cable
Selection Guide
Selection Guide
• Ericson 5000 Series Reels are now available
for grounding applications where longer
cables are needed
• Ball stop included
• 4-roller guide adjustable cable guide
• Auto locking ratchet for constant tension
• 100 amp grounding clamp included
• Resistance not exceeding 2 Ohms
Cable Length
Resistance
(ohms)
Description
Catalog
Number
50 ft. 0.3 Single Cable SDR-50
Cable Length Description Catalog Number
100 ft. Single Cable with orange nylon jacket SDR-100
Refueling Grounding
Handles Static Charges Safely
Page 14
SC-2
146
195
Reel Accessories
Made in
the USA
REELS
Selection Guide

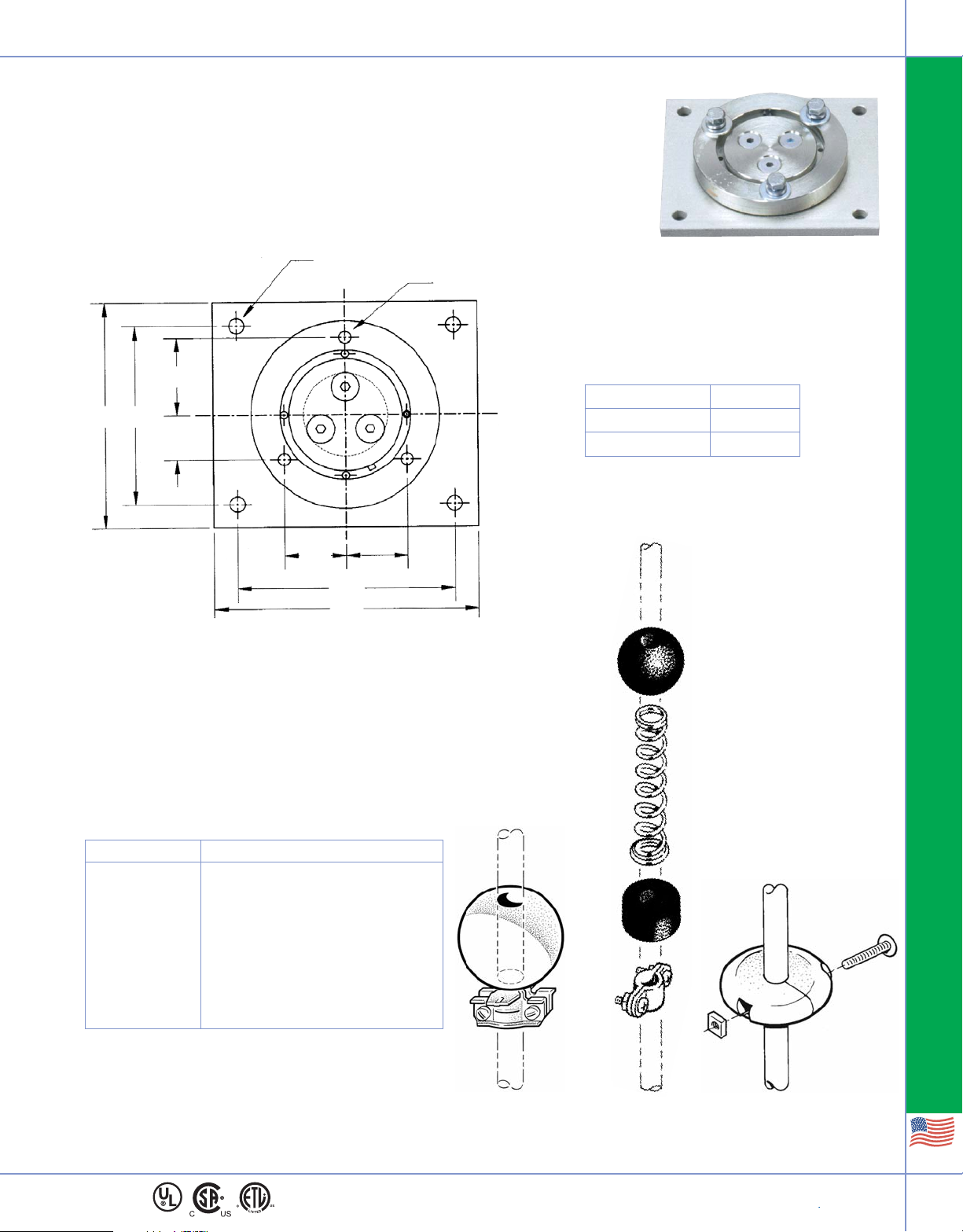

Ball Stops
• Also referred to as “cable stops”, “bumper stops”, or “hose stops”
• Generally used for manually operated lift and drag applications to
govern retraction length. Stops are required when accessories such as
handlamps and receptacle boxes are installed on cable reels
• Suitable for all Ericson Cable reels
Selection Guide
345º Pivot Base
• Use our pivot base to customize your reel
mounting for your specific application
• All steel base
• Lifetime bearing (never needs lubrication)
• Swing can be restricted to 90º, 180º, and 270º
• Anodized clear finish
PB-45
SC-3
SC-4
SC-5
SC-6
SC-7
(4) 0.44 DIA Holes
PB-45 Shown
2.06
1.19
1.62
5.75
7.00
1.62
6.00 4.75
(3) 0.38-16 UL
SC-1
Catalog Number Reels
PB-45 4000-5000
PB-67 6000-7000
Catalog Number Description
SC-1 For cable O.D. ranges 0.188” to 0.438”
SC-2
For cable O.D. ranges 0.188” to 0.438”
with shock absorbing spring bumper
SC-3 For cable ranges 0.438” to 0.624”
SC-4 For cable ranges 0.625” to 0.749”
SC-5 .75” to 1.05”
SC-6 1.06” to 1.38
SC-7 1.39 to 1.55
Page 15
Made in
the USA
147
196

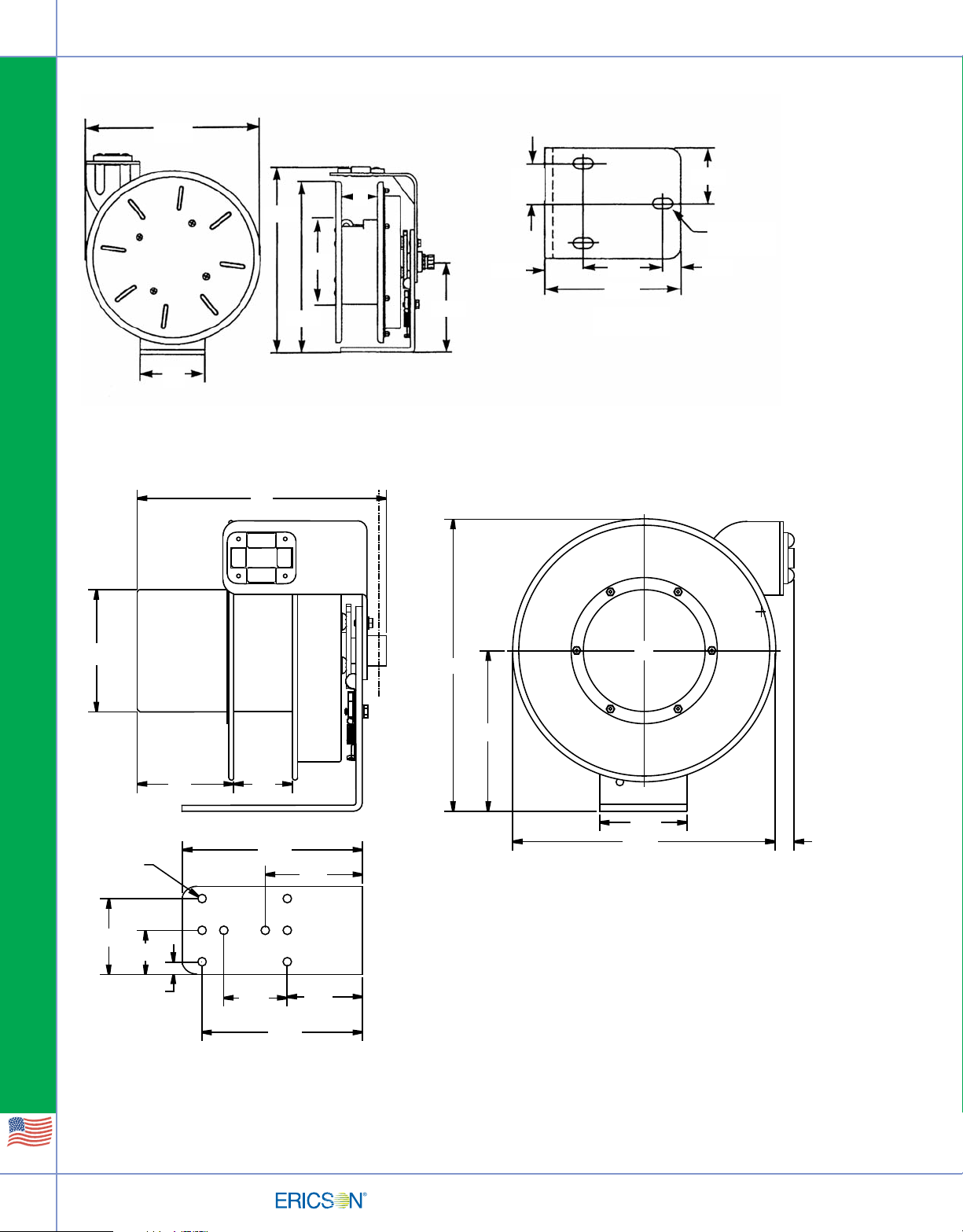

Dimensions
REELS
12.00
13.83
12.75
6.70
1.53
2.25
1.63
TYP
5.50
3.25
.72
3x0.406 x
0.813 SLOT
Mounting
Pattern
6.25
3
4.5
4000 Series
5000 Series
C
B
9.25
3.88
0.63
2.25
8.25
3.25 3.88
5.00
15.00
8.25
4.50
13.50
1.0
A = 3” TO 6”
B = 3.5” TO 8.5”
C = 13” TO 18”
A
ø
6.25
(8) ø0.437
Page 16
148
197

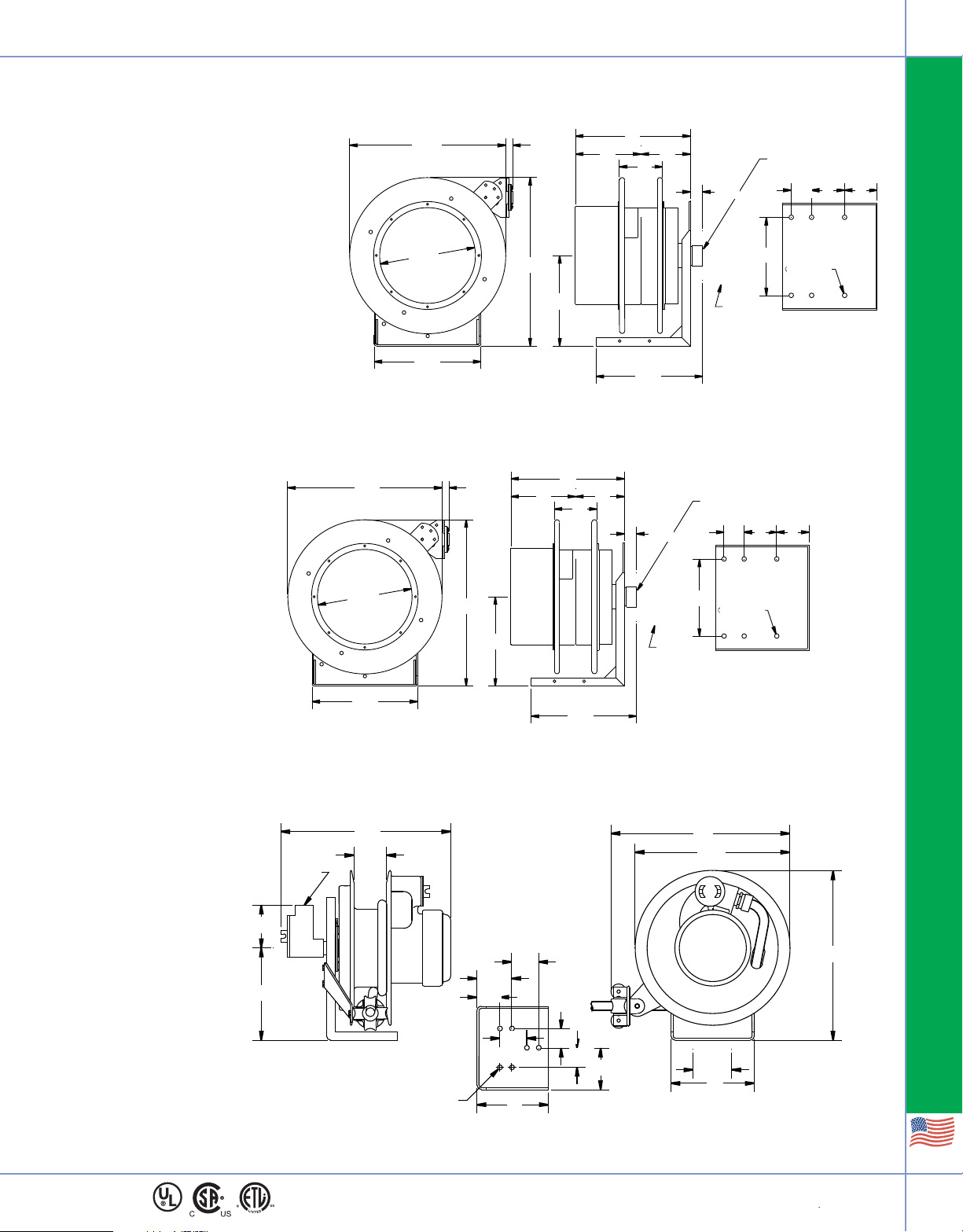

Dimensions
Made in
the USA
REELS
6000 Series
7000 Series
8000 Series
19.0
A
9.5
(6) ø0.56
(6) ø0.56
ø
11.9
ø
11.9
OPTIONAL
JUNCTION
BOX
OPTIONAL
JUNCTION
BOX
2.5
B D
C
13.4
1.75
1.75
1” NPT
INTERNAL
THREADS
11.0
0.89
20.5
13.0
24.0
(A)
15
ø
13
14.25
3.25
7
6
2.94
1.63
1.63
3.50
2.25
1.94
2.25
3.63
7.75
6X ø0.406 HOLES
(B)
13.0
13.4
25.5
13.5
0.89
A
9.5
B
D
2.5
4.0
4.0
C
3 AND 4 CONDUCTOR REELS HAVE
THE SMALLEST DIMENSIONS
3 AND 4 CONDUCTOR REELS HAVE
THE SMALLEST DIMENSIONS
A = 15.7 TO 26.7
B = 8 TO 17.8
C = 5.5 OR 7.9
D = 6 OR 7.3
JUNCTION BOX DEPTH = 2.25 TO 5.25
A = 15.7 TO 26.7
B = 8 TO 17.8
C = 5.5 OR 7.9
D = 6 OR 7.3
JUNCTION BOX DEPTH = 2.25 TO 5.25
DIM. A = 14.27 TO 16.95
DIM. B = 2.73 TO 4.92
4.0
4.0
1” NPT
INTERNAL
THREADS
0.75
NPT
Loading...
