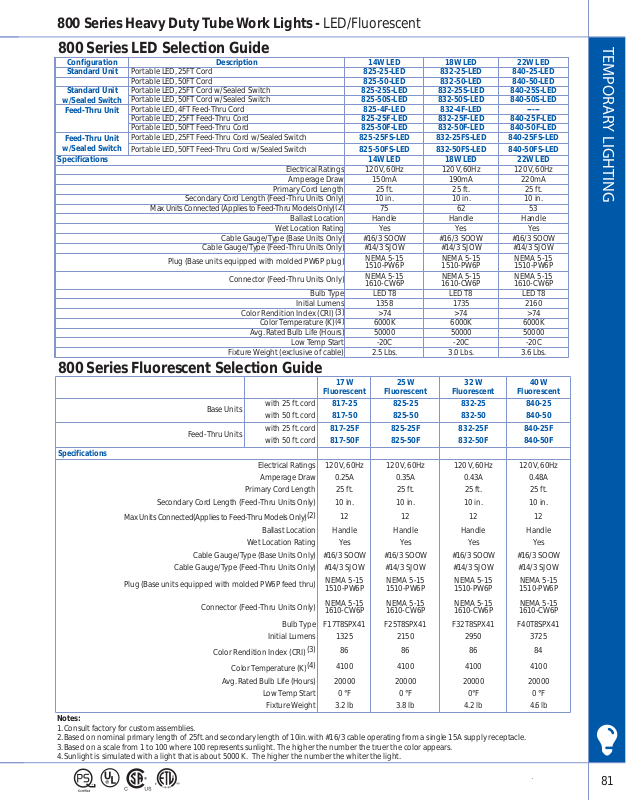

Ericson 800 Series LED Selection Guide

81

800 Series Heavy Duty Tube Work Lights - LED/Fluorescent

TEMPORARY LIGHTING

Notes:

1.Consult factory for custom assemblies.

2.Based on nominal primary length of 25ft. and secondary length of 10in. with #16/3 cable operating from a single 15A supply receptacle.

3.Based on a scale from 1 to 100 where 100 represents sunlight. The higher the number the truer the color appears.

4.Sunlight is simulated with a light that is about 5000 K. The higher the number the whiter the light.

800 Series LED Selec tion Guide

800 Series Fluorescent Selection Guide

Configuration Description 14W LED 18W LED 22W LED
Standard Unit Portable LED, 25FT Cord 825-25-LED 832-25-LED 840-25-LED

Portable LED, 50FT Cord 825-50-LED 832-50-LED 840-50-LED

Standard Unit

w/Sealed Switch

Portable LED, 25FT Cord w/Sealed Switch 825-25S-LED 832-25S-LED 840-25S-LED
Portable LED, 50FT Cord w/Sealed Switch 825-50S-LED 832-50S-LED 840-50S-LED

Feed-Thru Unit

Portable LED, 4FT Feed-Thru Cord 825-4F-LED 832-4F-LED -----
Portable LED, 25FT Feed-Thru Cord 825-25F-LED 832-25F-LED 840-25F-LED
Portable LED, 50FT Feed-Thru Cord 825-50F-LED 832-50F-LED 840-50F-LED

Feed-Thru Unit

w/Sealed Switch

Portable LED, 25FT Feed-Thru Cord w/Sealed Switch 825-25FS-LED 832-25FS-LED 840-25FS-LED
Portable LED, 50FT Feed-Thru Cord w/Sealed Switch 825-50FS-LED 832-50FS-LED 840-50FS-LED

Specifications 14W LED 18W LED 22W LED

Electrical Ratings 120 V , 60Hz 120 V, 60Hz 120 V , 60Hz

Amperage Draw 150mA 190mA 220mA

Primary Cord Length 25 ft. 25 ft. 25 ft.

Secondary Cord Length (Feed-Thru Units Only) 10 in. 10 in. 10 in.

Max Units Connected (Applies to Feed-Thru Models Only)

(2)

75 62 53

Ballast Location Handle Handle Handle

Wet Location Rating Yes Yes Yes

Cable Gauge/Type (Base Units Only) #16/3 SOOW #16/3 SOOW #16/3 SOOW

Cable Gauge/Type (Feed-Thru Units Only) #14/3 SJOW #14/3 SJOW #14/3 SJOW

Plug (Base units equipped with molded PW6P plug)

NEMA 5-15
1510-PW6P

NEMA 5-15
1510-PW6P

NEMA 5-15
1510-PW6P

Connector (Feed-Thru Units Only)

NEMA 5-15

1610-CW6P

NEMA 5-15

1610-CW6P

NEMA 5-15

1610-CW6P

Bulb Type LED T8 LED T8 LED T8

Initial Lumens 1358 1735 2160

Color Rendition Index (CRI)

(3)

>74 >74 >74

Color Temperatur e (K)

(4)

6000K 6000K 6000K

Avg. Rated Bulb Life (Hours) 50000 50000 50000

Low T emp Start -20C -20C -20C

Fixture Weight (exclusive of cable) 2.5 Lbs. 3.0 Lbs. 3.6 Lbs.

17 W

Fluorescent

25 W

Fluorescent

32 W

Fluorescent

40 W

Fluorescent

Base Units

with 25 ft.

cord 817-25 825-25 832-25 840-25

with 50 ft. cord 817-50 825-50 832-50 840-50

Feed-Thru Units

with 25 ft.

cord 817-25F 825-25F 832-25F 840-25F

with 50 ft. cord 817-50F 825-50F 832-50F 840-50F

Specifications

Elec

trical Ratings 120 V, 60Hz 120 V, 60Hz 120 V, 60Hz 120 V, 60Hz

Amperage Dr

aw 0.25A 0.35A 0.43A 0.48A

Primary Cord Length 25 f t. 25 ft. 25 ft. 25 ft.

Secondary Cord Length (Feed-Thru Units Only) 10 in. 10 in. 10 in. 10 in.

Max Units Connected(Applies to Feed-Thru Models Only)

(2)

12 12 12 12

Ballast Location Handle Handle Handle Handle

Wet Location Rating Yes Yes Yes Yes

Cable Gauge/Type (Base Units Only) #16/3 SOOW #16/3 SOOW #16/3 SOOW #16/3 SOOW

Cable Gauge/Type (Feed-Thru Units Only) #14/3 SJOW #14/3 SJOW #14/3 SJOW #14/3 SJOW

Plug (Base units equipped with molded PW6P feed thru)

NEMA 5-15
1510-PW6P

NEMA 5-15
1510-PW6P

NEMA 5-15
1510-PW6P

NEMA 5-15
1510-PW6P

Connector (Feed-Thru Units Only)

NEMA 5-15

1610-CW6P

NEMA 5-15

1610-CW6P

NEMA 5-15

1610-CW6P

NEMA 5-15

1610-CW6P

Bulb Type F17T8SPX41 F25T8SPX41 F32T8SPX41 F40T8SPX41

Initial Lumens 1325 2150 2950 3725

Color Rendition Index (CRI)

(3)

86 86 86 84

Color Temperatur e (K)

(4)

4100 4100 4100 4100

Avg. Rated Bulb Life (Hours) 20000 20000 20000 20000

Low Temp Start 0 °F 0 °F 0°F 0 °F

Fixture Weight 3.2 lb 3.8 lb 4.2 lb 4.6 lb
