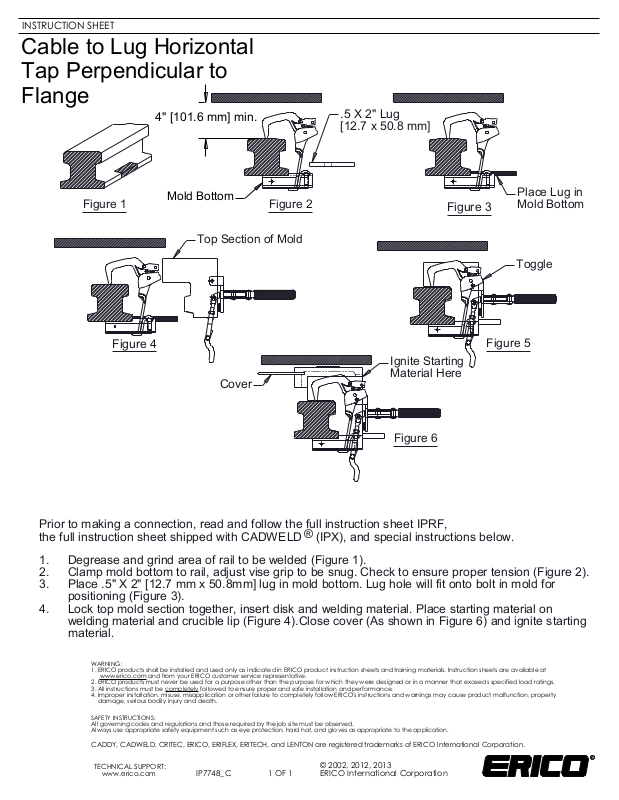

INSTRUCTION SHEET
Cable to Lug Horizontal
Tap Perpendicular to
Flange
4" [101.6 mm] min.
.5 X 2" Lug
[12.7 x 50.8 mm]

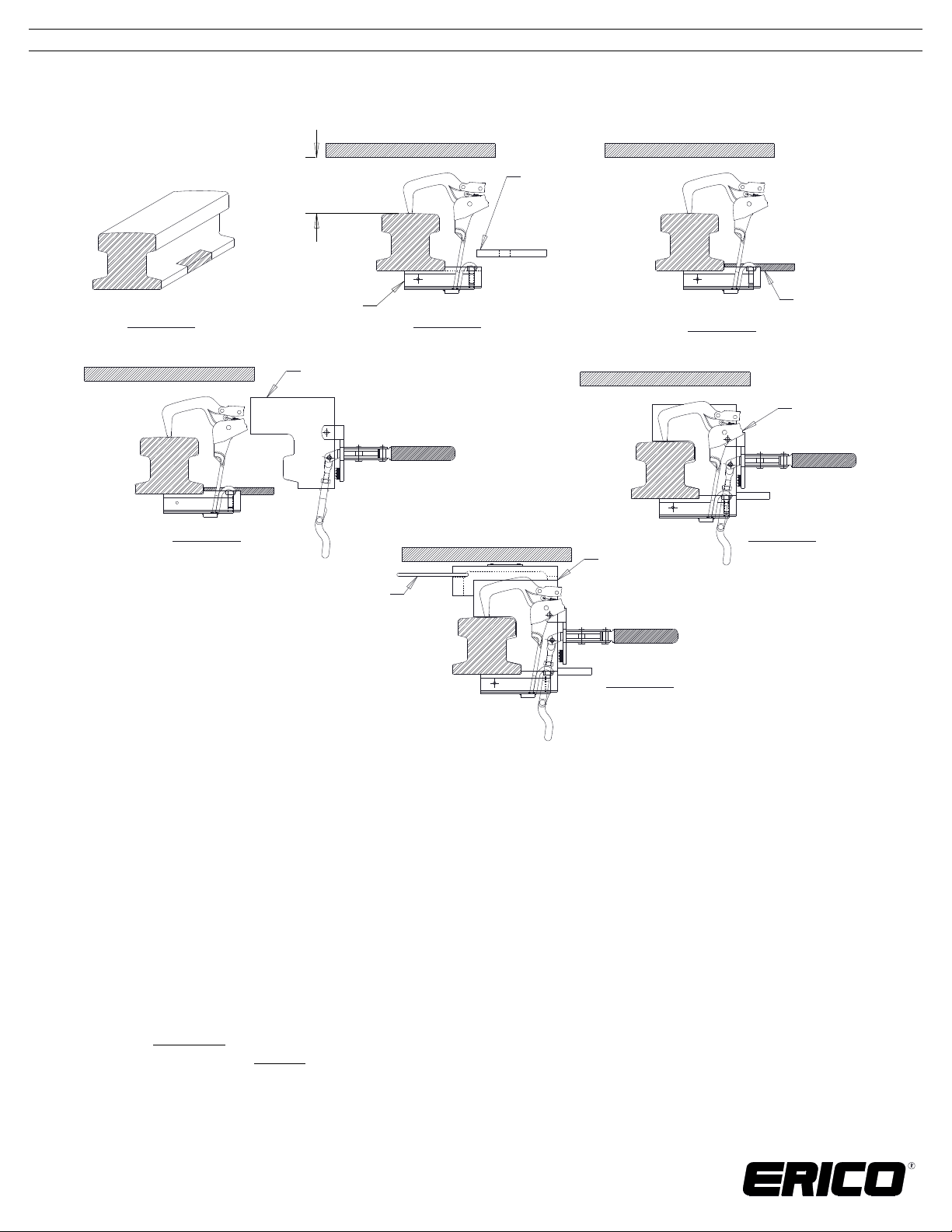

Figure 1
Figure 4
Mold Bottom
Top Section of Mold
Cover
Figure 2
Figure 3
Ignite Starting
Material Here
Figure 6
Place Lug in
Mold Bottom
Toggle
Figure 5
Prior to making a connection, read and follow the full instruction sheet IPRF,
the full instruction sheet shipped with CADWELD (IPX), and special instructions below.
®
Degrease and grind area of rail to be welded (Figure 1).1.
Clamp mold bottom to rail, adjust vise grip to be snug. Check to ensure proper tension (Figure 2).2.
Place .5" X 2" [12.7 mm x 50.8mm] lug in mold bottom. Lug hole will fit onto bolt in mold for 3.
positioning (Figure 3).
Lock top mold section together, insert disk and welding material. Place starting material on 4.
welding material and crucible lip (Figure 4).Close cover (As shown in Figure 6) and ignite starting
material.
WARNING:
1. ERICO products shall be installed and used onl y as indicated in ERICO product instruction sheets and training materials. Instruction sheets are available at
www.erico.com and from your ERICO customer service representative.
2. ERICO products must never be used for a purpose other than the purpose for which they were designed or in a manne r that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely foll ow ERICO's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and death.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
TECHNICAL SUPPORT:
www.erico.com
IP7748_C
1 OF 1
