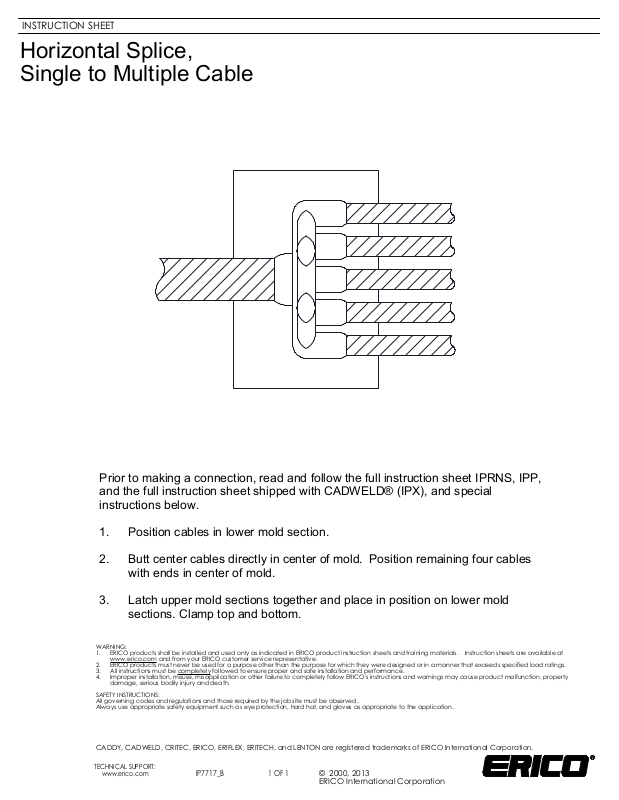

INSTRUCTION SHEET

Horizontal Splice,
Single to Multiple Cable

Prior to making a connection, read and follow the full instruction sheet IPRNS, IPP,
and the full instruction sheet shipped with CADWELD® (IPX), and special
instructions below.

Position cables in lower mold section.

1.

Butt center cables directly in center of mold. Position remaining four cables

2.
with ends in center of mold.

Latch upper mold sections together and place in position on lower mold

3.
sections. Clamp top and bottom.

WARNING:

ERICO products shall be installed and used only as indicated in ERICO product instruction sheets and training materials. Instruction sheets are available at

1.

www.erico.com

ERICO products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.

2.
All instructions must be

3.
Improper installation, misuse, misapplication or other failure to completely follow ERICO's instructions and warnings may cause product malfunction, property

4.
damage, serious bodily injury and death.

SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.

CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.

TECHNICAL SUPPORT:

www.erico.com

and from your ERICO customer service representative.

completely

followed to ensure proper and safe installation and performance.

IP7717_B

1 OF 1

© 2000, 2013
ERICO International Corporation
