Erica Synths Midi to Clock module User Manual

THANK YOU FOR PURCHASING

THANK YOU FOR ORDERING ERICA SYNTHS MIDI TO CLOCK MODULE! If you are true analogue enthusiast, you most probably have couple

of analogue sequencers that need to be synced to your drum machines and other midi controllers, therefore Erica synths has developed a simple

and cost-effective MIDI TO CLOCK module with few interesting features. Besides direct clock output that follows BPM of the midi sequencer or

drum machine, it has second clock output with selectable clock division by 2, 4 and 8.

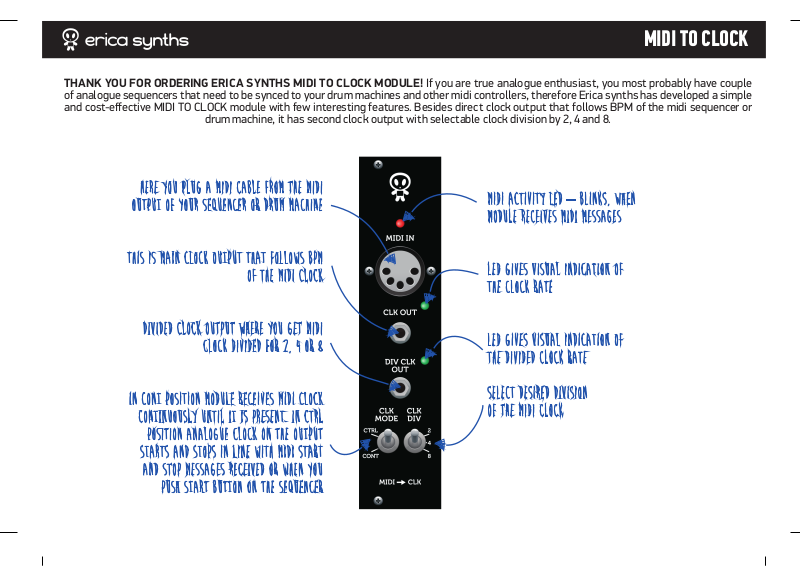

MIDI TO CLOCK

Here you plug a midi cable from the midi

output of your sequencer or drum machine

This is main clock output that follows BPM

of the midi clock

Divided clock output where you get midi

clock divided for 2, 4 or 8

In CONT position module receives midi clock

continuously until it is present. In CTRL

position analogue clock on the output

starts and stops in line with midi start

and stop messages received or when you

push start button on the sequencer

Midi activity LED – blinks, when
module receives midi messages

LED gives visual indication of
the clock rate

LED gives visual indication of
the divided clock rate

Select desired division
of the midi clock

THANK YOU FOR PURCHASING

MIDI TO CLOCK

SAFETY INSTRUCTIONS

Please follow the instructions for use of the Erica Synths midi to
clock module below, ‘cause only this will guarantee proper
operation of the module and ensure warranty from Erica Synths.

Water is lethal for most of the electric devices, unless
they are made waterproof. Erica Synths module is NOT
intended for use in a humid or wet environment. No
liquids or other conducting substances must get into the
module. Should this happen, the module should be
disconnected from mains power immediately, dried,

examined and cleaned by a qualified technician.

Do not expose the module to temperatures above +50° C
or below -20° C.

Transport the instrument with modules installed
carefully, never let it drop or fall over. Warranty does
not apply to modules with visual damages.

The module has to be shipped in the original packaging
only. Any module shipped to us for return, exchange
and/or warranty repair has to be in its original
packaging. All other deliveries will be rejected and
returned to you. Make sure you keep the original
packaging and technical documentation.

You will find Erica Synths terms of warranty at

www.ericasynths.lv.

Items for return, exchange and/or warranty repair have to be
sent to: Erica Synths Andrejostas Str. 4a , room T8-C, Riga,
Lat v ia, LV-1045

DISPOSAL

This device complies to the EU guidelines and is manufactured
RoHS conforming without use of led, mercury, cadmium and
chrome. Nevertheless, this device is special waste and disposal
in household waste is not recommended.

User manual by Girts Ozolins@Erica Synths .

Design by Edgars Rasins.

Copying, distribution or any commercial use in any way is
prohibited and needs the written permission by Erica Synths.

Specifications are subject to change without notice.

In case of any questions, feel free to contact us through
www.ericasynths.lv or via e-mail [e-mail].
